VIA Technologies TB8DB-2 User manual

TB8DB - 2
MINI BOWLING
USER MANUAL
File No.: M200615 - 01
VIA Mini-Bowling-2006
COPYRIGHT© 2006, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Chapter I Introduction
1.1 How to use this manual ............................................................1-2
1.2 Introduction of VIA ................................................................1-3
1.3 Sales and after-sales services information..................................1-4
1.4 Introduction of the product...........................................................1-4
1.5 Standard configuration of the products........................................1-9
Chapter II Preparation

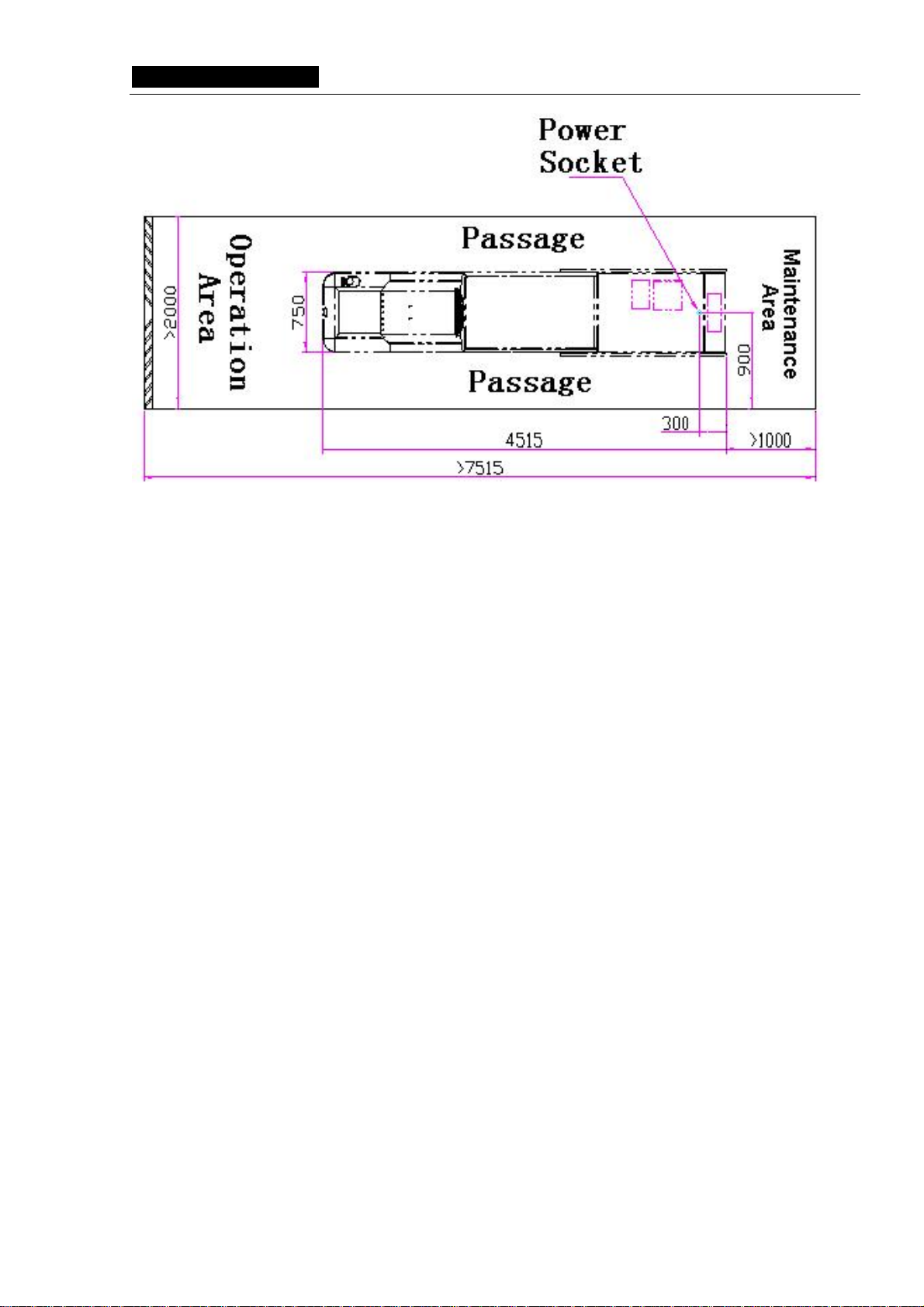

2.1 Site construction and decoration requirements............................2-2
2.2 Electrical requirements................................................................2-3
2.3 Lighting requirements..................................................................2-5
2.4 Equipment transportation and storage requirements...................2-5
2.5 Others..........................................................................................2-10
Chapter III Safety
3.1 General safety guide....................................................................3-2
3.2 Safety rules …………………………………………………………..3-2
3.3 Warning signs..............................................................................3-3
3.2 Safety and precautions................................................................3-4
3.3 Safety protection devices of the bowling equipment....................3-5
Chapter IV Assembly and adjustment
4.1 Preparation……………………………………………………………4-3
4.2 Mini bowling assembly procedure……………………………….…4-3
4.3 Electric interface and wiring drawing ………………………………4-13
4.4 Electric component assembly………………………………………4-18
4.5 Adjustment ……………………………………………………...……4-21
4.6 Other assembly ………………………………..……………………4-22
4.7 Cleaning …………………………………………….……….…..…..4-23
4.8 Level examination ………………………………….…..……..…….4-24
4.9 The Front Desk System……………………………………..….…..4-24
4.10 Tools.………………………………….…………….….…….…..…4-28
Chapter IV Use and Maintenance
5.1 Main Function……………………….…………………….…….……5-3
5.2 Basic Cycle………………………..……………...…….……….…...5-3
5.3 Basic Operation ……………………………..…… ……..…..….…..5-3
5.4 How to use the Software………………………….….…..……..…..5-7
5.5 Rules of the game………………………………………..……..…...5-11
COPYRIGHT© 2006, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

5.6 Rules of the Score …..…………………………………....……....5-12
5.7 TheAttention Rules of the Game…………………………………5-13
5.8 Main Parts and Main Functions...………………………….……..5-14
5.9 Accessory………….………………………………………….….…5-21
5.10 Regular Cleaning……………………....…………………….……5-23
5.11 Regular Check..………………………………………….……..…5-23
5.12 Lubrication… ……….……………………………………….….…5-23
5.13 Maintenance of Easily Damaged Parts……………….…..….…5-24
5.14 The adjustment of the Equipment .………………………………5-26
5.15 Trouble shot …………………………………….…………………5-29
COPYRIGHT© 2006, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Chapter I
Introduction
VIA Mini-Bowling-2006
COPYRIGHT© 2006, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Introduction Chapter I
Content
1.1 How to use this manual……………………………………………………………….………….1-2
1.2 Introduction of VIA……………………………...……………………………………….…………1-3
1.3 Sales and after-sales services information…………………………………………………….1-4
1.3.1Contact us…………………………………………………………………….………….…......1-4
1.3.2 After-sales services………………………………………..…………….………….….......…1-4
1.3.3 Commitment to customer services………………………………..…………….……….…..1-4
1.4 Introduction of the product…………………………….. ……….....……………………...........1-4
1.4.1 How to play the game………………………………………………..………........................1-4
1.4.2 Function of the equipment……..……………………………………..…………………..…...1-4
1.4.3 Main part of the product…..……..………………………………………..............................1-5
1.4.4 Suitable site...……………………………………………….………………………………..…1-5
1.4.5 Appearance and Structure………………………………….….………..……………….…...1-6
1.4.6 Specifications……………………………………..….………….......................................…1-6
1.4.7 Main Product parameters………………… . .….….……………………………….…….…..1-8
1.4.8 Product Nameplate..………………………………………….…...…………………..……....1-8
1.4.9 Operation conditions……………………………… .…. .….….……………………..……..…1-9
1.5 Standard configuration of the products……….………………..….…………………..…….…1-9
P a g e 1 - 1 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

VIA MINI BOWLING TB8DB-2 Automatic Mini-bowling User Manual
1.1 How to use this manual
VIA-TB8DB-2 Mini-Bowling equipment user manual is composed of five
chapters as per the main table of contents, among which each individual
chapter is equipped with its index to help the user to refer to the contents
hereunder, whereas some parts have their own sub-indexes to facilitate quick
reference, which is listed as follows:
Index Sub-index
Chapter I Introduction
1.1. How to use this manual
1.2. Introduction of VIA
1.3. Sales and after-sales services information
1.4. Introduction of the product
1.5. Standard configuration of the products
Chapter II Preparation
2.1 Site construction and decoration requirements
2.2 Electrical requirements
2.3 Lighting requirements
2.4 Equipment transportation and storage requirements
2.5 Others
Chapter III Safety
3.1 General safety direction
3.2 Safety rules
3.3 Warning signs
3.2 Safety and precautions
3.3 Safety protection devices of the bowling equipment
Chapter IV Installation and adjustment
4.1 Preparation
4.2 Mini bowling assembly procedure
4.3 Electric interface and wiring drawing
4.4 Electric component assembly
4.5 Adjustment
4.6 Other assembly
4.7 Cleaning
4.8 Level examination
4.9 Network setup
4.10 Tools
P a g e 1 - 2 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Introduction Chapter I
Chapter IV Use and Maintenance
5.1 Main Function
5.2 Basic Cycle
5.3 Basic Operation
5.4 How to use the Software
5.5 Rules of the game
5.6 Rules of the Score
5.7 TheAttention Rules of the Game
5.8 Main Parts and Main Functions
5.9 Accessory
5.10 Regular Cleaning
5.11 Regular Check
5.12 Lubrication
5.13 Maintenance of Easily Damaged Parts
5.14 The adjustment of the Equipment
5.15 Trouble shot
Note:
1) Prior to use our company Mini-Bowling equipment, please carefully read and
understand this manual and all related documents!
2) This manual is applicable only to English-speaking countries and regions (English
version).
1.2 Introduction of VIA Bowling Products Inc.
VIA Bowling Products Inc. is the global sales company of Shanghai Zhonglu Industrial Co., Ltd.,
which was set up in April 1995 and specialized in R&D, manufacturing, sales and marketing of
health and entertainment products. Its product line includes such health and entertainment
products as automatic pin setting machine, automatic scoring system, ball return system, seat
system, bowling lane, bowling ball, bowling lane oiling machine, automatic Majiang table,
billiards, massage and sanitation products etc. Our company manufacturing facilities in
Shanghai covers an area of 27 hectares, and is equipped with over 800 staffs, making Zhonglu
one of the leading bowling products manufacturers in the world.
Our company has set up 25 sales and after-sales services centers in China mainland and
entered into beneficial cooperation relationship with more than 40 agencies covering different
parts of the world, who are responsible for sales and after-sales services worldwide and entitled
to contact the Chinese manufacturing base directly.
For further information, please visit our website: http://www.viabowlingproducts.com
P a g e 1 - 3 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

VIA MINI BOWLING TB8DB-2 Automatic Mini-bowling User Manual
1.3 Sales and after-sales services information
1.3.1 Contact us
«VIA Bowling Products Inc.
888 Sanzao Industrial Park
Nanhui, Shanghai 201300
P.R. China
Tel: [phone] or 58033078,
Fax: [phone]
E-mail: [email protected]
1.3.2 After-sales services
During the after-sales of Zhonglu Mini-Bowling equipment, our company shall continue to extend
superior after-sales services. In case of any question or need of help, please contact us at:
«24-hour service hotline: [phone]
Technical support: [phone]
Fax: [phone]
1.3.3 Commitment to customer services
Company commitment: After product is sold or installed, the customer shall be entitled to contact our
company installation and after-sales services department or international sales agencies to get local
services telephone number and servicing address. Our services providers shall serve you with
quality service; listen to your questions and help resolve your problems.
1.4Introduction of the product
1.4.1 How to play the game
Using the Cue to strike the billiard ball, which shall subsequently knock down the Mini-Bowling balls
to realize automatic pin setting, automatic ball return, automatic scoring, such that it will achieve the
purpose of sport exercise, leisure and amusement and sport competition. It is suits for adults.
Extended entertainment ways: To knock down the pins by pushing the ball, suit for children
1.4.2 Function of the equipment
1. Automatically setting pins
2. Automatically returning balls
3. Automatically calculating and displaying scores
4. Multimedia 3D Animation and Hi-Fi System
P a g e 1 - 4 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Introduction Chapter I
5. Start games by coin inserting
6. Game modes choice
7. Player number setting
8. Automatically pin setting detection
9. Table illumination
10. Top 10 high scores
11. Last 100 games index
12. Support service desk instant monitoring
13. Support service desk start-up
1.4.3 Main part of the equipment
1) Mini-Bowling pins
2) Special billiard balls
3) Cue
4) Table
5) Automatic pin setting control system
6) Automatic bowling ball-return system
7) Automatic scoring and display system
8) Coin insertion start-up control system
9) Multi-media animation and Hi-Fi System
10) Lighting system etc.
1.4.4 Suitable Site
1) Amusement Center
2) Resort & Hotel
3) School
4) Pub & Bar
5) Office
6) Others
P a g e 1 - 5 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

VIA MINI BOWLING TB8DB-2 Automatic Mini-bowling User Manual
1.4.5 Appearance and Structure
The product consists of
A. Front box
B. Lane parts
C. Fly wing
D. Back boxes, control system, scoring system and etc.
Please refer to Diagram # 1.1
Dig. # 1.1
1. Back box 2. Nameplate 3. Screen safeguards 4. LCD monitor 5. Light 6. Signal light
7. Pin 8. Coin insertion control 9. Coin box 10. Universal base 11. Back box door
12. Control button 13. Ball lifter 14. Program control box 15. Scoring computer
16. Hi-Fi System 17. Cue groove 18. Side door 19. Billiard Ball 20. Table
1.4.6 Specifications
（1） Ball Table
Ball table is the working platform for entertainment activities. Consists of back box, lane and pin
setting platform.
Ball table is 8 feet (2400mm) long, i.e. the distance from the starting line to the center of the ball. Ball
lane area is the mini bowling ball lane, in a specification of table height of 780±20mm and ball lane
width of 400mm.
For the table appearance structure of bowling ball table, please refer to Diagram #1.2
P a g e 1 - 6 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Introduction Chapter I
Diagram#1.2
A. Starting area B. Lane area C. Pin setting area D. Ball return tunnel
1.Ball access groove 2.Warning label 3.Silica gel cloth 4.Reflection side 5.Surrounding
edge 6.Starting line 7.Lane 8. Ball groove 9.Fence 10.Pin 1
11. Tail plate 12.Ball return hole
（2） Mini Bowling Pin
The knock-down target in the game.
The pin upper end is bound with height strength compound flexibility cord.
The height of the pin is 140mm;the diameter of the upper end is 48mm.
The weight of the pin is 150 +/- 10g.
（3） Billiard ball
To knock down the pin, the diameter is 65.5mm.
The weight of each ball is 200g.
（4） Cue
Similar to the normal cue.
The bar length is 58’’(1473mm), and bar head diameter is 13mm.
The weight of the bar is 540g±20g (19oz).
（5） Front desk: MBC1.0 Service desk control system
（6） Scoring system: MBS1.2 computer scoring system。
（7） Monitor: LCD monitor
（8） Speaker: 2.1 multi-media sound system
（9） Start-up mode: Coin machine start-up or Front Desk Control
（10） Pin setting machine: Vertical String Pin setter, AC24V/100W
P a g e 1 - 7 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

VIA MINI BOWLING TB8DB-2 Automatic Mini-bowling User Manual
（11） Ball rising machine: Vertical Soft ball lift, AC24V/10W
（12） Light: UV light, AC230V/56W
（13） Side plate: fireproofed faced board.
1.4.7 Major specifications of the products
（1） Mode: TB8DB-2
（2） Rated voltage: AC230V/AC 110V (please refer to product nameplate for details thereof)
（3） Frequency: 50Hz/60Hz (please refer to product nameplate for details thereof)
（4） Rated input power: 400W
（5） Power Rate: no more than 0.3KW/hour
（6） Max running rate: 10 Games/hour, 10 Frames/Game
（7） Dimensions: 4515Lx814Wx1890H(mm)
（8） Net weight: 420Kg
（9） Product noise:
Maximum noise by the equipment simultaneous operation of taking pin and rising pin is no
more than 60 Db (A), and the maximum noise during pin striking is less than 85 Db (A).
1.4.8 Product nameplate
The product nameplate contains such information, please refer to Diagram#1.3:
 Product brand: VIA BOWLING PRODUCTS
 Product name: MINI BOWLING
 Product model: TB8DB-2
 Power supply specifications:
AC230V/110V
50Hz/60Hz
5A/8A
(Please refer to product nameplate for details thereof)
 Serial number: (please refer to product nameplate)
 Manufacture date: (please refer to product nameplate)
 Manufacturers: VIA BOWLING PRODUCTS INC.
 Address: #888, Sanzao Industrial Park, Nanhui, Shanghai, 201300 P.R.China
P a g e 1 - 8 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Introduction Chapter I
Diagram#1.3
1.4.9 Operation conditions:
This bowling equipment shall be provided with transportation, installation, adjustment, use,
maintenance and care as instructed in this User Manual under the conditions as stipulated under this
manual Chapter II Site Preparation. and Chapter ⅢSafety.
1.5 Standard configuration of the products
Product standard setup list is shown in following Table 1.1
Table 1.1
No. Name Quantity
1 Elegant disassembled automatically Mini-Bowling table 1
2 Electric control box 1
3 Micro-computer scoring system 1
4 LCD monitor 1
5 2.1 Multi-media sound 1
6 Billiard ball (red, orange, yellow and green respectively) 4
P a g e 1 - 9 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

VIA MINI BOWLING TB8DB-2 Automatic Mini-bowling User Manual
7 Special Cue 2
8 Chalk 1box
9 Pledge detergent 1 bottle
10 Common key 2
11 Special key 2
12 Back Box key 1
13 Software CD 1
14 Installation tool 1 set
15 Accessory 1 set
16 TB8DB-2 user manual 1 copy
17 Packing list 1
18 Certificate 1
19 VIA special coin 100
ÚAttention:
With the constant renewal and product development, the interior structure and standards
of the products may be changed. Therefore the purchasing product and its accessory,
spare parts please confirm with the packing list.
P a g e 1 - 10 COPYRIGHT © 2005, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Chapter II
Preparation
VIA Mini-Bowling-2006
COPYRIGHT© 2006, SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

Preparation Chapter Ⅱ
CONTENT
2.1 Site construction and decoration requirements................................................. 2-2
2.2 Electrical requirements ..................................................................................... 2-3
2.3 Lighting requirements ....................................................................................... 2-5
2.4 Equipment transportation and storage requirements ........................................ 2-5
2.5 Others…………………………………………………………………………………2-10
P a g e 2 - 1 COPYRIGHT © 2006,SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

VIA MINI BOWLING TB8DB-2 Automatic Mini-bowling User Manual
2.1 Site construction and decoration requirements
2.1.1 Site
In order to ensure the normal operation and servicing of the mini bowling equipment, the site
dimension shall meet following requirements (take one product as an example), which is described
in the diagram #2.1:
Maintenance
Area
Passa
g
e
Passa
g
e
Pla
y
Area
Operation Area
Warning Line
Floo
r
Ceiling
Diagram #2.1
 Operation area: the mini bowling equipment operation area shall be kept a space of at least
length 2 meters and width 2 meters；
 Safety area: A yellow warning Line should be set up 2 meters in front of the table in order to
remind keeping distance.
 Passage: the two sides of the mini bowling equipment shall be kept a passage in the width of at
least 500mm；
 Maintenance area: the mini bowling servicing area shall be kept a space of at least length 1
meter and width 1.8 meters；
 Site height: the height from the floor to the ceiling shall not be less than 2.2 meters；
 The overall width and length dimension of the placing site shall be arranged as per the purchase
quantity of the mini bowling equipment. Two neighboring tables can share one passage. Service
facilities; including servicing auxiliary area and customer service area facilities etc., other
machine servicing area shall be arranged by the alley operator separately.
P a g e 2 - 2 COPYRIGHT © 2006,SHANGHAI ZHONGLU INDUSTRIAL CO., LTD.

Preparation Chapter Ⅱ
2.1.2 During the site decoration, the floor shall adopt the flooring materials of anti-slide functions
2.1.3 The site design shall take consideration of personnel safety access
2.1.4 The site shall be provided the side door with the dimension of width 1000mm and height
1800mm at least to facilitate the move of the bowling ball table.
2.1.5 The site interior wall and ceiling shall adopt acoustic materials of superior acoustic
performance.
2.1.6 Consideration shall be taken in the ventilation facilities in the site.
2.1.7 Decoration materials shall adopt the materials of fire protection property (decoration design
and engineering shall be conducted as per the local host country fire protection and safety
obligations).
2.1.8 Fire protection facilities such as extinguisher etc. must be equipped inside the site.
2.1.9 Air-conditioning：

Room temperature adjustment scope is 22℃-24℃, with relative humidity to be maintained
40%-50%.

The room temperature for the alley in operation shall be maintained at 22℃-28℃.
2.1.10 It is required to pre-lay the cable conduit and other pre-lay components.
2.1.11 Unit area load requirements in table installation area.
The overall weight of the bowling equipment is 420kg and each leg that supports the load of 70kg. It
shall be acceptable if the bowling table installation area meets aforesaid load requirements.
2.1.12 Installation cannot be conducted as the same time with the completion of bowling site
construction and decoration project.
2.1.13 Electric requirements on power supply, power supply sockets, pre-lay cable conduit and
lighting in the alley etc. needed by the equipment shall be completed before the equipment is moved
into the alley and must comply with use requirements.
2.1.14 THe bowling equipment shall only be moved into conformed sites to ensure product quality. In
case of it failed to meet the above conditions and cause damage of the equipment, our company
wouldn't afford the warranty obligation.
2.2 Electrical requirements
2.2.1Site power supply location and sockets
According to the electrical specification described on the nameplate, configuration rated currency
shall be two 10A three-core sockets, among which one is designed for equipment use, whereas the
other for repair use. It is suggested to locate it at the lower end of the back box, with detailed
reference dimension as indicated in Diagram #2.2.
P a g e 2 - 3 COPYRIGHT © 2006,SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.

VIA MINI BOWLING TB8DB-2 Automatic Mini-bowling User Manual
Diagram #2.2
It is suggested to embed the sockets into the floor in a pre-lay way, and the sealing cover is
equipped with waterproof, ant moisture and antirust functions etc. The standard for the three-core
plugs equipped for this product shall be determined as per local electric standard of the marketing
destination.
 The specification of the power supply sockets in Diagram#2.2 must be accordance with the
product nameplate and it will be equipped with buyer himself.
2.2.2 Power supply needed by the equipment
 Power supply capacity: the power supply configuration shall be subject to the rated voltage as
indicated in the product nameplate, whereas the capacity shall be calculated as per 500W of
each unit (excluding power consumption by alley lighting and air conditioning etc.), with the
voltage fluctuation not more than ±5%. In case of failure to meet electric requirements, the
voltage stabilizer shall be equipped to ensure stable power supply.
 Power distribution wire shall adopt three-wire transmission type, which is composed of
single-phase two-wire, plus protection ground wire.
 In wire preparation, the color of the phase wire; the zero wire and the ground wire should
respectively be red, blue (or black) and yellow-green. In order to facilitate debug and inspection
by technician in the future.
 Power supply wiring box shall be equipped with leakage and overload protection switch.
P a g e 2 - 4 COPYRIGHT © 2006,SHANGHAI ZHONGLU INDUSTRIAL CO., LTD.

Preparation Chapter Ⅱ
2.2.3 Pre-lay conduit location
 For the power supply wire connected to the equipment socket, it shall be provided with a pre-lay
1-inch PCV pipe, and it is suggested the power supply be under centralized control by the
general services desk.
 It’s recommended to pre-lay one 1-inch PVC pipe near each unit socket, which extends to the
general services desk to facilitate the product upgrade.
 The turns shall be minimized during pre-laying of the wire pipe, and the steel wire shall go
through the wire pipe before use to facilitate the wire location.
2.2.4 Grounding requirements
 Grounding branch wire section area shall not be less than 1.5mm2, with main trunk wire section
area not less than 2mm2, and grounding resistance shall not be more than 4Ω.
2.3 Lighting requirements
2.3.1 The lighting on the table has provided 3 pieces of 20W T5 fluorescent lights on the bowling
equipment. The illuminate requirement should take consideration of the surrounding environment.
2.3.2 It is suggested to install fluorescent device above the back box of the bowling equipment for
the use of inspection and repair.
2.3.3 It’s suggested to take consideration of such electric facilities requirements in conjunction with
alley design, construction, engineering and decoration, while the electric connection shall be
completed before commencement of equipment installation to meet abovementioned
requirements.
2.4 Equipment conveyance and storage requirements
2.4.1Packaging type
Separated packaging in 7 boxes (the packing type and dimension are just for reference). Specifically
is as follow:
（1） 1# box:
 Contents: Fly wing, T5 fluorescent lights
 Packed with wooden box,dimension please refer to Diagram #2.3 for
details.
P a g e 2 - 5 COPYRIGHT © 2006,SHANGHAI ZHONGLU INDUSTRIAL Co., LTD.
