Owner’s Manual.
Exercise Bike.
SATORI
www.viavito.com
02
Congratulations
on purchasing your
very own SATORI
Exercise Bike.
Manual Contents.
www.viavito.com
You have chosen a high quality, safe and
innovative piece of exercise equipment as
your training partner and we are certain
it will keep you motivated on the way to
Please take the time to read this owner’s
manual as it will help you to get the most
out of your new piece of equipment.
For more information, or if you require
any assistance please email us at
support@viavito.com
Safety Information 03/04
Machine Assembly 05/13
Contents Checklist 05
Hardware Pack 06
Assembly Diagram 07
Assembly Instructions 08/13
Console Instructions 14/20
Button Functions 14
Display Functions 14
Operation 15/20
Conditioning Guidelines 21/24
Beginners Guide to Exercise 22
Stretching Guide 23/24
Customer Support 25/26
Contact Information 25
Manufacturers Warranty 26
Space required 27
Replacement Parts 28/32
Parts List 28/31
Exploded Diagram 32
03
Safety Information.
www.viavito.com
• Please read all instructions carefully
before using this product.
• Retain this manual for future reference.
vary slightly from the illustrations and
are subject to change without notice.
IMPORTANT SAFETY NOTICE:
note the following precautions before
assembling or operating the machine.
01 Assemble the machine exactly as per
the instructions in this manual, using
only the supplied tools to assemble it.
02 Check all the screws, nuts and other
connections before using the machine
has been built correctly and is safe
to be used.
03 This machine is for indoor, home use
only. Position the machine on a clear,
dry and level surface. DO NOT position
it near water or outdoors.
04 Place a suitable base (e.g. rubber mat,
wooden board etc.) beneath the
machine in the assembly area to
protect it from dirt.
05
space around the exerciser when
you set it up.
06 Before beginning training, remove
all objects within a 2-metre radius
of the machine.
07 Use the machine only for its intended
purpose as described in the manual.
This machine is not suitable for
therapeutic or medical purposes.
08 This machine may only be used by one
person at a time.
09 Always wear appropriate workout
clothing when exercising. Running
or aerobic shoes are required when
using this machine.
10 Before exercising on this machine,
always warm up and do the stretching
11 When altering any adjustable parts,
make sure they are adjusted properly
and note the marked maximum
position for each part, for example
on the saddle support.
12 DO NOT use aggressive cleaning
products, such as detergents,
to clean the machine. Remove
drops of sweat from the machine
13
incorrect or excessive training.
Consult a doctor before beginning
a training program.
14 WARNING! Heart rate monitoring
systems may be inaccurate. Over
exercising may result in serious injury
or death. If you experience dizziness,
nausea, chest pain, or any other
abnormal symptoms STOP
EXERCISING IMMEDIATELY
AND CONSULT A PHYSICIAN
WITHOUT DELAY.
04
15 Disabled persons should not use this
or physician in attendance.
16 Children should be kept away from the
machine at all times.
17 The power of the machine increases
as the speed increases, and vice
versa. The machine is equipped with
a computer console which can adjust
the resistance. Reduce the resistance
by pressing the ‘down’ resistance key.
Increase the resistance by pressing
the ‘up’ resistance key.
18 The maximum user weight is 140kg
(309lbs). The product weighs 31.0kg
(68lbs). Safety standards: EN957 1
& 5 – Class HA
19 WARNING: the safety level of the
machine can be maintained only if it
is examined regularly for damage and
wear, e.g. bearings, connection points.
20 Examine the machine carefully before
you use it, especially the components
most susceptible to wear, e.g.
handlebar, cranks, pedals and
the connection points.
21 Stop using the machine immediately
if there are any defective components
and keep it out of use until you replace
the components or it is repaired by a
22 Use only original spare parts for any
necessary repairs.
23 WARNING! Inappropriate use or of
this machine such as while under the
line with instructions or excessive
usage, may result serious injury
or death.
WARNING: Before beginning using this
machine or doing any exercise program,
consult your doctor. This is especially
important for people over the age of
35 or those with pre-existing health
problems. Read all instructions before
using this elliptical cross trainer.
viavito assumes no responsibility
for personal injury or property,
and/or damage sustained by or
through the use of this product.
SAVE THESE INSTRUCTIONS.
www.viavito.com
User's Manual
B700
NO.N-8 Regular Washerφ7(1)
NO.N-9 Spring
Washerφ7(1)
NO.N-7 Bushing
φ12*40MM (1)
05
Machine Assembly.
www.viavito.com

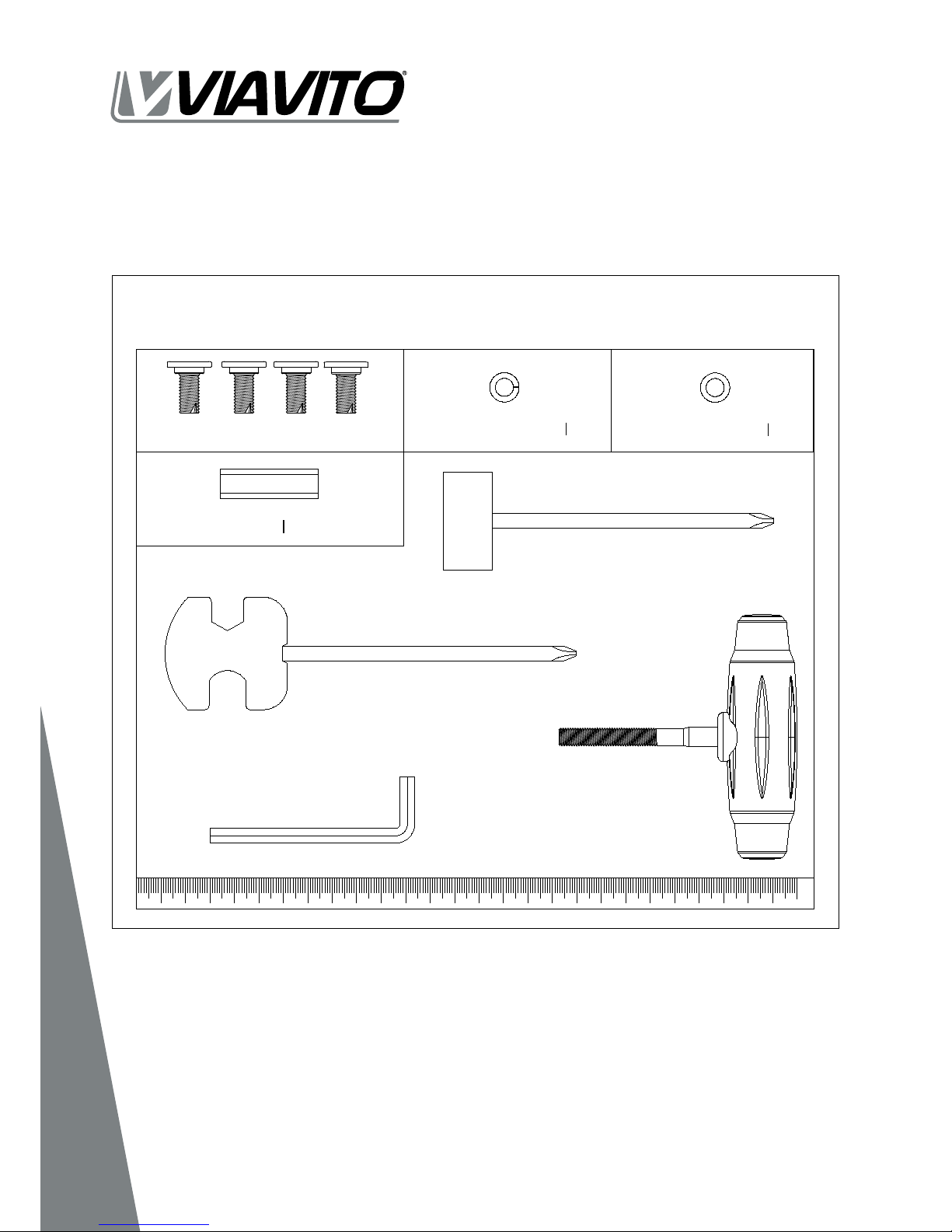

Contents Checklist Make sure you have the following parts:
NO. N-8 Regular Washer O7 (1)
NO. N-9 Spring Washer O 7 (1)
N-4 Box Spanner (1)
N-5 Screwdriver (1)
N-6 Allen Key (1)
NO. N-1 T-shape knob
M8x65L (1)
NO. N-7 Bushing O 12x40MM (1)
NO. N-3 Allen Bolt M8xP1 25x16L (4)
(MM)
06 www.viavito.com
Hardware Pack
A
M
N-2
N-8
N-1
G-6
K
G-10
I-4
N-3
G-4L
G-20
G-24
H-1
H-2 E-1
E-2
H-3
G-25
N-9
N-7
E-3
J-2 N-3
G-4R
A-1
07
www.viavito.com
Assembly Diagram
I-4
G-9
N-3
J-2
N-3
4
N3 M8x16L N-6 Allen Key
08
Step One.
01 Attach the front stabiliser (J) to the
main frame (G-9) using the two Allen
bolts (N-3).
02 Attach the rear stabiliser (I) to the
main frame (G-9) using the two
Allen bolts (N-3).
www.viavito.com
Assembly Instructions
N-5 Screwdriver
G-4R
G-9
G-4
09

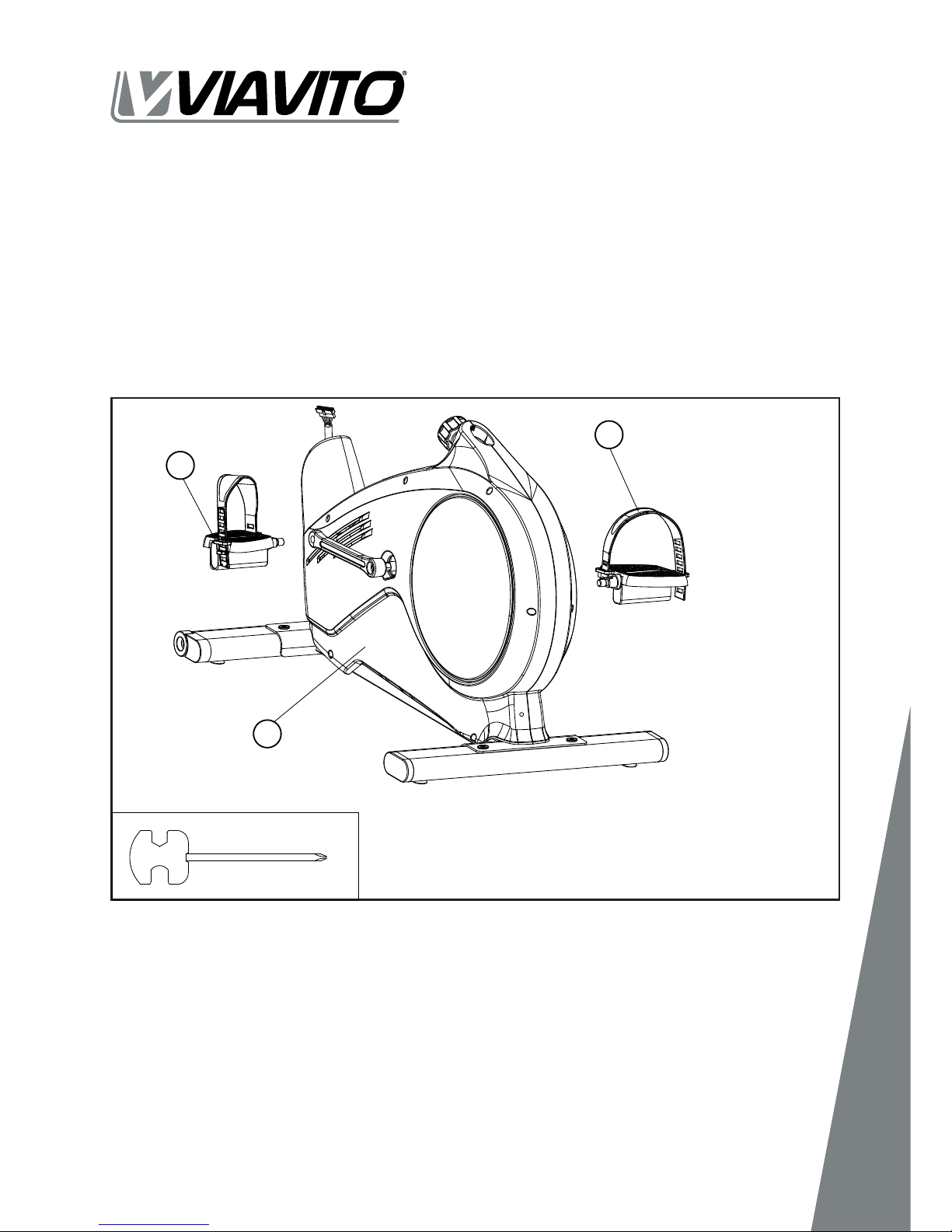

Step Two.
01 Attach the two pedals (G-4 R+L) to the
crank (G-2 + G-12) with a screw driver.
Note: Screw the left pedal in
counter-clockwise and the right
pedal clockwise.
Use the supplied wrench to screw in the
two spindles completely.
www.viavito.com
N-4 Box Spanner
N-5 Screwdriver
G-6
G-6
G-19
K
1
2
10
Step Three.
01 Insert the seat post (K) into the main
frame, then choose the desired height
and tighten the knob (G-19). Be sure
the knob is always tightened before
exercising.
02 Attach the saddle (G-6) to the seat
slider (L-1). The saddle can be adjusted
angle has been set, tighten the two
nuts under the seat using the wrench.
Keep tightening the nuts until there is
no horizontal or vertical movement.
In addition, the slider can be adjusted on
the horizontal plane by loosening the knob
underneath the slider. Once the desired
position has been set, re-tighten the
knob to secure the slider.
www.viavito.com
24 2
E-1 Ø8x2T E-2M8x16L E-3Ø8x2T N-6 Allen Key
H-2
E-1
E-2
G-9
E-3
H-1
G-24
G-20
11

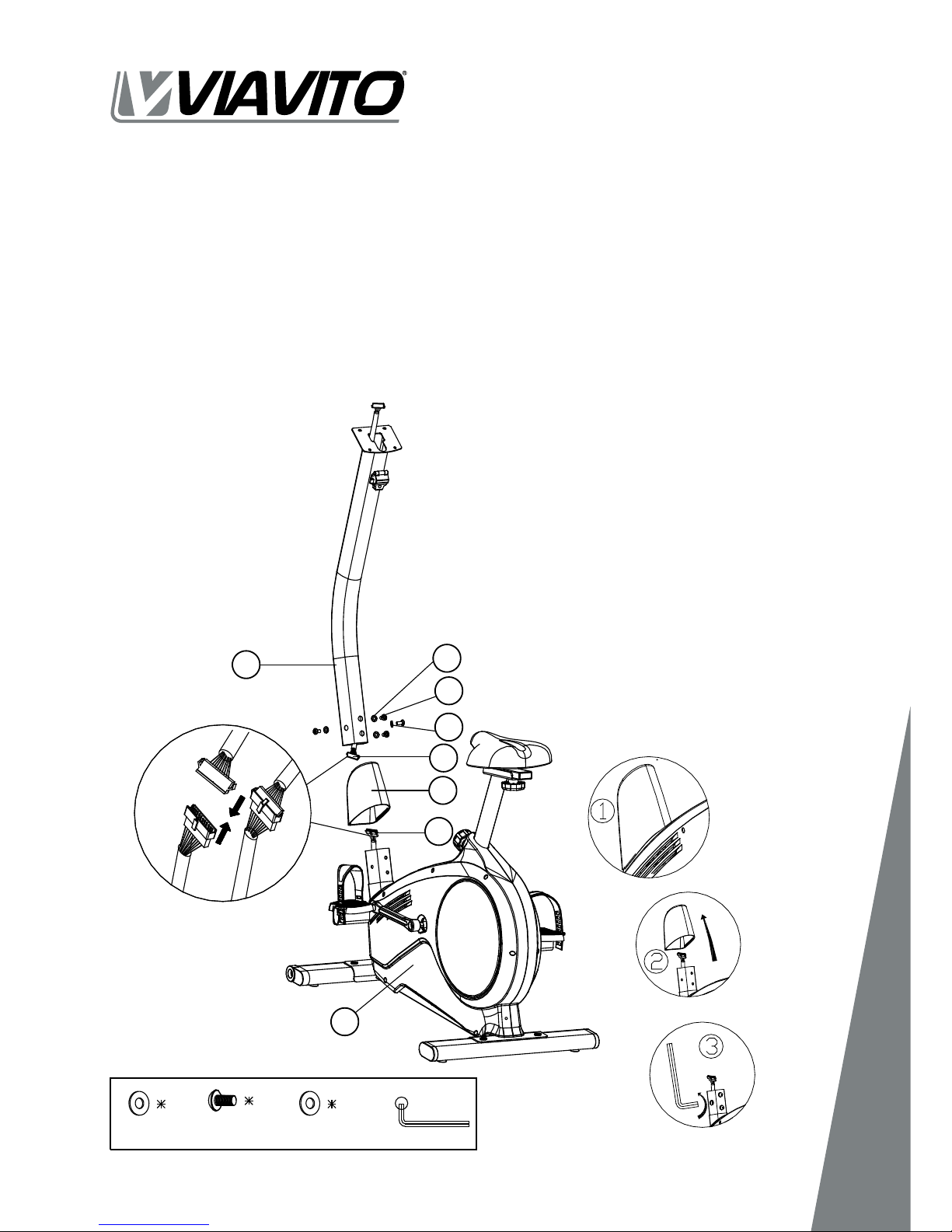

Step Four.
01
(G-24), then unscrew the
pre-assembly semi-circle washer
(E-1), the screw (E-2) and the
main frame.
02
(G-24) and pass the handlebar
post (H-2) through it.
03 Hold the handlebar post (H-2)
and connect the lower computer
cable (G-20) to the upper
computer cable (H-1).
04 Slide the handlebar Post (H-2)
into the main frame then secure
it with the 4 sets of semi-circle
washer (E-1), the screw (E-2)
Note: Do not fully tighten the bolts
one at a time. Fix the 4 bolts in place
fully tighten them using the supplied
Allen key.
www.viavito.com
H-9
N-2
N-7
N-9
N-8
N-1
M
12

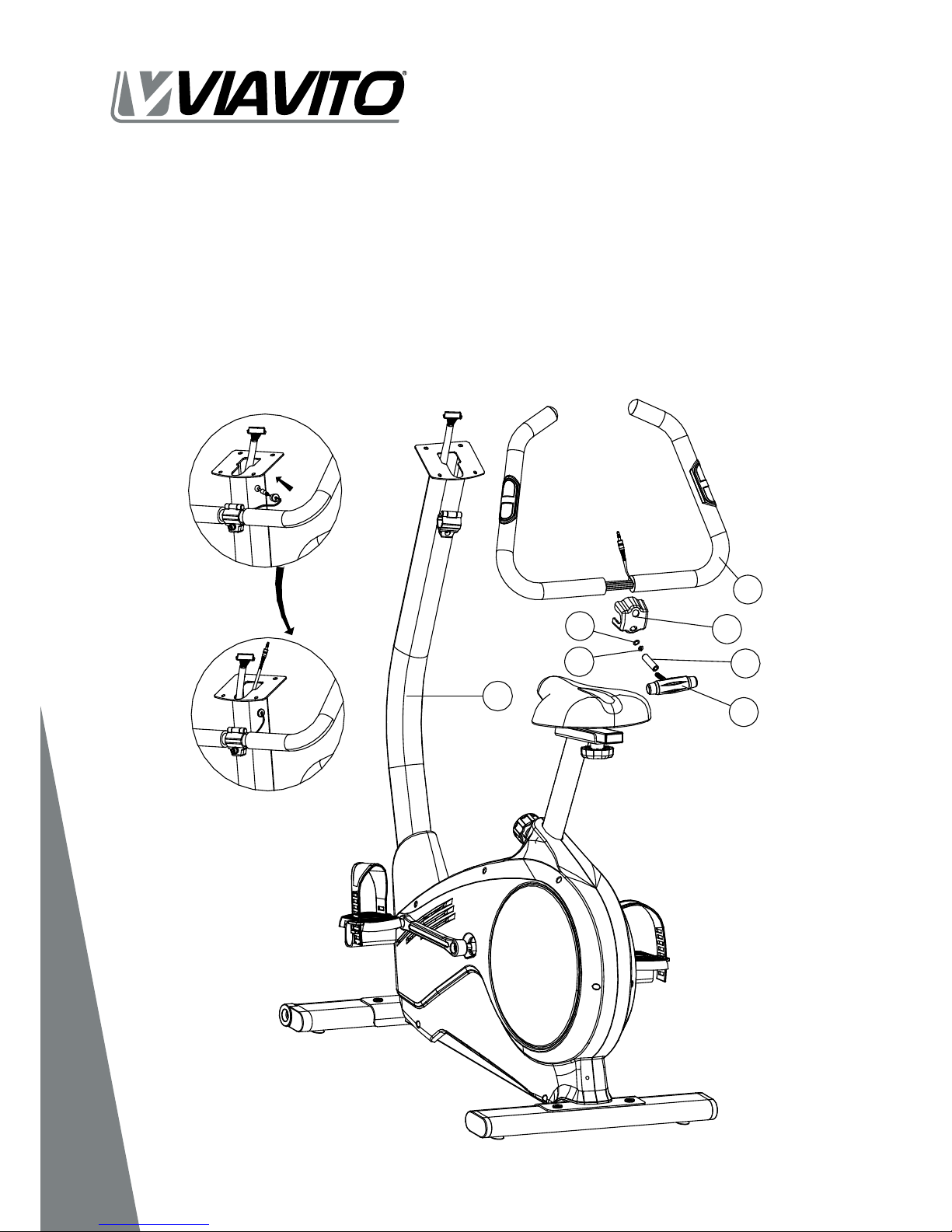

Step Five.
01 Attach the handlebar (M) to the
handlebar post (H-2) using the
main clamp (N-2).
02 Pass the hand-pulse wire (M-4) through
the hole on the handlebar post as per
the inset drawing, making sure that
the cables are secured inside the small
rubber grommet. Push the rubber
grommet into the hole in the post
pull through the wires until they’re
neat and tidy.
www.viavito.com
A
A-1
H-1
M-4
H-3
G-25
H-2
G-10
13
Step Six.
01 Connect the upper cable wire (H-1)
to the back of the computer (A), and the
hand pulse wire jack (M-4) to the to the
female hand pulse socket. Then attach
the computer (A) to the computer
bracket with the enclosed screws (A-1).
02 Remove the screws (H-3) from the post
and attach the bottle holder (G-25) to
the post (H-2) using those screws.
www.viavito.com
14 www.viavito.com
Console Instructions.
UP Select training mode and adjust function value up
DOWN Select training mode and adjust function value down
ENTER
RESET Reset: In stop mode, press to go back to the main menu and
clear all set values. Total Reset: At any time, hold the RESET key
for 2 seconds. The screen will show the full display for 2s and
then go back to the home page
START/STOP Start or stop workout
RECOVERY Test heart rate recovery status
BODY FAT In stop mode, press for body fat measurement
KM/ML SWITCH Select KM (°C) or ML (°F) mode.
TIME Display range 0:00~99:59 ; Setting range 0:00~99:00 minutes
SPEED 0.0~99.9km/H &ml/H
RPM 0~999
DISTANCE Display range 0.00~99.9 ; Setting range 0.00~99.9km/ml
CALORIES Display range 0~999 ; Setting range 0~990 Cl
PULSE Display range 30~230 ; Setting range 0-30~230
WATT Setting range 10~350
Button Functions
Display Functions
15
www.viavito.com

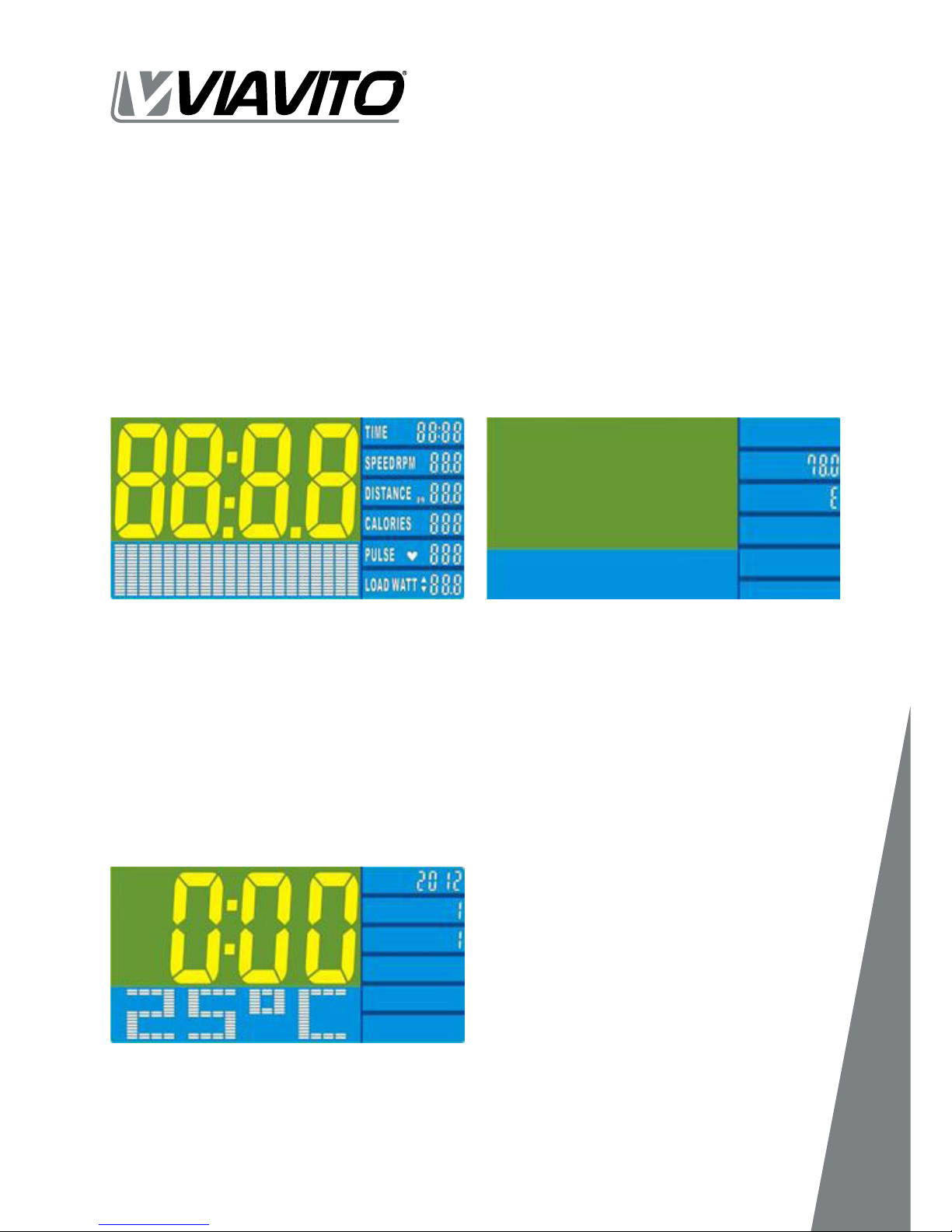

1. Power on
Connect the power supply and the console
will power on with a long beep sound.
The screen will show the full display for
2s (drawing 1) and then display the wheel
diameter/ VDE in SPEED/DIST for 1s
(drawing 2). Then it will display the
calendar setting mode.
If there is no input for 30s then the
console will enter POWER SAVING mode.
2. Settings
2.1. Date setting
Room temperature and date will display as
per (drawing 3). Set Year, Month, Date and
Clock by pressing the ENTER, UP, DOWN
button.
Drawing 1
Drawing 3
Drawing 2
Operation
16 www.viavito.com
2.2. User Prole setting
Press the ENTER button each time to set
values for USER# (select U1~ U4, drawing
4): Gender (drawing 5), AGE (drawing 6),
HEIGHT (drawing 7), and WEIGHT (drawing
8). All data entered will be saved in the
set up, the console will go to the main
menu (drawing 9).
Drawing 4
Drawing 6
Drawing 8
Drawing 5
Drawing 7
Drawing 9
17
www.viavito.com

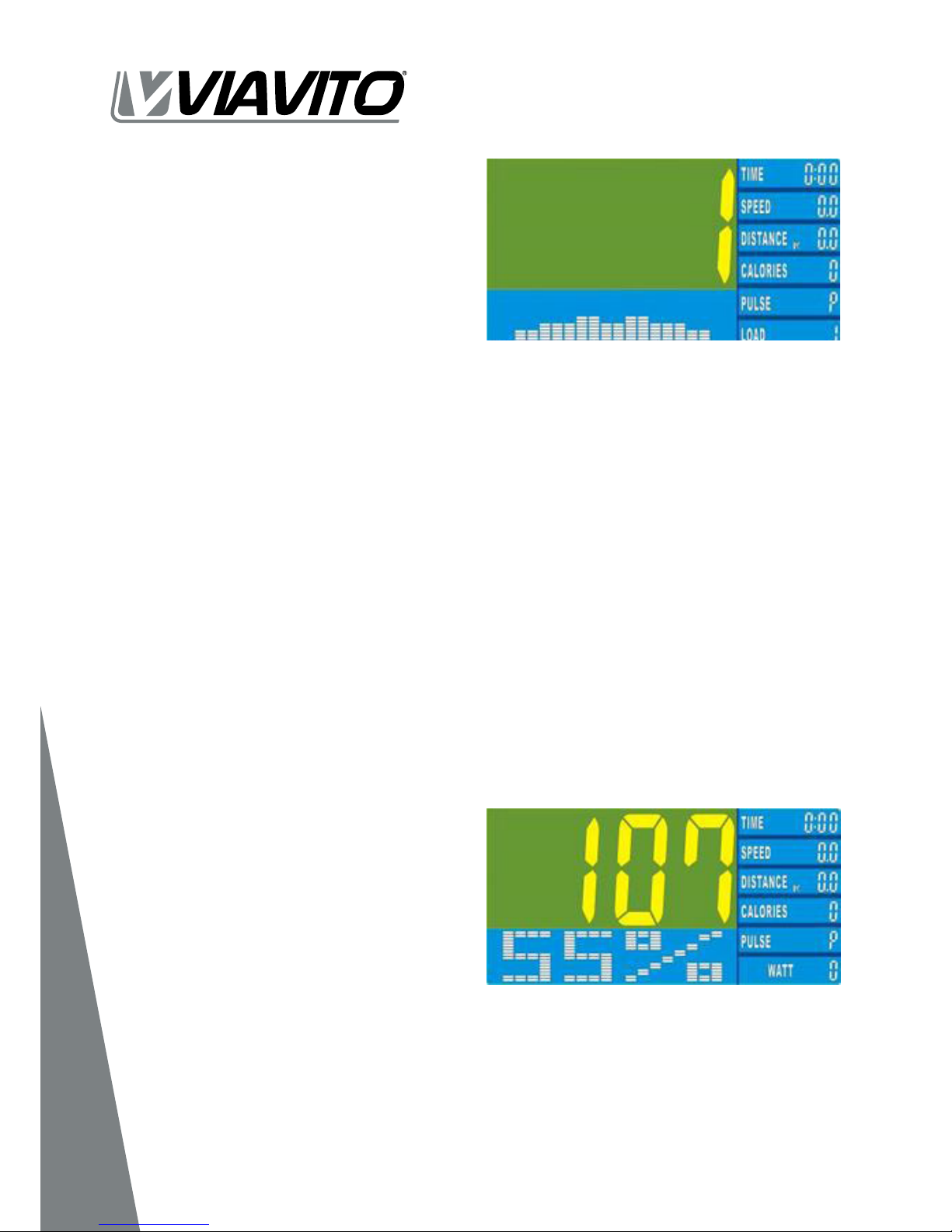

3. Selecting workout
In the main menu (drawing 9), turn the
wheel to select: MANUAL > PROGRAM
(drawing 10) > USER PROGRAM (drawing
11) > H.R.C. (drawing 12) > WATT (drawing
your selected workout.
Drawing 10
Drawing 12
Drawing 11
Drawing 13
3.1. Manual Mode.
After powering on, press the START/STOP
button to start exercising in MANUAL
mode.
When entering Manual mode, you may
set a Time, Distance, Calories and Pulse
target, and the LOAD level, pressing the
the target, press the START/STOP button
to start the workout.
The LOAD level also can be adjusted from
level 1 to level 32 during exercise by
turning the wheel.
18 www.viavito.com
3.2. Program Mode.
In PROGRAM mode, rotate the wheel to
select Program1~Program12. After the
program has been selected, the LOAD
value=1 (drawing 14). Choose the
LOAD level by rotating the wheel.
Press the ENTER button to set the
workout target (TIME/DISTANCE/
CALORIES/PULSE).
Then press START/STOP to
start work out.
3.3. User Program Mode.
Rotate the wheel to create a personal
press START/STOP to start exercising.
When setting up the program, the user
can hold the ENTER button for 2s to
access each of the other parameter
- TIME/DISTANCE/CALORIES/PULSE.
3.4. H.R.C Mode.
First set user AGE using the wheel (pre-set
age =25), then go to programs selection.
There will be 4 programs: 55%, 75%, 90%
and TAG (drawing 15); use the wheel to
select one of the programs and press the
ENTER button to set your exercise target.
Press the START/STOP button to start
the workout.
If the user selects H.R.C. TAG (press the
ENTER button to select), the target PULSE
value will be shown. Rotate the wheel to
adjust target range from 30~230.
Drawing 14
Drawing 15
19
www.viavito.com
3.5. WATT Mode.
Rotate the wheel to adjust WATT value
range from 10~350. After setting TIME/
DISTANCE/ CALORIES/PULSE, press START/
STOP to start the workout.
During the workout, the system will adjust
the LOAD level automatically based on the
WATT value input and the workout status.
3.6. Body Fat Mode.
In STOP mode, press the BODY FAT button
to start this function. System will start to
measure after you have entered Gender,
Age, Height, and Weight information and
are holding both handgrips. The screen
will display “- - - - -” (drawing 16) for
measuring. Then the screen will display
BODY FAT percentage (drawing 17), the
BODY FAT advice symbol (drawing 18),
and BMI (drawing 19), changing
between them every 3 seconds.
Drawing 16
Drawing 18
Drawing 17
Drawing 19
20
4. Recovery mode
After exercising, keep holding the
handgrips and press the RECOVERY
button. All functions will stop displaying
except for TIME, which will start counting
down from 00:60 to 00:00 (drawing 20).
The screen will display your heart rate
recovery status with the F1, F2…
to F6 (drawing 21). F1 is the best, F6 is
the worst. Press the RECOVERY button
again to return to the main display.
During the recovery time, press
RECOVERY again and the console
will go back to the previous page.
NOTE:
• When there is no input signal for 4
minutes, the console will enter power
saving mode (drawing 22). All settings
and exercise data will be stored until
the user start exercising again.
• If the console behaves abnormally,
please unplug the mains adaptor
and plug it back in again.
Drawing 20
Drawing 22
Drawing 21
4.1. Error Messages.
*The screen displays “- - - - -” “- - - - -” : Not
holding the hand pulse sensor correctly.
*E-1 – There is no heart rate signal input
detected.
*E-4 – Occurs when FAT% is below 5 or
exceeds 50 and BMI result is below 5 or
exceeds 50.
www.viavito.com
Other manuals for Satori
2
Table of contents
Other Viavito Exercise Bike manuals
