Vicon Roughneck V926-C312 User manual

Vicon part number 8009-8150-06-00 Rev 1010
XX150-06-00
V926 MINIATURE FIXED-POSITION
IMPACT-RESISTANT CAMERA DOMES
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet
your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in life-critical
situations and must not be used for this purpose.
Copyright © 2010 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: [phone] FAX: [phone] TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44 (0) 1489-566300 WEB: www.vicon-security.com

FCC Notice
Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A
digital device.
WARNING
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. It
has been type tested and found to comply with the limits for a Class A computing device in accordance with the
specification in subpart B of part 15 of the FCC rules, which are designed to provide reasonable protection
against such interference in a commercial installation. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio and television reception,
which can be determined by turning equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
•Reorient the receiving antenna.
•Relocate the equipment with respect to the receiver.
•Relocate the equipment away from the receiver.
•Plug the equipment into a different electrical outlet so that the equipment and receiver are
on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop
SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.
Warning: Power must be removed from this unit before removing circuit modules or ribbon cables.
Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static
discharge. Take all necessary precautions to prevent static discharge

Important Safeguards - Outdoor Use
GRAPHIC SYMBOL EXPLANATION
The lightning bolt symbol alerts the user to the presence of
dangerous voltage that may present the risk of electric shock.
The exclamation point symbol alerts the user to the presence of
important operating and maintenance instructions.
1. Read Instructions - Read all safety and operating instructions
before the product is operated.
2. Retain Instructions - Retain all safety and operating
instructions for future reference.
3. Heed Warnings - Pay attention to all product warnings.
4. Follow Instructions - Follow all operating instructions.
5. Cleaning -(Do not use caustic, abrasive or aerosol
cleaners)
a) For units that CAN BE DISCONNECTED from the power
source, use a damp cloth for cleaning.
b) For units that CANNOT BE DISCONNECTED from the
power source, use a damp cloth for cleaning and do not
allow moisture or liquids to enter vents.
6. Attachments - Use only UL Listed Vicon recommended
attachments to prevent unit damage and personal injury.
7. Water and Moisture - Use only products designed for outdoor
environments where they will be exposed to water or moisture.
8. Accessories - Do not place the unit on an unstable surface to
avoid falling. Use only UL Listed Vicon recommended mounting
accessories.
9. Ventilation - Do not block ventilating slots and openings as
they ensure reliable operation. Do not place the unit near a heat
source or into an enclosure unless recommended by Vicon.
10. Power Sources - The product should only be operated from
the recommended power source. Use only a UL Class 2
indoor/dry or Class 3 outdoor/wet power supply.
11. Grounding - Only products equipped with a 3-prong
grounded plug should be inserted into a grounded power outlet.
Contact an electrician to replace an obsolete outlet. Do not force
a plug into a non-grounded outlet.
12. Power Cord Protection - Power supply cords should not be
routed in trafficked areas or in tight spaces where they will be
pinched or used to bear weight. Allow some slack in the cord
where it enters the unit.
13. Outdoor Cable Grounding - Use only grounded outdoor
cables to protect against voltage surges and static charges.
Section 810 of the National Electrical Code, ANSI/NFPA 70-
1984, provides information on proper grounding of the lead-in
wire to an antenna discharge unit, size of grounding conductors
and the requirements of grounding electrodes.
14. Lightning - Disconnect the product from its power source
and cable system when possible to prevent damage due to
lightning and power-line surges.
15. Power Lines - Do not locate outside cables over power or
utility lines where they can fall and make direct contact. Contact
with power lines can be fatal.
16. Overloading - Do not overload wall outlets and extension
cords to prevent risk of fire and electric shock.
17. Object and Liquid Entry - Never probe through, or spill
liquid into, enclosure openings to prevent risk of fire or electric
shock.
18. Servicing - Refer all servicing to qualified service personnel.
19. Damage Requiring Service - Obtain service when:
a) The power-supply cord or plug is damaged.
b) Objects have fallen or liquid has been spilled into the
product.
c) The product is not designed for outdoor use and has been
exposed to water or moisture.
d) The product does not operate per the operating instructions.
Perform Vicon recommended adjustments, modifications
and troubleshooting only to avoid unit damage and personal
injury.
e) The product has been dropped.
f) The product shows a significant change in performance.
20. Replacement Parts - Use only Vicon specified replacement
parts or an approved equivalent to prevent unit damage and
injury.
21. Safety Check - Request safety checks to be performed
following repair or maintenance to verify proper operation.
22. ESD Precaution - Take all normal electrostatic discharge
precautions to avoid component damage during installation and
operation.
23. For 230 VAC Devices Only - When the disconnect device is
not incorporated in the equipment or when the plug on the power
supply is intended to serve as the disconnect device, follow the
guidelines below:
a) For permanently connected 230 VAC units, a readily
accessible disconnect device must be incorporated into the
site wiring.
b) For 230 VAC units with a plug, the outlet must be installed
near the unit and be easily accessible.
.

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Contents •i
Contents
IIIQUICK INSTALLATION ....................................................................................................II
INTRODUCTION...................................................................................................................1
INSTALLATION....................................................................................................................2
Unpacking and Inspection.............................................................................................................................2
Roughneck V926 Components .....................................................................................................................2
Accessory Kit..................................................................................................................................................3
Mounting the Unit...........................................................................................................................................3
Camera/Lens Adjustments............................................................................................................................8
Camera Settings...........................................................................................................................................8
Lens/Autoiris Adjustment............................................................................................................................14
Final Installation...........................................................................................................................................15
OPERATION.......................................................................................................................16
MAINTENANCE..................................................................................................................16
Care and Cleaning of Lower Dome.............................................................................................................16
SHIPPING INSTRUCTIONS ...............................................................................................17
REFERENCE......................................................................................................................18
Coaxial Cable................................................................................................................................................18
Twisted Pair Cable........................................................................................................................................19
TECHNICAL INFORMATION .............................................................................................20
VICON STANDARD EQUIPMENT WARRANTY................................................................23

ii •Quick Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
Quick Installation

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Introduction •1
Introduction
The information in this manual covers the installation, operation, configuration and maintenance of the
Roughneck V926 Series of Fixed-Position Impact-Resistant Camera Domes. These units should only be
installed by a qualified technician using approved materials and wiring methods in accordance with the
national Electrical Code ANSI/NFPA 70, state and local wiring codes. All interconnecting equipment or
accessories must be UL listed. When installing this equipment, use only a UL Listed Class 2 indoor/dry or
Class 3 outdoor/wet rated power supply. Read this manual through completely before attempting installation.
Vicon’s Roughneck V926 Series of Camera Domes offers a compact domed housing incorporating a fixed
camera and lens combination protected by a polycarbonate shell. They are configured for in-ceiling or in-soffit
installation for indoor/outdoor applications. The camera domes include a high-resolution color camera or a
day/night camera, both with an isolated power input with a choice of varifocal autoiris lenses. A version with
twisted pair (UTP) video transmission is available; a UTP receiver is required for twisted pair configurations.A
smoked polycarbonate lower dome is included. Refer to Table 1 for complete model descriptions.
The camera position is adjustable in four directions, allowing for adjustment of pan, tilt, vertical height in the
dome and full 360°rotation about the lens axis (roll). The varifocal lens allows for lens adjustment capability
and autoiris adjustment is available by a potentiometer. The cameras accept 24 VAC input.
The Roughneck V926 Fixed-Position Impact-Resistant Camera Dome series meets FCC requirements for a
Class A device. Table 1: Models, Product Codes and Descriptions
Model Product
Code Description Power (W)
Nom. * Current
Rating (A)
Nom.
V926-C312/
V926-C312-P 8757-02/ 8757-01 Indoor/outdoor; 1/3-in. Sony Super HAD II CCD high-resolution color camera and 3.3 – 12 mm
varifocal autoiris lens; 24 VAC; isolated power
input; heater, smoked polycarbonate dome;
NTSC/PAL; coaxial cable video
14.0 0.58
V926-C312T/
V926-C312T-P 8757-42/ 8757-41 Indoor/outdoor; 1/3-in. Sony Super HAD II CCD high-resolution color camera and 3.3 – 12 mm
varifocal autoiris lens; 24 VAC; isolated power
input; heater, smoked polycarbonate dome;
NTSC/PAL; twisted pair cable video
14.0 0.58
V926-N312/
V926-N312-P 8758-02/ 8758-01 Indoor/outdoor; 1/3-in. Sony Super HAD II CCD high-resolution day/night camera and 3.3 – 12
mm varifocal autoiris lens; 24 VAC; isolated
power input; heater, smoked polycarbonate
dome; NTSC/PAL; coaxial cable video
14.0 0.58
V926-C26/
V926-C26-P 8395-16/ 8395-15 Indoor/outdoor; 1/3-in. Sony Super HAD II CCD high-resolution color camera and 2.6-6 mm
varifocal autoiris lens; 24 VAC; isolated power
input; heater, smoked polycarbonate dome;
NTSC/PAL; coaxial cable video
14.0 0.58

2 •Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
Installation
Unpacking and Inspection
All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to
deliver the equipment in the same condition as it left the factory.
Inspection for Visible Damage
Immediately inspect the cartons upon delivery. Make a note of any visible damage on all copies of the
carrier’s freight bill. Make sure the carrier’s agent (the person making the delivery) signs the note on all copies
of the bill. If the agent does not have claim forms, contact the carrier’s office.
Inspection for Concealed Damage
As soon as possible after delivery, unpack the unit and inspect it for concealed damage. Do not discard the
carton or packing materials. If the unit is damaged, contact the carrier immediately and request forms for filing
a damage claim. Make arrangements for a representative of the carrier to inspect the damaged equipment. If
the equipment must be returned for repair, follow the Shipping Instructions at the end of this manual.
Roughneck V926 Components
The Roughneck V926 Camera Dome units consist of a camera module assembly, a mask, and a
polycarbonate lower dome. It includes a 4 x 4 electrical box for cable routing and a ceiling mount bracket. The
camera and lens assembly and lower dome are packed separately.
Camera Module Assembly
The camera module assembly includes an integral camera/lens assembly with pan and tilt adjustment. It is
simply installed onto the camera interface plate. The camera and lens position can be manually adjusted in
three (3) axes, pan, tilt and roll.
Mask
The mask is a textured black polycarbonate plastic shell. It has a slotted opening for the camera. The mask
helps conceal the position of the camera. It has two ribs that align with the pan bracket that allow it to be
adjusted with the camera and lens assembly.
Lower Dome
The lower dome is an assembly comprised of a 4.73 in. (120 mm) diameter impact-resistant polycarbonate
dome and a trim ring. A safety cord is provided on the inside for connection to the camera interface plate.
Refer to the Maintenance section of this manual for instructions on the care and handling of the dome's
surface.

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Installation •3
Accessory Kit
There is one (1) kit included with all configurations of Roughneck V926. It provides the necessary tool to
attach the tamperproof lower dome:
Description Quantity
Tamperproof driver bit, ¼ hex T-15 1
Lens focusing tool 1
Tool for set screw roll adjustment 1
Mounting the Unit
The Roughneck V926 is intended for in-ceiling or in-soffit installation. The primary ceiling surface can be
either a dropped ceiling or a hard ceiling with the thickness not exceeding approximately three (3) inches
(76 mm). Installation is done with the included 4 x 4 electrical box assembly.
Note: Do NOT disassemble the mounting plate/electrical box assembly.
In-Ceiling/In-Soffit Installation
The ceiling material must provide suitable strength to support the weight of the Roughneck V926, which is
approximately 2.5 lb (1.1 kg). Be sure the area above the selected ceiling location is clear of obstacles (such
as steel beams, headers, pipes, electrical wiring, etc.), which would interfere with mounting. Video and power
cables must be routed to the location. Refer to the Cable Recommendations in the Reference section of this
manual.
1. Cut a 4.37 x 4.12 in. (111 x 105 mm) hole in the ceiling at the desired location. Refer to Figure 1 for
mounting dimensions. Remove the tile from a dropped ceiling if necessary. Make sure all necessary
cables are routed to the location.
Figure 1
Mounting Dimensions

4 •Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
2. Remove the two (2) 6-32 screws that hold the camera module assembly in place to remove it. Do not lose
screws.
3. Examine the electrical box and choose the most convenient knockout hole(s) for cable routing. Install a
suitable strain relief or conduit fitting and route the cables through the connector and into the box.
4. Compress the mounting bracket flush to the electrical box and insert the box into the ceiling hole. The
bracket will spring back out after the box has been inserted. Refer to Figure 2.
5. Tighten the mounting bracket screws from inside the box until it is tight to the ceiling. This action pulls the
mounting bracket teeth into the ceiling material for a secure fit. Refer to Figure 2.
Figure 2
Electrical Box Components

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Installation •5
Figure 3
Camera Connections
6. Connect the video cable male BNC to the female pendant cable BNC video connector from the PC board.
Note: After mating the male/female BNC connectors, it is recommended that these connections be wrapped
with electrical tape to prevent shorts.
ALTERNATE CONNECTIONS: For the model using the twisted-pair video connection, connect the
twisted pair module provided to the BNC connector; then connect the twisted-pair video wires to the
module. Strip off approximately 0.25 in. (6 mm) of insulation from each individual wire. Attach each wire to
the screw terminal on the module. This signal is polarized and specific wire connection is necessary.
Follow the markings on the board for connections. Refer to the instructions supplied with the receiver for
those connections.

6 •Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
Figure 4
Cable Preparation
7. Connect the power cable to the screw terminals on the interface board. DO NOT APPLY POWER AT
THIS TIME. Strip approximately 1 in. (25 mm) of outer insulation off the end of the power cable. Then
strip off approximately 0.25 in. (6 mm) of insulation off each individual wire. Refer to Figure 4. Attach each
wire to screw terminal on the interface board. Refer to Figure 3. The camera is shipped prepared for
connection to a 24 VAC power supply. Refer to Table 2 in the Technical Information section of this
manual for the maximum operating distances of the V926. Use a suitable gauge wire for the desired
power cable distance. Refer to Cable Recommendations in the Reference section.
Note: Use only a UL Listed Class 2 indoor/dry or Class 3 outdoor/wet power supply.
Note: Vicon systems and components, like most electronic equipment, require a clean, stable power source.
Voltage irregularities such as surges, drops, and interruptions can affect the operation of your
equipment and, in severe cases, damage certain components.
8. Reattach the camera module assembly with the previously removed screws.
9. The camera/lens assembly can be adjusted to the desired position. Refer to Figure 5. Do not move the
camera/lens assembly by holding onto the lens. For pan and tilt adjustment, loosen the two (2) set
screws. For roll adjustment (turns camera position top/bottom), loosen set screws (using small M1.0 Hex
L-wrench provided) to adjust roll. Be sure to tighten screws after all adjustments. The varifocal lens can
be manually adjusted for focus (near/far) and zoom (telephoto/wide). Set the zoom position by using
Zoom Lever Screw; set the focus by using Focus Lever Screw. When making adjustments, be sure that
the lens does not hit the dome. There is a label with the camera “1800” number on the camera/lens
assembly; this marks the TOP of the camera. Make sure the camera/lens is installed so that the label is
on the top for proper video display.
Note: After all adjustments are made, be sure to tighten all bracket screws and wrap video BNC connections
with electrical tape to prevent shorts.

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Installation •7

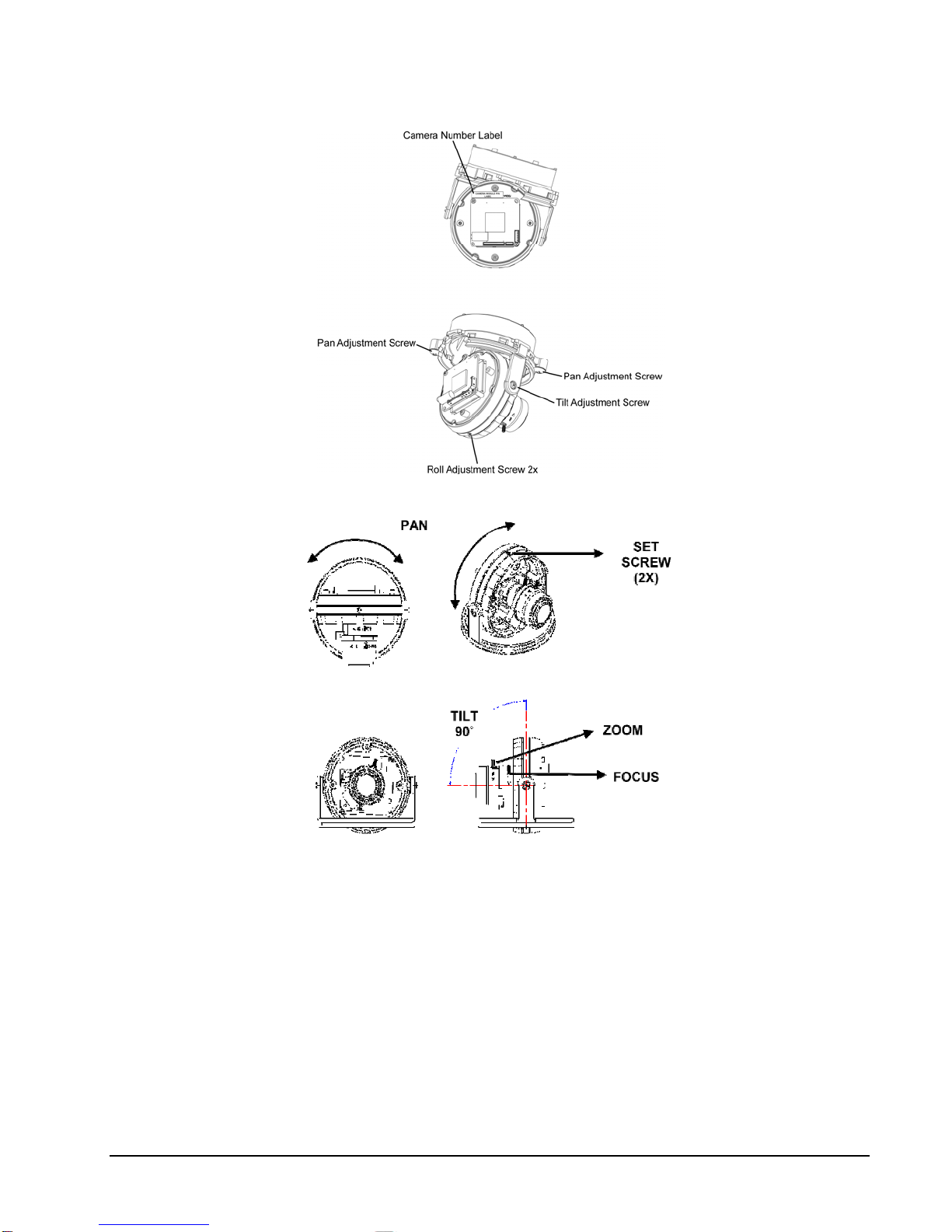

Figure 5
Camera Position and Lens Adjustments

8 •Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
Camera/Lens Adjustments
After all cabling is complete, the camera and lens can be adjusted. The camera/lens is set through an OSD
menu system using a joystick control.

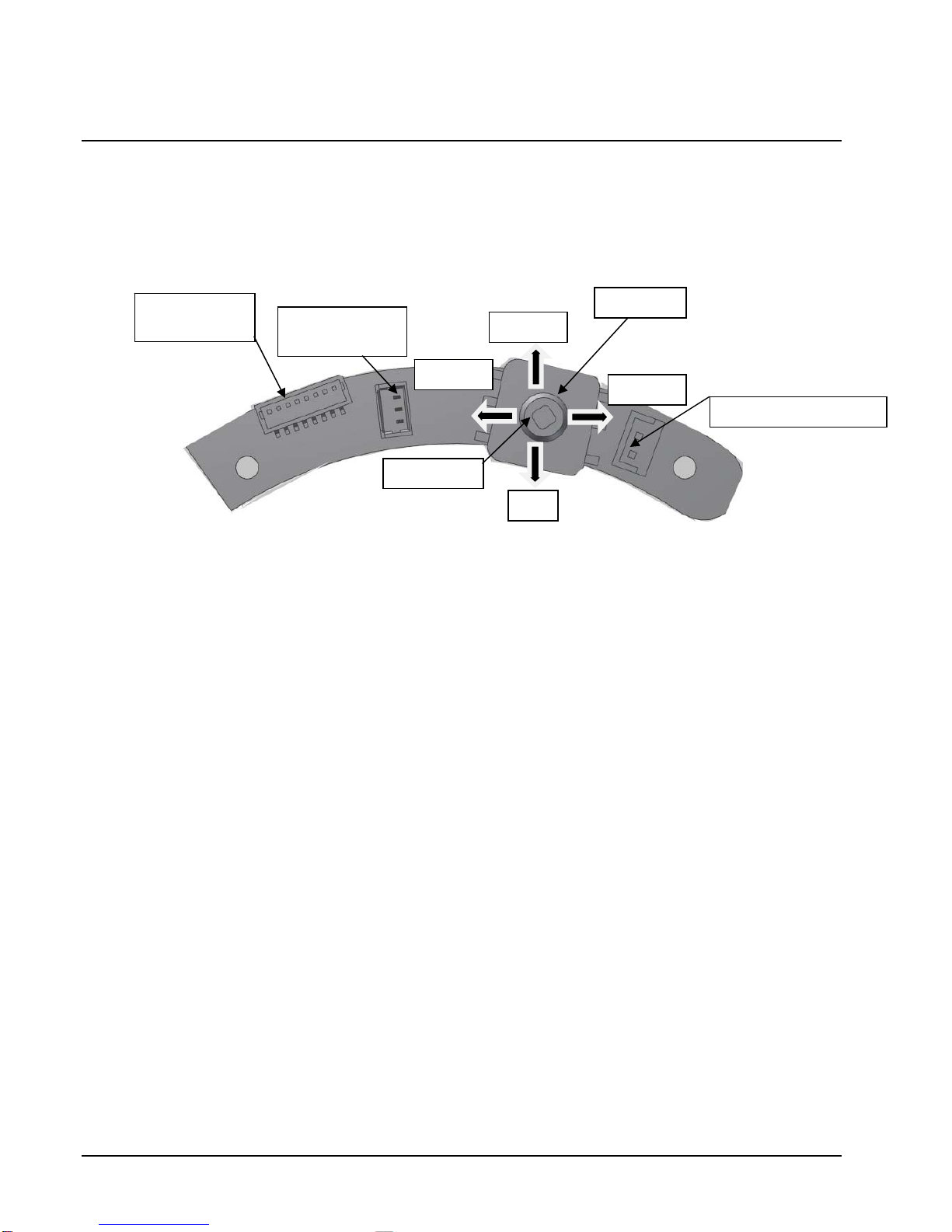

Figure 6
Camera Control Joystick
Camera Settings
There is a joystick control along the rim of the camera that is used to enter the OSD for camera settings. This
is used to navigate the OSD for camera setup. The analog camera must be connected to a portable (local)
monitor to use the menu system; the IP version can see the menus on the PC monitor. Use the cable
included in the accessory kit to connect the spot monitor. Refer to Figure 6.
Pressing the joystick down (Center) accesses the menu mode and confirms settings. Push the Center key for
3 seconds to access the Main menu. From there, using the joystick, select the feature to be programmed.
Moving the joystick up or down chooses the desired menu selection. Moving the joystick to the right or left
chooses the desired menu feature adjustment. (Right direction is marked.) A "indicates submenus.
Below is a summary of the OSD screens for camera setup of the day/night version. An explanation of the
individual screens follows.
2n
d
Video Connector
Joystick
UP
DOWN
RIGHT LEFT
CENTER
RS-232 Serial
Connection
Camera
Connection

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Installation •9
LENS MASK 1
E. SHUTTER MASK 2
BLC MASK 3
MAX_DR MASK 4
AGC MASK 5
SENSE_UP MASK 6
WB MODE SYNC MODE
R-Y GAIN V_PHASE
B-Y GAIN
D&N MODE CAMERA ID
C-SUP TITLE
A-SUP DPC
MONITOR
LANGUAGE
BAUDRATE
OMNI LENS
MIRROR EXIT
SHARPNESS SAVE & EXIT
GAMMA FACTORY SET
FREEZE
NEGA
3D_DNR
D_ZOOM
SLC
HME
DIS
MOTION
SET WINDOW
ALL SET
ALL CLEAR
SENSITI
SHOW INDI
DELAY OUT
9. EXIT
5. MOTION
6. PRIVACY
2. COLOR 7. SYNC
3. DAY&NIGHT 8. SETUP
4. FUNCTION
1. EXPOSURE

10 •Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
Exposure
The Exposure menu allows for the selection of Lens, Electronic Shutter, BLC, Maximum Dynamic Range,
AGC and Sense Up.
Lens
From the Lens screen, select MANUAL for a fixed lens or DC for a varifocal lens. Both choices offer a Level
adjustment (0-99) to adjust the brightness of the lens. (Note: All cameras in this series have an autoiris DC
lens.)
E. Shutter
Electronic Shutter allows the shutter speed to be adjusted from X256 to 1/100,000, including a choice for
flicker mode. In FLK mode, shutter speed is fixed at 1/100 sec to avoid image flicker when there is a
discrepancy between current and frequency. (If MANUAL mode is selected in Lens, this will be AUTO.)
BLC
Backlight Compensation can be turned ON or OFF (default). With BLC ON, iris is adjusted so that a distinctive
subject and background is delivered at the same time. When ON, there are 5 preset areas that can be
customized with sensitivity settings of from 1-256.
Max DR
The dynamic range can be turned ON or OFF (default). With Max DR ON, the picture adjusts when there are
differing light levels in the image. The level can be adjusted from 1-20.
AGC
Automatic Gain Control can be set to LOW, MEDIUM, HIGH or OFF. In a dark environment, when AGC is set
to High, the image becomes brighter. The setting here is related to the setting in Day & Night mode.
Sense Up
Sense Up can be set to X2 to X256 (X4 is default) or turned OFF. When it is on, the camera controls
sensitivity as it automatically detects the light level in dark environments and maintains a clear picture.
Color
The Color menu allows the settings for White Balance Mode and Red and Blue Gain.
WB Mode
The White Balance provides settings of AWC (default), ATW, Manual or Push Lock. AWC mode finds the
optimal setting for the current luminance environment. Use the ATW mode when for viewing objects with
changing color temperature. Holding a piece of white paper in front of the camera, the camera is fixed at the
best color temperature; push the joystick to set and lock. White Balance can be directly adjusted by user in
Manual mode. In that case, select R-Y or B-Y Gain to adjust the value of Red and Blue Gain (125 is default).

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Installation •11
Day & Night
The Day & Night menu allows the selection of the day/night mode as well as color and aperture suppression.
D&N Mode
Day & Night Mode can be set to Auto, Color or Black-and-White. Auto is a true day/night function where the
camera automatically switches between color and b/w depending on the light level. In Color mode, the
camera stays in day mode and in B/W mode, the camera stays in night mode. From D&N mode, select to turn
color Burst ON or OFF in night mode and select the amount of time to switch from color to B/W or B/W to
color. The Read Time setting adjusts the delay time for the filter to switch.
C-SUP and A-SUP
Use these settings to reduce (suppress) the color or aperture settings. For C-SUP and A-SUP to function, 3D-
DNR must be set to OFF. The range can then be set from 0-100 (default is 40); the higher the number, the
more reduction.
Function
The Function menu has settings for Mirror, Sharpness, Gamma, Freeze, Nega (negative), 3D DNR (Digital
Noise Reduction), Digital Zoom, SLC (Side Light Compensation), HME (Highlight Mask Exposure), and DIS
(Digital Image Stabilization)
Mirror
Use the Mirror setting to MIRROR (reverse), FLIP (vertical) or ROTATE the image. These can be turned OFF
(default).
Sharpness
Adjust the sharpness of the image from 0-49 (17 is default).
Gamma
Adjust the gamma level to 0.45 (default), 0.6 or 1.
Freeze
The freeze function can be turned ON or OFF (default). ON allows viewing a still image.
Nega
The nega setting can be turned ON or OFF (default). On reverses the color, appearing as a negative image.
3D DNR
The Digital Noise Reduction function adjusts the illuminance noise level in low light situations. It can be set to
OFF, LOW, MIDDLE (default) or HIGH.
D-Zoom
Digital Zoom can be turned ON or OFF (default). When ON, there are settings for digital zooming up to 3X,
setting pan and tilt positions (left/right or up/down) and turning ON or OFF a display of the PTZ amounts.

12 •Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
SLC
Side Light Compensation can adjust the brightness of the image in the corners of the screen. It can be turned
ON or OFF (default). ON allows settings of 0-50.
HME
Highlight Mask Exposure is ON or OFF (default) selectable. When ON, the camera cuts peak white levels,
masking highlight areas of a scene. This can be adjusted from 1-60.
DIS
Digital Image Stabilization can be turned ON or OFF (default); this would be turned on when the camera is in
an environment of high vibration. This is not available if Max DR is enabled.
Motion
The motion screen permits setting up motion detection areas on the screen with a range of sensitivities.
Motion
Motion detection can be set to ON or OFF (default). This feature allows the detection of movement in 240
areas of the screen and display an alarm on the screen.
Set Window
When motion detection is set to ON, the Set Window screen displays to show the 240 areas. Individual areas
can be selected for motion detection. To exit this screen, navigate to any outermost corner of the screen.
All Set/All Clear
An All Set to select all the areas and a Clear All that deselects all areas can be used.
Sensiti
Each area has an individual sensitivity level of 0-120; a higher sensitivity level detects smaller movement.
Show Indi
After the areas are setup, there is a choice of how motion detection is indicated during live video, icon or
trace. If icon is selected, a small motion icon displays on the screen when motion is detected; trace shows an
overlay of the motion areas on the image to indicate motion.
Delay Out
Delay out of 1-15 sec can be selected, which delays the display of the alarm signal on the screen.
Privacy Mask
Up to six privacy mask zones can be created on the screen to block video that is desired to be hidden.
Privacy masks can be turned ON or OFF (default). When turned ON, the mask range is used to shape and
locate the mask on the screen. One of eight colors of the mask can be selected.

XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome Installation •13
Sync
Synchronization type, INTERNAL or AUTO (Line Lock), for the camera is selected from this menu.
Sync Mode
Select the synchronization, INTERNAL (default) or AUTO, which is line locked to prevent picture roll when
switching between cameras in multiple camera installations.
V-Phase
If synchronization is line lock, the V-PHASE is selectable from 0 to 299.
Setup
The Setup menus provide for configuration of the Camera ID, Title display, DPC (Dead Pixel Cancellation),
Monitor type, Language of the display, Baud Rate and Omni Lens.
Camera ID
Set up a unique camera identifier. The camera ID is a user selectable title for the camera that is up to 16
characters (default is 0).
Title
The camera title ID display can be turned ON or OFF (default). If turned ON, the title can be edited using the
joystick, reset to clear the title, and positioned on the screen.
DPC
Dead Pixel Cancellation can be set to OFF (default) or AUTO. When this is used, the camera will automatically
remove defective pixels from an image and “fill in” the image. Select the White and Black Threshold from 0-255;
the DPC Level can be adjusted for an overall setting.
Monitor
Select monitor mode, CRT (default) or LCD.
Language
Select language from ENGLISH (default) or KOREAN.
Baud Rate
Select the data communication speed from 2400, 4800, 9600 (default), 14400, 19200 or 38400.
Omni Lens
This camera does not support the Omni lens at this time.

14 •Installation XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome
Exit
The Exit menu offers a choice of ways to exit the OSD menu system.
From the Exit menu, select to Exit the OSD menu, Save & Exit to save current settings before exiting the OSD
menu or revert to factory default with Factory Set.
Lens/Autoiris Adjustment
The lens can be manually adjusted for focus and zoom. On the lens, focus [Near∞(Far)] is the front ring
and the zoom (TelephotoWide) is the back ring. A video focus adjustment connector is provided for use with
a portable/local monitor for making adjustment on the camera joystick control. Refer to Figure 6. To make the
lens adjustments, loosen the Zoom and Focus lever screws and turn the ring. When adjustment is complete,
retighten the screws. Focusing the lens may be impacted by the smoked lower dome. After the camera/lens
assembly is positioned as required, use the focus ring to adjust the lens to the sharpest focus. Use the lens
focus tool provided to simulate the dome and check the focus. Refer to Figure below. If it is acceptable,
position the lower dome and proceed to Final Installation. If the lens is now out of focus, readjust the focus
ring so the image is slightly out of focus and check the focus again with the focus tool. Repeat this procedure
as necessary until the lens is focused properly. Position the lower dome and then proceed to Final
Installation.
Note: When adjusting the focus, it is recommended that the iris be completely open (a dark condition, either
at night or using a filter) so that the depth of field does not influence the adjustment.
On autoiris lenses, iris adjustment may be required if the picture appears dark or grainy or has poor color; the
OSD menu selections to improve the picture quality.
Using the
Lens Focusing Tool
Using the
Lens Focusing Tool
