Vicon Roughneck Pro V2360W-12 User manual

Quick Guide
Roughneck V2360W-12
Outdoor Panoramic Camera
XX318-70-05
Cybersecurity Notification:All network connected devices should use best practices for
accessing the device. To that end, these network cameras do not have a default password. A user
defined password with minimum password strength requirements must be set to access the device.
See page 13 of this Quick Guide for set-up instructions.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-70-05 Product specifications subject to change without notice.
Issued: 4/2022 Copyright © 2022 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: [phone]) Fax: [phone]
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266)
UK: 44/(0) 1489-566300
www.vicon-security.com

V2360W Panoramic Fisheye | Quick Guide
1 -
Table of ContentS
1Product Overview 4
1.1 Physical Characteristics 4
2Installation and Connection 8
2.1 Package Contents 8
2.2 Installation 8
2.2.1 Checking Appearance 8
2.2.2 Mounting Camera 9
3Connection 12
3.1 Network Topology 12
3.2 System Requirements 12
3.3 Connecting Process 13
3.3.1 Default IP address 13
3.3.2 Connecting from a Computer & Viewing Preparation 13
3.4 IP Toolbox 17

V2360W Panoramic Fisheye Series | Quick Guide
2 -
WARNING
⚫This camera operates at 12 VDC/24 VAC/PoE+ (IEEE 802.3at Class 4).
⚫Installation and service should be performed only by qualified and experienced technicians and comply
with all local codes and rules to maintain your warranty.
⚫We are NOT liable of any damage arising either directly or indirectly from inappropriate installation which
is not depicted within this documentation.
⚫To reduce the risk of fire or electric shock, do not expose the product to rain or moisture.
⚫Wipe the camera with a dry soft cloth. For tough stains, slightly apply diluted neutral detergent and wipe
with a dry soft cloth.
⚫Do not apply benzene or thinner to the camera, which may cause the surface to melt or lens fog.
⚫Avoid aligning the lens with extremely bright objects (e.g., light fixtures) for long periods of time.
⚫Although this camera is waterproof and suitable for both indoor and outdoor usages, do not immerse the
camera into water.
⚫Avoid operating or storing the camera in the following locations:
Extremely humid, dusty, or hot/cold environments (recommended operating temperature:
-40°F to +122°F/-40°C to +50°C)
Close to sources of powerful radio or TV transmitters
Close to fluorescent lamps or objects with reflections
Under unstable or flickering light sources
Get Started
This quick guide is designed as a reference for installation of the camera. For additional information on the
camera’s features, functions, and detailed explanation of the web interface controls, refer to User’s Manual for
details. Please read this quick guide thoroughly and save it for future use before attempting to install the
camera. From this guide you will get:
⚫Product Overview: The physical parts, features and dimensions of the camera
⚫Installation and Connection: The instructions on installation and wires connection for the camera.
WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this product
(applicable in the European Union and other European countries with separate collection
systems). This product should be disposed of, at the end of its useful life, as per applicable
local laws, regulations, and procedures.

V2360W Panoramic Fisheye | Quick Guide
3 -
FCC Compliance Statement
Information to the user: This unit has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. These
limits are designed to provide reasonable protection against harmful interference in a residential installation.
This unit generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the manual, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this unit does cause harmful interference to radio or television reception, which can be determined by
turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
⚫Reorient or relocate the receiving antenna.
⚫Increase the separation between the unit and receiver.
⚫Connect the unit to an outlet on a circuit different from that to which the receiver is connected.
⚫Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the unit.
CE Statement
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. The manufacturer declares that the unit supplied with this
guide is compliant with the essential protection requirements of EMC directive and General Product Safety
Directive GPSD conforming to requirements of standards EN55022 for emission, EN 50130-4 for immunity,
EN 300 and EN 328 for WIFI.
This product is IP67 rated for outdoor environments and IK10 rate for impact protection. The camera also
meets regulations required to be NDAA, GSA schedule and TAA approved.

V2360W Panoramic Fisheye Series | Quick Guide
4 -
1Product Overview
1.1 Physical Characteristics
Figure 1 - 1: Physical Dimension
Ø2.8 (70)
Ø150 (5)
Ø5 (150)
56.99 (2.2)
Unit: mm (in.)

V2360W Panoramic Fisheye | Quick Guide
5 -
Figure 1 - 2: Outer View Pictorial Index
No
Name
Description
1
Dome Cover
The upper dome-shape cover provides protection
2
Lens
The proprietary fisheye lens provides wide hemispheric view
3
Cabling Cutout
The cutout hole for cables threading
4
Microphone Vent
The hole for built-in microphone to receive audio input
5
Side Cap
Loosen the 2 screws to open the side cap to access inner
interfaces for use.
6
Mounting Screws
The 3 symmetrical screws designed for mounting with bracket
7
Mounting Thread Hole
With the standard female thread 1/4-20, the hole is for attaching an
additional bracket (sold separately) for installation flexibility.
8
Security Lock
The proprietary security lock design ensures camera is mounted
securely onto the bracket. Refer to the “Security Lock
Settlement” chapter for details on how to properly set up.
9
Waterproof Grommet
The specifically designed dual waterproof grommet (rubber plug)
allows multiple cables to thread through and provides waterproof
function at the same time. Prior to threading, pull the rubber plug
out. Seal the plug back to the position when no cable thread is in
use.
10
Rear Cap
Loosen the 3 screws to open the rear cap to access the inner ports
and interfaces for further use.
Table 1 - 1: Outer View Pictorial Index Definition
4
3
5
1
2
6
10
9
7
Outer View
8

V2360W Panoramic Fisheye Series | Quick Guide
6 -
Figure 1 - 3: Inner View Pictorial Index
No
Interface
Description
A
DI/DO Terminal Ports
Connect to several external devices for audio and alarm input/output
functions, which can expand usability of camera for a variety of field
applications. Refer to Table 1 - 3 for details on port definitions.
B
RJ-45 PoE Port
Insert an Ethernet cable that connects with internet device into the PoE
port for network connection and PoE (Power over Ethernet) capability.
24 VAC/12 VDC
Power Ports
To power on camera, connect 12 VDC or 24 VAC power source to the
corresponding 2-pin ports. Pay attention to polarity while cabling 12 VDC
power supply.
C
Reset & Default
Button
Press the button for less than 1 second to reboot the camera; pressing for
6 seconds will restore the camera to the factory default settings.
Micro SD Card Slot
Insert a micro SDHC/SDXC card (customer supplied) into the slot for
recording and file storage
Table 1 - 2: Inner Interface Pictorial Index Definition
B
C
A
Inner View

V2360W Panoramic Fisheye | Quick Guide
7 -
Name
Port
AUDIO IN
AU/I
GND
AUDIO OUT
AU/O
GND
ALARM IN
AL/I
GND
ALARM OUT
AL/O
AL/C
Table 1 - 3: I/O Port Definitions
Note
Power supply terminal/adaptor for IO connectors and field wiring should comply with the
Class 2 Circuit standard for ensuring safety from electrical fires and providing acceptable
protection against electrical shock.
The Alarm out pin is a 30 VDC output signal with a maximum load of 1 A.
The Alarm in pin acts as a switch, which is either NO (Normal Open) or NC (Normal Closed).

V2360W Panoramic Fisheye Series | Quick Guide
8 -
2Installation and Connection
2.1 Package Contents
Check if all items listed below are included in the packing box.
⚫Network Fisheye Camera * 1
⚫Flat Bracket * 1
⚫Safety Wire * 1
⚫Plastic Anchors * 4
⚫Tapping Screws * 4
⚫Torx Wrench * 1
⚫2-pin Terminal Block * 1
⚫8-pin Terminal Block * 1
⚫Printed Quick Guide * 1
⚫Guide Pattern * 1
2.2 Installation
The following tools might help you complete the process of installation:
⚫Drill
⚫Screwdrivers
⚫Wire Cutters
2.2.1 Checking Appearance
When unpacking, check to see if there is any visible damage to the appearance of the camera and its
accessories. The protective materials used for the packaging should protect the camera from most accidents
during shipment. Remove the protective materials from the camera after every item is properly checked in
accordance with the list in Package Contents.

V2360W Panoramic Fisheye | Quick Guide
9 -
2.2.2 Mounting Camera

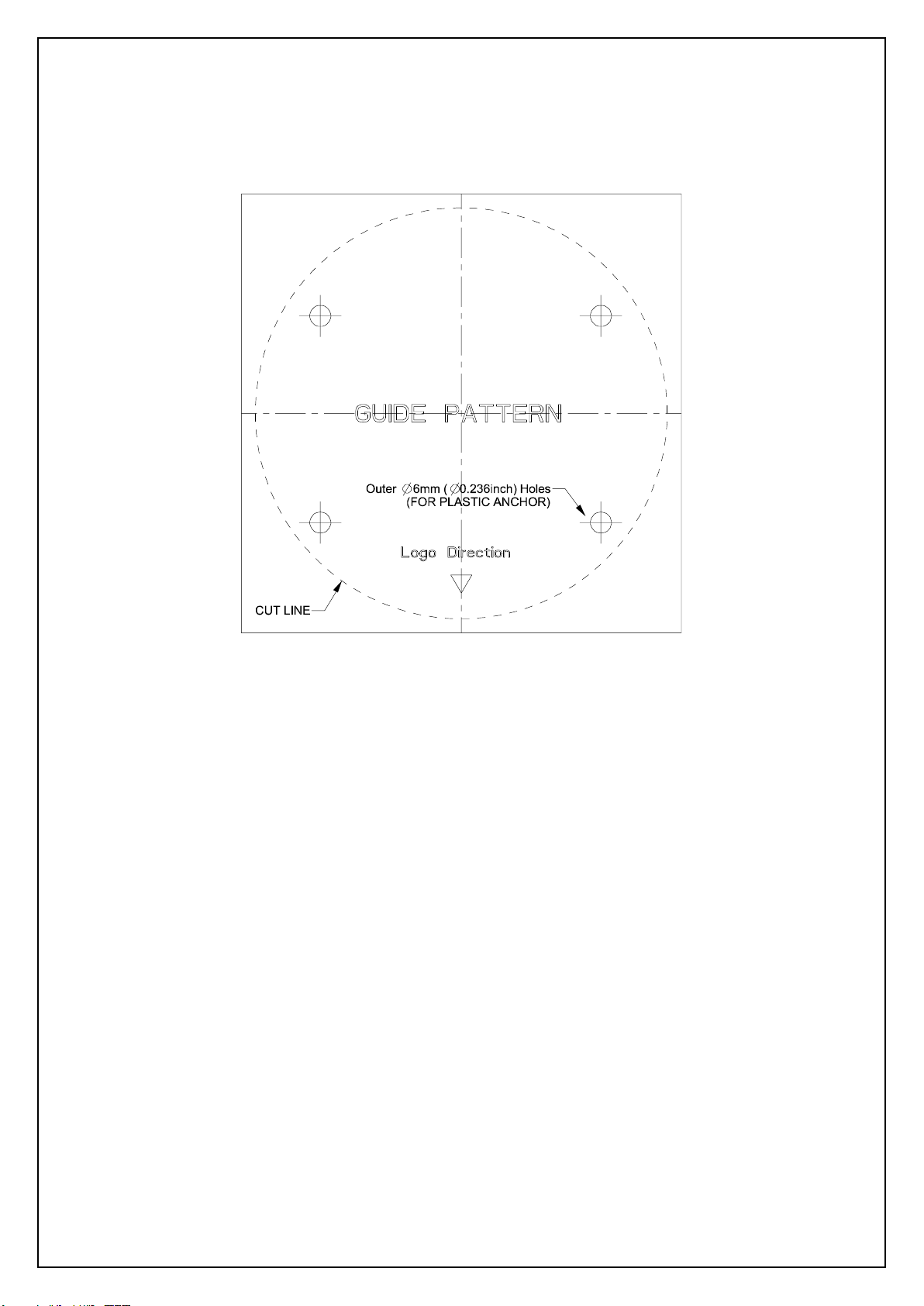

1. Attach the Guide Pattern to the mounting surface.
2. Drill 4 relative holes on a clean flat surface (ceiling or wall). Insert 4 plastic anchors into the drilled holes.
3. Attach the flat bracket onto the surface by fixing it tightly with the 4 screws (TP4).
Be sure to plug the drilled holes with the 4 plastic anchors prior to securing the bracket with the screws.
4. Open the rear cap by loosening the 3 screws. Connect the required cable threads as needed: 24 VAC/
12 VDC power cord to the 2-pin power terminal, Ethernet cable to the PoE port, and the additional audio
and alarm input/output cables to the 8-pin terminal block. Remove the rubber plug and insert the required
jacketed cables through the waterproof grommet to ensure proper IP66 water ingress protection; terminate
the cables. Note: do not slit or alter the grommet. If required, open the side cap by loosening the 2 screws
and insert a customer-supplied Micro SDHC/SDXC card into the embedded slot. Restore each of the caps
back to their positions and fasten the screws securely.
Caution: Fully tighten screws after installing cable and uSD card to ensure IP66 sealing of camera.

V2360W Panoramic Fisheye Series | Quick Guide
10 -
5. Attach the rear side of camera to the fixed flat bracket and align the 3 screws with the corresponding holes
on the bracket as shown in figure below. Rotate the camera clockwise until it clicks into place so that
camera will be firmly mounted onto the bracket. To disassemble, rotate the camera counterclockwise and
remove it from bracket.
Figure 2 - 1: Mounting The Camera
Note
The correct size holes for TP4 screws with plastic anchors are of diameter φ 6.35 mm (0.25 in,).
Seal up waterproofrubber hole with plug when no cable is in use.
Rubber Plug
Waterproof
Grommet
1
4
3
2
Note: Feed the unterminated CAT5 cable through the hole in the solid
grommet and terminate the cable with the appropriate connector.
To maintain watertight integrity/warranty, be sure to use the
appropriate grommet. Jacketed cables with a diameter between
0.165-0.2 in. (4.2mm- 5mm) must be used.
Fully tighten screws after installing cables and uSD to ensure IP66
seal.

V2360W Panoramic Fisheye | Quick Guide
11 -
Security Lock Settlement
After mounting the camera onto the flat bracket, bolt the security lock by fastening the security screw
counterclockwise, as the figure shown below, so that camera will be mounted to bracket securely. To
disassemble camera from flat bracket, loosen the security screw clockwise first.
Figure 2 - 2: Security Lock Settlement
Safety Wire Preparation
In order to prevent the camera from accidentally falling, connect the included safety wire with one end on the
mounted bracket and the other end to the safety-wire screw on the camera. Referring to the figure below, fasten
the metal-circle end of wire with the safety-wire screw onto the rear side of camera and attach the other wire end
to the hook of mounted bracket.
Figure 2 - 3: Safety Wire Connection
Note
Safety wire must be firmly connected with one end to the hook of bracket and the other end to
the safety-wire screw of the camera to ensure anti-dropping function.
Safety Wire
Safety-Wire Screw
Hook
Security Lock
Security Screw

V2360W Panoramic Fisheye Series | Quick Guide
12 -
3Connection
3.1 Network Topology
The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time
via both Internet and Intranet manners. Review the topology drawings shown below.
Figure 3 - 1: Network Topology
3.2 System Requirements
The table below lists the minimum requirement to implement and operate the camera. It is recommended not
to use any hardware/software component below these requirements for proper performance.
Table 3 - 1: System Requirements
System Hardware
CPU
i5-2430M CPU@ 2.40GHZ
RAM
6 GB or above
Display
NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500
System Software
Operating System
Windows 7 SP1, Windows 8, Windows 10
Browser
Internet Explorer 10/11, Mozilla Firefox, Chrome, Safari, Microsoft Edge
Unit
Power Supply
24 VAC/12 VDC/PoE+ (IEEE 802.3at Class 4)
Networking
Wired*
10/100BASE-T Ethernet (RJ-45 connector)
*A switch is required for surveillance on multiple cameras.
Note
All the installation and operations should comply with your local electricity safety rules.
Caution
When powering on via PoE+, this camera is to be connected only to PoE+ networks without
routing to heterogeneous devices. A heterogeneous network is a network connecting
computers and other devices where the operating systems and protocols have significant
differences.

V2360W Panoramic Fisheye | Quick Guide
13 -
3.3 Connecting Process
3.3.1 Default IP address
Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is
obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network
Settings." If DHCP is not available, the camera will use APIPA(link-local address); IPv4 link-local addresses
are assigned from address block 169.254.0.0/16 (169.254.0.0 through 169.254.255.255).
3.3.2 Connecting from a Computer & Viewing Preparation
Connecting from a computer
1. Make sure the camera and your computer are in the same subnet.
2. Check whether the network available between the camera and the computer by executing ping the
default IP address. To do this, simply start a command prompt (Windows: from the “Start Menu”, select
“Program”. Then select “Accessories”and choose “Command Prompt”), and type Ping”and then type in
your IP address. If the message “Reply from…” appears, it means the connection is available.
3. Start a browser e.g., Internet Explorer and enter IP address. A login window as shown below should pop
up. In the window, enter the default user name: ADMIN; it is required to change the password when you
login for the first time for added security, which requires at least 8 characters including 1 uppercase letter,
1 special character, alphanumeric characters to log in.
Further administration on the unit can be found in “User Manual".
Figure 3 - 2: Login Window

V2360W Panoramic Fisheye Series | Quick Guide
14 -
Viewing Preparation
Images of the unit can be viewed through various browsers. Before viewing, follow these steps to enable the
display.
1. Enable Cookies per instructions below:
In Internet Explorer, click Internet Options on the Tools menu.
On the Privacy tab, move the settings slider to Low or Accept All Cookies.
Click OK.
2. When a proxy server is used, click Internet Options on the Tools menus of Internet Explorer, select
Connect tab, click LAN button and set proxy server.
3. Change Security in Internet options per instructions below
On tool menu, click Internet Options.
Press the Security tab.
If the camera operates inside of the intranet, click the Intranet icon.
If the camera operates outside of the intranet, click the Internet icon.
Click Custom Level. This will open the Security Settings –Internet Zone screen.
Figure 3 - 3: Security Settings 1/4

V2360W Panoramic Fisheye | Quick Guide
15 -
Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows:
【Download signed ActiveX controls】➔Prompt (recommended)
【Download unsigned ActiveX controls】➔Prompt
【Initialize and script ActiveX not marked as safe for scripting】➔Prompt
Figure 3 - 4: Security Settings 2/4
【Automatic prompting for ActiveX controls】➔Enable
Figure 3 - 5: Security Settings 3/4

V2360W Panoramic Fisheye Series | Quick Guide
16 -
【Run ActiveX controls and plug-ins】➔Enable
【Script ActiveX controls marked safe for scripting*】➔Enable
Figure 3 - 6: Security Settings 4/4
Press OK to save the settings.
Close all browser windows and restart the browser. This will allow the new settings to take effect.
Type your IP address into the browser.
You should be able to see the camera image screen.

V2360W Panoramic Fisheye | Quick Guide
17 -
3.4 IP Toolbox
IP Toolbox is a utility program that helps users to locate the camera(s) in local area network that computer is
connected to. Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and
Microsoft Windows 7 or above. Steps to get the utility program running are listed below.
1. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website
Camera Software Download page, vicon-security.com.
2. Double click on IPToolbox.exe in the IP Toolbox’s folder, and the IP Toolbox window should pop up as
below.
Figure 3 - 7: IP Toolbox
3. The window lists information of camera(s) in operation at the present time. Click the camera in the list for
which you want to configure the network settings.
4. Configure the following settings as needed:
▪User Name & Password: Before performing any operation to any listed camera, enter user name and
password for the selected camera, and then click “Verify” for authentication purposes.
▪Camera Name: Enter a descriptive name for the camera.
▪Network Settings:If you have a DHCP server on your network to assign IP addresses to network
devices, enable the “dhcp” option from dropdown menu of IP MODE. Otherwise, select “manual” to
manually enter the values for IP Address, Subnet Mask, Gateway and HTTP Port fields.
▪Click “Save” to enable the settings. Click “Cancel” to discard the settings.
5. Press “View”button; the designated browser page of the selected camera will pop up. Input the
corresponding User Name & Password to log in to the specific page of camera.
6. Press “Refresh”button; all the cameras currently connected to the network will appear on the list.
7. Press “Initialize”button; there are three options, Software default, Hardware default, and Reboot
camera, for user to perform the factory default or reboot the camera. After clicking the preferred item, a
warning message will appear. Confirm again before you perform the selected function.
8. The “Filter” button on the upper-right corner allows user to perform filtering search, which means you can

V2360W Panoramic Fisheye Series | Quick Guide
18 -
input certain keywords into the field and also narrow down the range by selecting the criteria from the
dropdown menu for a target search on cameras connected.
9. Press “Auto Set IP Address”button to automatically give each camera an IP address from
predefined range and connected to predefined network internet controller.
▪User Name & Password: Enter username and password for the current auto set IP address setting.
▪Network Interface Controller: Select desired network interface controller that each camera(s) will be
connected to and also select the IP address and IP address range of the controller.
Figure 3 - 8: Auto Set IP Address
10. Click “FW Upgrade” button to upgrade the firmware of selected camera.Apop up window like the
image below will show up.
Figure 3 - 9: IP Toolbox FW Upgrade

V2360W Panoramic Fisheye | Quick Guide
19 -
Follow the steps below to complete firmware upgrade:
▪Click or to add or remove camera to be upgraded (only verified cameras will be shown on
this list).
▪Select a camera or click “Select All” button to select a camera or all the cameras on the firmware
upgrade list, respectively.
▪Click “Add”or “Cancel” button to confirm the selected cameras for upgrade or to cancel the selection,
respectively.
▪Enter the path for the desired firmware (.tar) or click and then follow the instructions to find and
upload the .tar file.
▪When the process is complete, click again to return to the list of all cameras located in the local
network.
