VWG-50-5000
Viconics Wireless Gateway
Hardware Installation Guide
January 10
th
, 2012 / 028-0369-R1

2 | VWG-50-Installation Manual
DISCLAIMERS
NO WARRANTY. Viconics, Inc. (herein after referred to as “Viconics”) makes no warranty
as to the accuracy of or use of this technical documentation. Any use of the technical
documentation or the information contained therein is solely at the risk of the user.
Documentation may include technical or other inaccuracies or typographical errors.
Viconics reserves the right to make changes to this document without prior notice, and the
reader should in all cases consult Viconics to determine whether any such changes have
been made. The information in this publication does not represent a commitment on the
part of Viconics.
Viconics shall not be liable for incidental or consequential damages resulting from the
furnishing, performance, or use of this material.
This guide contains links and references to third-party websites that are not under the
control of Viconics, and Viconics is not responsible for the content of any reference
material or linked websites. If you access a third party website mentioned in this guide,
then you do so at your own risk. Viconics provides these links only as a convenience, and
the inclusion of the link does not imply that Viconics endorses or accepts any
responsibility for the content on those third-party sites.
Electronic controls are static sensitive devices. Discharge yourself properly before
manipulation and installing the Viconics wireless gateway.
All Viconics wireless gateways and related wireless controllers are to be used only as
operating controls. Whenever a control failure could lead to personal injury and or loss of
property, it becomes the responsibility of the user to add safety devices and or alarm
system to protect against such catastrophic failures.
All VT7000 series wireless controllers and associated VWG (Viconics Wireless Gateway)
have been rigorously tested to ensure reliable operation in most building applications using
the latest 2.4 Zigbee™ technologies. Viconics cannot guarantee against potential network
interference should additional wireless systems be deployed sharing close proximity.
Best practices covered in this manual and all related Viconics VWG documents should be
considered as a guide to apply Viconics Wireless Network devices only. The instructions
included in this manual are based upon Viconics in house testing and should be referred to
as a guide only.
Viconics Inc. may not be held liable for continued reliable, or robust operation of any and
all wireless based devices. Although Viconics has taken many precautions in assuring the
robustness of the VT7000 series wireless controller product line and associated network
access point (VWG-50-XXXX-1000) Please note; future application of additional wireless
devices utilizing the same or similar channels and / or frequencies may degrade
performance of overall system and / or reliability.
Non-approved modifications or changes made to the VWG or wireless controllers may void
the FCC compliance of the VWG and wireless controllers.

3 | VWG-50-Installation Manual
Ferrites supplied with the power supply and VWG MUST be installed according to
instructions. Failure to do so may void the FCC compliance of the VWG and wireless
controllers.
Only VWG-PS-DC and VWG-PS-AC power supply can be used with the VWG. The usage
of another non-approved power supply may void the FCC compliance of the VWG and
wireless controllers.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
TRADEMARKS
Niagara, Niagara AX is a registered trademark of Tridium, Inc.
LON, LonWorks™ and LonTalk™ are registered trademarks of Echelon™ ™ Corporation.
BACnet™ is a registered trademark of ASHRAE.
OVERVIEW
This document covers the mounting and wiring of the Viconics VWG-50 series product. It
assumes that you are an engineer, technician, or service person who is performing control
system installation. Instructions in this document apply to the following products:
Note: Not covered in this document is the configuration appliance software required for
fully setup the gateway. This includes setting host IP address, passwords, database, and
other controller and network utilities. Refer to the document LIT-VWG-50-SETUP-Exx for
more information.

4 | VWG-50-Installation Manual
PARTS AVAILABLE
Part numbe
r
Description
VWG-50-5000
Viconics BACnet™™ over MS-TP & IP wireless gateway.
Includes:
Supports up to 50 wireless controllers
Factory mounted wireless adapter
24 VAC panel mounted power supply
Gateway mounted antenna
VWG-RA
Remote antenna for gateway when the gateway is installed
inside a metal cabinet or when remote antennal mounting is
required by physical installation
V
WG-W

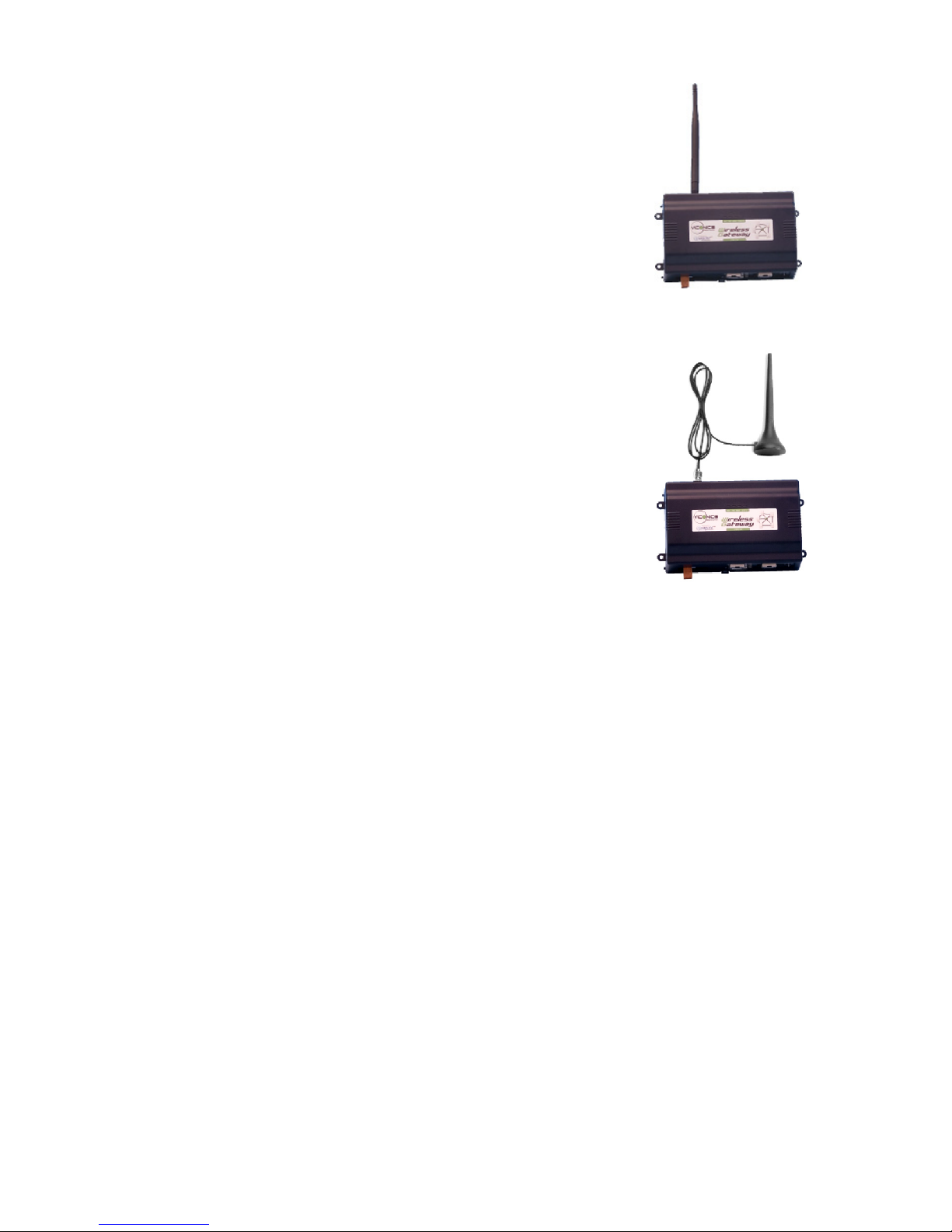

A
Replacement antenna for gateway mounted antenna setup
V
WG-PS-AC 120 VAC to 15 VDC power supply for VWG with cord
V
WG-BB Replacement battery backup pack for the VWG
PREPARATION
Unpack the VWG and power module (either VWG-PS-DC or VWG-PS-AC) and inspect the
contents of the packages for damaged or missing components. Be sure the factory-installed

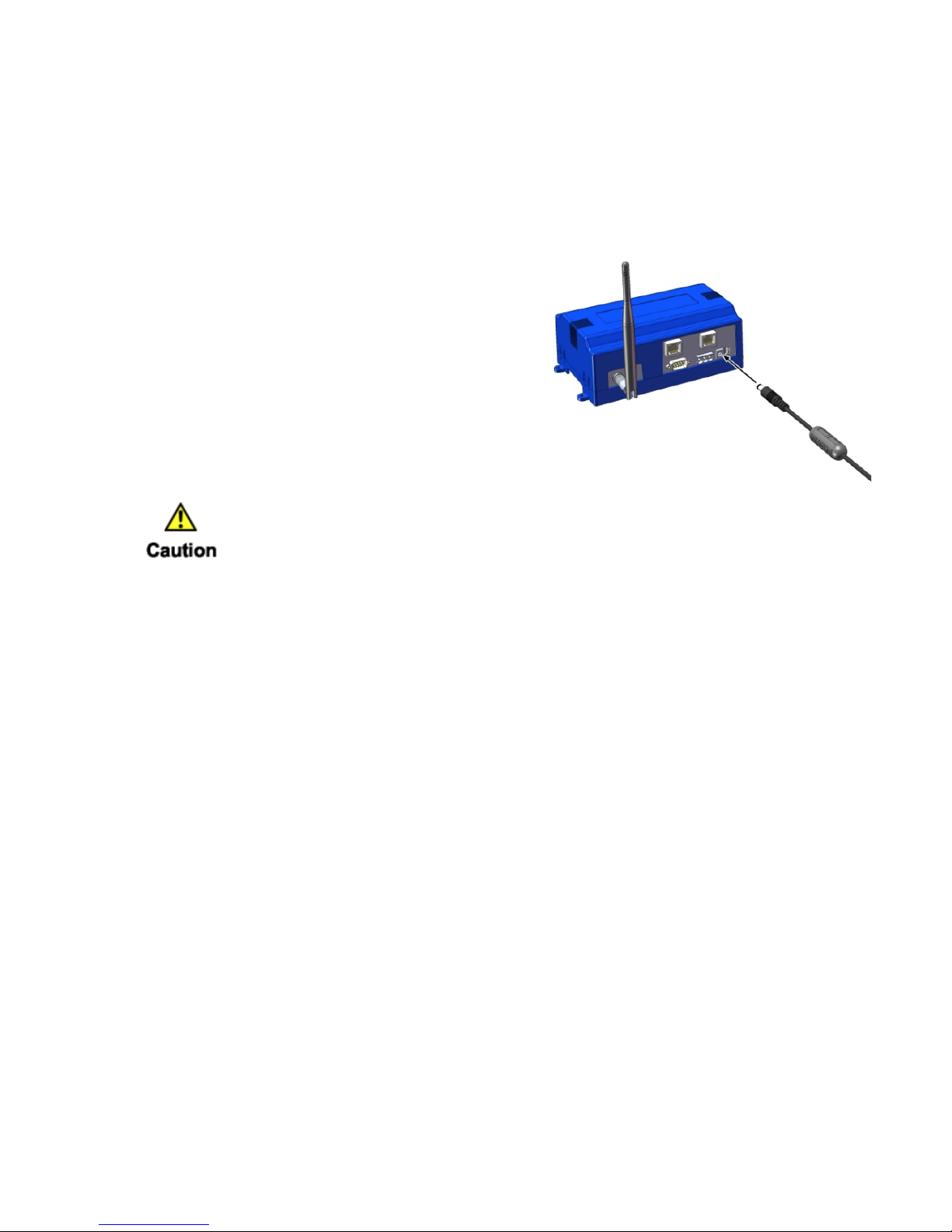

ferrite is on the cord of the power supply unit. If damaged, notify the appropriate carrier at
once and return any damaged components for immediate repair or replacement.
Included in this Package
Included in this package you should find the following items:
VWG-50-XX-1000 base controller.
Local antenna for the VWG
This VWG-50-XX-1000 Hardware installation guide
Configuration tool on a mini-CD
Power module required for operation, are ordered and sold separately. The power
module can be one of the following:
– VWG-PS-DC: 24VAC in-line (DIN-mount capable), or
– VWG-PS-AC: External 120 VAC wall-mount power adapter

5 | VWG-50-Installation Manual
Material and Tools Required
The following tools and supplies may be required for installation:
DIN rail, type NS35/7.5 (35mm x 7.5mm), recommended for panel mount installation.
Length of DIN rail should be minimum 6.5 “(165 mm).
If using a VWG-PS-DC power supply, use UL listed, Class 2, 24VAC transformer,
supplying a minimum of 5VA to the VWG. Note that the VWG-PS-DC power supply
provides isolation — a dedicated transformer is not required.
Suitable screws and screwdriver for mounting DIN rail, or if DIN rail not used, for
mounting bases of VWG controller and VWG-PS-DC power supply (if used).
PRECAUTIONS
This document uses the following warning and caution conventions:
Cautions remind the reader to be careful. They alert readers to situations
where there is a chance that the reader might perform an action that cannot be
undone, might receive unexpected results, or might lose data. Cautions contain
an explanation of why the action is potentially problematic.
Warnings alert the reader to proceed with extreme care. They alert readers to
situations where there is a chance that the reader might do something that can
result in personal injury or equipment damage. Warnings contain an
explanation of why the action is potentially dangerous.
Safety Precautions
The following items are warnings of a general nature relating to the installation
and start-up of the VWG controller. Be sure to heed these warnings to prevent
personal injury or equipment damage.
Depending on power module used, the circuit powering the VWG is 24VAC at
50/60 Hz (if using the VWG-PS-DC power supply or 120 VAC at 50/60 Hz (i
f
using the VWG-PS-AC power supply). Disconnect power before installation o
r
servicing to prevent electrical shock or equipment damage.
Make all connections in accordance with national and local electrical
codes. Use copper conductors only.
To reduce the risk of fire or electrical shock, install in a controlled
environment relatively free of contaminants.
This device is only intended for use as a monitoring and control device. To
prevent data loss or equipment damage, do not use it for any other
purpose.
All Viconics wireless gateways and related wireless controllers are to be used
only as operating controls. Whenever a control failure could lead to personal
injury and or loss of property, it becomes the responsibility of the user to add
safety devices and or alarm system to protect against such catastrophic
failures.

6 | VWG-50-Installation Manual
Static Discharge Precautions
Static charges produce voltages high enough to damage electronic components.
The microprocessors and associated circuitry within a VWG controller are sensitive
to static discharge. Follow these precautions when installing, servicing, or operating
the system:
Work in a static-free area.
Discharge any static electricity you may have accumulated.
Discharge static electricity by touching a known, securely grounded
object.
Do not handle the printed circuit board (PCB) without proper protection
against static discharge. Use a wrist strap when handling PCBs. The wrist
strap clamp must be secured to earth ground.

7 | VWG-50-Installation Manual
MOUNTING
Mount the VWG in a location that allows clearance for wiring, servicing, and antenna
removal.
Environmental Requirements
Note the following requirements for the VWG mounting location:
This product is intended for indoor use only. Do not expose the unit to ambient
conditions outside of the range of 0ºC (32ºF) to 50ºC (122ºF) and relative humidity
outside the range 5% to 95% non-condensing (pollution degree 1).
If mounting inside an enclosure, that enclosure should be designed to keep the
unit within its required operating range considering 20-watt dissipation by the
controller. This is especially important if the controller is mounted inside an
enclosure with other heat producing equipment.
Do not mount the unit:
– In an area where excessive moisture, corrosive fumes, or explosive vapors
are present.
– Where vibration or shock is likely to occur.
– In a location subject to electrical noise. This includes the proximity of
large electrical contractors, electrical machinery, welding equipment, and
spark igniters.
Physical Mounting
The following information applies about physically mounting the unit.
You can mount the VWG in any orientation. It is not necessary to remove the
cover before mounting.
Mounting on a 35mm wide DIN rail is recommended. The VWG unit base has a
molded DIN rail slot and locking clip.
If DIN rail mounting is impractical, you can use screws in mounting tabs on the
VWG
The following procedure provides step-by-step DIN rail mounting instructions for the VWG.
Mount the VWG prior to mounting any accessory items.

8 | VWG-50-Installation Manual

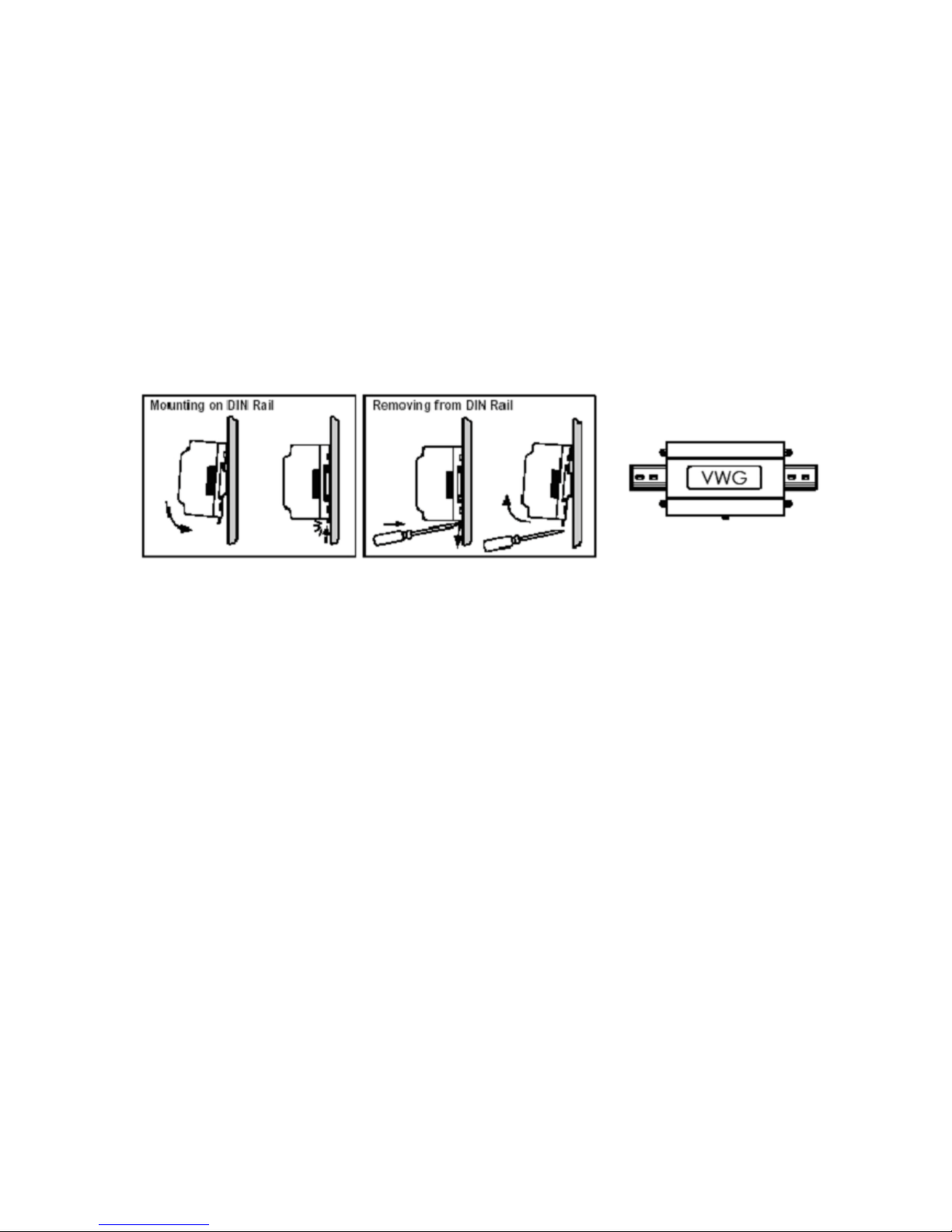

Procedure 1 - To mount on DIN rail
Step 1 Securely install the DIN rail using at least two screws, near both ends of the
rail.
Step 2 Position the VWG on the rail, tilting to hook DIN rail tabs over one edge of the
DIN rail
Step 3 Pull out the DIN rail clip and push down and in to force the DIN rail clip to snap
over the other edge of the DIN rail.
Step 4 To prevent the VWG from sliding on the DIN rail, secure with clips provided by
the DIN rail vendor, or place a screw in one of the four mounting tabs in the
base of the VWG.
Removing and Replacing the Cover
You must remove the VWG cover to connect the battery (new unit) or to replace the
battery. The cover snaps onto the base with four plastic tabs (two on each end).
To remove the cover, press in the four tabs on both ends of the unit, and lift the cover off.
If accessory modules are plugged into the VWG, you may need to slide them away from
the unit to get to the cover tabs. To replace the cover, orient it so the cutout area for
communication ports is correct, and then push inwards to snap in place.

9 | VWG-50-Installation Manual
Installation Minimum Spacing Distance Requirements
Make sure minimum spacing distance requirements is available to freely rotate wireless
antenna in all possible orientations.

10 | VWG-50-Installation Manual
Board Layout
Figure below shows the location of LEDs, connections and other features of the VWG with
the cover removed.
WIRING DETAILS
See figure above to locate connectors and other components on the
VWG controller. Make connections to the VWG in the following
order.
1. Connect earth-grounding wire with spade connector from the earth ground lug on
the VWG. See “Grounding” for details.
2. Prepare power wiring (leave the unit powered off). See “Power Wiring” for details.
3. Connect communications wiring. See “Communications Wiring,” page 14 for ports
available on the VWG base unit. For ports on any installed option board (LON, RS-485,
modem) see the specific mounting and wiring guide for any additional details.
4. Connect the backup battery to the VWG battery connector, and apply power to the
unit. See “Power Up and Initial Checkout,” page 17.
Grounding
Use an earth ground spade lug (0.187") on the base of the VWG for connection to earth
ground. For maximum protection from electrostatic discharge or other forms of EMI, you
should connect this to earth ground using a #16 AWG or larger wire. Keep this wire as
short as possible.
If desired, you can use the wall mount VWG-PS-AC 120 VAC power supply in your office
(when initially commissioning)
Battery
connecto
r
Ethernet IP connection
RJ-45, Net1
MS-TP RS-485
connection, COM2
Coaxial power
connector for wall
mounted
p
ower module
Earth ground spade
lug connector
VWG wireless card
reset button
VWG wireless card
Com status LED
Net1
status
LED
Net2
status
LED
BEAT
status
LED
SYS
status
LED
Antenna
connector
Ethernet IP connection
RJ-45, Net2 Location of serial numbe
r

11 | VWG-50-Installation Manual
VWG-PS-AC 120 VAC WALL MOUNTED POWER SUPPLY
Both the U.S. and International models of wall power modules are self-contained
switching power supplies designed to plug into a standard building power receptacle of
appropriate voltage. To supply power to the VWG, you then simply plug the coaxial
connector from the VWG-PS-AC into the coaxial power connector on the VWG base
board.
Power Wiring
Only VWG-PS-DC and VWG-PS-AC power supply
with factory installed ferrite on the power cord can
be used with the VWG. The usage of another non-
approved power supply may void the FCC
compliance of the VWG and wireless controllers.
Connect power cord as showed into
coaxial connector.
Do not plug the coaxial connector from the power supply into
the VWG until all other mounting and wiring is completed. See
“Power Up and Initial Checkout,” section.
Communications Wiring
Connect communications wiring to the VWG using Net1, Net2 or the RS-485 connection
based on VWG model used and configuration.
Note: Prior to connecting cables, provide strain relief to prevent damage to the controller.
Ethernet—BACnet™ over IP wiring
Two, female 10/100-Mbit Ethernet connections are provided on the VWG. These are RJ-45
connectors labeled NET2 and NET1. Use a standard Ethernet patch cable for connecting to
a hub or Ethernet switch. An activity LED for each Ethernet port is visible and labeled
“NET2” and “NET 1” on the cover.
Note: Typically, you only use NET1 (primary port), unless you have a specific
application for isolating a driver’s network traffic to a separate IP address (and
LAN) using NET2. In all cases, port selection can be changed and is
dependent of configuration made using the VWG configuration tool.

12 | VWG-50-Installation Manual
The packing slip accompanying the VWG will provide the “factory-shipped” IP settings for
both NET1 and NET2. Refer to the document LIT-VWG-50-SETUP-Exx for more
information for details on the default IP address and how to change it.
The supplied ferrite in the VWG packaging needs to be installed on the IP wire in
a specific way for FCC compliance. Place IP wire into the provided ferrite as shown in
diagram below and make sure to follow the placement dimension. Close and snap the
ferrite casing as shown.
Wire IP cable into NET1 or NET2 as per configuration.

13 | VWG-50-Installation Manual
RS485-BACnet™ MS-TP wiring.
An RS485, optically isolated port uses a 3-position, screw terminal connector and always
operates as COM2. Wire to this connector with shielded 8-22 AWG wiring (refer to the
TIA/EIA-485 standard). The screw terminals (from left-to-right) are shield, plus (+), and
minus (–).
The supplied ferrite in the VWG packaging needs to be installed on the MS-TP
wire in a specific way for FCC compliance. Place MS-TP wire into the provided ferrite
as shown in diagram below and make sure to follow the placement dimension. Close and
snap the ferrite casing as shown.
Wire MS-TP cable into MS-TP RS-485 connector.

14 | VWG-50-Installation Manual
A NTENNA INSTALLATION
Controller mounted antenna (VWG-WA)
All VWG-50 are supplied with a controller-mounted antenna. The
antenna is shipped loose in the controller main packaging box.
This installation type is to be used only when the controller (and
antenna) is not installed inside a closed metal enclosure and that
clear reception is expected.
Gently screw the antenna into the antenna connector at the top of
the VWG. Do not over tight the antenna.
Remote mounted antenna (VWG-RA)
If a remote mounted antenna is required because of the location of
the VWG, a separate antenna can be ordered. Part number VWG-
RA
This installation type can typically be used when the controller is
installed inside a closed metal enclosure.
Gently screw the female connection of the remote antenna into
the VWG. Remote antenna has a weighted magnetic base for
metal surface mounting. Wire length is 1.5 M (4.9 Ft)
P OWER U P AND I NITIAL C HECKOUT
Procedure - Initial power up and checkout
1. Connect the Backup Battery.
2. Apply Power.
3. Check the Status LEDs.
1) Connect the Backup Battery
With the cover removed from the VWG (see “Removing and Replacing the Cover,”), locate
the red and black wires coming from the backup battery, with 2-position connector plug. Plug
the connector into the battery connector on the bottom board (below option slot 2 area).
The connector is keyed—you cannot insert it incorrectly. The red (positive) connection
should be the furthest from the two 30-pin option modules connectors.
For more details on the backup battery, see “About the Battery”.

15 | VWG-50-Installation Manual
2) Apply Power
Apply power to the VWG by plugging in the power plug into either the VWG (if wall
mount AC adapter VWG-PS-AC) or the 24VAC-powered VWG-PS-DC module.
3) Check the Status LEDs
When power is applied, the green LED labeled “SYS” will light. This is a green LED. Once
the VWG boots, the yellow “BEAT” (heartbeat) LED will begin blinking, with a typical rate
of about 1 Hz. Boot time should begin within 30 seconds after power is applied.
The blink pattern of the heartbeat LED under normal operation will differ for each
installation (depending on station activity). But, in general, the LED should blink about once
per second. The rate will be slower when the control engine is executing the station
database, and as more objects / wireless controllers are added.
After applying power, if the heartbeat LED comes on (steady) and stays lit longer than
two minutes, contact technical support for assistance. See also the “Using Status LEDs”
section.
ABOUT THE BATTERY
The VWG is provided with a custom 10-cell NiMH battery pack mounted to the unit (under
the cover). This battery allows the VWG to continue operation through very short power
bumps (a few seconds in duration). If a longer power outage occurs, the battery provides
enough run time for the VWG to backup data and then shutdown. Typically, this is one
minute. Shutdown occurs automatically, after data is backed up to on-board flash
memory.
The battery is trickle-charged by the VWG during normal operation. Following an extended
power outage, the battery is charged at a faster rate. The power and battery circuitry is
monitored by the VWG. The battery should be replaced approximately every three years, or
more often if the unit is in a high temperature environment.
Note: A NiMH battery characteristic is to lose charge if not left in charge mode (trickle
charge). Leaving the battery unconnected, or in the unit powered off will cause
the battery to fully discharge in a matter of weeks. Note that in the case of a new
VWG, it ships from the factory with a completely discharged battery. Therefore,
allow at least 18 hours for the battery to charge if it has not been in a powered unit.
For more information on the use and replacement of the battery, refer to the “Required
Battery Maintenance” section.

16 | VWG-50-Installation Manual
RELATED DOCUMENTATION
For more information on configuring and using the VWG controller, consult the following
documents available from the VWG section at www.viconics.com:
Gateway BACnet™ integration guide (VWG-50-BIP & VWG-50-MSTP), is available in
document ITG-VWG-50-BAC-Exx
Information on design consideration of wireless mesh networks and VWG set-up /
diagnostics is available in document LIT-VWG-50-SETUP-Exx
STATUS LEDS
The VWG controller includes several LEDs that can help determine the status of the unit.
They are located in two places: the top of the controller (visible through the cover), and for
serial ports, on the bottom board (only with cover removed). From left-to-right these LEDs
include:
Ethernet Ports
Heartbeat
System
Wireless card communication status
Ethernet Ports
Each Ethernet port (“NET2”, “NET 1”) has one green LED, visible on the top cover. A
“NETx” LED indicates activity on that port as follows:
Off—No Ethernet link is made
On—Ethernet link is present, but no activity on the LAN
Blinking—Ethernet link is present with data activity on the LAN.
Beat
The “BEAT” LED is located to the right of the Ethernet status LEDs, and is yellow. Under
normal operation, this LED should blink about once per second. Blink patterns differ as
station activity varies, but any pulse rate from once per second to 10 blinks per minute
usually indicate normal operation. If the heartbeat LED stays on constantly, does not light,
or blinks very fast (more than once per second), contact System Engineering for technical
support.
System
The “SYS” LED is located to the right of the heartbeat (“BEAT”) LED, and is green. This
LED provides a CPU machine status check, and should remain lit whenever the VWG is
powered. If the SYS LED does not light while power is applied, contact technical support
for assistance.
Wireless card communication status
The Wireless card communication status is located right beside the wireless antenna
connection on the VWG. This LED provides a simple diagnostic status of the Viconics
wireless network.

17 | VWG-50-Installation Manual
1 x 200ms short blink Power on
2 x 200ms short blinks Power on and card memory initialized properly
3 x 200ms short blinks Power on, card memory initialized properly and serial
communication with VWG main board active
4 x 200ms short blinks Power on, card memory initialized properly, serial
communication with VWG main board active and wireless
networks started successfully
4 x 200ms short blinks
and 1 x 1500ms long
blink
Power on, card memory initialized properly, serial
communication with VWG main board active, wireless networks
started successfully and wireless communication with
controllers active
MAINTAINING THE VWG
This section provides information on the following topics:
1. Cleaning
2. Required Battery Maintenance
3. Replacement Parts
4. Replacing the VWG base assembly
5. Returning a Defective Unit
1) Cleaning
If dust or metal filings are present inside the unit, clean with VACuum or compressed air.
Otherwise, no cleaning inside the unit is required. Optionally, if the cover becomes dirty,
you can wipe it with a damp cloth and mild detergent.
2) Required Battery Maintenance
Battery life expectancy is a function of its discharge cycles (the number of discharges and
their depth) and the ambient temperature of the battery during normal operation. In most
applications, the battery should see relatively few discharges. Therefore, ambient
temperature has more to do with determining the life expectancy of the battery than does
any other factor. If the VWG is installed in a conditioned space, the battery should provide
dependable service for approximately three years (average). In an environment where the
operating temperature is higher (that is, 50ºC or 122ºF), you should only expect the battery
to last approximately one year.
The NiMH battery in the VWG controller is fully discharged when factory shipped.
Additionally, NiMH batteries lose charge over time if not kept trickle-charged (for more
details, see “About the Battery,”). Therefore, even a new unit (or replacement battery) will
require up to 18 hours of powered operation before it can provide reliable backup power (is
at full charge).
3) Standard Replacement Parts
Standard replacement parts are listed in Table 4 and can be ordered from stock without
restriction. Standard replacement parts cannot be returned for credit and should be
disposed of in an appropriate manner.

18 | VWG-50-Installation Manual
Table 4 Standard replacement parts.
Part Number Description
VWG-BB NiMH Battery Pack (with battery bracket)—see “Replacing the
Battery,”
Note: Screws used for the VWG are standard #6-3 2 x 3/8" types.
Non-replaceable Parts
Other than the parts listed in the replacement parts sections, there are no serviceable
components on the base assembly.
Memory
The current release of the VWG limits the maximum number of wireless controllers that can
be attached to the VWG40 to 30. Modification, or replacement of memory components
requires software configuration and is not a field upgrade. For additional information if
modifying the memory capacity of the VWG, contact Viconics for technical support.
Fuse
The VWG contains a non-user replaceable fuse, soldered on the circuit board. This fuse
provides protection from internal shorts or connection to incorrect power supplies. If the fuse
circuitry is suspect, contact Viconics for technical support. See the “Returning a Defective
Unit” section.
RETURNING A DEFECTIVE UNIT
For proper credit on the returned unit, ship the defective module to Viconics within 30
days.
Prior to returning the unit, contact Viconics to obtain a return material authorization (RMA)
number and other instructions. Please provide:
• Product model
• Serial number
• Nature of the defect

19 | VWG-50-Installation Manual
CERTIFICATIONS
Federal Communications Commission (FCC)
This equipment generates, uses, and radiates radio frequency energy, and if not installed
and used in accordance with the instruction manual, may cause interference with radio
communications. It has been tested and found to comply with the limits for a computing
device pursuant to Part 15 Subpart C of FCC Rules, which are designed to provide
reasonable protection against such interference when operated in a commercial
environment.
Canadian Department of Communications (ICES-003)
This digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
SPECIFICATIONS
Platform
• PowerPC 405EP 250 MHz processor
• 64MB SDRAM & 64 MB Serial Flash
• 128 KB Static RAM
• Battery Backup - 5 minutes typical - shutdown begins within 10 seconds
• Real-time clock - 3 months backup max via battery
Operating System
• QNX RTOS
• IBM J9 JVM Java Virtual Machine
• NiagaraAX
Wired Communications
• 2 Ethernet Ports – 10/100 Mbps (RJ-45 Connectors)
• 1 RS 232 Port (9 pin D-shell connector)
• 1 RS 485 non-isolated port (3 Screw Connector on base board)
Wireless Communications
• Direct spread spectrum 2.4 GHz ISM bands
• Transmission power is under 1 mW at –0.4 dBm for channels 11 to 25 and –4.0 dBm for
channel 26
Power Supply
• VWG-PS-AC 120 VAC to 15 VDC power supply for VWG with cord

20 | VWG-50-Installation Manual
Chassis
• Construction: Plastic, din rail or screw mount chassis, plastic cover
• Cooling: Internal air convection
• Dimensions: 6.313” (16.04 cm) W x 4.820”(12.24 cm) H (including connectors) x 2.438”
(6.19 cm) D
Environment
• Operating temperature range: 0° to 50°C (32°F to 122°F)
• Storage Temperature range: 0° to 60°C (32°F to 140°F)
• Relative humidity range: 5% to 95%, non-condensing
Agency Listings
• UL 916, C-UL listed to Canadian Standards Association
• (CSA) C22.2 No. 205-M1983 “Signal Equipment”
• FCC Part 15 Subpart C
• C-tick (Australia)
Please check with your local government for instruction on disposal of this product
Viconics Technologies Inc.
9245 Langelier Blvd. ISt-Leonard IQuebec ICanada IH1P 3K9
Tel.: [phone] IFax: [phone] Toll free: 1 800.563.5660
[e-mail] Iwww.viconics.com
