Victor E Lock ER-55 User manual

1
ER-55 Preview
Outer lock
How to release the battery housing of inner lock
Please use the
push-pin to
push the hook
of battery
housing.

2
ER-55 nstallation
Step1

3
Step2
Adjust the dead bolt
Adjust the latch
bolt by pushing
hole.
Lift pin and
pull the body
to the right.
2
-
3/
8
”
2
-
3
/
4
”
60mm
70mm
2
-
3/ 8
”
2
-
3/ 4
”

4
Step3
nstall latch bolt and dead bolt, making certain
both latch bolt and dead bolt hub are center to
center.

5

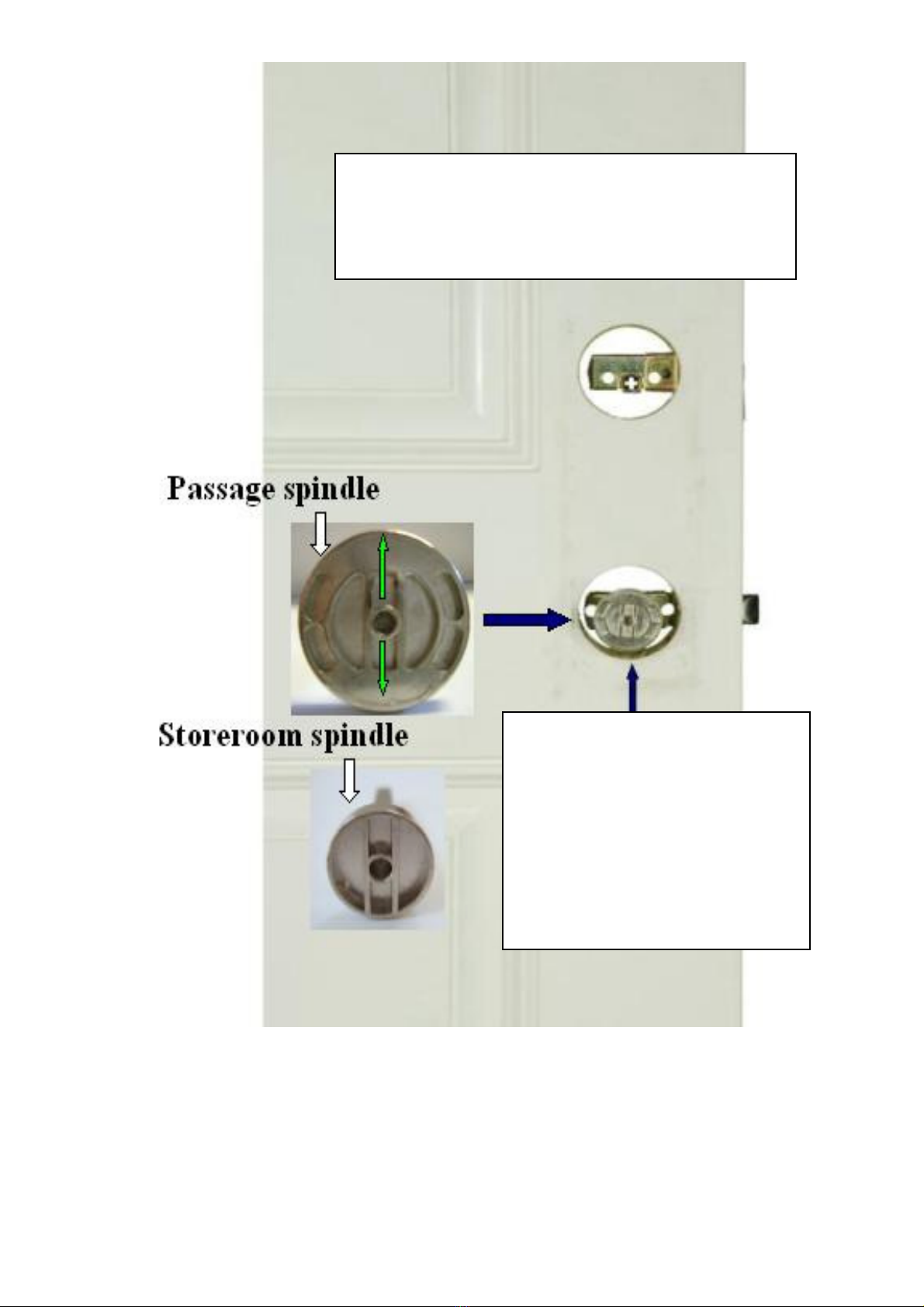

Step4
Storeroom Function: allows the latch to be locked at all times. Every time
you close the door the lock will lock automatically. To throw the deadbolt
on storeroom function, enter your code and then lift the lever handle.
Passage/Entrance Function: unlike the storeroom function, the door will
remain unlocked after each opening.
nsert the spindle
from the outside of
door to the spring
latch hole.
Make certain dead bolt is at
retracted position.

6
Step5
Set the handing
cam to the
correct position.
(To match your
door swing R or
L. From outside,
the door hinges
are on the left
that is left door
swing and so
on.)
R
L
Right door swing
Left door swing

7
Step6
Thread wire harness below
dead bolt chaise (bypass
the posts).

8
Step7
Place the outer lock body to engage
with the spindle in alignment (the cam
clutch smoothly engages with the
spindle, align both inside and outside
housings to ensure proper installation.

9
Step8
nstall interior
mechanism
(sandwich plate)
Sandwich plate

10
Step9
Tailpiece
Direction of tailpiece,
vertical (R GHT
HAND), horizontal
(LEFT HAND), for
door swing
Right door swing
Left door swing

11
Step10
Engage interior
mechanism
through Spindle
hub hole.

12
Step11
Engage tailpiece
through dead
bolt hub.
Correct position for
the wire harness
Wrong position for the wire
harness (that will stop the
movement of tailpiece)
Tailpiece
X

13
Step12
Round head
screws (longer
than other 4
round head
screws)
Make certain sandwich plate
screws are tight (this will
prevent shifting of both
outside and inside plates).
Flat head screws must be
tightened otherwise it will
interfere the movement of
dead bolt.
Flat head screws

14
Step13
Connect with wire harness.
n assembly, make certain wire
harness is located under the
inside housing.

15
Step14
Engage spindle
onto coil spring,
and hub of inside
mechanism.
Lever Handle Shaft
Coil Spring

16
Step15
Tighten with 4
Round head
screws
(Shorter than
other 2 round
head screws)

17
Step16
Attach inside
escutcheon

18
Step17
Tighten with two 2mm screws on both sides.

19
Step18
Attach nylon washer and lever handle on
inside and outside escutcheon.

20
Step19
Tighten the
lever handle
screws with
Allen wrench.
