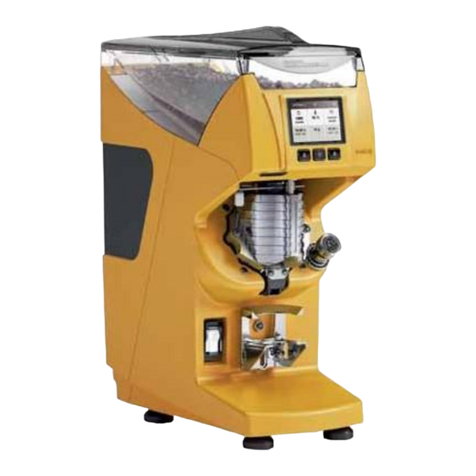

Victoria Arduino MYTHOS 2 Instruction Manual

MYTHOS 2
IT LIBRETTO ISTRUZIONI (Istruzioni Originali)
EN USER HANDBOOK (Translation of the Original Instructions)
FR MANUEL D’INSTRUCTIONS (Traduction des Instructions Originales)
DE GEBRAUCHANWEISUNGEN (Übersetzung der Originalanleitungen)
ES INSTRUCCIONES DE MANEJO (Traducción de las Instrucciones Originales)


8MYTHOS 2
Machine design has taken into account all reasonable user safety precautions;
nevertheless, particular conditions of installation and/or handling may create
unforeseen situations beyond the installer’s control which will require case-by-
case evaluation of residual risks. We recommend keeping the following in mind:
• Always handle the machine with care to avoid the danger of its falling.
• The packing materials (carton, cellophane, staples, polystyrene, etc..) can cut,
wound or create hazards if used improperly or handled carelessly. Store such
materials out of reach of children and irresponsible persons.
• This symbol on the appliance or package means that the appliance must not
be considered as normal household refuse but that it must instead
be delivered to an appropriate collection centre for the recycling of
electric and electronic appliances. Make sure that this appliance is
disposed of correctly and you too will be making your contribution
to the prevention of negative eects on health and the environ-
ment, which could otherwise be caused by inadequate disposal.
Recycling materials helps to preserve our natural resources. For
more information about how to recycle this product, you can contact your lo-
cal council oice, local refuse disposal service or the retailer from whom you
purchased the appliance.
• Before carrying out any installation or adjustment process, be sure to have
read and thoroughly understood the warnings in this manual.
• The company cannot be held liable for any damage to people or property re-
sulting from failure to respect the instructions concerning safety, installation
and maintenance contained in this manual.
• The power cord of this appliance must never be replaced by the user. In the
event of damage, switch o the appliance and only contact professionally
qualified technicians for its replacement.
• Should you decide to no longer use this type of appliance, we recommend that
you make it inoperative: unplug the appliance from the mains socket and cut
o the power cord.
• All defects and/or anomalous machine behaviour should be reported immedi-
ately to authorized installation and/or maintenance personnel.
• Before connecting the machine, check that electrical power supply corre-
sponds to the specifications on the data plate.
• Should the machine plug not be compatible with your socket, have the plug
replaced with a suitable type by a qualified technician, who should also check
that the section of the wires supplying the power outlet is suitable for the ma-
chine power requirements.
• Avoid use of multiple-plug adapters and extension cords.
EN PRECAUTIONS AND SAFETY FEATURES

9MYTHOS 2
• The ground wire must be connected; the electrical system must meet the
standards set by local safety laws and regulations.
• The machine must be installed only by authorized, qualified personnel.
• Check that the machine components have suered no damage during ship-
ping; in the case defects or anomalies are found, interrupt installation and re-
quest replacement.
• Never obstruct the fan grids.
• Never insert objects into the fan grids.
• This grinder dispenser has been devised for professional use by trained per-
sonnel.
• The grinder/dispenser must be used only for the application for which it was
designed; that is, grinding roasted coee beans. Any other use must be consid-
ered improper and therefore dangerous.
• The manufacturer shall not be held responsible for damages deriving from im-
proper, erroneous or unreasonable use of the machine.
• The appliance must not be used by children or people with reduced, physical,
sensorial or mental abilities. It must also never be used by people without the
necessary skills and experience unless under supervision or during training.
Do not allow children to play with this equipment at any time.
• The machine is not designed for use in extreme environmental conditions and
in any case at temperatures outside the -5°C to +30°C range.
• The user must respect the general safety regulations in force in the country in
which the machine is installed as well as the rules of common sense, and shall
be responsible for ensuring that periodic machine maintenance is correctly
performed.
• The persons installing and using the machine and performing machine main-
tenance shall inform the manufacturer of any defects or damages due to wear
that might jeopardize the original safety features of the machine.
• The installer shall be responsible for checking that the machine is installed in
tolerable environmental conditions such as to not to create health or safety
hazards for those using the machine.
• Any responsibility deriving from components manufactured and installed on
the machine shall be assumed by the respective manufacturers; responsibility
attributable to the persons authorized to use the machine shall be assumed
by the customer.
• Recommended period of use are Ton 30 sec and To 60 sec.
APPLICATIONS AND USE
ATTENTION
Do not touch the heating element or the upper grinder holder during machi-
ne functioning, as they might reach high temperatures.

10 MYTHOS 2
BASIC SAFETY PRECAUTIONS
• Never touch the machine with damp or wet hands.
• Never use the machine when barefoot.
• Never attempt to unplug the machine by pulling the power cord or the ma-
chine itself.
• Do not expose the machine to atmospheric agents (sun rain, etc..).
• Never allow the machine to be used by children or by irresponsible persons.
• Always use the appliance on a flat, steady surface that is able to support its
weight.
• Always unplug the machine from the power supply before performing any
cleaning or maintenance operations.
• Do not use jets of water or detergents for cleaning.
• In the case of machine breakdown or malfunction switch the machine o and
do not tamper with it.
• For repairs contact only an authorized service center and request use of orig-
inal spare parts.
• Non-observance of the above precautions may make the machine unsafe for
future use.
• Do not leave the machine switched on when not in use. Unplug the machine
when not in use.
• Do not obstruct the ventilation and/or heat dissipation openings and/or slits
nor introduce water or any other liquids into same.
• Do not obstruct the ventilation and/or heat dissipation openings and/or slits
nor introduce water or any other liquids into same.
• Never insert spoons, forks or other utensils into the pouring lip (8), or into the
coee grain container (2) for any reason whatsoever while the appliance is
operating.
• Always switch o the appliance before removing blockages from the pouring lip.
• Never place the appliance in water or other liquids.
• Should a foreign body stop the motor, switch the machine o immediately and
contact an authorized service center.
• While machine is operating, the upper grinder holder may reach high temper-
atures; do not touch such part during functioning for any reason.
• The machine is designed for 24-hour intermittent service. The machine com-
ponents are designed and built to ensure at least 1000 hours’ operation.
• Good cleaning and maintenance also contribute to determining long machine
life.

11MYTHOS 2
ATTENTION
If the thermal breaker to protect the motor is triggered, do not attempt
any other manoeuvre. Unplug the machine from the power mains and
make sure that any problems have been solved before switching the machine
on again.
IMPORTANT INFORMATION
This manual is designed for use by the user of the machine and/or by those per-
forming maintenance on the machine and must be considered an integral part
of the machine itself.
This manual provides information concerning correct use and appropriate main-
tenance of the machine, as well as useful indications for ensuring user safety.
This manual must be preserved for the entire working life of the machine and
must be transferred, together with the machine, to future users or owners. The
information contained in this manual must not be construed as substituting the
safety prescriptions and the technical data regarding installation and operation
carried on the machine itself and on the packing materials.
This manual reflects the current state of machine technology and shall not be
considered obsolete solely because updated at a later date on the basis of ac-
quired experience. The images shown in this manual are for information only.
The manufacturer reserves the right to make modifications to this manual with
no obligation to update previous versions except in exceptional cases.
Improper use of the machine or use in manners other than those described in
this manual shall invalidate the guarantee conditions and shall release the man-
ufacturer from all responsibility, the machine must be used only by adult, re-
sponsible persons.
This manual must be preserved with care: the manufacturer declines all respon-
sibility for damages to persons or things or to the machine itself deriving from
improper use or use in manners other than those described herein or in the case
the maintenance and safety precautions described herein are not respected.
PRESERVATION OF THE MANUAL
This manual must at all times be available to the machine user and/or the per-
sons performing maintenance on the machine, who must be provided with full
information regarding correct machine use and residual risks.
This manual must be preserved in a clean, dry place away from sources of heat.
This manual must be used in a manner such as not to damage any part of its
contents.
Do not remove, tear out or re-write any part of this manual for any reason.
In case of loss of this manual or for further information, please contact your area
retailer or the manufacturer.

25MYTHOS 2
IT
COSTRUTTORE:
SIMONELLI GROUP - Via E. Betti, 1 - Belforte del Chienti, Macerata (MC) - Italy
MACINADOSATORE MODELLO:
MYTHOS 2
EN
MANUFACTURER:
SIMONELLI GROUP - Via E. Betti, 1 - Belforte del Chienti, Macerata (MC) - Italy
COFFEE GRINDER MODEL:
MYTHOS 2
FR
FABRICANT:
SIMONELLI GROUP - Via E. Betti, 1 - Belforte del Chienti, Macerata (MC) - Italy
MOULIN-DOSEUR MODELE:
MYTHOS 2
DE
HERSTELLER:
SIMONELLI GROUP - Via E. Betti, 1 - Belforte del Chienti, Macerata (MC) - Italy
DOSIERMÜHLE MODELL:
MYTHOS 2
ES
FABRICANTE:
SIMONELLI GROUP - Via E. Betti, 1 - Belforte del Chienti, Macerata (MC) - Italy
MOLINILLO-DOSIFICADOR MODELO:
MYTHOS 2
INFORMAZIONI GENERALI
GENERAL INFORMATIONS
INFORMATIONS GENERALES
INFORMAZIONI GENERALI
INFORMACIÓN GENERAL
1

26 MYTHOS 2
IT
Per identificare l’apparecchio, leggere la sigla che appare subito dopo “MATRICOLA” impressa sulla tar-
ghetta applicata sul presente manuale o sull’apparecchio stesso e scegliere la tensione corrispondente.
EN
In order to identify the appliance, read the code immediately aer “MATRICOLA” (serial number) on the
label applied on this manual or on the appliance itself and select the corresponding voltage.
FR
Pour identifier l’appareil, lire le sigle qui apparaît tout de suite après “NUMERO DE SIRE” imprimé sur
l’étiquette appliquée dans ce manuel ou sur l’appareil et choisir le voltage correspondant.
DE
Zur Identifizierung des Geräts ist die Zeichenfolge abzulesen, die hinter “SERIENNUMMER” auf dem in
diesem Handbuch eingeklebten bzw. am Gerät selbst angebrachten Typenschild erscheint. Die entspre-
chende Spannung wählen.
ES
Para identificar el aparato, leer el código que parece inmediatamente después de “NÚMERO DE SERIE”
estampillado en la placa aplicada en el presente manual o en el aparato en cuestión y elegir la tensión
correspondiente.
DATI TECNICI
TECHNICAL DATA
DONNEES TECHNIQUES
TECHNISCHE DATEN
DATOS TÉCNICOS
2

27MYTHOS 2
IT
MODELLO MYTHOS 2
Versione Giri fissi Giri variabili
Voltaggio (V) 110 / 220 110 / 220
Frequenza (Hz) 50 / 60 50 / 60
Assorbimento (W) 300 550
Tramoggia (kg/lb) 2 / 4,4 2 / 4,4
Vel. macinatura (g/s) 42 - 4
Peso netto (kg) 21 21,9
Peso lordo (kg) 23,5 24,5
Altezza (mm) 518 518
Larghezza (mm) 202 202
Profondità (mm) 416 416
EN
MODEL MYTHOS 2
Version Fixed speed
Variable speed
Voltage (V) 110 / 220 110 / 220
Frequency (Hz) 50 / 60 50 / 60
Consumption (W) 300 550
Hopper (kg/lb) 2 / 4,4 2 / 4,4
Grinding speed (g/s) 42 - 4
Net weight (kg) 21 21,9
Gross weight (kg) 23,5 24,5
Height (mm) 518 518
Width (mm) 202 202
Depth (mm) 416 416
FR
MODÈLE MYTHOS 2
Version Tours
fixes
Tours
variables
Voltage (V) 110 / 220 110 / 220
Fréquence (Hz) 50 / 60 50 / 60
Absorption (W) 300 550
Trémie /kg/lb) 2 / 4,4 2 / 4,4
Vitesse mouture (g/s) 42 - 4
Poids net (kg) 21 21,9
Poids brut (kg) 23,5 24,5
Hauteur (mm) 518 518
Largeur (mm) 202 202
Profondeur (mm) 416 416
DE
MODELL MYTHOS 2
Ausführung Feste
Umdrehungen
Variable
Umdrehungen
Spannung (V) 110 / 220 110 / 220
Frequenz (Hz) 50 / 60 50 / 60
Stromaufnahme (W) 300 550
Trichter (kg/lb) 2 / 4,4 2 / 4,4
Mahlgeschwindigkeit (g/s)
42 - 4
Nettogewicht (kg) 21 21,9
Bruttogewicht (kg) 23,5 24,5
Höhe (mm) 518 518
Breite (mm) 202 202
Tiefe (mm) 416 416
ES
MODELO MYTHOS 2
Versión Revoluciones
fijas
Revoluciones
variables
Voltaje (V) 110 / 220 110 / 220
Frecuencia (Hz) 50 / 60 50 / 60
Absorción (W) 300 550
Tolva (kg/lb) 2 / 4,4 2 / 4,4
Vel. molienda (r/s) 42 - 4
Peso neto (kg) 21 21,9
Peso bruto (kg) 23,5 24,5
Altura (mm) 518 518
Anchura (mm) 202 202
Profundidad (mm) 416 416

28 MYTHOS 2
DESCRIZIONE DELL’APPARECCHIO
APPLIANCE DESCRIPTION
DESCRIPTION DE L’APPAREIL
BESCHREIBUNG DES GERÄTS
DESCRIPCIÓN DEL APARATO
3
2
3
1
9
10
12
8
7
4
5
6
11

29MYTHOS 2
IT
1 Coperchio contenitore
2 Contenitore caè in grani
3 Lavagna posteriore
4 Pomello regolazione
macinatura
5 Pulsante attivazione
macinatura
6 Piedino macchina
7 Forcella porta filtro
8 Interruttore ON/OFF
9 Beccuccio di erogazione
10 Resistenza
11 Pulsante dose
12 Display touch screen
EN
1 Container cover
2 Coee bean container
3 Rear blackboard
4 Grinding adjusting knob
5 Grinding start button
6 Machine foot
7 Filter holder fork
8 ON/OFF switch
9 Dispensing spout
10 Heating element
11 Dose button
12 Touch screen display
FR
1 Couvercle récipient
2 Récipient café en grains
3 Ardoise arrière
4 Pommeau de réglage de la
mouture
5 Poussoir d'actionnement
mouture
6 Pied machine
7 Fourche porte-filtre
8 Interrupteur ON/OFF
9 Bec de distribution
10 Résistance
11 Bouton dose
12 Aicheur à écran tactile
DE
1 Behälterdeckel
2 Kaeebohnenbehälter
3 Hintere Tafel
4 Handknopf zur Einstellung
der Mahlfeinheit
5 Mahl-Taste
6 Maschinenfuß
7 Siebträgergabel
8 EIN/AUS-Schalter
9 Abgabeschnabel
10 Widerstand
11 Dosiertaste
12 Touchscreen-Anzeige
ES
1 Tapa contenedor
2 Contenedor café en grano
3 Pizarra trasera
4 Pomo regulación molienda
5 Botón activación molienda
6 Pie de la máquina
7 Horquilla portafiltro
8 Interruptor ON/OFF
9 Boquilla de dispensación
10 Resistencia
11 Botón dosis
12 Pantalla táctil

30 MYTHOS 2
IT
4.1
PREMESSA
Questo apparecchio eroga dosi di
caè con modalità temporizzata
o basata sul peso rilevato, in ac-
cordo con la versione acquistata.
Mettere a punto la macchina pri-
ma di cominciare a lavorare:
• Collegare la macchina alla
rete elettrica.
• Portare l’interruttore (8) in
posizione di accensione.
• Regolare il grado di macina-
tura.
• Regolare il peso o il tempo di ma-
cinatura per ciascun tasto dose.
Alla 1° accensione, l’apparecchio
risulterà predisposto nella mo-
dalità impostata all’uscita della
fabbrica e comunque, negli avvii
successivi, si predisporrà sempre
come nell’ultima modalità prece-
dente lo spegnimento.
È possibile scrivere eventuali note
con gessetti sulla lavagna poste-
riore (3).
La lavagna è lavabile con un pan-
no umido.
• Aprire il coperchio (1) e riem-
pirlo di caè in grani.
• Tirare la linguetta interna al
contenitore permettendo il
passaggio del caè.
ISTRUZIONI D’USO
INSTRUCTIONS FOR USE
INSTRUCTIONS D’EMPLOI
BETRIEBSANLEITUNG
INSTRUCCIONES DE USO
4
COFFEE
1
2
EN
4.1
INTRODUCTION
This appliance delivers doses of
coee with timed mode or based
on the weight detected, in accord-
ance with the purchased version.
Set up the appliance before oper-
ating:
• Plug the appliance to the
electrical main.
• Bring the switch (8) to ON po-
sition.
• Set the degree of grinding.
• Set the weight or grinding
time for each dose key.
When switching the appliance ON
for the first time, it is configured in
the default mode and anyway, in
the following uses, it will maintain
the last mode previous to switch
OFF.
You can write any notes with
chalks on the rear blackboard (3).
The whiteboard can be cleaned
with a damp cloth.
• Open the cover (1) and fill it
with coee beans.
• Pull the tab inside the con-
tainer to allow the passage of
coee.

31MYTHOS 2
FR
4.1
PRÉMISSE
Cet appareil distribue des doses
de café avec une modalité tem-
porisée ou basée sur le poids
relevé, selon la version acquise.
Mettez la machine à point avant
de commencer à travailler :
• Branchez la machine au ré-
seau électrique.
• Placez l'interrupteur (8) en
position de mise en marche.
• Réglez le degré de mouture.
• Régler le poids ou le temps de
mouture pour chaque touche
dose.
Lors de sa première mise en marche,
l'appareil est prédisposé dans la
modalité programmée en usine et,
dans tous les cas, lors des mises en
marche successives, il se positionne-
ra toujours dans la dernière modalité
qui précède l'arrêt de la machine.
Il est possible d’écrire des notes
avec de la craie sur l’ardoise ar-
rière (3).
L’ardoise est lavable avec un chif-
fon humide.
• Ouvrez le couvercle (1) et
remplissez-le avec du café en
grains.
• Tirez la languette interne du
récipient pour permettre le
passage du café.
DE
4.1
VORWORT
Dieses Gerät liefert je nach ge-
kauer Version eine zeitgesteu-
erte oder gewichtsabhängige
Kaee-Einheit. Richten Sie die
Maschine ein, bevor Sie mit der
Arbeit beginnen:
• Schließen Sie die Maschine
an das Stromnetz an.
• Den Schalter (8) einschalten.
• Stellen Sie den Mahlgrad ein.
• Stellen Sie das Gewicht oder die
Mahldauer für jede Dosiertaste
ein.
Beim 1. Einschalten läu die Ma-
schine mit der Betriebsart an, die
fabrikseitig eingestellt wurde. Bei je-
dem späteren Einschalten läu die
Maschine immer mit der Betriebsart
an, auf die sie im Moment des Ab-
schaltens eingestellt war.
Sie können beliebige Notizen mit der
Kreide auf die Tafel schreiben (3).
Die Tafel kann mit einem feuchten
Tuch gewaschen werden.
• Den Deckel (1) vom Behälter
(7) önen und Kaeebohnen
einfüllen.
• Ziehen Sie an der Lasche im
Inneren des Behälters, um
den Kaee durchzulassen.
ES
4.1
PREMISA
Este aparato suministra dosis de
café de forma temporizada o ba-
sada en el peso, de acuerdo con la
versión comprada. Poner a punto
la máquina antes de empezar a
trabajar:
• Conectar la máquina a la red
eléctrica.
• Colocar el interruptor (8) en
la posición de encendido.
• Regular el grado de molienda.
• Ajustar el peso o el tiempo de
molienda para cada botón de
dosis.
Al encender por primera vez, el
equipo se encontrará en la moda-
lidad configurada de fábrica y, en
todo caso, al poner en marcha su-
cesivamente, se colocará siempre
en la última modalidad anterior al
apagado.
Se pueden escribir notas con tiza
en la pizarra trasera (3).
La pizarra se puede lavar con un
trapo húmedo.
• Retirar la tapa (1) del conte-
nedor y rellenarlo con café en
grano.
• Tirar de la lengüeta dentro
del contenedor para permitir
el paso del café.

32 MYTHOS 2
IT
Versione temporizzata
Appoggiare la coppa portafiltro
sulla forcella (7) e spingerla in
avanti fino al contatto con il pul-
sante (5) per far fuoriuscire il caf-
fè macinato dal beccuccio (9).
Versione gravimetrica
Agganciare e rilasciare il porta-
filtro, la macchina eettuerà la
tara e inizierà ad erogare caè
fino alla grammatura impostata.
Posizionare il macinino su una
superficie perfettamente stabile
e con maggiore assenza di vibra-
zioni possibile. La presenza di
vibrazioni può rallentare il pro-
cesso di tara.
La macchina è dotata di disposi-
tivo di tenuta del portafiltro.
Questo dispositivo è predispo-
sto per i portafiltri Standard Vi-
ctoria Arduino, ma può essere
regolato in base al portafiltro a
disposizione.
ATTENZIONE
Per evitare otturazio-
ni del beccuccio (9) tenere la
coppa porta-filtro appoggiata
sulla forcella (7).
EN
Timed version
Place the filter-holder bowl on
the fork (7) and push it forwards
until it comes into contact with
the button (5) to pour out the
ground coee through the
spout
(9).
Gravimetric version
Hook and release the filter hold-
er, the machine will carry out the
tare and will begin to deliver cof-
fee up to the set weight.
Place the grinder on a perfectly
stable surface with the greatest
possible absence of vibrations.
The presence of vibrations can
slow down the tare process.
The machine is equipped with
filter holder retaining device.
This device is suitable for Stand-
ard Victoria Arduino filter hold-
ers, but it can be adjusted ac-
cording to the available filter
holder.
ATTENTION
KTo avoid blockages
of the nozzle (9), hold the fil-
ter-holder cup on the fork (7)
or in the sealing device.

33MYTHOS 2
FR
Version temporisée
Posez la coupe porte-filtre sur
la fourchette (7) et poussez-la
en avant jusqu’au contact avec
le bouton (5) pour faire sortie le
café moulu à travers le bec (9).
Version gravimétrique
Accrocher et relâcher le porte-
filtre, la machine eectuera le
poids à vide et commencera
à distribuer du café jusqu’au
grammage programmé.
Positionner le moulin sur une
surface parfaitement stable et
avec les moindres vibrations
possibles. La présence de vibra-
tions peut ralentir le processus
de poids à vide.
La machine est munie d'un dis-
positif de blocage du porte-filtre.
Ce dispositif est prédisposé pour
les porte-filtres Standard Victo-
ria Arduino, mais il peut être ré-
glé en fonction du porte-filtre à
disposition.
ATTENTION
Pour éviter les obtu-
rations du bec (9), garder la
coupe porte-filtre posée sur le
touche (7).
DE
Zeitgesteuerte Version
Stellen Sie die Filterhaltertasse
auf die Gabel (7) und drücken
Sie sie nach vorne, bis sie die
Taste (5) berührt, damit der ge-
mahlene Kaee aus der Tülle
entweichen kann (9).
Gravimetrische Ausführung
Den Filterhalter einhängen und
loslassen, das Gerät tariert und
beginnt mit der Kaeeausgabe,
bis das eingestellte Gewicht er-
reicht ist.
Stellen Sie den Mahler auf eine
absolut stabile und vibrations-
arme Oberfläche. Vibrationen
können den Tariervorgang ver-
langsamen.
Die Maschine ist mit einer Sieb-
träger-Haltevorrichtung ausge-
stattet.
Dieses Gerät ist für Standard
Victoria Arduino Filterhalter ge-
eignet, kann aber entsprechend
dem verfügbaren Filterhalter
eingestellt werden.
ACHTUNG
Um Verstopfungen der
Düse (9) zu vermeiden, den
Filterhalterbecher an der Ga-
bel (7) festhalten.
ES
Versión temporizada
Coloque la copa portafiltro en la
horquilla (7) y empújela hacia
delante hasta que haga contac-
to con el botón (5) para permitir
que el café molido salga por la
boquilla (9).
Versión gravimétrica
Enganchar y soltar el portafiltro,
la máquina se tara y comienza a
dispensar el café hasta alcanzar
el peso ajustado.
Colocar el molinillo sobre una
superficie perfectamente esta-
ble con la menor vibración po-
sible. Las vibraciones pueden
ralentizar el proceso de tara.
La máquina está equipada con
un dispositivo de retén del por-
tafiltro.
Este dispositivo está diseñado
para los portafiltros Standard
Victoria, pero puede ser ajusta-
do de acuerdo con el portafiltro
disponible.
ATENCIÓN
Para evitar obturacio-
nes de la boquilla (9) mante-
ner la copa porta-filtro apoya-
da sobre la horquilla (7).

34 MYTHOS 2
IT
4.2
REGOLAZIONE MACINATURA
Agire sul pomello (4) ruotandolo
in senso orario per fare una ma-
cinatura più fine o in senso an-
tiorario per aumentare la grana
del macinato.
ATTENZIONE
La regolazione della
macinatura deve esser fatta
gradualmente, macinando
un po’ di caè ogni volta che
si ruota il pomello di 2 indici
(tacche) numerici.
Se il pomello viene ruotato
di un giro a motore fermo la
macchina può bloccarsi.
F
I
N
E
C
O
A
R
S
E
P
A
T
E
N
T
E
D
EN
4.2
GRINDING SETTING
Use the knob (4), turning it
clockwise for finer grinding or
anti-clockwise for a coarser
grinding.
ATTENTION
Grinding setting must
be performed gradually,
grinding a little coee each
time that the knob is turned
by two
digits
(notches).
The machine may seize up if
the knob is moved by one turn
while the motor is switched
o.

35MYTHOS 2
FR
4.2
RÉGLAGE MOUTURE
Agir sur le pommeau (4) en le
tournant vers la droite pour ob-
tenir une mouture plus fine ou
vers la gauche pour augmenter
le grain de la mouture.
ATTENTION
Le réglage de la mou-
ture doit être eectué gra-
duellement, en moulant un
peu de café chaque fois que
l’on tourne la poignée de 2
crans numériques.
Si on tourne le pommeau d’un
tour quand le moteur est ar-
rêté, la machine peut se blo-
quer.
DE
4.2
EINSTELLUNG MAHLFEINHEIT
Drehen Sie den Knopf (4) im Uhr-
zeigersinn für eine feinere Ver-
mahlung oder gegen den Uhrzei-
gersinn, um die Korngröße des
Mahlgutes zu erhöhen.
ACHTUNG
Stellen Sie den
Mahlgrad schrittweise ein,
indem Sie jedes Mal, wenn Sie
den Knopf mit 2 numerischen
Indexen (Kerben) drehen, ein
wenig Kaee mahlen.
Wenn der Drehknopf bei ste-
hendem Motor um eine Um-
drehung gedreht wird, kann
die Maschine blockieren.
ES
4.2
REGULACIÓN MOLIENDA
Girar el pomo (4) en el sentido
de las agujas del reloj para rea-
lizar una molienda más fina o en
sentido contrario para aumentar
el tamaño de grano de la mo-
lienda.
ATENCIÓN
La regulación de la
molienda debe realizarse gra-
dualmente, moliendo un poco
de café cada vez que se gira la
ruedecilla 2 índices (muescas)
numéricos.
Si se gira completamente el
pomo con el motor parado, la
máquina podría bloquearse.

36 MYTHOS 2
A
4.3
REGOLAZIONE ALTEZZA
FORCELLA PORTA FILTRO
Qualora la dimensione del por-
tafiltro dovesse essere maggiore
di quella impostata, è possibile
regolare la forcella.
Con un cacciavite a croce allen-
tare la vite di fissaggio della for-
cella porta filtro (7). È consiglia-
bile non svitare completamente
la vite.
Sollevare o abbassare la forcella
in modo da regolarla in base alle
dimensioni del portafiltro.
Una volta trovata la posizione
corretta, assicurarsi che sia ben
livellata, stringere la vite di fis-
saggio della forcella (7).
IT
La regolazione è senza punti di
fermo ed ad ogni giro del pomel-
lo corrisponde uno spostamento
delle macine di 0,4 mm circa.
Le macchine dotate di pomello
azzerabile hanno la possibilità di
fare lo zero sul punto di macina-
tura stabilito, tenendo ferma la
parte alta del pomello e agendo
sulla ghiera alla base.
4.4
EROGAZIONE DOSI
Premere un pulsante dose (A) o
lo schermo touch screen (si illu-
mina) e attivare il pulsante (5)
inserendo il portafiltro nella for-
cella (6) per avviare l’erogazione
di caè macinato.
Nella versione gravimetrica, se-
lezionare il pulsante dose e ag-
ganciare il portafiltro.
4.3
FILTER HOLDER FORK HEIGHT
ADJUSTMENT
If the size of the filter holder
should be larger than the set
one, the fork can be adjusted.
Using a crosshead screwdriver,
loosen the fastening screw of
the filter holder fork (7). It is rec-
ommended not to unscrew the
screw completely.
Raise or lower the fork in order
to adjust it according to filter
holder dimensions.
Once having reached the correct
position, make sure that is prop-
erly levelled and tighten the fork
fastening screw (7).
EN
The setting has no stop points
and each turn of the knob corre-
sponds to a movement of 0.4 mm
of the burrs.
The machines equipped with re-
settable knob can be set to zero at
a preset grinding point by holding
the top part of the knob in posi-
tion and using the ring nut on the
base.
4.4
DOSE DISPENSING
Press one dose key (A) or the
touch screen display (this lights
up) and activate the button (5)
by inserting the filter holder into
the fork (6) to start dispensing
ground coee.
In the gravimetric version, select
the dose button and attach the
filter holder.

37MYTHOS 2
4.3
RÉGLAGE HAUTEUR FOURCHE
PORTE-FILTRE
Si les dimensions du porte-filtre
dont supérieures à celles pro-
grammées, il est possible de ré-
gler la fourche.
À l'aide d'un tournevis en croix,
desserrer la vis de fixage de la
fourche porte-filtre (7). Il est
conseillé de ne pas dévisser entiè-
rement la vis.
Soulever ou baisser la fourche de
façon à la régler en fonction des
dimensions du porte-filtre.
Après avoir trouvé la position
correcte, vérifier le nivellement
parfait, serrer la vis de fixage de
la fourche (7).
4.4
DISTRIBUTION DOSES
Frapper un bouton dose (A) ou
l’écran tactile (qui s’éclaire) et ac-
tionner le bouton (5) en introdui-
sant le porte-filtre sur la fourche
(6) pour lancer la distribution de
café moulu.
Sur la version gravimétrique, sé-
lectionner le bouton dose et ac-
crocher le porte-filtre.
FR
Le réglage n’a pas de cran d’arrêt
et chaque tour de la poignée cor-
respond à un déplacement des
meules de 0,4 mm.
Les machines équipées d’une poi-
gnée zérotable ont la possibilité
d’établir le point zéro sur le point
de mouture choisi, en maintenant
fixe la partie haute de la poignée
et en agissant sur la fretté située
sur la base.
4.3
HÖHENVERSTELLUNG DER
SIEBTRÄGERGABEL
Ist die Größe des Filterhal-
ters größer als die eingestellte
Größe, können Sie die Gabel
verstellen. Mit einem Kreuz-
schlitz-Schraubenzieher die
Befestigungsschraube der Sieb-
trägergabel lockern (7). Es emp-
fiehlt sich, die Schraube nicht
ganz herauszuschrauben.
Die Gabel höher oder tiefer stel-
len, bis sie den Abmessungen
des Siebträgers entspricht.
Nachdem die richtige Position
gefunden wurde, stellen Sie si-
cher, dass sie eben ist, ziehen
Sie die Befestigungsschraube
der Gabel (7) wieder an.
4.4
DOSIERUNGEN
Drücken Sie eine Dosiertaste (A)
oder den Touchscreen (leuchtet
auf) und aktivieren Sie die Taste
(5), indem Sie den Filterhalter in
die Gabel (6) einsetzen, um mit
der Ausgabe von gemahlenem
Kaee zu beginnen.
In der gravimetrischen Version
wählen Sie den Dosierknopf und
haken den Filterhalter ein.
DE
Die Einstellung ist stufenlos und
jede Umdrehung des Drehknopfs
entspricht einer Verlagerung der
Mühle um ca. 0,4 mm. Die Maschi-
nen, die mit einem auf Null stell-
baren Drehknopf ausgestattet
sind, bieten die Möglichkeit, den
gewünschten Feinheitsgrad als
Nullpunkt einzustellen, indem der
obere Teil des Drehknopfs festge-
halten und der Gewindering an
dessen Basis gedreht wird.
4.3
REGULACIÓN ALTURA
HORQUILLA PORTAFILTRO
Si el tamaño del portafiltro es
mayor que el tamaño ajustado,
puede ajustar la horquilla.
Con la ayuda de un destornilla-
dor de cruz, aflojar el tornillo de
fijación de la horquilla portafil-
tro (7). Se recomienda no desa-
tornillar totalmente el tornillo.
Levantar o bajar la horquilla
para ajustarla en función de las
dimensiones del portafiltro.
Una vez encontrada la posición
correcta, asegurarse de que está
bien nivelada y apretar el torni-
llo de fijación de la horquilla (7).
4.4
DISPENSACIÓN DE DOSIS
Apretar el botón de dosis (A) o la
pantalla táctil (se ilumina) y ac-
tivar el botón (5) introduciendo
el portafiltro en la horquilla (6)
para comenzar a dispensar el
café molido.
En la versión gravimétrica, selec-
cionar el botón de dosis y engan-
char el soporte del filtro.
ES
La regulación no tiene topes y
a cada vuelta del pomo corres-
ponde un desplazamiento de las
muelas de 0,4 mm aproximada-
mente.
Las máquinas equipadas con
un pomo reiniciable tienen la
posibilidad de realizar el punto
cero en el punto de molienda
establecido, sujetando la parte
superior del pomo y actuando
sobre el casquillo de la base.

38 MYTHOS 2
PROGRAMMAZIONE
PROGRAMMATION
PROGRAMMATION
PROGRAMMIERUNG
PROGRAMACIÓN
5
1 2 3 4 5 6 7
IT
ZONE SENSIBILI
EN
SENSIBLE AREAS
FR
ZONES SENSIBLES
DE
SENSIBLE BEREICHE
ES
ZONAS SENSIBLES
IT
Immagini Esemplificative
DE
Exemplarische Bilder
EN
Exemplifying Images
ES
Ejemplos de imágenes
FR
Images à titre d’exemple
Other manuals for MYTHOS 2
2
Table of contents
Other Victoria Arduino Coffee Grinder manuals
