VictoriaPlum 3060-L-6080 User manual

RECTANGULAR MIRRORSLED
3060-L-6080 3121-L-5070 3095-L-60803061-L-5070
3060-L-3950 3120-L-3950 3096-L-8060

BEFORE YOU START, HERE IS SOME IMPORTANT INFORMATION.
1) General Information
Please inspect this product upon delivery. Any missing parts or manufacturing
defects must be reported immediately to the supplier. Damage or defects reported
later will not be accepted. TAKE CARE WHEN HANDING GLASS PARTS- AVOID
HEAVY CONTACT BETWEEN THE GLASS EDGES AND ANY HARD SURFACE.
Glass breakage claims will not be accepted after the product has been unpacked.
2) Additional Notes
Please read these instructions carefully before starting installation.
Special care should be taken when drilling walls to avoid hidden pipes or electrical cables.
Note: This product may require two people to install.
This product should ONLY be installed by a qualified electrician.

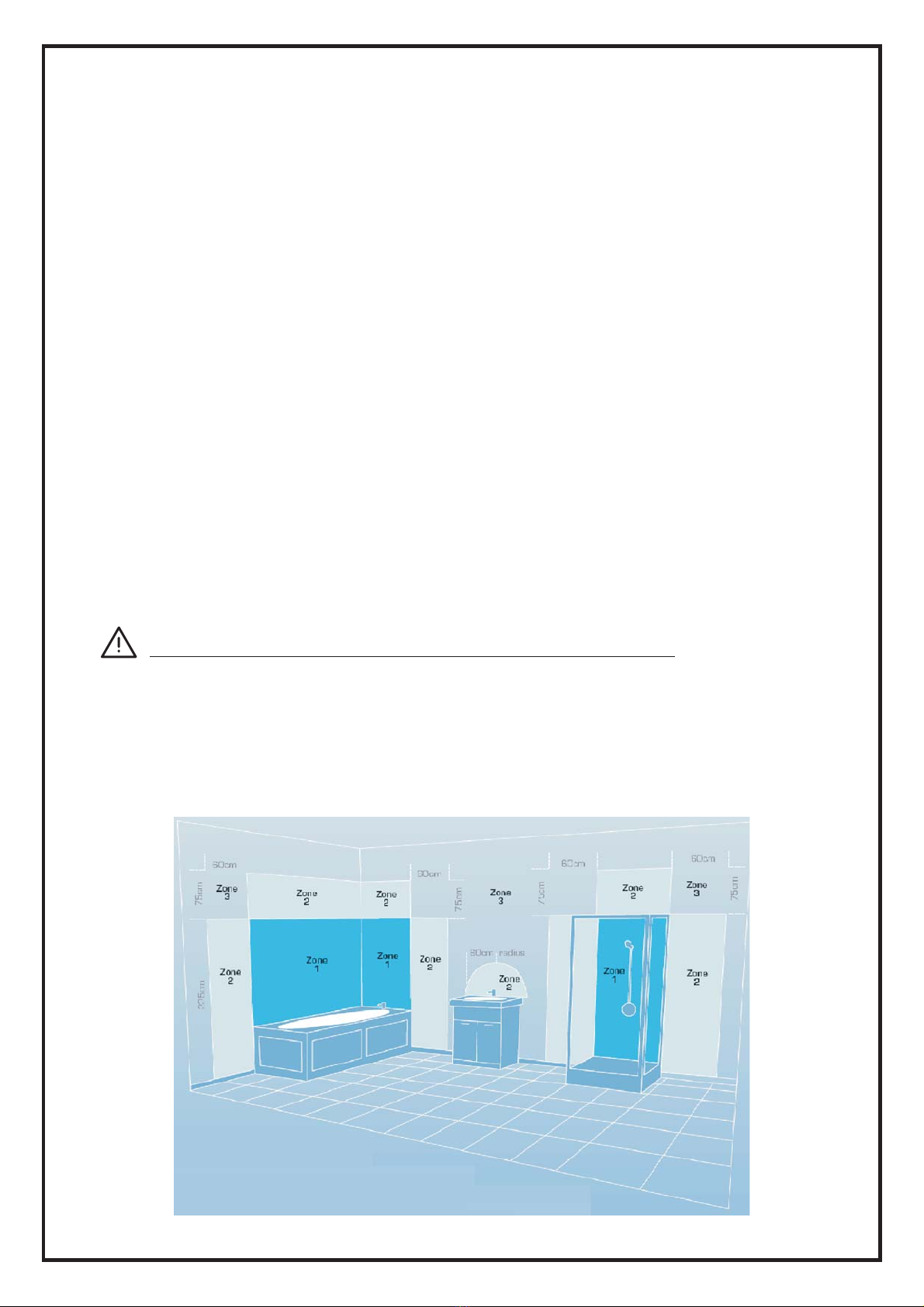

WHERE TO INSTALL THIS MIRROR
This mirror is IP44 rated and is suitable for installation in Zones 2 or beyond.
Zone 0 - Inside the bath or shower
Zone 1 - Above the bath or shower to a height if 2.25m
Zone 2 - The area stretching to 0.6m outside the bath or shower and above the bath
or shower if over 2.25m
Outside the zones - anywhere outside zones 0,1 and 2

ASSEMBLY DRAWING
3060-L-3950 / 3060-L-6080
1 Demister pad
2 IR motion sensor
3 LED driver
3061-L-5070
1 Demister pad
2 IR motion sensor
3 LED driver
4 Isolating transformer
5 Shaver socket
3120-L-3950 / 3121-L-5070
1 Demister pad
2 IR motion sensor
3 LED driver
3095-L-6080
1 Demister pad
2 IR motion sensor
3 LED driver
4 Bluetooth module
5 Speaker
TOOLS REQUIRED
3096-L-8060
1 Demister pad
2 IR motion sensor
3 LED driver
4 Isolating transformer
5 Shaver socket
6 3x magnifying mirror
Description
Drill
Parts Image
Cross Head
Screwdriver
Description
Tape Measure
Pencil
Parts Image
Spirit Level
Ø8mm Drill Bit

INSTALLATION STEPS
STEP 1
Do not stand the mirror upright on hard surfaces whilst fitting, as this will damage the corners.
Unscrew the front of the mirror from the metal back box.
ISOLATE THE MAINS POWER SUPPLY TO THE ELECTRICAL FEED THAT WILL
POWER YOUR MIRROR.
STEP 2
Put the back box on the wall, ensuring your power supply cable will reach the connection block.
Carefully mark the positions of the four mounting holes on the wall through the predrilled holes in
STEP 3
Remove the back box from the wall, and drill the four holes into the wall using a suitable drill bit.
STEP 4

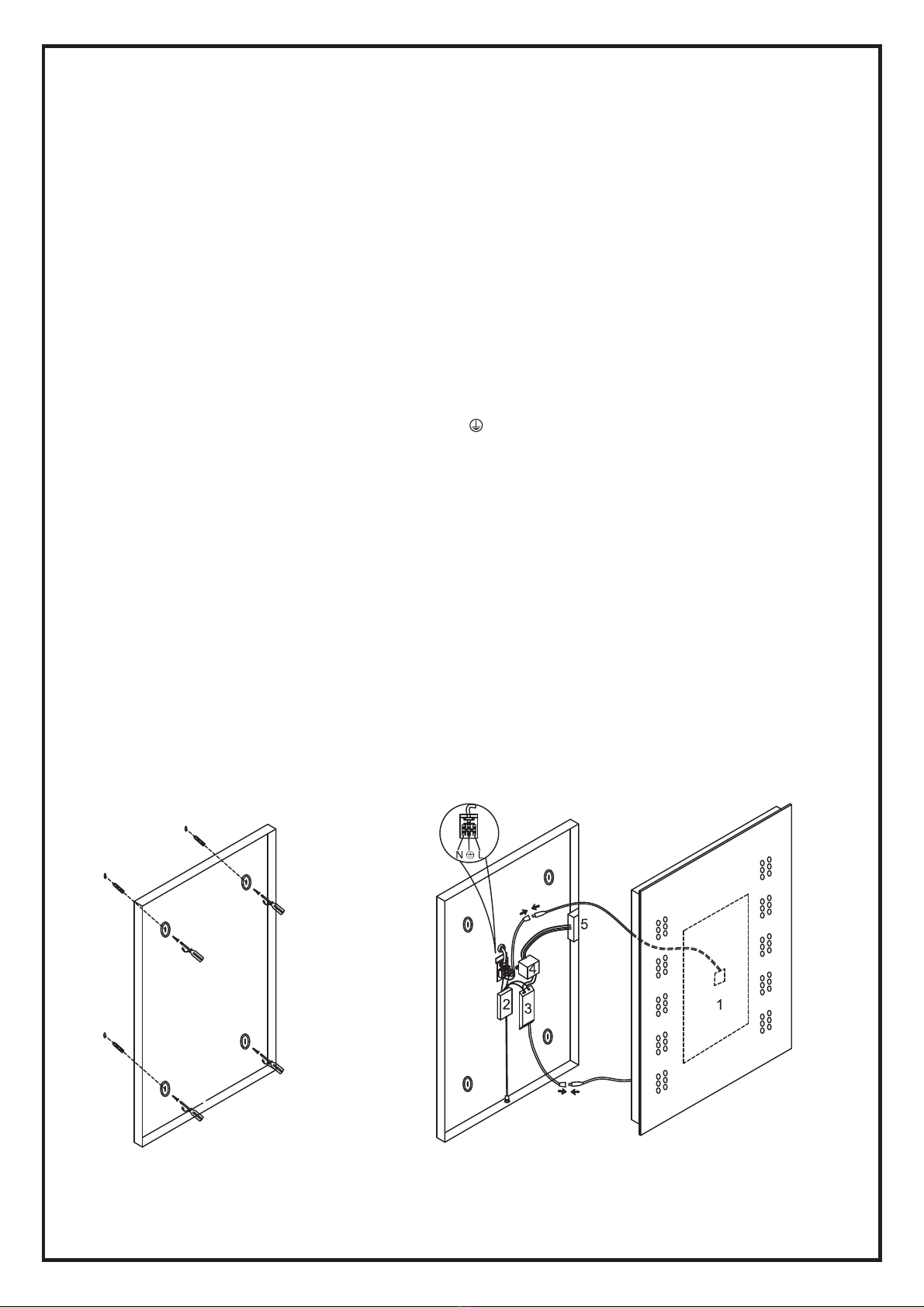

STEP 2 STEP 3 STEP 4
the back box, using a pencil and a spirit level.

Insert the wall plugs and fix the back box to the wall using the screws provided.
NOTE: As the mounting surfaces vary, please ensure adequate fixings are used.
Fixings supplied are not suitable for all mounting surfaces, e.g. plaster board.
STEP 5
Wire the main power supply to the terminal block on the back box as belows.
WARNING: This appliance must be earthed.
STEP 6
RED OR BROWN --- TERMINAL MARKED L (LIVE)
GREEN & YELLOW --- TERMINAL MARKED E OR
BLACK OR BLUE --- TERMINAL MARKED N (NEUTRAL)
STEP 5 STEP 6
IMPORTANT: Before you fit the front mirror, please connect the wirings of
demister pad for all of the mirrors.
For the item 3061-L-5070, please also connect the wirings of LED strips to the
For the other items, the LED strips are pre-connected.
output of LED driver.

Peel off the protective film from the mirror and clean with a soft cloth.

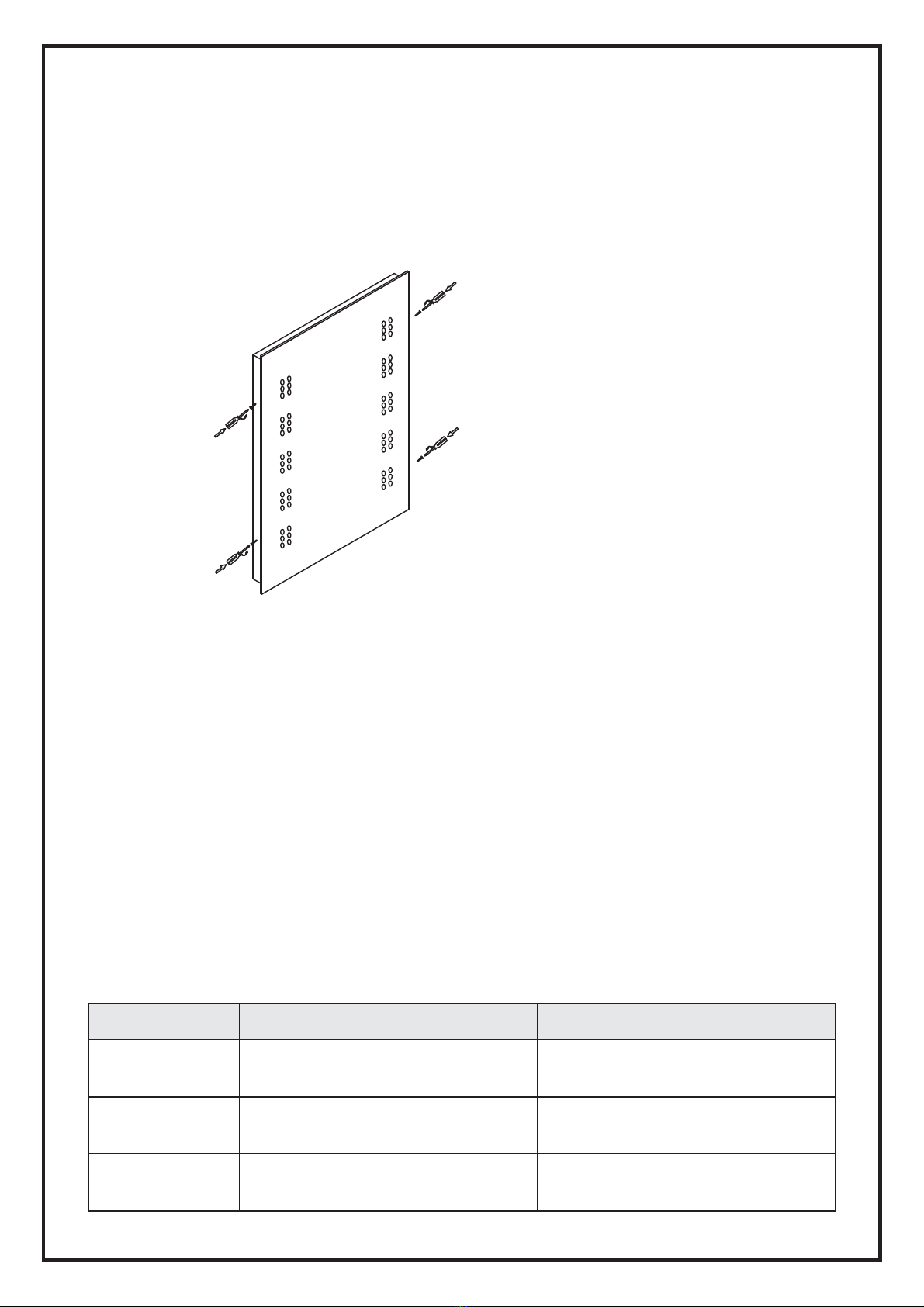

STEP 8
Screw the front mirror to the back box using the screws provided.
STEP 7
STEP 7
Bluetooth Wireless Technology Operation Guide
• hen the mirror is connected to the main power supply,
which ensures your device can connect to the Bluetooth even if the lights are turned off.
Activate the Bluetooth on your device and . The mirror will give out
a tone to confirm the connection is successful.
Play the music which will come out from your mirror. Adjust the volume on your device.
Music will pause when a phone call comes into your device, and will automatically play
after the calling is finished.
search for ‘RRD-126L’
The Bluetooth is always activated w
•
•
•
Symptoms
No connection
No volume
Voice is fitful or
disappeared
Possible Problem
Only one device can be connected
to the mirror at one time
Volume is only controlled from device
Out of range
Solution
Disconnect all devices and reconnect
one device
Adjust volume on device
Move device closer to mirror

CARE AND MAINTENANCE
1) AFTER CARE INSTRUCTIONS
The supplier accepts no liability for any type of use of care other than those contained in this
instruction. The supplier reserves the right to introduce technical changes without notice.
It is recommended that mirrors are cleaned with a soft, dry, non-abrasive cloth. Do not use
abrasive cleaning materials, or chemical cleaners as this will damage the mirror surface
2) MAINTENANCE
It must be disposed of in a safe and environmentally friendly way.
We suggest you take it to the local landfill site and discard it in the designated bins.
The packaging you have received with your product is 100% recyclable.
COMMITMENT TO QUALITY
understand that this may not always be the case. So should you experience any problems,
please contact our customer services quoting the following:
It is our intention that the quality and functions of this product are of the highest standard.
If you require help, we advise you firstly contact a qualified electrician. However we
Product name: Rectangular LED Mirrors
Customer help line number: 0344 804 48 48
Product code: As shown on the first page
NOTE:
and edges.
V03.09.2017
