Victory SP-180 User manual

Snow Blade Owner’s Manual
SP-180, SP-200, SP-220, SP-240
Snow Plow for Skid Steer connect to your Tractor
CAUTION: Read Manual Thoroughly Before
Operation

1
CONTENTS
1.CONTENTS ………………………………………………………………………1
2.PRODUCT SPECIFICATIONS……...…………………………………………2
3.SAFETY INSTRUCTIONS…………………………………………………..… 3
4.OPERATION AND MAINTENANCE ……………………….......…………..…11
5.PARTS LIST…………………………….…………………………..................…18

2
2.PRODUCT SPECIFICATIONS
Model
SP140U
SP160U
SP180U
SP200U
SP220U
SP240U
Length
720mm
720mm
720mm
720mm
720mm
720mm
Width
1410mm
1610mm
1810mm
2010mm
2210mm
2410mm
Height
650mm
650mm
650mm
650mm
650mm
650mm
Working
width
1400mm
1600mm
1800mm
2000mm
2200mm
2400mm
Weight
129kgs
142kgs
165kgs
180kgs
198kgs
221kgs
Rotation
angle
28.5°
28.5°
28.5°
28.5°
28.5°
28.5°
Power
required
20-30hp
25-35hp
30-40hp
40-50hp
40-55hp
45-60hp

3
3.SAFETY INSTRUCTIONS
Remember, you are the key to safety. Good safety practices not only protect you, but
also the people around you. Make these practices a working part of your safety
program. Be certain that everyone operating this equipment is familiar with the
recommended operating and maintenance procedures and follows all the safety
precautions. Most accidents can be prevented. Do not risk injury or death by ignoring
good safety practices.
The alert symbol is used throughout this manual. It indicates attention is required
and identifies hazards. Follow the recommended precautions.
The safety alert symbol means…
ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED!
CAUTION
The caution symbol indicates a potentially hazardous situation that, if not avoided,
may result in minor or moderate injury. It may also be used to alert against unsafe
practices.
WARNING
The Warning Symbol indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury, and includes hazards that are exposed when
guards are removed. It may also be used to alert against unsafe practices.
DANGER
The Danger Symbol indicates an imminently hazardous situation that, if not avoided
Before operating the Snow Blade, read these safety instructions.
Failure to comply with these warnings may result in serious injury or death.

4
3.SAFETY INSTRUCTIONS
will result in death or serious injury. This signal word is to be limited to the most
extreme situations, typically for machine components that, for functional purposes,
cannot be guarded.
General Safety Instructions
Safety of the operator is one of the main concerns in designing and developing a new
piece of equipment. Designers and manufacturers build in as many safety features
as possible. However, every year many accidents occur which could have been
avoided by a few seconds of thought and a more careful approach to handling
equipment. You, the operator, can avoid many accidents by observing the following
precautions in this section. To avoid personal injury, study the following precautions
and insist those working with you, or for you, follow them.
In order to provide a better view, certain photographs or illustrations in this manual
may show an assembly with a safety shield removed. However, equipment should
never be operated in this condition. Keep all shields in place. If shield removal
becomes necessary for repairs, replace the shield prior to use.
Replace any CAUTION, WARNING, DANGER or instruction safety sign that is not
readable or is missing. Location of such safety signs is indicated in this booklet.
Never use alcoholic beverages or drugs which can hinder alertness or coordination
while operating this equipment. Consult your doctor about operating this machine
while taking prescription medications.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The
operator should be a responsible adult familiar with farm machinery and trained in this
equipment’s operations. Do not allow per-sons to operate or assemble this unit until
they have read this manual and have developed a thorough understanding of the
safety precautions and of how it works.

5
3.SAFETY INSTRUCTIONS
To prevent injury or death, use a tractor equipped with a Roll-Over Protective System
(ROPS). Keep foldable ROPS systems in “locked up” position at all times. Do not paint
over, remove or deface any safety signs or
warning signs on your equipment. Observe all safety signs and practice the instruction
on them.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so
safely, is in question –DON’T TRY IT.
Do not modify the equipment in any way. Unauthorized modification may impair the
function and/or safety and could affect the life of the equipment.
In addition to the design and configuration of this implement, including Safety Signs
and Safety Equipment, hazard control and accident prevention are dependent upon
the awareness, concern, prudence, and proper training of personnel involved in the
operation, transport, maintenance, and storage of the machine. Refer also to Safety
Messages and Operation Instructions in each of the appropriate sections of the Tractor,
Skid Steer, and Implement Manuals. Pay close attention to the Safety Signs affixed to
the Tractor, Skid Steer, and the Implement.
Operational safety
Start power unit only when properly seated in the operator’s seat. Starting a power
unit in gear can result in injury or death. Do not mount or dismount while the power
unit is moving. Mount or dismount only when the power unit and all moving parts are
completely stopped.
Keep all helpers and bystanders fifty feet (50’) from an operating power unit and
attached equipment. Only properly trained people should operate this machine. It is
recommended the tractor be equipped with a Rollover
Protection System (ROPS) and a seat belt that is used. Always stop the tractor, skid
steer, or forklift, set brake, shut off the engine, remove the ignition key, and lower

6
3.SAFETY INSTRUCTIONS
loader and attachment to the ground before dismounting. Never leave equipment
unattended with the engine running.
Please remember it is important that you read and heed the safety signs on the front
loader attachment and loader, and the safety rules set forth. Clean or replace all safety
signs if they cannot be clearly read and understood. They are there for your safety as
well as the safety of others. The safe use of this machine is strictly up to you, the
operator.
Be sure power unit is in good condition. Read all the safety precautions and make sure
all operators are familiar with the safety rules of operation. Working with unfamiliar
equipment can lead to careless injuries. It is the equipment owner’s responsibility, if
this machine is used by any person other than yourself, is loaned or rented, to make
certain that the operator, prior to operating:
Reads and understands the operator’s manuals.
Is instructed in safe and proper use.
Train all new personnel and review instructions frequently with existing workers. A
person who has not read and understood all operating and safety instructions is not
qualified to operate the machine. An untrained operator exposes himself and
bystanders to possible serious injury or death.
Do not allow children to operate this machine.
Know your controls and how to stop the power unit and engine quickly in an
emergency. READ THIS MANUAL AND THE ONE PROVIDED WITH YOUR TRACTOR AND
LOADER, OR SKID STEER.
When the use of hand tools is required to perform any part of assembly, installation,
adjustment, maintaining, repairing, removal, or moving the implement, be sure the
tools used are designed and recommended by the
tool manufacturer for that specific task.

7
3.SAFETY INSTRUCTIONS
Personal protection equipment including safety glasses, safety shoes, and gloves are
recommended during assembly, installation, operation, adjustment, maintaining,
repairing, removal, or moving the attachment.
Always use two people to handle heavy, unwieldy components during assembly,
installation, removal, or moving the loader attachment.
Never place any part of your body where it would be in danger if movement should
occur during assembly, installation, operation, maintaining, repairing, removal, or
moving the implement.
The use of any loader attachment is NOT recommended on tractor with a tricycle
wheel arrangement. Tricycle type tractors are unstable for front loader use.
A heavy load can cause instability in driving a power unit. Make sure the front or rear
of the power unit is properly counter-balanced with weights. Always drive slowly –
especially around turns. An unstable power unit
could steer badly and possibly tip over, causing injury or death.
Do not allow others to ride on the power unit with an operator. Riders are subject to
injury such as being struck by foreign objects or being thrown off. Riders obstruct the
operator’s view resulting in unsafe operation. Never allow anyone to ride on the
implement! Keep all bystanders at a safe distance.
Before you operate any equipment, check over all pins, bolts and connections to be
sure all are securely in place. Replace any damaged or worn parts immediately.
Check that this attachment is securely mounted to the loader. Failure to install lock
pins or have the latching mechanism engaged could result in injury or death.

8
3.SAFETY INSTRUCTIONS
Do not work under a raised loader unless it is securely blocked or held in position. Do
not depend on the power unit hydraulic system to hold the implement in place.
Operate the loader controls smoothly, avoiding jerky operation. Stop loader gradually
when lowering or lifting loads.
Beware of low electrical wires when loader is raised. Serious injury or death can result
if contact is made.
Only use a power unit equipped with a ROPS cab or rollover protective structure. Keep
foldable ROPS systems in “locked up” position at all times. Keep seat belt fastened.
Be certain the power unit is in neutral or park position before starting engine.
Always shut off power unit and shift to “Park” or set brakes when leaving unit. Always
lower bucket or attachment to ground, relieve all hydraulic pressure. Remove key when
leaving equipment unattended. Park in
level area.
Keep alert and watch the rear as well as the front when working with the loader.
Beware of lift clearance when raising loader to maximum height.
When maneuvering close to buildings or passing through narrow areas, be sure to allow
sufficient clearance for the power unit, loader, and attachment. Drive slowly.
Use extreme care when working on inclines and hillsides.
Do not operate close to ditches, creeks or holes. Slow down when operating over rough
surface. Use extreme caution when back filling deep holes or trenches.

9
3.SAFETY INSTRUCTIONS
When removing or changing the angle, be sure that your feet are never under the
blade. Keep hands and feet away from blade pivot points and from under blade
edge. Make adjustments only when the implement is
attached to the power unit.
Do NOT exceed 10 miles per hour when operating. Avoid excessive speed during
operation.
When moving snow, do not operate with the blade in the locked position.
Never lift blade above the operator’s eye level or to a height where visibility is
obstructed.
When using the blade, use extra care. Do not ram blade into piles of dirt or snow.
Ramming can also dis- lodge operator from seat and/or tractor controls, resulting in
possible serious injury or death.
Always ease the tractor into the load. It may be necessary to reposition and take less
“bite” on the material to move it safely.
ALWAYS lower loader to the ground or block securely before performing any
maintenance work.
Inspect the entire machine periodically as indicated in the Maintenance Section of this
manual. Look for loose fasteners, worn or broken parts, pinched hydraulic hoses, and
leaky or loose fittings. Make sure all pins have
cotter pins and washers. Serious injury may occur from not maintaining this machine
in good working order.
Transport safety
Comply with state and local laws governing highway safety and movement of farm
machinery on public roads.

10
3.SAFETY INSTRUCTIONS
The use of flashing amber lights is acceptable in most localities. However, some
localities prohibit their use. Local laws should be checked for all highway lighting and
marking requirements.
When driving the power unit and equipment on the road or highway under 20 mph
(32 kph) at night or during the day, use flashing amber warning lights and a slow
moving vehicle (SMV) identification emblem.
Always be sure the implement is in the proper raised position for transport.
Reduce speed when transporting mounted implements to avoid bouncing and
momentary loss of steering control.
Plan your route to avoid heavy traffic.
Always install transport locks, pins or brackets before transporting.
Do not drink and drive!
Watch for traffic when operating near or crossing roadways.
Turn curves or go up or down hills only at a low speed and at a gradual steering
angle. Slow down on rough or uneven surfaces, and loose gravel.
Use extreme care and maintain minimum ground speed when transporting on
hillside, over rough ground and when operating close to ditches or fences. Be careful
when turning sharp corners.
Never allow riders on either power unit or implement. Falling off can kill.
Be a safe and courteous driver. Always yield to oncoming traffic in all situations,
including narrow bridges, inter- sections, etc.
Do not exceed 20 mph (32 kph). Reduce speed on rough roads and surfaces.

11
4.OPERATION AND MAINTENANCE
Maintenance and Storage
Before working on this machine, drive to a level area, lower implement or loader (or
if working underneath, raise and block securely), shut off the engine, relieve all
hydraulic pressure, set the brakes, and remove the ignition keys.
Never work under equipment unless it is blocked securely. Never depend on hydraulic
system to keep implement in raised position.
Do not use blocking made of concrete blocks, logs, buckets, barrels or any other
material that could suddenly collapse or shift positions. Use only good quality
blocking material.
Never operate controls from the ground. Operate the controls only from the
operator’s station.
Keep all persons away from operator control area while performing adjustments,
service, or maintenance.
Always use personal protection devices such as eye, hand and hearing protectors,
when performing any service or maintenance.
Periodically tighten all bolts, nuts and screws and check that all cotter pins are
properly installed to ensure unit is in a safe condition.
When completing a maintenance or service function, make sure all safety shields and
devices are installed before placing unit in service.
Openings in the skin and minor cuts are susceptible to infection from hydraulic fluid.
If injured by escaping hydraulic fluid, see a doctor at once. Gangrene and death can
result. Without immediate medical treatment, serious infection and reactions can
occur.
After servicing, be sure all tools, parts and service equipment are removed.

12
4.OPERATION AND MAINTENANCE
Check to ensure all safety signs are installed and in good condition. (See safety sign
section for location drawing.)
Do not allow grease or oil to build up on any deck or platform.
Never replace hex bolts with less than grade five bolts unless otherwise specified,
i.e. shear bolts. Refer to bolt torque chart for head identification marking.
A fire extinguisher and first aid kit should be kept readily accessible while performing
maintenance on this equipment.
If equipment has been altered in any way from original design, the manufacturer
does not accept any liability for injury or warranty.
Following operation or when unhooking, stop the tractor, set the brakes, shut off the
engine, relieve all hydraulic pressure and remove the ignition keys.
Store the unit in an area away from human activity. Do not permit children to play on
or around the stored unit.
Do not park equipment where it will be exposed to livestock for long periods of time.
Damage and livestock injury could result.
Make sure all parked machines are on a hard, level surface and engage all safety
devices. Storage location should be level and solid to make connecting and
unconnecting to power unit easy.
If blocking is used, make sure it is solid and secure before leaving area.
Instructions
Check the power unit’s hydraulic system. Be sure the hydraulic oil and filter have
been serviced according to manufacturer’s recommendations. Refer to your tractor or
loader operator’s manual or dealer for any adjustments necessary to put the
hydraulic system in good working order.

13
4.OPERATION AND MAINTENANCE
This unit is shipped almost completely assembled.
Carefully follow instructions for final assembly and check the following items.
Having all the needed parts and equipment will speed up your assembly task and will
make the job as safe as possible.
Check for fasteners and pins that were shipped with the Snow Blade.
Have a fork lift or loader along with chains and safety stands that are sized for the
job.
Have a minimum of 2 people at hand during assembly.
Check to see that all hardware is tightened properly.
Remove the bucket from your front-end loader or skid steer or wheel loader.
Check your loader to make sure it is in good working order. Check all frame
mounting bolts to make sure they are tight.
If your tractor loader has a bucket Quick Attach feature, check with your dealer on
the availability of adapter brackets for your brand and model loader.
Measure the width of the front adapter on your loader and locate the Quick Attach
brackets on the main frame. Locate these brackets so the main frame will be
centered on your loader.
Tighten the bolts that connect the brackets to the main frame.
Some popular front loaders are offered with a “skid steer universal quick-attach” to
connect the bucket or other front loader attachments
Make sure attachment pins are in “unlock” position in skid steer or other power unit
mounting plate.
Line up skid steer or other power unit and snow blade on level ground.
Tilt skid steer or other power unit attachment mounting plate to fit snow blade
mounting plate.
Move skid steer or other power unit and raise skid steer mounting plate until it meets
snow blade mounting plate with power unit mounting plate tilted slightly forward.
Raise power unit mounting plate until the snow blade leaves the ground.
Turn off power unit and make sure auxiliary hydraulic controls are off (see skid steer
manual).
Lock snow blade to skid steer. Flip the spring-loaded latch pins to the “latch lock”
position and check to see they are properly latched.

14
4.OPERATION AND MAINTENANCE
Connect auxiliary hydraulic hoses (if so equipped).
Remove the snow plow from power unit
Turn off skid steer and make sure auxiliary hydraulic controls are off (see skid steer
manual).
Disconnect auxiliary hydraulic hoses. Cap all hoses.
Unlatch skid steer attachment pins from snow blade mounting plate.
Lower skid steer attachment mounting plate to the ground.
Tilt skid steer attachment mounting plate forward and back skid steer away from
snow blade.
Hydraulic blade angle kit (if have)
If your power unit has quick-couplers for connecting the hydraulic hoses to the
auxiliary hydraulic lines, you may need to purchase the proper quick-coupler fittings
that install on the free ends of the the hoses. In most cases, the owner's manual for
your power until will describe the exact type of fitting that is needed for your
hydraulic coupling system, pls check that from the power unit manual before install.
Once all the quick-coupler fittings are properly installed, then the hoses can be
coupled to the power unit's hydraulic valve body or auxiliary hydraulic lines.
Carefully raise the loader and cycle the tilt cylinders to check hose clearances and to
check for any interference. Operate the hydraulic cylinder(s) on this product to make
the same checks.
Cycle the hydraulic cylinder(s) on this product several times from fully retracted to
fully extended until all air has been completely removed from the cylinder(s).
NOTICE: When shipped, the hydraulic cylinder(s) on this product contained air or an
air-fluid mixture. Failure to remove all the air from the hydraulic cylinder(s) can
cause uneven, jerky cylinder movement when the hydraulic controls are being
operated and unwanted cylinder move- ment when the controls are not being
operated.

15
4.OPERATION AND MAINTENANCE
Route the hose to avoid pinching or chafing the hose. Use nylon ties or tape to fasten
hose on loader arm to keep it in place. Make sure the hose routing and length is
adequate for your particular make and model loader.
IMPORTANT: Make sure connectors are clean prior to assembly.
Danger: Escaping hydraulic fluid under pressure can penetrate the skin, causing
serious injury.
DO NOT use your hand to check for leaks. Use a piece of cardboard or paper to
search for leaks.
Stop engine and relieve pressure before connecting or disconnecting lines.
Tighten all connections before starting engine or pressurizing lines.
If any fluid is injected into the skin, obtain medical attention immediately, or
gangrene may result.
Operation
Be sure tractor is properly counter-balanced with weights before attempting to
operate the Snow Blade. It is recommended to attach a heavy implement or weight
box on the 3 pt. hitch of the tractor for counter weight.
Make sure all operators have read the Owner’s Manual and are familiar with the
instructions and the safety rules of operation.
Do not operate this product until you have positive indication that this attachment is
securely mounted to the loader. Failure to install lock pins or have the latching
mechanism engaged could result in injury or death.
Do not exceed 10 miles per hour while operating.
A heavy load can cause instability in driving a power unit. Make sure the rear of the
tractor is properly counterbalanced with weights. Always drive slowly –especially
around turns. An unstable power unit could steer badly and possibly tip over, causing
injury or death.
Become familiar with controls.

16
4.OPERATION AND MAINTENANCE
Operate from operator’s seat only. Remain at controls until operating cycle is
complete.
Never lift blade to a height where visibility is obstructed.
Avoid holes, ditches, and obstructions which may cause tractor/loader to tip.
Allow for additional length of loader and attachment on power unit while turning.
Never allow anyone to walk or work under a raised loader.
Be sure that people, livestock, or pets are not standing near the machine while
operating.
Carry the attachment slowly and as low as possible to the ground.
Operate the loader hydraulic controls smoothly, avoiding jerky operation. Stop loader
gradually.
Only use a tractor or power unit equipped with a ROPS cab or roll-over protective
structure.
Travel slowly over rough surface or when making turns.
Lower bucket or attachment to ground when power unit is unattended.
NOTE:
For most snow moving applications, operate with the loader in the FLOAT position.
(See your power unit/loader manual for details on the FLOAT position.)
For moving snow, the Frame part of the main frame should be level. Using the bucket
tilt cylinders on your loader, tilt the main frame forward or back until the part of the
frame is level.
Blades are designed for moving snow and loose dirt. Do not abuse blades by prying
rocks or stumps with high impact loads.
Skid shoes should always be used for snow applications.
When moving snow, do not operate with the blade in the locked position.
On skid steer models, always place blade in straight (90°) angle position for easier
dismounting and entry to skid steer.

17
4.OPERATION AND MAINTENANCE
Storage
Always store in a clean, dry location away from children and livestock.
Storage location should be level and solid to make hitching and unhitching easy.
Coat any exposed portion of hydraulic cylinder rods with grease for protection.

18
5.PARTS LIST

19

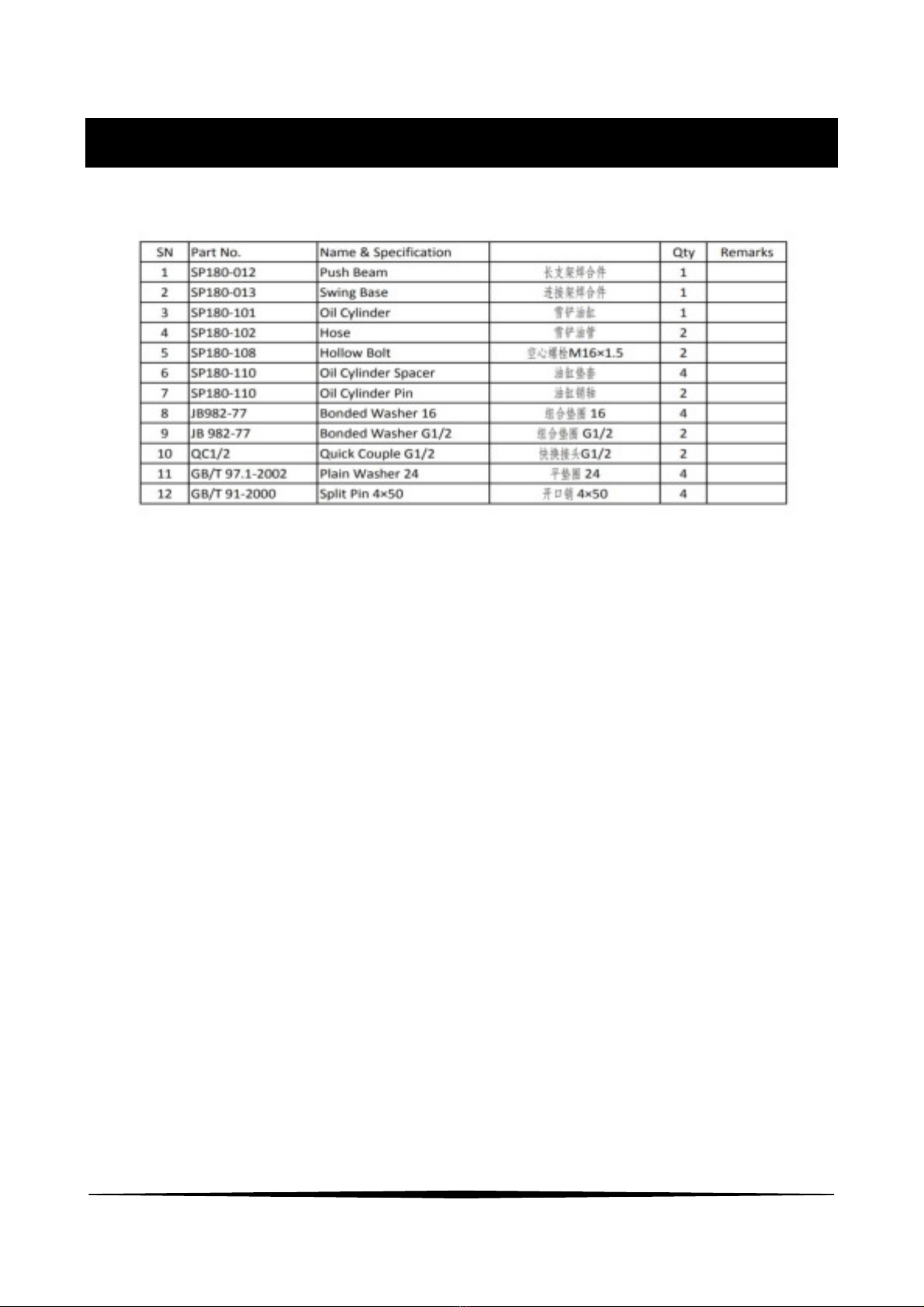

5.PARTS LIST
