Vidifox GV 200 User manual

Vidifox® Document Camera
GV 200
USER MANUAL
Please read this manual carefully before operating the document camera and keep it for reference.
1

PRECAUTIONS
NOTICES: PLEASE READ CAREFULLY BEFORE USE
Use the document camera under the rated electric conditions.
Do not place the document camera on any unstable surface. It may fall and cause injures
or damages.
Do not place this device directly under sunlight or near heaters.
Do not place this device near water.
Keep the camera away from acid or alkali gas.
Do not place this document camera in humid, dusty, windy or vibrant locations.
The recommended operating environment is:
Temperature: 0ºC--45ºC (32ºF-113ºF)
Humidity: less than 75%
Always unplug BEFORE cleaning the device. Use a damp soft-cloth for cleaning. Do not
use volatile solvent.
When this equipment functions abnormally, such as smoke, smell, noise, immediately
unplug and call for professional assistance.
Unplug the document camera or shut off the power when not in use.
Legal Notice
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Compilation and Publication Notice
This manual has been compiled and published to cover the latest product’s descriptions and
specifications. The contents of this manual and the specifications of this product are subject to
change without notice.
Wanin USA reserves the right to make changes without notice in the specifications and materials
contained herein and shall not be responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to typographical and other errors
relating to the publication.
©2011 Wanin USA Inc. All Rights Reserved.
2

USER MANUAL.......................................................................................1
1. PARTS IDENTIFICATION.................................................................4
2. CONTROLPANEL..............................................................................5
3. INPUTS AND OUTPUTS ....................................................................5
4. REMOTE CONTROL .........................................................................6
5. CONNECTIONS...................................................................................8
5.1. COMPUTER CONNECTION...........................................................................................8
5.2. VGA OUTPUT CONNECTION........................................................................................8
6. COMMUNICATE WITH COMPUTER............................................9
6.1. COMPUTER REQUIREMENTS......................................................................................9
6.2. USB CAMERA..................................................................................................................9
7. FEATURES .........................................................................................15
LIGHT.....................................................................................................................................15
ZOOM IN AND ZOOM OUT ................................................................................................15
FOCUS ADJUSTMENT.........................................................................................................15
BRIGHTNESS ADJUSTMENT.............................................................................................15
WHITE BALANCE ADJUSTMENT.....................................................................................15
TEXT/PICTURE MODE........................................................................................................16
IMAGE FREEZE....................................................................................................................16
IMAGE MIRROR...................................................................................................................16
SPLIT SCREEN......................................................................................................................16
IMAGE SAVE.........................................................................................................................16
IMAGE RECALL...................................................................................................................16
USB 2.0 PORT........................................................................................................................16
USB IMAGE CAPTURE AND VIDEO RECORDING.........................................................17
8. SPECIFICATION...............................................................................18
9. TROUBLE-SHOOTING....................................................................19
10. PACKING LIST................................................................................27
3

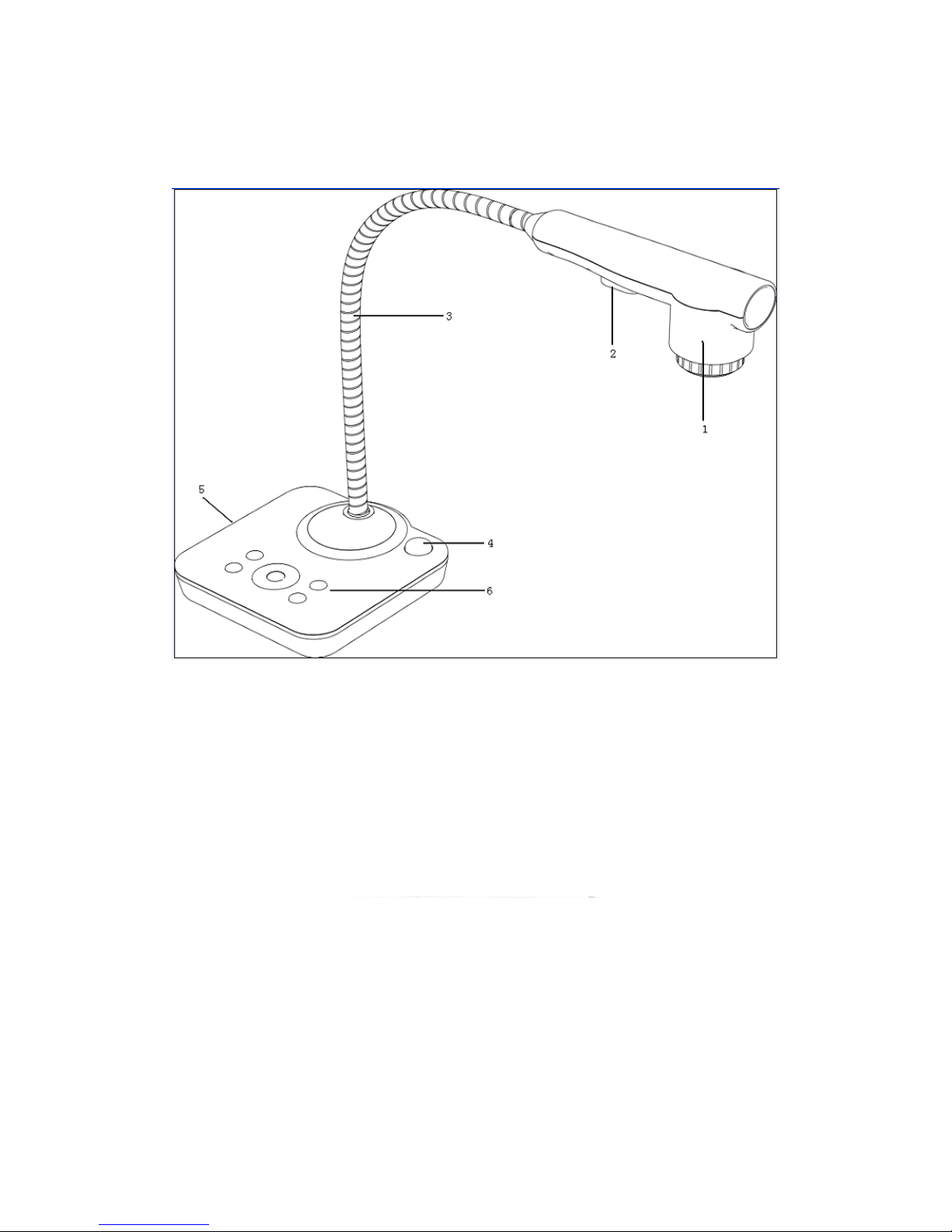

1. PARTS IDENTIFICATION
1. Camera
2. LED light box
3. Goose neck
4. Remote control IR receiver
5. Side panel
6. Control panel
4

2. CONTROL PANEL
1. POWER: Turn the power on/off.
2. LAMP: Turn the LED light on/off.
3. AUTO: Carry out auto focus, color adjustment and white balance.
4. FOCUS+/-: Adjust focus manually, focus far and focus near.
5. BRIGHT+/-: Adjust image brightness manually.
6. ZOOM+/-: Image zoom in and zoom out.
3. INPUTS AND OUTPUTS
1. DC 12V: Power input.
2. VGA OUT: VGA(RGB) signal output(15 pin D-SUB).
3. USB: Capture image into a connected computer via provided software
5

4. REMOTE CONTROL
1. : Turn the document camera on or off.
2. Save: Capture the image in display to internal memory.
3. Recall: Image recall mode enabled, display the saved images.
4. Lamp: Turn the LED light on/off.
5. Split: Split screen, enable the comparison between the frozen image and live image.
6. Pg- (Page down): Saved image page down when image recall mode is enabled.
7. Pg+ (Page up): Saved image page up when image recall mode is enabled.
8. Mir (Mirror): Output right-and-left, up-and-down mirror image.
6

9. Frz (Freeze): Freeze/unfreeze the image.
10. T/P: Switch the output image between text mode and picture mode.
11. Red+/-:Image chroma control (red).
12. Blue+/-: Image chroma control (blue).
13. SXGA/XGA: Switch the output signal between XGA and SXGA.
14. Home: Activate when it makes the focus curve and optics center adjust.
15. Sharp+/-:Image sharpness control.
16. Auto: Carry out auto focus, color adjustment and white balance.
17. Computer: Activate when it makes the focus curve.
18. Video: Activate when it makes the focus curve.
19. Zm+/-: Image zoom in and zoom out control.
20. Fc+/-: Adjust focus manually, focus far and focus near.
21. Bri+/-: Adjust image brightness.
7

5. CONNECTIONS
5.1. COMPUTER CONNECTION
5.2. VGA OUTPUT CONNECTION
8

6. COMMUNICATE WITH COMPUTER
6.1 COMPUTER REQUIREMENTS
The PC's hardware and software configurations shall not be less than the following requirements：
Operating system: Windows XP
CPU: 1.8 GHz
Physical memory: 512M
Video memory: 64M
6.2 USB FUNCTION
、
1 SOFTWARE INSTALLATION
Click to run the software installation package, the following dialogue appears, click "Next":

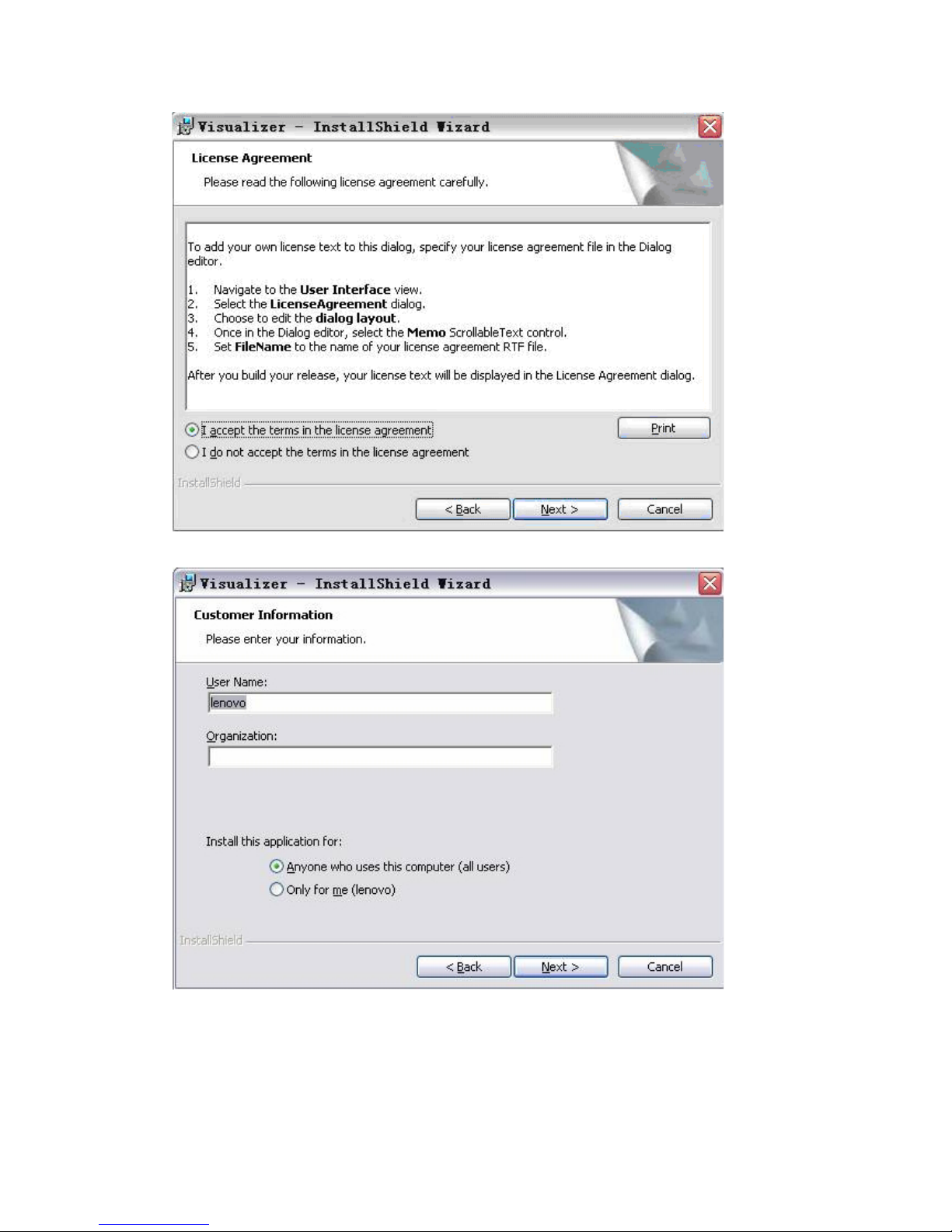

Read the terms, Select "I accept the terms in the license agreement." Click "Next", as the following
figure.
9

The following dialogue box appears, click "Next":
The default installation directory is Program Files, C: \ Program Files \, you can select a different
installation directory, as shown:
10

Click "Change" to change the directory, as shown:
Click "OK", the following figure appears. Click "Next".
11

Click "Install" to complete installation, as shown:

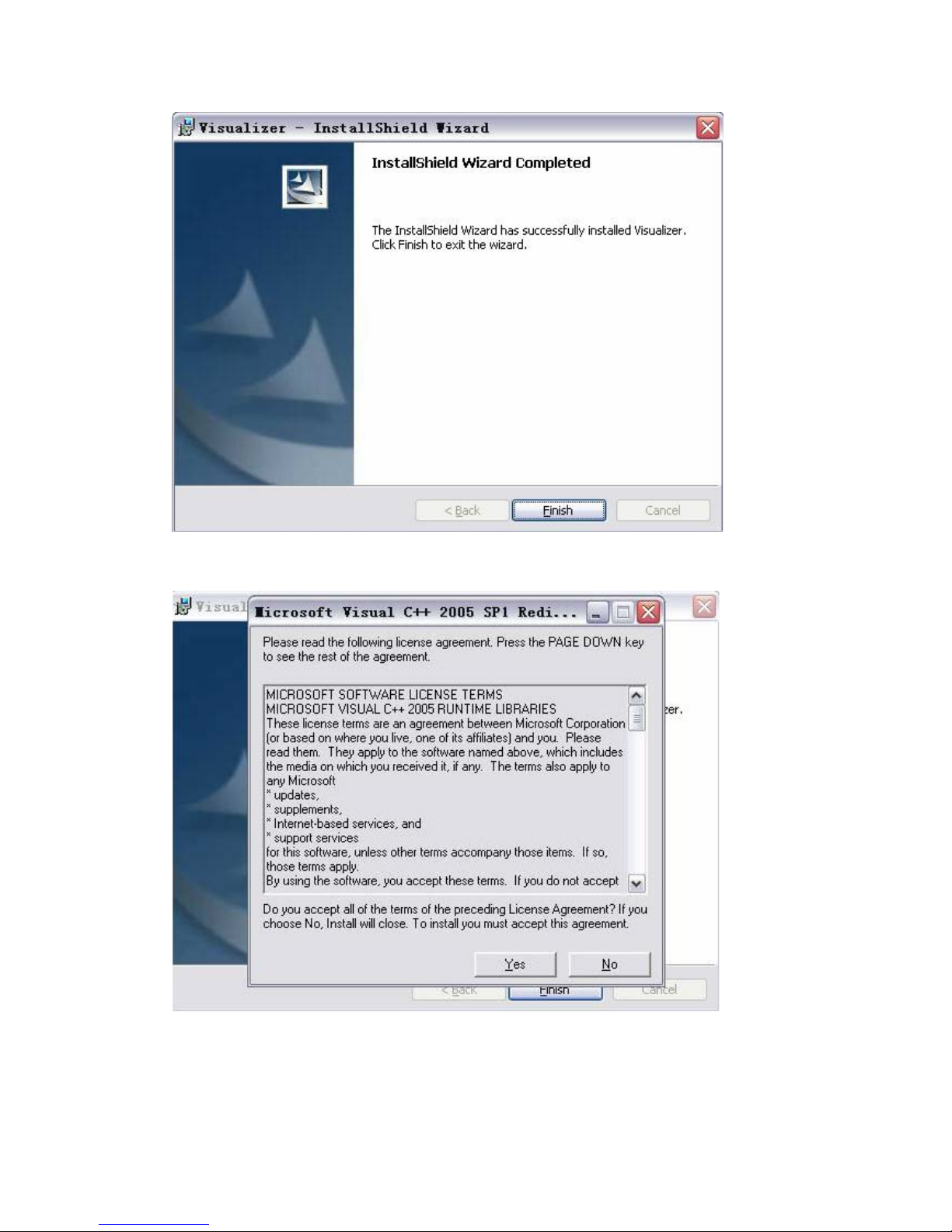

Click "Finish” to complete the installation, as shown:
12

Then you will see the following interface, which is an installation package for 2005 environment.
If your PC already has this installed, click "No" to exit, otherwise, click "Yes" to install it.
13

2、SOFTWARE START
Double click the short cut on the desktop, then click Device, select the right model
number, see below:
IMAGE CAPTURE AND VIDEO RECORDING：
Left click to capture images. The captured images will be automatically saved into the
default destination folder. The path and file name are displayed in software status bar on the bottom
of the window. Shown below:
14

Left click to start recording. The setting button will changes to and does not
work. The detailed information is displayed on the software status bar in the bottom of the window.
The video is automatically saved in the default folder or pre-set folder.
SETTING：
The captured images and recorded videos will be saved into the folders of Images and Videos
respectively, which are created by the system automatically. To set a different path to which the
image/video is be to saved, click on the left side of the window, a pop up dialog box
appears below.
15

Save the captured images into a different folder
Click the button next to the "select a folder to save picture files" text box to set the path for captured
images.
Save the recorded video into a different folder and set up parameters for videos
Click the button next to the "Select a folder to save video files:" text box to set the path for videos.
You can also change the video settings. The Audio input (optional) drop down box offers the options
of recording video with or without sound. Shown below:
The length of video that can be recorded box displays the longest recording time for videos to be
saved in the preset path. Shown below:
Click save to complete setting.
16

IMAGE MODIFY：
Click , you will see the interface:
Graphic selection and move
Click to choose a line, circle, rectangle or curve that placed in the image, then move to
another place.
Line
Click to place a beeline in the image, shown as below:
17

Click to change the setting of the chosen line:
Line width: change the width of the line.
X, Y: change the position of the line.
Color: change the color of the line.
Width, Height: Change the angle of the line.
Rectangle
Click to place a rectangle in the image, shown as below:
Click to change the setting of the chosen rectangle:
18

Line width: change the line width of the rectangle.
X, Y: change the position of the rectangle.
Color: change the line color of the rectangle.
Fill Color: Tick it to fill color in the rectangle.
Width, Height: Change the shape of the rectangle by changing the angle of two adjacent lines
of the rectangle.
Circle
Click to place a circle in the image, shown as below:
Click to change the setting of the chosen circle:
19

Line width: change the line width of the circle.
X, Y: change the position of the circle.
Color: change the line color of the circle.
Fill Color: Tick it to fill color in the circle.
Width, Height: change the size of the circle.
Curve
Click to place a curve in the image, shown as below:
Click to change the setting of the chosen curve:
20
