Viessmann Vitodens 200-W System Quick start guide

VIESMANN VITODENS 200-W
Gas condensing boiler
12.0 to 150.0 kW
As multi boiler system up to 900.0 kW
VITODENS 200-W Type B2HA
Wall mounted gas condensing boiler
With modulating MatriX cylinder burner for natural gas and
LPG
For open flue or room sealed operation
5822 432 GB 4/2014
Technical guide

Index
1. Vitodens 200-W 1.1 Product description ....................................................................................................... 4
1.2 Specification ................................................................................................................. 7
■Vitodens 200-W, 45 and 60 kW ................................................................................ 8
■Vitodens 200-W, 80 and 100 kW .............................................................................. 12
■ Vitodens 200-W, 125 and 150 kW ............................................................................ 14
2. Installation accessories 2.1 Product description ....................................................................................................... 17
■ Installation accessories for the Vitodens 200-W, 45 and 60 kW ............................... 17
■ Installation accessories for the Vitodens 200-W, 80 and 100 kW ............................. 18
■ Installation accessories for the Vitodens 200-W, 125 and 150 kW ........................... 18
■ Divicon heating circuit distributor .............................................................................. 20
■ Installation accessories for multi boiler systems ....................................................... 26
3. DHW cylinder 3.1 Product description ....................................................................................................... 28
4. Design information 4.1 Positioning, installation ................................................................................................. 28
■ Siting conditions for open flue operation (appliance type B) ..................................... 28
■ Installation conditions for room sealed operation (appliance type C) ....................... 29
■ Operation of the Vitodens in wet areas ..................................................................... 29
■ Electrical connection ................................................................................................. 29
■ Gas connection ......................................................................................................... 30
■ Minimum clearances ................................................................................................. 31
■ Installing the Vitodens 200-W, 45 to 100 kW directly onto a wall (single boiler) ....... 31
■ Installing the Vitodens 200-W, 125 to 150 kW directly onto a wall (single boiler) ..... 32
■ Pre-installation, multi boiler system .......................................................................... 34
4.2 Condensate connection ................................................................................................ 43
■ Condensate drain and neutralisation ........................................................................ 44
4.3 Hydraulic connection .................................................................................................... 46
■ General information .................................................................................................. 46
■ Expansion vessels .................................................................................................... 47
■ Multi boiler systems .................................................................................................. 47
■ Low loss header ........................................................................................................ 47
4.4 Intended use ................................................................................................................. 48
5. Control units 5.1 Vitotronic 100, type HC1B, for constant temperature operation ................................... 49
■ Layout and functions ................................................................................................. 49
■ Specification Vitotronic 100, type HC1B ................................................................... 49
5.2 Vitotronic 200, type HO1B, for weather-compensated operation ................................. 50
■ Specification Vitotronic 200, type HO1B ................................................................... 52
5.3 Vitotronic 300-K, type MW2B for multi boiler systems .................................................. 52
■ Cascade control unit for the Vitodens 200-W with a Vitotronic 100 .......................... 52
■ Design and function .................................................................................................. 52
■ Specification, Vitotronic 300-K .................................................................................. 54
■ Delivered condition Vitotronic 300-K ......................................................................... 55
Index
2VIESMANN VITODENS 200-W
5822 432 GB

5.4 Accessories for the Vitotronic ....................................................................................... 55
■ Allocation to control unit types .................................................................................. 55
■ Vitotrol 100, type UTA ............................................................................................... 56
■ Vitotrol 100, type UTDB ............................................................................................ 56
■ External extension H4 ............................................................................................... 57
■ Vitotrol 100, type UTDB-RF ...................................................................................... 57
■ Notes regarding room temperature hook-up (RS function) for remote control units . 58
■ Information on the Vitotrol 200A and Vitotrol 300A ................................................... 58
■ Vitotrol 200A ............................................................................................................. 58
■ Vitotrol 300A ............................................................................................................. 59
■ Information on the Vitotrol 200 RF and Vitotrol 300 RF ............................................ 59
■ Vitotrol 200 RF .......................................................................................................... 60
■ Vitotrol 300 RF with table-top dock ........................................................................... 60
■ Vitotrol 300 RF with wall mounting bracket ............................................................... 61
■ Vitocomfort 200 ......................................................................................................... 62
■ Wireless base station ................................................................................................ 62
■ Wireless outside temperature sensor ....................................................................... 62
■ Wireless repeater ...................................................................................................... 63
■ Room temperature sensor ........................................................................................ 63
■ Immersion temperature sensor ................................................................................. 64
■ Mounting base for programming unit ........................................................................ 64
■ Radio clock receiver .................................................................................................. 64
■ KM BUS distributor ................................................................................................... 64
■ Mixer extension kit with integral mixer motor ............................................................ 65
■ Mixer extension kit for separate mixer motor ............................................................ 65
■ Vitotronic 300-K extension for heating circuits 2 and 3 with mixers .......................... 66
■ Extension kit for one heating circuit with mixer in conjunction with Divicon heating
circuit distributor ........................................................................................................ 66
■ Extension kit for one heating circuit with mixer for the Vitotronic 300-K ................... 66
■ Immersion temperature controller ............................................................................. 67
■ Contact temperature controller ................................................................................. 67
■ Solar control module, type SM1 ................................................................................ 68
■ Internal extension H1 ................................................................................................ 69
■ Internal extension H2 ................................................................................................ 69
■ AM1 extension .......................................................................................................... 69
■ EA1 extension ........................................................................................................... 70
■ Vitocom 100, type LAN1 ........................................................................................... 70
■ Vitocom 100, type GSM2 .......................................................................................... 71
■ Vitocom 200, type LAN2 ........................................................................................... 72
■ Vitocom 300, type LAN3 ........................................................................................... 73
■ LON connecting cable for data exchange between control units .............................. 75
■ Extension of the connecting cable ............................................................................ 76
■ Terminator (2 pce) .................................................................................................... 76
■ LON communication module ..................................................................................... 76
6. Appendix 6.1 Regulations / Directives ................................................................................................ 76
■ Regulations and Directives ....................................................................................... 76
7. Keyword index .............................................................................................................................................. 78
Index (cont.)
VITODENS 200-W VIESMANN 3
5822 432 GB

1.1 Product description

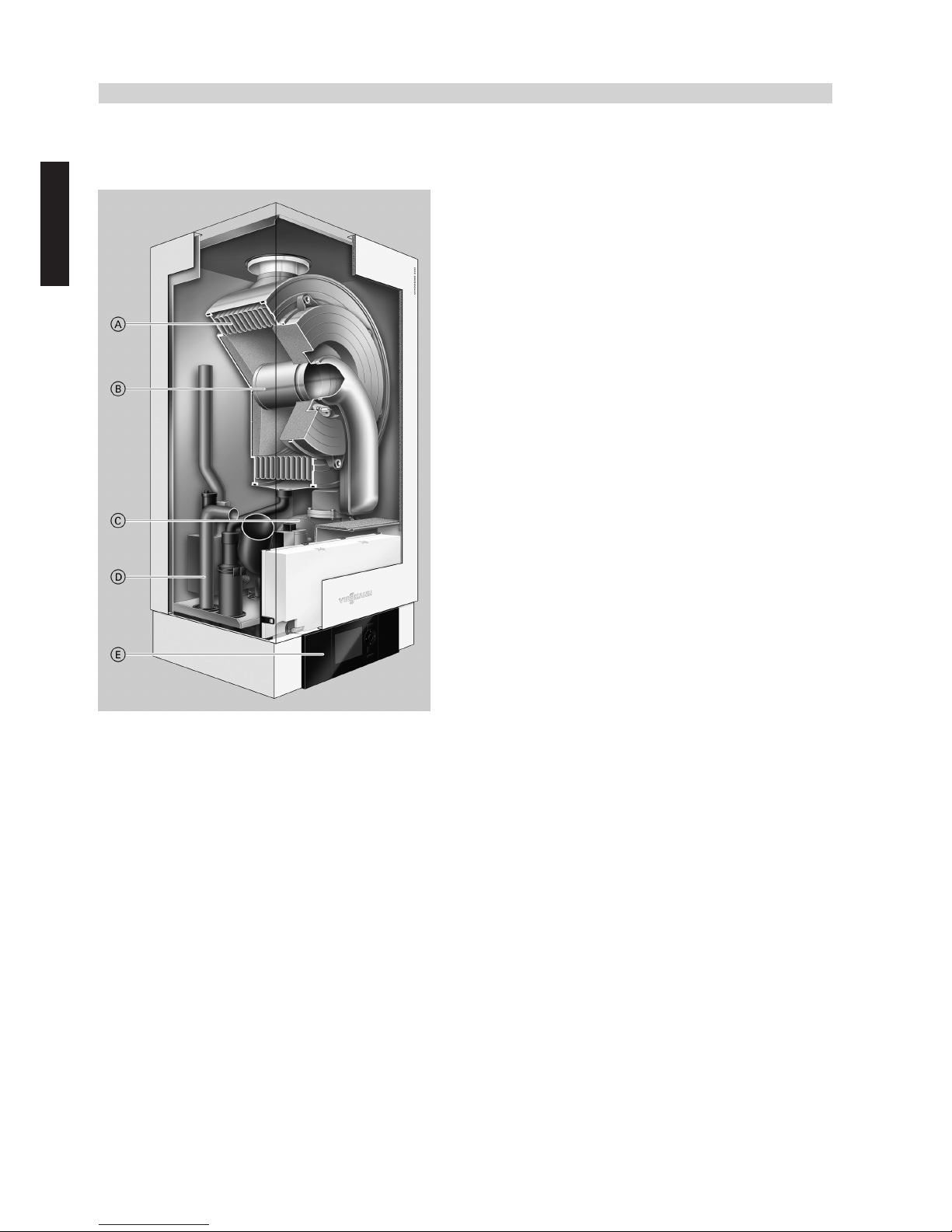

Vitodens 200-W, 45 to 60 kW
AInox-Radial heat exchanger made from stainless steel – for high
operational reliability and a long service life. Large heating output
on a very small footprint
BModulating MatriX cylinder burner for extremely clean combustion
and quiet operation
CVariable speed combustion fan for quiet and economical opera-
tion
DGas and water connections
EDigital boiler control unit
Vitodens 200-W
4VIESMANN VITODENS 200-W
1
5822 432 GB

Vitodens 200-W, 80 to 100 kW
AInox-Radial heat exchanger made from stainless steel – for high
operational reliability and a long service life. Large heating output
on a very small footprint
BModulating MatriX cylinder burner for extremely clean combustion
and quiet operation
CVariable speed combustion fan for quiet and economical opera-
tion
DGas and water connections
EDigital boiler control unit
Vitodens 200-W, 125 to 150 kW
AInox-Radial heat exchanger made from stainless steel – for high
operational reliability and a long service life. Large heating output
on a very small footprint.
BModulating MatriX cylinder burner for extremely clean combustion
and quiet operation
CVariable speed combustion fan for quiet and economical opera-
tion
DGas and water connections
EDigital boiler control unit
Vitodens 200-W (cont.)
VITODENS 200-W VIESMANN 5
5822 432 GB
1

Vitodens 200-W wall mounted condensing boilers up to 150 kW are
especially suitable for installation in apartment buildings and commer-
cial or public buildings. For these, the Vitodens 200-W offers an afford-
able, space-saving solution – either as a single unit up to 150 kW or
as a cascade with up to eight boilers and a heating output up to
900 kW.
The Inox-Radial heat exchanger made from stainless steel offers high
output on a very small footprint. This enables particularly efficient
operation with standard seasonal efficiency [to DIN] up to 98 %
(Hs) [gross cv] / 109 % (Hi) [net cv].
The Vitotronic 300-K cascade control unit regulates up to eight
Vitodens 200-W as a single heating centre. It also automatically
matches the boiler output to the heat demand. This means: Subject to
the prevailing demand, either one boiler modulates or all eight boilers
operate concurrently.
We offer the complete range of matching system components for cre-
ating cascade systems, e.g. control units with up to eight appliances,
fully insulated hydraulic cascades and flue gas headers.
Recommended applications
High heating output from a compact, user friendly wall mounted boiler,
suitable for the following applications:
■ Systems with few, large-demand consumers, e.g. fan heaters in
supermarkets/shopping centres, workshops and industrial prem-
ises, commercial nurseries, garages and DHW heating systems
■ Systems with several heating circuits for underfloor and/or static
radiators in apartment buildings, central heating plants for terraced
houses, office buildings and administration premises – particularly
suitable for attic heating centres
■ Heating of public buildings, such as sports and multi purpose halls,
schools, kindergartens
■ Suitable for installation in basement boiler rooms, on intermediary
floors or in the attic
Benefits at a glance
■ Optional cascade installation with up to eight boilers and up to
900 kW rated heating output
■ Standard seasonal efficiency [to DIN]: Up to
98 % (Hs) [gross cv] / 109 % (Hi) [net cv]
■ Durable and efficient thanks to the Inox-Radial heat exchanger
■ Modulating MatriX cylinder burner with a long service life thanks to
stainless steel MatriX gauze – resistant to high temperature loads
■ Easy-to-use Vitotronic control unit with plain text and graphic display
■ The programming unit of the control unit can also be fitted on a wall
mounting base (accessories)
■ Lambda Pro Control combustion controller for all gas types – saves
on costs, with inspection interval extended to 3 years
■ Quiet operation through low fan speed
Delivered condition
Wall mounted gas condensing boiler with Inox-Radial heat exchanger,
modulating MatriX cylinder burner for natural gas and LPG, to DVGW
Code of Practice G260 [Germany], plus wall mounting bracket.
Fully plumbed and wired. White epoxy-coated casing.
Packed separately:
Vitotronic 100 for constant temperature operation
or
Vitotronic 200 for weather-compensated operation.
Preset for operation with natural gas. A conversion within gas groups
E/LL is not required. The conversion to LPG is made at the gas train
(a conversion kit is not required).
Multi boiler systems
Multi boiler systems for open flue operation with 2, 3, 4, 6 or 8 boil-
ers.
Installation with a self-supporting mounting frame in series and
in block formation
Comprising:
■ Hydraulic cascade
■ Connection set for every boiler with:
– Connection lines formed to suit
– High efficiency circulation pump
– Ball valves
– Drain & fill valve
– Check valve
– Gas shut-off valve
– Safety valve
■ Thermal insulation
■ Weather-compensated, digital cascade and heating circuit control
unit Vitotronic 300-K
■ Cascade communication module for each boiler
■ Self-supporting mounting frame
Note
Order circulation pumps for heating circuits and cylinder heating sep-
arately.
Tested quality
CE designation according to current EC Directives
ÖVGW Quality Mark pursuant to quality symbol regulation
1942 DRGBl. I for gas and water products
Meets the requirements for the "Blue Angel" eco-label RAL UZ 61.
Vitodens 200-W (cont.)
6VIESMANN VITODENS 200-W
1
5822 432 GB

1.2 Specification
Gas boiler, type B and C, category II2N3P Gas condensing boiler
Rated heating output range
45 and 60 kW: Specification to EN 677.
80 to 150 kW: Specification to EN 15417.
TF/TR = 50/30 °C when operating with natural gas kW 12.0 -
45.0
12.0 -
60.0
20.0 -
80.0
20.0 -
100.0
32.0 -
125.0
32.0 -
150.0
TF/TR = 80/60 °C when operating with natural gas kW 10.9 -
40.7
10.9 -
54.4
18.1 -
72.6
18.1 -
91.0
29.0 -
114.0
29.0 -
136.0
Rated heat input when operating with natural gas kW 11.2 -
42.2
11.2 -
56.2
18.8 -
75.0
18.8 -
93.8
30.0 -
118.0
30.0 -
142.0
TF/TR = 50/30 °C when operating with LPG P kW 17.0 -
45.0
17.0 -
60.0
30.0 -
80.0
30.0 -
100.0
32.0 -
125.0
32.0 -
150.0
TF/TR = 80/60 °C when operating with LPG P kW 15.4 -
40.7
15.4 -
54.4
27.0 -
72.6
27.0 -
91.0
29.0 -
114.0
29.0 -
136.0
Rated heat input when operating with LPG P kW 16.1 -
42.2
16.1 -
56.2
28.1 -
75.0
28.1 -
93.8
30.0 -
118.0
30.0 -
142.0
Type B2HA B2HA B2HA B2HA B2HA B2HA
Product ID CE-0085CN0050
IP rating IP X4D to EN 60529
Gas supply pressure
Natural gas mbar 20 20 20 20 20 20
kPa 2 2 2 2 2 2
LPG mbar 50 50 50 50 50 50
kPa 5 5 5 5 5 5
Max. permissible gas supply pressure*1
Natural gas mbar 25.0 25.0 25.0 25.0 25.0 25.0
kPa 2.5 2.5 2.5 2.5 2.5 2.5
LPG mbar 57.5 57.5 57.5 57.5 57.5 57.5
kPa 5.75 5.75 5.75 5.75 5.75 5.75
Sound power level
(to EN ISO 15036-1)
At partial load dB(A) 39 39 38 38 40 40
At rated heating output dB(A) 56 67 56 59 57 60
Power consumption (delivered condition) W 56 82 90 175 146 222
Weight kg 65 65 83 83 130 130
Heat exchanger content l 7.0 7.0 12.8 12.8 15.0 15.0
Max. flow rate
Limit for the use of hydraulic separation
l/h 3500 3500 5700 5700 7165 8600
Rated circulation water volume at TF/TR = 80/60 °C l/h 1748 2336 3118 3909 4900 5850
Permiss. operating pressure bar 4 4 4 4 6 6
MPa 0.4 0.4 0.4 0.4 0.6 0.6
Dimensions
Length mm 380 380 530 530 690 690
Width mm 480 480 480 480 600 600
Height mm 850 850 850 850 900 900
Gas connection R ¾ ¾ 1 1 1 1
Connection values
relative to max. load
with gas
Natural gas E m3/h 4.47 5.95 7.94 9.93 12.49 15.03
Natural gas LL m3/h 5.19 6.91 9.23 11.54 14.51 17.47
LPG kg/h 3.30 4.39 5.86 7.33 9.23 11.10
*1 If the gas supply pressure is higher than the maximum permissible value, install a separate gas pressure governor upstream of the system.
Vitodens 200-W (cont.)
VITODENS 200-W VIESMANN 7
5822 432 GB
1

Gas boiler, type B and C, category II2N3P Gas condensing boiler
Rated heating output range
45 and 60 kW: Specification to EN 677.
80 to 150 kW: Specification to EN 15417.
TF/TR = 50/30 °C when operating with natural gas kW 12.0 -
45.0
12.0 -
60.0
20.0 -
80.0
20.0 -
100.0
32.0 -
125.0
32.0 -
150.0
TF/TR = 80/60 °C when operating with natural gas kW 10.9 -
40.7
10.9 -
54.4
18.1 -
72.6
18.1 -
91.0
29.0 -
114.0
29.0 -
136.0
Flue gas parameters*2
Flue gas category to G 635/G 636 G52/G51 G52/G51 G52/G51 G52/G51 G52/G51 G52/G51
Temperature (at a return temperature of 30 °C)
– at rated heating output °C 62 66 46 57 51 60
– at partial load °C 39 39 37 37 39 39
Temperature (at a return temperature of 60 °C) °C 75 80 68 72 70 74
Mass flow rate
Natural gas
– at rated heating output kg/h 78 104 139 174 210 253
– at partial load kg/h 30 30 52 52 53 53
LPG
– at rated heating output kg/h 74 99 132 165 231 278
– at partial load kg/h 28 28 49 49 59 59
Available draught Pa 250 250 250 250 250 250
mbar 2.5 2.5 2.5 2.5 2.5 2.5
Standard seasonal efficiency [to DIN] at
TF/TR = 40/30 °C % Up to 98 (Hs) [gross cv] / 109 (Hi) [net cv]
Max. amount of condensate
to DWA-A 251 l/h 6.3 8.4 11.2 14.0 17.5 21.0
Condensate connection (hose nozzle) Ø mm 20-24 20-24 20-24 20-24 20-24 20-24
Flue gas connection Ø mm 80 80 100 100 100 100
Ventilation air connection Ø mm 125 125 150 150 150 150

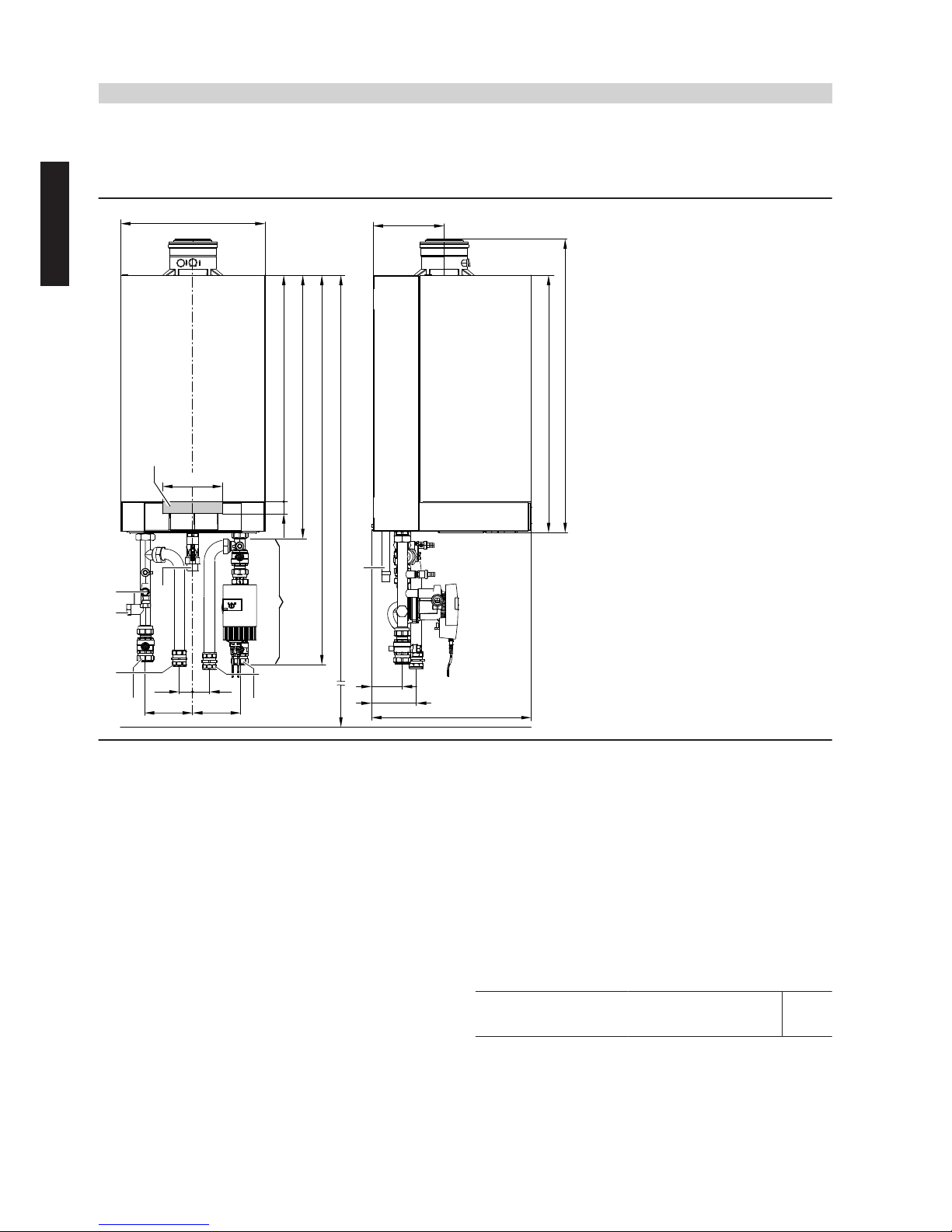

Vitodens 200-W, 45 and 60 kW
Multi boiler systems
For further details regarding multi boiler systems, see page 34.
*2 Calculation values for sizing the flue system to EN 13384.
Flue gas temperatures as actual gross values at 20 °C combustion air temperature.
The flue gas temperature at a return temperature of 30 °C is significant for the sizing of the flue system.
The flue gas temperature at a return temperature of 60 °C is used to determine the application range of flue pipes with maximum permissible
operating temperatures.
Vitodens 200-W (cont.)
8VIESMANN VITODENS 200-W
1
5822 432 GB

40
100
160 160
752
1975 1690
850
380
480
875
1166
160
E
A
L
M
O
CB D F
H
P
K
N
200
G
65 65
R
902
AExpansion vessel connection G 1
BSafety valve
CHeating flow G 1½
DCylinder flow G 1½
EGas connection R ¾
FCylinder return G 1½
GHeating return G 1½
HCable entry area at the back
KConnection sets (accessories)
Shown without thermal insulation (standard delivery)
LWithout connection sets
MWith connection sets
NRecommended dimension for a single boiler system
ORecommended dimension for a multi boiler system
PCondensate drain
RTop edge finished floor
Note
The heating circuit connection set must be ordered separately.
Note
Lay all required power cables on site and route them into the boiler in
area H.
Variable speed high efficiency circulation pump in the heating circuit connection set (accessories)
The highly efficient circulation pump uses significantly less power
compared to conventional pumps.
Matching the pump rate of the circulation pump to the individual system
conditions reduces the power consumption of the heating system.
Circulation pump VI Para 25/1-11
Rated voltage V~ 230
Power consumption W Max. 140
Min. 8
Vitodens 200-W (cont.)
VITODENS 200-W VIESMANN 9
5822 432 GB
1

Residual head of the circulation pump
100
00 1000
Flow rate in l/h
200
600
800
1000
300
400
500
700
900
2000 3000 4000
10
0
20
60
80
100
30
40
50
70
90
kPa
1100 110
1200 120
A
B
C
D
E
F
G
Residual head
mbar
Curve Pump rate, circulation pump
A40 %
B50 %
C60 %
D70 %
E80 %
F90 %
G100 %

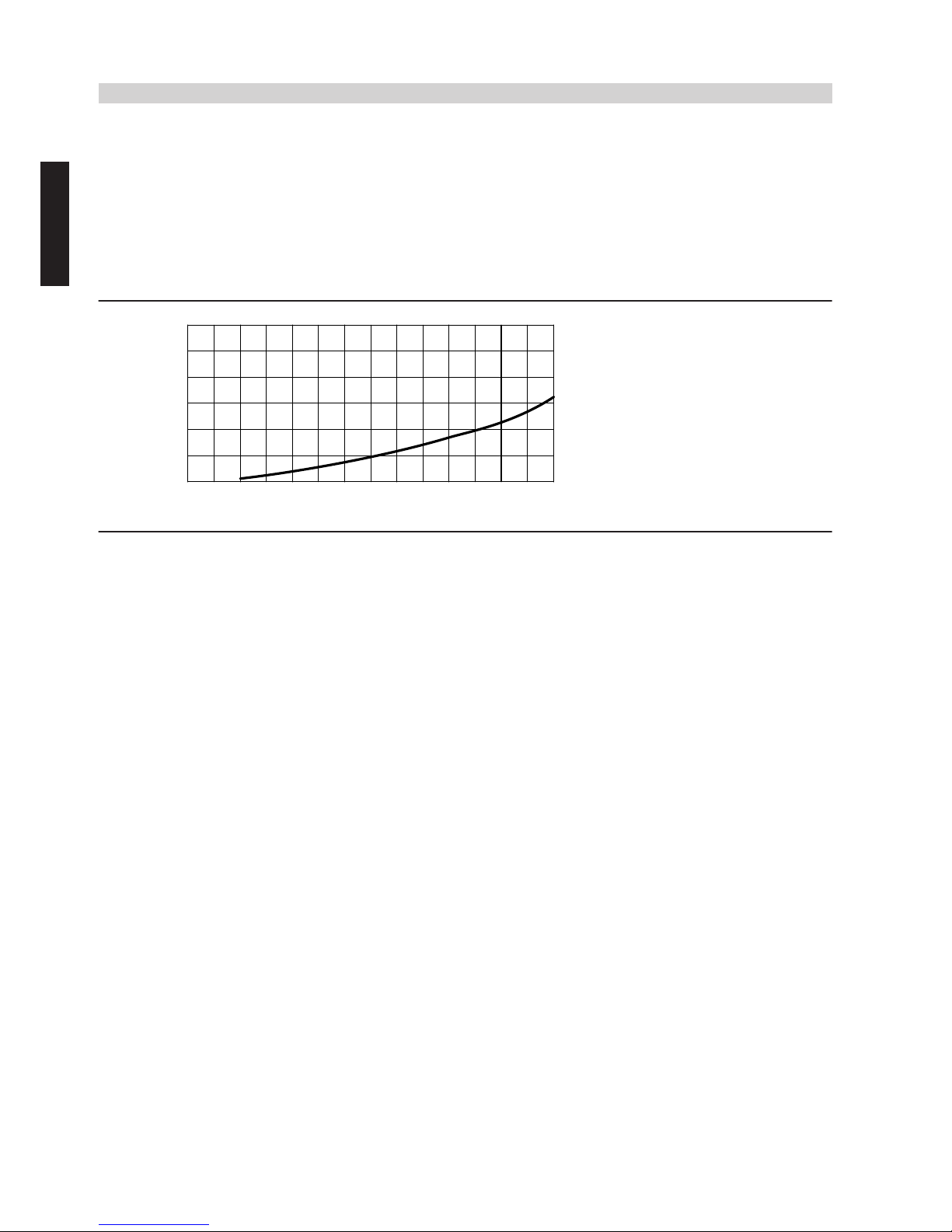

Pressure drop on the heating water side
For sizing an on-site circulation pump
0 500 1000 1500
0
100
200
300
400
500
600
Pressure drop
0
10
20
30
40
50
60
kPa
2000 2500 3000 3500
Flow rate in l/h
mbar
Circulation pump in the connection set for DHW cylinders
Pump type VI Yonos Para 25/6
Voltage V~ 230
Power consumption W Max. 45
Min. 3
Vitodens 200-W (cont.)
10 VIESMANN VITODENS 200-W
1
5822 432 GB

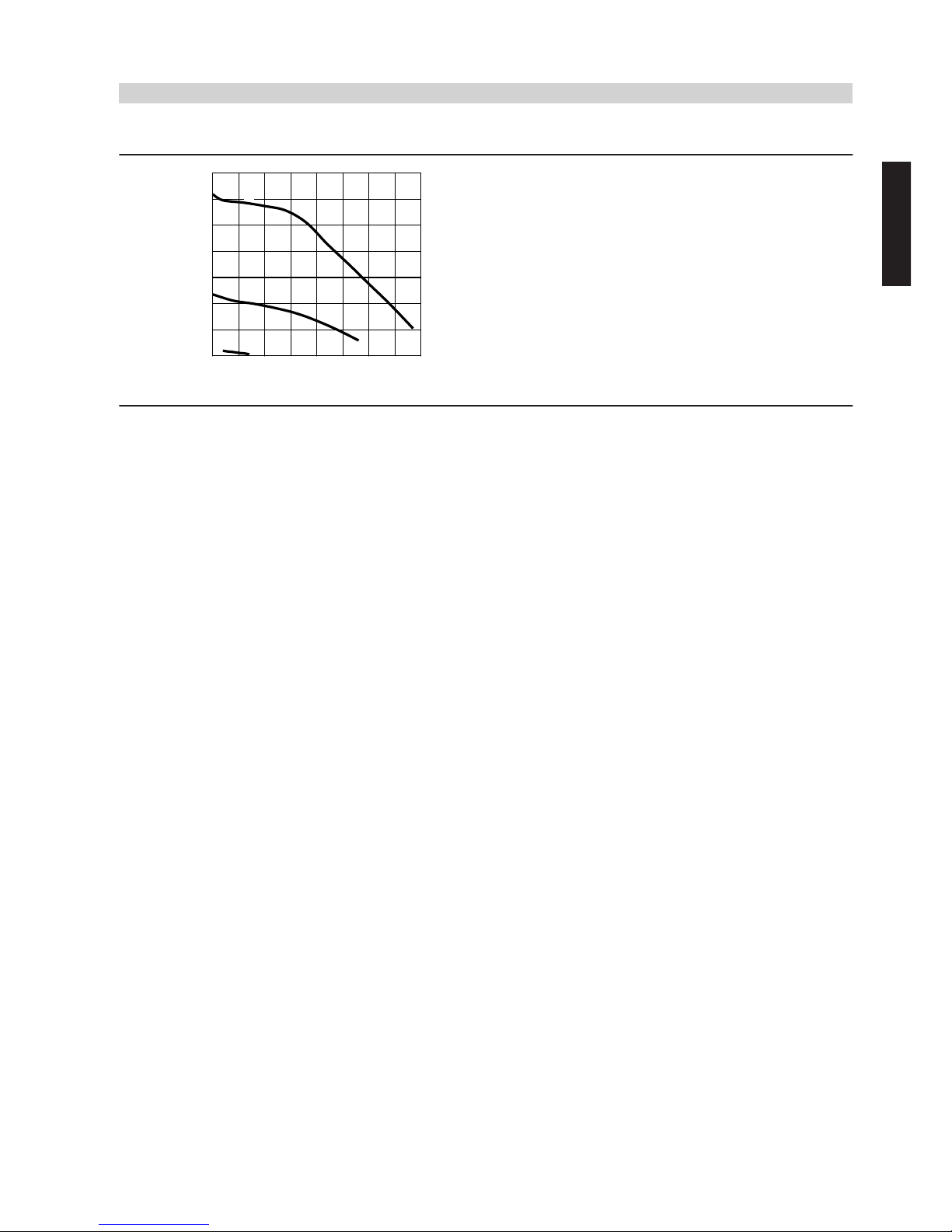

Circulation pump head
0 500 1000 1500
0
100
200
300
400
500
600
Head
0
10
20
30
40
50
60
kPa
2000
Pump rate in l/h
A
B
700 70
C
mbar
AStage 1
BStage 2
CStage 3
Note
When the heating circuit and circulation pumps are operated in parallel
for cylinder heating (no DHW priority control), we recommend the
installation of a DHW cylinder in the secondary side (downstream from
the low loss header) of the heating system.
Vitodens 200-W (cont.)
VITODENS 200-W VIESMANN 11
5822 432 GB
1

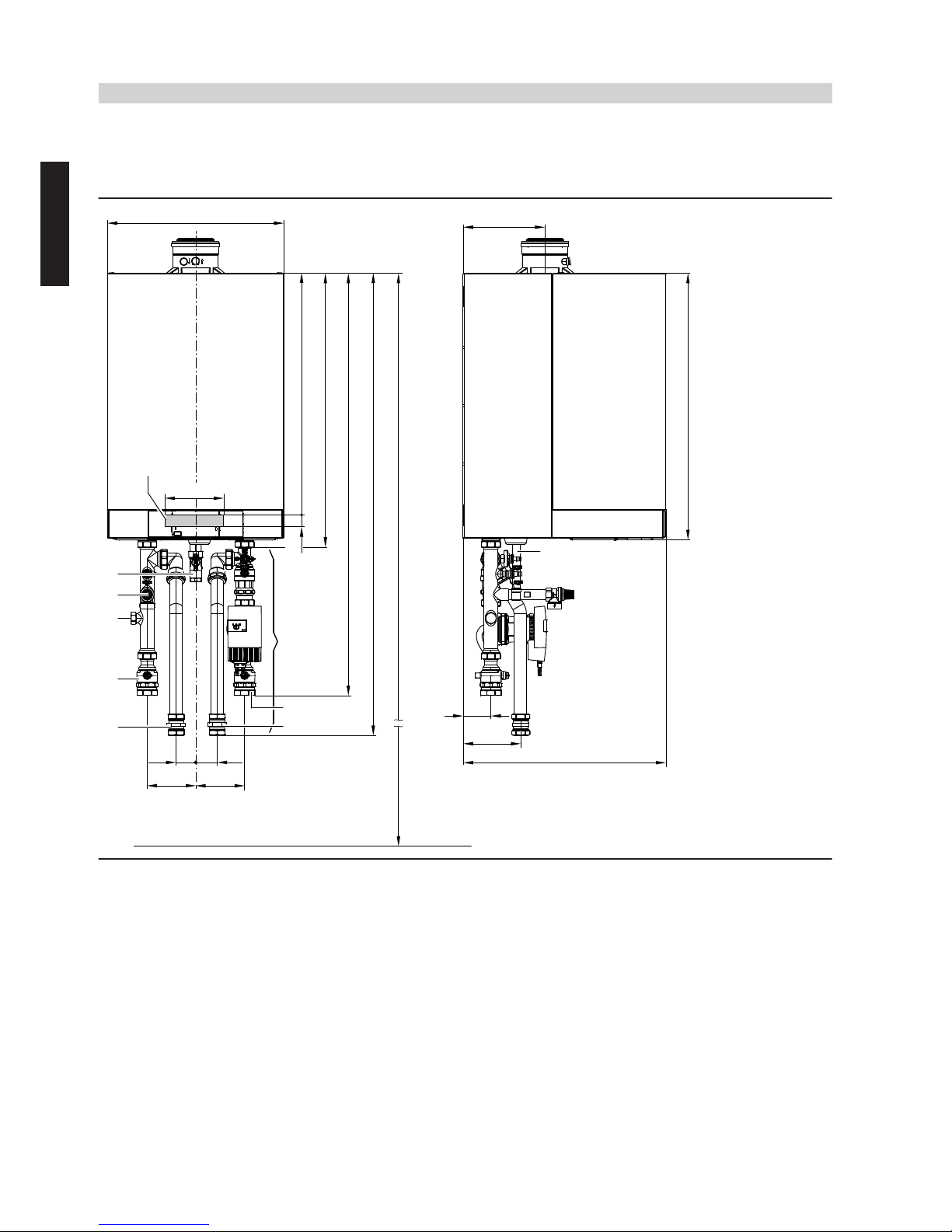

Vitodens 200-W, 80 and 100 kW
Multi boiler systems
For further details regarding multi boiler systems, see page 34.
100
850
530
P
40
160 160
200
752
1975 1690
480
875
1300
E
L
M
O
K
H
N
236
A
B
CG
DF
56 56
975
146
R
ASafety valve
BExpansion vessel connection G1
CBoiler flow 7 42 mm
DCylinder flow 7 35 mm
EGas connection R 1
FCylinder return 7 35 mm
GBoiler return 7 42 mm
HConnection sets (accessories)
Shown without thermal insulation (standard delivery)
KCable entry area at the back
LWithout connection set (accessories)
MWith connection set (accessories)
NRecommended dimension (single boiler system)
ORecommended dimension (multi boiler system)
PCondensate drain
RTop edge finished floor
Note
The heating circuit connection set must be ordered separately.
Note
Lay all required power cables on site and route them into the boiler in
area K.
Variable speed high efficiency circulation pump in the heating circuit connection set (accessories)
The highly efficient circulation pump uses significantly less power
compared to conventional pumps.
Matching the pump rate of the circulation pump to the individual system
conditions reduces the power consumption of the heating system.
Circulation pump VI Para 25/1-12
Rated voltage V~ 230
Power consumption W Max. 310
Min. 16
Vitodens 200-W (cont.)
12 VIESMANN VITODENS 200-W
1
5822 432 GB

Residual head of the circulation pump
100
00 1000
Flow rate in l/h
200
600
800
1000
300
400
500
700
900
2000 3000 4000
10
0
20
60
80
100
30
40
50
70
90
kPa
5000 6000
1100 110
1200 120
A
B
C
D
E
F
G
Residual head
mbar
Curve Pump rate, circulation pump
A40 %
B50 %
C60 %
D70 %
E80 %
F90 %
G100 %
Note
Observe information regarding the use of a low loss header (see
page 47).
If the residual head of the circulation pump available as an accessory
is insufficient to overcome the following system pressure drop values,
install an additional, external circulation pump on site.
In such cases, use a low loss header.
Pressure drop on the heating water side
For sizing an on-site circulation pump (when connecting to a DHW
cylinder connection set)
0 1000 2000 3000
0
100
200
300
400
500
600
Pressure drop
0
10
20
30
40
50
60
kPa
4000 5000 6000 7000
Flow rate in l/h
mbar
Note
When the heating circuit and circulation pumps are operated in parallel
for cylinder heating (no DHW priority control), we recommend the
installation of a DHW cylinder in the secondary side (downstream from
the low loss header) of the heating system.
Vitodens 200-W (cont.)
VITODENS 200-W VIESMANN 13
5822 432 GB
1

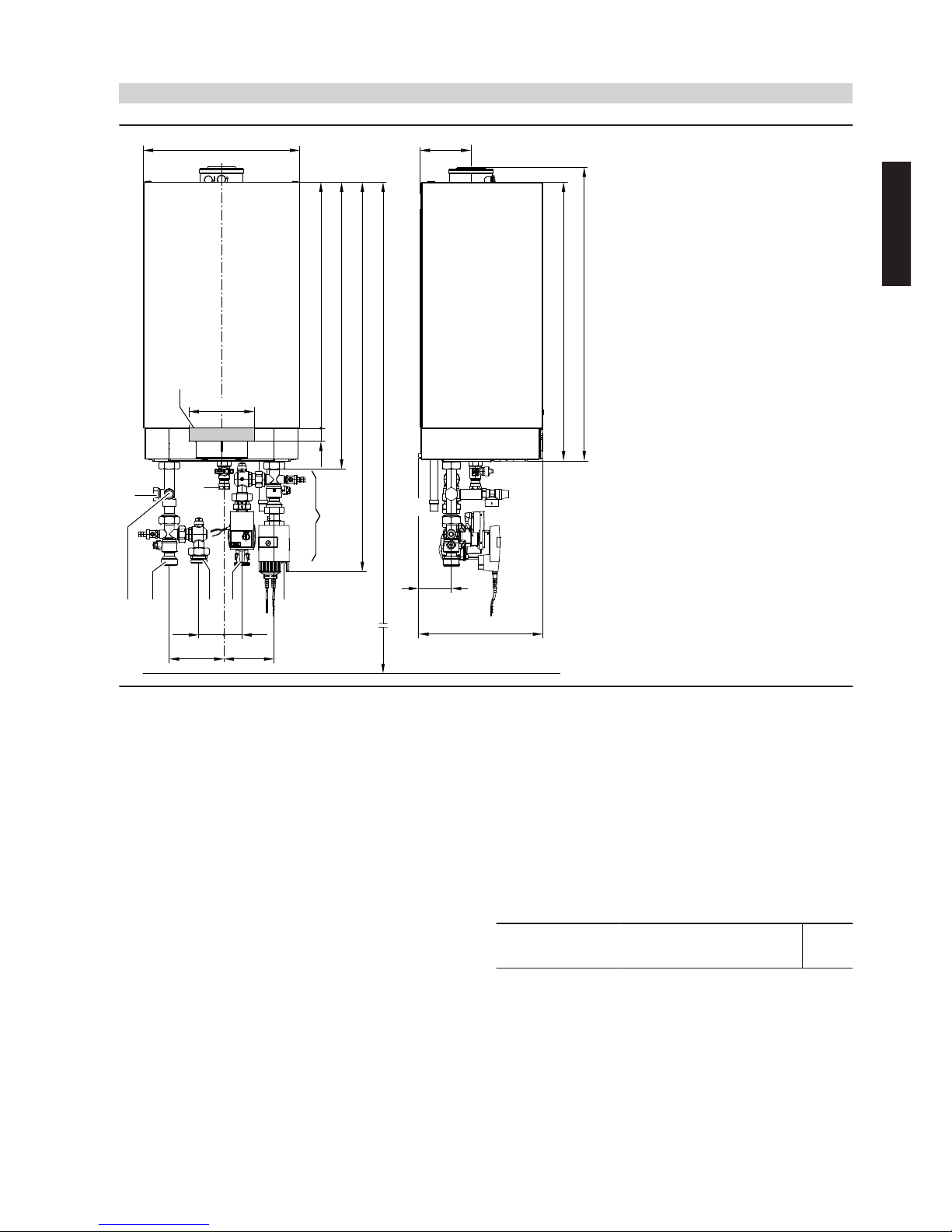

Vitodens 200-W, 125 and 150 kW
Multi boiler systems
For further details regarding multi boiler systems, see page 34.
165,5
165,5
923
1440
95
690
278
900
600
40
200
855
1975 1950
E
L
M
P
K
H
O
A
B
C
G
DF
70 70
195
R
1550 N
ASafety valve
BExpansion vessel connection G1
CBoiler flow 7 54 mm
DCylinder flow 7 42 mm
EGas connection R 1
FCylinder return 7 42 mm
GBoiler return 7 54 mm
HConnection sets (accessories)
Shown without thermal insulation (standard delivery)
KCable entry area at the back
LWithout connection set (accessories)
MWith heating circuit connection set (accessories)
NWith DHW cylinder connection set (accessories)
ORecommended dimension (single boiler system without mounting
frame)
PRecommended dimension (multi boiler system or single boiler
system with mounting frame)
RCondensate drain
Note
The heating circuit connection set must be ordered separately.
Note
Lay all required power cables on site and route them into the boiler in
area K.
Variable speed high efficiency circulation pump in the heating circuit connection set (accessories)
The highly efficient circulation pump uses significantly less power
compared to conventional pumps.
Matching the pump rate of the circulation pump to the individual system
conditions reduces the power consumption of the heating system.
Vitodens 200-W (cont.)
14 VIESMANN VITODENS 200-W
1
5822 432 GB

Circulation pump VI Para 30/1-12
Rated voltage V~ 230
Power consumption W Max. 310
Min. 16
Variable speed (Δp constant or Δp variable), fully wired.
Note
For operation in multi boiler systems select speed control Δp con-
stant.
Residual head of the circulation pump
100
00 2000
Flow rate in l/h
200
600
800
1000
300
400
500
700
900
10
0
20
60
80
100
30
40
50
70
90
kPa
1100 110
1200 120
1000 40003000 60005000 80007000 9000
F
E
D
C
B
A
Residual head
mbar
Curve Pump rate, circulation pump
A50 %
B60 %
C70 %
D80 %
E90 %
F100 %
Vitodens 200-W (cont.)
VITODENS 200-W VIESMANN 15
5822 432 GB
1

Note
Observe information regarding the use of a low loss header (see
page 47).
If the residual head of the circulation pump available as an accessory
is insufficient to overcome the following system pressure drop values,
install an additional, external circulation pump on site.
In such cases, use a low loss header.
Pressure drop on the heating water side
For sizing an on-site circulation pump (when connecting to a DHW
cylinder connection set)
0 1000 2000 3000
0
100
200
300
400
500
600
Pressure drop
0
10
20
30
40
50
60
kPa
4000 5000 6000 7000
Flow rate in l/h
mbar
Note
When the heating circuit and circulation pumps are operated in parallel
for cylinder heating (no DHW priority control), we recommend the
installation of a DHW cylinder in the secondary side (downstream from
the low loss header) of the heating system.
Vitodens 200-W (cont.)
16 VIESMANN VITODENS 200-W
1
5822 432 GB

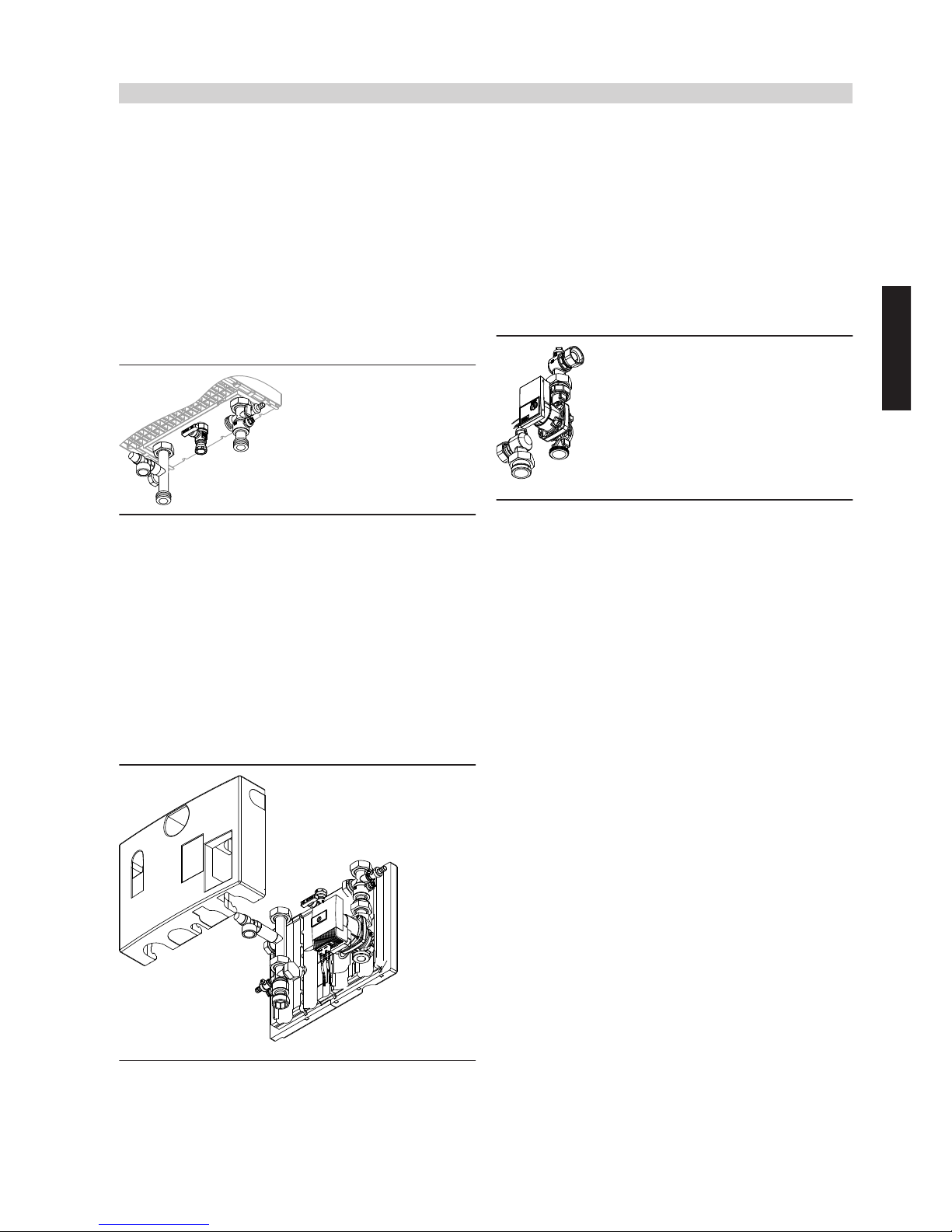

2.1 Product description
Installation accessories for the Vitodens 200-W, 45 and 60 kW
Heating circuit connection set without circulation pump
Part no. 7245 738
Connections G 1½
Comprising:
■ Tee with ball valve
■ Boiler drain & fill valve
■ Safety valve
■ Gas shut-off valve with integral thermally activated safety shut-off
valve
■ Connection G1 for pressure expansion vessel
Heating circuit connection set with variable speed high efficiency
circulation pump
Part no. 7501 311
Connections G 1½
Comprising:
■ Circulation pump
■ 2 tees with ball valve
■ Non-return valve
■ 2 boiler drain & fill valves
■ Safety valve
■ Gas shut-off valve with integral thermally activated safety shut-off
valve
■ Thermal insulation
■ Connection G1 for pressure expansion vessel
DHW cylinder connection set
Part no. ZK00 657
Connections G 1½
Comprising:
■ Circulation pump
■ 2 ball valves
■ Non-return valve
■ Cylinder temperature sensor
Ball valve
Part no. 7247 373
1 pce G 1¼ with gasket and union nut.
Installation accessories
VITODENS 200-W VIESMANN 17
5822 432 GB
2

Installation accessories for the Vitodens 200-W, 80 and 100 kW
Heating circuit connection set with variable speed high efficiency
circulation pump
Part no. 7501 318
Comprising:
■ Circulation pump
■ 2 ball valves with adaptors Ø 42 mm (locking ring fitting)
■ Tee with ball valve
■ Non-return valve
■ Boiler drain & fill valve
■ Safety valve
■ Gas shut-off valve with integral thermally activated safety shut-off
valve
■ Thermal insulation
■ Connection G1 for pressure expansion vessel
Low loss header
For flow rate up to 8 m3/h
Part no. Z007 743
Comprising:
■ Low loss header with integral sensor well (50 mm long)
■ Thermal insulation
■ Immersion temperature sensor for low loss header
■ Quick-action air vent valve
■ 2 adaptors Ø 42 mm (locking ring fitting)
364
160
204
413
963
313
1078
863
Mounting panel for low loss header
■ For floor mounting
Part no. 7346 787
■ For wall mounting
Part no. 7346 788
DHW cylinder connection set
Part no. 7348 934
Connections: Ø 35 mm (locking ring fitting)
Comprising:
■ Connecting lines for flow and return
■ Fittings
■ Cylinder temperature sensor
Installation accessories for the Vitodens 200-W, 125 and 150 kW
Heating circuit connection set with variable speed high efficiency
circulation pump
Part no. 7501 321
Comprising:
■ Circulation pump
■ 2 ball valves with adaptors Ø 54 mm (locking ring fitting)
■ Tee with ball valve
■ Non-return valve
■ Boiler drain & fill valve
■ Safety valve
■ Gas shut-off valve with integral thermally activated safety shut-off
valve
■ Thermal insulation
■ Connection G1 for pressure expansion vessel
Installation accessories (cont.)
18 VIESMANN VITODENS 200-W
2
5822 432 GB

Low loss header
For flow rate up to 12.9 m3/h
Connection DN 65
Part no. ZK00 658
Comprising:
■ Low loss header with integral sensor well
■ Thermal insulation
■ Immersion temperature sensor for low loss header
■ Quick-action air vent valve
■ Ball valve with hose nozzle for draining or blow-down
■ 2 adaptors Ø 54 mm (locking ring fitting)
410
230 180
115
270 920
1055
DHW cylinder connection set
Part no. 7501 325
Connections: Ø 42 mm (locking ring fitting)
Comprising:
■ Connecting lines for flow and return
■ Fittings
■ Cylinder temperature sensor
Mounting frame
Part no. 7502 558
For self-supporting boiler installation in a room.
With adjustable feet for levelling and securing to the floor.
600
650
1950
Service accessories for automatic hydraulic balancing
See separate datasheet.

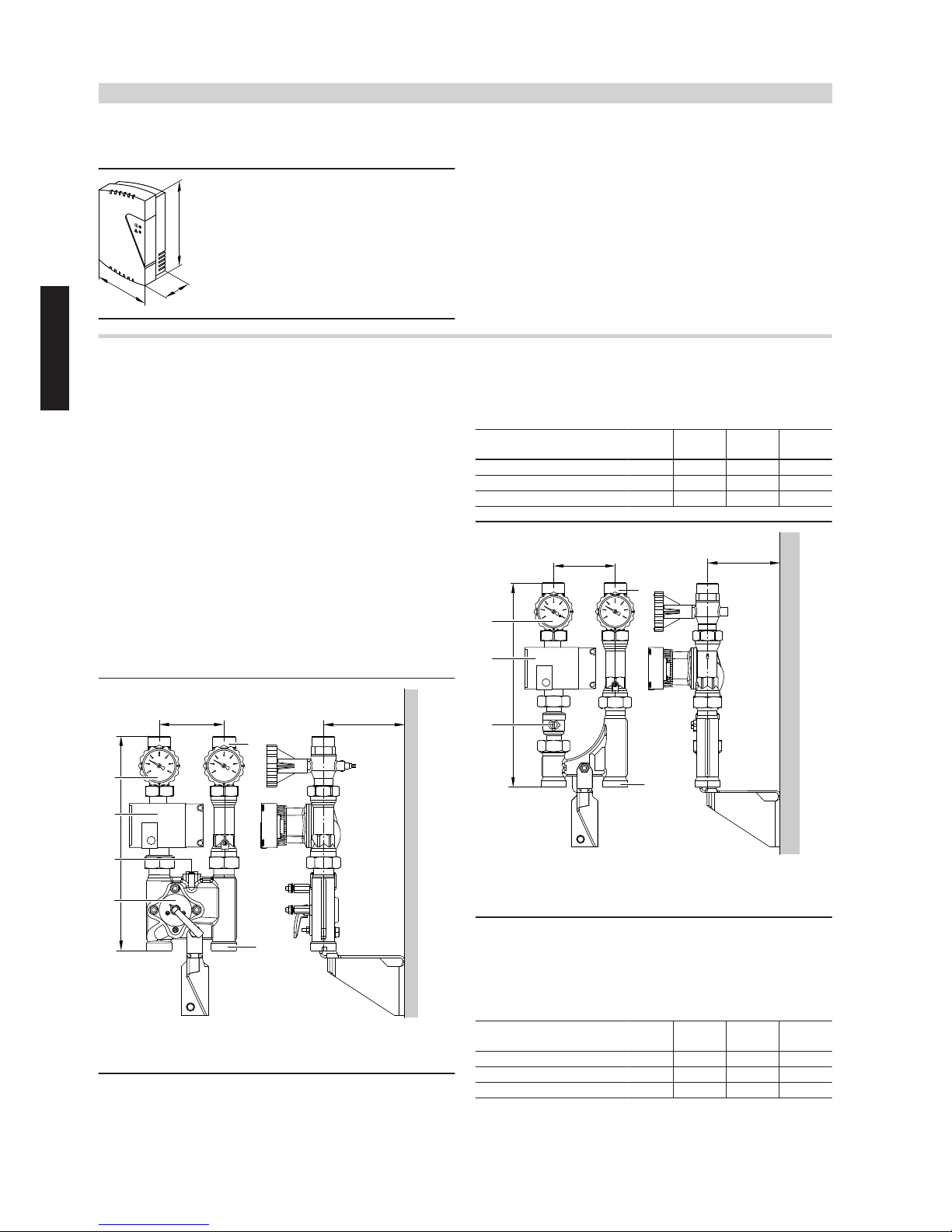

CO limiter
Part no. 7499 330
A monitoring device that safely shuts down the boiler in the event of
carbon monoxide being released.
Wall mounting in the ceiling area near the boiler.
Can be used for boilers built from 2004 onwards.
Components:
■ Casing with integrated CO sensor, relay and displays for operation
and alarm.
■ Fixing materials.
Installation accessories (cont.)
VITODENS 200-W VIESMANN 19
5822 432 GB
2

■ Power cable (2.0 m long).
■ Connecting cable, relay for burner shutdown (2.0 m long).
70
45
117
Specification
Rated voltage 230 V~
Rated frequency 50 Hz
Power consumption 3.5 W
Rated breaking capacity of the relay out-
put
8 A 230 V~
Alarm threshold 40 ppm CO
Safety category II
IP rating IP 20 to EN 60529; ensure
through design/installation
Permissible ambient temperature 70 °C
Divicon heating circuit distributor
Layout and function
■ Available with R ¾, R 1 and R 1¼ connections.
■ With heating circuit pump, check valve, ball valves with integral ther-
mometers and 3-way mixer or without mixer.
■ Quick and simple installation due to pre-assembled unit and com-
pact design.
■ All-round thermal insulation shells for low radiation losses.
■ High efficiency pumps and optimised mixer curve ensure low elec-
tricity costs and precise control characteristics.
■ The bypass valve for hydraulic balancing of the heating system is
available as an accessory and is provided as a threaded component
for inserting into the prepared hole in the cast body.
■ Individually wall mounted or with a double or triple manifold.
■ Also available as a kit. For further details see the Viessmann pricel-
ist.
For part numbers in conjunction with the different circulation
pumps, see the Viessmann pricelist.
The dimensions of the heating circuit distributor are the same, with or
without mixer.
D
151
398
A
B
C
G 1½
120
HV HR
HV HRHV HR
a
Divicon with mixer (wall mounting, shown without thermal insulation or
mixer drive extension kit)
HR Heating return
HV Heating flow
ABall valves with thermometer (as programming unit)
BCirculation pump
CBypass valve (accessories)
DMixer-3
Heating circuit connec-
tion
R ¾ 1 1¼
Flow rate (max.) m3/h 1.0 1.5 2.5
a (female) Rp ¾ 1 1¼
a (male) G 1¼ 1¼ 2
142
398
A
B
HV HR
120
C
G 1½
HV HR
a
Divicon without mixer (wall mounting, shown without thermal insula-
tion)
HR Heating return
HV Heating flow
ABall valves with thermometer (as programming unit)
BCirculation pump
CBall valve
Heating circuit connec-
tion
R ¾ 1 1¼
Flow rate (max.) m3/h 1.0 1.5 2.5
a (female) Rp ¾ 1 1¼
a (male) G 1¼ 1¼ 2
Installation accessories (cont.)
20 VIESMANN VITODENS 200-W
2
5822 432 GB
