Vitocell 100-B
Type CVBA
Dual mode DHW cylinder 400/500 l
with Solar-Divicon
VITOCELL 100-B
5838690 GB 2/2019 Dispose after installation.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on electrical equipment may only be carried
out by a qualified electrician.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■Relevant country-specific safety regulations
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer live.
■Safeguard the system against reconnection.
■Wear protective clothing.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing any work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Danger
Hot surfaces can cause burns.
■Before maintenance and service work, switch
OFF the appliance and let it cool down.
■Never touch the hot surfaces of uninsulated
pipes and fittings.
Danger
Floors which are wet, damp or covered in fluids
containing glycol present a risk of injury through
slipping and falling.
■When carrying out installation and mainte-
nance work, ensure that the floor is kept clean
and dry.
■Wear non-slip shoes.
Danger
Breathing in or swallowing broken-off fragments
of insulating material may result in death by
asphyxiation.
■Do not allow children to play in the installation
room.
■Clean the installation room after installation
and maintenance work.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Replace faulty components only with genuine
Viessmann spare parts.
Safety instructions
5838690

3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 4
Product information ................................................................................ 5
■Vitocell 100-B, type CVBA ................................................................ 5
2. Installation information Product information ................................................................................ 6
■Connections ........................................................................................ 6
■Siting information ................................................................................ 6
3. Installation sequence Siting the DHW cylinder ......................................................................... 8
Fitting the Solar-Divicon and thermal insulation .................................... 8
■Removing the Solar-Divicon cover ..................................................... 8
■Fitting threaded studs and spacer sleeves ......................................... 9
■Fitting the thermal insulation jacket .................................................... 10
■Fitting the profile bracket .................................................................... 11
■Fitting the overflow pipe ...................................................................... 11
■Fitting the Solar-Divicon ..................................................................... 12
■Fitting the thermal insulation mat at the top ........................................ 12
■Route the cable. ................................................................................. 13
■Closing the thermal insulation ............................................................ 13
Connecting the immersion heater EHE ................................................. 15
Connecting the heating water side and solar side ................................. 15

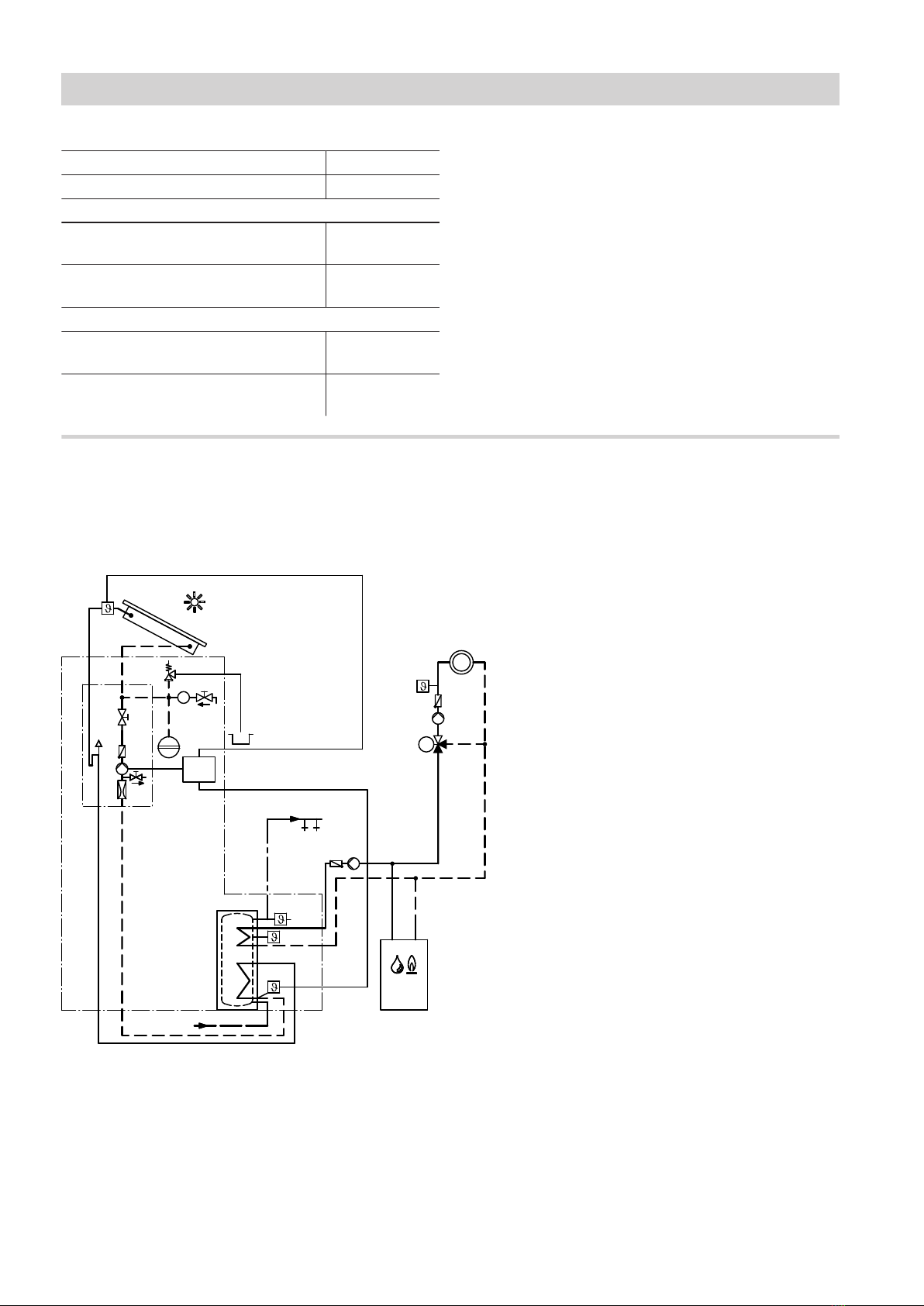

■System scheme with solar collectors and boiler ................................. 16
Connections on the DHW side ............................................................... 17
■Safety valve ........................................................................................ 18
Install high limit safety cut-out (STB) ..................................................... 19
■Electrical connections ......................................................................... 19
■Setting the response temperature ...................................................... 20
■Reset high limit safety cut-out (STB) .................................................. 20
Connecting the equipotential bonding ................................................... 20
Commissioning ...................................................................................... 20
4. Specification ................................................................................................................ 21
Index
5838690

4
Please dispose of packaging waste in line with statu-
tory regulations.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Disposal of packaging
5838690

5
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Product information
Vitocell 100-B, type CVBA
■Enamelled DHW cylinder with internal indirect coil for
heating domestic hot water in conjunction with the
following:
–Solar thermal systems
–Floorstanding boilers
–Wall mounted boilers
–Heat pumps for dual mode operation
–Additionally, the use of an immersion heater is pos-
sible.
■Capacity: 400 and 500 l
■Suitable for systems conforming to DIN 1988,
EN 12828 and DIN 4753
Intended use (cont.)
5838690

6
Connections
A
B
C
D
E
F
G
H
Fig. 1
AFemale connection for immersion heater
BDHW with high limit safety cut-out
CCylinder temperature sensor
DHeating water flow
EDHW circ.
FHeating water return
GConnection for thermometer sensor
HCold water/drain outlet
Siting information
!Please note
The thermal insulation must not be able to come
into contact with naked flames.
Exercise caution when welding and soldering.
!Please note
To prevent material losses, install the DHW cyl-
inder in a room free from draughts and risk of
frost.
When not in use, the DHW cylinder must be
drained if there is a risk of frost.
■Provide adequate clearance from the wall so that the
Vitosolic 100 can be operated (if installed).
■Use the adjustable feet to level the DHW cylinder.
Note
Never extend the adjustable feet beyond a total
length of 35 mm.
Product information
5838690

7

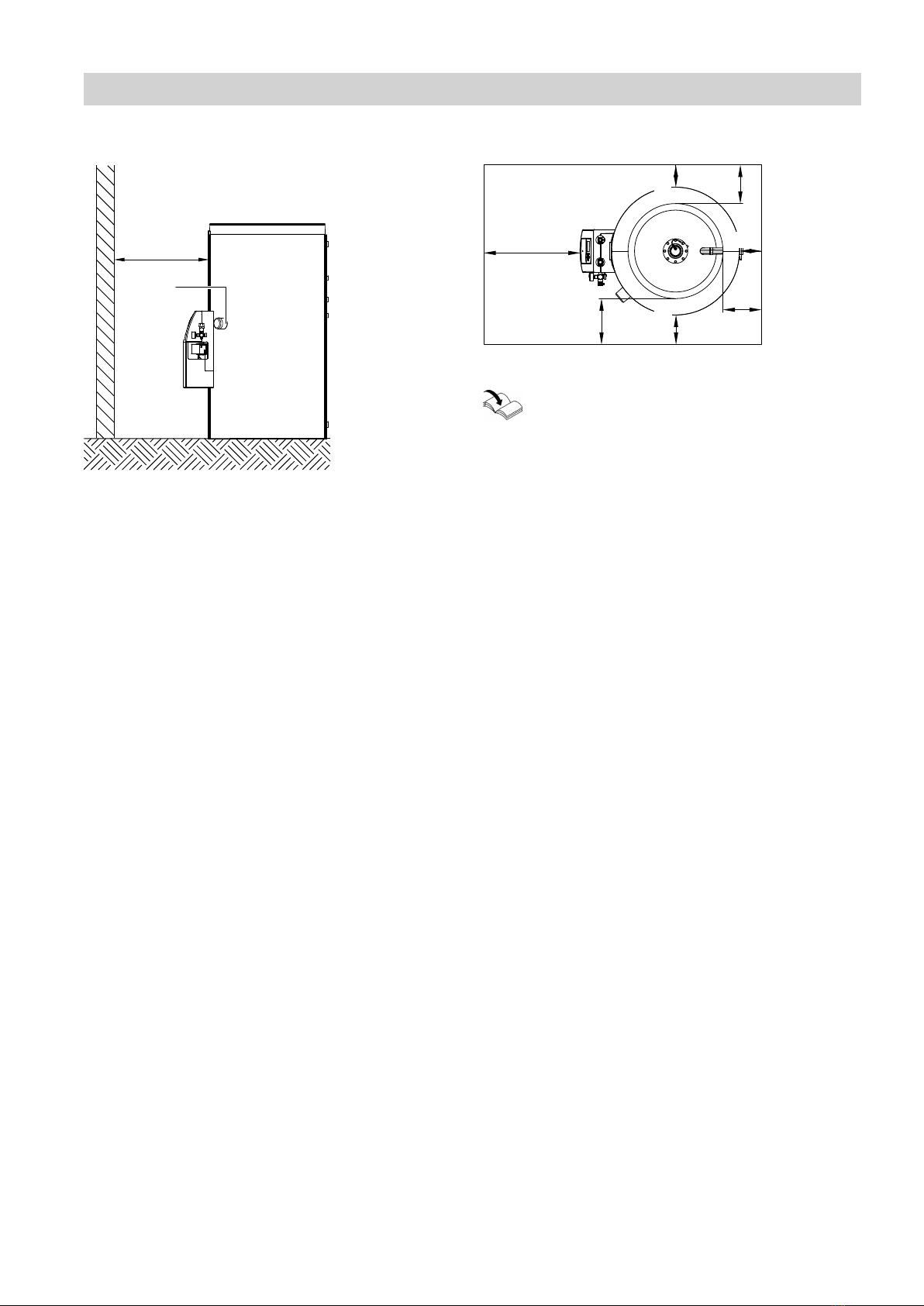

Installation dimensions
a
A
Fig. 2
a Wall clearance
AFemale connection for immersion heater
650
260
260
310
(200) (150)
(150)
Fig. 3
Immersion heater installation instructions
Maintain the minimum clearance.
Note
The unheated length of any threaded immersion
heater installed on site must be at least 100 mm.
The threaded immersion heater must be suitable for
installation in enamelled DHW cylinders.
Product information (cont.)
5838690

8
Level the cylinder and fit the thermal insulation mat at
the bottom.
2.
1.
A
Fig. 4
ABag with type plate
Note
If no immersion heater is installed, seal the front
female connection with the plug supplied.
Fitting the Solar-Divicon and thermal insulation

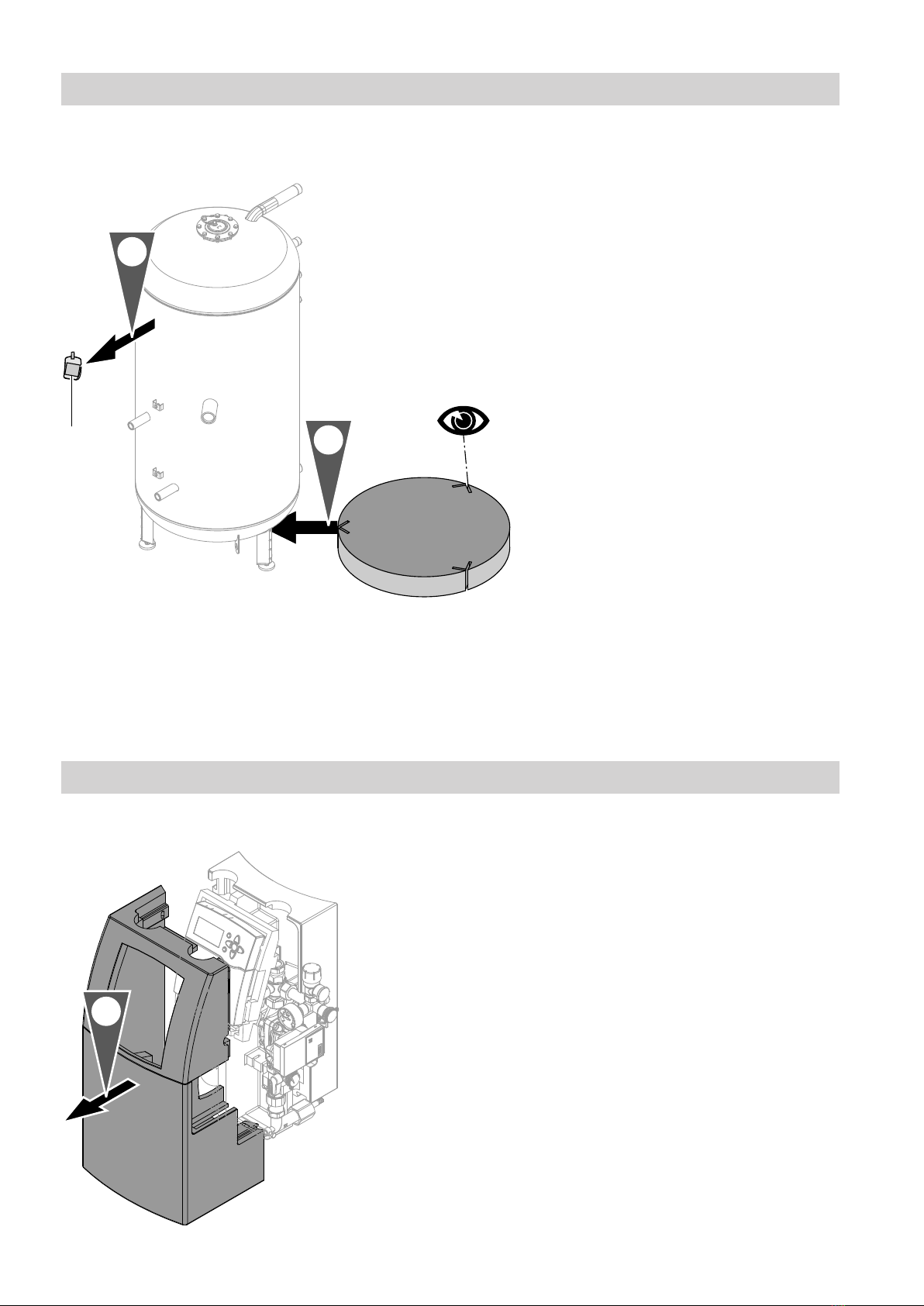

Removing the Solar-Divicon cover
1.
Fig. 5
Siting the DHW cylinder
5838690

9

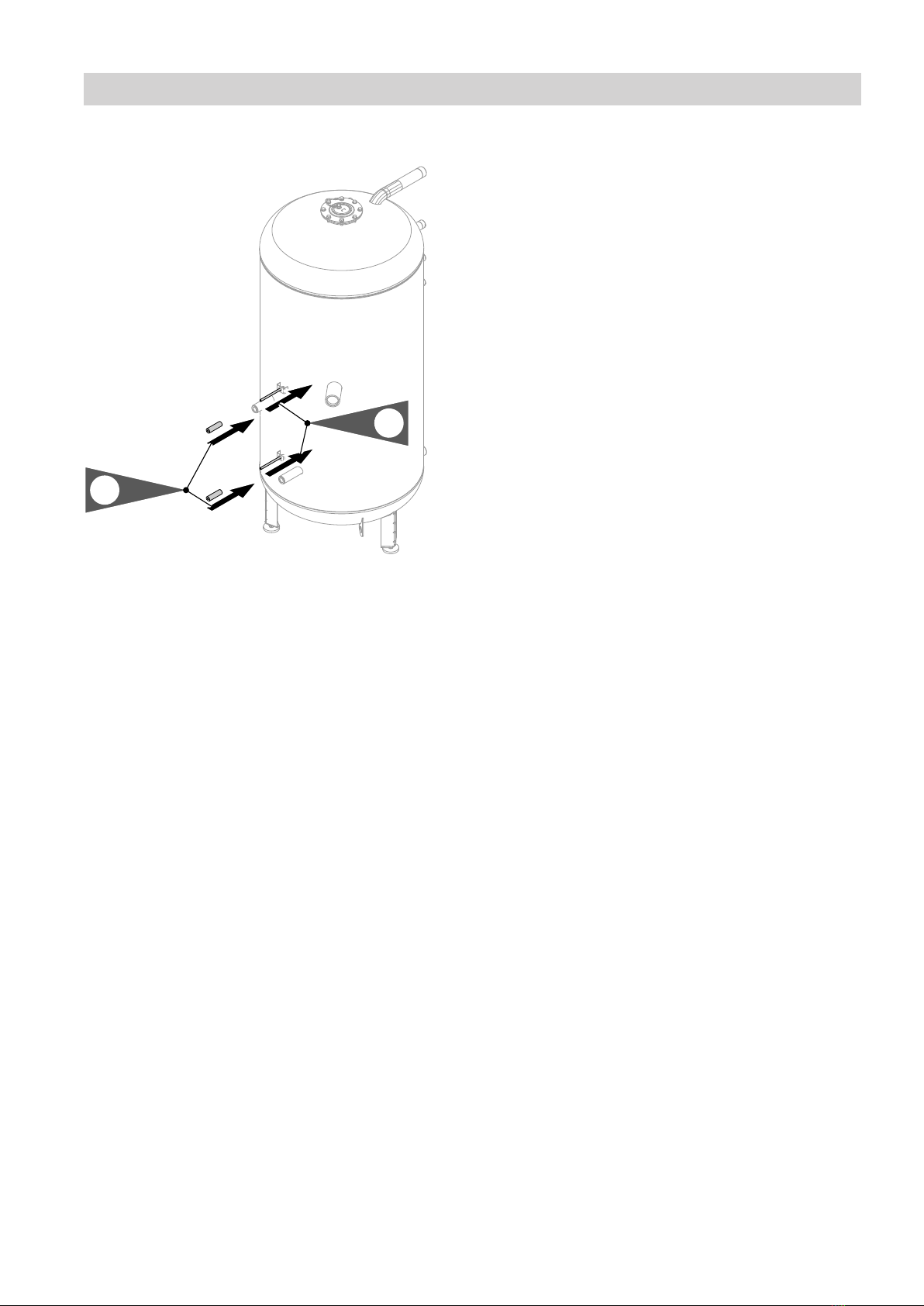

Fitting threaded studs and spacer sleeves
2.
1.
Fig. 6
1. Screw in threaded studs by hand as far as they will
go.
2. Slide on spacer sleeves.
Fitting the Solar-Divicon and thermal insulation (cont.)
5838690

10

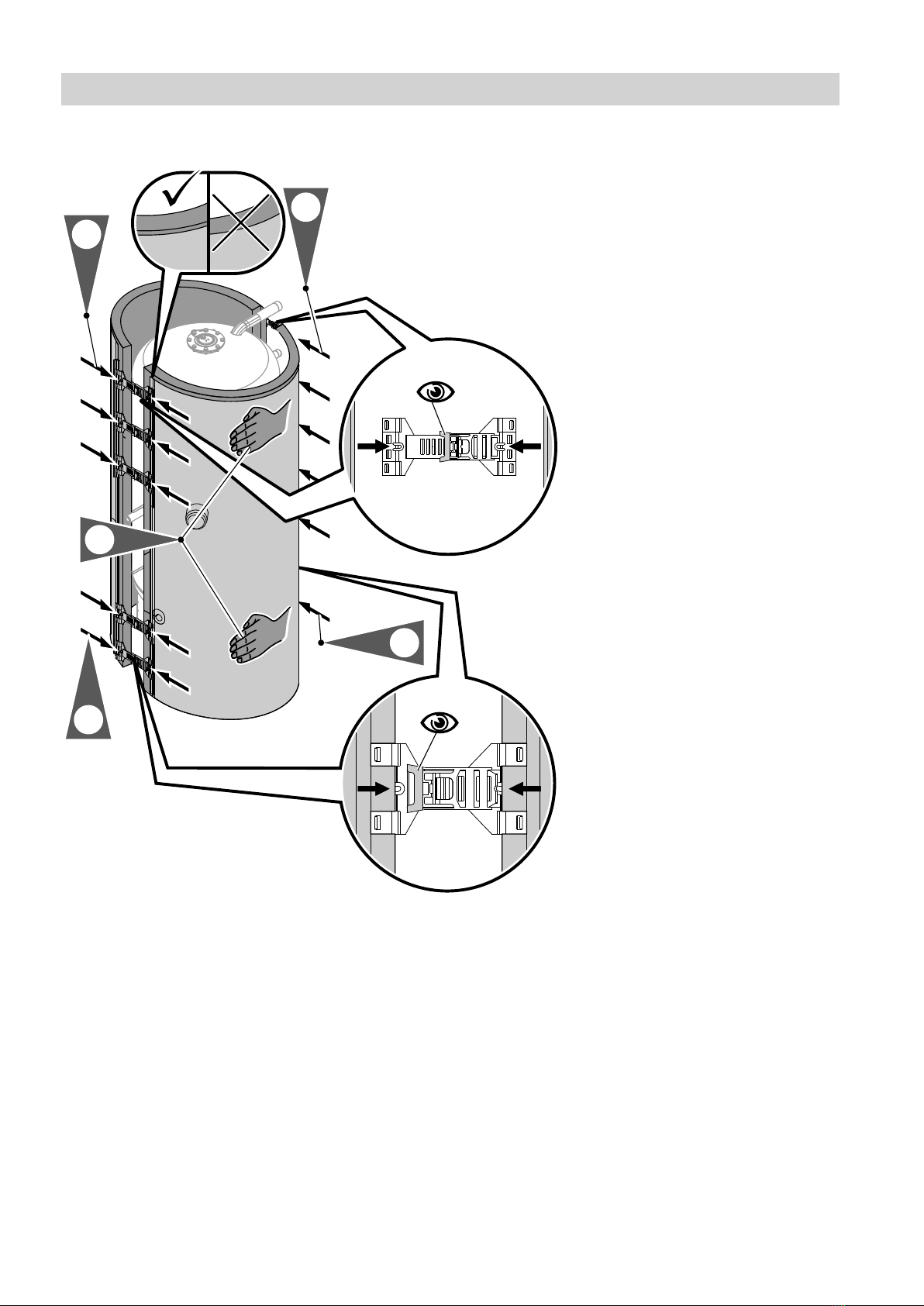

Fitting the thermal insulation jacket
1.
5.
4.
2.
3.
Fig. 7
Note
■2 people are required for the following work.
■Ensure that no fleece remnants enter the DHW cylin-
der through the cylinder connections.
1. At the back of the cylinder: Attach 6 clip fasteners
to the edges of the right and left sections of the
thermal insulation jacket. Place the thermal insula-
tion jacket around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. At the front of the cylinder: Attach 5 clip fasteners
to the edges of the right and left sections of the
thermal insulation jacket. 3 clip fasteners at the
top, 2 at the bottom. Leave space for the Solar-Div-
icon.
3. Fit the thermal insulation jacket evenly around the
cylinder body by patting it.
4. Push the clip fasteners at the front of the cylinder
as close together as possible.
5. Push the clip fasteners at the back of the cylinder
as close together as possible.
Fitting the Solar-Divicon and thermal insulation (cont.)
5838690

11

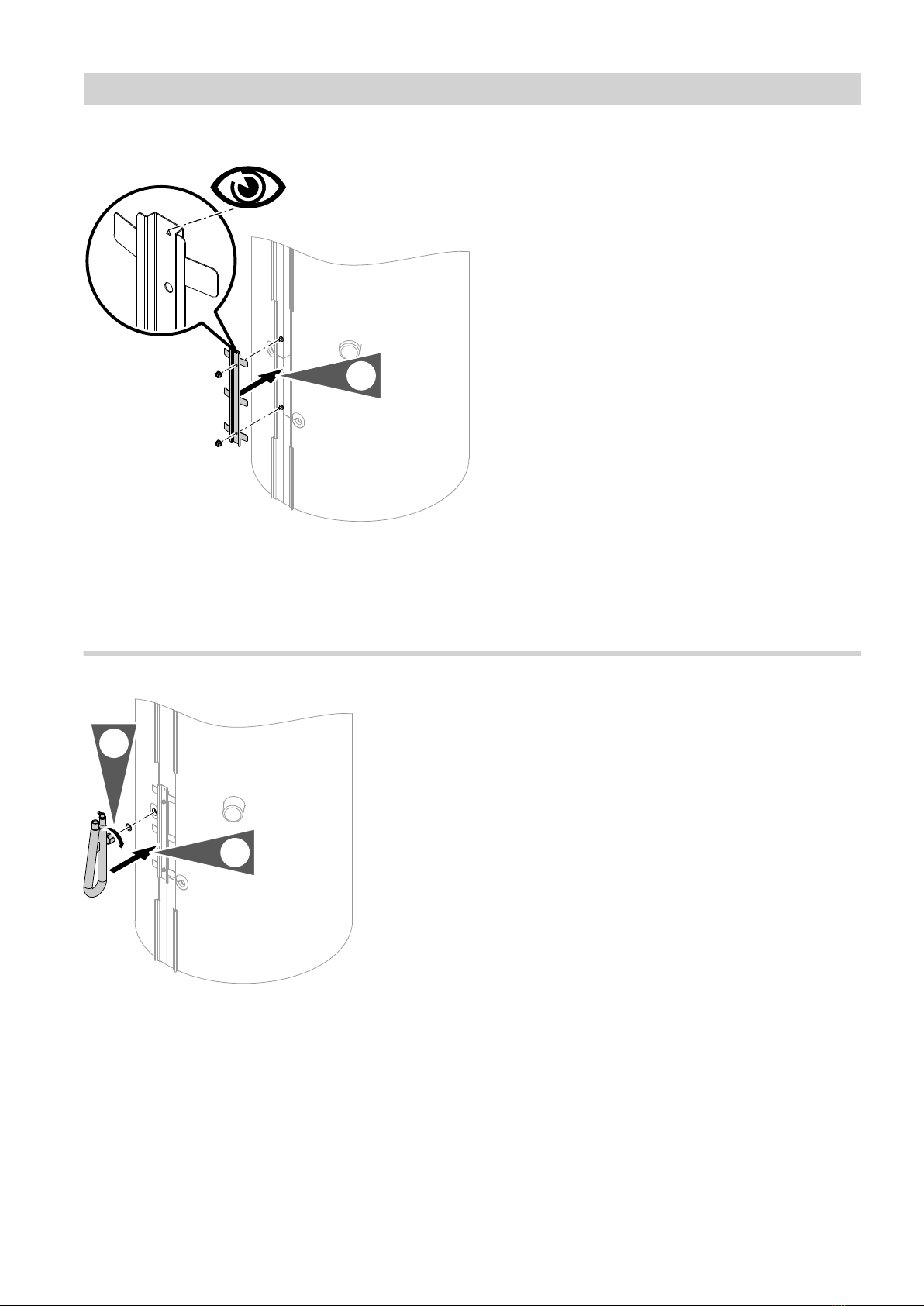

Fitting the profile bracket
1.
Fig. 8
Note
After fitting the profile bracket, check that no parts of
the thermal insulation jacket are trapped under the
spacer sleeves or profile bracket.
Fitting the overflow pipe
1.
2.
Fig. 9
1. Connect overflow pipe. 2. Tighten the nut with a torque of 50 Nm.
Fitting the Solar-Divicon and thermal insulation (cont.)
5838690

12
Fitting the Solar-Divicon
The example shows the installation of a Solar-Divicon
SD1 with Vitosolic. The Solar-Divicon SDIO/SM1A is
installed in the same way.
1.
2.
3.
Fig. 10
1. Position Solar-Divicon on bracket plate.
2. Connect solar return. Insert gasket.
Tighten the nut with a torque of 50 Nm.
3. Secure Solar-Divicon with M8 nuts. Torque: 20 Nm
Fitting the thermal insulation mat at the top
Fig. 11
Fitting the Solar-Divicon and thermal insulation (cont.)
5838690

13
Route the cable.
Fig. 12
Guide the SDIO/SM1A or SD1cable through the
recess in the Solar-Divicon to the back. Route it under
the thermal insulation to the back strip.
Note
To make it easier to route the power cable behind the
Solar-Divicon, group wires together with adhesive
tape.
!Please note
Hot components can damage cables.
Route power cable over top thermal insulation
mat.
Closing the thermal insulation
1.
Fig. 13
Fitting the Solar-Divicon and thermal insulation (cont.)
5838690

14
4.
3.
5.
2.
Fig. 14
1. Close Solar-Divicon cover.
2. Position cylinder cover.
3. Trim cover strip, then remove protective foil.
4. Attach cover strips.
5. Attach logo.
Fitting the Solar-Divicon and thermal insulation (cont.)
5838690

15
2.
3.
1.
Fig. 15
1. If no immersion heater is inserted, seal the female
connection with the cover.
2. Fit back cover strip and bezels.
3. Affix the type plate.
Connecting the immersion heater EHE
Immersion heater EHE installation instructions
Do not make the electrical connection until the solar
control unit is being connected.
!Please note
To prevent equipment damage, cables must not
come into contact with hot parts.
Ensure adequate thermal insulation between
cables and hot pipework.
Connecting the heating water side and solar side
■Connect all pipework with detachable fittings.
■Seal connections that are not required with caps.
■Adjust the high limit safety cut-out so that the DHW
temperature in the DHW cylinder will not exceed
95 °C.
Fitting the Solar-Divicon and thermal insulation (cont.)
5838690

16
Permissible temperatures
Solar side 160 °C
Heating water side 160 °C
Permissible operating pressure
Solar side 10 bar
(1.0 MPa)
Heating water side 10 bar
(1.0 MPa)
Test pressure
Solar side 16 bar
(1.6 MPa)
Heating water side 16 bar
(1.6 MPa)
Note
Vitosol collectors can be operated with up to 6 bar
(0.6 MPa).
System scheme with solar collectors and boiler
■Heating of DHW by solar collectors via the lower
internal indirect coil
■Heat supply for reheating or heating DHW with a
boiler via the upper internal indirect coil
KW
WW
1
2
3
5
6
7
8
9
4
S1
S2
P
M
STB
qP
Fig. 16
KW Cold water
HW DHW
S1 Collector temperature sensor (for version with
SDIO/SM1A electronics module: Insert SDIO/
SM1A plug & into electronics module)
S2 Cylinder temperature sensor (on the solar side)
(for version with SDIO/SM1A electronics module:
Insert SDIO/SM1A plug % into electronics mod-
ule)
1Vitocell 100-B or Vitocell 100-W comprising:
2 DHW cylinder
3 Solar-Divicon
4 Vitosolic 100 SDIO/SM1A electronics module
Connecting the heating water side and solar side (cont.)
5838690

17
5Solar collector
6Boiler
7Heating circuit
8Cylinder temperature sensor (on the heating
water side)
9Fill valve
qP Temperature sensor, high limit safety cut-out
(STB)
A
C
B
Fig. 17
1. Install the heat supply control unit.
2. Check connections A and B for leaks and
retighten if required.
Tightening torque: 45 to 50 Nm
3. When using copper pipes:
Insert support sleeves C supplied.
Tightening torque for both union nuts: 30 Nm
4. Install the flow line with a rise and fit an air vent
valve at the highest point.
5. Only for heating water flow temperatures in excess
of 110 °C:
Install a type-tested high limit safety cut-out, if one
has not yet been installed in the system (see
pages 16 and 19). For this, use a temperature
limiter and a high limit safety cut-out.
Connections on the DHW side
■For the DHW connection, observe DIN 1988 and
DIN 4753 (c: SVGW regulations)
■Connect all pipework with detachable fittings.
■Seal any connections that are not required with red
brass caps.
■Equip the DHW circulation pipe with a DHW circula-
tion pump and a check valve.
■Connection of the DHW circulation pump:
–Connection to the boiler control unit, provided this
is equipped with a DHW circulation pump connec-
tion.
–Connection with a time switch, if there is no DHW
circulation pump connection on the boiler control
unit.
Connecting the heating water side and solar side (cont.)
5838690

18
Permissible temperature: 95 °C
Permissible operating pressure: 10 bar
(1.0 MPa)
Test pressure: 16 bar
(1.6 MPa)
G
E
F
D
C
A
B
H
K M O K R K
P
KNL O S T
P
U
Fig. 18
AExpansion vessel
BDrain outlet
CDHW circulation pipe
DDHW
ESpring-loaded check valve
FDHW circulation pump
GVisible discharge pipe outlet point (tundish)
HSafety valve
KShut-off valve
LFlow regulating valve
MPressure gauge connection
NNon-return valve
ODrain outlet
PCold water
RDrinking water filter
SPressure reducer
TNon-return valve/pipe separator
UTemperature sensor, high limit safety cut-out (STB)
Safety valve

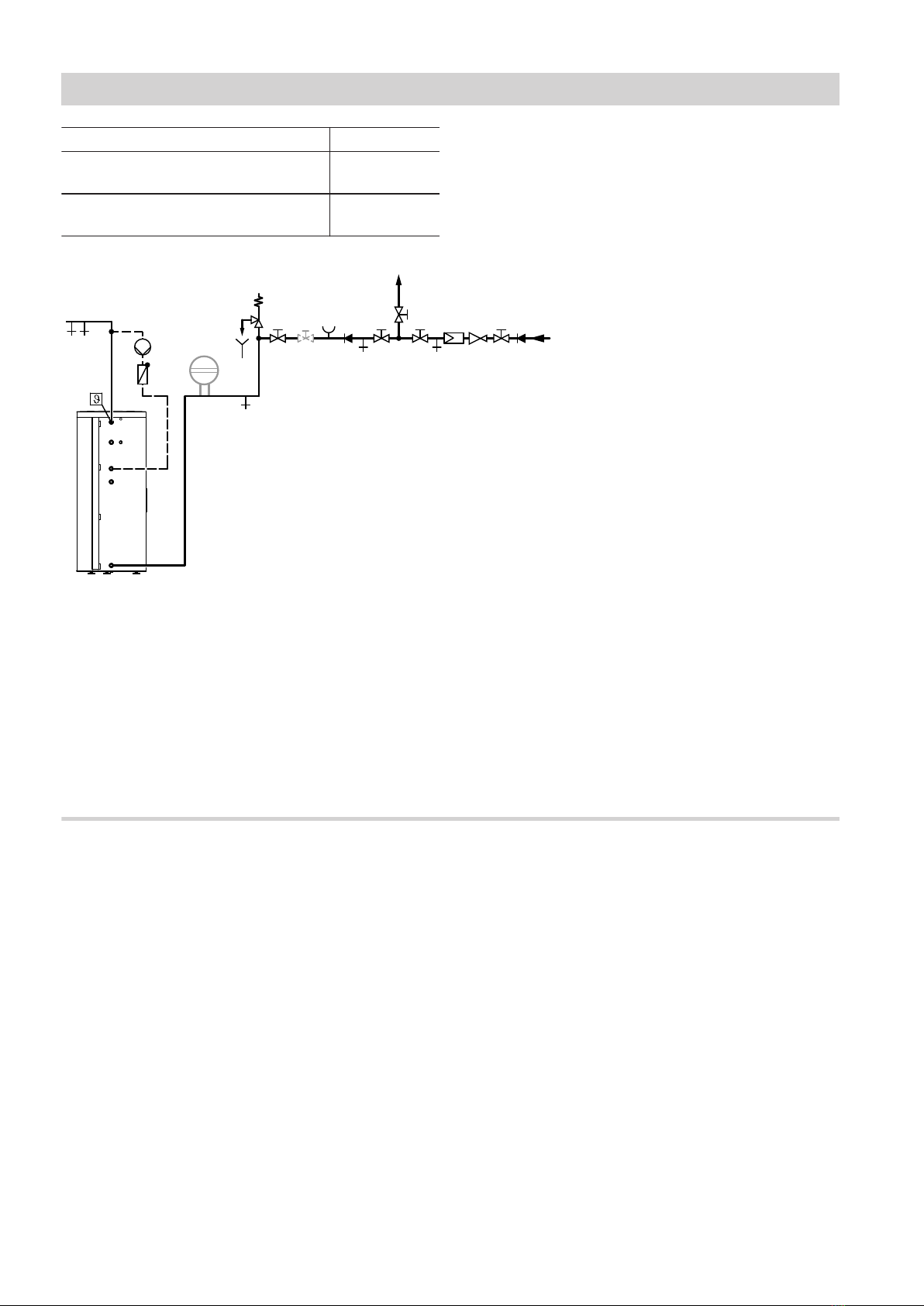

The system must be equipped with a type-tested dia-
phragm safety valve as protection against overpres-
sure.
Permissible operating pressure: 10 bar (1 MPa).
The safety valve must have the following connection
diameter:
R ¾ (DN 20), max. heat input 150 kW.
If the heat input of the DHW cylinder exceeds 150 kW,
select an appropriately rated safety valve for the heat
input (see E-DIN 1988-200).
Install the safety valve in the cold water line. Ensure
the safety valve cannot be shut off from the DHW cyl-
inder. There must be no constrictions in the pipework
between the safety valve and the DHW cylinder.
Never seal off the safety valve discharge pipe. Ensure
that any expelled water is safely and visibly drained
into a drainage system. Position a sign close to the
safety valve discharge pipe, or ideally on the safety
valve itself, with the following inscription: "For safety
reasons, water may be discharged from the discharge
pipe during heating. Never seal."
Install the safety valve above the top edge of the DHW
cylinder.
Connections on the DHW side (cont.)
5838690

19
!Please note
Damaged sensor leads (capillary tubes) result in
incorrect sensor functions.
Never route the connecting lead and the capilla-
ries near hot components.
Do not kink the capillary tubes.
4x
4.
5.
3.
2.
1.
Fig. 19

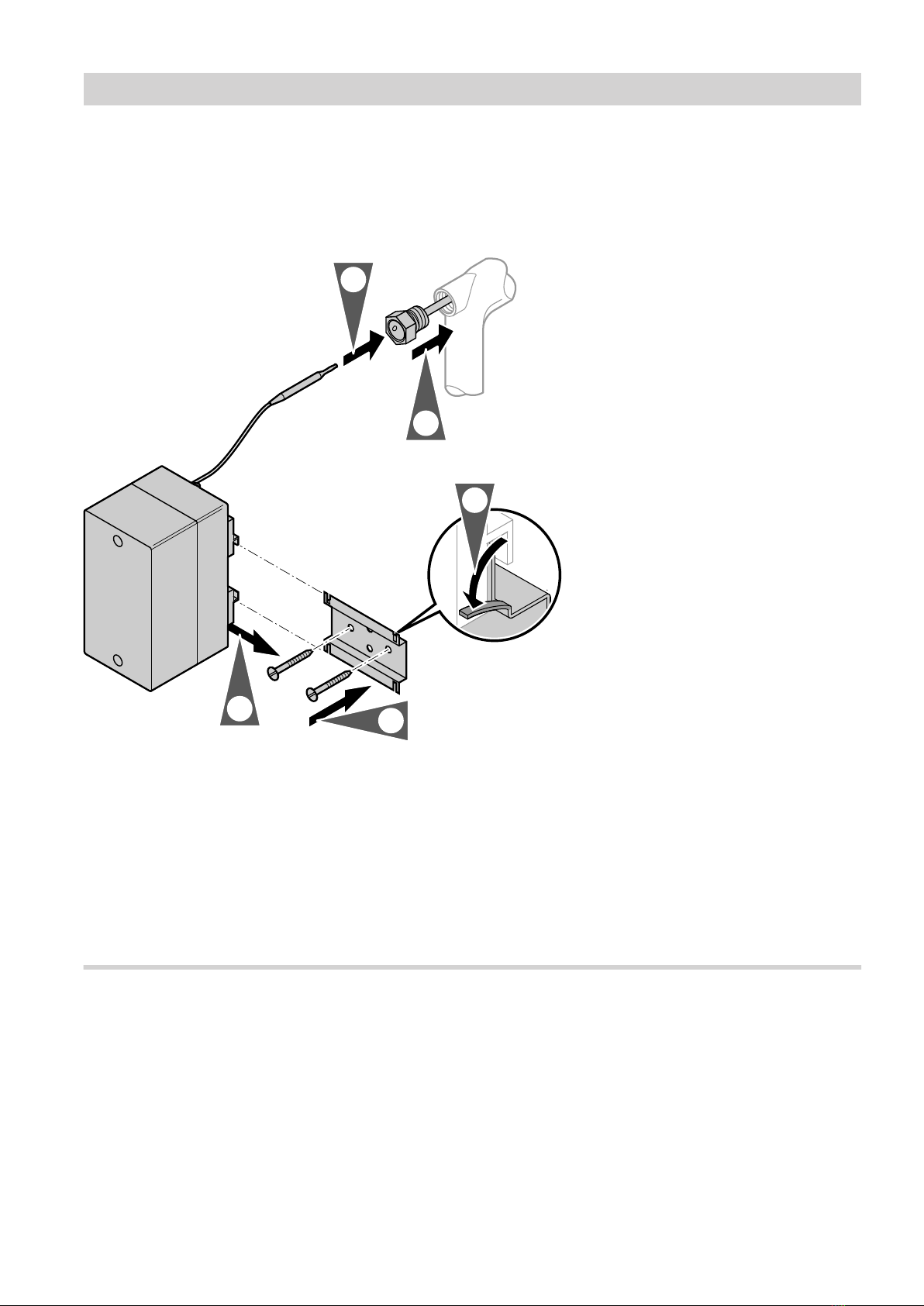

1. Seal in the sensor well.
2. Insert the temperature sensor into the sensor well
as far as it will go.
Note
Never wrap insulating tape around sensors.
3. Secure the retaining bracket at the selected posi-
tion.
Note
Observe the length of the capillary tube.
4. Slide casing onto retaining bracket.
5. Secure the casing by bending up the tabs.
Electrical connections
Earth the appliance with the earth conductor at the
"PE" terminal. This cable must have at least the same
cross-section as the power cable. Never loop earth
cables, i.e. never route them from one appliance to
another.
Install high limit safety cut-out (STB)
5838690

20
B
A
N L?
M
1~
CD
Fig. 20
AHigh limit safety cut-out
BPlug sF/sA of high limit safety cut-out (to control
unit)
CPlug sF/sA of solar circuit pump
DSolar circuit pump
Setting the response temperature
Service instructions
Reset high limit safety cut-out (STB)
Service instructions
Connecting the equipotential bonding
Connect the equipotential bonding in accordance with
the requirements stipulated by your local power supply
utility and VDE [or local] regulations.
CH: Connect the equipotential bonding in accordance
with the technical requirements stipulated by your local
power supply utility and SEV regulations.
Commissioning
Service instructions
Install high limit safety cut-out (STB) (cont.)
5838690
