Viessmann Vitocell 100-E Quick guide

Installation and service instructions
for contractors
VIESMANN
Vitocell 100-E
Type SVPB
Heating water buffer cylinder
1500 and 2000 l
For applicability, see the last page
VITOCELL 100-E
5788 112 GB 9/2017 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on electrical equipment may only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer live.
■Safeguard the system against reconnection.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing any work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Danger
Hot surfaces can cause burns.
■Before maintenance and service work, switch
OFF the appliance and let it cool down.
■Never touch the hot surfaces of uninsulated
pipes and fittings.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Replace faulty components only with genuine
Viessmann spare parts.
Safety instructions
Safety instructions
5788 112 GB

3
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate our warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions
Safety instructions (cont.)
5788 112 GB

4
1. Information Disposal of packaging ............................................................................ 5
Symbols ................................................................................................. 5
Intended use .......................................................................................... 6
Product information ................................................................................ 6
2. Preparing for installation Connections ........................................................................................... 7
Siting ...................................................................................................... 8
3. Installation sequence Levelling the heating water buffer cylinder ............................................ 9
Fitting the thermometer sensors and cylinder temperature sensors ...... 10
Fitting the 2-part thermal insulation ....................................................... 11
■Fitting the thermal insulation jacket sections ...................................... 11
■Fitting the cover strips ........................................................................ 12
■Fitting the cover .................................................................................. 12
Fitting the 3-part thermal insulation ....................................................... 13
■Fitting the thermal insulation jacket sections ...................................... 13
■Fitting the cover strips ........................................................................ 16
■Fitting the cover .................................................................................. 17
Connections on the heating water side .................................................. 17
Connecting the equipotential bonding ................................................... 17
4. Parts lists Ordering parts ........................................................................................ 19
2-part thermal insulation ........................................................................ 20
3-part thermal insulation ........................................................................ 22
Cylinder body ......................................................................................... 24
5. Commissioning/service
reports
................................................................................................................ 26
6. Specification Product characteristics .......................................................................... 27
7. Disposal Final decommissioning and disposal ..................................................... 28
Index
Index
5788 112 GB

5
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Information
Disposal of packaging
5788 112 GB
Information

6
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Product information
Steel heating water buffer cylinder for storing heating
water in combination with heat pumps, solar thermal
systems, solid fuel boilers and heat recovery.
■Suitable for systems to EN 12828 and DIN 4753.
■Capacity: 1500 or 2000 l
Information
Intended use
5788 112 GB
Information

7
A
Fig. 1 Front
AMax. 4 thermometers (accessories)
A
B
C
D
A
B
C
D
F
H
K
L
M
G
E

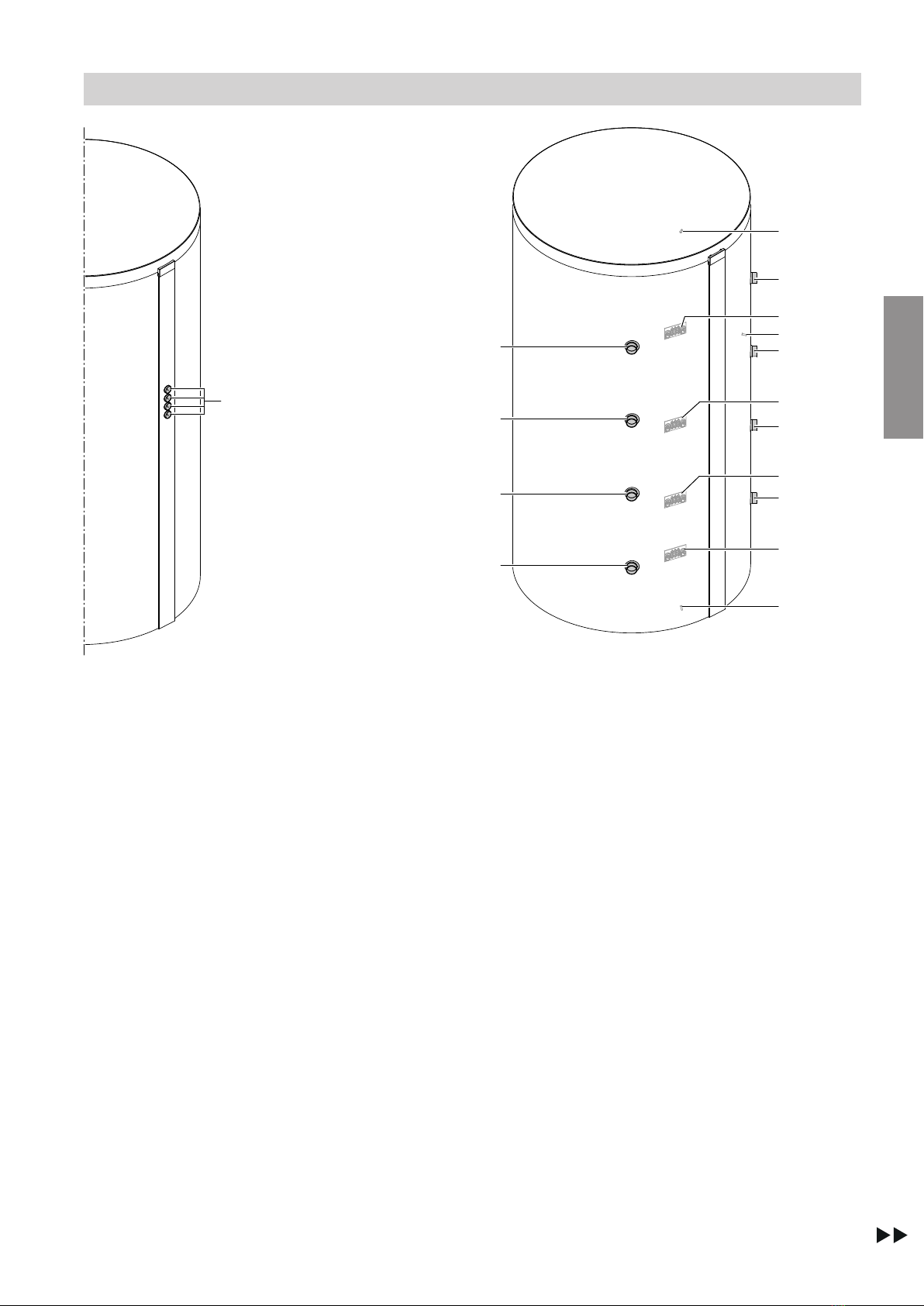

Fig. 2 Back
AHeating water flow 1
BHeating water flow 2/heating water return 1
CHeating water return 2
DHeating water return 3
EMounting for thermometer sensor (below thermal
insulation)
FClamping system for cylinder temperature sensor
1 (behind thermal insulation)
GMounting for thermometer sensor (below thermal
insulation)
HClamping system for cylinder temperature sensor
2 and thermometer sensor (behind thermal insula-
tion)
KClamping system for cylinder temperature sensor
3 and thermometer sensor (behind thermal insula-
tion)
LClamping system for cylinder temperature sensor
4 (behind thermal insulation)
MMounting for thermometer sensor (below thermal
insulation)
Preparing for installation
Connections
5788 112 GB
Installation

8
!Please note
To prevent material losses, install the heating
water buffer cylinder in a room free from the risk
of frost and draughts.
Otherwise the heating water buffer cylinder will
need to be drained when not in use and there is
a risk of frost.
Note
Placing the heating water buffer cylinder on a plinth will
make the room easier to clean.
Preparing for installation
Siting
5788 112 GB
Installation

9
Note
Seal connections that are not required with caps.
A
B
3.
3x
4.

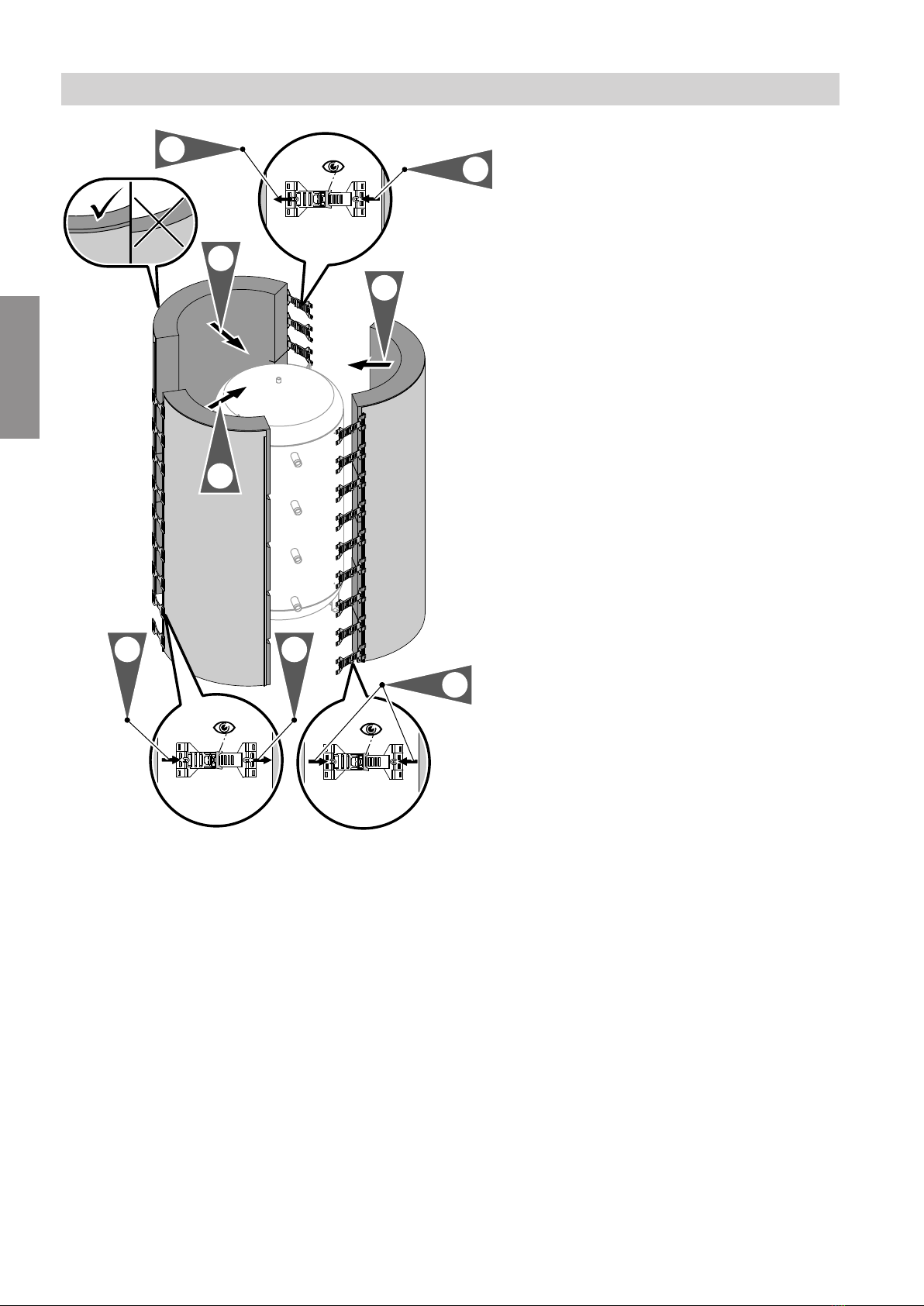

1.
2.
Fig. 3
AType plate
B3 adjustable feet
3. Insert the adjustable feet into the legs as far as
they will go. Use the adjustable feet to level the cyl-
inder body.
Note
Never extend the adjustable feet beyond a total
length of 30 mm.
Installation sequence
Levelling the heating water buffer cylinder
5788 112 GB
Installation

10
2.
1.
A
3.
5.
4.
6.
Fig. 4
1. Guide the thermometer sensors (if supplied)
through the cover strip and insert the thermome-
ters.
2. Guide the upper thermometer sensor through the
lifting eye, insert it into the clamping bracket as far
as it will go and tighten the wing nut.
Additional thermometer sensors (if supplied) that
are not intended for clamping system A can be
secured in the clamping brackets on the cylinder
jacket and cylinder base.
Note
The cover strip is held in its vertical position by the
straight capillaries of the upper thermometer sen-
sor. This is necessary for the rest of the installa-
tion.
3. Release the nuts.
4. Push the clamping system onto the threaded studs
and align.
5. Tighten the nuts.
6. Depending on where the sensor is being fitted:
Insert the thermometer sensors and cylinder
temperature sensors into clamping systems A
as far as they will go.
Note
Never wrap insulating tape around the sensors.
Installation sequence
Fitting the thermometer sensors and cylinder temperature sensors
5788 112 GB
Installation

11

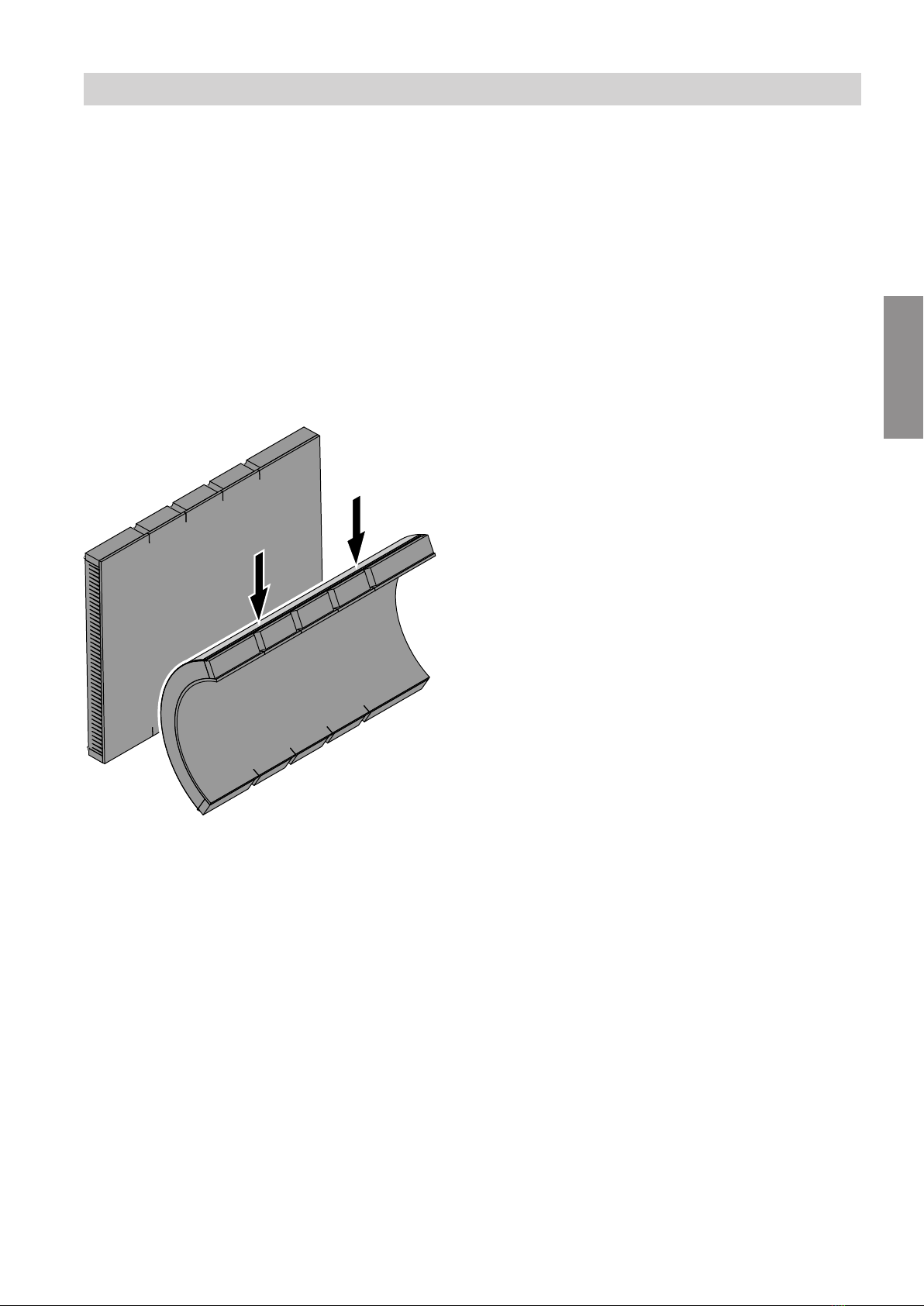

Fitting the thermal insulation jacket sections
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing
Note
■2 people are required for the following work.
■Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connec-
tions.
Number of clip fasteners on each cylinder side
1500 l: 6 pce
2000 l: 9 pce
1.
2.
4.
3.
Fig. 5
1. At the back of the cylinder: Attach the clip fasten-
ers to the edges of the right and left thermal insula-
tion jacket sections. Place the thermal insulation
jacket around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. At the front of the cylinder: Attach the clip fasteners
to the edges of the right and left thermal insulation
jacket sections.
3. Push the clip fasteners at the back of the cylinder
as close together as possible.
4. Push the clip fasteners at the front of the cylinder
as close together as possible.
Installation sequence
Fitting the 2-part thermal insulation
5788 112 GB
Installation

12

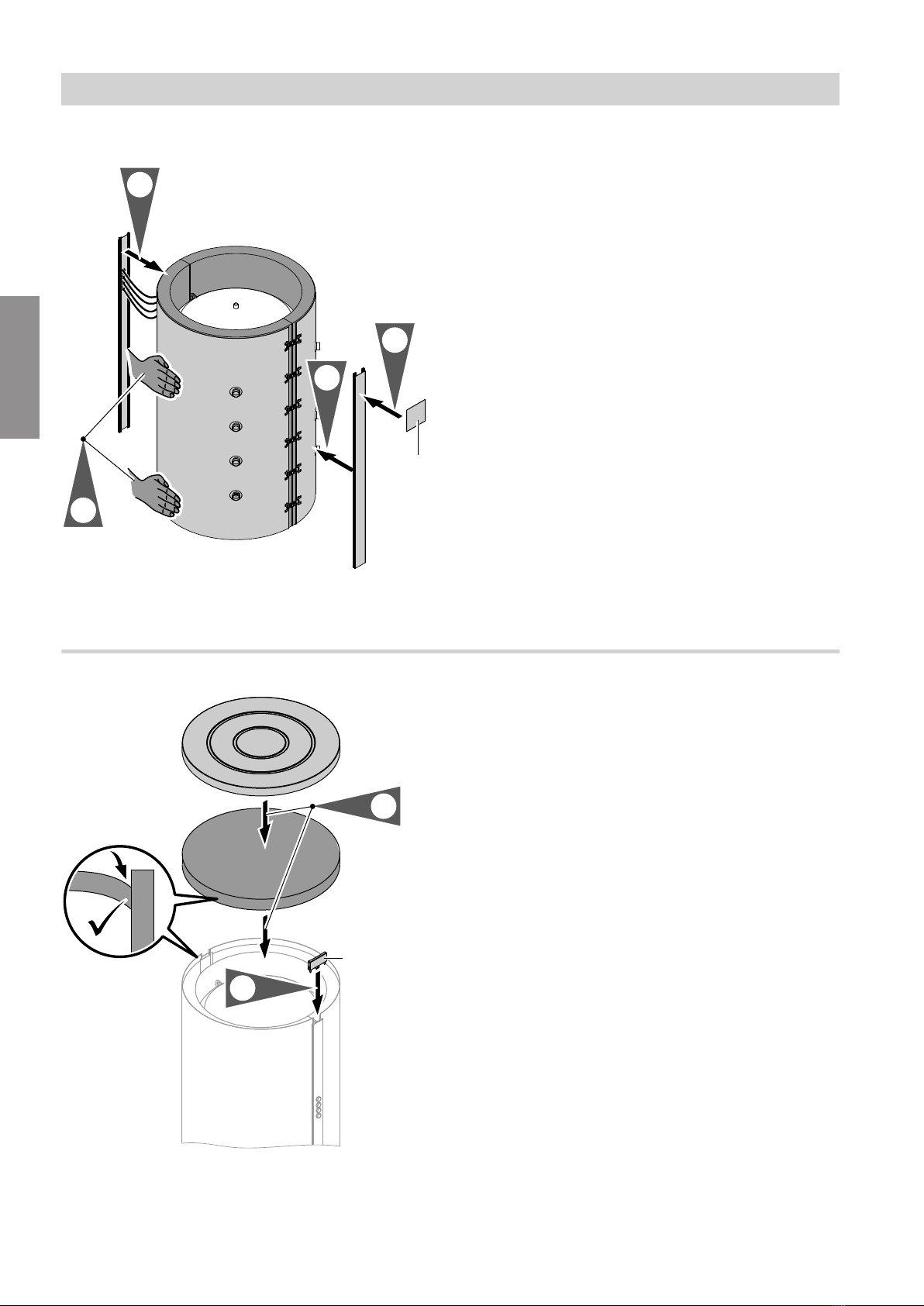

Fitting the cover strips
2.
3.
A
4.
1.
Fig. 6
AType plate
Fit the thermal insulation jacket evenly around the cyl-
inder body by patting it.

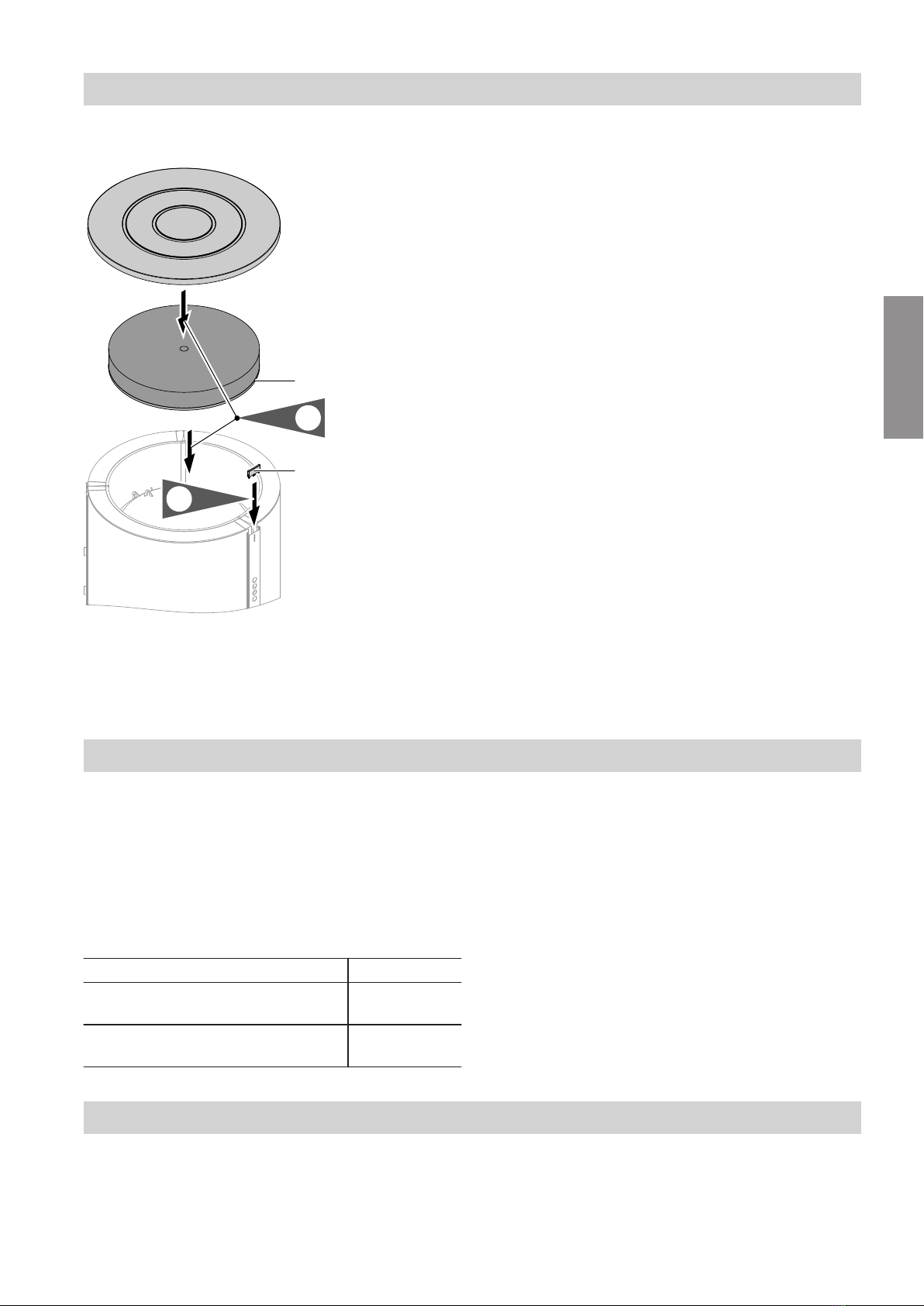

Fitting the cover
2.
1.
A
Fig. 7
AViessmann logo
Installation sequence
Fitting the 2-part thermal insulation (cont.)
5788 112 GB
Installation

13
Fitting the thermal insulation jacket sections
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing
Note
■The work detailed below requires 2 people.
■Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connec-
tions.
Bend the thermal insulation jacket sections into shape
before fitting.
A B
Fig. 8
ADelivered condition
BBefore installation
Number of clip fasteners per left edge section
1500 l: 6 pce
2000 l: 9 pce
Installation sequence
Fitting the 3-part thermal insulation
5788 112 GB
Installation

14
1.
3.
4. 2.
8.
5.
7.
6.
Fig. 9
1. Push the middle section of the thermal insulation
jacket between the cylinder connections and posi-
tion it against the cylinder body.
2. Attach clip fasteners to the left edge of the thermal
insulation section.
3. Position the 2nd section of the thermal insulation
jacket against the cylinder body.
4. Connect the two insulation sections together using
the clip fasteners.
Note
Leave the clip fasteners in the first notch.
5. Attach clip fasteners to the left edge of the 2nd
insulation section.
6. Position the next insulation section against the cyl-
inder body.
7. Connect the two insulation sections together using
the clip fasteners.
Note
Leave the clip fasteners in the first notch.
8. Attach the clip fasteners to the left edge of the last
thermal insulation jacket section. Join the first and
last thermal insulation jacket sections using the clip
fasteners.
Installation sequence
Fitting the 3-part thermal insulation (cont.)
5788 112 GB
Installation

15
9. Push all clip fasteners as close together as possi-
ble.
9.
Fig. 10
Installation sequence
Fitting the 3-part thermal insulation (cont.)
5788 112 GB
Installation

16
Fitting the cover strips
3.
2.
3.
3.
1. 4.
A
Fig. 11
AType plate
1. Fit the thermal insulation jacket evenly around the
cylinder body by patting it.
2. Cut out the perforated openings on the cover strips
to allow for the connections.
Installation sequence
Fitting the 3-part thermal insulation (cont.)
5788 112 GB
Installation

17
Fitting the cover
2.
1.
A
B
Fig. 12
AViessmann logo
BFleece side of the insulation facing downwards
Connections on the heating water side
Any number of Vitocell 100-E can be connected either
in series or in parallel. Connection pipes and air vent
valves must be provided on site.
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Permissible temperature 110 °C
Permissible operating pressure 3 bar
(0.3 MPa)
Test pressure 4.8 bar
(0.48 MPa)
Note
For location of connections, see page 7.
1. Connect all pipework with detachable fittings.
2. Install the flow line with a rise. Fit an air vent valve
at the highest point of the flow line.
3. Check all connections for leaks after filling the
heating water buffer cylinder.
Connecting the equipotential bonding
Connect the equipotential bonding in accordance with
the requirements stipulated by your local power supply
utility and VDE [or local] regulations.
c: Connect the equipotential bonding in accordance
with the requirements stipulated by your local power
supply utility and current SEV [or local] regulations.
Installation sequence
Fitting the 3-part thermal insulation (cont.)
5788 112 GB
Installation

18
Installation sequence
Connecting the equipotential bonding (cont.)
5788 112 GB
Installation

19
The following information is required:
■Serial no. (see type plate)
■Assembly (from this parts list)
■Position number of the individual part within the
assembly (from this parts list)
A A
CB
D
AType plate
B2-part thermal insulation
C3-part thermal insulation
DCylinder body
Parts lists
Ordering parts
5788 112 GB
Components

20
0012
0012
0012
0013
0011
0010
0009
0008
0007
0006
0005
0004
0003
0002
0001
Fig. 13

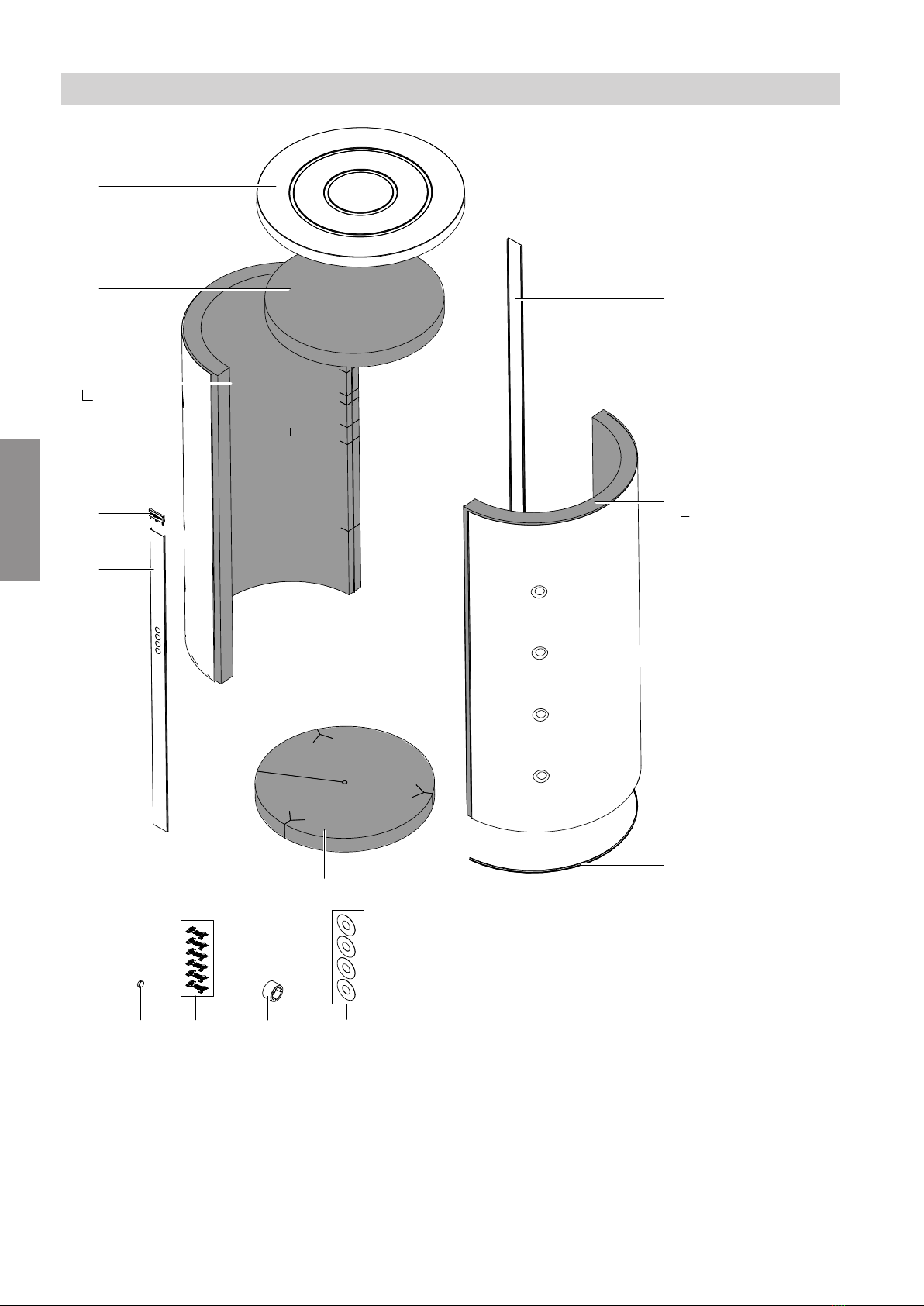

Parts lists
2-part thermal insulation
5788 112 GB
Components
