Viessmann Vitocell 100-E Quick guide

Installation and service instructions
for contractors
VIESMANN
Vitocell 100-E
Type SVPB
Heating water buffer cylinder
600 to 950 l
VITOCELL 100-E
6154019 GB 4/2020 Please keep safe.

2
Please follow these safety instruc-
tions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the risk
of injury.
!Please note
This symbol warns against the risk
of material losses and environmen-
tal pollution.
Note
Details identified by the word "Note"
contain additional information.
Target group
These instructions are exclusively inten-
ded for qualified contractors.
■Work on electrical equipment may only
be carried out by a qualified electrician.
■The system must be commissioned by
the system installer or a qualified per-
son authorised by the installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention
of accidents
■Statutory regulations for environmental
protection
■Codes of practice of the relevant trade
associations
■Relevant country-specific safety regu-
lations
Working on the system
■Isolate the system from the power sup-
ply (e.g. by removing the separate fuse
or by means of a mains isolator) and
check that it is no longer live.
■Safeguard the system against recon-
nection.
!Please note
Electronic assemblies can be dam-
aged by electrostatic discharge.
Prior to commencing any work,
touch earthed objects such as heat-
ing or water pipes to discharge
static loads.
Danger
Hot surfaces can cause burns.
■Before maintenance and service
work, switch OFF the appliance
and let it cool down.
■Never touch the hot surfaces of
uninsulated pipes and fittings.
Safety instructions
Safety instructions
6154019

3
Danger
Floors that are wet or damp with
water or glycol based liquids can
cause injury due to slipping and fall-
ing.
■Keep the floor clean and dry dur-
ing installation and maintenance
work.
■Wear non-slip shoes.
Danger
Broken-off fragments of insulation
material can cause death by suffo-
cation if inhaled or swallowed.
■Do not let children play in the
installation room.
■Keep the installation room clean
after installation and maintenance
work.
Repair work
!Please note
Repairing components that fulfil a
safety function can compromise the
safe operation of the system.
Replace faulty components only
with genuine Viessmann spare
parts.
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have
not been tested together with the
system can compromise its func-
tion. Installing non-authorised com-
ponents and making non-approved
modifications or conversions can
compromise safety and may invalid-
ate our warranty.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Safety instructions
Safety instructions (cont.)
6154019

4
1. Information Disposal of packaging ............................................................................ 5
Symbols ................................................................................................. 5
Intended use .......................................................................................... 5
Product information ................................................................................ 6
System examples .................................................................................. 6
Spare parts lists ..................................................................................... 6
2. Preparing for installation Connections ........................................................................................... 7
3. Installation sequence Siting the cylinder .................................................................................. 8
Fitting the lower thermal insulation mat and aligning the cylinder body 8
Fitting the thermometer sensor (if supplied) and cylinder temperature
sensor .................................................................................................... 9
Mounting the Vitotrans ........................................................................... 10
Fitting the thermal insulation jacket ....................................................... 12
Fitting the cover strips ............................................................................ 13
Fitting the cover ..................................................................................... 15
Making the connections on the heating water side ................................ 15
Connecting the equipotential bonding ................................................... 16
4. Commissioning/service
reports
................................................................................................................ 17
5. Specification ................................................................................................................ 18
6. Disposal Final decommissioning and disposal ..................................................... 19
7. Certificates Declaration of conformity ....................................................................... 20
8. Keyword index ................................................................................................................ 21
Index
Index
6154019

5
Please dispose of packaging waste in line with statu-
tory regulations.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Information
Disposal of packaging
6154019
Information

6
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Product information
Vitocell 100-E, type SVPB (600, 750 and 950 l
capacity)
■Steel heating water buffer cylinder for storing heating
water in combination with heat pumps, solar thermal
systems, solid fuel boilers and heat recovery.
■With the option to fit a Vitotrans 353
■Suitable for systems to EN 12 828 and DIN 4753.
■For dimensions and weight, see page 18.
System examples
Available system examples: See www.viessmann-
schemes.com.
Spare parts lists
Information about spare parts can be found at
www.viessmann.com/etapp or in the Viessmann
spare part app.
Information
Intended use (cont.)
6154019
Information

7

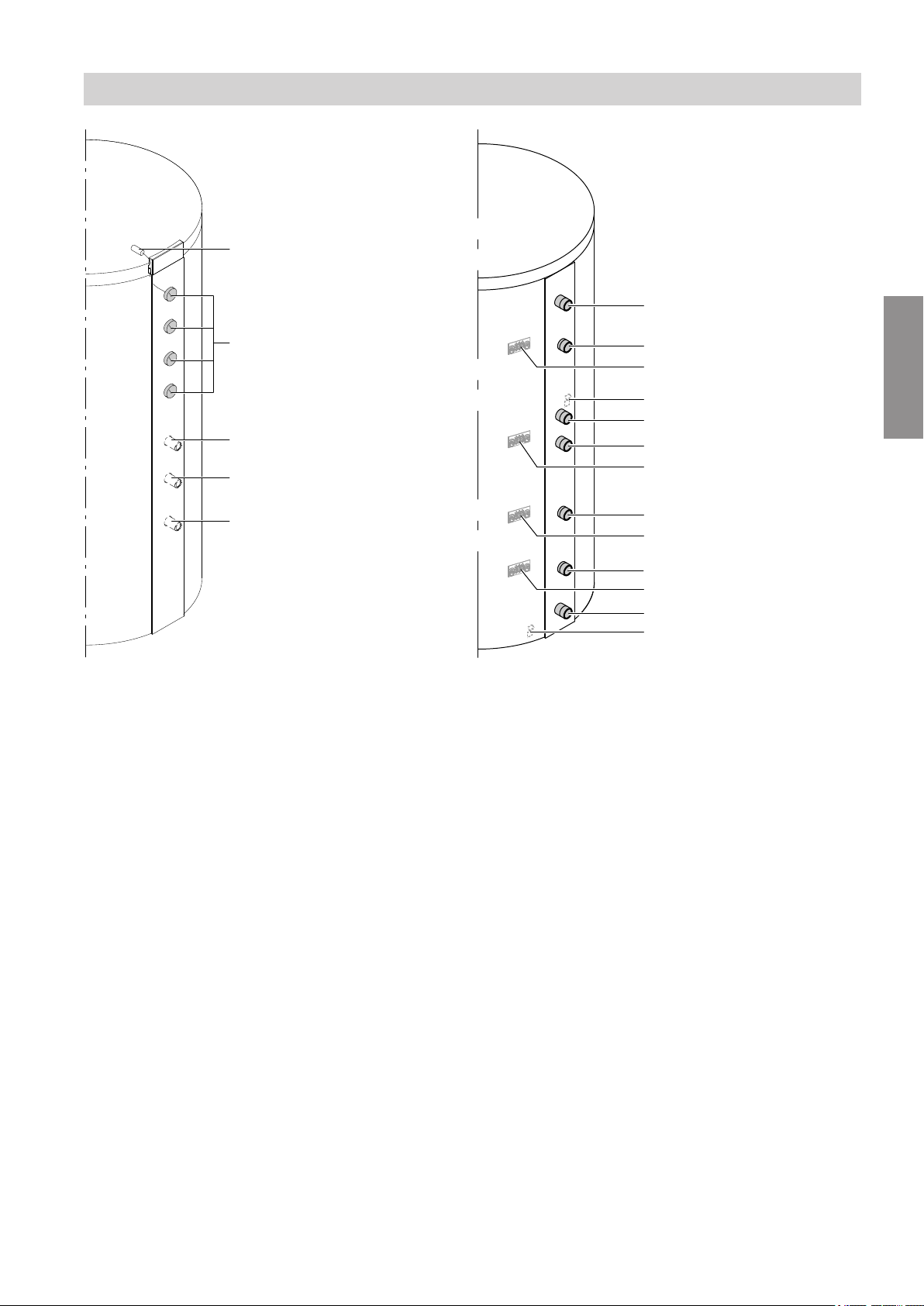

A
B
C
D
E
Front
B
A
H
N
F
D
L
O
C
G
K
M
E
Back
AThermometer sensor fixing (underneath the thermal
insulation)
BThermometer, up to 4 pce (accessories)
CHeating water flow G 1
DReturn stratification G 1
EHeating water return G 1
AHeating water flow 1 (to the heating circuits)/air
vent valve
BHeating water flow 2 (from the heat generator)
CClamping system for cylinder temperature sensor
(behind the thermal insulation)
DThermometer sensor fixing (behind the thermal in-
sulation)
EHeating water flow 3
FHeating water return 1
GClamping system for cylinder temperature sensor 2
and thermometer sensor (behind the thermal insu-
lation)
HHeating water return 2 (from the heating circuits)
KClamping system for cylinder temperature sensor 3
and thermometer sensor (behind the thermal insu-
lation)
LHeating water return 3 (from the heating circuits)
MClamping system for cylinder temperature sensor 4
(behind the thermal insulation)
NHeating water return 4 (to the heat generator)/drain
OThermometer sensor fixing (behind the thermal in-
sulation)
Preparing for installation
Connections
6154019
Installation

8
!Please note
Exposure to frost can damage the appliance.
Install the buffer cylinder in a room that is free
from the risk of frost and draughts. Otherwise,
the buffer cylinder must be drained if there is a
risk of frost while it is not in use.
■Provide adequate clearance from the wall to allow for
operation of the temperature controller (if installed).
■Placing the heating water buffer cylinder on a plinth
will make the room easier to clean.
■Use adjustable feet to level the buffer cylinder.
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Fitting the lower thermal insulation mat and aligning the cylinder body
A
B
3.
3x
1.
4.
2.
Fig. 1
ABag containing type plate
BBag containing 3 adjustable feet
3. Insert the adjustable feet into the legs as far as
they will go, then adjust them to level the cylinder
body.
Installation sequence
Siting the cylinder
6154019
Installation

9
Note
Only use one or two of the adjustable feet to level the
cylinder body. At least one of the adjustable feet must
remain fully screwed in.

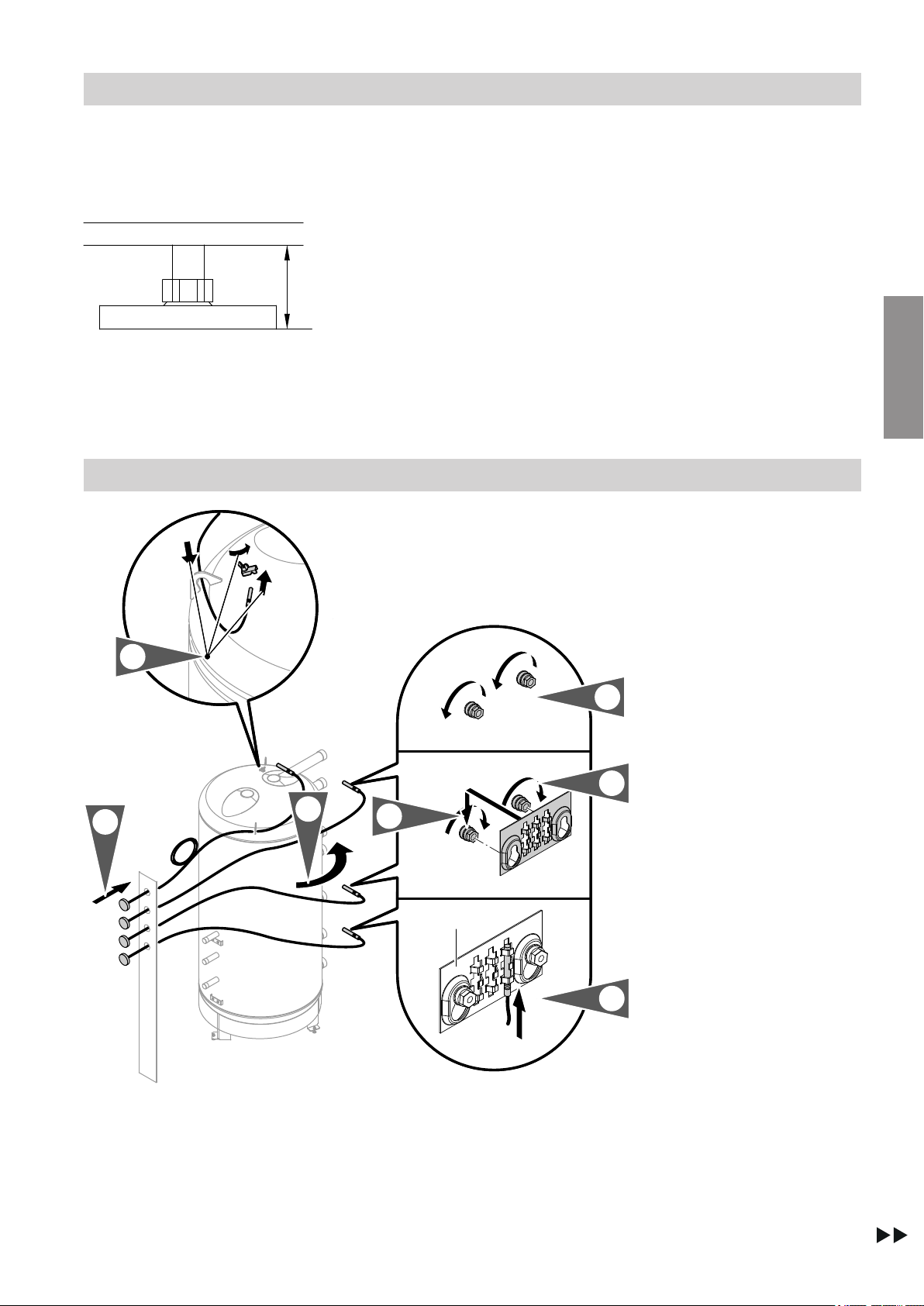

≤35
Fig. 2
Do not extend the adjustable feet beyond a total
length of 35 mm.
Fitting the thermometer sensor (if supplied) and cylinder temperature sensor
2.
3.
1.
A
4.
6.
5.
7.
Fig. 3
1. Guide the thermometer sensor through the cover
strip and insert the thermometer.
Installation sequence
Fitting the lower thermal insulation mat and… (cont.)
6154019
Installation

10
2. Guide the upper thermometer sensor through the
lifting eye, insert it into the clamping bracket as far
as it will go and tighten the wing nut.
Note
The cover strip is held in its vertical position by the
coiled capillaries. This is necessary for the remain-
der of the installation.
3. Route the thermometer sensor capillaries to the
back of the cylinder.
4. Undo the nuts.
5. Place the clamping system onto the threaded studs
and align.
6. Tighten the nuts.
7. Depending on where the sensor is being fitted,
secure the thermometer sensor in the clamping
bracket or push as far as it will go into clamping
systems A.
Push cylinder temperature sensor into the
clamping system as far as it will go.
Note
■Never wrap insulating tape around the sensors.
■When the thermal insulation is being fitted, the
cylinder temperature sensor leads are routed
outwards through the apertures (slots) in the rear
cover strip.

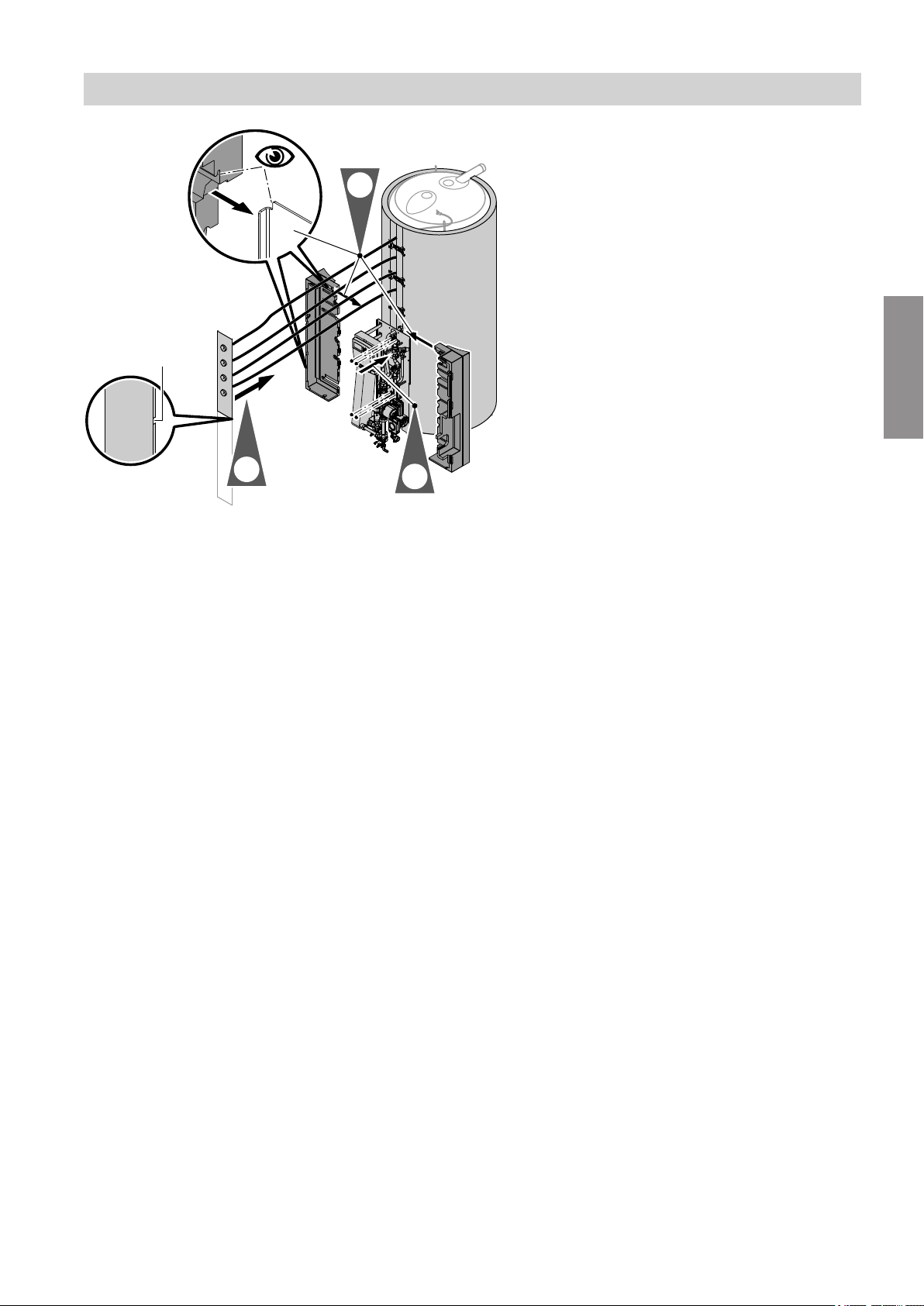

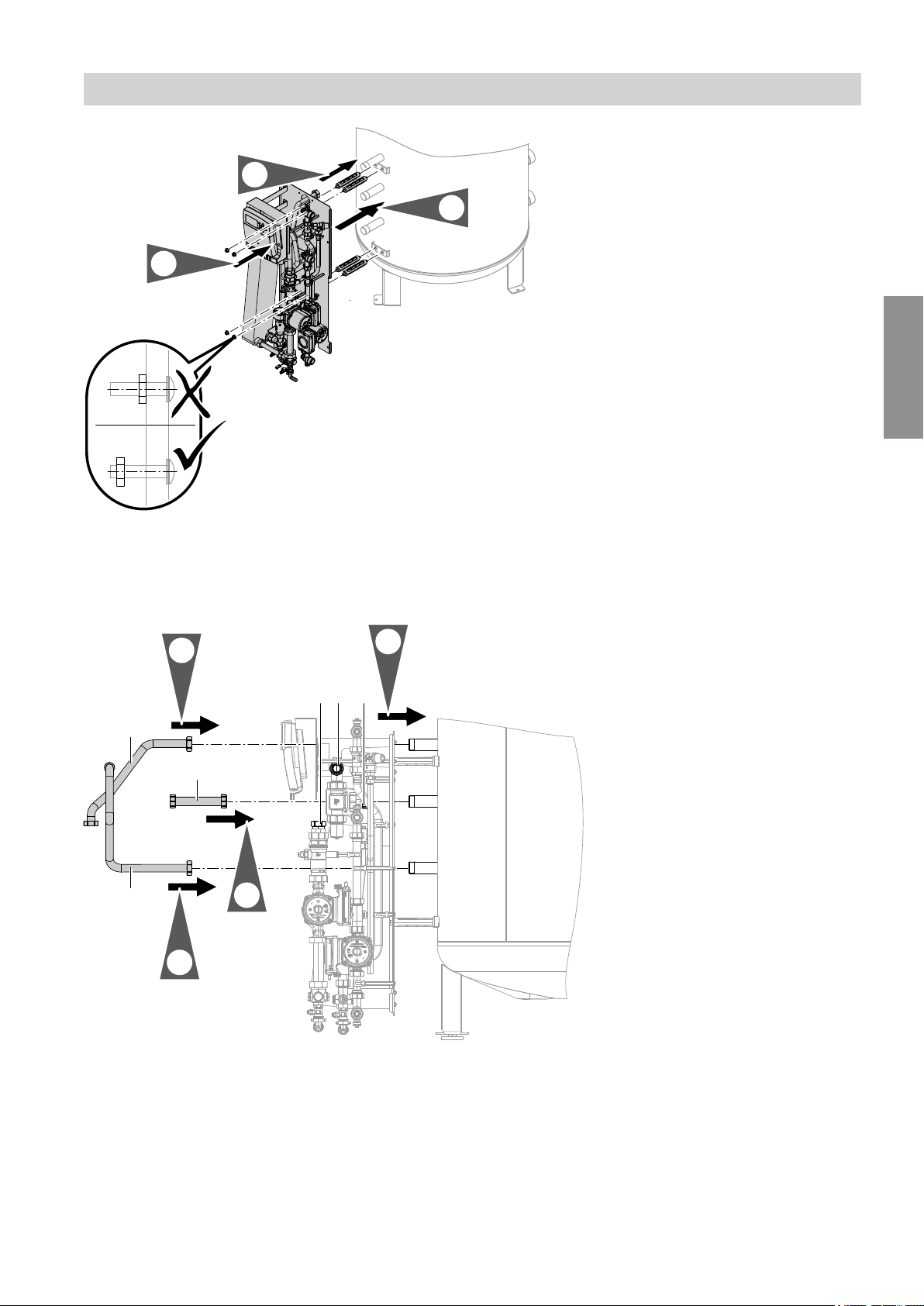

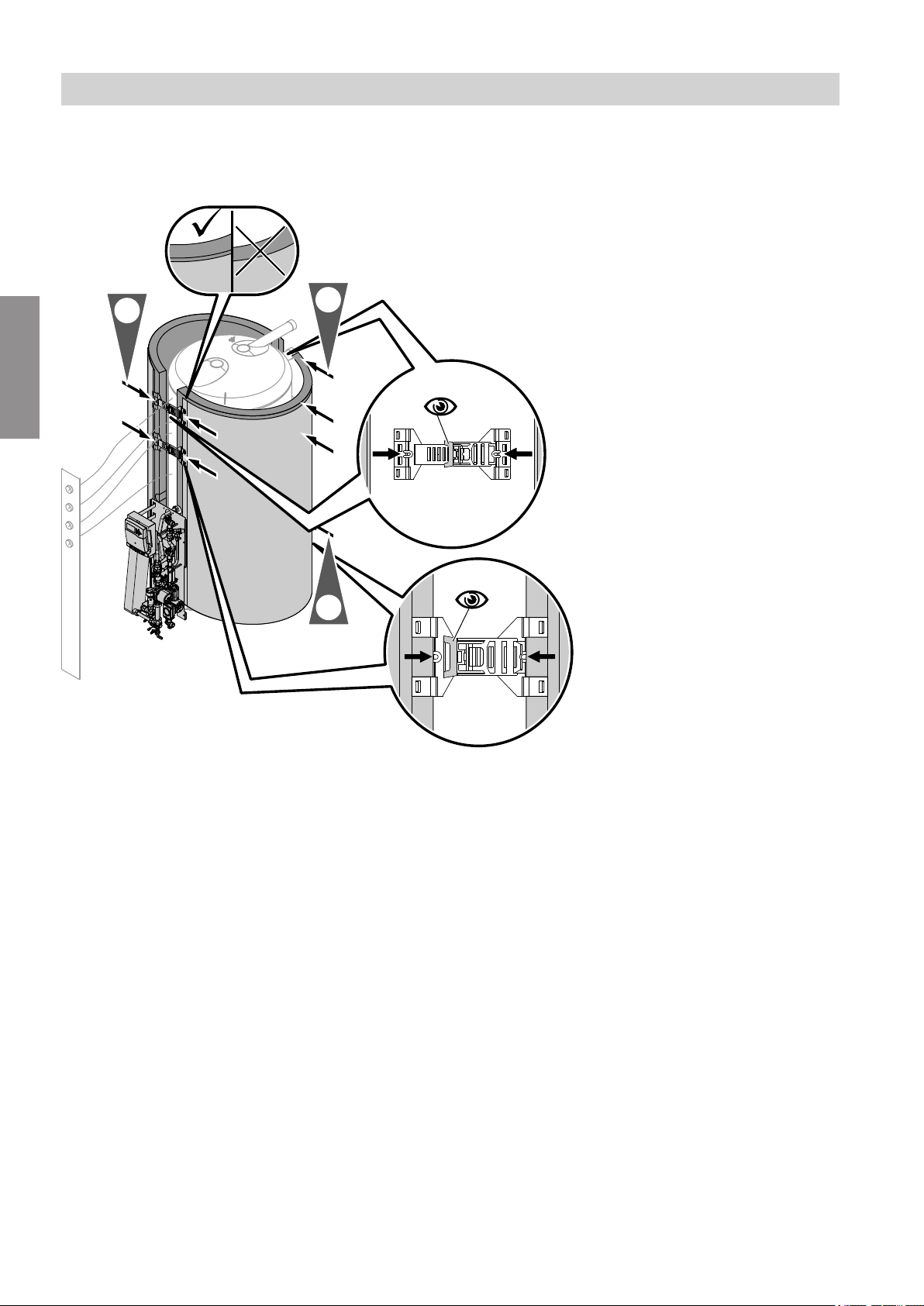

Mounting the Vitotrans
1.
2.
Fig. 4
Installation sequence
Fitting the thermometer sensor (if supplied) … (cont.)
6154019
Installation

11
2.
3.
1.
Fig. 5
1. Fit the bolts to the cylinder body.
2. Mount the module.
3. Turn the nuts onto the bolts by hand.
C
A
B
DE F
3.
1.
2.
4.
Fig. 6
1. Connect heating water flow connection pipe A to
connection D on the Vitotrans.
2. Connect heating water return connection pipe B
to connection E on the Vitotrans.
3. Connect return stratification connection pipe C to
connection F on the Vitotrans.
4. Connect the pipes to the cylinder connections.
Installation sequence
Mounting the Vitotrans (cont.)
6154019
Installation

12
Note
Fleece remnants must not enter the heating water buf-
fer cylinder through the cylinder connections.
3.
1.
2.
Fig. 7
Note
2 people are required for the following work.
1. At the back of the cylinder: Attach 6 clip fasteners
to the edge profile of the right and left sections of
the thermal insulation jacket. Place the thermal
insulation jacket around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. Fit 4 clip fasteners above and 2 clip fasteners
behind the Vitotrans so that they are evenly
spaced.
3. Push the clip fasteners as close together as they
will go.
Installation sequence
Fitting the thermal insulation jacket
6154019
Installation

13
3.
2. 1.
A
Fig. 8
1. Tighten the nuts on the bolts.
2. Fit the cover strip.
Version with Vitotrans:
Separate the cover strip at slot A and fit the upper
section.
3. Insert the rear sections of the Vitotrans thermal
insulation. When doing this, observe the groove in
the thermal insulation.
Installation sequence
Fitting the cover strips
6154019
Installation

14
A
2.
3.
4.
1.
Fig. 9 Illustration shows: Vitocell 100-E, type SVPB,
600 l
AType plate

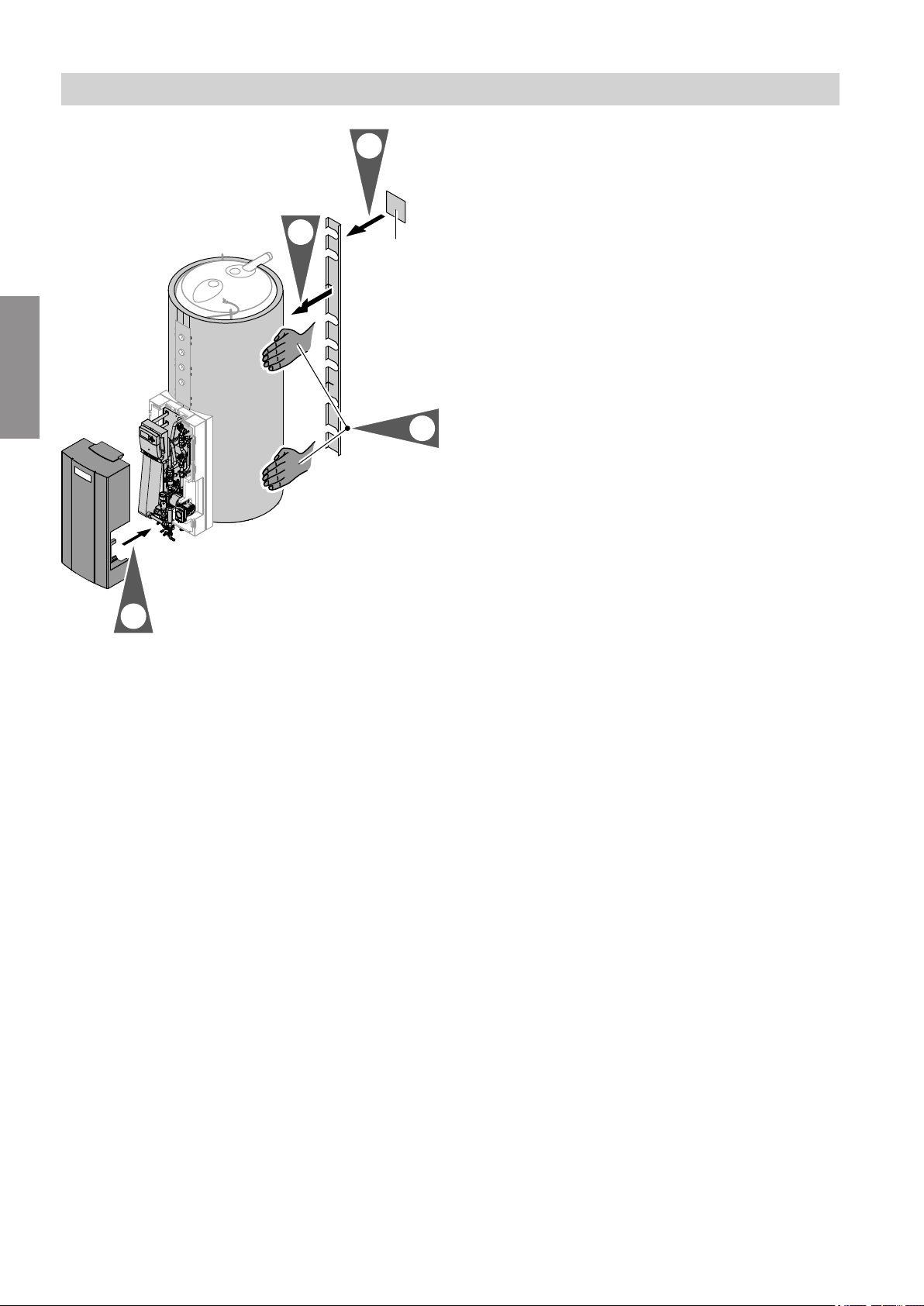

1. Version with Vitotrans:
mount the front section of the Vitotrans thermal
insulation.
2. Version with Vitotrans:
push the cylinder thermal insulation towards the
front by patting it. This reduces the gap between
the Vitotrans and the cylinder.
3. Fit the rear cover strip to the thermal insulation.
4. Affix type plate A.
Installation sequence
Fitting the cover strips (cont.)
6154019
Installation

15
1.
A
2.
Fig. 10
AViessmann logo
Making the connections on the heating water side
Any number of heating water buffer cylinders, type
SVPB, can be connected in series or in parallel. Pro-
vide connection pipes and air vent valves on site.
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Permissible temperature 110 °C
Permissible operating
pressure
6 bar (0.6 MPa)
Test pressure 9.6 bar (0.96 MPa)
Note
For location of connections, see page 7.
1. Connect all pipework with detachable fittings.
2. Install the flow line with an incline and fit an air vent
valve at the highest point.
3. Check all connections for leaks after filling the cyl-
inder.
Installation sequence
Fitting the cover
6154019
Installation

16

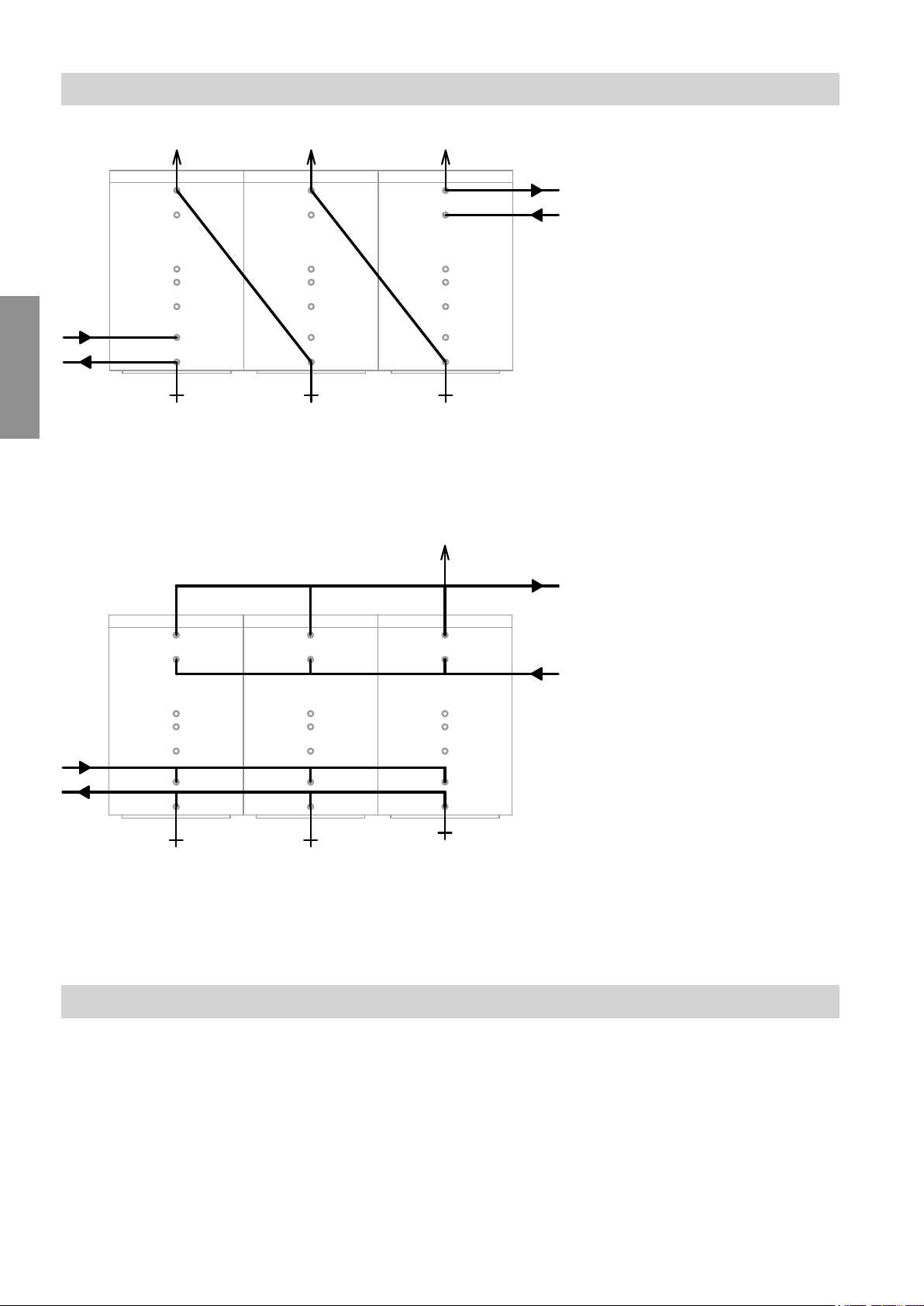

Cylinder bank connected in series
A
B
C
D
E
F
E
F
E
F
Fig. 11
AHeating water return 3 (from the heating circuits)
BHeating water return 4 (to the heat generator)
CHeating water flow 1 (to the heating circuits)
DHeating water flow 2 (from the heat generator)
EAir vent valve
FDrain
Cylinder bank connected in parallel
FF F
A
B
C
D
E
Fig. 12
AHeating water return 3 (from the heating circuits)
BHeating water return 4 (to the heat generator)
CHeating water flow 1 (to the heating circuits)
DHeating water flow 2 (from the heat generator)
EAir vent valve
FDrain
Connecting the equipotential bonding
Connect the equipotential bonding in accordance with
the requirements stipulated by your local power supply
utility and VDE [or local] regulations.
CH: Connect the equipotential bonding in accordance
with the technical requirements stipulated by your local
power supply utility and SEV regulations.
Installation sequence
Making the connections on the heating water side (cont.)
6154019
Installation

17
Commissioning Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Commissioning/service reports
Commissioning/service reports
6154019
Appendix

18
Cylinder capacity l 600 750 950
Standby heat loss
to EN 12897
QST with 45 K temperature differential
kWh/24 h 2.10 2.25 2.45
Dimensions
Length (7)
■Incl. thermal insulation mm 1064 1064 1064
■Excl. thermal insulation mm 790 790 790
Width mm 1119 1119 1119
Height
■Incl. thermal insulation mm 1645 1900 2200
■Excl. thermal insulation mm 1520 1814 2120
Height when tilted excl. thermal insulation and
adjustable feet
mm 1630 1890 2195
Weight
■Incl. thermal insulation kg 112 132 151
■Excl. thermal insulation kg 89 104 119
Connections (male thread)
Heating water flow and return R 2 2 2
Specification
Specification
6154019
Appendix

19
Viessmann products can be recycled. Components
and substances from the system are not part of ordi-
nary household waste.
For decommissioning the system, isolate the system
from the power supply and allow components to cool
down where appropriate.
All components must be disposed of correctly.
Disposal
Final decommissioning and disposal
6154019
Appendix

20
We, Viessmann Werke GmbH & Co. KG, D-35107
Allendorf, declare as sole responsible body that the
named product complies with the European directives
and supplementary national requirements in terms of
its design and operational characteristics.
Using the serial number, the full Declaration of Con-
formity can be found on the following website:
www.viessmann.co.uk/eu-conformity
Certificates
Declaration of conformity
6154019
Appendix
