For more product information, visit us on the web at www.viewsoniceurope.com
View documents and surf the Internet in crisp detail on the
high resolution 47cm/18.5" screen
The Dual Core Intel
®
Atom™ D510 1.6GHz processor with
2GB of memory provides plenty of power for desktop
computing
Six high-speed USB 2.0 ports provide easy connections for
peripherals
4-in-1 card reader allows for easy file transfers
Easily integrates into a LAN network through the 10/100
Ethernet LAN connection
Stay connected wirelessly through 802.11b/g WiFi
connectivity
Integrated 1.3 megapixel webcam makes it easy to
interact with friends and colleagues
2x3 watt speakers complement video conferencing and
Internet browsing
VPC190 Specifications
VPC190 Specifications
Size
Optimum Resolution
CPU
Processor
Installed
HDD
ODD
Ethernet LAN
Wireless LAN
Audio
USB
LAN
Card reader
Speakers
Microphone
Power
Consumption
OS
Physical
Net
DISPLAY
PROCESSOR
GRAPHIC
MEMORY
STORAGE
COMMUNICATION
WEBCAM
CONNECTORS
AUDIO
POWER
OPERATING SYSTEM
DIMENSIONS (W×H×D)
WEIGHT
47cm/18.5" Colour TFT Active Matrix LCD
1366 x768
Intel Atom D510, 1.66GHz, Dual Core, FSB 667MHz
Intel GMA900 integrated graphics
2GB DDR2 SDRAM
2.5", SATA 5400rpm 160GB
Slot 8X DVD SuperMulti slim type
10/100 Gigabit Ethernet
802.11b/g
1.3 mega pixel camera, with digital mic.x2
1 Headphone 1 Microphone
USB2.0 x 6
1x RJ-45 (Gigabit Ethernet LAN)
4 in 1 (SD/ MMC/ MS/ MS Pro.)
Stereo HD speakers 3W x 2
1× built in
19V DC; 65W adaptor
60W (typical)
A choice of Windows 7 Home Edition or supplied without OS – Dependent upon model
370 x 460 x 164mm (H x W x D), 50mm (panel)
7.5 Kg

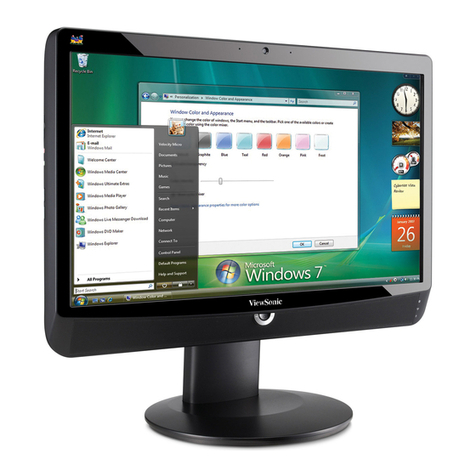

VPC190
Modernise your Desktop
19" (47cm/18.5" VIEWABLE) ALL-IN-ONE PC
>
>
>
>
>
>
>
>
18.5", 16:9 display with 1366 x 768 resolution
View documents, surf the Internet or watch DVDs in crisp detail on this
high resolution 18.5", 16:9 wide screen.
Powerful Dual-core Intel Atom processor
The Dual-core Intel Atom 1.66GHz processor with upgrade to 2 GB of
memory provides plenty of power for desktop computing.
Versatile Connectivity
Six high-speed USB 2.0 ports provide easy connections for peripherals
while the 4-in-1 card reader allows for easy file transfers.
Built-in DVD Burner
Easily backup your photos、media and other files with the built-in DVD
R/W burner.
Wired and Wireless Networking
RJ-45 network control enables Gigabit Ethernet LAN connection.
802.11b/g WiFi gives you the freedom of locating your VPC190
anywhere in your office or home yet having full access to the Internet.
Multimedia Enhanced
Integrated microphone and 1.3 megapixel webcam make it easy to
video conference and the integrated 2x3-watt speakers complement
video conferencing and Internet browsing.
Quiet and cool
The green energy-saving design makes VPC190 quieter than a
notebook and offers the smallest heat dissipation among desktops.
The ViewSonic®VPC190 All-in-One PC features a ergonomic
monitor design that looks good and works great on any desk. The
widescreen 48cm/19" (18.5" viewable) LCD display and the latest
built-in Dual Core Intel®Atom D510 1.6MHz processor and Microsoft®
Windows®7 gives you all the computing power you need.
This compact, but versatile PC can operate independently,
hardwired into a LAN network or work wirelessly within any
802.11b/g WiFi network.
Easily transfer and share files, photos and more through the six USB
2.0 ports or the 4-in-1 card reader. The discreetly integrated slot
loading DVD writer completes the tidy and functional design,
providing a comprehensive range of optical media support.
The VPC190 is perfectly designed for call centres, libraries, school
computer labs, home desktop, generally anywhere that space is
a premium. It also has a detachable stand and can be mounted
to any wall where required using a standard VESA bracket.
>
>
>
>
>
>
>
2010/03/18 V2
Note: Keyboard and mouse not supplied as standard
