Advanced Connectivity for Large Classrooms and Boardrooms
High Bright
Networkable XGA Projector
PJD7333
High Bright for Large Classrooms & Corporate Boardrooms
Packed with 4,000 lumens and a high contrast ratio of 15,000:1 (w/ DynamicEco™), the
PJD7333 is guaranteed to shine bright – even in large lecture halls and meeting rooms.
The ViewSonic®PJD7333 is a high brightness,
networkable XGA DLP®projector that offers advanced
connectivity for large university classrooms and
corporate boardrooms. Equipped with Crestron®LAN
controller, the PJD7333 makes it easy for IT admin
to remotely control and manage multiple projectors
from their workstations. Built with BrilliantColor™
technology, this projector produces vibrant colors,
while 4000 ANSI lumens and 15000:1 contrast
ratio deliver bright, razor-sharp images. Certified
with AMX®Device Discovery™, the PJD7333 easily
integrates into any size campus or enterprise. In
addition, the PJD7333 is packed with advanced
features including wired and wireless LAN display,
USB display, a mobile app for smart phones and
tablets, DICOM SIM mode, capability for PC-less
presentations, 3D Blu-ray ready HDMI, 1.6x optical
zoom lens, and integrated speaker. The PJD7333 is
the perfect projector for large university classrooms
and corporate environments.
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive
projector status alerts, with the integrated Crestron®e-Control™system and RoomView
Express™management software. Because the PJD7333 is Crestron®and AMX® certied,
IT admin can control and monitor multiple projectors for any size campus or enterprise.
PC-less Presentation
Jump start your presentation without waiting for the PC to boot up. With a PC-less
presentation feature, you can display MS Ofce documents, PDFs, videos or images directly
from a USB ash drive.
Wireless & Wired LAN Display
With its advanced networking capability, the projector can project images via wireless,
or wired, LAN. The LAN display offers a quad split screen for simultaneously projecting
content from up to 4 PCs, with the ability to broadcast from up to 8 projectors. The
WPD-100 wireless adapter is required for wireless display.
Plug n’ Play USB Display
Project your presentations using a quick and simple plug-and-play
USB connection without running a bulky VGA cable. Plug n’ Play also
features automatic resolution detection for the best imaging experience.
Mobile App for Smart Phones & Tablets
With the optional WPD-100 wireless USB adapter, you can use ViewSonic's app on your
Android™or iOS devices as a remote control for the projector. In addition, you can send and
project content such as MS Ofce documents, PDFs, videos, or images directly from your
mobile device. The ViewSonic mobile app
also offers live draw and live cam functions
to create an interactive experience for
your presentation.

Mini Type B USB
(USB Display)
Specications
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
*Lamp life may vary based on actual usage and other factors. **One year Express Exchange®service requires product registration. Programs, specications and availability are subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies, DLP®and DLP logo are registered trademarks of Texas Instruments
and BrilliantColor™ is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Copyright © 2013
ViewSonic Corporation. All rights reserved. [16456-00B-12/12]
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
DISPLAY Type 0.55" Digital Micromirror Device (DLP™)
Resolution XGA 1024x768 (native)
Lens 1.6x Manual optical zoom / manual optical focus
Keystone Vertical digital keystone correction (+/- 40º)
Size 30 – 300 in. / 0.7 – 7.6 m (diagonal)
Throw Distance 3.9 – 32.8 ft. / 1.2 – 10.0 m
Throw Ratio 1.39~2.23:1
Lamp 330 watt
Lamp Life 2500 / 3500 hours* (Normal / Eco-mode)
Brightness 4000 Lumens
Contrast Ratio 15,000:1 (w/ DynamicEco™)
Aspect Ratio 4:3 (native)
Color Depth 30 bits, 1.07B Color (10+10+10)
Color Wheel 6-seg RGBCYW / 7200rpm
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i, 1080p
Frequency Fh: 31–100KHz, Fv: 24–120Hz
COMPATIBILITY PC VGA to 1600x1200 UXGA
Mac®Up to UXGA (may require MAC adaptor)
CONNECTOR RGB Input 15-pin mini D-sub (x2)
RGB Output 15-pin mini D-sub
Digital Input HDMI
Component Input 15-pin mini D-sub (x2, shared with RGB)
Composite Input RCA jack
S-Video Input 4-pin mini-DIN
Audio Input 3.5mm mini jack (x2)
Microphone Input 3.5mm mini jack (shared with Audio 2)
Audio Output 3.5mm mini jack
Control RS-232 (DB-9)
LAN RJ45
USB Type A (card reader and wireless dongle)
Type B (mouse control and service)
Mini Type B (USB display)
DC 12V Trigger 3.5mm plug 12V/1A
AUDIO Speaker 16-watt (x1)
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 350W (typ) / <0.5W (stand-by mode)
CONTROLS Basic Power, keystone/arrow keys, left, menu/exit, right, source, enter
OSD Picture, Video/Audio, Setting, Option, Language, Information
(See user guide for full OSD functionality)
OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–90% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL Normal / Eco-mode 34dB / 32dB
DIMENSIONS Physical 13.2 x 5.1 x 10.4 in. / 335 x 128.3 x 265 mm
(W x H x D) Packaging 15.0 x 13.5 x 9.5 in. / 383 x 342 x 242 mm
WEIGHT Net 6.7 lbs. / 3.0 kg
Gross 11.2 lbs. / 5.1 kg
REGULATIONS CB, UL/cUL, FCC-B, NOM, KC, REACH, ErP, SVHC
UL-Argentina, PSB, C-tick, SASO, CE, GOST-R,
CCC, RoHS, WEEE, UkrSEPRO
WARRANTY 3-year limited warranty on parts and labor, 1-year limited
warranty on lamp, 1st year free Express Exchange® service**
PJD7333
PJD7333 projector, power cable, VGA cable, remote control with batteries, carrying case,
Quick Start Guide, ViewSonic Wizard DVD (with User Guide).
What's in the box?
Optional Accessories
Replacement Lamp ........................................RLC-081
Wall Mount Kit ..............................................WMK-005
3D Active Shutter Glasses......................... PGD-series
Wireless Presentation Gateway ................WPG-series
Wireless USB Adapter.................................. WPD-100
Soft Case................................................PJ-CASE-002
Extended 5-Year Limited Warranty.......PRJ-EW-07-02
Audio In / Out
AC Power Monitor Out
S-Video/Video Inputs
Type B USB
(Mouse Control &
Service)
RGB/Component
Video Inputs

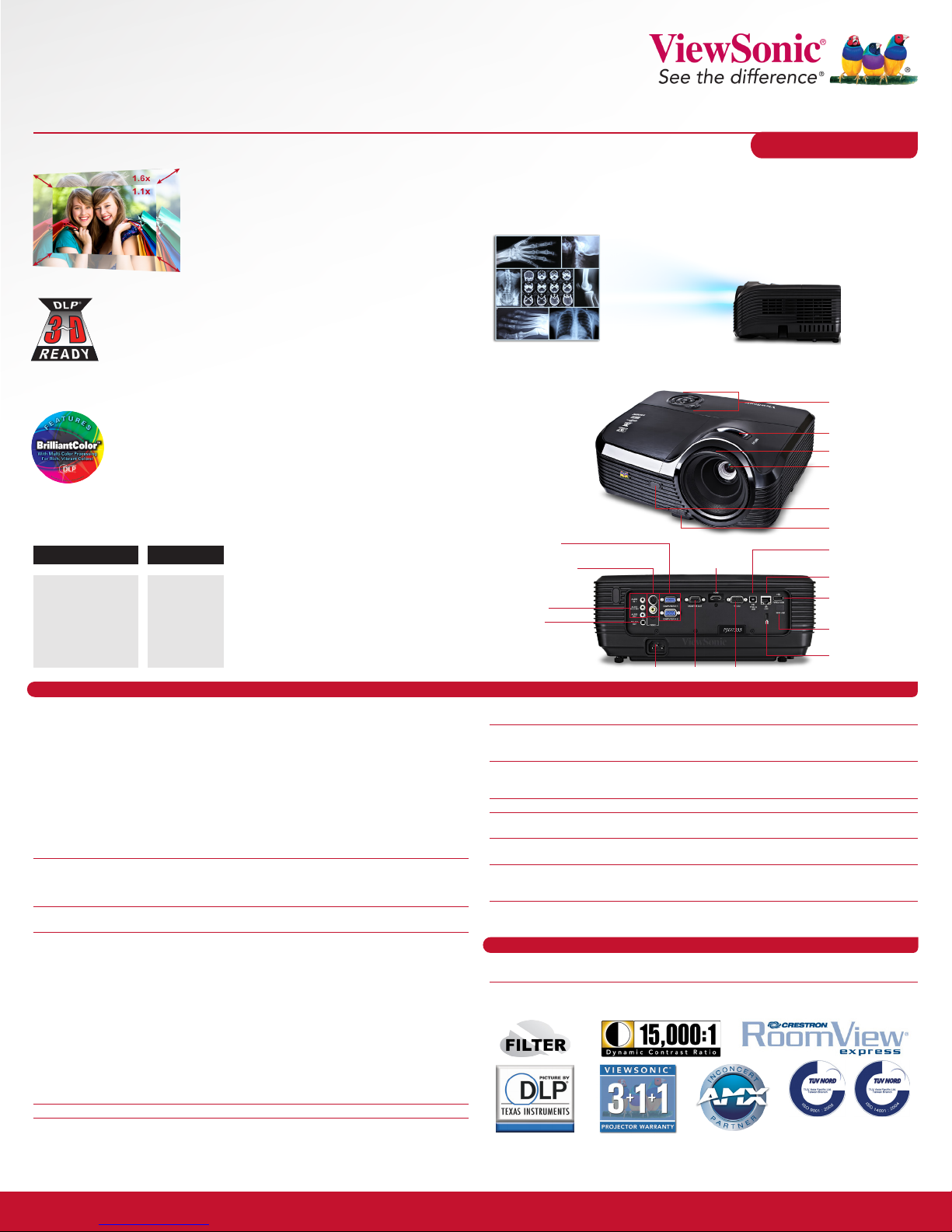

3D Blu-ray Ready HDMI
HDMI delivers the highest picture and sound quality without
degradation. Equipped with the latest HDMI, ViewSonic's
PJD7333 projector can display 3D images directly from 3D
Blu-ray®players—perfect for connecting to any HDMI-enabled
devices such as PCs, laptops, tablets, and media players.
Focus Ring
Control Panel
IR Remote Sensor
Projection Lens
Quick elevation button
Kensington®
Lock Slot
Projection Distance Screen Size (4:3)
Diagonal
Feet
3.7 - 6.0
7.4 - 11.9
11.1 - 17.8
13.9 - 22.3
18.5 - 29.7
23.2 - 37.1
27.8 - 44.6
Inches
40
80
120
150
200
250
300
Meters
1.1 - 1.8
2.3 - 3.6
3.4 - 5.4
4.2 - 6.8
5.6 - 9.0
7.0 - 11.3
8.4 - 13.6
Meters
1.0
2.0
3.0
3.8
5.1
6.4
7.6
Zoom Ring
Type A USB
(For card reader and
wireless dongle)
LAN RJ45
HDMI
Superior Color Performance
BrilliantColor™technology provides multi-color processing to
produce stunning, vibrant colors. Unlike other technologies that
use just 3 primary colors to produce the image (such as LCD),
the PJD7333 uses up to 6 separate colors. The sophisticated
6-segment color wheel enhances the yellow color performance
that is key to accurate and vivid color reproduction.
RS-232
High Bright
Networkable XGA Projector
DC 12V Out
DICOM SIM Mode Support
With the DICOM (Digital Imaging and Communications in Medicine) SIM mode,
ViewSonic’s PJD7333 is able to simulate and display multiple screens of X-rays,
sonograms, and nuclear magnetic resonance (NMR) images. Whether for medical
or educational presentations, the PJD7333 delivers the most
accurate and detailed images.
Wide Optical Zoom Lens
Equipped with a 1.6x optical zoom lens, the
PJD7333 provides mounting flexibility with a
wider throw distance range. This zoom lens also
enables the projector to project images up to 50%
larger than a conventional projector equipped with
a 1.1x lens.
