ViewSonic PRO8450W VS13646 User manual

ViewSonic®
Model No. : VS13646
Pro8450w
DLP Projector
- User Guide
- Guide de l’utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guida dell’utente
- Guia do usuário
- Användarhandbok
- Käyttöopas
- Руководство пользователя
- 使用手冊 (繁體)
- 使用手册 (简体)
- 사용자 안내서
- คู่มือการใช้งาน
- Podręcznik użytkownika
- Kullanιcι kιlavuzu
IMPORTANT: Please read this User Guide to obtain important
information on installing and using your product in a safe
manner, as well as registering your product for future service.
Warranty information contained in this User Guide will describe
your limited coverage from ViewSonic Corporation, which is
also found on our web site at http://www.viewsonic.com in
English, or in specic languages using the Regional selection
box in the upper right corner of our website.
“Antes de operar su equipo lea cuidadosamente las
instrucciones en este manual”

iViewSonic Pro8450w
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent or
discarded batteries or accumulators as unsorted municipal waste, but use the return and
collection systems available.
If the batteries, accumulators and button cells included with this equipment, display the
chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of
more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

iiViewSonic Pro8450w
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth.
7.
Do not block any ventilation openings. Install the unit in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade and the third prong are provided
for your safety. If the provided plug does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs.
Convenience receptacles and the point where they exit from the unit. Be sure that the
power outlet is located near the unit so that it is easily accessible.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the unit. When a cart is used, use caution when
moving the cart/unit combination to avoid injury from tipping over.
13. Unplug this unit when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the unit
has been damaged in any way, such as: if the power-supply cord or plug is damaged,
if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or
moisture, or if the unit does not operate normally or has been dropped.

iiiViewSonic Pro8450w
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS Directives
as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic ceramic
parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up
to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

ivViewSonic Pro8450w
Copyright Information
Copyright© ViewSonic® Corporation, 2010. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are
trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this material, or
the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change
product specications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please
register your product on the Internet at: www.viewsonic.com. The ViewSonic
®
Wizard CD-ROM also
provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
Pro8450w
ViewSonic DLP Projector
VS13646
Pro8450w_UG_ENG Rev. 1A 09-08-10
_______________________________
_______________________________
Product disposal at end of product life
The lamp in this product contains mercury which can be dangerous to you and the environment. Please use
care and dispose of in accordance with local, state or federal laws.
ViewSonic respects the environment and is committed to working and living green. Thank you for being
part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
1. USA: www.viewsonic.com/company/green/
2. Europe: www.viewsoniceurope.com/uk/support/recycling-information/
3. Taiwan: recycle.epa.gov.tw/recycle/index2.aspx

ViewSonic Pro8450w
CONTENTS
Introduction ...................5
Projector Features ............................ 5
Package Contents ............................ 6

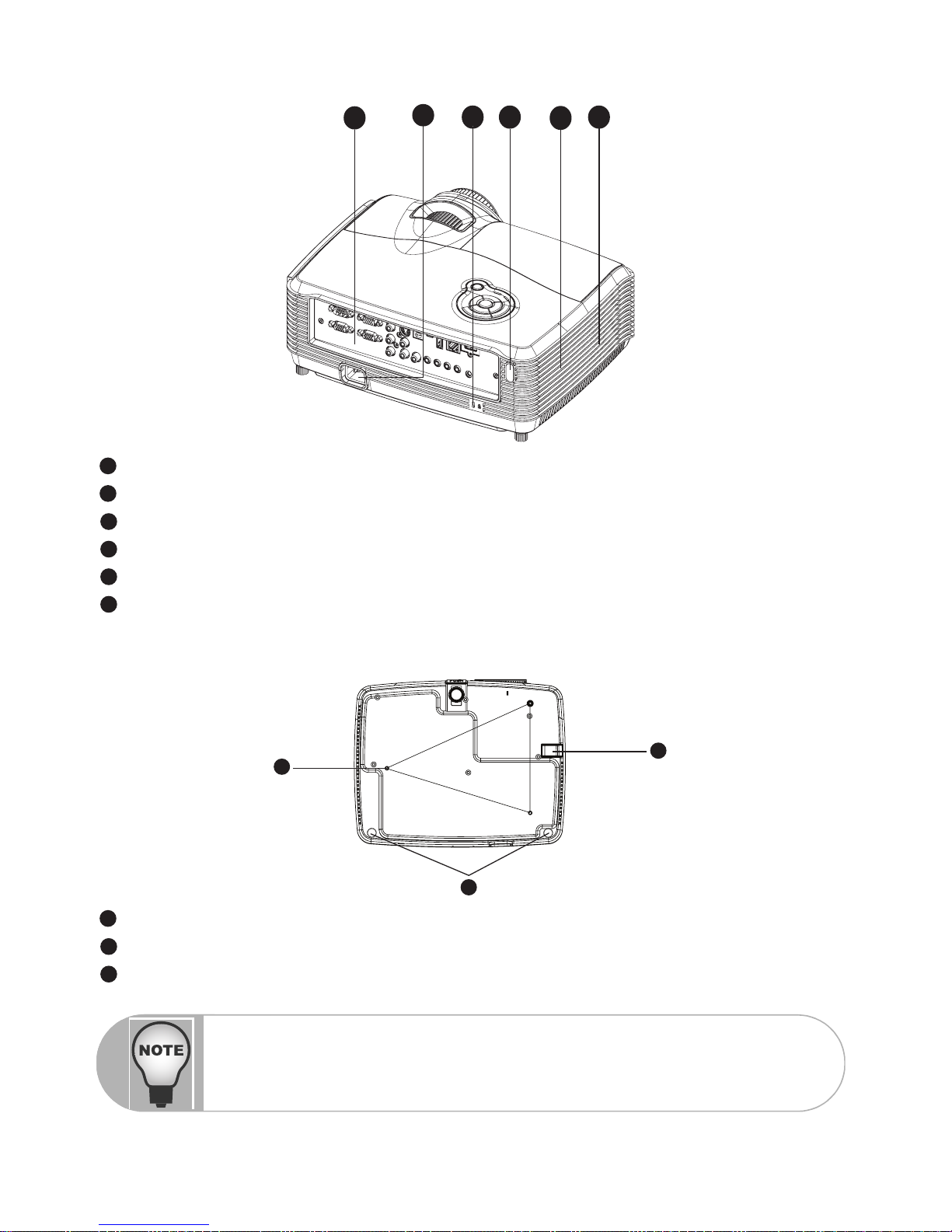

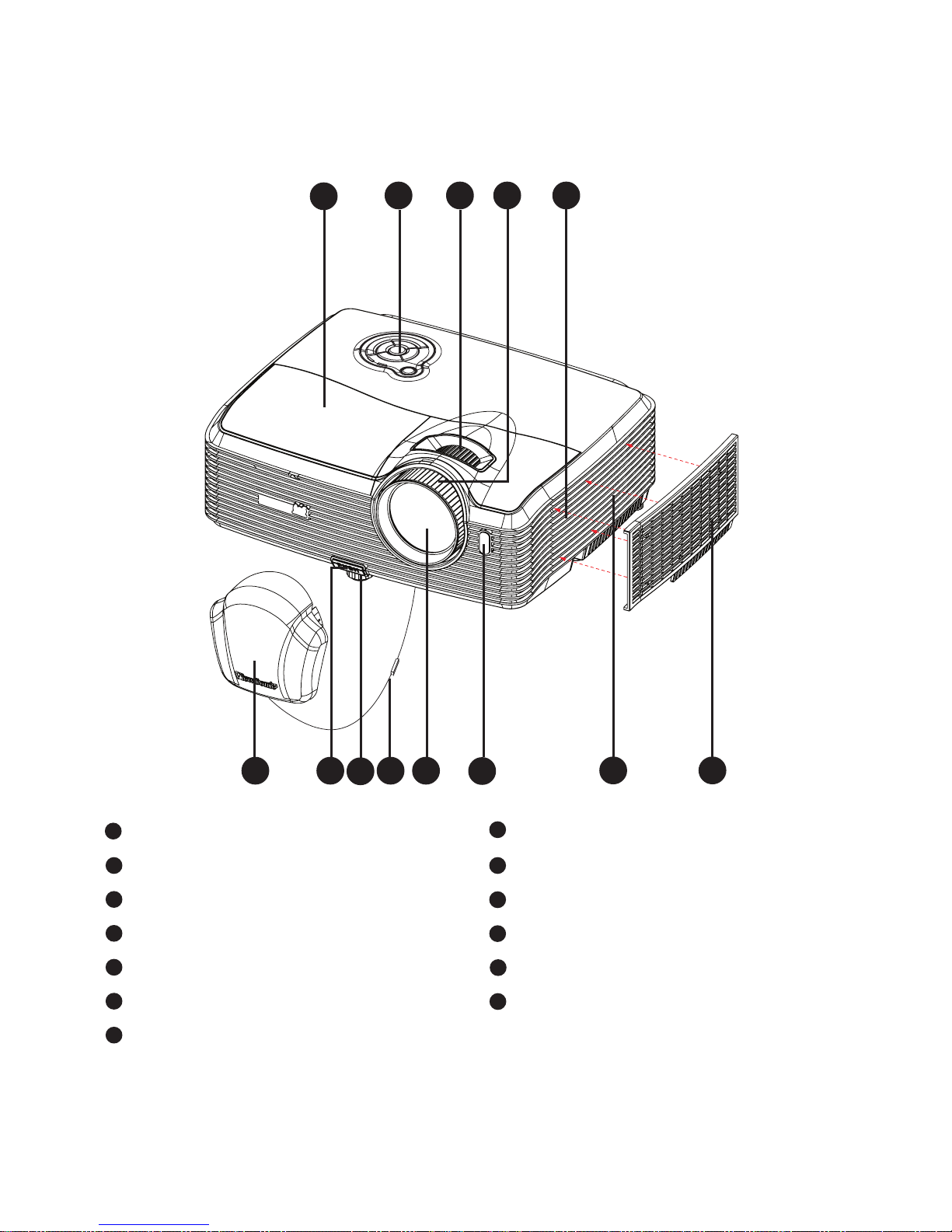

Projector Overview ........................... 8
Using the Product .......10

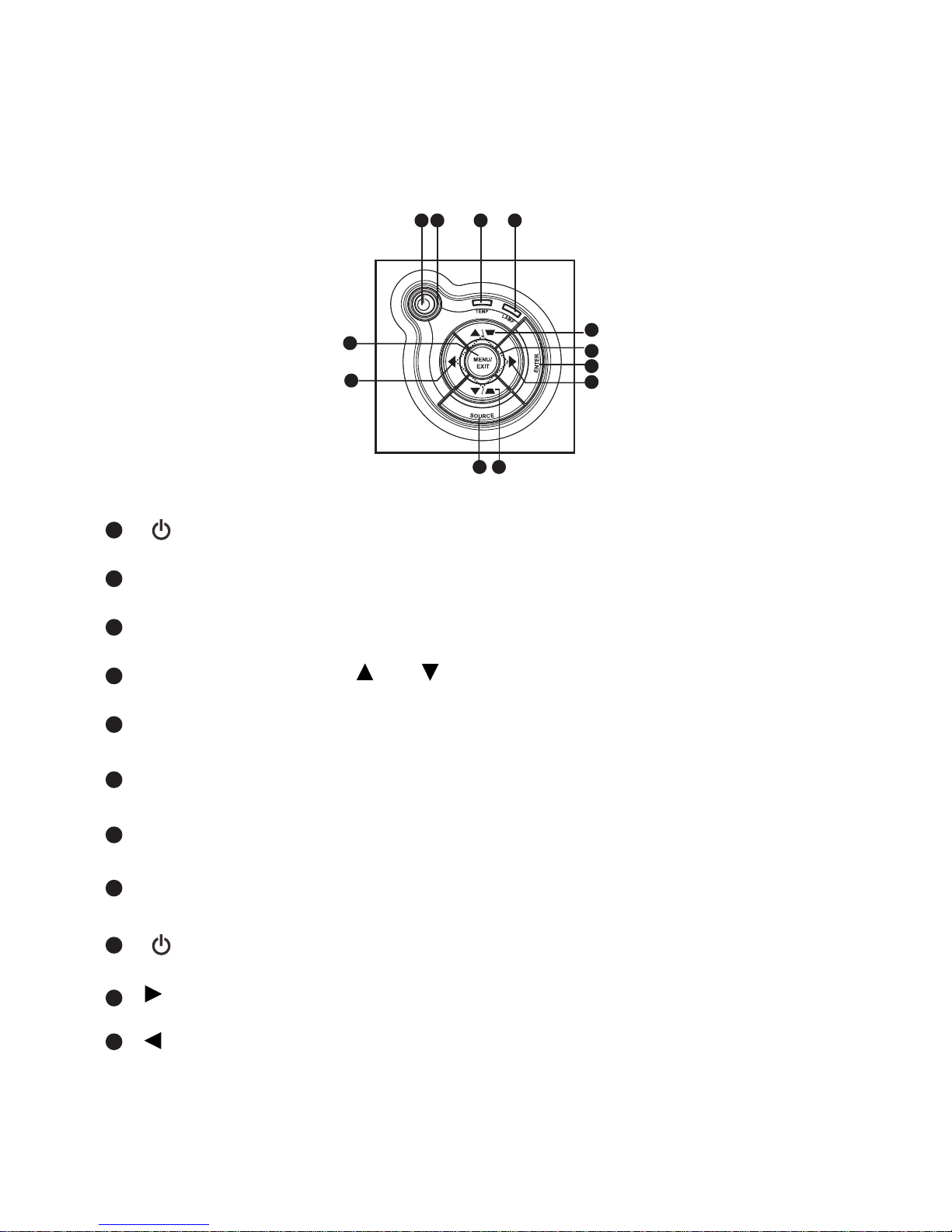

Control Panel ................................. 10

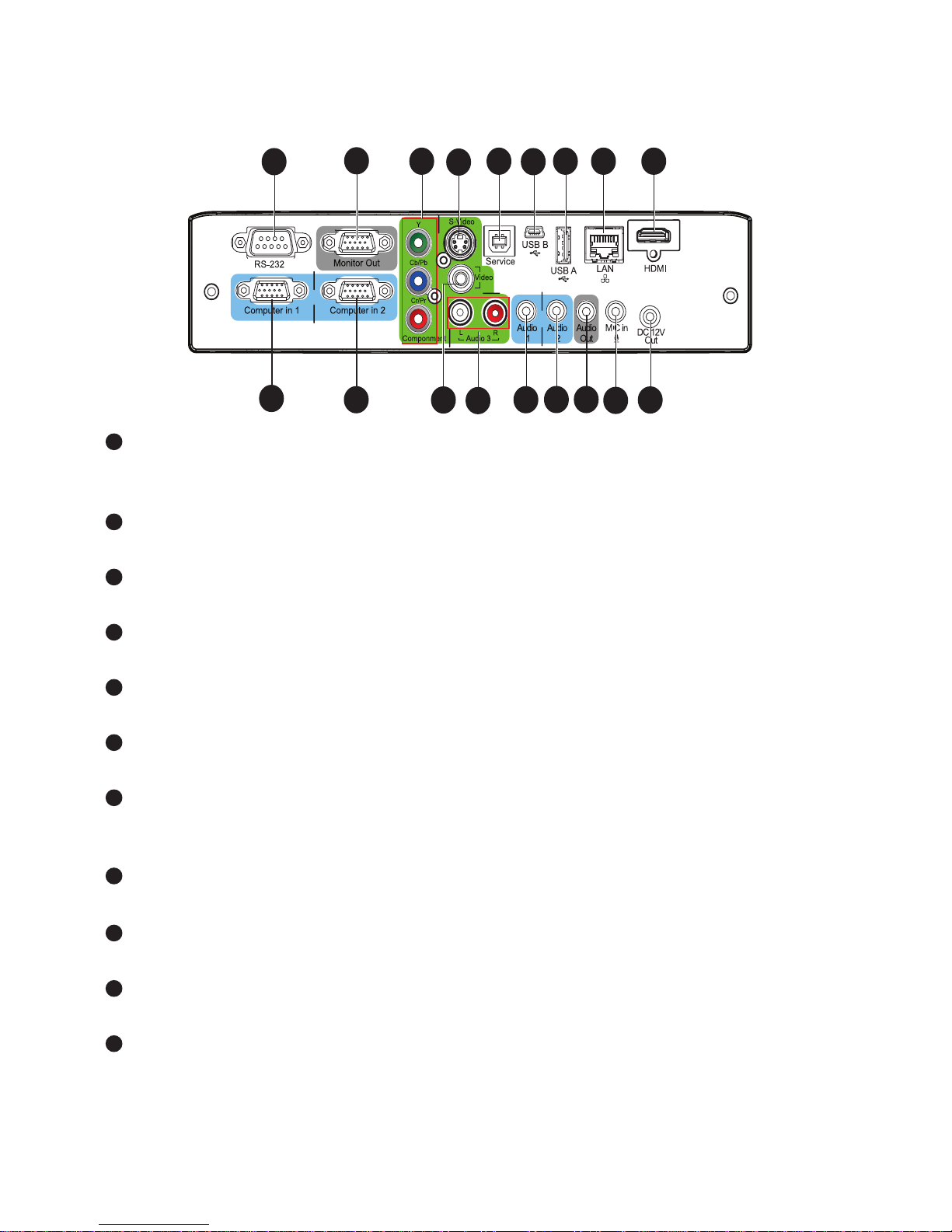

Connection Ports ............................ 11

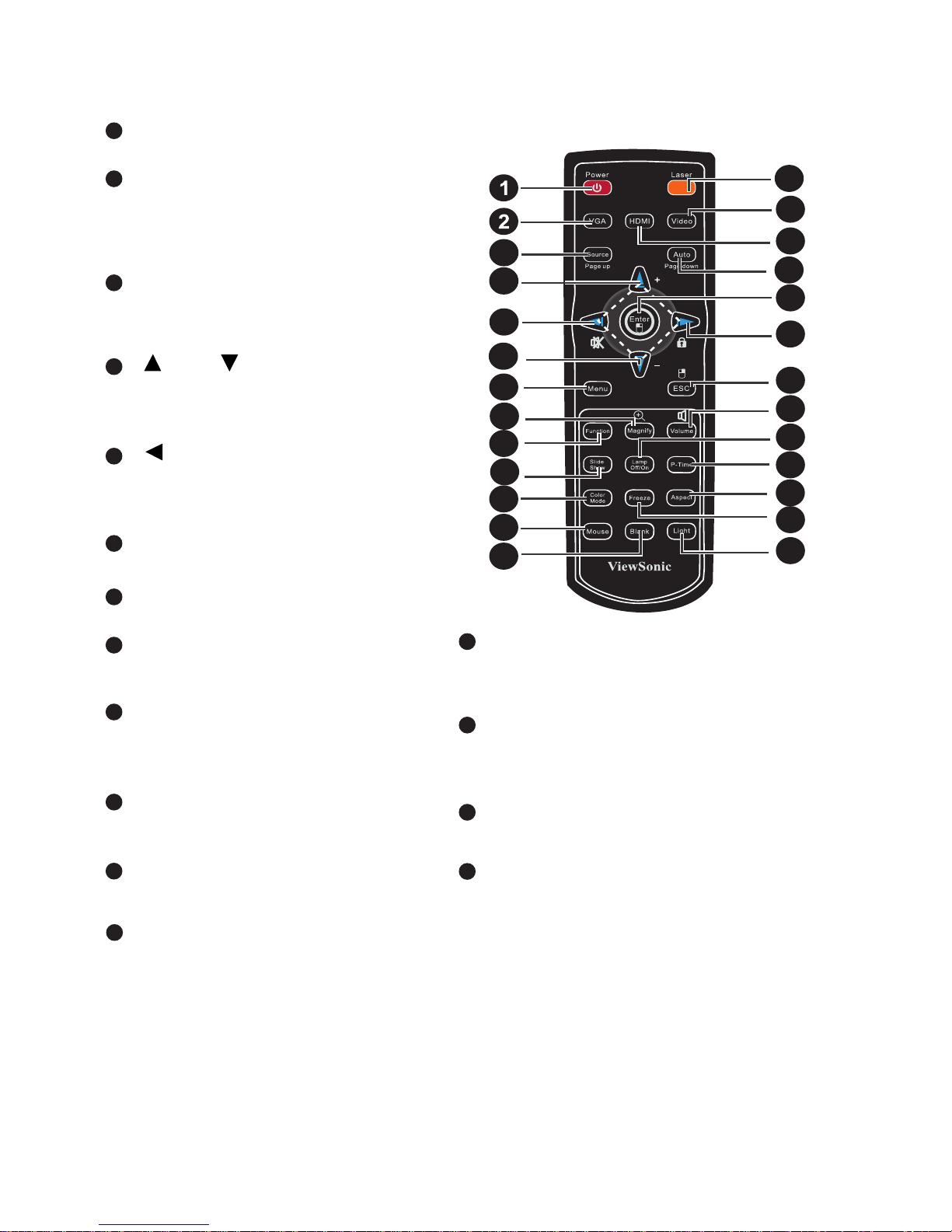

Remote Control .............................. 13

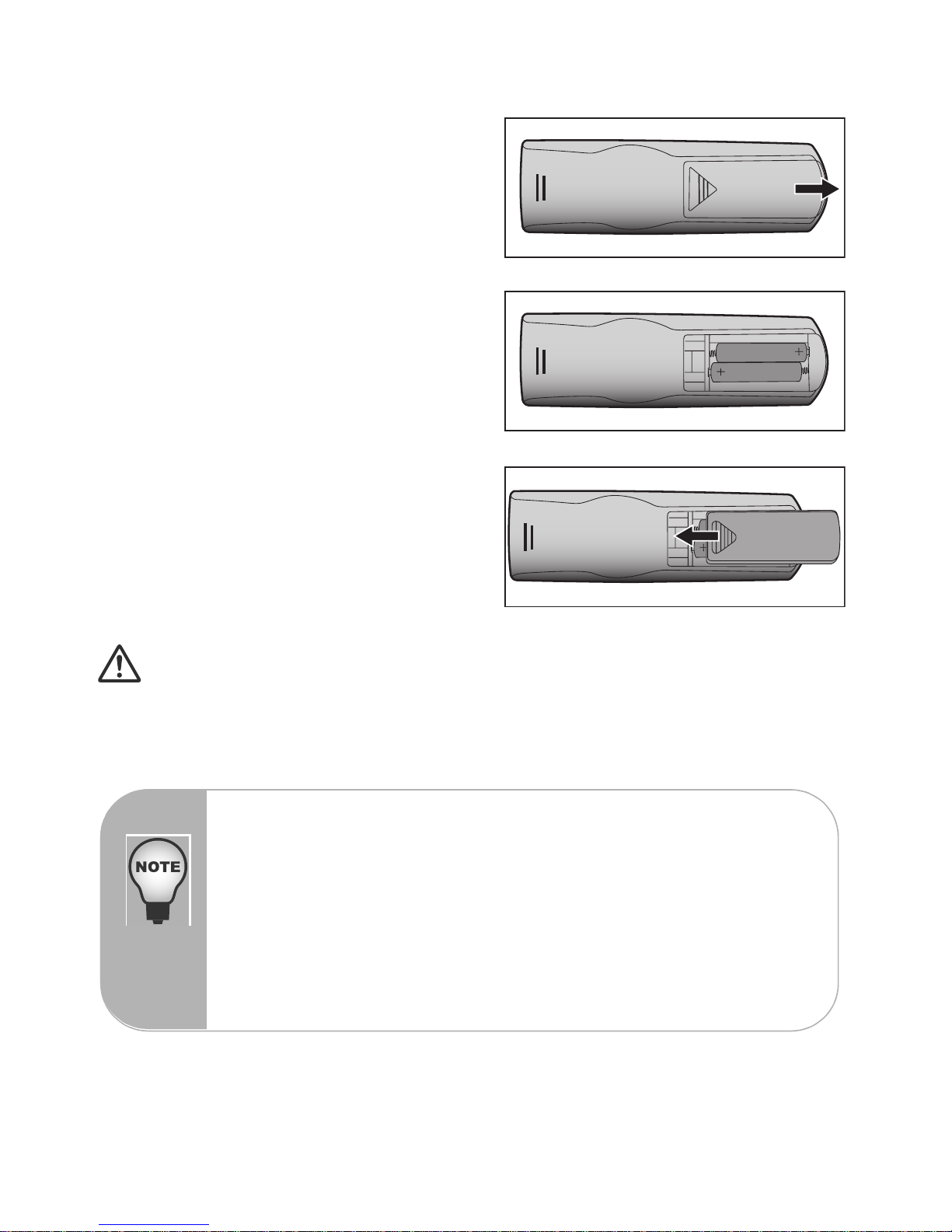

Installing the Batteries .................... 15

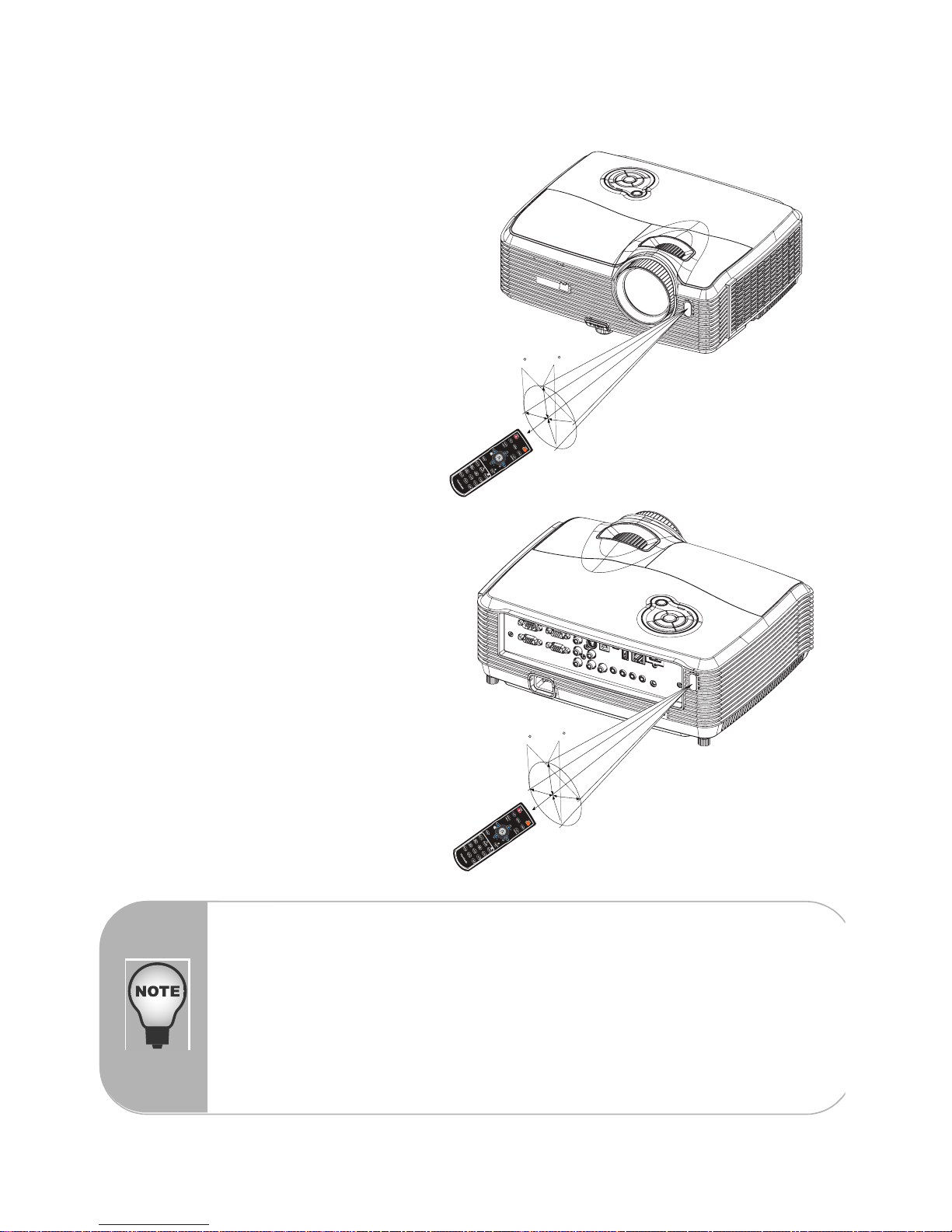

Remote Control Operation ............. 16
Connection ..................17
Connecting a computer or monitor . 18
Connecting Video source devices .. 19
Operation .....................22
Powering On/Off the Projector ....... 22
Adjusting the Projector Height ........ 23
Adjusting the Projector Zoom and
Focus ............................................. 23
Adjusting Projection Image Size .... 24
Locking control keys ....................... 25
Creating your own startup screen .. 25
Setting the presentation timer ........ 26
Menu Operation ............................. 28
Controlling the projector through a LAN
environment ................................... 38
Controlling the projector through a web
browser .......................................... 41
Displaying images through pwPresenter
....................................................... 47
Displaying pictures with a USB storage
device ............................................. 53
Maintenance ................55
Cleaning the Lens .......................... 55
Cleaning the Projector Housing ..... 55
Cleaning the Filter Cover ............... 55
Replacing the Lamp ....................... 56
Specifications ..............58
Dimensions .................................... 59
Ceiling mount installation ...............59
Appendix ..................... 60
LED Indicator Messages ................60
Compatibility Modes .......................61
Troubleshooting ..............................63
IR Control Code ..............................66

ViewSonic Pro8450w 5
Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user - friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.65" Texas Instruments DLP® technology
WXGA (1280 x 800 pixels)
Auto image re-sizing (Auto-Sync.) to 1280 x 800 full screen with scaling
compression compatibility for VGA, SVGA, XGA, SXGA and WXGA.
Compatibility with Macintosh® computers
Compatibility with NTSC, PAL, SECAM and HDTV
D-Sub 15-pin terminal for analog video connectivity
User-friendly, multi-language on-screen display
Advanced electronic keystone correction
RS-232 connector for serial control
HDMI compatibility
PJLinkTM compatible
LAN display for network control and web server
LAN display 4-1 (maximum 4PC/ NB display to 1 projector)
Remote desktop feature for LAN and USB display 1-M (maximum 1PC/ NB can
display to 8 projectors at the same time)
USB display supports computer connection via USB mini-B type to A type cable
USB Reader supports USB flash drive via USB A type connector
Less than 1 W power consumption in standby mode
 The information in this manual is subject to change without notices.
 The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.

ViewSonic Pro8450w 6

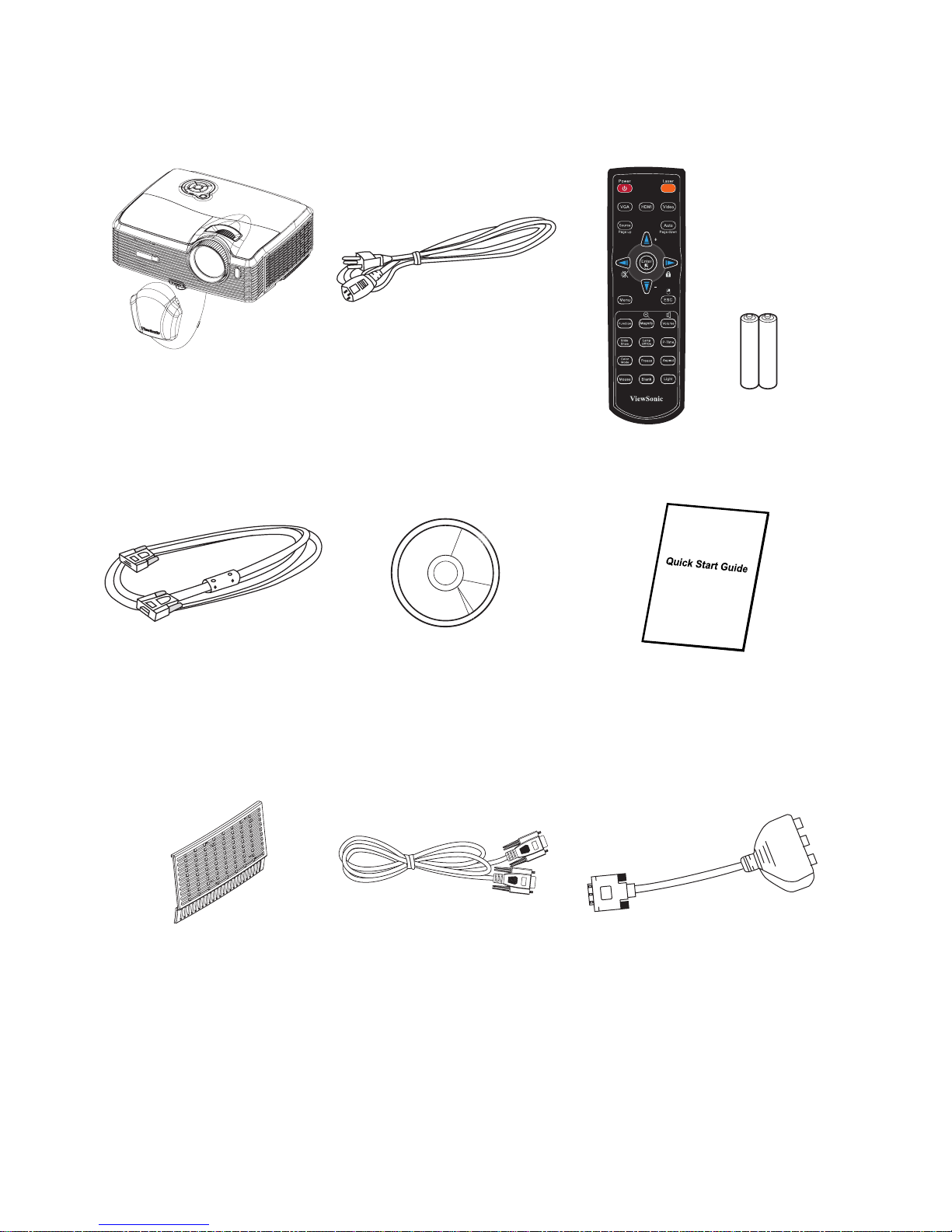

Package Contents
When you unpack the projector, make sure you have all these components:
Optional accessories
Projector with Lens Cap AC Power Cord Remote Control (IR) & batteries
VGA Cable (D-SUB to D-
SUB)
ViewSonic CD Wizard Quick Start Guide
Filter cover
P/N: P4R34-4600-00
RS232 cable
P/N: J2552-0208-00
RGB to component adapter
P/N: J2552-0212-00

ViewSonic Pro8450w 7
Projector Carrying Case
 Contact you dealer immediately if any items are missing, appear damaged, or if
the unit does not work
.
 Save the original shipping carton and Packing material; they will come-in
handy if you ever to ship your unit. for maximum protection, repack your unit as
it was originally packed at the factory.

ViewSonic Pro8450w 8
Projector Overview
Front View
Lens cap Filter cover
Elevator button Speaker
Elevator foot Focus ring
Lens cap strap Zoom ring
Projection lens Control panel
Front IR remote control sensor Lamp cover
Ventilation holes (intake)
68
5
12 11 10 9
4
3
21
13
7
18
2 9
310
411
512
613
7

ViewSonic Pro8450w 9
Rear View
Connection ports
AC power socket
Kensington lock
Rear IR remote control sensor
Speaker
Ventilation holes (exhaust)
Bottom View
Ceiling mount holes (M4*8)
Tilt-adjustment feet
Security bar
13
2
4 6
5
1
2
23
4
5
56
3
2
1
1
22
3
 This projector can be used with a ceiling mount for support. The ceiling mount is
not included in the package.
 Contact your dealer for information to mount the projector on a ceiling.

ViewSonic Pro8450w 10
Using the Product
Control Panel
Power (Power LED indicator)
Refer to “LED Indicator Messages”.
TEMP (Temperature LED indicator)
Refer to “LED Indicator Messages”.
LAMP (Lamp LED indicator)
Refer to “LED Indicator Messages”.
Keystone/Arrow keys ( /Up, /Down)
Manually correct distorted images resulting from an angled projection.
Four directional buttons
Use four directional buttons to select items or make adjustments to your selection.
ENTER
Enter to sub-menu and confirm the menu selection.
SOURCE
Display the source selection bar.
MENU/EXIT
Display or exit the on-screen display menus.
Power
Turn the projector on or off.
Right/Panel key
Activate panel key lock.
Left/Blank
Hide the screen picture.
1 3
4
6
7
5
4
2
8
9
10
6
11
1
2
3
4
5
6
7
8
9
10
11

ViewSonic Pro8450w 11
Connection Ports
RS-232
When operating the projector via a computer, connect this to the controlling
computer's RS-232C port.
Monitor Out
Connect to a computer display, etc.
Component (Y Cb/Pb Cr/Pr)
Connect Y Cb/Pb Cr/Pr output from video equipment to this jack.
S-Video
Connect S-Video output from video equipment to this jack.
Service
This connector is for firmware update and mouse function support.
USB B
USB display supports computer connection via USB mini-B type to A type cable.
USB A
This connector supports USB flash drive display and wireless dongle for USB
display.
LAN
For LAN display/network control and web server.
HDMI
Connect HDMI output from video equipment to this jack.
DC 12V Out
12V DC out
MIC in
Microphone input jack.
69
12345 7 8
16 10
11
1213
14
15
17
18
1
2
3
4
5
6
7
8
9
10
11

ViewSonic Pro8450w 12
Audio Out
Connect to a speaker or other audio input equipment.
Audio 2
Connect an audio output from video equipment or computer to this jack.
Audio 1
Connect an audio output from video equipment or computer to this jack.
Audio 3 (L/R)
Connect an audio output from video equipment to this jack.
Video
Connect composite video output from video equipment to this jack.
Computer in 2
Connect image input signal (analog RGB or component) to this jack.
Computer in 1
Connect image input signal (analog RGB or component) to this jack.
12
13
14
15
16
17
18

ViewSonic Pro8450w 13
Remote Control
Power
Turn the projector on or off.
VGA
Switch input source to Computer
in 1 (analog RGB or component)/
Computer in 2 (analog RGB or
component) by sequence.
Source/Page up
Display the source selection bar.
Perform page up function when
mouse mode is activated.
Up/+, Down/-
When Magnify or Volume button is
activated, use them to adjust the
values.
Left/Mute
When the On-Screen Display
(OSD) menu is not activated, this
button is used as mute function.
Menu
Display on-screen display menus.
Magnify
Zoom in and out the images.
Function
User definable key for customized
function.
Slide show
Activate the slide show function
when the input source is USB
reader.
Color Mode
Change the color setting by
sequence.
Mouse
Switch between the normal and
mouse modes.
Blank
Cut off the screen temporarily.
Press again to cancel the Blank
Screen function.
Laser
Aim the remote at the viewing screen,
press and hold this button to activate
the laser pointer.
Video
Switch input source to Composite/S-
Video/component by sequence.
HDMI
Display HDMI signal.
Auto/Page down
Resynchronize the projector to the input
signal from a computer. This function is
available for computer mode only.
Perform page down function when
mouse mode is activated.
1
2
3
4
5
6
7
8
9
10
11
12
3
4
4
6
5
7
8
10
13
14
15
17
18
19
20
21
22
23
24
25
12
9
11
16
13
14
15
16

ViewSonic Pro8450w 14
Enter/ Left mouse
Confirmed selections.
Perform the left button of the
mouse when mouse mode is
activated.
Right/ Lock
When the On-Screen Display
(OSD) menu is activated, the #4,
#5, and #18 keys are used as
directional arrows to select the
desired menu items and to make
adjustments.
Activate panel key lock.
ESC/ Right mouse
Leave current page or items or to
close OSD.
Perform the right button of the
mouse when mouse mode is
activated.
Volume
Adjust the volume level.
Lamp Off/On
Turn off or on the lamp power.
P-Timer
Activate P-Timer OSD menu.
Aspect
Select the display aspect ratio.
Freeze
Press “Freeze” to pause the
screen image. Press again to
cancel the freeze function.
Light
Enable backlight functions of the
remote control’s buttons.
Using the remote mouse control
The capability of operating your computer
with the remote control gives you more
flexibility when delivering presentations.
1. Connect the projector to your PC or
notebook with a USB cable prior to
using the remote control in place of
your computer’s mouse. See
“Connecting a computer” on page 18
for details.
2. Set the input signal to Computer in 1
or Computer in 2 .
3. Press Mouse on the remote control to
switch from the normal mode to the
mouse mode. An icon appears on the
screen to indicate the activation of the
mouse mode.
4. Perform the desired mouse controls on
your remote control.
To move the cursor on the screen,
press / / / .
To left-click, press .
To right-click, press .
To drag-and-drop, press and hold
Enter, press / / / to
drag. When it is where you want it,
press Enter again.
To operate your display software
program (on a connected PC)
which responds to page up/down
commands (like Microsoft
PowerPoint), press Page Up/Page
Down.
To return to the normal mode,
press Mouse again or other keys
except for the mouse related multi-
function keys.
17
18
19
20
21
22
23
24
25

ViewSonic Pro8450w 15
Installing the Batteries
5. Open the battery cover in the
direction shown.
6. Install batteries as indicated by the
diagram inside the compartment.
7. Close the battery cover into
position.
Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
 Make sure the plus and minus terminals are correctly aligned when loading a battery.
 Keep the batteries out of the reach of children. There is a danger of death by
accidentally swallowing the batteries.
 Remove batteries from remote control when not using for extended periods.
 Do not dispose of the used batteries along with household waste. Dispose of used
batteries according to local regulations.
 Danger of explosion may happen if batteries are incorrectly replaced. Replce all
the batteries with new ones.
 Batteries should not be in or near to fire or water, keep batteries in a dark, cool
and dry place.
 If suspect battery leakage, wipe out the leakage and then replace new batteries.
If the leakage adheres to your body or clothes, rinse well with water immediately.

ViewSonic Pro8450w 16
Remote Control Operation
Point the remote control at the infrared remote sensor and press a button.
Operating the projector from
the front
Operating the projector from
the rear
7m
5m
15 30
8m
6m
6m
15 30
6m
6m
8m
 Do not point the laser directly to the people's eyes (especially small children).
There is a danger of injury to the eyes.
The remote control may not operate when there is sunlight or other strong
light such as a fluorescent lamp shining on the remote sensor.
Operate the remote control from a position where the remote sensor is visible.
Do not drop the remote control or jolt it.
Keep the remote control out of locations with excessively high temperature or
humidity.
Do not get water on the remote control or place wet objects on it.
Do not disassemble the remote control.

ViewSonic Pro8450w 17
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
Important
In the connections shown above, some cables may not be included with the
projector (see “Package Contents” on page 6). They are commercially
available from electronics stores.
The connection illustrations above are for reference only. The rear
connecting jacks available on the projector vary with each projector model.
For detailed connection methods, see pages 18-21.
VGA cable (D-Sub to D-Sub) S-Video cable
VGA to DVI-A cable Composite Video cable
USB cable (mini-B type to A type) Audio cable
VGA (D-Sub) to HDTV (RCA) cable HDMI cable
Component Video cable Microphone 3.5 mini jack cable
Audio L/R cable USB flash drive
11
778
1231
45
6 10
9
9
9
12
or
1 7
28
3 9
410
511
612

ViewSonic Pro8450w 18
Connecting a computer or monitor
Connecting a computer
The projector provides two VGA input sockets that allow you to connect them to both
IBM®compatibles and Macintosh®computers. A Mac adapter is needed if you are
connecting legacy version Macintosh computers.
To connect the projector to a notebook or desktop computer:
1. Take the supplied VGA cable and connect one end to the D-Sub output socket of
the computer.
2. Connect the other end of the VGA cable to the Computer in 1 or Computer in 2
signal input socket on the projector.
3. If you wish to use the remote paging function, take a USB cable and connect the A
type end to the USB port of the computer, and the other end to the Service socket
on the projector. See “Using the remote mouse control” on page 14 for details.
Important
Many notebooks do not turn on their external video ports when connected to
a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the
external display on/off. Locate a function key labeled CRT/LCD or a function
key with a monitor symbol on the notebook. Press FN and the labeled
function key simultaneously. Refer to your notebook's documentation to find
your notebook's key combination.
Connecting a monitor
If you want to view your presentation close-up on a monitor as well as on the screen,
you can connect the Monitor Out signal output socket on the projector to an external
monitor with a VGA cable following the instructions below:
To connect the projector to a monitor:
1. Connect the projector to a computer as described in “Connecting a computer” on
page 18.
2. Take a suitable VGA cable (only one supplied) and connect one end of the cable
to the D-Sub input socket of the video monitor.
Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable
and connect the DVI end of the cable to the DVI input socket of the video monitor.
3. Connect the other end of the cable to the Monitor Out socket on the projector.
Important
The Monitor Out output only works when Computer in 1 or Computer in 2
is made to the projector.
