Viking Access Systems E-4 Original instructions

AND SAFETY INFORMATION
INSTALLATION
INSTRUCTIONS
RESIDENTIAL
CLASS I VEHICULAR SWING GATE OPERATOR

The new E-4™Residential Swing Gate Operator leads the industry in being the best, most cost eective
residential linear arm actuator. This new design allows for a maximum gate capacity up to 850 lbs/10’ or
550 lbs/16'. Featuring one Control Board for both Single and Dual gate applications, a convenient manual
release handle and pre-wired for aneasy and quick installation. It is ready to be powered with low voltage
wiring, allowing installation versatility and accuracy.
THE VIKING E-4™ SWING GATE OPERATOR

E-4 Vehicular Swing Gate Operator • Revision E4MN10.A1 • September 2018

VIKING TECHNICAL SUPPORT 1.800.908.0884
2
PARTS DIAGRAM - OPERATOR:
19.50“
36.4”
Max. Stroke
5.00”
3.9”
Item Description Part No.
1
Motor (24 VDC) E4MO
2 Gearbox Chassis E4GBC
3 Grease Cup E4GGC
4 Casing Upper E4CU
5 Lock & Keys, Manual Release E4LMR
6 Key, Manual Release E4KEY
7 Handle, Manual Release E4HMR
8 Access Cover E4AC
9
Level Assembly E4LA
10 Limit Positive Stop E4LPS
11 Carrier Assembly E4CA
12 Bearing Cap E4BC
13 Cam, Manual Release E4CMR
14 Plate, Manual Release E4PMR
15 Switch, Manual Release E4SMR
16 Leadscrew Assembly E4LSA
17 Gear Drive Assembly E4GDA
18 Dust Brush Set (optional) E4DB
19 Casing Lower E4CL
20 Casing Mounting Bolts E4CMB
21 Mounting Hardware, Back E4MHB
22 Strain Relief E4SR
23 Bracket Mounting Plate 3X4” E4BMP3X4
24 Bracket Mounting Plate 4X6” E4BMP4X6
25 Mounting Bracket, Front E4MBF
26 Mounting Bracket, Back E4MBB
27 2 Conductor Cable VA-2CB16

VIKING TECHNICAL SUPPORT 1.800.908.0884 3
PARTS DIAGRAM - CONTROLLER:
Standard ECU * Large ECU
(OPTIONAL)
#VA-ECUBBB
18.5”
18.1”
18.25 ”
8.5 ”
8”
5.5”
4.0”
12.0” 15.5”
Item Description Part No.
1
ECU Cabinet Chassis (Standard) VNXECUBB
2 Power Harness E4PH
3 Battery Harness E4BTH
4 Battery Switch DUMRS10
5Battery DUBB12
6 Board Mounting Plate E4CBMP
7 Plug-in Transformer PT24V1A
8 EMI Board (optional) DUEMI10
9
Toroid Transformer - 10 amp (optional) DUTT10
10 Control Board VE4PCB
11 Alarm DUAL10
12 Strain Relief (ECU) DH3/4NMCC
13 Radio Antenna Kit VARAK
14 Fuse Kit E4FSKT
15 Lock & Keys, Door ECUKEYC20
16 Key, Door ECUKEY20
17 Alarm Reset Switch ECURW
*Standard ECU is depicted and related to parts list provided.

VIKING TECHNICAL SUPPORT 1.800.908.0884
4
CONTROL BOARD REFERENCES:
1. HEAT SINK - MASTER/SINGLE
secures the control board and dissipates heat.
2. FUSE HOLDER - 4 AMP
for the charging circuit.
3. FUSE HOLDER - 15 AMP
for the motor circuit.
4. AC POWER CONNECTION
24VAC to the control board. pg 20
5. BATTERY CONNECTION
24VDC charge voltage to the batteries.
6. DC POWER CONNECTION
24VDC to the control board. pg 21
7. FEATURE ACTIVATION TRIM POTS
activate and set features. pg 24
8. SERIAL NUMBER
control board serial number for identification
9. MASTER MOTOR STATUS LEDs
indicates sMaster motor status. pg 34
10. SLAVE MOTOR STATUS LEDs
indicates Slave motor status. pg 34
11. SLAVE MOTOR CONNECTION
provides power to the Slave motor. pg 23
12. MASTER or SINGLE MOTOR CONNECTION
provides power to the Master motor. pg 22
13. POWER and BATTERY STATUS LEDs
indicates power supply status. pg 22
14. INPUT STATUS LEDs
indicates input status. pg 35
15. ACCESS CONTROL TERMINAL BLOCKS
accessory connections. pg 27-29, 37-39
16. ON-BOARD 3 BUTTON STATION
controls the gate during setup and testing
17. “MAGNETIC LOCK Relay” and Status LED
status of this on-board relay. pg 31, 35
18. “AUX. PWR” Terminal Block
used for solar applications & in-motion
warning devices. pg 21
19. CONTROL BOARD MOUNTING HOLES
secures and grounds the control board.
20. “Siren” Terminal Block
Vikings UL Siren is connected here. pg 12, 26
21. FEATURE ACTIVATION PIN HEADERS
activate features by placing a jumper onto the
pin headers. pg 25
Aux.
Pwr
+ -
Magnetic Lock
N.O. N.C.
COM
Guard Station
GND
Close
Stop
Open
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
Radio Station
GND GND
Radio
+28V +28V
Class 2
Supply +28V
Master
Slave
Siren
+
Limit Close
Limit Open
Slave
Limit Close
Limit Open
Master
Low Bat
Power
Radio
Rec.
UL
Sens
ReOpen
Sens
Center
Loop
OpenStopClose
SpeedOverlap ODS Timer
Sync
Auto Open
AC
AC
+
-
+
-
Bat
DC IN
Max Min
Normal
60
3
100 0 60 Off
4A
15A
4
15
Aux.
Pwr
+ -
Magnetic Lock
N.O. N.C.
COM
Guard Station
GND
Close
Stop
Open
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
Radio Station
GND GND
Radio
+28V +28V
Class 2
Supply +28V
Master
Slave
Siren
+
Limit Close
Limit Open
Slave
Limit Close
Limit Open
Master
Low Bat
Power
Radio
Rec.
UL
Sens
ReOpen
Sens
Center
Loop
OpenStopClose
SpeedOverlap ODS Timer
Sync
Auto Open Dual Gate MS
AC
AC
+
-
+
-
Bat
DC IN
Max Min
Normal
60
3
100 060Off
4A
15A
4
15

VIKING TECHNICAL SUPPORT 1.800.908.0884 5
TABLE OF CONTENTS:
PARTS DIAGRAM/PARTS LIST 2
OPERATOR REFERENCES 3
CONTROL BOARD REFERENCES 4
IMPORTANT SAFETY INFORMATION 6-12
Important Safety Instructions 6
Important Installation Instructions 7
Maintenance 8
General Safety Precautions 8-9
Operator Classification 9
Secondary Entrapment Protection Requirements 10
Secondary Entrapment Protection Installation 11
Manual Release 11
Audible Alarm Reset Installation 12
Warning Placard Installation 12
IMPORTANT INSTALLATION INFORMATION 13
Specifications 13
GATE OPERATOR INSTALLATION 14-18
Pull to Open Installation 14
Push to Open Installation 15
Mounting the Gate Operator 16
Post Mounting Option 17
Limit Switch Setup 18
ECU BOX INSTALLATION 19
ELECTRICAL INSTALLATION 20-23
High Voltage Supply Option 20
Low Voltage Supply Option 21
Solar Supply Option 21
Motor Cable 22-23
CONTROL BOARD SETUP 24-26
Initial Settings 24-25
Obstruction Detection Sensor (ODS) 26
ACCESSORY CONNECTIONS 27-32
Radio Receiver (Typical) 27
Open Commands, Guard Station 28
Viking Loop Rack 29
Guidelines for Loop Installations 30
Magnetic Lock, Lock Solenoid 31
Barrier Arm Synchronization 32
TROUBLESHOOTING 34-36
LED References 34-35
Solutions 36
APPENDIX A & B 37-40
VIKING EXPANSION PRODUCTS 42
PARTS DIAGRAM/PARTS LIST
2
OPERATOR REFERENCES
3
IMPORTANT INSTALLATION INFORMATION
13
GATE OPERATOR INSTALLATION
14-18
ELECTRICAL INSTALLATION 20-23
CONTROL BOARD SETUP 24-26
ACCESSORY CONNECTIONS 27-32
TROUBLESHOOTING
34-36
VIKING EXPANSION PRODUCTS
42
APPENDIX A & B
37-40
CONTROL BOARD REFERENCES
4
IMPORTANT SAFETY INFORMATION
6-12
ECU BOX INSTALLATION
19

VIKING TECHNICAL SUPPORT 1.800.908.0884
6
IMPORTANT SAFETY INFORMATION
!WARNING! Not Following these instructions may cause severe injury or death.
IMPORTANT SAFETY INSTRUCTIONS
!WARNING! To reduce the risk of severe injury or death.
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote away from
children.
3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE
PATH OF THE MOVING GATE.
4. Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or
when an object activates the non-contact sensors. After adjusting the force or the limit
travel, retest the gate operator. Failure to adjust and retest the gate operator properly
can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the user’s manual. Have a qualified service
person make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use a separate entrance.
8. Every gate operator installation MUST have secondary protection devices against
entrapment, such as edge sensors and photo beams more in particularly in places
where the risk of entrapment is more likely to occur.
9. SAVE THESE INSTRUCTIONS.
IMPORTANT INSTALLATION INSTRUCTIONS
1. Install the gate operator only when:
a. The operator is appropriate for the construction of the gate and usage Class of the
gate (refer to page 9),
b. All openings of a horizontal slide gate are guarded or screened from the bottom of
the gate to a minimum of 6 feet (1.83 m) above the ground to prevent a 2-1/4 inch
(57.2 mm) diameter sphere from passing through the openings anywhere in the gate,
and in that portion of the adjacent fence that the gate covers in the open position,
c. ALL EXPOSED PINCH POINTS ARE ELIMINATED OR GUARDED, AND
d. GUARDING IS SUPPLIED FOR EXPOSED ROLLERS.
2. The Operator is intended for installation only on gates used for vehicles. Pedestrians
must be supplied with a separate access opening. The pedestrian access opening
shall be designed to promote pedestrian usage. Locate the gate such that persons will
not come into contact with the vehicular gate during the entire path of travel of the
vehicular gate.
3. The gate must be installed in a location so that enough clearance is supplied between
the gate and adjacent structures when opening and closing to reduce the risk of
entrapment. Swinging gates shall not open in to the public access areas.
4. The gate must be properly installed and work freely in both directions prior to the
installation of the gate operator. Do not over-tighten the operator clutch or pressure
relief valve to compensate for a damaged gate.
5. The gate operator controls must be placed so that the user has full view of the gate area
when the gate is moving AND AWAY FROM THE GATE PATH PERIMETER.
6. Controls intended for user activation must be located at least six feet (6’) away from
any moving part of the gate and where the user is prevented from reaching over, under,
around or through the gate to operate the controls.
Exception: Emergency access controls only accessible by authorized personnel (i.e. fire,
police, EMS) may be placed at any location in the line-of-sight of the gate.

VIKING TECHNICAL SUPPORT 1.800.908.0884 7
IMPORTANT INSTALLATION INSTRUCTIONS (Continued)
7. The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation
of the reset control shall not cause the operator to start.
8. A minimum of two (2) WARNING SIGNS shall be installed, in the area of the gate. Each
placard is to be visible by persons located on the side of the gate on which the placard is
installed.
9. For gate operators using non-contact sensors (photoelectric beam or like) in
accordance with section 31.1.1 of the UL standard:
a. See instructions on the placement of non-contact sensors for each type of
application (refer to page 10).
b. Care shall be exercised to reduce the risk of nuisance tripping, such as when a
vehicle, trips the sensor while the gate is still moving, and
c. One or more non-contact sensors shall be located where the risk of entrapment or
obstruction exists, such as the perimeter reachable by a moving gate or barrier (refer
to page 10).
d. Use only - Omron: E3K-R10K4-NR-1 // EMX: IRB-RET, IRB-MON // Miller Edge: RG-
K-R, PG-K-R100, PG-K-R50, MIM-62
10. For a gate operator utilizing a contact sensor (edge sensor or like) in accordance
with section 31.1.1 of the UL 325 standard:
a. One or more contact sensors shall be located where the risk of entrapment or
obstruction exists, such as a the leading edge, trailing edge, and post mounted both
inside and outside of a vehicular horizontal slide gate (refer to page 10).
b. One or more contact sensors shall be located at the bottom of a vehicular vertical lift
gate.
c. One or more contact sensors shall be located at the pinch point of a vehicular
vertical pivot gate.
d. A hardwired contact sensor shall be located and its wiring arranged so that
the communication between the sensor and the gate operator is not subject to
mechanical damage.
e. A wireless contact sensor such as one that transmits radio frequency (RF) signals
to the gate operator for entrapment protection functions shall be located where the
transmission of the signals are not obstructed or impeded by building structures,
natural landscaping or similar obstructions. A wireless contact sensor shall function
under the intended end-use conditions.
f. One or more contact sensors shall be located on the inside and outside leading edge
of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 4
inches (101.6mm) but less than 16 inches (406 mm) above the ground at any point in
its arc of travel, one or more contact sensors shall be located on the bottom edge.
g. One or more contact sensors shall be located at the bottom edge of a vertical barrier
(arm).
h. Use only - EMX: WEL-200K // Miller Edge: ME110 through ME117, ME120, ME123,
MG020, MGR20, MGS20, RB-G-K10, MIM-62 // ASO: 25.30, 25.45, 95.20
IMPORTANT SAFETY INFORMATION
!WARNING! Not Following these instructions may cause severe injury or death.

VIKING TECHNICAL SUPPORT 1.800.908.0884
8
IMPORTANT SAFETY INFORMATION
MAINTENANCE
Remove the Power Harness from the Control Board. (refer to page 20)
• Clean and lubricate the turning pins and gate hinges using the recommended
lubricant.
• Check that all mounting hardware of the gate operator is properly tighten.
• Ensure that the gate moves freely.
• Check for corroded parts and replace if necessary.
• Check the battery for the following:
- Battery connections must be free of corrosion.
- Battery voltage must be 26VDC (fully charged battery).
Reconnect the Power Harness for the Control Board. (refer to page 20)
• Check and confirm the proper operation of all safety devices (photoelectric
eye, edge sensors or like).
• Check and confirm the operation of all installed accessories.
• Check and confirm the operation of all special features such as the Intelligent
Obstruction Sensor and Hold Open Timer. (refer to pages 25-27)
• Check and confirm the operation of the manual release. (refer to page 11)
• Verify the functionally of the battery backup, or power failure option, by
turning off the main power source (115VAC or 230VAC). DO NOT FORGET TO
TURN ON THE MAIN POWER SOURCE AFTER VERIFICATION.
GENERAL SAFETY PRECAUTIONS
The following precautions are an integral and essential part of the product and must be
supplied to the user. Read them carefully as they contain important indications for the
safe installation, use and maintenance.
• These instruction must be kept and forwarded to all possible future users of the
system.
• This product must be used only for that which it has been expressly designed.
• Any other use is to be considered improper and therefore dangerous.
• The manufacturer cannot be held responsible for possible damage caused by
improper, erroneous or unreasonable use.
• Avoid operating in the proximity of the hinges or moving mechanical parts.
• Do not enter the path of the moving gate while in motion.
• Do not obstruct the motion of the gate as this may cause a situation of danger.
• Do not allow children to play or stay within the path of the moving gate.
• Keep remote control or any other control devices out of the reach of children, in
order to avoid possible involuntary activation of the gate operator.
• In case of break down or malfunctioning of the product, disconnect from the main
power source. Do not attempt to repair or intervene directly, contact only qualified
personnel for repair.
• Failure to comply with the above may create a situation of danger.
• All cleaning, maintenance or repair work must be carried out by qualified personnel.
• In order to guarantee that the system works efficiently and correctly it is important
to have the manufacturer’s instructions on maintenance of the gate and operator
carried out by qualified personnel.
• In particular, regular checks are recommended in order to verify that the safety
devices are operating correctly.
All installation, maintenance and repair work must be documented and made
available to the user.
!WARNING! Not Following these instructions may cause severe injury or death.

VIKING TECHNICAL SUPPORT 1.800.908.0884 9
IMPORTANT SAFETY INFORMATION
a. Use only the following type and size battery(ies): Yuasa NP7-12 or VIKING DUBA12
b. Do not dispose of the battery(ies) in re. The cells may explode. Check with local
codes for possible disposal instructions.
c. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
d. Exercise care in handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys.
e. Change the battery(ies) provided with or identied for use with this product only in
accordance with the instructions and limitations specied in this manual.
f. Observe proper polarity orientation between the battery(ies) and charging circuit.
g. Do not mix batteries of different sizes or from different manufactures in this product
(applies to products employing more than one user replaceable secondary battery).
h. A battery-operated product employing a secondary battery supply intended to be
charged within the product shall contain specic instructions concerning the proper
method of charging.
Install the gate operator only when:
The operator is appropriate for the construction of the gate and the Usage Class of
the gate.
UL325 Gate Operator Classifications
GLOSSARY
RESIDENTIAL VEHICULAR GATE OPERATOR
CLASS I - A vehicular gate operator (or system) intended
for use in garages or parking areas associated with a
residence of one-to four single families.
COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR
CLASS II – A vehicular gate operator (or system)
intended for use in a commercial location or building
such as a multi-family housing unit (five or more single
family units), hotel, garages, retail store, or other
building servicing the general public.
INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR
CLASS III – A vehicular gate operator (or system)
intended for use in an industrial location or building
such as a factory or loading dock area or other
locations not accessible by or intended to service the
general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR
CLASS IV – A vehicular gate operator (or system)
intended for use in a guarded industrial location or
building such as an airport security area or other
restricted access locations not servicing the general
public, in which unauthorized access is prevented via
supervision by security personnel.
! CAUTION: To Reduce the Risk of Fire or Injury to Persons:

VIKING TECHNICAL SUPPORT 1.800.908.0884
10
Monitored Entrapment Protection Requirements
IMPORTANT: MONITORED PROTECTION MUST BE INSTALLED
• REQUIRED BY UL 325, an approved MONITORED entrapment protection sensor is
REQUIRED to be installed in all areas accessible to potential entrapment and pinch
points.
• For a horizontal swing gate operator, at least one Monitored External Entrapment Sensor is
required in each direction of travel. Except, if there is no entrapment zone in one direction
of travel, it is not required to have a Monitored Entrapment sensor for that direction of
travel.
! If there is a possible entrapment zone in the open direction, an external sensor MUST be
connected to the “UL” input or the installation will not comply with UL 325.
! An external sensor connected to the “ReOpen” input terminal will protect against
entrapment ONLY in the closing direction.
• The installed sensor MUST be “10K Resistor Based”.
• You may connect up to FOUR monitored sensors, wired in parallel, to either the “UL” and/or
“ReOpen” terminals, for a total of 8 monitored sensors.
• Failure to install the required monitored entrapment protection sensor(s) may render the
gate operator INOPERABLE. The gate can be moved manually. Refer to page 11.
• Consult the installation manual of the sensor for detailed information about the usage,
installation and maintenance.
• Use only UL Recognized Component Edge Sensors and Photoelectric Sensors. Refer to pg 7.
SWING GATE ENTRAPMENT ZONE – Locations between a moving gate or moving, exposed
operator components and a counter opposing edge or surface where entrapment is possible
up to 1.8 m (6 ft) above grade. Such locations occur if during any point in travel:
a. The gap between the bottom of a moving gate and the ground is greater than 101.6 mm
(4 in) and less than 406 mm (16 in); or
b. The distance between the center line of the pivot and the end of the wall, pillar, or
column to which it is mounted when in the open or closed position exceeds 101.6 mm (4
in). Any other gap between a moving gate and fixed counter opposing edges or surfaces
or other fixed objects is less than 406 mm (16 in) (examples are walls, curbs, berms or
other immovable objects).
Edge Sensor (contact sensor)
IMPORTANT SAFETY INFORMATION
!WARNING! Not Following these instructions may cause severe injury or death.
Photoelectric Sensor (non-contact sensor)

VIKING TECHNICAL SUPPORT 1.800.908.0884 11
Release Handle
Release Key
Manual Release
When manual operation is required:
1. Lift the Release Handle.
2. Insert the Release Key and rotate Key to
unlock the Handle .
3. Rotate Handle counter clockwise.
The gate can now be moved manually.
STEP 2
Connect the monitored entrapment protection
sensor(s) to the Viking control board as
illustrated below.
STEP 3
Learn the number of sensors connected:
• Press and hold the Stop Button.
• Connect the Power Harness to the Board.
• Release the Stop Button after 10 seconds when
the “Center Loop” and “Radio Rec.” LEDs begin
to flash.
Aux.
Pwr
+ -
Magnetic Lock
N.O. N.C.
COM
Guard Station
GND
Close
Stop
Open
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
Radio Station
GND GND
Radio
+28V +28V
Class 2
Supply +28V
Master
Slave
Siren
+
Limit Close
Limit Open
Slave
Limit Close
Limit Open
Master
Low Bat
Power
Radio
Rec.
UL
Sens
ReOpen
Sens
Center
Loop
OpenStopClose
Speed Overlap ODS Timer
Sync
Auto Open
AC
AC
+
-
+
-
Bat
DC IN
Max Min
Normal
60
3
100 0 60 Off
4A
15A
4
15
Aux.
Pwr
+ -
Magnetic Lock
N.O. N.C.
COM
Guard Station
GND
Close
Stop
Open
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
Radio Station
GND GND
Radio
+28V +28V
Class 2
Supply +28V
Master
Slave
Siren
+
Limit Close
Limit Open
Slave
Limit Close
Limit Open
Master
Low Bat
Power
Radio
Rec.
UL
Sens
ReOpen
Sens
Center
Loop
OpenStopClose
Speed Overlap ODS Timer
Sync
Auto Open Dual Gate MS
AC
AC
+
-
+
-
Bat
DC IN
Max Min
Normal
60
3
100 060Off
4A
15A
4
15
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
10K (Sensor’s Monitored Terminals)
10K (Sensor’s Monitored Terminals)
STEP 1
Remove the Power Harness from the Control
Board. NOTE: The “Stop” LED
will be flashing if there
is a failure with at
least one monitored
entrapment sensor
and the gate operator
will be rendered
inoperable.
“UL” Protects against entrapment in both the opening and closing directions. Input will
either stop the gate or reverse the gate approximately 12” in the opposite direction it was
traveling.
“ReOpen” Protects against entrapment in the closing direction ONLY. Input will reverse the
gate all the way to the Open Limit.
IMPORTANT SAFETY INFORMATION
!WARNING! Not Following these instructions may cause severe injury or death.
!Cable use in Class 2 circuit to an external device shall be type CL2, CL2P, CL2R, CL2X or other
cable with equivalent or better electrical, mechanical, and  ammability ratings.
Monitored Entrapment Protection Installation
!IMPORTANT: A minimum of one Monitored External Entrapment Sensor is required to be
connected to the UL terminal OR the ReOpen terminal. If there is a possible entrapment
zone in the open direction, an external sensor MUST be wired to the “UL” input or the
installation will not comply with UL 325.

VIKING TECHNICAL SUPPORT 1.800.908.0884
12
L
ock
N
.
C
.
Guard Station
GND
Close
Stop
Open
Loo
p
GND
Center
GND
L
ock
N
.
C
.
Guard Station
GND
Close
Stop
Open
Loo
p
GND
Center
GND
IMPORTANT SAFETY INFORMATION

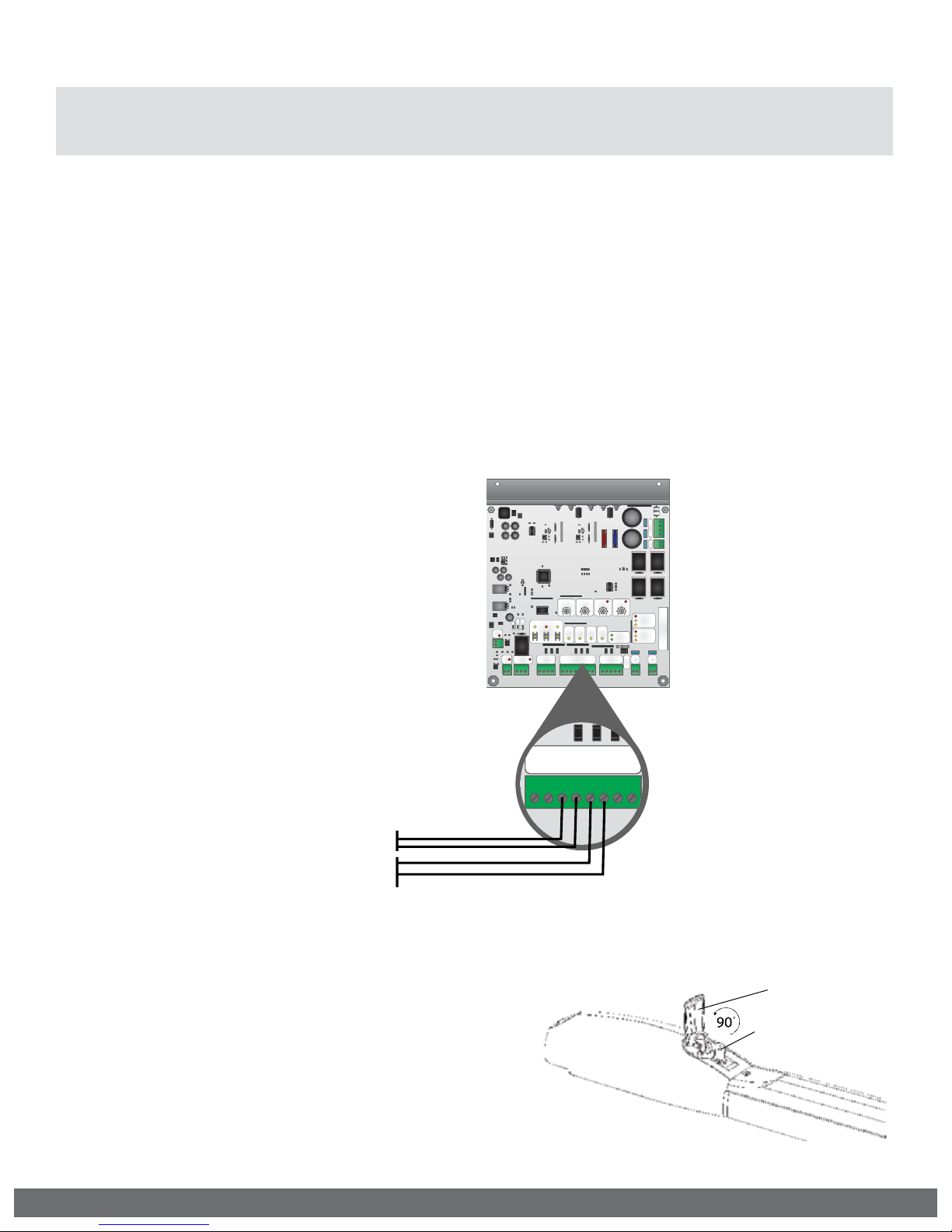

Audible Alarm Reset Switch Installation
Manual Reset for the Audible Alarm
• UL325 standard requires an audible alarm to sound after two consecutive events
detected by the primary entrapment protection of the gate operator (obstruction
sensor).
• The audible alarm will continue to sound for 5 minutes or until a stop command gets
actuated.
• The Stop command can be actuated in three different forms:
1. Using the Built in Stop switch on the Control Board; or
2. Using an External Stop button within the sight of the gate, away from moving parts of
the gate and out of reach of children.
a. Controls intended for user activation must be located at least six feet (6’) away
from any moving part of the gate and where the user is prevented from reaching
over, under, around, or through the gate to operate the controls. Outdoor or easily
accessible controls shall have a security feature to prevent unauthorized use.
b. The Stop and/or Reset button must be located in the line-of-sight of the gate.
Activation of the reset control shall not cause the operator to start.
3. Using the Reset Button on the Electronic Control Unit that is externally accessible on
the left side of the cabinet.
Warning Placard Installation
• All Warning Placards must be installed
where visible in the area of the gate.
• A minimum of two placards shall be
installed.
• A placard is to be installed in the area of
each side of the gate and be visible.
3
2
!WARNING! Not Following these instructions may cause severe injury or death.

VIKING TECHNICAL SUPPORT 1.800.908.0884 13
! CAUTION: To Reduce the Risk of Fire or Injury to Persons:
! WARNING: For use with gates at a maximum 850 lbs. in weight or 16 ft. in length.
IMPORTANT INSTALLATION INFORMATION
Specications:
UL 325 Classifcation: Class I *Refer to page 9
Power Requirements: 115VAC / 230VAC (1.5* Amp / 1.0* Amp) *Each Gate Operator
Single Phase (50Hz / 60Hz)
Alternative Power: 24V AC / DC (min. 20VA) or Solar
Operating Temperature: -20°F (-28°C) to 160°F (71°C)
Maximum Weight: 850 lbs.
Maximum Length: 16 ft.
Locate Control Buttons:
1. Within sight of the gate,
2. At a minimum height of 5 feet
so small children are not able to
reach it; and
3. At least 6 feet away from all
moving parts of the gate.
DO NOT allow pedestrian use of this gate DO NOT install the gate operator to lift gates
LB
FT
850 lb
75 0 lb
650 lb
550 lb
850 lb
750 lb
650 lb
550 lb
10’1 2’ 14’1 6’
Gate Weight/Length Relationship
10’ 12’ 14’ 16’

VIKING TECHNICAL SUPPORT 1.800.908.0884
14

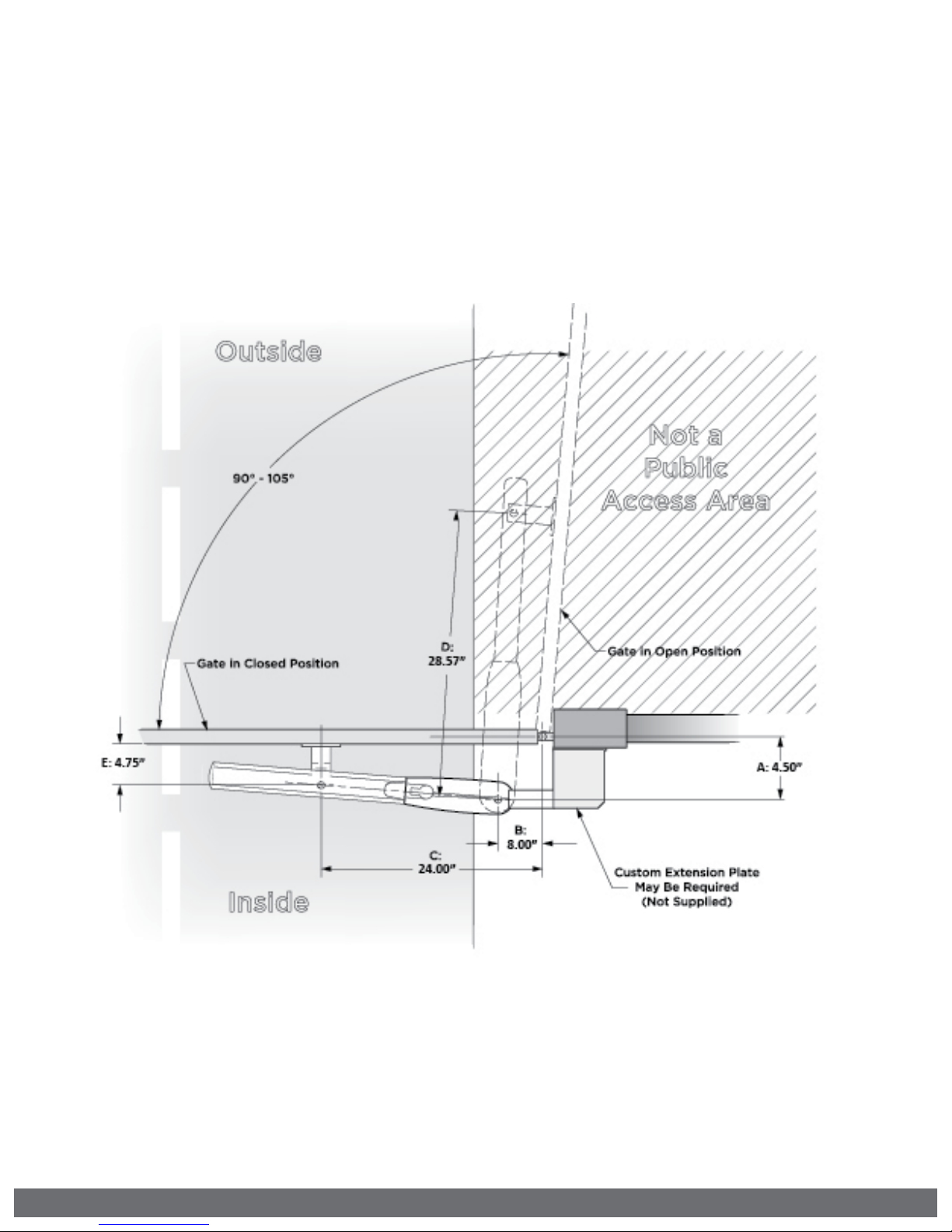

Pull to Open Installation Option
This application is typically used to open the gate towards the inside of the property.
The operator will “PULL” the gate to open.
1. The gate must be installed in a location so that enough clearance is provided
between the gate and adjacent structures to reduce the risk of entrapment when
opening and closing.
2. Swing gates are not to open into public access areas.
NOTE: Back Mounting Bracket
must be cut to obtain correct
dimension “A” provided below.
GATE OPERATOR INSTALLATION
ALL DIMENSIONS ARE MEASURED IN INCHES
Range A B C D E
90° - 120° 8.000 4.500 24.000 28.590 4.750
121° - 135° 4.750 7.750 24.000 31.770 4.750
!Varying from the dimensions provided above may severely affect the speed and
performance of the gate operator.

VIKING TECHNICAL SUPPORT 1.800.908.0884 15
GATE OPERATOR INSTALLATION

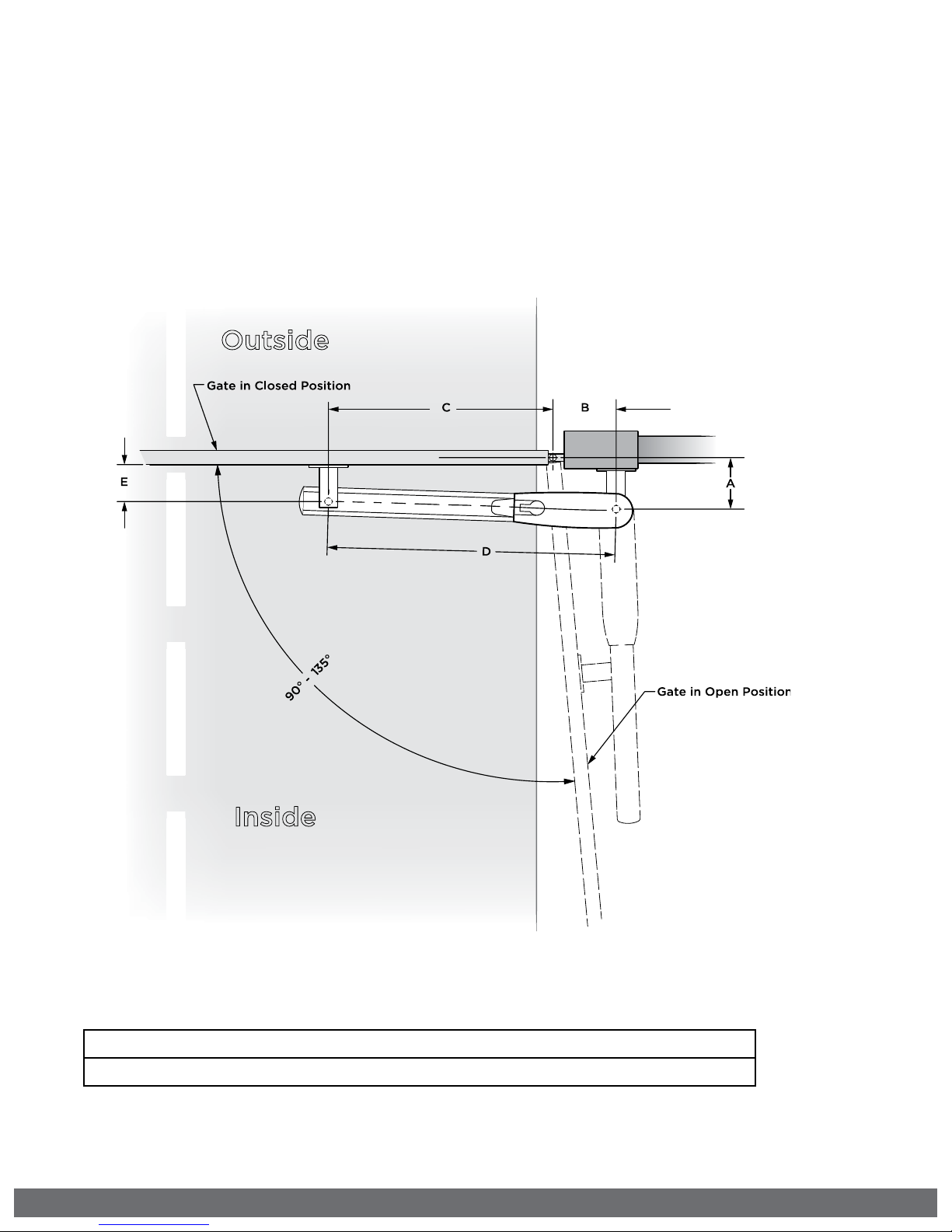

Push to Open Installation Option
This application is typically used to open the gate towards the outside of the property.
The operator will “PUSH” the gate open.
1. The gate must be installed in a location so that enough clearance is provided between
the gate and adjacent structures to reduce the risk of entrapment when opening and
closing.
2. Swing gates are not to open into public access areas.
!Varying from the dimensions provided above may severely affect the speed and
performance of the gate operator.

VIKING TECHNICAL SUPPORT 1.800.908.0884
16
Mounting the Gate Operator
GATE OPERATOR INSTALLATION
Refer to Dimensions
A & B for positioning
Level Line
STEP 1
Front Mounting Bracket:
a. Position the bracket according to the
dimensions provided on pages 14 or 15.
b. Ensure the bracket is level and tack
weld in place.
!TIP: Alternatively, if you choose to bolt
this bracket to the gate, a backing plate
has been provided with four bolt holes.
STEP 2
Back Mounting Bracket:
a. Cut and position the bracket according
to pages 14 or 15.
b. Ensure the bracket is level and tack
weld in place.
!TIP: Alternatively, if you choose to bolt
this bracket to the gate, a backing plate
has been provided with four bolt holes.
STEP 3
Mount the Gate Operator:
a. Install the operator onto the mounting
brackets.
b. Manually Release the E-4 Operator.
Refer to page 11.
c. Manually move the gate to ensure the
gate and operator moves freely.
STEP 4
Complete the Installation:
a. Dismount the operator.
b. Complete the welding process.
c. Lubricate the front bracket pivot point.
d. Reinstall the gate operator and verify
once again that the gate moves freely.
e. Rotate the Manual Release Handle
clockwise to the engage position.
!Caution: If the Front Mounting Bracket is not attached to a frame member that
runs the full length of the gate, the gate operator may damage the gate. DO NOT
attach the bracket or backing plate to just a few pickets.

VIKING TECHNICAL SUPPORT 1.800.908.0884 17
3-1/ 2” Pipe (4 .00” O.D.)
4” Squa re Pipe
6” Squa re

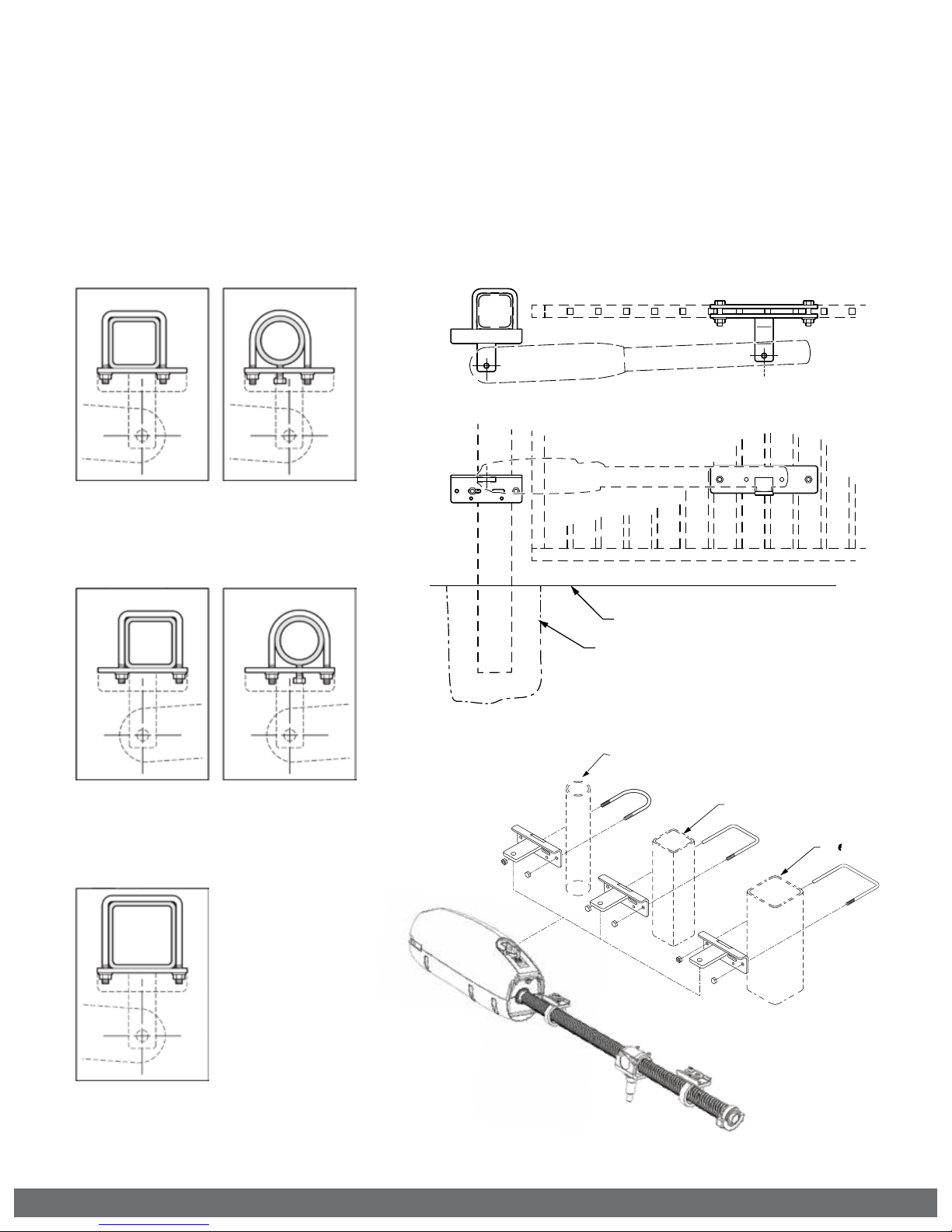

Post Mounting Option
A Post Mount Kit is available for the E-4 Operator as an option to welding the operator
Mounting Brackets to the gate and column. Part # VA-E4PSKT
1. Mounting hardware provided for 3 1/2” round, 4” and 6” square posts.
2. Mounting Brackets are powder coated 1/4” steel.
GATE OPERATOR INSTALLATION
Grade Level
Consult Local Building Codes
6” Square Pipe
Open Left/Right
4” Square Pipe
Open Left
3-1/2” Round
Pipe
Open Left
4” Square Pipe
Open Right
3-1/2” Round
Pipe
Open Left

VIKING TECHNICAL SUPPORT 1.800.908.0884
18
Limit Position Setup
GATE OPERATOR INSTALLATION
STEP 2
Remove the Lead Screw Cover:
a. Remove the cover mounting screw.
b. Remove the Lead Screw Cover.
STEP 3
Set the Limit Positions:
a. Manually position the gate to the desired
Close Limit Position.
b. Loosen the setscrews for the Close Positive
Stop and slide the Stop up against the Lead
Screw Carrier.
c. Re-secure the Close Positive Stop when the
proper position has been determined. Ensure
it is tightly secured.
d. Repeat the above steps for the Open Limit
Position.
STEP 1
Manually Release the E-4 Operator:
a. Lift the Release Handle.
b. Insert the Release Key.
c. Rotate Release Key.
d. Rotate Handle.
STEP 4
Verify the set Limit Positions:
a. Re-engage the manual release.
b. Run the operator two full cycles to
verify that the limits are set at the desired
positions.
!IMPORTANT: The gate operator uses positive stops to set the limits.
!TECHNICAL TIP: The Limit LEDs will illuminate solid when the limit position is set and the
operator is at the corresponding limit.
