Viking Access Systems K-2 Original instructions

INSTALLATION
INSTRUCTIONS
AND SAFETY INFORMATION
FOR THE VIKING K-2 GATE OPERATOR
CLASS I, CLASS III, AND CLASS IV
Residential Vehicular Slide Gate
Operator
NEW IMAGE
FOR THE VIKING K-2 GATE OPERATOR
CLASS I,
CLASS III, AND CLASS IV
Residential Vehicular Slide Gate
NEW IMAGE

The K-2™ gate operator has the capacity to operate slide gates up
to 700 lbs. and 30 ft. in length at 100% duty cycle under extreme
conditions. This effi cient operator provides a solution for high traffi c
residential slide gate applications. The Viking K-2™ gate operator
offers effi ciency and technology combined in a single package.
THE VIKING K-2™ SLIDE GATE OPERATOR

K-2 Vehicular Gate Operator • Revision K2NXMN10.D • August 2013

VIKING TECHNICAL SUPPORT 1.800.908.0884
2
PARTS DIAGRAM:
Item Description Part No.
1 Chassis VNXK2CH
2 Gear Box VNXK2GB
3 Motor VNXK2MO
4 Brush Kit VAMBK
5 Electronic Positioning Sensor 2 (EPS2) VNXL3EPS2
6 40B17 Sprocket VNXFSP17
7 Idler Pulley DSIP10
8 Idler Bushing (w/hardware) DSIB10
9 Manual Release Switch DUMRS10
10 Battery Switch DUAL10
11 120V Receptacle DUOL120
12 Battery DUBA12S
13 Power Supply Cover VNXK2PSC
14 Toroid Transformer - 10 amp DUTT10
15 Control Board VFLEXPCB
16 Alarm DUAL10
17 Key and Lock VNXSLCL
18 Operator Cover VNXK2CV
19 Power Supply Panel Assembly VNXK2PSPA
20 120VAC Power Switch DUMRS10
21 Fuse - 4 amp VNXF4A
22 Fuse - 15 amp VNXF15A
23 25’ #40 Chain Kit, Nickle Coated VAL3CKN
24 Motor Harness VNXK2MH
25 Power Harness VNXK2PH

VIKING TECHNICAL SUPPORT 1.800.908.0884 3

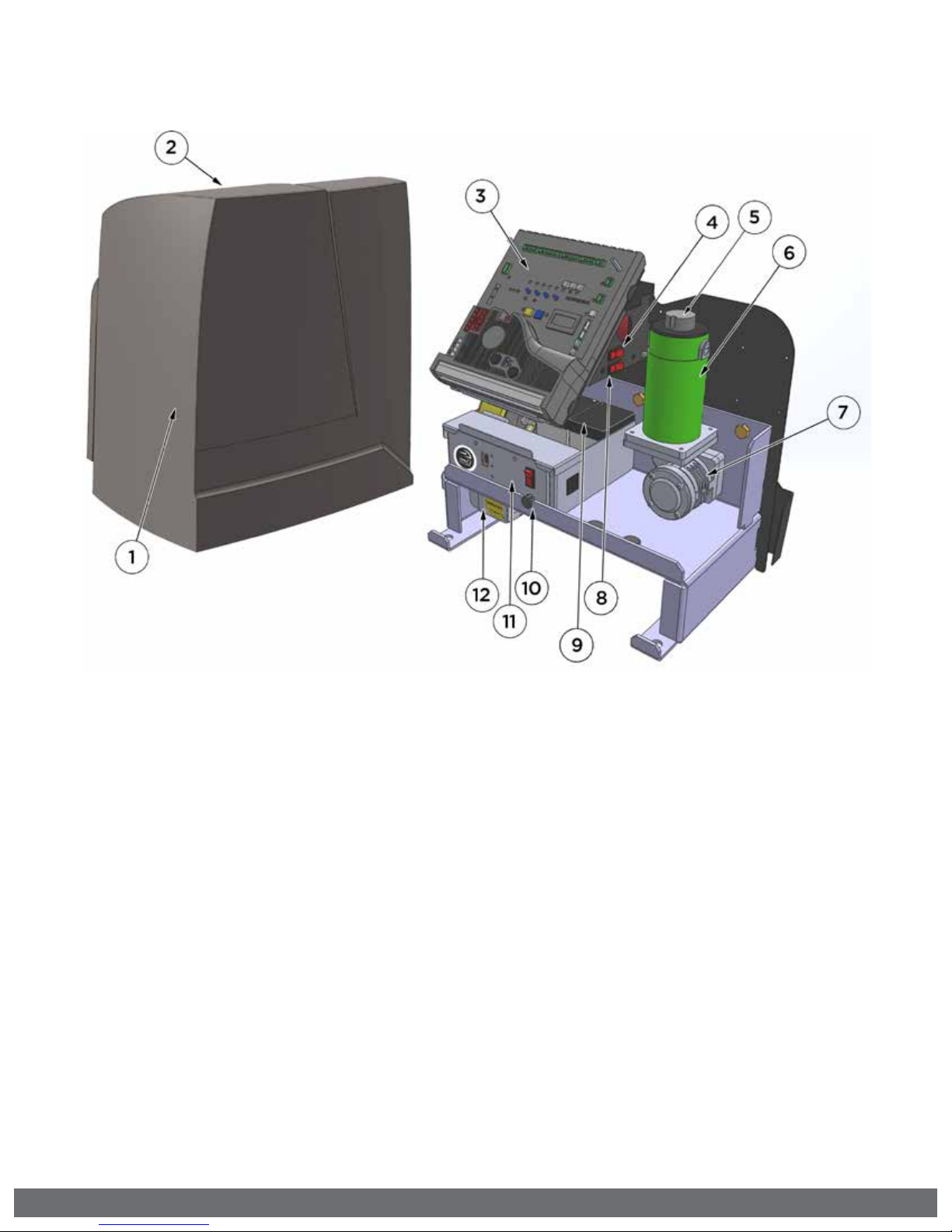

OPERATOR REFERENCES:
1. OPERATOR COVER
2. COVER LOCK
3. VFLEX CONTROL BOARD
4. MANUAL RELEASE/MOTOR SWITCH
discontinues power to the motor and allows for
manual operation of the gate
5. EPS (ELECTRONIC POSITIONING SENSOR)
sensor for the digital limits
6. MOTOR
7. GEAR BOX
8. BATTERY SWITCH
disconnects batteries from the charging circuit
during troubleshooting
9. BATTERY BACKUP SYSTEM
10. EMI FUSE
main power supply protection
11. POWER SUPPLY PANEL ASSEMBLY
convenient access to main power supply switches,
status indicators and EMI Fuse
12. J-BOX
high voltage power supply connection

VIKING TECHNICAL SUPPORT 1.800.908.0884
4
CONTROL BOARD REFERENCES:
1. POWER HARNESS CONNECTOR
provides power to the control board.
pg 18-19
2. “OPEN LEFT” & “OPEN RIGHT”
provides power to the motor. pg 20
3. LIMIT SETUP BUTTONS
sets limit positions. pg 20-21
4. FEATURE ACTIVATION TRIM POTS
activate and set features. pg 24
5. “EPS1” CONNECTOR
available for future developments
6. “EPS2” CONNECTOR
monitors the limit positions.
7. EMI BOARD CONNECTOR
monitors the high voltage power
supply.
8. “CHECK MOTOR” Status LED
indicates motor power status. pg 36
9. “LOW BATTERY” Status LED
indicates battery power status. pg 36
10. “POWER” Status LED
control board power status. pg 18,36
11. “MAGNETIC LOCK” Status LED
status of this on-board relay. pg 34, 36
12. “MAGNETIC LOCK” Terminal Block
connect electric locks here. pg 34, 36
13. INPUT STATUS LEDS
indicates input status. pg 36-37
14. ACCESS CONTROL TERMINAL BLOCKS
accessory connections. pg 29-32, 42-44
15. “Master/Slave” Terminal Block
wired master/slave connection. pg 22
16. CONTROL BOARD MOUNTING HOLES
secures and grounds the control board.
17. “Siren” Terminal Block
Vikings UL Siren is connected here.
18. ON-BOARD 3 BUTTON STATION
controls the gate during set up.
19. “BRAKE” Terminal Block
used for solar applications & in-motion
warning devices. pg 19, 25
20. FEATURE ACTIVATION PIN HEADERS
active features by placing a jumper
onto the pin headers. pg 25
21. “DIAGNOSE” Button
allows you to navigate through the
Diagnostics LCD Display. pg 38-40
22. “DIAGNOSE” LED
informs that errors have been detected
and available on LCD Display. pg 38-40
23. LCD DIAGNOSTICS DISPLAY
provides error messages, diagnostics
and operator status information.
pg 38-40
24. EXPANSION PRODUCT CONNECTIONS
connections for additional products
from Viking Access Systems. pg 46
25. “FAIL SAFE/SECURE” Jumper
power failure option. pg 25
26. MOTOR FUSE
27. CHARGER FUSE
28. HEAT SINK
secures the control board and
dissipates heat.

VIKING TECHNICAL SUPPORT 1.800.908.0884 5
TABLE OF CONTENTS:
PARTS DIAGRAM/PARTS LIST 2
OPERATOR REFERENCES 3
CONTROL BOARD REFERENCES 4
IMPORTANT SAFETY INFORMATION 6-12
Important Safety Instructions 6
Important Installation Instructions 7
Maintenance 8
General Safety Precautions 8-9
Operator Classification 9
Photo Beam (non-contact sensor) Installation 10
Edge Sensor (contact sensor) Installation 11
Manual Release 11
Audible Alarm Reset Installation 12
Warning Placard Installation 12
IMPORTANT INSTALLATION INFORMATION 13
Specifications 13
GATE OPERATOR INSTALLATION 14-17
Concrete Pad Option 14
Post Mounting Option 15
Operator Positioning 16-17
ELECTRICAL INSTALLATION 18-19
High Voltage Supply Option 18
Low Voltage Supply Option 19
Solar Supply Option 19
LIMITS SETUP 20-21
MASTER/SLAVE SET UP 22-23
Two Wire Communication 22
Wireless Communication Options 23
CONTROL BOARD SETUP 24-27
Initial Settings 24-25
Obstruction Detection Sensor (Primary Entrapment Protection) 26
Heater, Lock Mode................................................................................................................. 27
ACCESSORY CONNECTIONS 29-35
Re-Open Photo Beam (Vehicular Safety) 29
Radio Receiver (Typical) 30
Anti-Tail Gate, Open Commands, Guard Station 31
Viking Loop Rack 32
Guidelines for Loop Installations 33
Magnetic Lock, Lock Solenoid 34
Barrier Arm (B-12) Synchronization Option 35
TROUBLESHOOTING 36-41
LED References 36-37
LCD Display References 38-40
Solutions 41
APPENDIX A, B & C 42-45
VIKING EXPANSION PRODUCTS 46
PARTS DIAGRAM/PARTS LIST
2
OPERATOR REFERENCES
3
IMPORTANT INSTALLATION INFORMATION
13
GATE OPERATOR INSTALLATION
14-17
ELECTRICAL INSTALLATION 18-19
LIMITS SETUP 20-21
MASTER/SLAVE SET UP
22-23
CONTROL BOARD SETUP 24-27
ACCESSORY CONNECTIONS 29-35
TROUBLESHOOTING
36-41
VIKING EXPANSION PRODUCTS
46
APPENDIX A, B & C
42-45
CONTROL BOARD REFERENCES
4
IMPORTANT SAFETY INFORMATION
6-12

VIKING TECHNICAL SUPPORT 1.800.908.0884
6
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
!WARNING! To reduce the risk of severe injury or death.
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote away
from children.
3. Always keep people and objects away from the gate. NO ONE SHOULD
CROSS THE PATH OF THE MOVING GATE.
4. Test the gate operator monthly. The gate MUST reverse on contact with
a rigid object or when an object activates the non-contact sensors. After
adjusting the force or the limit travel, retest the gate operator. Failure to
adjust and retest the gate operator properly can increase the risk of injury or
death.
5. Use the manual release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owners manual. Have a
qualified service person make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use a separate entrance.
8. Every gate operator installation MUST have secondary protection devices
against entrapment, such as edge sensors and photo beams more in
particularly in places where the risk of entrapment is more likely to occur.
9. SAVE THESE INSTRUCTIONS.
IMPORTANT INSTALLATION INSTRUCTIONS
1. Install the gate operator only when:
a. The operator is appropriate for the construction of the gate and usage
Class of the gate (refer to page 5),
b. All openings of a horizontal slide gate are guarded or screened from the
bottom of the gate to a minimum of 4 feet (1.22 m) above the ground to
prevent a 2-1/4 inch (57.2 mm) diameter sphere from passing through the
openings anywhere in the gate, and in that portion of the adjacent fence
that the gate covers in the open position,
c. ALL EXPOSED PINCH POINTS ARE ELIMINATED OR GUARDED, AND
d. GUARDING IS SUPPLIED FOR EXPOSED ROLLERS.
2. The Operator is intended for installation only on gates used for vehicles.
Pedestrians must be supplied with a separate access opening. The pedestrian
access opening shall be designed to promote pedestrian usage. Locate the
gate such that persons will not come into contact with the vehicular gate
during the entire path of travel of the vehicular gate.
3. The gate must be installed in a location so that enough clearance is supplied
between the gate and adjacent structures when opening and closing to
reduce the risk of entrapment. Swinging gates shall not open in to the public
access areas.
4. The gate must be properly installed and work freely in both directions prior to
the installation of the gate operator. Do not over-tighten the operator clutch
or pressure relief valve to compensate for a damaged gate.
5. The gate operator controls must be placed so that the user has full view of
the gate area when the gate is moving AND AWAY FROM THE GATE PATH
PERIMETER.
!WARNING! Not Following these instructions may cause severe injury or death.

VIKING TECHNICAL SUPPORT 1.800.908.0884 7
IMPORTANT SAFETY INFORMATION
IMPORTANT INSTALLATION INSTRUCTIONS (Continued)
6. Controls intended for user activation must be located at least six feet (6’)
away from any moving part of the gate and where the user is prevented from
reaching over, under, around or through the gate to operate the controls.
Outdoor or easily accessible controls shall have a security feature to prevent
unauthorized use.
7. The Stop and/or Reset button must be located in the line-of-sight of the gate.
Activation of the reset control shall not cause the operator to start.
8. All warning signs and placards must be installed where visible in the area of the
gate. A minimum of two placards shall be installed. A placard is to be installed
in the area of each side of the gate and the gate be visible to persons located
on the side of the gate on which the placard is installed.
9. For gate operators using non-contact sensors (Photo Beams or like) in
accordance with section 31.1.1 of the UL standard:
a. The operator is appropriate for the construction of the gate and usage
Class of the gate (refer to page 5),
b. Care shall be exercised to reduce the risk of nuisance tripping, such as
when a vehicle, trips the sensor while the gate is still moving, and
c. One or more non-contact sensors shall be located where the risk of
entrapment or obstruction exists, such as the perimeter reachable by a
moving gate or barrier (refer to page 6).
d. Use only Omron E3K-R10K4 photoelectric eye to comply with UL 325
10. For a gate operator utilizing a contact sensor (Edge sensor or like) in
accordance with section 31.1.1 of the UL 325 standard:
a. One or more contact sensors shall be located where the risk of entrapment
or obstruction exists, such as a the leading edge, trailing edge, and post
mounted both inside and outside os a vehicular horizontal slide gate (refer
to page 7).
b. One or more contact sensors shall be located at the bottom of a vehicular
vertical lift gate.
c. One or more contact sensors shall be located at the pinch point of a
vehicular vertical pivot gate.
d. A hardwired contact sensor shall be located and its wiring arranged so
that the communication between the sensor and the gate operator is not
subject to mechanical damage.
e. A wireless contact sensor such as one that transmits radio frequency
(RF) signals to the gate operator for entrapment protection functions
shall be located where the transmission of the signals are not obstructed
or impeded by building structures, natural landscaping or similar
obstructions. A wireless contact sensor shall function under the intended
end-use conditions.
f. One or more contact sensors shall be located on the inside and outside
leading edge of a swing gate. Additionally, if the bottom edge of a swing
gate is grater than 6 inches (152 mm) above the ground at any point in its
arc of travel, one or more contact sensors shall be located at the bottom
edge (refer to page 7).
g. One or more contact sensors shall be located at the bottom edge of a
vertical barrier (arm).
h. Only Use Miller Edge Model MGR20 or MGS20 edge sensor to comply with
UL325
!WARNING! Not Following these instructions may cause severe injury or death.

VIKING TECHNICAL SUPPORT 1.800.908.0884
8
IMPORTANT SAFETY INFORMATION
MAINTENANCE
Remove the Power Harness from the Control Board (refer to page 18)
•Cleanandlubricatetheturningpinsandgatehingesusingtherecommended
lubricant.
•Checkthatallmountinghardwareofthegateoperatorisproperlytighten.
•Ensurethatthegatemovesfreely.
•Checkforcorrodedpartsandreplaceifnecessary.
•Checkthebatteryforthefollowing:
- Battery connections must be free of corrosion.
- Battery voltage must be 26v DC (fully charged battery).
Reconnect the Power Harness for the Control Board (refer to page 18)
•Checkandconfirmtheproperoperationofallsafetydevices(photoelectric
eye, edge sensors or like).
•Checkandconfirmtheoperationofallinstalledaccessories.
•CheckandconfirmtheoperationofallspecialfeaturessuchastheIntelligent
Obstruction Sensor, Hold Open Timer (refer to page 24 and 26)
•Checkandconfirmtheoperationofthemanualrelease(refertopage7)
•Verifybatterybackupfunctionallybyturningoffthepowersource(120vAC
and 220v AC). DO NOT FORGET TO TURN ON THE POWER SOURCE AFTER
VERIFICATION.
GENERAL SAFETY PRECAUTIONS
The following precautions are an integral and essential part of the product and must be
supplied to the user. Read them carefully as they contain important indications for the
safe installation, use and maintenance.
•Theseinstructionmustbekeptandforwardedtoallpossiblefutureusersofthe
system.
•Thisproductmustbeusedonlyforthatwhichithasbeenexpresslydesigned.
•Anyotheruseistobeconsideredimproperandthereforedangerous.
•Themanufacturercannotbeheldresponsibleforpossibledamagecausedby
improper, erroneous or unreasonable use.
•Avoidoperatingintheproximityofthehingesormovingmechanicalparts.
•Donotenterthepathofthemovinggatewhileinmotion.
•Donotobstructthemotionofthegateasthismaycauseasituationofdanger.
•Donotallowchildrentoplayorstaywithinthethepathofthemovinggate.
•Keepremotecontroloranyothercontroldevicesoutofthereachofchildren,in
order to avoid possible involuntary activation of the gate operator.
•Incaseofbreakdownormalfunctioningoftheproduct,disconnectfromthemain
power source. Do not attempt to repair or intervene directly, contact only qualified
personnel for repair.
•Failuretocomplywiththeabovemaycreateasituationofdanger.
•Allcleaning,maintenanceorrepairworkmustbecarriedoutbyqualifiedpersonnel.
•Inordertoguaranteethatthesystemworksefficientlyandcorrectlyitisimportant
to have the manufacturer’s instructions on maintenance of the gate and operator
carried out by qualified personnel.
•Inparticular,regularchecksarerecommendedinordertoverifythatthesafety
devices are operating correctly.
All installation, maintenance and repair work must be documented and made
available to the user.
!WARNING! Not Following these instructions may cause severe injury or death.

VIKING TECHNICAL SUPPORT 1.800.908.0884 9
a. Use only the following type and size battery(ies): Yuasa NP7-12
b. Donotdisposeofthebattery(ies)inre.Thecellsmayexplode.Checkwithlocal
codes for possible disposal instructions.
c. Do not open or mutalate the battery(ies). Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
d. Exercise care in handling batteries in order not to short the battery with
conductying materials such as rings, bracelets and keys.
e. Changethebattery(ies)providedwithoridentiedforusewiththisproductonlyin
accordancewiththeinstructionsandlimitationsspeciedinthismanual.
f. Observe proper polarity orientation between the battery(ies) and charging circuit.
g. Do not mix batteries of differ ant sizes or from different manufactures in this
product (applies to products employing more than one user replaceable secondary
battery).
h. A battery-operated product employing a secondary battery supply intended to be
chargedwithintheproductshallcontainspecicinstructionsconcerningtheproper
method of charging.
! CAUTION: To Reduce the Risk of Fire or Injury to Persons:
IMPORTANT SAFETY INFORMATION
Install the gate operator only when:
The operator is appropriate for the construction of the gate and the Usage Class of
the gate.
UL325 Gate Operator Classification
GLOSSARY
RESIDENTIAL VEHICULAR GATE OPERATOR
CLASS I - A vehicular gate operator (or system) intended
for use in a home of one-to four single family dwelling,
or a garage or parking area associated therewith.
COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR
CLASS II – A vehicular gate operator (or system)
intended for use in a commercial location or building
such as a multi-family housing unit (five or more single
family units), hotel, garages, retail store, or other
building servicing the general public.
INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR
CLASS III – A vehicular gate operator (or system)
intended for use in an industrial location or building
such as a factory or loading dock area or other
locations not intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR
CLASS IV – A vehicular gate operator (or system)
intended for use in a guarded industrial location or
building such as an airport security area or other
restricted access locations not servicing the general
public, in which unauthorized access is prevented via
supervision by security personnel.

VIKING TECHNICAL SUPPORT 1.800.908.0884
10
IMPORTANT SAFETY INFORMATION
NOTE: This type on installation DOES NOT reverse the gate all the way back to
its limits when the photo beam is obstructed. This installation is only to protect
against entrapment and to comply with UL325.
Secondary Entrapment Protection
Photo Beam (non-contact sensor) Installation
• Photo beams or like must be installed to reduce the risk of entrapment.
• Use only Omron E3K-R10K4 photoelectric eye to comply with UL325
• Make the electrical connections of the photoelectric sensor as described here in
this page.
• Care shall be exercised to reduce the risk of nuisance tripping, such as when a ve-
hicle, trips the sensor while the gate is still moving, and;
• One or more non-contact sensors shall be located where the risk of entrapment or
obstruction exists, such as the perimeter reachable by a moving gate or barrier.
Consult the installation manual for the UL325 device (photo beam or like) for detail
information about the usage, installation and maintenance.
!WARNING! Not Following these instructions may cause severe injury or death.

VIKING TECHNICAL SUPPORT 1.800.908.0884 11
NOTE: This type on installation DOES NOT reverse the gate all the way back to
its limits when the edge sensor is obstructed. This installation is only to protect
against entrapment and to comply with UL325.
Secondary Entrapment Protection
Edge Sensor (non-contact sensor) Installation
• Edge Sensors or like must be installed to reduce the risk of entrapment.
• Use only Miller Edge 3-sided activation type MGR20 or MGS20 to comply with
UL325
• One or more contact sensors shall be located on the inside and outside leading
edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater
than 6 inches (152 mm) above the ground at any point in its arc of travel, one or
more contact sensors shall be located on the bottom edge.
1. A hardwired contact sensor shall be located and its wiring arranged so that the
communication between the sensor and the gate operator is not subjected to
mechanical damage.
2. A wireless contact sensor such as one that transmits radio frequency (RF) sig-
nals to the gate operator for entrapment protection functions shall be located
where the transmission of the signals are not obstructed or impeded by building
structures, natural landscaping or similar obstruction. A wireless contact sensor
shall function under the intended end-use conditions.
IMPORTANT SAFETY INFORMATION
Manual Release
When manual operation is required:
1. Remove the operator cover
2. Press the Manual Release Switch
(top) to the “RELEASE” Position.
The gate can now be moved manually.
To resume normal operation, press
the switch to the “ENGAGE” position.
!WARNING! Not Following these instructions may cause severe injury or death.
MANUAL RELEASE
SWITCH

VIKING TECHNICAL SUPPORT 1.800.908.0884
12
Audible Alarm Reset Switch Installation
Manual Reset for the Audible Alarm
• UL325 standard requires an audible alarm to go off after two consecutive events
detected by the primary entrapment protection of the gate operator (obstruction
sensor).
• The audible alarm will continue to sound for 5 minutes or until a stop command
gets actuated.
• The Stop command can be actuated in three different forms:
1. Using the Built in Stop switch on the Control Box or;
2. Using an External Stop button within the sight of the gate, away from moving
parts of the gate and out of reach of children.
a. Controls intended for user activation must be located at least six feet (6’)
away from any moving part of the gate and where the user is prevented from
reaching over, under, around or through the gate to operate the controls.
Outdoor or easily accessible controls shall have a security feature to prevent
unauthorized use.
b. The Stop and/or Reset button must be located in the line-of-sight of the gate.
Activation of the reset control shall not cause the operator to start.
IMPORTANT SAFETY INFORMATION
!WARNING! Not Following these instructions may cause severe injury or death.
Warning Placard Installation
• All Warning Placards must be installed
where visible in the area of the gate.
• A minimum of two placards shall be in-
stalled.
• A placard is to be installed in the area of
each side of the gate and be visible.
2

VIKING TECHNICAL SUPPORT 1.800.908.0884 13

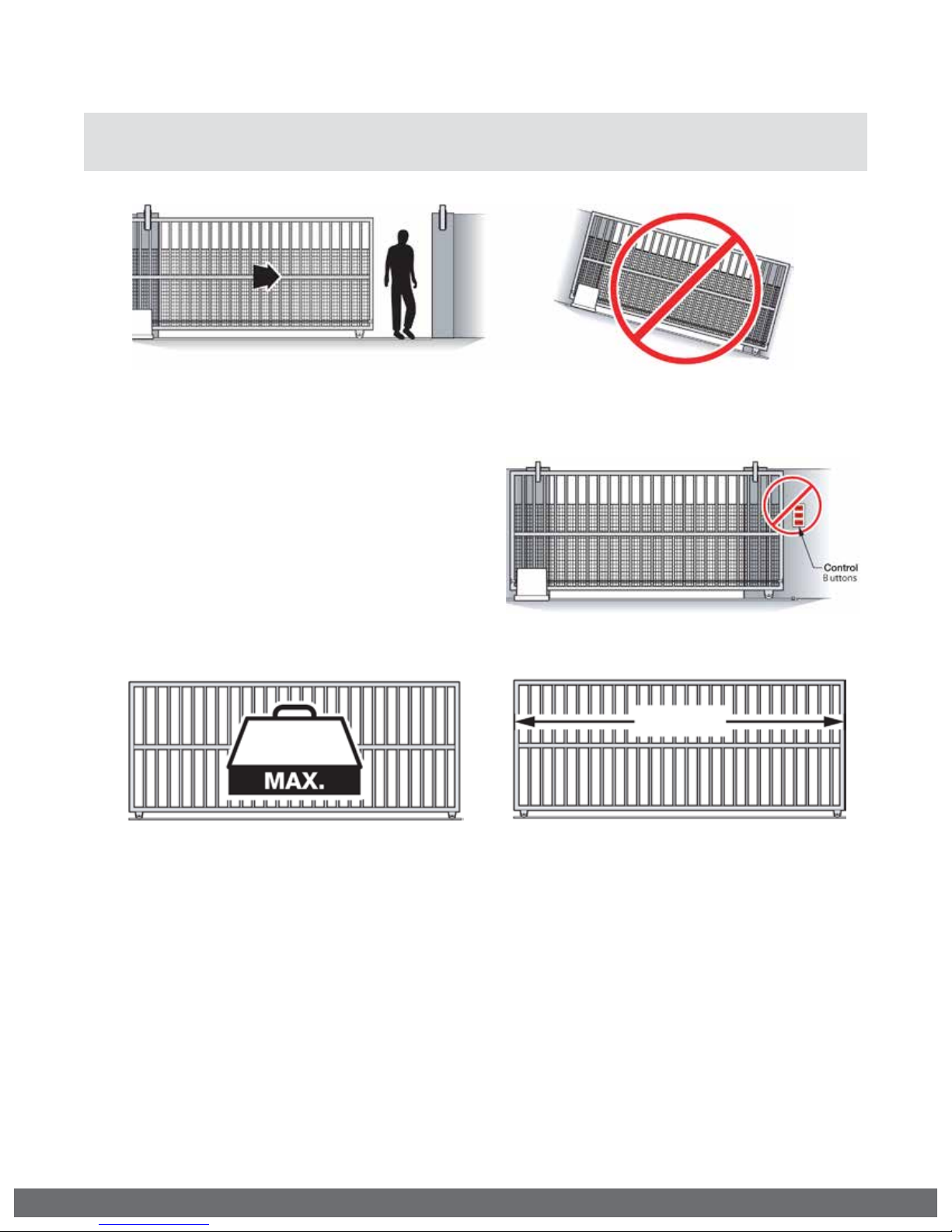

! CAUTION: To Reduce the Risk of Fire or Injury to Persons:
! WARNING: For use with gates at a maximum 700 lbs. in weight or 30 ft. in length.
IMPORTANT INSTALLATION INFORMATION
700 lb.
30 ft
Locate Control Buttons:
1. Within sight of the gate,
2. At a minimum height of 5 feet
so small children are not able to
reach it; and
3. At least 6 feet away from all
moving parts of the gate.
Specications
Maximum Gate Length: 30 ft.
Maximum Gate Weight: 700 lb.
Operating Temperature: -20ºF (-28ºC) to 158ºF (70ºC)
Power Requirements: 115v / 230v AC (4 amp / 2 amp)
Single Phase (50 Hz / 60 Hz)
DO NOT allow pedestrian use of this gate DO NOT install the gate operator to lift gates

VIKING TECHNICAL SUPPORT 1.800.908.0884
14
GATE OPERATOR INSTALLATION
Concrete Pad Option
1. Follow the local building code to determine the required depth of the con-
crete pad.
2. Pad measurements recommended by Viking Access Systems are at lease
24” long, 18” wide and 24” deep to ensure the stable operation of the op-
erator, and a minimum of 4” above level grade to avoid any flooding of the
machinery.
3. Provide a sufficient number of conduit pathways for all low power acces-
sories such as loop detector leads, maglock, non-contact sensors, contact
sensors, safety and other commands. Also provide conduit for the power
supply to the operator.
!DO NOT run low voltage and high voltage wiring in the same conduit.
!Provide at least 12” separation between low and high voltage conduits.

VIKING TECHNICAL SUPPORT 1.800.908.0884 15
Post Mounting Option
Vikings Pipe Stand Kit for K-2 Operator (part # VA-PSKT) is an efficient and effective
solution when your application requires the operator to be post mounted.
1. Consult the local building codes for the depth and concrete requirements.
2. Maximum 3.00” OD pipe.
3. Main Pieces made of 1/4” material.
4. Includes Positioning Bar to aid in the installation process.
5. Provides ample room for conduit pathways.
6. All Hardware included
!DO NOT run low voltage and high voltage wiring in the same conduit.
!Provide at least 12” separation between low and high voltage conduits.
GATE OPERATOR INSTALLATION
Mounting Nut
Washer
Pipe Stand
Washer
Mounting Bolt
K-2 Gate
Operator
Note:
All Mounting Hardware
Supplied with Pipe Stand

VIKING TECHNICAL SUPPORT 1.800.908.0884
16
Operator Positioning
!IM PORTANT: All openings of a horizontal slide gate are guarded or screened from the bot-
tom of the gate to a minimum of 4 feet (1.22 m) above the ground to prevent a 2-1/2 inch
(57.2 mm) diameter sphere from passing through the openings anywhere in the gate, and
in that portion of the adjacent fence that the gate covers in the open position.
GATE OPERATOR INSTALLATION

VIKING TECHNICAL SUPPORT 1.800.908.0884 17
GATE OPERATOR INSTALLATION
!TECHNICAL TIP: Before starting the installation procedure;
• Openandclosethegatemanually,makingsurethereissufcientspacebetweenthegate
and adjacent walls.
• Check that the wheels are turning freely on the track and there are no restrictions while
pushing the gate to the open and closed positions.
• Conrmthatthereisadequatespacingfortheguiderollersandthatthereareno
restrictions throughout the travel of the gate.
STEP 1
Before securing the chassis to the
concrete pad or posts, make sure
the gate and operator is LEVEL and
PARALLEL. Minimum distance between
the operator and gate is 3”.
STEP 2
Chain Installation: Before welding the
provided chain brackets, make sure the
chain will be in a straight line with, and at
the same height as, the chain leaving the
gate operator rollers.
10.50”

VIKING TECHNICAL SUPPORT 1.800.908.0884
18
High Voltage Supply Option
!Caution: Always turn off power breakers when working with high voltage. DO NOT
connect the “Power Harness” to the Control Board until the electrical installation is
complete and ready for verification.
ELECTRICAL INSTALLATION
1a
1b
3a
3b
3c
STEP 1
!WARNING: If 230VAC is supplied,
disconnect the “120V Receptacle” from
the EMI Board.
At the “Power Supply Panel Assembly”:
a. Set the “Voltage Selector” according
to the voltage supply.
b. Turn the “120VAC Power” switch ON
STEP 2
!WARNING: SINGLE PHASE AC ONLY
At the “J-Box”:
a. Connect the incoming power wires
with the wire nuts provided; matching
the color code.
b. Turn ON the main facility breaker.
Tips for proper ground installation:
To minimize the effects caused by lightning, follow
these guidelines.
• Use a ground rod to provide a ground reference.
• Consult your city code and be aware of under-ground
services in the site of the gate operator to prevent
inconveniences.
• Always use a single bonding point for grounding.
• All ground wires must be as short and as thick as
possible.
• Prevent unnecessary turns or loops in all ground
wires.
STEP 3
a. Verify that all three (3) Status LEDs
are illuminated at the front of the
Power Supply Panel Assembly.
b. Turn the “Battery Switch” ON.
At the Control Board:
c. Connect the Power Harness and verify
the “POWER” LED is illuminated solid.
!TECHNICAL TIP: If the “Power” LED is
flashing or any of the 3 LEDs on the
“Power Supply Panel” are not illuminated,
refer to the Troubleshooting pages.
2a
