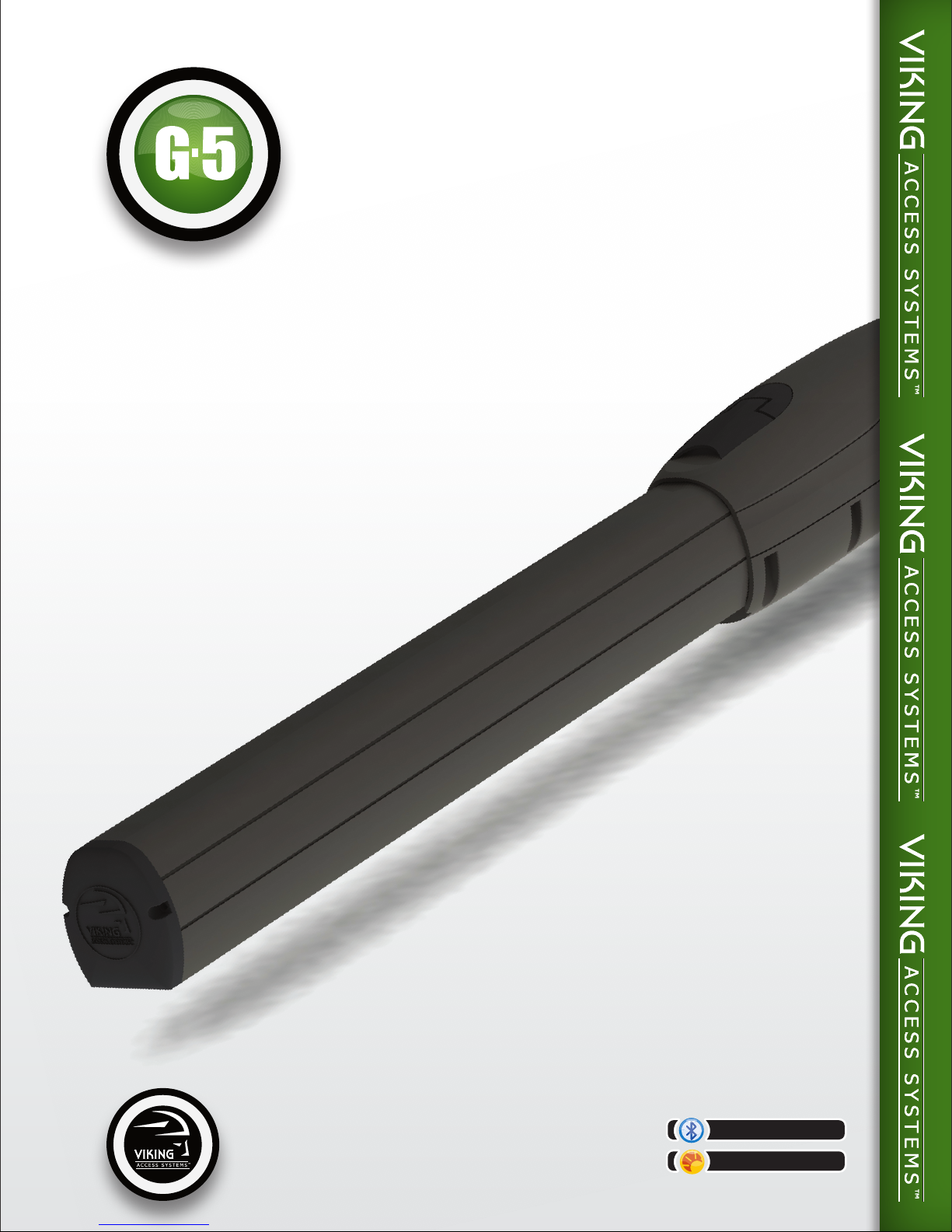

Viking Access Systems G-5 User manual

VIKING BLUE ENABLED
SOLAR EFFICIENT OPERATION
INSTALLATION
INSTRUCTIONS
AND SAFETY INFORMATION
FOR THE VIKING G-5 GATE OPERATOR
CLASS I, CLASS II, CLASS III,
AND CLASS IV
Residential and Commercial
Vehicular Swing Gate Operator

With its compact, low prole design and the power to support up
to 2000 lbs of weight or gate lengths of up to 18 feet, the Viking
G-5™ will revolutionize the idea of gate operation. This operator is
manufactured with the highest quality components and is designed
to accent any gate style. The G-5™ is capable of continuous cycles
operation at 24V DC, converted directly from an AC line. The battery
back-up provides up to 400 cycles of operation with a maximum
capacity gate.
THE VIKING G-5™ SWING GATE OPERATION

G-5 Vehicular Gate Operator •Revision G5MN20.A • July 2012

TECHNICAL SUPPORT 1 800 908 0884 1
TABLE OF CONTENTSTABLE OF CONTENTS

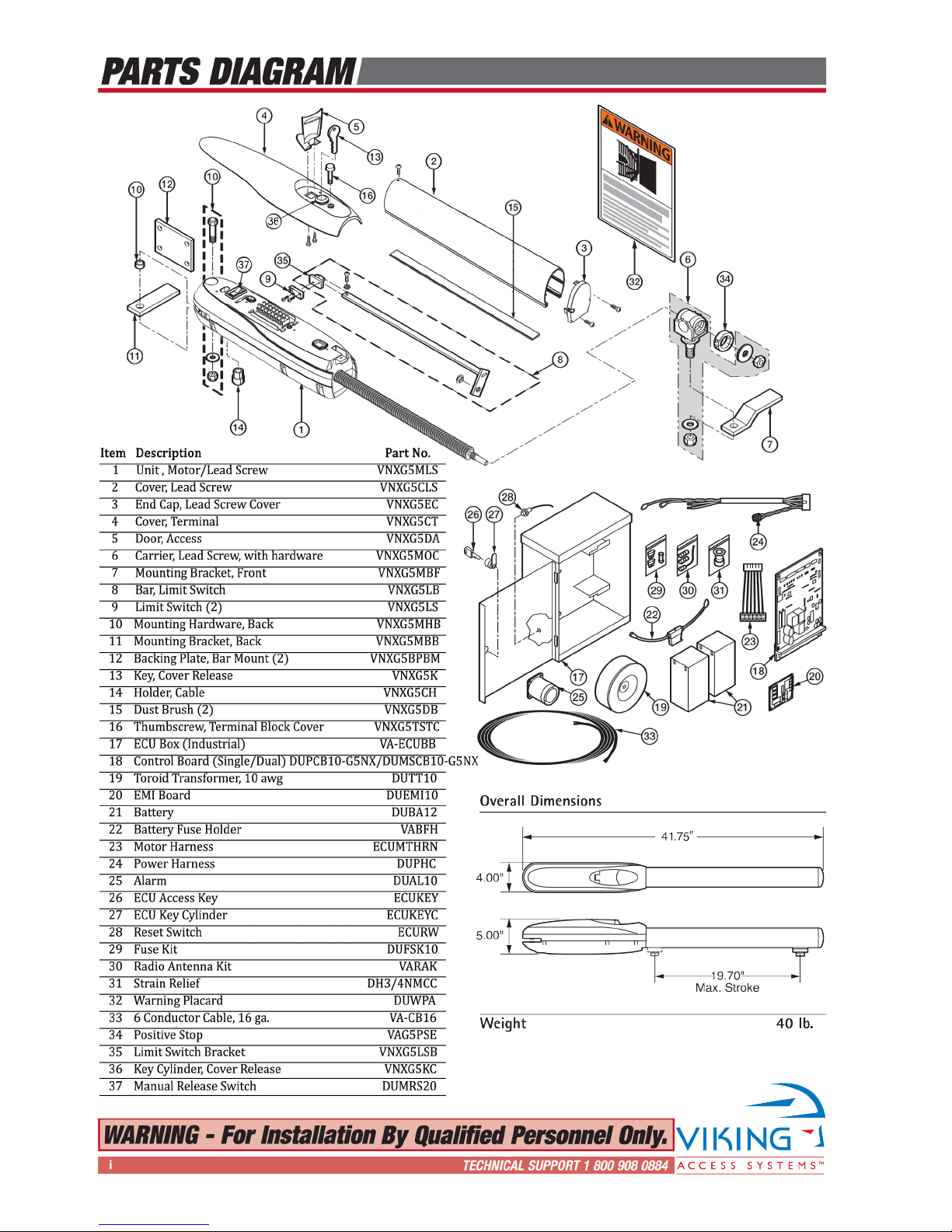

Parts Diagram/Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
Important Safety Information
Important Safety Instructions ......................................2
Important Installation Instructions .................................2-3
Maintenance/General Safety Precautions ..............................4
Terminology ..................................................5
Photo Beam (non-contact sensor) Installation ..........................6
Edge Sensor (contact sensor) Installation ..............................7
Manual Release ................................................7
Audible Alarm Reset Switch Installation ..............................8
Warning Placard Installation ......................................8
Important Installation Information ..................................9
Specifications .................................................9

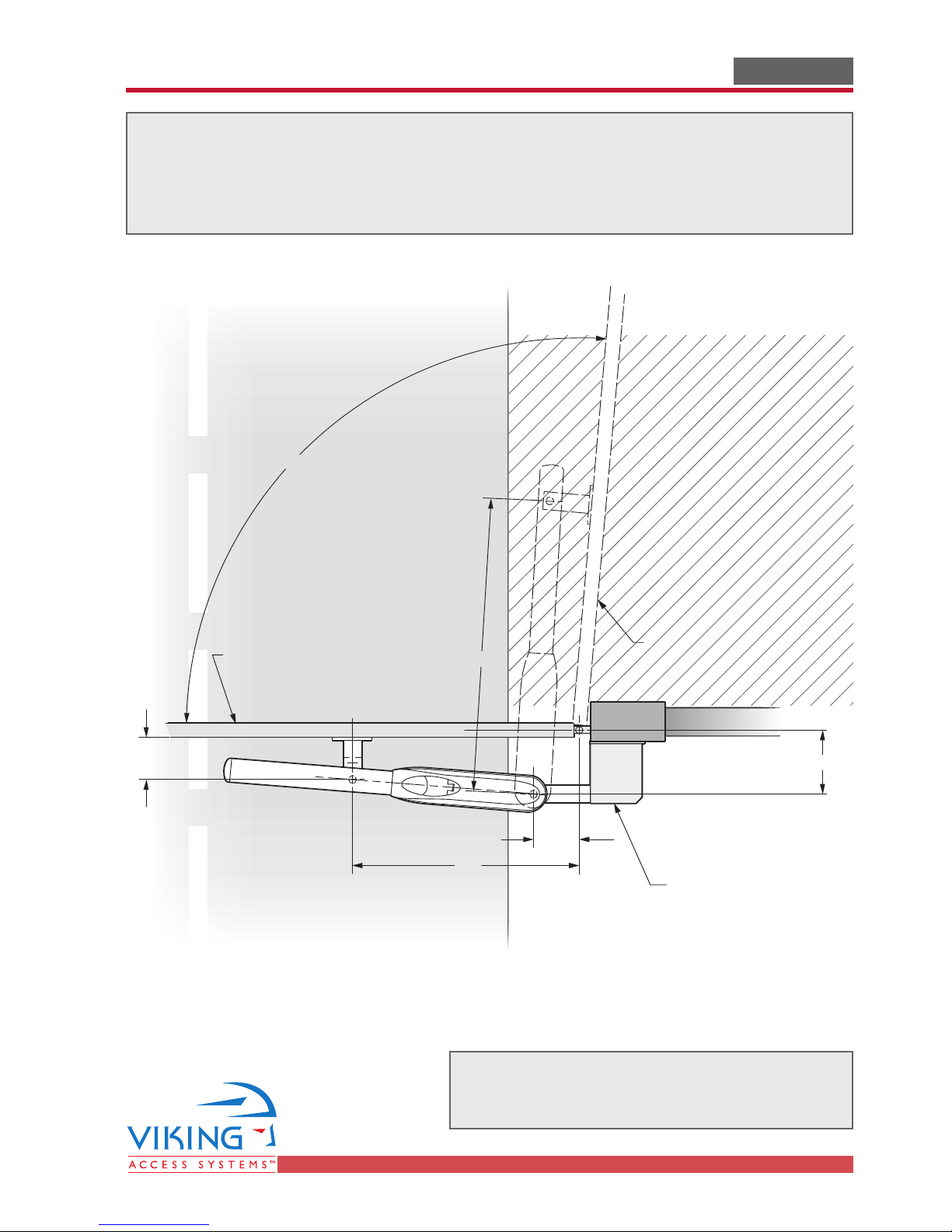

Plan of Installation – Open Inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Plan of Installation – Open Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Gate Operator Installation

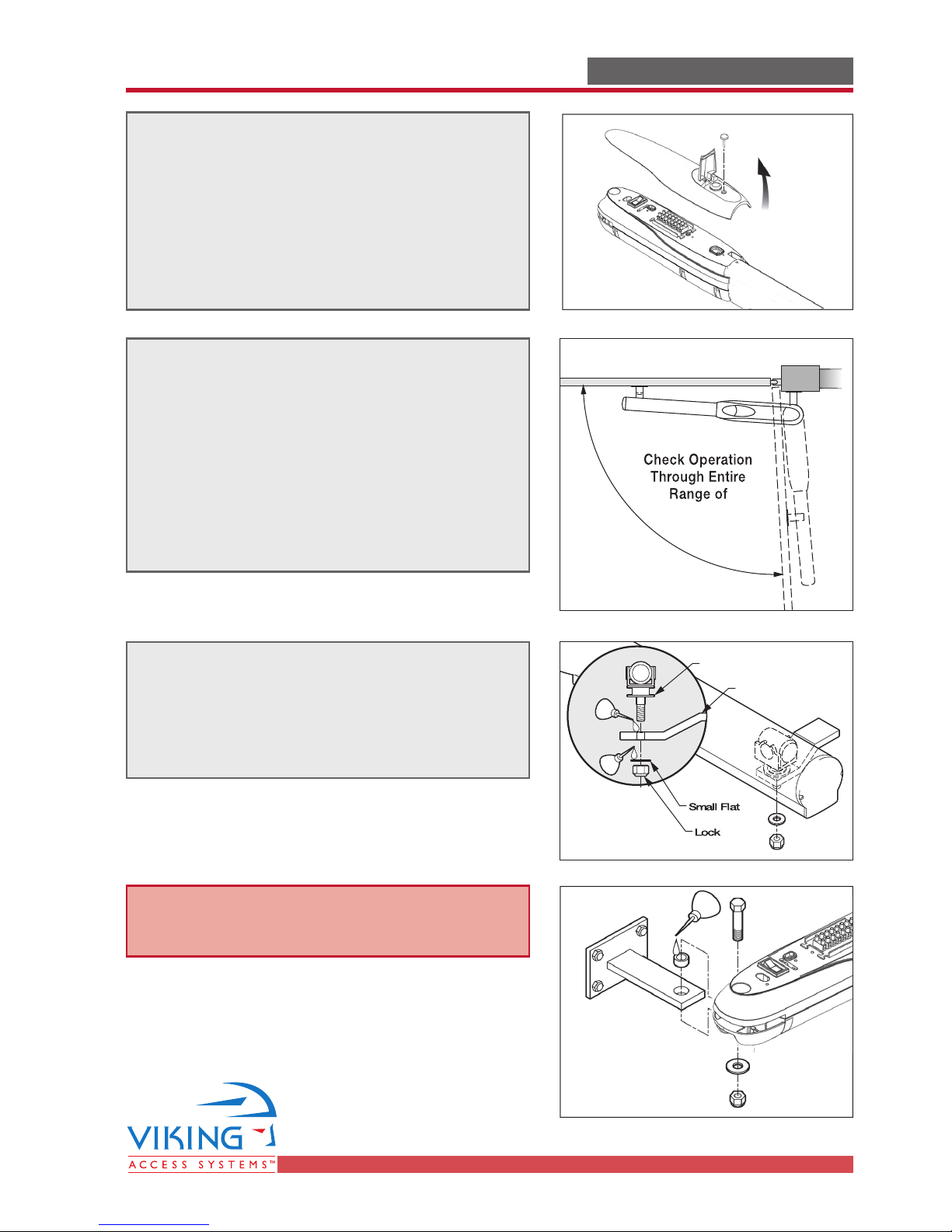

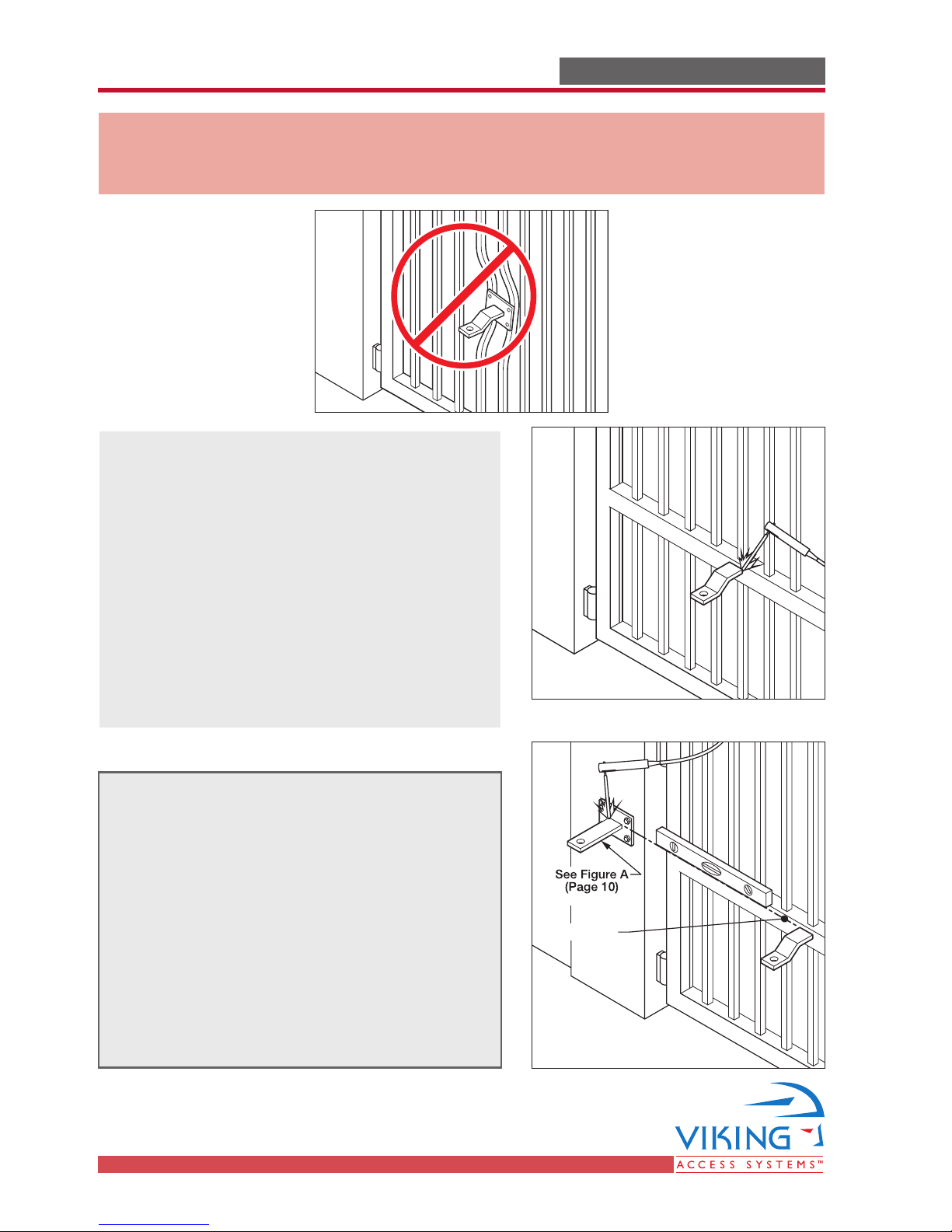

Step 1 through 5 – Operator Installation ............................12-13

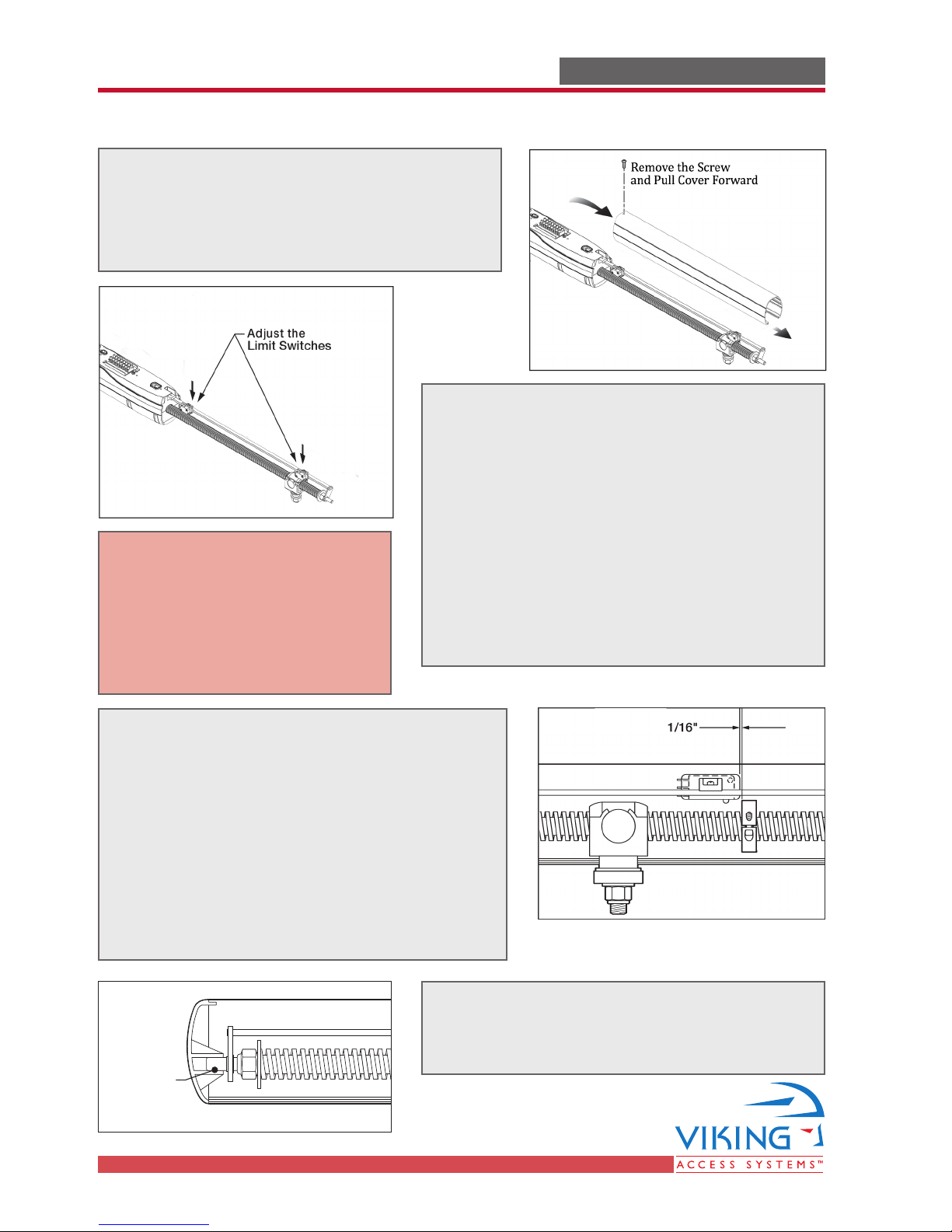

Step 6 through 8 – Limit Switch and Positive Stop Setup .................14
Opening/Closing Setup ..........................................15

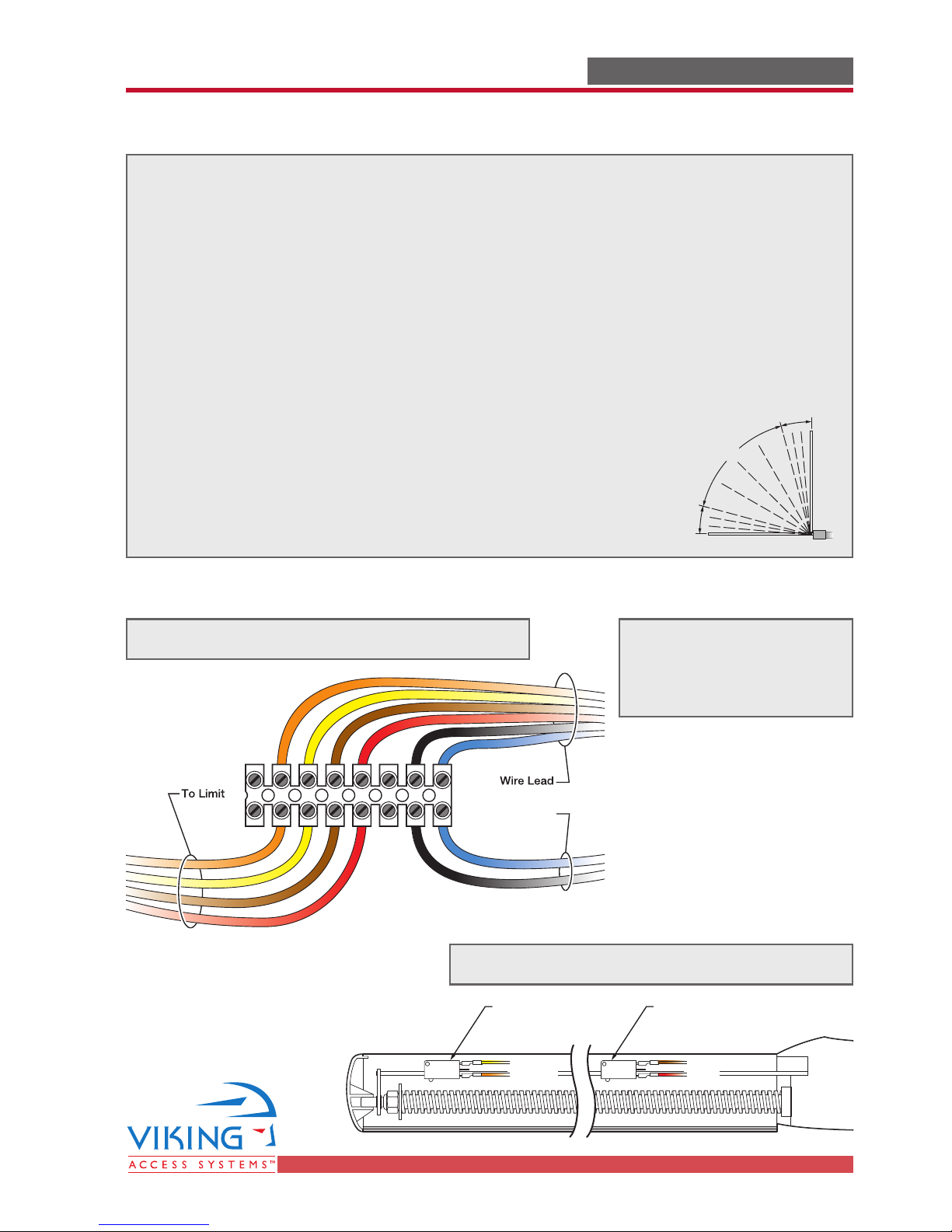

Reference Wiring Diagram; Limit Switch Connections ....................15

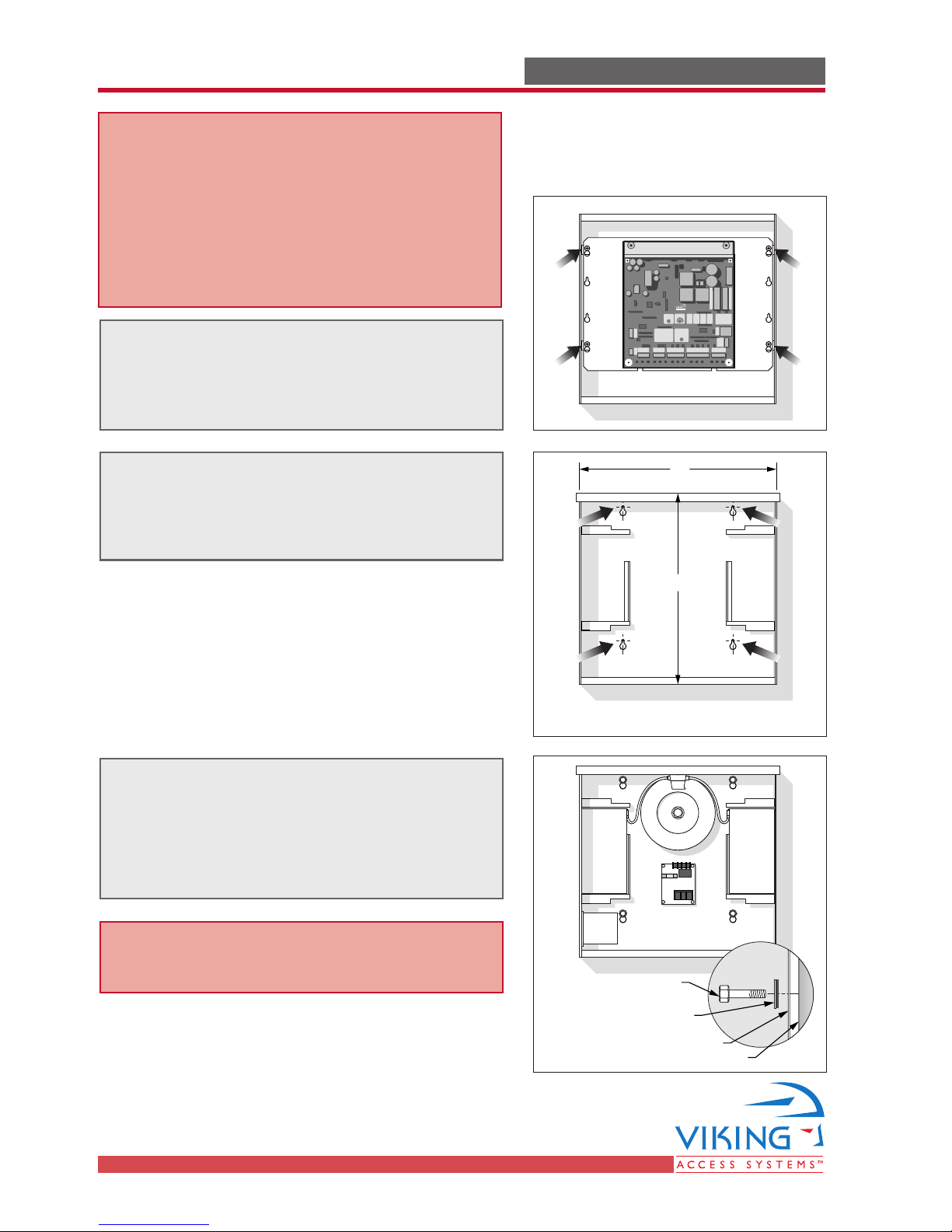

Control BoxInstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Electrical Installation
Electrical Installation (120/220 VAC) ................................17
Single Unit Connections .........................................18
Master/Slave Connections ........................................19
Vehicular Loop Detector Installation
Loop Layout Diagrams ..........................................20
Installation Guidelines ...........................................21
Accessory Connections
Open Commands; Safety Connections ................................22
Radio Receiver ................................................23
Viking Electromagnetic Lock ......................................24
Magnetic Lock; Solenoid; Guard Station ..............................25
Special Features
Intelligent Obstruction Sensor (Primary Entrapment Protection) .............26
Fail Safe/Fail Secure Operation; Hold Open Timer .......................27
Gate Overlap Setting ............................................28
Auto_open Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Optional Solar Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30-31
Pipe Stand Mount Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32-33
Optional VikingBlue Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35-37

TECHNICAL SUPPORT 1 800 908 0884
2
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of severe injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF
THE MOVING GATE.
4. Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or when
an object activates the non-contact sensors. After adjusting the force or the limit of travel,
retest the gate operator. Failure to adjust and retest the gate operator properly can increase the
risk of injury or death.
5. Use the manual release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualified service pro-
fessional make repairs to gate hardware.
7. The entrance is for vehicles only.Pedestrians must use a separate entrance.
8. Every gate operator installation M
MU US ST Thave secondary protection devices
against entrapment, such as edge sensors and photo beams more in particularly
in places where the risk of entrapment is more likely to occur.
9. SAVE THESE INSTRUCTIONS.
IMPORTANT INSTALLATION INSTRUCTIONS
1. Install the gate operator only when:
a) The operator is appropriate for the construction of the gate and the usage Class of the gate
(refer to page 5),
b) All openings of a horizontal slide gate are guarded or screened from the bottom of the gate
to a minimum of 4 feet (1.22 m) above the ground to prevent a 2-1/4 inch (57.2 mm)
diameter sphere from passing through the openings anywhere in the gate, and in that
portion of the adjacent fence that the gate covers in the open position,
c) ALL EXPOSED PINCH POINTS ARE ELIMINATED OR GUARDED, AND
d) GUARDING IS SUPPLIED FOR EXPOSED ROLLERS.
2. The operator is intended for installation only on gates used for vehicles. Pedestrians must be
supplied with a separate access opening. The pedestrian access opening shall be designed to
promote pedestrian usage. Locate the gate such that persons will not come in contact with the
vehicular gate during the entire path of travel of the vehicular gate.
3. The gate must be installed in a location so that enough clearance is supplied between the gate
and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging
gates shall not open into public access areas.
4. The gate must be properly installed and work freely in both directions prior to the installation
of the gate operator. Do not over-tighten the operator clutch or pressure
relief valve to compensate for a damaged gate.
5. The gate operator controls must be placed so that the user has full view
of the gate area when the gate is moving AND AWAY FROM THE GATE
PATH PERIMETER,

TECHNICAL SUPPORT 1 800 908 0884 3
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
6. Controls intended for user activation must be located at least six feet (6’) away from any mov-
ing part of the gate and where the user is prevented from reaching over, under, around or
through the gate to operate the controls. Outdoor or easily accessible controls shall have a secu-
rity feature to prevent unauthorized use.
7. The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the
reset control shall not cause the operator to start.
8. All warning signs and placards must be installed where visible in the area of the gate. A minimum
of two placards shall be installed. A placard is to be installed in the area of each side of the
gate and be visible to persons located on the side of the gate on which the placard is installed.
9. For gate operators utilizing a non-contact sensor (Photo beam or like) in
accordance with section 31.1.1 of the UL325 standard:
a) See instructions on the placement of non-contact sensors for each Type of
application (refer to page 6),
b) Care shall be exercised to reduce the risk of nuisance tripping, such as when
a vehicle, trips the sensor while the gate is still moving, and
c) One or more non-contact sensors shall be located where the risk of entrapment
or obstruction exists, such as the perimeter reachable by a moving gate or
barrier (refer to page 6).
d) Use only Omron E3K-R10K4 photoelectric eye to comply with UL325
10. For a gate operator utilizing a contact sensor (Edge sensor or like) in
accordance with section 31.1.1 of the UL325 standard:
a) One or more contact sensors shall be located where the risk of entrapment or
obstruction exists, such as at the leading edge, trailing edge, and post mounted
both inside and outside of a vehicular horizontal slide gate (refer to page 7).
b) One or more contact sensors shall be located at the bottom edge of a vehicular
vertical lift gate.
c) One or more contact sensors shall be located at the pinch point of a vehicular
vertical pivot gate.
d) A hardwired contact sensor shall be located and its wiring arranged so that the
communication between the sensor and the gate operator is not subjected to
mechanical damage.
e) A wireless contact sensor such as one that transmits radio frequency (RF)
signals to the gate operator for entrapment protection functions shall be
located where the transmission of the signals are not obstructed or impeded
by building structures, natural landscaping or similar obstruction. A wireless
contact sensor shall function under the intended end-use conditions.
f) One or more contact sensors shall be located on the inside and outside leading
edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater
than 6 inches (152 mm) above the ground at any point in its arc of travel, one
or more contact sensors shall be located on the bottom edge (refer to page 7).
g) One or more contact sensors shall be located at the bottom
edge of a vertical barrier (arm).
h) Use only Miller Edge Model MGR20 or MGS20 edge sensor
to comply with UL325
IMPORTANT INSTALLATION INSTRUCTIONS Continued

TECHNICAL SUPPORT 1 800 908 0884
4
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
GENERAL SAFETY PRECAUTIONS
The following precautions are an integral part of the product and must be supplied to the user.
Read carefully as they contain important Recommendations for the safe installation, use, and maintenance.
•These instruction must be kept and forwarded to all possible future users of the system.
•This product must be used only for that which it has been expressly designed.
•Any other use is to be considered improper and therefore dangerous.
•The manufacturer cannot be held responsible for possible damage caused by improper, erroneous, or
unreasonable use.
•Avoid operating in the proximity of the hinges or moving mechanical parts.
•Do not enter the path of the moving gate while in motion.
•Do not obstruct the motion of the gate as this may cause a situation of danger.
•Do not allow children to play or stay within the the path of the moving gate.
•Keep remote control or any other control devices out of the reach of children to avoid possible
involuntary activation of the gate operator.
•In case of break down or malfunction of the product, disconnect from the main power source. Do not
attempt to repair or intervene directly, contact only qualified personnel for repair.
•Failure to comply with the above may create a situation of danger.
•All cleaning, maintenance, or repair work must be carried out by qualified personnel.
•In order to guarantee that the system works efficiently and correctly, it is important to have the manufacturer’s
instructions on maintenance of the gate and operator carried out by qualified personnel.
•In particular, regular checks are recommended in order to verify that the safety devices are operating correctly.
All installation, maintenance, and repair work must be documented and made available to the user.
Installer:
_____________________________________________________ ____________
Signature Date
Contact: _________________________________________________________
_________________________________________________________
MAINTENANCE
Remove the Power Harness from the Control Board (refer to page 17)
•Clean and lubricate the turning pins and gate hinges using the recommended lubricant.
•Clean and lubricate the lead screw using silicon grease.
•Check to ensure all mounting hardware of the gate operator is properly tightened.
•Ensure that the gate moves freely.
•Check for corroded parts and replace if necessary.
•Check the battery for the following:
Battery connections must be free of corrosion.
Battery voltage must be 26 VDC (fully charged battery).
Reconnect the Power Harness to the Control Board (refer to page 17)
•Check and confirm the proper operation of all safety devices (photoelectric eye, edge sensors, ect.).
•Check and confirm the operation of all installed accessories.
•Check and confirm the operation of all special features such as the Intelligent Obstruction Sensor and
Hold Open Timer (refer to page 20 to 27)
•Check and confirm the operation of the manual release (refer to page 7)
•Verify battery backup functionally by turning off the power source (120 VAC and 220 VAC).
DO NOT FORGET TO TURN ON THE POWER SOURCE AFTER VERIFICATION.

UL325 Gate Operator Classification
CAUTION: To Reduce the Risk of Fire or Injury to Persons
GLOSSARY
RESIDENTIAL VEHICULAR GATE OPERATOR
CLASS I – A vehicular gate operator (or system) intended for use
in a home of one-to four single family dwelling, or a garage or
parking area associated therewith.
COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR
CLASS II – A vehicular gate operator (or system) intended for use
in a commercial location or building such as a multi-family hous-
ing unit (five or more single family units), hotel, garages, retail
store, or other building servicing the general public.
INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR
CLASS III – A vehicular gate operator (or system) intended for
use in an industrial location or building such as a factory or
loading dock area or other locations not intended to service the
general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR
CLASS IV – A vehicular gate operator (or system) intended for
use in a guarded industrial location or building such as an air-
port security area or other restricted access locations not servic-
ing the general public, in which unauthorized access is prevented
via supervision by security personnel.
Install the gate operator only when:
The operator is appropriate for the construction of the gate
and the Usage Class of the gate.
a) Use only the following type and size of battery(ies): Yuasa NP7-12
b) Do not dispose of the battery(ies) in fire. The cells may explode. Check with local codes for possible dis-
posal instructions.
c) Do not open or mutalate the battery(ies). Released electrolyte is corrosive and may cause damage to the
eyes or skin. It may be toxic ifswallowed.
d) Exercise care in handling batteries in order not to short the battery with conductive materials such as
rings, bracelets,and keys.
e) Change the battery(ies) provided with or identified for use with this product only in accordance with the
instructions and limitations specified in this manual.
f) Observe proper polarity orientation between the battery(ies) and charging circuit.
g) Do not mix batteries of different sizes or from different manufacturers in this product (applies to products
employing more than one user replaceable secondary battery).
h) A battery-operated product employing a secondary battery supply intended to be charged within the
product shall contain specific instructions concerning the proper method of charging.
TECHNICAL SUPPORT 1 800 908 0884 55
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION

TECHNICAL SUPPORT 1 800 908 0884
6
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
Photo Beam (non-contact sensor) Installation
Secondary Entrapment Protection
Gate in Open Position
Photo Beam Unit Reector
Area (Shaded)
Radio Station
Lock
Mag. Lock
Safety Connector
Open Commands
Rec.SensorLoopLoop
Sensor
Charger
Power
Low Battery
Motor Sensor
Timer
Overlap Delay
Open
Sensor
min. MAX
Radio Station
Loop Connector
Open Commands
Gnd Strike Gnd
Exit Gnd Center Gnd
Reopen
Gnd UL Gnd +28v Gnd
Radio Gnd +28v +28v
Lock
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Check Motor
Timer
30
60
Off 1
Rec.
Sens
Loop
Loop
(C1) (NC1) 24VDC (C1) (NC1) 24VDC
Position
24 VDC Power Connections
24 VDC Power Connections
Shown
Connection '3' (NC1)
Connection '1' (C1)
Photo beams or like must be installed to reduce the risk of entrapment.
Use only Omron E3K-R10K4 photoelectric eye to comply with UL325
Make the electrical connections of the photoelectric sensor as described here on this page.
Care shall be exercised to reduce the risk of nuisance tripping, such as when a
vehicle trips the sensor while the gate is still moving; and
One or more non-contact sensors shall be located where the risk of entrapmentor
obstruction exists, such as the perimeter reachable by a moving gate or barrier.
NOTE - This type of installation DOES NOTreverse the gate all the way back to its limits when the photo-beam
is obstructed. This installation is only to protect against entrapment and to comply with UL325.
One or more non-contact sensors should be located where the risk of entrapment or
obstruction exists, such as the perimeter reachable by a moving gate or barrier.
Consult the installation manual of the UL325 device (photo
beam or like) for detail information about the usage,
installation, and maintenance

TECHNICAL SUPPORT 1 800 908 0884 7
Radio Station
Lock
Mag. Lock
Safety Connector
Open Commands
Timer
Radio Station
Loop Connector
Open Commands
Gnd
Strike Gnd Exit Gnd Center Gnd
Reopen
Gnd UL Gnd +28v Gnd
Radio Gnd +28v +28v
Lock
MAG. LOCK
N.C.
COM
N.O.
Timer
30
60
Off 1
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
Edge Sensor (contact sensor) Installation
Secondary Entrapment Protection
Edge sensor or like must be installed to reduce the risk of entrapment.
Use only Miller Edge 3-sided activation type MGR20 or MDS20 to comply with UL325
One or more contact sensors shall be located on the inside and outside leading edge
of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 6
inches (152 mm) above the ground at any point in its arc of travel, one or more
contact sensors shall be located on the bottom edge.
1. A hardwired contact sensor shall be located and its wiring arranged so that the
communication between the sensor and the gate operator is not subjected to
mechanical damage.
2. A wireless contact sensor such as one that transmits radio frequency (RF) signals
to the gate operator for entrapment protection functions shall be located where
the transmission of the signals are not obstructed or impeded by building
structures, natural landscaping or similar obstruction. A wireless contact sensor
shall function under the intended end-use conditions.
Manual Release
When manual operation is required:
1. Unlock and remove the Top Cover with the
Key or optional Thumbscrew provided.
2. Place the Manual Release Switch to the
“RELEASE” position.
3. To resume normal operation, place the
Manual Release Switch back to the
“ENGAGE” position.
3-Sided Edge Sensor
3-Sided Edge Sensor
Manual Release Switch
Key Release
Thumbscrew

TECHNICAL SUPPORT 1 800 908 0884
8
Audible Alarm Reset Switch Installation
Manual Reset for the Audible Alarm
UL325 standard requires an audible alarm to go off after two consecutive events
detected by the primary entrapment protection of the gate operator (obstruction sensor).
The audible alarm will continue to sound for 5 minutes or until a stop command
gets actuated.
The Stop command can be actuated in two different forms:
1. Using the Built in Stop switch on the Control Box; or
2. Using an External Stop button within the sight of the gate, away from moving
parts of the gate and out of reach of children.
3. Controls intended for user activation must be located at least six feet (6’) away
from any moving part of the gate and where the user is prevented from reaching
over, under, around, or through the gate to operate the controls. Outdoor or easily
accessible controls must have a security feature to prevent unauthorized use.
4. The Stop and/or Reset button must be located in the line-of-sight of the gate.
Activation of the reset control must not cause the operator to start.
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
Warning Placard Installation
Button
Minimum
STOP
All Warning Signs and Placards must be installed where visible in the area
of the gate. A minimum of two placards must be installed. A placard is
to be installed in the area of each side of the gate and be visible.
Open Commands
Guard Station
Master/Slave
Brake
Siren
Sensor
Timer
Stop
Overlap Delay
Close Open
Sensor
min. MAX
Delay
1.5
0
3
Open Commands
Guard Station
Master/Slave
GND Close Stop
Open GND Close Stop Open Gnd Fire Gnd Strike Gnd
Exit
Timer
Stop
Close
Open
30
60
Brake
Siren
JP3
C35 C36
COM
N.O.
STOP

TECHNICAL SUPPORT 1 800 908 0884 9
CAUTION - FOR USE WITH GATES OF A MAXIMUM OF 18 FT. IN LENGTH AND 700 LBS. IN WEIGHT.
WARNING - TO REDUCE THE RISK OF SEVERE INJURY OR DEATH TO PERSONS:
IMPORTANT INSTALLATION INFORMATIONIMPORTANT INSTALLATION INFORMATION
Specifications
This is NOT a pedestrian gate operator Do NOT Install the gate operator to lift gates
Maximum Gate Weight/Length: Refer to Chart
Power Requirements: 120 VAC Single Phase at 2 Amps
Or
220 VAC Single Phase at 1 Amp
Operating Temperature: -20°C (-4°F) to 70°C (158°F)
C L OSE
STOP
OPEN
Button sButtons
Locate Control Buttons:
1. Within sight of the gate,
2. At a minimum height of 5 feet so
small children are not able to
reach it; and
3. At Least 6 Feet away from all moving
parts of the gate.
2000 lb
1500 lb
1000 lb
800 lb
10’ 12’ 16’ 18’
Lb
Ft
Gate Weight/Length Relationship
Max.
Max.
Max.
Max.

BC
Inside
Outside
Gate in Closed Position
D
90°/ 120°
A
E
Gate in Open Position
Note: Back Mounting Bracket
Must Be Cut to Obtain
Desired Dimension “A”
TECHNICAL SUPPORT 1 800 908 0884
10
PLAN OF INSTALLATION - OPEN INSIDEPLAN OF INSTALLATION - OPEN INSIDE
The gate must be installed in a location so that enough clearance is supplied
between the gate and adjacent structures when opening and closing to reduce the
risk of entrapment.
Swinging gates shall not open into public access areas.
Note: Varying from the dimensions shown
may severely affect the speed and
performance of the gate operator.
Figure A
Open Inside Plan of Installation
NORMAL INSTALLATION
Range A B C D E Opening Time
Option A 6.00 4.50 27 31.5 4.75 14 seconds
Option B 6.625 7.875 28 35.875 4.75 20 seconds

TECHNICAL SUPPORT 1 800 908 0884 11
The gate must be installed in a location so that enough clearance is supplied
between the gate and adjacent structures when opening and closing to reduce the
risk of entrapment.
Swinging gates shall not open into public access areas.
PLAN OF INSTALLATION – OPEN OUTSIDEPLAN OF INSTALLATION – OPEN OUTSIDE
Inside
Outside
Not a
Not a
Public
Public
Access Area
Access Area
A: 7-7/8"
C:
28"
Custom Plate
Required
(Not Supplied)
90°/ 105°
B:
6-5/8"
E: 4-3/4"
Gate in Open Position
Gate in Closed Position
D:
35-7/8"
Figure B
Open Outside Plan of Installation
Note: Varying from the dimensions shown
may severely affect the speed and
performance of the gate operator.

TECHNICAL SUPPORT 1 800 908 0884
12 16
STEP 1
Cut and position the Front Mounting Bracket
(offset bar) according to figure A or B found
on page 10 or 11. Tack weld the bracket in
place. Ensure that the bracket is level.
Note: It is recommended to use a frame
member across the full width of the gate.
For gates of non-ferrous construction, a back-
ing plate is provided. The bracket must be cut to
the proper length and welded to the backing plate
if used.
STEP 2
Cut and position the Back Mounting Bracket
(pivot bar) according to figure A or B found
on page 10 or 11. Tack weld the bracket in
place. Ensure that the bracket is level.
Note: For an Open Outside gate, an additional
bracket will need to be fabricated to obtain the
proper configuration (see Figure B, page 11).
Level Line
For Location
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
CAUTION - If Front Mounting Bracket is not welded to a frame member that runs the
full length of the gate, the gate operator may damage the gate. Do not weld the
bracket or backing plate to a few pickets.
A backing plate is also provided if unable to
weld the Back Mounting Bracket to the gate
post or column.

TECHNICAL SUPPORT 1 800 908 0884 1317
Step 3
Remove the Top Cover and set for Manual
Realease:
a) Open the plastic flap
b) Remove the Top Cover.
STEP 4
Mount the operator and ensure that the gate
and gate operator moves freely.
Place the Manual release switch back to the
“Reset”position.
Once it is determined the operator will work
properly, remove the operator and complete
the welding process.
Movement
STEP 5
Remount the gate operator. Lubricate the
moving parts (the carrier bolt shaft on the
lead screw bar, the large and small washer)
and tighten the self-locking nut.
Lead Screw Carrier
Front Mounting Bar
Washer
Washer
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
Note: The Rear Pivot Bushing provided is oil
impregnated and does not require lubrication.
c) Place the Manual Release Switch in the
“Off” Position.

TECHNICAL SUPPORT 1 800 908 0884
14 18
STEP 6
Remove the lead screw cover:
a) Remove the screw and
b) Slide out the cover.
STEP 7
Loosen the screws on the limit switch
holders and position the limit switches to
the desired position.
Move the gate manually and ensure that the
limit switch gets actuated at the desired open
and closed position. The limit switch will click
when engaged by the lead screw carrier.
Retighten the screws on the limit switch
holders once the proper position has been
determined (DO NOT OVERTIGHTEN).
STEP 8
Replace the cover taking care to position the
shaft properly inside the endcap.
Note: Leave cover off until after
the installation of the control box
and the electrical installation.
Verify that the operator opens
and closes to the desired
position under power. Make any
adjustments as necessary.
Align Shaft
with Endcap
Socket
Limit Switch Setup
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
With the Close Limit Switch properly adjusted
and the gate partially open, install the Positive
Stop Collar onto the shaft in the position shown.
(There should be a 1/16” gap between the
Collar and the Limit Switch Holder). Tighten
the Collar evenly until secure.
Close the gate and check that the gate stops at
the inteneded place. If not, readjust the collar
as necessary and recheck the position after
opening and closing the gate.

O
r
a
n
g
e
Y
e
l
l
o
w
B
l
u
e
B
l
a
c
k
B
r
o
w
n
R
e
d
Switches To Motor
From Control Box
TECHNICAL SUPPORT 1 800 908 0884 15
Note: Use this wiring
diagram as a guide to
connect the wires to the
motor unit.
The Limit Switches are wired as shown
Limit Switch Connections
COM
N.O.
N.C.
Yellow
Orange
COM
N.O.
N.C.
Brown
Red
Limit Switch Limit Switch
Connect the lead wires as shown
To have the gate operator slow down prior to reaching its limits use the following steps:
1. Setup the Limit Switches manually at the desired open and close position.
2. Allow the gate operator to run a full open and close cycle (from limit to limit)
without interruption.
Note: During the first full open and close cycle: The gate operator doesn’t slow
down prior to reaching its limits. During subsequent cycles: The gate operator will
slow down prior to reaching its limits.
3. Verify that the gate opens and closes to the desired position.
To change the open or close limit position(s) the following steps MUST BE taken:
A. Reset the gate operator by performing one of the following steps:
i. Disconnect the Motor/Limit Harness Connector
(see page 18 or 19) or
ii. Actuate both limits at the same time
B. Repeat steps 1, 2 and 3.
Reference Wiring Diagram
Opening/Closing Setup:
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
Fast
Slow
Slow

TECHNICAL SUPPORT 1 800 908 0884 1516
CONTROL BOX INSTALLATIONCONTROL BOX INSTALLATION
WARNING - If the control box is not
mounted properly it may fall, causing
damage and/or injury. The Electronic
Control Unit (ECU) weight is
approximately 40 lbs. Be sure that the
substrate being mounted to and the
fasteners being used are appropriate to
support the weight of the control box.
2. Position the ECU Box in the desired place
and mark the mounting holes. Prepare the
holes to receive the anchors/fasteners.
17"
Depth: 6.5"
16"
1. Disconnect the Siren and Stop Button
Leads from the Control Board. Remove
the Control Board Mounting Plate. The
plate is held in the box by four screws.
3. Position the ECU Box and secure it to the
mounting surface using the Sealed
Washers provided (place the rubber side
of the washers against the inside of the
control box).
Mounting Surface
Control Box
Sealed Washer
(Supplied with Unit)
Mounting Fastener
(Customer Supplied)
Note: Depending on type of anchor used, it
may be necessary to enlarge the
mounting holes in the control box.
