Installation Guide
5 Series
Outdoor Gas Grills

Table of Contents
• Before beginning, please read these instructions
completely and carefully.
• Do not remove permanently affixed labels,
warnings, or plates from product. This may void
the warranty.
• Please observe all local and national codes and
ordinances.
• The installer should leave these instructions with
the consumer who should retain for local
inspector’s use and for future reference.
• This outdoor cooking appliance shall be only
used outdoors and shall not be used in a
building, garage or any other enclosed area.
Installation must conform with local codes
or in the absence of codes, the National Fuel Gas
Code, ANSI Z223.1/NFPA 54.
In Canada: Installation must be in accordance with
the current CSA-B149.1, Natural Gas and Propane
Installation Code or CSA-B149.2, Propane Storage
and Handling Code and/or local codes. For units
with an external electrical source, when installed,
must be electrically grounded in accordance with
local codes or with the National Electrical code
ANSI/NFPA 70, or Canadian Electrical code, CSA
C22.1.
IMPORTANT –Please Read and Follow
Important Safety Instructions __________________________________________________________2
Dimensions (30" & 36" W. Grills) ______________________________________________________4
Specifications (30" & 36" W. Grills) ____________________________________________________5
Dimensions (42” & 54" W. Grill) _______________________________________________________6
Specifications (42” & 54" W. Grill) _____________________________________________________7
General Information__________________________________________________________________8
Clearance Dimensions ______________________________________________________________10
Cutout Dimensions _________________________________________________________________12
Ventilation for Built-In Installations ____________________________________________________16
Gas and Electrical Connection _______________________________________________________17
Natural Fixed Piping Connection _____________________________________________________18
LP/Propane Fixed Piping Connection _________________________________________________19
Built-In Installations _____________________________________________________________20
LP/Propane Tank Requirements ______________________________________________________20
LP/Propane Tank Connection ________________________________________________________21
Leak Testing _______________________________________________________________________22
Burner Adjustment__________________________________________________________________24
Rotisserie System ___________________________________________________________________26
Final Preparation ___________________________________________________________________27
Performance Checklist ______________________________________________________________27
Service & Registration_______________________________________________________________27
2

IMPORTANT
3
–Please Read and Follow
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install this
unit. Failure to follow this instruction can result
in back or other injury.
FOR YOUR SAFETY
If not installed, operated and maintained in
accordance with the manufacturer’s instructions,
this product could expose you to substances in
fuel or fuel combustion which can cause death
or serious illness and which are known to cause
cancer, birth defects or other reproductive harm.
For example, benzene is a chemical which is
part of the gas supplied to the cooking product.
It is consu-incomplete combustion. Properly
adjusted burners with a bluish rather than yellow
flame minimize incomplete combustion.
WARNING
This outdoor gas grill is not intended to be
installed inside a home or on recreational
vehicles and/or boats.
WARNING
Keep electrical supply cord and the fuel supply
hose away from heated surfaces.
WARNING
This appliance is not fused. Installer must install
a ground fault interrupt.
CAUTION
Conversions should only be performed by an
authorized service technician.
WARNING
ELECTRICAL SHOCK HAZARD
This appliance is equipped with a 3’ (91.4 cm)
3-prong power cord with a grounding plug for
your protection against shock hazard and should
be plugged directly into a properly grounded
receptacle. Do not cut or remove the grounding
prong from this plug. This unit is not fused and
installer must install a GFI. Unit must be
grounded in accordance with local codes or with
the National Electrical Code ANSI/NFPA 70, or
the Canadian Electrical Code, CSA C22.1.
CAUTION
Before placing into operation, always check for
gas leaks with a soapy water solution. DO NOT
USE AN OPEN FLAME TO CHECK FOR LEAKS.
DANGER
WHAT TO DO IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance, immediately call your gas supplier
or your fire department.
FOR YOUR SAFETY
• DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
• Any LP cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.

4

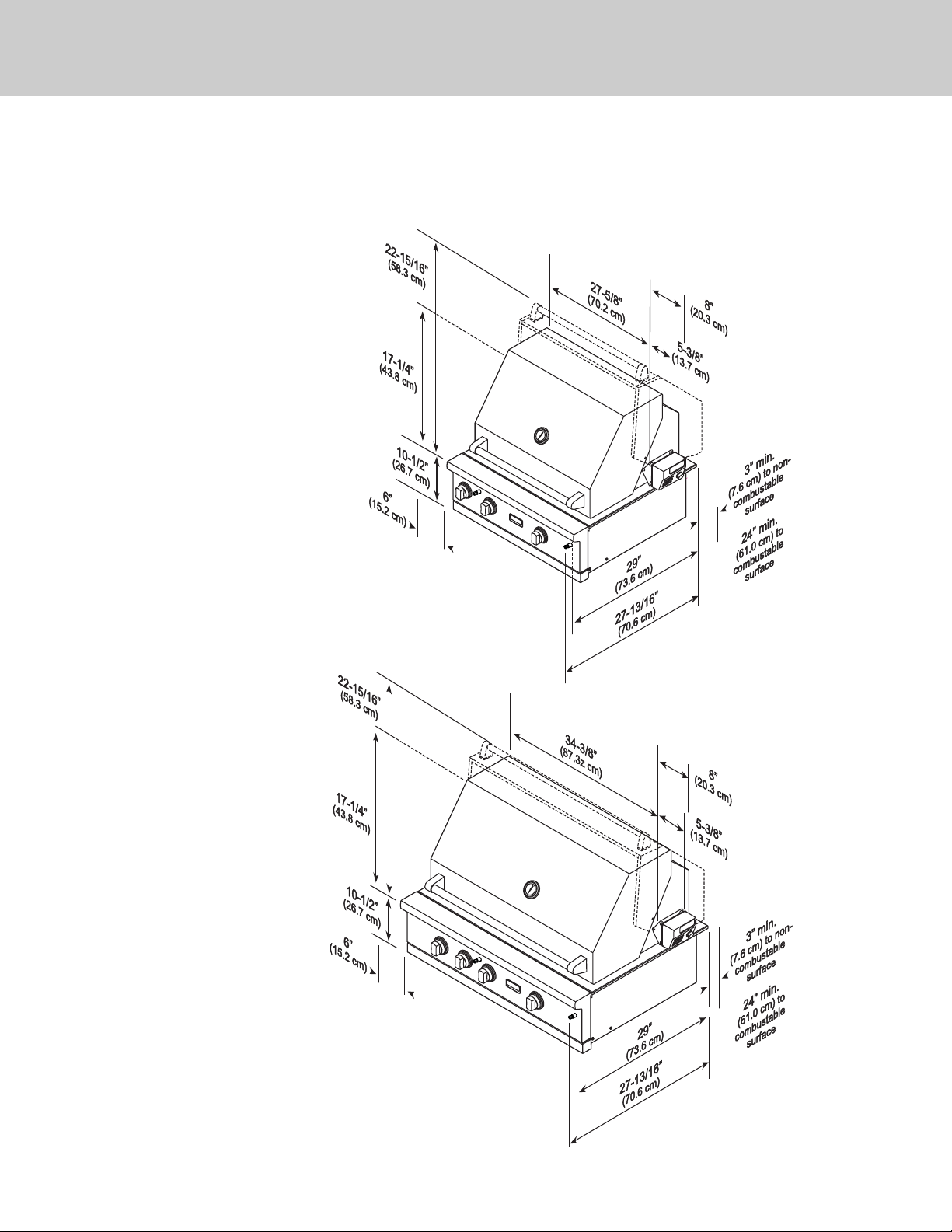

Dimensions (30" & 36" W. Grills)
30-1/16"
30-1/16"
(76.4 cm)
(76.4 cm)
29"
29"
(73.6 cm)
(73.6 cm)
29-7/8"
29-7/8"
(75.9 cm)
(75.9 cm)
17-1/4"
17-1/4"
(43.8 cm)
(43.8 cm)
10-1/2"
10-1/2"
(26.7z cm)
(26.7z cm)
30" W.
36" W.
35-7/8"
35-7/8"
(91.1 cm)
(91.1 cm)
29"
29"
(73.6 cm)
(73.6cm)
34-3/8"
34-3/8"
(87.3 cm)
(87.3 cm)
17-1/4"
17-1/4"
(43.8 cm)
(43.8 cm)
10-1/2”
10-1/2”
(26.7 cm)
(26.7 cm)

30” W. & 36” W. Grills
Description
VGBQ53024/CVGBQ53024 VGBQ53624/CVGBQ53624
Cutout width 29-1/4” (74.2cm) 35-1/4” (89.5cm)
Cutout depth 24-3/8” (67.9 cm)
Cutout height 10-1/8” (25.7 cm)
Overall width 30-1/16” (76.4 cm) 35-7/8” (91.1 cm)
Overall depth 29” (73.6 cm)
Gas requirements Natural: standard residential 1/2” (1.3 cm) ID gas service line.
LP/Propane: equipped with high capacity hose/regulator assembly for
connection to standard 5gal, 20 lb. LP/Propane gas cylinder with
Type 1, QCC-1 connection or standard residential 1/2” (1.3 cm)
ID gas service line.
Electrical
requirements
120VAC/60 Hz 3’ (.9 m) power cord supply with 2-prong
plug attached to rotisserie motor
Grill burner rating 25,000 BTU Nat./22,500 BTU LP (7.3 kW Nat./6.5 kW LP)
Rotisserie burner rating 15,000 BTU Nat./13,500 BTU LP
(4.4 kW Nat./4.0 kW LP)
Approximate
shipping weight
240 lbs.
(109 kg
255 lbs.
(116 kg)
5
Specifications (30" & 36" W Grills.)
Note:
An insulated jacket (INJK-purchased separately) is required when
installing a 5 series grill in combustible type material.

6
42”
42”
(106.7 cm)
(106.7 cm)
29”
29”
(73.7 cm)
(73.7 cm)
39-1/2”
39-1/2”
(100.3 cm)
(100.3 cm)
17-1/4”
17-1/4”
(43.8 cm)
(43.8 cm)
10-1/2”
10-1/2”
(26.7 cm)
(26.7 cm)
54” Grill

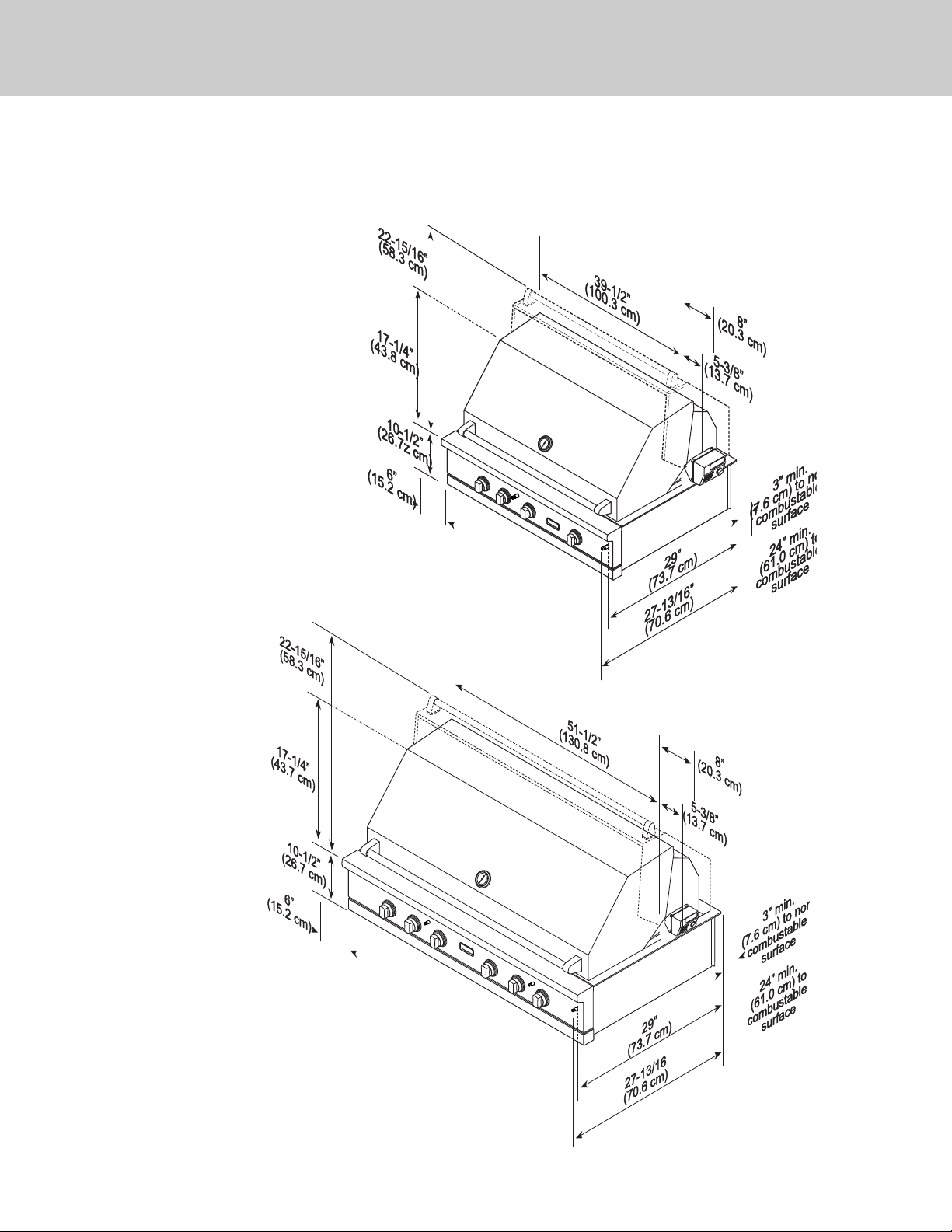

Dimensions (42” & 54" W. Grill)
54”
54”
(137.2 cm)
(137.2 cm)
29”
29”
(73.7 cm)z
(73.7 cm)z
51-1/2”
51-1/2”
(130.8 cm)
(130.8 cm)
17-1/4”
17-1/4”
(43.8z cm)
(43.8z cm)
10-1/2”
10-1/2”
(26.7 cm)
(26.7 cm)
42" W.

7
Specifications (42” & 54" W. Grill)
42” W. & 54” W. Grills
Description
VGBQ54224/CVGBQ54224
VGIQ54224/CVGIQ54224 VGBQ55424/CVGBQ55424 VGIQ55424/CVGIQ55424
Cutout width 40-1/4”” (102.2 cm) 52-1/4” (132.7 cm)
Cutout depth 24-3/8” (67.9 cm)
Cutout height 10-1/8” (25.7 cm)
Overall width 42” (106.7 cm) 54” (137.2 cm)
Overall depth 29” (73.6 cm)
Gas requirements Natural: standard residential 1/2” (1.3 cm) ID gas service line.
LP/Propane: equipped with high capacity hose/regulator assembly for
connection to standard 5gal, 20 lb. LP/Propane gas cylinder with
Type 1, QCC-1 connection or standard residential 1/2” (1.3 cm)
ID gas service line.
Electrical
requirements
120VAC/60 Hz - 3’ (.9 m) power cord supply cord with 2-prong
plug attached to rotisserie motor
Grill burner rating 25,000 BTU Nat./22,500 BTU LP (7.3 kW Nat./6.5 kW LP)
TruSearTM burner rating 30,000 BTU Nat/L.P (8.7 kW Nat/LP)
Rotisserie burner rating 15,000 BTU Nat./13,500 BTU LP
(4.4 kW Nat./4.0 kW LP)
Approximate
shipping weight
255 lbs.
(116 kg)
330 lbs.
(149.7 kg)
Note:
An insulated jacket (INJK-purchased separately) is required when
installing a 5 series grill in combustible type material.

General Information
• Keep grill area clear and free from combustible
materials, gasoline, and other flammable
vapors.
• When the outdoor grill is not in use, the gas
supply must be turned off at the LP gas supply
cylinder.
• The pressure regulator and hose assembly
supplied with the outdoor grill must be used.
Replacement pressure regulators and hose
assemblies must be those specified by the
manufacturer.
• Finding a leak is not a “do-it-yourself”
procedure. Some leaks can only be found with
the burner control in the on position and this
must be done by a qualified technician.
• The LP supply cylinder to be used must be
constructed and marked in accordance with
the specifications for LP- gas cylinders of the
U.S. Department of Transportation (DOT) or
the National Standard of Canada, CAN/CSA-
B339, Cylinders, Spheres, and Tubes for the
Transportation of Dangerous Goods.
• Use only extension cords with a 3-prong
grounding plug, rated for the power of the
equipment, and approved for outdoor use with
a W-A marking.
• Gas Manifold Pressure–
Natural gas - 4.0” W.C.P.
LP/Propane - 10.0” W.C.P.
8
WARNING
This outdoor gas grill is not intended to be
installed inside a home or on recreational vehicles
and/or boats.
WARNING
Keep electrical supply cord and the fuel supply
hose away from heated surfaces.
WARNING
This appliance is not fused. Installer must install
a ground fault interrupt.
WARNING
If the following instructions are not followed
exactly, a fire causing death or serious injury
may occur:
•Do not store a spare LP gas cylinder under
or near this appliance.
•Never fill the cylinder beyond 80 percent full.
WARNING
This appliance is not fused. Installer must install
a ground fault interrupt.

General Information
• A minimum of 6” (15.2 cm) from the sides,
or a minimum of 8” (20.3 cm) from the
right side if there is a rotisserie motor and
a minimum of 24” (61.0 cm) from the back
must be maintained from the grill above
the cooking surface to adjacent vertical
combustible construction. The grill is not
to be located under overhead
unprotected combustible construction.
NOTE: An insulated jacket (INJK-
purchased separately) is required when
installing a grill in combustible type
material.
• Note that the grill exhausts combustion
products and cooking greases to the back.
NEVER locate the grill in a location where
the exhaust is directed at a window, less
than 24” (61.0 cm) to combustible
material or any surface that is difficult
to clean.
• A minimum of 3” (7.6 cm) clearance from
the back of the grill with a canopy and a
minimum of 6” (15.2 cm) from the back of
the grill without a canopy to non-
combustible construction is required for
the purpose of allowing the lid to open
fully and for proper ventilation. It is
desirable to allow at least 6” side
clearance to non-combustible construction
above the cooking surface for counter
space. If using the rotisserie option, the
space is essential for motor and skewer
clearance. The grill can be placed directly
adjacent to combustible and/or non-
combustible construction below the
cooking surface. However, clearances from
non-combustible materials are not part of
the ANSI Z21.58 scope and are not
certified by CSA. Clearances to non-
combustible materials must be approved
by the authority having jurisdiction.
• When determining a suitable location for
the grill, take into account concerns such
as exposure to wind, proximity to traffic
paths and keeping gas supply lines as
short as possible. Locate the grill only in a
well-ventilated area. Never locate the grill
in a building, garage, shed or other such
fully enclosed areas. During heavy use, the
grill will produce a lot of smoke. Ensure
there is adequate area for it to dissipate.
• When using a rear wall, locate a 110/120
volt supply outlet on the bottom left hand
side beneath the solid bottom support at
a maximum distance of 2 feet. This
connection is to be used for the ignition
system and canopy lights. In addition, the
rotisserie motor requires a separate
110/120 volt supply to be located on the
right hand side of the grill. The power
supply cord for the rotisserie motor is
equipped with a 3-prong (grounded) plug
for protection against shock hazard. Do
not cut or remove the grounding from the
plug. The electrical service must be
equipped with a properly grounded 3-
prong receptacle as required by the
National Electrical Code ANSI/NFPA 70-
latest edition. Installation in Canada must
be in accordance with the Canadian
Electrical Code, CSA 22.1 and local
codes.
IMPORTANT: Gas fittings, regulator, and
installer supplied shut-off valve must be
easily accessible.
9

10
Clearance Dimensions (30” W & 36” W.. Grill)
30" W.
36" W.

11
Clearance Dimensions (42” & 54” W. Grill)
42" W.
54" W.

**Access Doors sold separately - refer to access door
installation instructions for correct dimensions.
*IMPORTANT
Cabinet cutout must have a solid bottom
to support the full weight of the unit.
IMPORTANT
Cutout dimensions will be different when installing
next to combustible materials and using an INJK
insulated jacket kit (sold separately).
Cutout Dimensions (30” W. Grill)
12
10-1/8”10-1/8”
(25.7 cm)(25.7 cm)
36”36”
(91.4 cm)(91.4 cm)
**Access door opening**Access door opening
24-3/8”24-3/8”
(61.9 cm)(61.9 cm)
29-1/4”29-1/4”
(74.3 cm)(74.3 cm)
3”3”
(7.6 cm) min.(7.6 cm) min.
Electrical connectionElectrical connection
for rotisserie motorfor rotisserie motor
(position unit so that(position unit so that
the plug is alwaysthe plug is always
accessible)accessible)
Electrical connectionElectrical connection
for power supply cordfor power supply cord
to be located on rearto be located on rear
wall with a maximumwall with a maximum
distance of 24” (61.0 cm) beneathdistance of 24” (61.0 cm) beneath
solid bottom support or a minimumsolid bottom support or a minimum
of 2” (5.1 cm) from floor.of 2” (5.1 cm) from floor.
*Solid bottom*Solid bottom
supportsupport
Gas inlet and power cordGas inlet and power cord
location arealocation area
5”5”
(12.7 cm)(12.7 cm)
1”1”
(2.5 cm)(2.5 cm)
1”1”
(2.5 cm)(2.5 cm)
Countertop typically requires
1” (2.5 cm) wide by 1” (2.5 cm)
deep notch cutout on each
side of grill. This allows grill
control panel to sit back
properly in the cutout.

13
IMPORTANT
Cutout dimensions will be different when installing
next to combustible materials and using an INJK
insulated jacket kit (sold separately).
**Access Doors sold separately - refer to
access door installation instructions for
correct dimensions.
*IMPORTANT
Cabinet cutout must have a solid bottom
to support the full weight of the unit.
Cutout Dimensions (36” W. Grill)
10-1/8”10-1/8”
(25.7 cm)(25.7 cm)
36”36”
(91.4 cm)(91.4 cm)
**Access door opening**Access door opening
24-3/8”24-3/8”
(61.9 cm)(61.9 cm)
35-1/4”35-1/4”
(89.5cm)(89.5cm)
3”3”
(7.6 cm) min.(7.6 cm) min.
Electrical connectionElectrical connection
for rotisserie motorfor rotisserie motor
(position unit so that(position unit so that
the plug is alwaysthe plug is always
accessible)accessible)
Electrical connectionElectrical connection
for power supply cordfor power supply cord
to be located on rearto be located on rear
wall with a maximumwall with a maximum
distance of 24” (61.0 cm) beneathdistance of 24” (61.0 cm) beneath
solid bottom support or a minimumsolid bottom support or a minimum
of 2” (5.1 cm) from floor.of 2” (5.1 cm) from floor.
*Solid bottom*Solid bottom
supportsupport
Countertop typically requires
1” (2.5 cm) wide by 1” (2.5 cm)
deep notch cutout on each
side of grill. This allows grill
control panel to sit back
properly in the cutout.
Gas inlet and power cordGas inlet and power cord
location arealocation area
5”5”
(12.7 cm)(12.7 cm)
1”1”
(2.5 cm)(2.5 cm)
1”1”
(2.5 cm)(2.5 cm)

14
Cutout Dimensions (42” W. Grill)
**Access Doors sold separately - refer to
access door installation instructions for
correct dimensions.
*IMPORTANT
Cabinet cutout must have a solid bottom
to support the full weight of the unit.
10-1/8”
(25.7 cm)
36”
(91.4 cm)
**Access door opening
24-3/8”
(61.9 cm)
41-1/4”
(104.8 cm)
3”
(7.6 cm) min.
Electrical connection
for rotisserie motor
(positionunit so that
the plug is always
accessible)
Electrical connection
for power supply cord
to be located onrear wall
with a maximum distance
of 2’(61.0 cm) beneath
solid bottom support.
*Solid bottom support
Gas inlet and power cord
locationarea
5”
(12.7 cm)
Countertop typically requires
1”(2.5 cm) wide by 1”(2.5 cm)
deep notch cutout oneach
side of grill. This allows grill
control panel to sit back
properly inthe cutout.
1”
(2.5 cm)
1”
(2.5 cm)
IMPORTANT
Cutout dimensions will be different when installing
next to combustible materials and using an INJK
insulated jacket kit (sold separately).

15
Cutout Dimensions (54” W. Grill)
**Access Doors sold separately - refer to
access door installation instructions for
correct dimensions.
*IMPORTANT
Cabinet cutout must have a solid bottom
to support the full weight of the unit.
10-1/8”
(25.7 cm)
36”
(91.4 cm)
**Access door opening
24-3/8”
(61.9 cm)
53-1/4”
(135.3 cm)
3”
(7.6 cm) min.
Electrical connection
for rotisserie motor
(positionunit so that
the plug is always
accessible)
Electrical connection
for power supply cord
to be located onrear wall
with a maximum distance
of 2’(61.0 cm) beneath
solid bottom support.
*Solid bottom support
Gas inlet and power cord
locationarea
5”
(12.7 cm)
Countertop typically requires
1”(2.5 cm) wide by 1”(2.5 cm)
deep notch cutout oneach
side of grill. This allows grill
control panel to sit back
properly inthe cutout.
1”
(2.5 cm)
1”
(2.5 cm)
IMPORTANT
Cutout dimensions will be different when installing
next to combustible materials and using an INJK
insulated jacket kit (sold separately).

16
VentsVents
1.001.00 inchinch maximummaximum
5.005.00 inchinch
maximummaximum
All vents no moreAll vents no more thanthan 5.005.00 inchesinches
above the floor of the installation.above the floor of the installation.
5.005.00 inchinch
maximummaximum
NotNot moremore than 5.00than 5.00
inches from insideinches from inside
bottom of countertop.bottom of countertop.
Bottom Vent notBottom Vent not
moremore than 1.00 inchthan 1.00 inch
from inside floor offrom inside floor of
installation.installation.
Vents located
Vents located
on sidewall
on sidewall
Ventilation for Built-In Installations
An enclosure for an LP-gas cylinder shall be ventilated by openings at both the upper and lower levels of
the enclosure. The effectiveness of the opening(s) for purposes of ventilation shall be determined with the
LP-gas supply cylinder in place. This shall be accompanied by one of the following:
a. One side of the enclosure shall be completely open; or
b. For an enclosure having four sides, a top and a bottom:
1. At least two ventilation openings (See Part IV, Definitions) shall be provided in the side walls of the
enclosure, located within 5 in. (217 mm) of the top of the enclosure, equally sized, spaced at a
minimum of 90 degrees (1.57 rad), and unobstructed. The opening(s) shall have a total free area of not
less than 1 in2/lb (1.42 cm2/kg) of stored fuel capacity.
2. Ventilation opening(s) shall be provided at floor level at rear of the enclosure and shall have a total free
area of not less than 1/2 in2/lb (7.1 cm2/kg) of stored fuel capacity. The bottom of the openings shall
be 1 in. (25.4 mm) or less from the floor level and the upper edge no more than 5 in. (127 mm) above
the floor level. The openings shall be equally sized, spaced at a minimum of 90 degrees (1.57 rad) and
unobstructed.
3. Every opening shall have minimum dimensions so as to permit the entrance of a 1/8 inch (3.2 mm)
diameter rod.
4. Ventilation openings in the side walls shall not communicate directly with other enclosures of the
outdoor cooking gas appliance.
Note: It is strongly recommended to follow the same ventilation requirements when using Natural Gas.

17
Gas and Electrical Connection
Gas Connection
Verify the type of gas supply to be used, either
natural or LP, and make sure the marking on the
grill rating plate agrees with that of the supply.
Never connect an unregulated gas line to the
appliance. An installer supplied gas shut-off valve
must be installed in an easily accessible location.
All installer supplied parts must conform to local
codes, or in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70 and the
National Fuel Code, ANSI Z223.1/NFPA 54.
In Canada: Installation must be in accordance
with the current CSA-B149.1, Natural Gas
Installation Code or CSA-B149.2, Propane
Installation Code and/or local codes. All pipe
sealants must be an approved type and resistant
to the actions of LP gas. Never use pipe sealant
on flare fittings. All gas connections should be
made by a competent technician and in
accordance with local codes and or ordinances. In
the absence of codes, the installation must
comply with the National Fuel Gas Code ANSI
Z223.1/NFPA 54. The gas grill and its individual
shut-off valve must be disconnected from the gas
supply piping system during any pressure testing
of that system at test pressures in excess of 1/2
PSIG (3.5 kPa). The gas grill must be isolated from
the gas supply piping system by closing its
individual manual shut-off valve during any
pressure testing of that system at test pressures
equal to or less than 1/2 psi (3.5 kPa). Built-in
installations must be plumbed using a fixed/hard
line if the unit is going to be operated at a
distance exceeding 3 feet (0.91 meters) from the
fuel supply per ANSI Z21.24 CSA.
Gas Conversion
To convert a grill from natural to
LP/Propane or LP/Propane to natural, you
MUST use conversion kit sold seperately.
Electrical Connection
CAUTION
Conversions should only be performed by an
authorized service technician.
WARNING
ELECTRICAL SHOCK
HAZARD
This appliance is equipped with a 3’
(91.4 cm) 3-prong power cord with a
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or
remove the grounding prong from this plug. This
unit is not fused and installer must install a GFI.
Unit must be grounded in accordance with local
codes or with the National Electrical Code
ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.

MaleMale
couplercoupler
Installer suppliedInstaller supplied
flexible gas lineflexible gas line
with 1/2” femalewith 1/2” female
adapter or GHS12adapter or GHS12
Installer suppliedInstaller supplied
shut-off valve mustshut-off valve must
be easily accessiblebe easily accessible
male flaremale flare
adapteradapter
(supplied by(supplied by
installer)installer)
Regulator
Assembly
3/8”3/8”
malemale
flareflare
dapterdapter
1/2”1/2”
NPTNPT
fromfrom
ManifoldManifold
Natural Fixed Piping Connection
Check with your local gas utility company or with
local codes for instructions on installing gas
supply lines. Be sure to check on type and size of
run and how deep to bury the lines. If the gas line
is too small, the grill will not function properly.
To connect the supplied regulator to the
incoming flexible gas line, attach with a female
adaptor to a male flare adapter (supplied by the
installer) to the gas line. Ensure that the regulator
arrow points in the direction of the gas flow
towards the unit and away from the supply.
Attach the regulator assembly to the grill unit.
Do not forget to place the installer
supplied gas valve in an accessible
location.
Note: If using a Viking GSH12 flexible hose,
remove the 1/2” flare adapter and attach
hose with a male flare (supplied by the
installer) to the regulator.
Connection Operating Pressure Supply Pressure
Standard Residential 1/2" ID gas
service line - 1/2" NPT male with
flare adapter.
4.0" W.C.P. Nat. 6" to 10" W.C.P. Nat. If in excess
of 10" W.C.P., a step-down
regulator is required.
18

Male
coupler
Installer supplied
flexible gas line
with 1/2” female
adapter or GHS12
Installer supplied
shut-off valve must
be easily accessible
male flare
adapter
(supplied by
installer)
3/8”
male
flare
dapter
1/2”
NPT
from
Manifold
19
3/8”3/8”
malemale
flareflare
dapterdapter
Installer suppliedInstaller supplied
flexible gas lineflexible gas line
with 3/8” femalewith 3/8” female
adapteradapter
Installer suppliedInstaller supplied
shut-off valve mustshut-off valve must
be easily accessiblebe easily accessible
RegulatorRegulator
AssemblyAssembly
3/8” male3/8” male
flareflare
adapteradapter
MaleMale
couplercoupler
3/8”3/8”
malemale
flareflare
dapterdapter
1/2”1/2”
NPTNPT
fromfrom
ManifoldManifold
LP/Propane Fixed Piping Connection
Check with your local gas utility company or with
local codes for instructions on installing gas
supply lines. Be sure to check on type and size of
run and how deep to bury the lines. If the gas line
is too small, the grill will not function properly.
To connect the supplied regulator assembly to
the incoming flexible gas line, attach with a 3/8”
female flare adapter to the 3/8” male flare
adapter to the regulator assembly. Ensure that
the regulator arrow points in the direction of the
gas flow towards the unit and away from the
supply. Attach the regulator assembly to the grill
unit. Do not forget to place the installer
supplied gas valve in an accessible
location
Connection Operating Pressure Supply Pressure
Standard Residential 1/2" ID gas
service line - 1/2” NPT male with
3/8" flare adapter.
10.0" W.C.P. LP/Propane 11" to 14" W.C.P. LP. If in excess
of 14" W.C.P., a step-down
regulator is required.

LP/Propane Tank Requirements
A dented or rusty LP/Propane tank may be
hazardous and should be checked by your tank
supplier. Never use a cylinder with a damaged
valve. All tanks should be equipped with an OPD
(overfilling protection device). This is a DOT
requirement for all tanks purchased after
October 1, 1998 and will ensure that the tank is
not overfilled. The LP/Propane tank should be a
standard 5-gal, 20 lb. gas cylinder tank
approximately 12” in diameter and 18” high
which must be constructed and marked in
accordance with the Specifications for LP/Propane
Gas Cylinders of the U.S. Department of
Transportation (D.O.T.) or the National Standard
of Canada, CAN/CSA-B339, Cylinders, Spheres
and Tubes for Transportation of Dangerous
Goods; and Commission. The cylinder connection
device must be compatible with the Type 1,
QCC-1 connector on the outdoor cooking
appliance.
All LP/Propane tanks must be mounted in a
vertical position for proper ventilation. The
cylinder must be provided with a shut-off valve
terminating in an LP/Propane gas supply cylinder
valve outlet specified. The cylinder supply system
must be arranged for vapor withdrawal and
provided with a listed overfilling prevention
device. If the appliance is stored indoors the
cylinder must be disconnected and removed from
the appliance. Each tank is supplied with a dust
cap. Place dust cap on cylinder valve outlet
whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve outlet
that is provided with the cylinder valve.
Other types of caps or plugs may result in
leakage of propane. The cylinder used must
include a collar to protect the cylinder valve.
Cylinders must be stored outdoors in a well-
vented area out of the reach of children.
Built-In Installations
Built-in installations must be plumbed using a
fixed/hard line if the unit is going to be operated
at a distance exceeding 3 feet (0.91 meters) from
the fuel supply per ANSI Z21.24 CSA. Also, in a
built-in construction where an LP/Propane tank is
going to be used, there MUST be some type of
support (braces, cutout, etc.) to prevent tank from
moving within the installation. The support must
also allow the LP/Propane tank to withstand a
horizontal tipping force equal to the weight of
the tank without tipping over. The tank can not
tip over or deflect more than 1.00 inch when a
8 lb. horizontal force is applied to a 20 lb.
LP/Propane tank
20
