Viking Professional VIRB304 User manual

REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
All models include
• Capacity—18.2 cu. ft. (515.1 L)
o 84”H./24”D.
• ProChill™ Temperature
Management System
oVariable-speed single compressor
system includes the quietest, most
technologically advanced compressor
available
oElectronic controls maintain the
temperature selection within 1ºF
oMulti-channel airflow system removes
odors and excess humidity
• Convertible, temperature-controlled
Meat Savor™/produce drawer with
precision ball-bearing glides
oSeparate temperature control can be
set for produce or fresh meat storage
oQuick-chill option chills foods and
beverages in minutes
• Four adjustable tempered glass
spillproof shelves
• Two deli drawers with precision ball-
bearing glides
• Two moisture adjustable see-through
produce drawers with precision ball
bearing glides
• Two in-the-door dairy compartments
• Four adjustable aluminum door bins
• Top-shelf provides quick chill-down
area
• Egg bin and butter tray
• Top-mounted and front-venting sealed
refrigeration system
• Dual magnet and spring-assisted door
closer mechanism
• Robust, heavy-duty door hinges
• Power interruption switch to turn off
all power
• Automatic energy-saving exterior
moisture control system
• Open door alarm sounds and glows to
warn that door has been ajar for three
minutes
• Adjustable door stops standard—90 ,
110 , or 120 swing
• Sabbath Mode
• For installation of two units together,
separate grille kit must be purchased
• Must be ordered right or left hinge.
(As you face unit, RIGHT has hinge on
right side and handle on left side;
LEFT has hinge on left side and
handle on right side.)

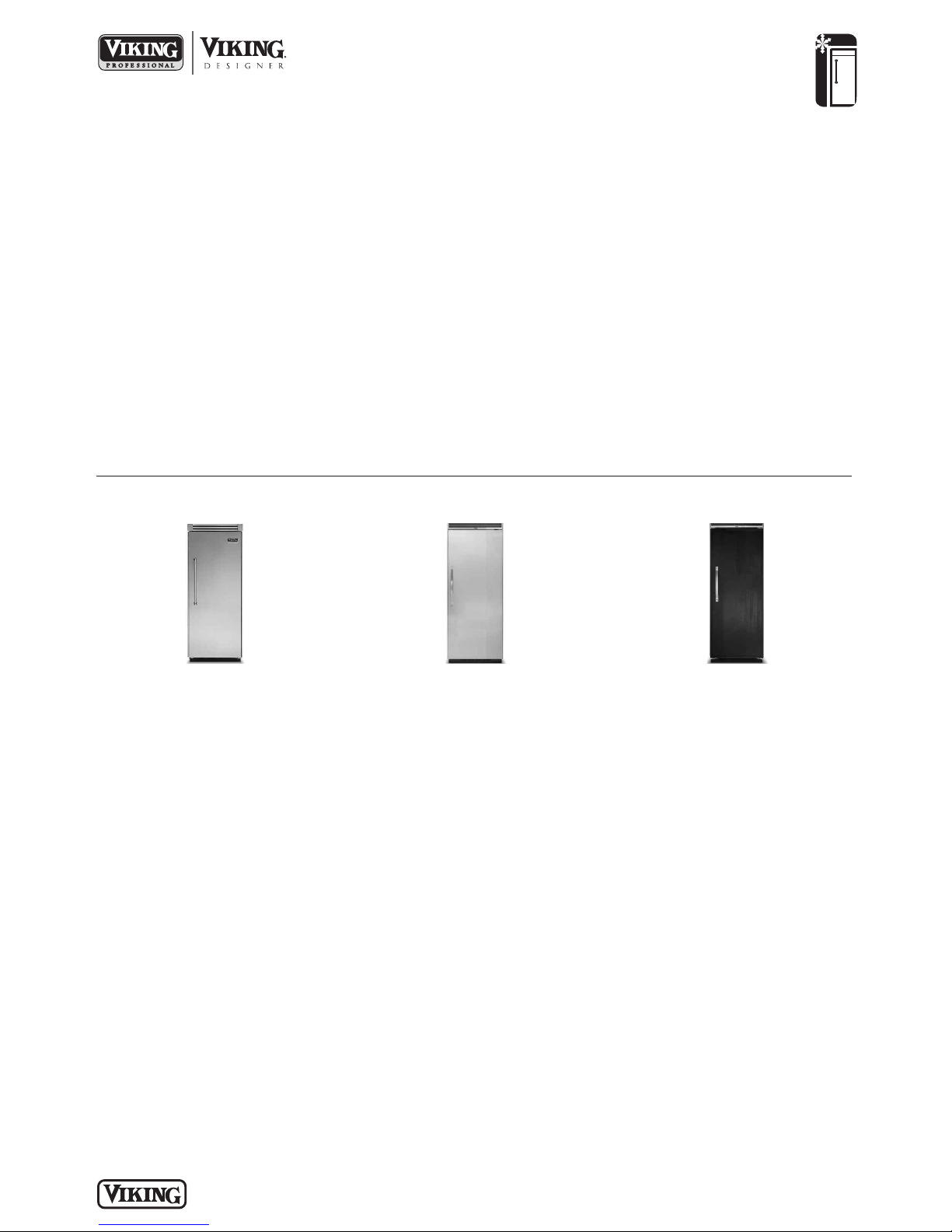

VCRB304/VIRB304
Professional/Professional Integrated
FINISH DETAILS FOR DFRB MODEL
• Handle not included—opt for custom
handle, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
• See Custom Panels section for
more information and additional
specifications.
FINISH DETAILS FOR DDRB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish codes designate door front.
Stainless steel upper grille, side trim,
and handle, with black lower kickplate.
• Brass Trim Option (BR)—handle. Brass
components have a durable protective
coating for maintenance-free normal
use.
FINISH DETAILS FOR VCRB/VIRB MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish codes designate door front.
Stainless steel upper grille, side trim,
and handle (with chrome-plated
brackets); black lower kickplate.
• Brass Trim Option (BR)—nameplate,
handle/brackets, and side trim.
Brass components have a durable
protective coating for maintenance-
free normal use.
DDRB304
Designer
DFRB304
Custom Front
Standard Features & Accessories
Model Options
ORDERING INSTRUCTIONS
First specify model number, followed by hinge preference (“R” for right or “L” for left), and then color code (VCRB304RSS).
If ordering optional brass trim, specify code at end (VCRB304RSSBR).
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1

Please see
Installation Notes &
Accessories
for important
information,
including panel,
grille, trim, and
handle kits.
24–11/16”
(62.7cm)
29”
(73.7cm)
75–15/16”
(192.9cm)
3–19/32”
(9.1cm)
30”
(76.2cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2 cm)
min.
to
84–1/16”
(213.5 cm)
max.
20–3/4”
(52.7 cm)
22–3/16”
(56.4cm)
27–1/4”
(69.2cm)
26-1/2”
(67.3cm)
29”
(73.7cm)
75–15/16”
(192.9cm)
3–19/32”
(9.1cm)
30”
(76.2cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2 cm)
min.
to
84–1/16”
(213.5 cm)
max.
23-3/8”
(59.4 cm)
24”
(61.0cm)
26–1/2”
(67.3cm)
PROFESSIONAL PROFESSIONAL
INTEGRATED
VCRB304 VIRB304
Overall w dth 30” (76.2 cm)
Overall he ght (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (from rear)
To front edge of s de tr m 22-3/16” (56.4 cm) 23-3/8” (59.4 cm)
To front of top gr lle 24-11/16” (62.7 cm) 24” (61.0 cm)
To front of handle 27-1/4” (69.2 cm) 26-1/2” (67.3 cm)
Approx. sh p we ght 425 lbs. (193.2 kg)
VCRB304/VIRB304
Professional/
Professional Integrated
Dimensions & Speci ications
PRODUCT DIMENSIONS
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays
ALL MODELS
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1

Please see
Installation Notes &
Accessories
for important
information,
including panel,
grille, trim, and
handle kits.
24”
(61.0cm)
29”
(73.7cm)
75–15/16”
(192.9cm)
3–1/2”
(8.9cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2 cm)
min.
to
84–1/16”
(213.5 cm)
max.
20–3/4”
(52.7 cm)
23–3/8”
(59.4cm)
26”
(66.0cm)
30”
(76.2cm)
24”
(61.0cm)
29”
(73.7cm)
75–15/16”
(192.9cm)
3–1/2”
(8.9cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2 cm)
min.
to
84–1/16”
(213.5 cm)
max.
20–3/4”
(52.7 cm)
23–3/8”
(59.4cm)
26”
(66.0cm)
30”
(76.2cm)
DESIGNER CUSTOM FRONT
DDRB304 DFRB304
Overall w dth 30” (76.2 cm)
Overall he ght (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (from rear)
To front edge of s de tr m 23-3/8” (59.4 cm) 23-13/16” (60.5 cm)
To front of top gr lle 24” (61.0 cm) 24-3/4” (62.9 cm)
To front of handle 26” (66.0 cm) Var es
Approx. sh p we ght 425 lbs. (193.2 kg)
DDRB304
Designer
DFRB304
Custom Front
See Custom Panels section for
more information and additional
specifications.
Dimensions & Speci ications
PRODUCT DIMENSIONS
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays
ALL MODELS
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

VCRB304/VIRB304
Professional/
Professional Integrated
DDRB304
Designer
DFRB304
Custom Front
REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
22--11//22””
((66..44ccmm))
1111--77//88””
((3300..22ccmm))
1155--2277//3322”
((4400..22ccmm))
33--11//3322””
((77..77ccmm))
112200..0000
111100..0000
9900..0000
””
5522--33//88””
((113333..00ccmm))
2244--1111//1166””
((6622..77ccmm))
5511””
((112299..55ccmm))
4499--11//1166””
((112244..66ccmm)
3300””
((7766..22ccmm))
2299””
((7733..77ccmm))
22--11//1166””
((55..22ccmm))
1100--3311//3322””
((2277..99ccmm))
1155--33//3322””
((3388..33ccmm))
11--2277//3322””
((44..77ccmm))
112200..0000
111100..0000
9900..0000
5522--1111//3322””
((113322..99ccmm))
5511””
((112299..55ccmm))
4499--11//1166””
((112244..66ccmm)
2244””
6611..00ccmm))
3300””
((7766..22ccmm))
2299””
((7733..77ccmm))
((
PROFESSIONAL
PROFESSIONAL INTEGRATED/
DESIGNER
See Custom Panels section for
more information and additional
specifications.
Dimensions & Speci ications
DOOR SWING
• Adjustable door stops standard—90 , 110 , or 120 swing
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Partial overlay
cabinet door
Door
Wall
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
3/4”
(1.9 cm)
full end panel
24”
(61.0 cm)
standard
cabinet
depth
2-1/2”
(6.4 cm) offset
5/16”
(0.8 cm)
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Countertop
overhang
Dimensions & Speci ications
CLEARANCE DIMENSIONS PROFESSIONAL
TOP VIEW
TOP VIEW
TOP VIEW
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Door
Wall
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
3/4”
(1.9 cm)
full end panel
25”
(63.5 cm)
Flush
Door
24”
(61.0 cm)
standard
cabinet depth
25”
(63.5 cm)
countertop
depth
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Dimensions & Speci ications
CLEARANCE DIMENSIONS PROFESSIONAL INTEGRATED/DESIGNER
Door
24”
(61.0 cm)
standard
cabinet
depth
24-3/4”
(62.9 cm)
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depthis used
Flush
Cabinet
door
TOP VIEW
TOP VIEW
TOP VIEW
Overlapp ng cab net doors
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
REFRIGERATION
Built-In 30”W. All Re rigerator
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with
grounded
three-prong plug
attached to
product
• 115 VAC/60 Hz;
15 amp
dedicated circuit
• Maximum amp
usage—5.7
• Estimated
energy usage—
404 kWh/year
PLUMBING
Not applicable
Installation Requirements
Anti-tipboard
6”
(15.2cm)
9”
(22.9 cm)
73-3/8”
(186.4cm)
82-7/8”
(210.5cm)min.
anti-tipboard&
openingheight
84-1/16”
(213.5cm)max.
anti-tipboard&
openingheight
29-1/2”
(74.9cm)min.
to
29-3/4”
(75.6cm)max.
Professional
30”
(76.2cm)
ProfessionalIntegrated/
Designer/Custom Front
24”*
(61.0cm)
min.
9”
(22.9cm)
VCRB304 VIRB304 DDRB304 DFRB304
Cutout w dth 29-1/2” (74.9 cm) m n. to 30” (76.2 cm) 30” (76.2 cm) 30” (76.2 cm)
29-3/4” (75.6 cm) max.
Cutout he ght 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
VCRB304/VIRB304
Professional/
Professional Integrated
DDRB304
Designer
DFRB304
Custom Front
See Custom Panels section for
more information and additional
specifications.
ACCESS REQUIREMENTS – Single Installation
ELECTRIC OUTLET LOCATION
*Custom front models f t flush n 25”-deep (63.5 cm) cab net open ngs. They can be nstalled n standard 24”-
deep open ngs. The door faces and top gr lle w ll protrude 3/4” (1.9 cm) nto the room.
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

9”
(22.9cm)
73-3/8”
(186.4cm)
82-7/8”
(210.5cm)min.
anti-tipboard&
openingheight
84-1/16”
(213.5cm)max.
anti-tipboard&
openingheight
65-1/2”Professional
(166.4cm)
66”ProfessionalIntegrated/
Designer/CustomFront
(167.6cm)
24”*
(61.0cm)
6-3/4”
(17.1cm)
7-5/8”
(19.4cm)
3”
(7.6cm)
5/8”
(1.5cm)
5/8”
(1.5cm)
10-1/2”
(26.7cm)
5/8”
(1.5cm)
10-3/4”
(27.3cm)
3-5/8”
(9.2cm)
Optionalfloor
waterline entry
1”
(2.5cm)
Seeanti-tipboardinstallation
6”
(15.2cm)
9”
(22.9cm)
9”
(22.9cm)
73-3/8”
(186.4cm)
82-7/8”
(210.5cm)min.
anti-tipboard&
openingheight
84-1/16”
(213.5cm)max.
anti-tipboard&
openingheight
59-1/2” Professional
(151.1cm)
60”ProfessionalIntegrated/
Designer/CustomFront
(152.4cm)
24”*
(61.0cm)
6-3/4”
(17.1cm)
7-5/8”
(19.4cm)
3”
(7.6cm)
5/8”
(1.5cm)
5/8”
(1.5cm)
10-1/2”
(26.7cm)
5/8”
(1.5cm)
10-3/4”
(27.3cm)
3-5/8”
(9.2cm)
Optionalfloor
waterlineentry
1”
(2.5cm)
Seeanti-tipboardinstallation
6”
(15.2cm)
9”
(22.9cm)
REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Installation Requirements
VCRB304/VCFB364 VIRB304/VIFB364 DDRB304/DDFB364 DFRB304/DFFB364
Cutout w dth 65-1/2” (166.4 cm) 66” (167.6 cm) 66” (167.6 cm) 66” (167.6 cm)
Cutout he ght 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
VCRB304/VCFB304 VIRB304/VIFB304 DDRB304/DDFB304 DFRB304/DFFB304
Cutout w dth 59-1/2” (151.1 cm) 60” (152.4 cm) 60” (152.4 cm) 60” (152.4 cm)
Cutout he ght 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
30”W./30”W. REFRIGERATOR/
FREEZER COMBINATION
30”W./36”W. REFRIGERATOR/
FREEZER COMBINATION
ACCESS REQUIREMENTS – Dual Installation
ELECTRIC OUTLET LOCATION
WATER LINE ENTRY AREA
Note: cutout opening shown with All Freezer model on left.
Reverse water line entry if All Freezer model is on right
ELECTRIC OUTLET LOCATION
WATER LINE ENTRY AREA
Note: cutout opening shown with All Freezer model on left.
Reverse water line entry if All Freezer model is on right
*Custom front models f t flush n 25”-deep (63.5 cm) cab net open ngs. They can be nstalled n standard 24”-deep open ngs. The
door faces and top gr lle w ll protrude 3/4” (1.9 cm) nto the room.
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE

Side Panel Kits
• Stainless Steel (SS)
•Panels provide finished, freestanding look; unit must still be secured to the wall
• Kit includes one panel and installation hardware
Side Panel Hardware Kit
• For use with Designer built-in refrigerator/freezers
• Hardware allows installation of custom side panels
• Kit includes brackets, screws, and installation instructions to mount panels on left and right side
Top Panel Kit
• Stainless Steel (SS)
• Panel provides finished, freestanding look; unit must still be secured to the wall
• Kit includes one panel and installation hardware
Top Grille Kits
• Stainless Steel (SS)
• 60”W. top grille kit—for use with installation of two 30”W. all refrigerators/all freezers side-by-side
• 66”W. top grille kit—for use with installation of one 30”W. and one 36”W. all refrigerators/all freezers side-by-side
• Grille creates a single unit look
• Kit includes one full-length grille, center cabinet trim connector, and installation hardware
REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
PSSPL2 Profess onal s de panel left (VCRB) 45 (20.2)
PSSPR2 Profess onal s de panel r ght (VCRB) 45 (20.2)
DSSPL2 Des gner s de panel left (VIRB/DDRB/DFRB) 45 (20.2)
DSSPR2 Des gner s de panel r ght (VIRB/DDRB/DFRB) 45 (20.2)
Model Description Approx. ship wt. lbs. (kg)
PGK60-SS Profess onal 60”W. gr lle (for two VCRB/VCFB un ts) 21 (9.5)
PGK66-SS Profess onal 66”W. gr lle (for two VCRB/VCFB un ts) 23 (10.4)
IGK60-SS Profess onal Integrated 60”W. gr lle (for two VIRB/VIFB un ts) 21 (9.5)
IGK66-SS Profess onal Integrated 66”W. gr lle (for two VIRB/VIFB un ts) 23 (10.4)
DGK60-SS Des gner 60”W. gr lle (for two DDRB/DDFB/DFRB/DFFB un ts) 21 (9.5)
DGK66-SS Des gner 66”W. gr lle (for two DDRB/DDFB/DFRB/DFFB un ts) 23 (10.4)
Model Description Approx. ship wt. lbs. (kg)
TOP-30 30”W. top panel 21 (9.5)
Model Description Approx. ship wt. lbs. (kg)
SPHKDS S de panel hardware 3 (1.4)
Model Description Approx. ship wt. lbs. (kg)
FCTK-SS Center tr m 5 (2.3)
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE
Center Trim Kit
• Stainless Steel (SS)
• Kit includes center cabinet trim connector to install two custom front units with wood top grille

REFRIGERATION
Built-In 30”W. All Re rigerator
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Handle Kits
• For use with custom front refrigerators
• For use on locally supplied custom front panels
•Handles allow refrigerators/freezers with custom front panel to coordinate with other Professional and Designer products
• K t ncludes handle(s) and nstallat on hardware
Compliance In ormation
WARRANTY SUMMARY*
• Two-year full warranty—complete unit
• Six-year full warranty—sealed refrigeration system
• Twelve-year limited warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
Model Description Approx. ship wt. lbs. (kg)
PHK26-SS Profess onal one handle (Sta nless Steel) 7 (3.2)
PHK26-BR Profess onal one handle (Brass) 7 (3.2)
DHK25-SS Des gner one handle (Sta nless Steel) 7 (3.2)
DHK25-BR Des gner one handle (Brass) 7 (3.2)
PHKDFBB-SS Profess onal two handles (Sta nless Steel) 10 (4.5)
PHKDFBB-BR Profess onal two handles (Brass) 10 (4.5)
HKFDS-SS Des gner two handles (Sta nless Steel) 10 (4.5)
HKFDS-BR Des gner two handles (Brass) 10 (4.5)
R E L E A S E D 8 / 1 8 / 0 8
© 2 0 0 8 V R C — INFORMATION SUBJECT TO CHANGE
