Viking DBCV3082 User manual

VENTILATION
Built-In Custom Ventilator Systems
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
All models include
• Must purchase and install an interior-
or exterior-power ventilator (motor) kit
(see Insta ation Requirements table
for recommendations)
• For use with custom hoods
o The look and performance of Viking
ventilation in a blank canvas for
virtually endless overlay options
o Easily installs into almost any custom
hood application
• Powerful enough to handle even the
most pungent cooking odors
• Heat sensor on hood turns ventilator
on full power when cooking
temperatures reach uncomfortable
levels
• Variable speed controls for custom
venting—separate on/off switch allows
you to leave ventilator at
favorite/most-used setting
• Quiet fans also keep temperatures
down
• Heavy-duty construction
o Virtually seamless stainless steel
design with no visible screws
• Easy cleanup
o Design of low-profile filter system
means less interior hood space to
be cleaned
o Stainless steel liner for increased
rigidity, seamless appearance, and
easy cleaning
• 50-watt halogen lights with dimmer
control (bulbs included)
o Power switch and dimmer control
are separate, allowing you to leave
dimmer at favorite position
o See Dimensions & Specifications
table for number of lights per model
Professional models include
• Professional-type size, design, and
styling
• Heat lamps standard on wall ventilator
systems (bulbs not included)
• Commercial-type baffle filter system
efficiently removes grease and heated
vapors from the air; especially
designed for use with commercial-
type products
o See Dimensions & Specifications
table for number of filters per model
• Removable trough catches liquefied
grease, making cleanup quick and
easy
Desi ner models include
• Elegant design and styling
• 12-hour timer built into ventilator
controls
• Delay feature allows you to set the
ventilator to shut off on its own from
10 – 30 minutes later
• Dishwasher-safe, stainless steel mesh
filters efficiently remove grease and
heated vapors from the air, and are
easily removed for quick cleaning
o See Dimensions & Specifications
table for number of filters per
model
Model numbers
PROFESSIONAL CUSTOM WALL
VENTILATOR SYSTEMS (for use with
custom wall hoods)
• VBCV30381—30"W./18"H./22"D.
• VBCV36381—36"W./18"H./22"D.
• VBCV42381—42"W./18"H./22"D.
• VBCV48381—48"W./18"H./22"D.
• VBCV54381—54"W./18"H./22"D.
• VBCV60381—60"W./18"H./22"D.
• VBCV66381—66"W./18"H./22"D.
PROFESSIONAL CUSTOM ISLAND
VENTILATOR SYSTEMS (for use with
custom island hoods)
• VICV36981—36"W./18"H./29"D.
• VICV42981—42"W./18"H./29"D.
• VICV54981—54"W./18"H./29"D.
• VICV66981—66"W./18"H./29"D.
DESIGNER CUSTOM WALL VENTILATOR
SYSTEMS (for use with custom wall
hoods)
• DBCV30821—30"W./12"H./18"D.
• DBCV36821—36"W./12"H./18"D.
• DBCV42821—42"W./12"H./18"D.
• DBCV48821—48"W./12"H./18"D.
DESIGNER CUSTOM ISLAND VENTILATOR
SYSTEMS (for use with custom island
hoods)
• DICV36321—36"W./12"H./23"D.
• DICV42321—42"W./12"H./23"D.
• DICV54321—54"W./12"H./23"D.
FINISH DETAILS
• Designed to be covered by custom
materials—no standard exterior finish
• Stainless steel interior
• See Custom Pane s section for more
information and additional
specifications.

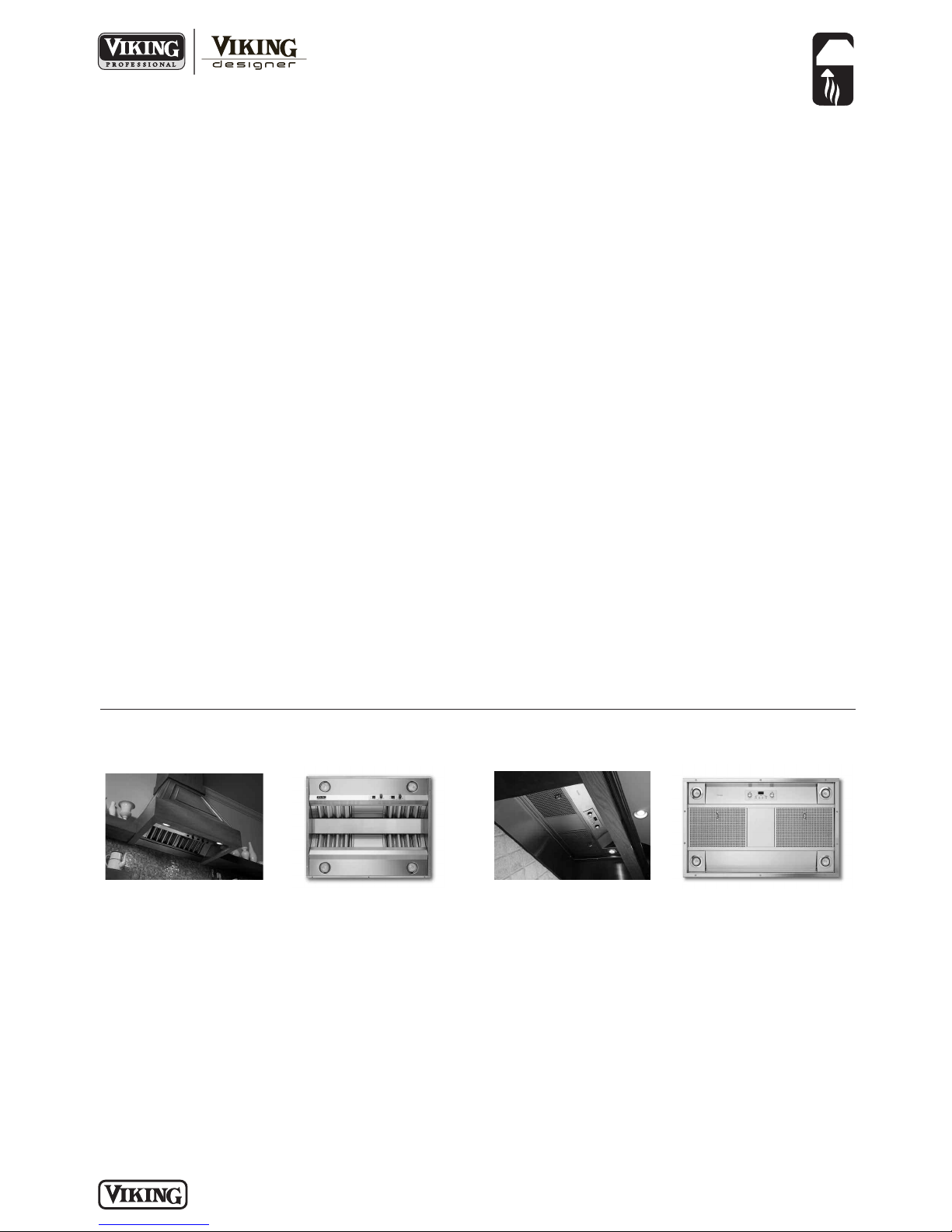

VBCV Professiona
Custom Wa
Venti ator System
VICV Professiona
Custom Is and
Venti ator System
Standard Features & Accessories
DBCV Designer
Custom Wa
Venti ator System
DICV Designer
Custom Is and
Venti ator System
Model Options
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE

27-7/16”
(69.7cm)
28-7/16”
(72.2cm)
A
17-1/4“
(43.8cm)
6”
(15.2cm)
1”
(2.5cm)
VBCV Professiona
Custom Wa
Venti ator System
VICV Professiona
Custom Is and
Venti ator System
DBCV Designer
Custom Wa
Venti ator System
DICV Designer
Custom Is and
Venti ator System
VENTILATION
Built-In Custom Ventilator Systems
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
16”
(40.6cm)
17-1/4”
(43.8cm)
A
11-3/4“
(29.8cm)
5”
(12.7cm)
1”
(2.5cm)
✪
Please see
Insta ation Notes &
Accessories for
important information,
including ventilator
kits.
21-1/8”
(53.7cm)
A
17-1/4“
(43.8cm)
6”
(15.2cm)
1”
(2.5cm)
21-7/8”
(55.8cm)
Dimensions & Specifications
PRODUCT DIMENSIONS
Model Hood Li hts Filters Heat Approx.
Width (A) Depth Hei ht Lamps Ship. wt.
VBCV30381 28-1/4” (71.8 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 22160 lbs. (27.0 kg)
VBCV36381 34-1/4” (87.0 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 22168 lbs. (30.6 kg)
VBCV42381 40-1/4” (102.2 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 22176 lbs. (34.2 kg)
VBCV48381 46-1/4” (117.5 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 33288 lbs. (39.6 kg)
VBCV54381 52-1/4” (132.7 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 33296 lbs. (43.2 kg)
VBCV60381 58-1/4” (148.0 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 442108 lbs. (48.6 kg)
VBCV66381 64-1/4” (163.2 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 442121 lbs. (54.5 kg)
VICV36981 34-1/4” (87.0 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 44N/A 73 lbs. (33.1 kg)
VICV42981 40-1/4” (102.2 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 44N/A 83 lbs. (37.7 kg)
VICV54981 52-1/4” (132.7 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 66N/A 115 lbs. (52.2 kg)
VICV66981 64-1/4” (163.2 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 88N/A 128 lbs. (58.1 kg)
DBCV30821 29-5/8” (75.2 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 22N/A 63 lbs. (28.4 kg)
DBCV36821 35-5/8” (90.5 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 22N/A 70 lbs. (31.5 kg)
DBCV42821 41-5/8” (105.7 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 23N/A 77 lbs. (34.7 kg)
DBCV48821 47-5/8” (121.0 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 23N/A 85 lbs. (38.3 kg)
DICV36321 35-5/8” (90.5 cm) 22-1/4” (40.6 cm) 11-3/4” (29.8 cm) 42N/A 88 lbs. (40.0 kg)
DICV42321 41-5/8” (105.7 cm) 22-1/4” (40.6 cm) 11-3/4” (29.8 cm) 42N/A 96 lbs. (43.6 kg)
DICV54321 53-5/8” (136.2 cm) 22-1/4” (40.6 cm) 11-3/4” (29.8 cm) 43N/A 106 lbs. (48.1 kg)
21”
(53.3cm)
22-1/4”
(56.5cm)
A
11-3/4“
(29.8cm)
5”
(12.7cm)
1”
(2.5cm)
VBCV
VICV
DBCV
DICV
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE

VBCV Professiona
Custom Wa
Venti ator System
VICV Professiona
Custom Is and
Venti ator System
DBCV Designer
Custom Wa
Venti ator System
DICV Designer
Custom Is and
Venti ator System
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
VENTILATION
Built-In Custom Ventilator Systems
Proper insta ation/ducting is extreme y
important to ensure maximum
performance. Use a qua ified and
trained insta er.
DUCTING
• Check with a qualified and
trained installer or local codes
for makeup air requirements, if
any.
• Max. duct run length
o For 300 – 1,200 CFM—
50’ (152.4 m)
o For 1,500 CFM—75’ (22.9 m)
o Duct run length is for
general reference only;
always use a qualified and
trained installer.
o Straight runs and gradual
turns are best; for example,
each 90 elbow is equivalent
to 5’ – 10’ (1.52 – 3.05 cm)
of straight run.
• 7” (17.8 cm) round duct for
300 – 600 CFM; 10” for 900 –
1500 CFM
o Never use flexible duct; it
creates back pressure/air
turbulence and greatly
reduces performance.
GAS
Not applicable
ELECTRICAL
• Hardwire direct with two-wire
ground
• 120 VAC/60 Hz
• Max. amp usage (rating
includes recommended
ventilator kit rating)—see
Insta ation Requirements
table
PLUMBING
Not applicable
Installation Requirements
*1200 CFM i terior a d exterior (if applicable) ve tilator should be used with all outdoor approved models a d whe i door models are i stalled over
ra ges/ra getops with gas grill.
**Must use 8” duct from ca opy to ceili g – tra sitio to 10” duct past duct cover.
Note: Exhaust capacity based on tests with 0.1 static pressure. Without applying static pressure (some brands do not), CFM could be
greatly o erstated.
UTILITY REQUIREMENTS
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Model Ventilator Kits
Interior Exterior
Duct Size
Interior Exterior/In-Line
Max. Amps
Interior Exterior
VBCV30381 VINV300/600/1200* DEV900/1200*
DIL900/1200*
7” (17.8 cm)/
10” (25.4 cm)
10” (25.4 cm) 5.0/6.2/8.7 8.7/6.1/3.0/4.8
VBCV36381 VINV300/600/1200* DEV900/1200*
DIL900/1200*
7” (17.8 cm) 10” (25.4 cm) 5.0/6.2/8.7 8.7/6.1/3.0/4.8
VBCV42381 VINV600/1200* DEV900/1200*
DIL900/1200*
7” (17.8 cm) 10” (25.4 cm) 6.2/8.7 8.7/6.1/3.0/4.8
VBCV48381 VINV1200*DEV1200*/1500/DIL1200* 10” (25.4 cm) 10” (25.4 cm) 11.1 8.4/9.1/4.8
VBCV54381 VINV1200*DEV1200*/1500/DIL1200* 10” (25.4 cm) 10” (25.4 cm) 11.1 8.4/9.1/4.8
VBCV60381 VINV1200*DEV1200*/1500/DIL1200* 10” (25.4 cm) 10” (25.4 cm) 11.5 8.8/9.5/4.8
VBCV66381 VINV1200*DEV1200*/1500/DIL1200* 10” (25.4 cm) 10” (25.4 cm) 11.5 8.8/9.5/4.8
VICV36981 VINV600/VIV1200* DEV900/1200*/DIL900/DIL1200* 7” (17.8 cm) 10” (25.4 cm) 4.9/7.4 7.4/4.7/3.0/4.8
VICV42981 VINV600/1200* DEV900/1200*/1500/
DIL900/DIL1200*
7” (17.8 cm) 10” (25.4 cm) 4.9 7.4/4.8/5.4/3.0/4.8
VICV54981 VINV1200*DEV1200*/1500/DIL1200 10” (25.4 cm) 10” (25.4 cm) 8.2 5.6/6.2/4.8
VICV66981 VINV1200*DEV1200*/1500/DIL1200 10” (25.4 cm) 10” (25.4 cm) 9.0 6.3/7.1/4.8
DBCV30821 VINV300/600 DEV900**/1200*/DIL900/DIL1200 7” (17.8 cm) 10” (25.4 cm) 1.7/3.2 6.6/3.9/3.0/4.8
DBCV36821 VINV300/600 DEV900**/1200*/DIL900/DIL1200 7” (17.8 cm) 10” (25.4 cm) 1.7/3.2 6.6/3.9/3.0/4.8
DBCV42821 VINV600 DEV900**/1200*/DIL900/DIL1200 7” (17.8 cm) 10” (25.4 cm) 3.2 6.6/3.9/3.0/4.8
DBCV48821 VINV1200 DEV1200/1500/DIL1200* 10” (25.4 cm) 10” (25.4 cm) 5.6 4.3/5.1/4.8
DICV36321 VINV600 DEV900**/1200*
DIL900/DIL1200
7” (17.8 cm) 10” (25.4 cm) 4.0 7.5/5.2/3.0/4.8
DICV42321 VINV600 DEV900**/1200/1500
DIL900/DIL1200
7” (17.8 cm) 10” (25.4 cm) 4.0 7.5/5.2/6.0/3.0/4.8
DICV54321 VINV1200 DEV1200/1500/DIL1200 10” (25.4 cm) 10” (25.4 cm) 6.4 5.2/6.0/4.8

VENTILATION
Built-In Custom Ventilator Systems
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Ventilator Kits
• See Insta ation Requirements table for recommendations for each hood model
• One ventilator, one duct run for any size hood/ventilator
•A 1,200 CFM interior or 1,500 CFM exterior (if applicable) ventilator should be used over ranges/rangetops with gas grill
• Must use Viking ventilator kits with Viking hoods; use of non-Viking kits voids product warranty
Compliance Information
WARRANTY SUMMARY*
• Three-year full warranty—complete product (Professional and Designer)
• Five-year limited warranty—all ventilator motors (Professional and Designer)
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items (Professional and Designer)
*Must use Viking venti ator kits with Viking hoods; use of non-Viking kits voids product warranty. For complete warranty see Use & Care Guide.
Warranty valid on Viking products shipped within the United States and Canada.
✪Installation Notes & Accessories
Kit model Description Hood models Approx. ship wt. lbs. (k )
VINV300 300 CFM i terior-power VBCV3038/3638 & DBCV3082/3682 27 (12.2)
VINV600 600 CFM i terior-power VBCV3038/3638/4238 & VICV3698/4298 27 (12.2)
DBCV3082/3682/4282 & DICV3632/4232
VINV1200 1,200 CFM i terior-power VBCV3038/3638/4238/4838/5438/6038/6638 & 43 (19.4)
VICV3698/5498/6698 & DBCV4882 & DICV5432
DEV900 900 CFM exterior-power DBCV3082/3682/4282 & DICV3632/4232 39 (17.6)
VBCV3038/3638/4238 & VICV3698/4298
DEV1200 1,200 CFM exterior-power DBCV3082/3682/4282/4882 & DICV3632/4232/5432 53 (23.9)
VBCV4838/5438/6038/6638 & VICV3698/4298/5498/6698
DEV1500 1,500 CFM exterior-power DBCV4882 & DICV4232/5432 53 (23.9)
VBCV4838/5438/6038/6638 & VICV4298/5498/6698
DIL900 900 CFM i -li e power DBCV3082-DBCV4282 & DICV3632/4232 20 (9.1)
VBCV3038/3638/4238 & VICV3698/4298
DIL1200 1,200 CFM i -li e power DBCV3082-DBCV4882 & DICV3632-DICV5432 25 (11.3)
VBCV3038-VBCV6638 & VICV3698-VICV6698
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
