Vingtor ETB-5 User manual

USER GUIDE
Command Talk-Back & Public Address System
ETB-5 / ETB-10 / ETB-10A / ETB-100 / ETB-100A
A100K11163

ETB Central Unit Functions1
The ETB Talk-Back system comprises the ETB central unit and accessory equipment such as
microphones and foot switch.
ETB-5/ETB-10/ETB-10A/ETB-100/ETB-100A Central Unit

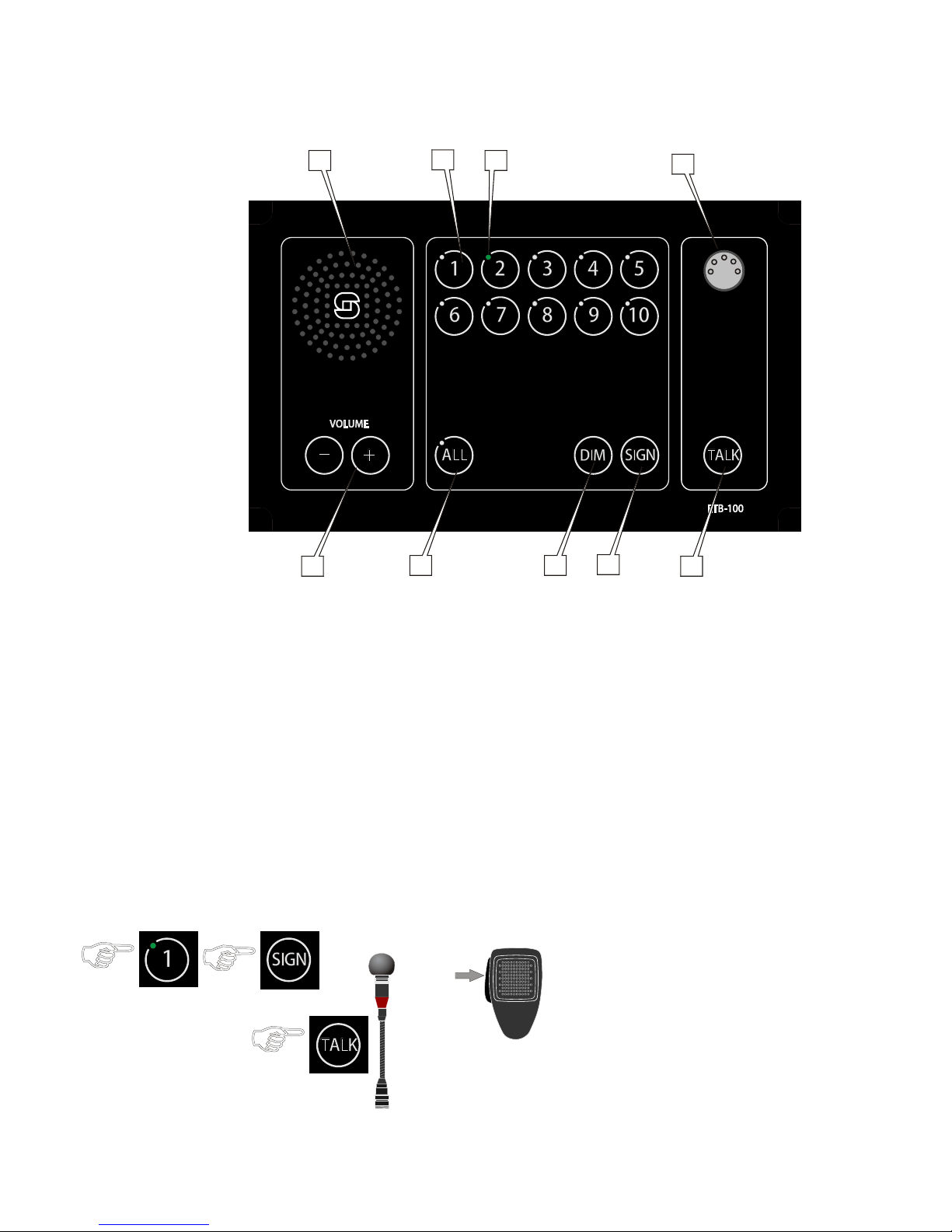

Loudspeaker: For communication and alarm signals1.
Line Buttons: Lines 1-5 for ETB-5, Lines 1-10 for ETB-10/ETB-10A and ETB-100/ETB-100A2.
Green LED: Indication light for each line button3.
Microphone Connector: For gooseneck or handheld microphone4.
VOLUME - +: Volume control buttons for panel loudspeaker5.
ALL: Button with indication LED for making All Call6.
DIM: Button for adjusting light intensity of indication LEDs7.
SIGN: Button for signal and activating extra signal device on substations8.
TALK: PTT switch for gooseneck microphone MB-30G9.
Making a Call to a Substation2
●Press the line button
the call is set up, indicated by a steady green LED-
●Press the SIGN button
●Press the TALK button or PTT switch on the handheld
microphone
Speak clearly into the microphone●
When the TALK button or PTT switch on microphone is-
released, the ETB will be in listening mode, and you will
hear the communication from the selected station.
Press the line button once more to terminate the call.●
VINGTOR
1 2 4
5
1
6 7 8 9
3
PTT Switch
ETC-1-TB

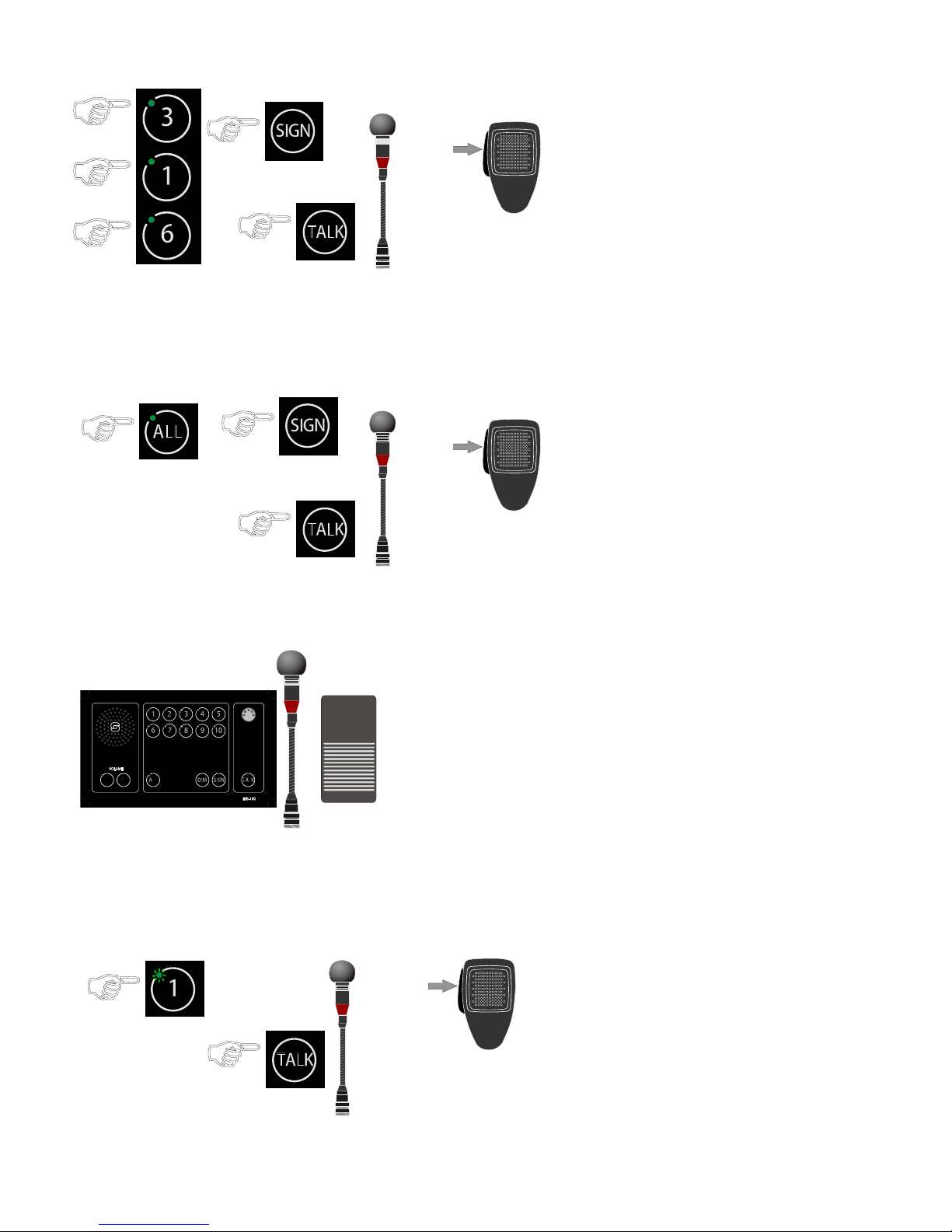

Making a Call to a Group of Substations3
●Press the required line buttons.
The call is set up, indicated by the LEDs lighted a-
steady green in the selected buttons.
●Press the SIGN button
●Press the TALK button or PTT switch on the handheld
microphone
Speak clearly into the microphone●
When the TALK button or PTT switch on microphone is-
released, the ETB will be in listening mode, and you will
hear the communication from the selected station.
Press the active line buttons once more to terminate●
the calls.
Making an All Call4
●Press the ALL button, the call is set up.
Indicated by steady green LED in the ALL button.-
●Press the SIGN button
●Press the TALK button or PTT switch on the handheld
microphone
Speak clearly into the microphone●
When the TALK button or PTT switch on microphone is-
released, the ETB will be in listening mode, and you will
hear the communication from the selected station.
Press the●ALL button once more to terminate the call
Making a Handsfree Call Using Foot Switch5
The equipment required in making a handsfree call from the ETB central unit are a
gooseneck microphone (MB-30G) and a foot switch (U2410).
Press the foot switch●
Speak clearly into the microphone●
When the foot switch is released, the ETB will be in listening mode, and you will
hear the communication from the selected station.
Receiving Calls from Substations6
Incoming calls are indicated by flashing green LEDs in the respective line buttons and a
beeping tone in the panel loudspeaker.
●Press the line buttons with the flashing green LED
the call is set up, indicated by a steady green LED-
●Press the TALK button or PTT switch on the handheld
microphone
Speak clearly into the microphone●
When the TALK button or PTT switch on microphone is-
released, the ETB will be in listening mode, and you will
hear the communication from the selected station.
Press the active line buttons once more to terminate●
the calls.
PTT Switch
ETC-1-TB
PTT Switch
ETC-1-TB
VIN G T O R
PTT Switch
ETC-1-TB

VINGTOR products are developed and marketed by Zenitel Norway AS. The company’s Quality Assurance System is certified to meet the requirements in NS-EN ISO 9001:2008. Zenitel Norway AS reserves the right to modify designs and alter specifications without prior notice.
©2011 Zenitel Norway AS.
[e-mail]
DOC NO.
Audio from External Systems (ETB-10A)7
Switch on the external equipment●
the audio will be distributed to all substations and in-
the ETB-10A central unit
To override the function:
●Press the TALK button or PTT switch on the handheld
microphone
●Speak clearly into the microphone
Switch off the external equipment●
Emergency PA from Call Station 1 (ETB-100A)8
●Press the ALL button
the call is set up indicated by a steady green LED-
●Press the TALK button or PTT switch on the handheld
microphone
Speak clearly into the microphone●
Press the●ALL button once more to terminate the call
Emergency PA from Call Station 2 (VMT-603)9
Press the●PTT switch on the microphone
This will mute the General Alarm system and override-
Talk-Back and single PA calls
Speak clearly into the microphone●
When the PTT switch is released, the ETB-100A will revert to normal Talk-Back mode.
Emergency PA from Call Station 3 (VMP-603)10
●Press the TALK button on VMP-603
The operation will mute the General Alarm system and-
override Talk-Back and single PA calls.
Speak clearly into the microphone●
When the TALK button is released, the ETB-100A will revert to normal Talk-Back mode.
Parallel Communication (STB-6/STB-6GN on Bridge Wing)11
Press the line button on the ETB to select station●
the call is set up, indicated by a steady green LED-
●Press the PTT switch or TALK button on parallel stations
STB-6 or STB-6GN
Speak clearly into the microphone●
When the PTT switch or TALK button is released, the parallel
station will be in listening mode and you will hear the
communication from the selected station in the loudspeaker.
+
-
TUNER BAND
1 2 3 4 5 6
S
OFF
POTENTIAL-FREE CONTACT
0 dB AUDIO
+
-
TUNER BAND
1 2 3 4 5 6
S
ON
POTENTIAL-FREE CONTACT
0 dB AUDIO
PTT Switch
ETC-1-TB
PTT Switch
ETC-1-TB
PTT SWITCH
VMT-603
PTT Switch
ETC-1-TB
A100K11163 17.10.2011
