Vinten Osprey Plus S User manual

User Guide
Pedestal
Studio V4171-0001
OB V4171-0002
Part No. V4171-0001
V4171-0002
EN www.vinten.com
Osprey Plus S Pedestal

Copyright © 2022
All rights reserved.
Original Instructions: English
All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any
way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the
Videndum Group Plc.
Disclaimer
The information contained in this publication is believed to be correct at the time of printing. Videndum Ltd reserves the right to make changes to the
information or specications without obligation to notify any person of such revision or changes. Changes will be incorporated in new versions of the
publication.
We are making every e󰀨ort to ensure that our publications are updated on a regular basis to reect changes to product specications and features.
Should this publication not contain information on the core functionality of your product, please let us know. You may be able to access the latest
revision of this publication from our website.
Videndum Production Solutions Ltd reserves the right to make changes to product design and functionality without notication.
Trademarks
All product trademarks and registered trademarks are the property of The Videndum Group Plc.
All other trademarks and registered trademarks are the property of their respective companies.
Published by:
Videndum Production Solutions Ltd
Email: [email protected]

Contents
Safety................................................2
Warning Symbols Used in these Instructions ...........2
Intended Use ....................................2
Health and Safety ................................2
Mounting and Installation...........................2
Water, Moisture and Dust ..........................3
Operating Environment ............................3
Cleaning........................................3
Maintenance ....................................3
Critical Data .....................................3
About this Guide .................................4
Introduction and Description ........................4
Components and Connections ...........................5
Box Contents ....................................5
Optional Accessories ..............................8
Assembling the Pedestal ...........................9
Installation............................................9
Column .......................................10
Pressurizing the pedestal ......................... 11
Pressurizing the pedestal using a portable pump .......14
Pressurizing from an external pressure source .........15
Fitting and balancing the load ......................16
Heavy Duty Quickx Adaptor (supplied) ..............16
Operation............................................18
Height adjustment ...............................18
Lower stage ....................................18
Top stage ......................................19
Brakes ........................................19
Cable guards ...................................19
Pedestal movement ..............................20
Steering Tiller...................................21
Changing the skid tracking width ....................22
Optional wheels .................................23
Transportation and storage ........................24
Maintenance .........................................25
Servicing ......................................26
General .......................................26
Cleaning.......................................26
Routine Maintenance.............................26
Adjustments ....................................26
Bottom clamp adjustment .........................27
Skid clamp adjustment............................28
Replacing gas struts .............................28
Technical Specication ................................30
General Notices ......................................32

2
Safety
Important information on the safe installation and operation of
this product. Read this information before operating the product.
For your personal safety, read these instructions. Do not operate
the product if you do not understand how to use it safely. Save
these instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury and
avoid possible damage to the product.
!
WARNING!
Where there is a risk of personal injury or injury to others,
comments appear supported by the warning triangle
symbol.
Where there is a risk of damage to the product,
associated equipment, process or surroundings,
comments appear supported by the word ‘CAUTION’.
Health and Safety
Intended Use
The Osprey Plus S pedestal is designed for use in television studios
(OB version eld applications) and on location to support and
balance a pan and tilt head, camera and ancillary equipment weighing
up to 70 kg (154 lb).
This product is intended for use on an unobstructed and reasonably
level surface by television camera operators.
Mounting and Installation
!
WARNING symbols on the pedestal
On encountering the warning triangle and open book
symbols it is imperative that you consult this operators
guide before using this pedestal or attempting any
adjustment or repair.
!WARNING! Before tting, adjusting, or removing the
payload, the elevation column must be lowered to a safe
working height and wheel brakes must be applied
!WARNING! An abnormal or unbalanced payload can
cause the product to become unstable. Strictly adhere
to the payload guidelines and mounting instructions
presented in this user guide
!WARNING! When mounting the payload, su󰀩cient
clearance must be provided below the mounting platform
to prevent the risk of collisions or trapping injuries when
the column is lowered.
!WARNING! The product has been designed for mounting
a payload consisting of camera support equipment only.
Under no circumstances should the product be used for
the transportation or support of personnel.
!WARNING! Risk of product instability when moving the
product with the elevation column fully extended. Reduce
the height of the elevation column to a safe lower level
before attempting to move the product.
!WARNING! Risk of personal injury or injury to
others. All personnel must be fully trained and adhere to
correct manual handling techniques and Health & Safety
regulations. It is the responsibility of the local organisation
to enforce safe working practices at all times..
!WARNING! 45.8 kg/100.9 lb LIFTING ASSISTANCE
REQUIRED. Do not lift this product without the assistance
of another person or a lifting hoist capable of safely lifting
the product.

3
Safety
Water, Moisture and Dust
Operating Environment
Cleaning
Maintenance
Critical Data
!WARNING! The product must only be operated on a
smooth and level surface.
!WARNING! The product must always be secured (all
three wheel brakes applied) when left unattended. Do not
leave the product unattended on a sloping surface.
!CAUTION! Do not exceed the payload limit for the
product of 70 kg (154 lb).
!CAUTION! The product must only be operated with a
minimum payload of 10 kg (22 lb) to pre-load the column
correctly.
!WARNING! Protect the product from water, moisture and
dust.
!WARNING! The product should not be used outside
the operating temperature limits. Refer to the product
technical specications for the operating limits for the
product.
!CAUTION! Do not use solvent or oil-based cleaners,
abrasives or wire brushes. Clean with a dry lint free cloth.
!WARNING! The tting of non-approved parts or
accessories, or the carrying out of non-approved
alterations or servicing can be dangerous and could
a󰀨ect the safety of the product. It may also invalidate the
terms and conditions of the product warranty.
Mass
Pedestal unladen:
Studio . .. .. .. .. .. .. .. 41.9 kg / 92.5 lb
OB .. .. .. .. .. .. .. .. .. 45.8 kg / 100.9 lb
Pressure
Maximum pressure:. .. 11.7 bar (170 psi)
Load
Maximum load: . .. .. .. 70 kg / 154 lb
≤ 70 kg
154 lb
≤ 11.7 bar (170 psi)

4
Safety
Introduction and Description
The Osprey Plus S is a fully steerable version of the Osprey Plus and
is capable of handling any payload up to 70kg / 155lb. It has 2 stages
for achieving very high and low shots, and the upper stage is perfectly
balanced for on shot tracking of talent.
It has an integral manual pump and an inlet valve for use with an
external supply, making Perfect Balance easy to achieve. There is
a storage area for the camera operator. In addition, the pedestal
includes a pressure gauge for clear and reliable set-up and the
detachable skid allows the pedestal to be simply broken down into
two sections for easy storage and transportation.
!
WARNING!
Do NOT attempt to use this product if you do not
understand how to operate it.
Do NOT use this product for any other purpose than
that specied in the Usage statement above.
Maintenance beyond that detailed in this Operators
Guide must be performed only by competent personnel
in accordance with the procedures.
About this Guide
This operators guide is issued for the Osprey Plus S Pedestals, Part
No. Studio: V4171-0001 and OB: V4171-0002.
The guide provides instructions for operation and routine maintenance.
• Safety / educational videos
• Exploded diagrams leading to the Parts Store
• Recycling information and life cycle upgrades
• Warranty information & links to registration /
submit case to service team/case management
• User manuals
• Easy access to service centre
• This QR code is also on the Pedestal for easy
reference.
Scan this QR code to access a dedicated page
containing important information:
It has a selector for both single wheel and all wheel crab steering for
working in tight spaces and on shot direction changes. It comes with
12.5cm / 5 inch wheels Studio), 16cm / 6.3 inch (OB) and adjustable
cable guards for studio use.
Key features:
Upper stage perfect balance for on-shot performance.
Balance assisted second stage for easy elevation and extended
height range.
Full crab and steer facilities controlled from a central steering ring for
enhanced manoeuvrability and on-shot steering.
Built in pressure gauge and manual pump for easy counterbalance
set-up.
Detachable skid for easy transport and storage.
Wheel rim braking mechanism eliminates tyre at spots for smooth
rolling shots
Pedestal supplied with Quickx quick release system & operator
storage area
Column can be adapted to work on dolly track
Usage
The Osprey Plus S pedestal is designed for use in television studios
and on location to support and balance a pan and tilt head, camera
and ancillary equipment weighing up to 70 kg / 155 lb.
This product is intended for use on an unobstructed and reasonably
level surface by television camera operators.

5
Components and Connections
Box Contents Item Description Item Description
1Osprey Plus S
V4171-0001 1a Osprey Plus S OB V4171-0002
2Quickx 2Quickx
3Accessory holder 3Accessory holder
4Trim weights x 6 4Trim weights x 6
5Skid + Studio wheels 5a Skid + OB wheels
6Manual Pump 6Manual Pump
1
1a
6
5
5a
3
24

6
Components and Connections
Item Description
1Control valve
2Four-bolt mounting plate
3Pressure gauge
4Steering indicator
5Top stage
6Top clamp
7Bottom stage
8Safety catch
9Trim weight stowage
10 Short strut
11 Foot support and strap
12 Wheel brake foot-button
13 Kick bar
20
21
22
23
24
25
26
27

7
Components and Connections
Item Description
14 Skid clamp
15 Trim weight
16 Crab/Steer changeover foot-button
17 Cable guard
18 Cable clamp
19 Tiller socket
20 Fixed strut
21 Bottom clamp
22 Drag control
23 Schrader valve and cap
24 Removable steering ring
25 Steering ring mounting plate
26 Weight tray
27 Accessory holder
20
21
22
23
24
25
26
27

8
Components and Connections
Optional Accessories
Item Description Part No.
1200mm Hi-Hat with clamp ring (3101-201) 3155-3B
2150mm Bowl Adaptor 3330-17
3Mitchell head Adaptor with clamp ring (3101-201) 3055-3B
4Tracking Dolly / Skid 3369-57
5100mm Bowl Adaptor 33016
6Base Adaptor 08349
7PTZ and Prompter plate V4166-1002
8Studio Wheels 3329-43
9OB Wheels 3329-30
10 OB Cable Guards 3329-44
11 Steering Ring Large: 25in 3429-21
12 Tiller Bar 3329-21
123
4
5
678
9
11 12
10

9
Installation
Assembling the Pedestal
1.Turn the skid upside-down, depress the leg locking plungers and swing each folding leg out until the plungers lock the legs in the fully open
position.
2.Fit the kick bar (2), by pressing it into all three sliding catches on the underside of the centre casting (Step 1) and secure it by engaging all three
locks (Step 2). The weld line on the kick bar should be aligned with the handle on the skid.
3.Set the skid on the ground on its wheels and apply the brakes (4).
4.Ensure that the rubber straps on each foot support (3) are to the outside of the ball joint.
28
1. 2.
28
1. 2.
28
1. 2.

10
Installation
1. Ensure that the rubber straps on each foot support (11) are to the
outside of the ball joint.
2. Hold the column uprigh. Raise the struts (20) to about 30° from
horizontal. The strut joints are adjusted to retain the strut in this
position.
3. Lift the column, align the xed strut with the xed leg of the
skid (there is also an engraving on the skid to assit aligning the
column) and carefully lower the column base into the skid centre.
Ensure that the struts engage with the ball joints on each foot
support and the steering tube locates in its socket.
4. Secure the struts to the supports with the rubber straps
(11).
5. Tighten the skid clamp (14), using moderate hand pressure only.
The clamp lever has a spring-loaded ratchet-type action and is
operated as follows:
6. Turn the clamp lever clock-wise as far as possible.
7. Pull the lever outward against the spring pressure, return it to
vertical and release.
8. Turn lever clockwise again.
9. Repeat until the skid clamp is su󰀩ciently tightened.
10.Slide the steering indicator(s) (4) to the desired position (See
Pedestal movement on page 20)
Column
Install the column on the skid as follows:
20
20
20
20
20
20

11
Installation
Pressurizing the pedestal
The pedestal may be pressurized using the built-in pump, by using a
Portable Pump or from an external pressure source.
Ascertain the payload to be tted to the pedestal (payload = pan and
tilt head, camera, lens and all ancillary equipment). Referring to the
graph below, mark the payload on the horizontal axis then strike a
vertical line from the load gure to the balance line. At the intersecting
point strike a horizontal line to the vertical axis and read o󰀨 the
required gas pressure.
!
WARNING! Do not pressurize the pedestal beyond the
maximum safe working pressure indicated by the leading
edge of the red sector on the gauge. The pedestal is tted
with a pressure relief valve as a safeguard against over-
pressurization. Do not attempt to adjust the pressure relief
valve. Remove the payload before pumping.
!WARNING! This pedestal must be pressurized only
with clean, dry air or nitrogen. A pressure reducing
valve must be tted to the pressure line between the
as cylinder and the outlet connection of the hose. The
reducing valve must be screwed into the gas cylinder
outlet. The maximum pressure on the outlet side of the
reducing valve must not exceed 11.7 bar (170 psi). Do
not pressurize the pedestal beyond the maximum safe
working pressure indicated by the leading edge of the red
sector on the gauge. The pedestal s tted with a pressure
relief valve as a safeguard against over-pressurization.
Do not attempt to adjust the pressure relief valve.
!WARNING! A pressurized pedestal will rise rapidly when
safety catch is released. Do not release safety catch
when pedestal is pressurized and balancing load is not
installed. Always restrain the pedestal by hand pressure
on the steering ring when the safety catch is released.
!WARNING! Bottom stage elevation is assisted by a gas
strut. The bottom stage will rise rapidly if released with
no payload tted. Do not lean over the pedestal when
releasing the safety catch and/or the bottom clamp.
!WARNING! A pressurized pedestal will rise rapidly if the
control valve is set to WORK.
Do not move the control valve directly from PUMP to
WORK.
11
160
11
12
180
160
100
20 40 60 80 100 120 140 155
20 30 40 50 60 70
≤ 11.7 bar
(170 psi)
Method Advantages Disadvantages
Integrated Pump
(For units that have
this.)
• No accessory needed
• Less strokes than manual Pump • Cannot pump with payload tted.
Gas Bottle • Fast
• Can add gas with payload tted
• Not always available
• Recommended training needed for
working with compressed gas.
Manual Floor Pum • Easy for topping up.
• Readily available
• Self pump not available for all peds.
• Physically demanding so not
recommended for payloads over 60kg.
• Some pumps cannot achieve max
pressure on some models.

12
To pressurize the pedestal using the built-in pump,
proceed as follows:
To pressurize the pedestal manually, proceed as follows:
!WARNING! Bottom stage elevation is assisted by a gas
strut. The bottom stage will rise rapidly if released with
no payload tted. Do not lean over the pedestal when
releasing the safety catch and/or the bottom clamp

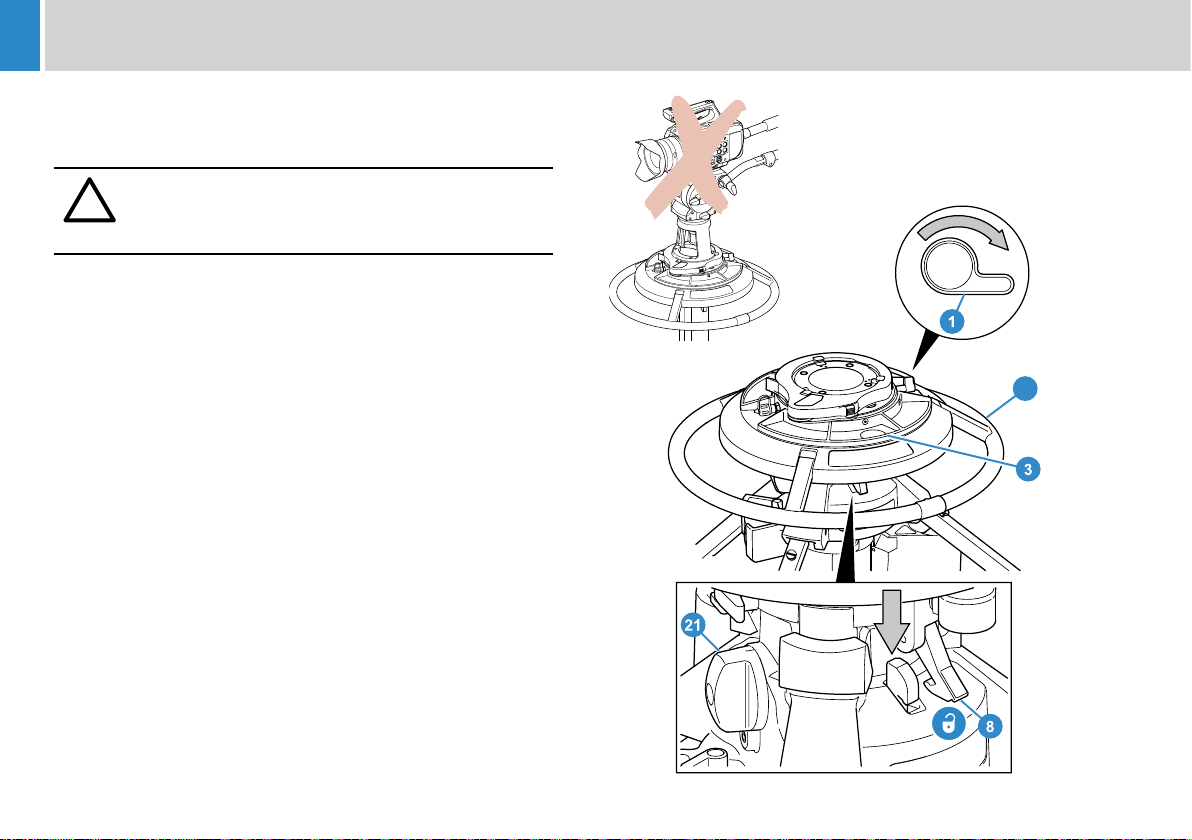

1.Set the control valve (1) to the PUMP position.
2.Ensure that the bottom stage is fully lowered and the red bottom
clamp (21) is applied. Remove the payload, if tted.
3.Push down on the steering ring (24) against any residual pressure
and release the safety catch (8).
4.Move the slide down into the unlock position.
5.Turn the steering ring to reveal the pressure gauge in weight tray
aperture.
6.Using the steering ring, raise the top stage until fully extended.
Commence pumping by lowering and raising the top stage over
the upper half of its travel. When the pressure gauge (3) begins to
register, pump the top stage over its full stroke. Stop pumping when
maximum working pressure is reached (indicated by the lower edge
of the red sector on the gauge) during the pumping stroke.
Installation
24
24

13
Installation
1.Push the control valve (1) in and turn 90° counter clockwise to the
midway position between PUMP and WORK and release, pause for
5 seconds and allow the top stage to rise fully.
!WARNING! A pressurized pedestal will rise rapidly if the control valve is set to WORK. Do not move the control valve directly from
PUMP to WORK.
2.Push the control valve (1) in and turn 90° counter
clockwise to the WORK position. Install the camera mount
and payload and balance the load as described Fitting
and balancing the load on page 16.
24
24

14
Installation
Pressurizing the pedestal using a portable
pump
!
WARNING! Do not pressurize the pedestal beyond the
maximum safe working pressure indicated by the leading
edge of the red sector on the gauge. The pedestal is
tted with a pressure relief valve as a safeguard against
over-pressurization. Do not attempt to adjust the
pressure relief valve.
!
WARNING! A pressurized pedestal will rise rapidly when
safety catch is released. Do not release safety catch
when pedestal is pressurized and balancing load is not
installed. Always restrain the pedestal by hand pressure
on the steering ring when the safety catch is released.
To pressurize the pedestal using the Vinten portable *pump,
proceed as follows:
Attach the intended payload, see Fitting and balancing the load
on page 16
1.Set the control valve (1) to the WORK position.
2.Fully depress the moving column and engage the safety catch (8).
3.Turn the Steering ring (24) so the pressure gauge can be seen
through the weight tray.
4.Connect the pump adaptor (5) to the pedestal charging valve (23)
by turning clockwise until nger tight.
5.Connect the pump hose to the pump adaptor (5) and ip it upwards
to secure.
6.Position the pump between the legs, standing with both feet on the
pump feet.
7.Grip the pump handle with both hands and using full steady
*Pump model may di󰀨er.
strokes, pressurize the pedestal to the required pressure. Do not
exceed the maximum working pressure, indicated by the leading
edge of the red sector on the gauge.
8.Disconnect the hose from the pedestal charging valve, but do not
ret the Schrader valve cap at this stage. Push the pump plunger
fully down, and store.
24
23
23
24
A
B
Note! In the event that the pedestal air pressure has
dropped to 0 psi, proceed as follows:
Follow steps 3 to 4. The pump features a shock
function (Lever in Position A), this allows the pump to
store pressure with every stroke up to approximately
75psi. When this pressure is achieved turn the lever to
position B. This will force the O-ring in the pedestal to
seal. Resume from step 5.

15
Installation
24
Pressurizing from an external pressure source
!
WARNING! This pedestal must be pressurized only with clean, dry air or nitrogen. A pressure reducing valve must be tted to the
pressure line between the gas cylinder and the outlet connection of the hose. The reducing valve must be screwed into the gas cylinder
outlet. The maximum pressure on the outlet side of the reducing valve must not exceed 11.7 bar (170 psi).
Do not pressurize the pedestal beyond the maximum safe working pressure indicated by the leading edge of the red sector on the
gauge. The pedestal is tted with a pressure relief valve as a safeguard against over-pressurization.
Do not attempt to adjust the pressure relief valve.
!
WARNING! A pressurized pedestal will rise rapidly when safety catch is released. Do not release safety catch when pedestal is
pressurized and balancing load is not installed. Always restrain the pedestal by hand pressure on the steering ring when the safety catch
is released.
To pressurize the pedestal from an external pressure source, proceed as follows:
1.Set the control valve (2) to the WORK position.
2.Push down on the steering ring (24) against any residual pressure and engage the
safety catch (7).
3.Attach the intended payload, see Fitting and balancing the load on page 16
4.Turn the Steering ring so the pressure gauge (3) can be seen through the weight
tray
5.Remove the Schrader valve cap (23) and connect the charging line from the
pressure source.
6.Turn on the pressure supply and slowly increase the pedestal pressure. Shut o󰀨
the supply when maximum working pressure is reached, indicated by the lower
edge of the red sector on the gauge (3).
7.Disconnect the hose from the pedestal charging valve, but do not ret the
Schrader valve cap at this stage.
Note! In the event that the pedestal air pressure has
dropped to 0 psi, proceed as follows:
Follow steps 3 to 4. The pump features a shock
function (Lever in Position A), this allows the pump to
store pressure with every stroke up to approximately
75psi. When this pressure is achieved turn the lever to
position B. This will force the O-ring in the pedestal to
seal. Resume from step 5.

16
Installation

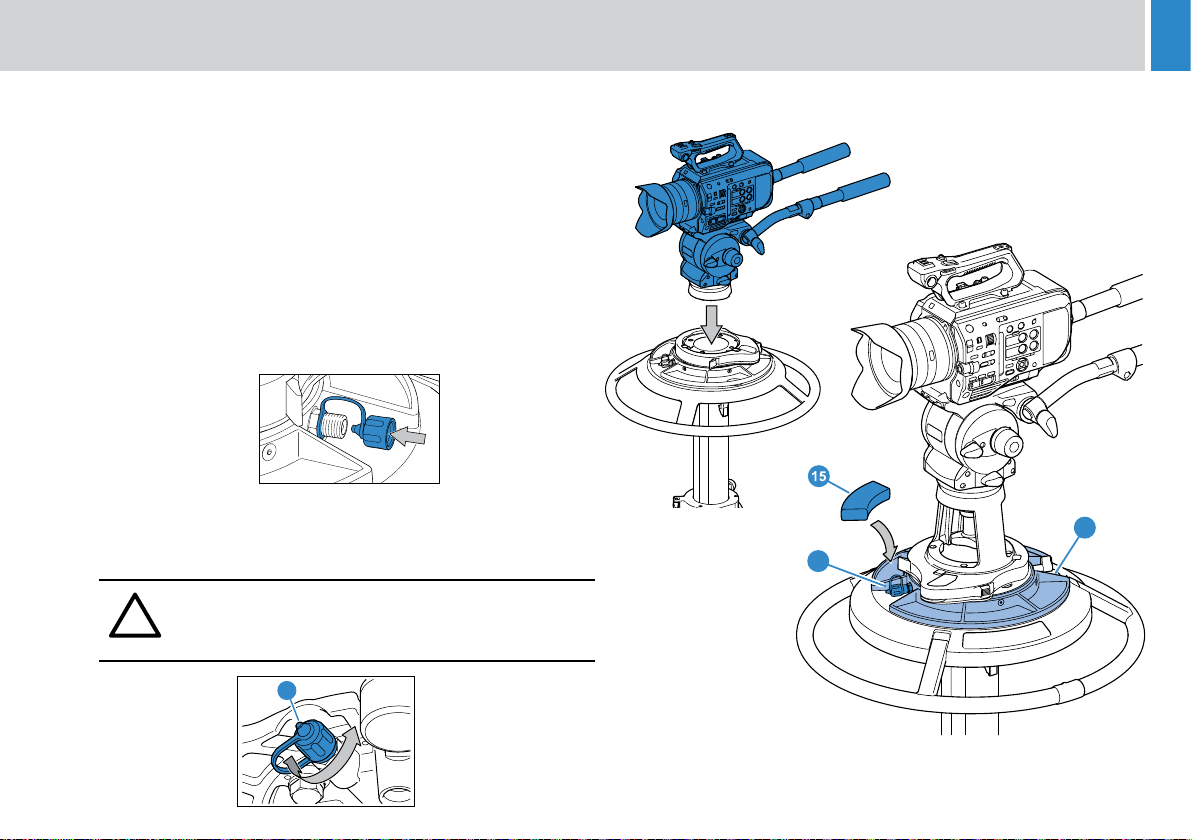

Fitting and balancing the load
After pressurization of the pedestal, the
camera mounting and payload can be tted
and balanced.
!WARNING! Fit the camera mounting and payload with
the moving column depressed and the safety catch
engaged.
The pedestal has the standard four-bolt mounting plate which permits
the use of various Vinten camera mounts including pan and tilt heads,
Quickx and Mitchell adapters See Optional Accessories on page
8.
Heavy Duty Quickx Adaptor (supplied)
The heavy duty Quickx adaptor allows a pan and tilt head with
a ‘Quickx’ base to be installed on a standard Vinten four-hole
mounting.
Installation
1.
Install the adaptor on the four-hole mounting The mounting bolts
are captive in the pedestal and the bolt heads are accessible from
the underside of the mounting plate. When the camera mount
has been tted, the bolts should be tightened securely using a
spanner of the correct size. A Vinten spanner, Part No. J551-001, is
available for this purpose.
!WARNING! Ensure that the screws engage su󰀩ciently
for safety, but do not protrude above the adaptor
mounting face.
To t a head
1.
Push up the red safety latch and unlock the adaptor by pulling the
lever fully outwards and to the left.
2.Position the head in the adaptor, ensuring that it seats correctly in
the recess and the safety button is depressed.
3.Lock the head in
the adaptor by
pushing the lever
fully inwards to
the right until the
red safety latch
operates.
To remove a head
1.
Push up the red
safety latch and
unlock the adaptor
by pulling the lever
fully outwards and
to the left.
!WARNING! This unit contains a spring under tension.
Removal of the backplate may cause personal injury.
UNLOCKED LOCKED
RED SAFETY
LATCH
SAFETY
BUTTON

17
Installation
8
1
23
23
26
1.Fit the adaptor to the ped rst, then the head followed by the
camera, blue indicates moving parts not assembly sequence. Once
the head is tted follow head and accessories manuals to securely
t all of he payload (which may include camera, lens, teleprompter,
viewnder and accessories. .
2.With the full payload tted, hold the steering ring down and release
the safety catch carefully allowing the top stage of the pedestal
to extend. Ensure pan bars, prompters, lenses etc are tted.
Attaching these items at a later stage may upset the pedestal
balance.
3.Using the Schrader valve cap, carefully reduce the pressure
in steps of 0.15- 0.20bar (2-3psi) until the payload is correctly
balanced.
A correctly pressurized pedestal will balance its payload, it may be
moved to any position over the full on-shot stroke with minimum e󰀨ort
and will maintain its position when the steering ring is released.
!WARNING! The Schrader valve cap (23) forms a primary
pressure seal. Always replace the cap and screw it down
nger-tight.
3.Fine balance and temperature correction may be achieved by
adding or removing trim weights (15).
8
21
22

18
Operation
Height adjustment
!
Lower stage pressure-assistance is provided by a
gas strut located within the column.
The strut is available in three pressure settings (See
below) and the correct one should be installed according
to the pedestal load. (See Replacing gas struts on
page 28).
Lower stage
The elevation tube forms the
lower stage of the pedestal
height adjustment and has a
range of 395 mm (15.5 in.),
and is pressure-assisted
to aid elevation whilst the
pedestal is loaded. To adjust
the height setting:
1.Lower the top stage and
engage the top clamp (6).
2.Support the weight of
the load by holding the
steering ring (5) and then
slacken the bottom clamp
(21) by turning the red
knob counter-clockwise
until the lower stage is free
to move.
3.Use the steering ring to set the column at the required height and
re-tighten the bottom clamp.
Strut Payload / Force Part No.
Factory Fitted 30-55 kgs / 450N 3328--305
Supplied loose 55-70 kgs / 600N 3328-385
Available to purchase 0-30kgs / 270N 3328-307
21
21
21
