24ft Camera Crane Base Kit
(P-W5P24-BASE)
I N S TR UC T I O N M A N UA L

PROAIM 24 BASE KIT 2
IT IS IMPORTANT THAT YOU READ AND UNDERSTAND THIS GUIDE BEFORE ATTEMPTING TO
ASSEMBLE OR USE YOUR NEW PROAIM 24FT BASE KIT.
SHOULD YOU NEED ADDITIONAL INFORMATION, TECHNICAL ASSISTANCE IS AVAILABLE ‘ON
LINE' BY CONTACTING YOUR SALES REPRESENTATIVE.
INTRODUCTION
PROAIM 24 ' Base Kit is a complete producon package for those who do not believe in compro-
mise. It is designed to extend your reach and to explore every unexplored angle. The hi grade alu-
minum construcon enables fast set-up & makes it easy for one man to operate. Comes with a
rugged dolly to enhance your shoong capabilies and a LCD mounng arm for beer viewing.
Not only give slow or high level eect its unique automac & manual lng system gets you more
o your camera crane, your imaginaon it's the limit. .

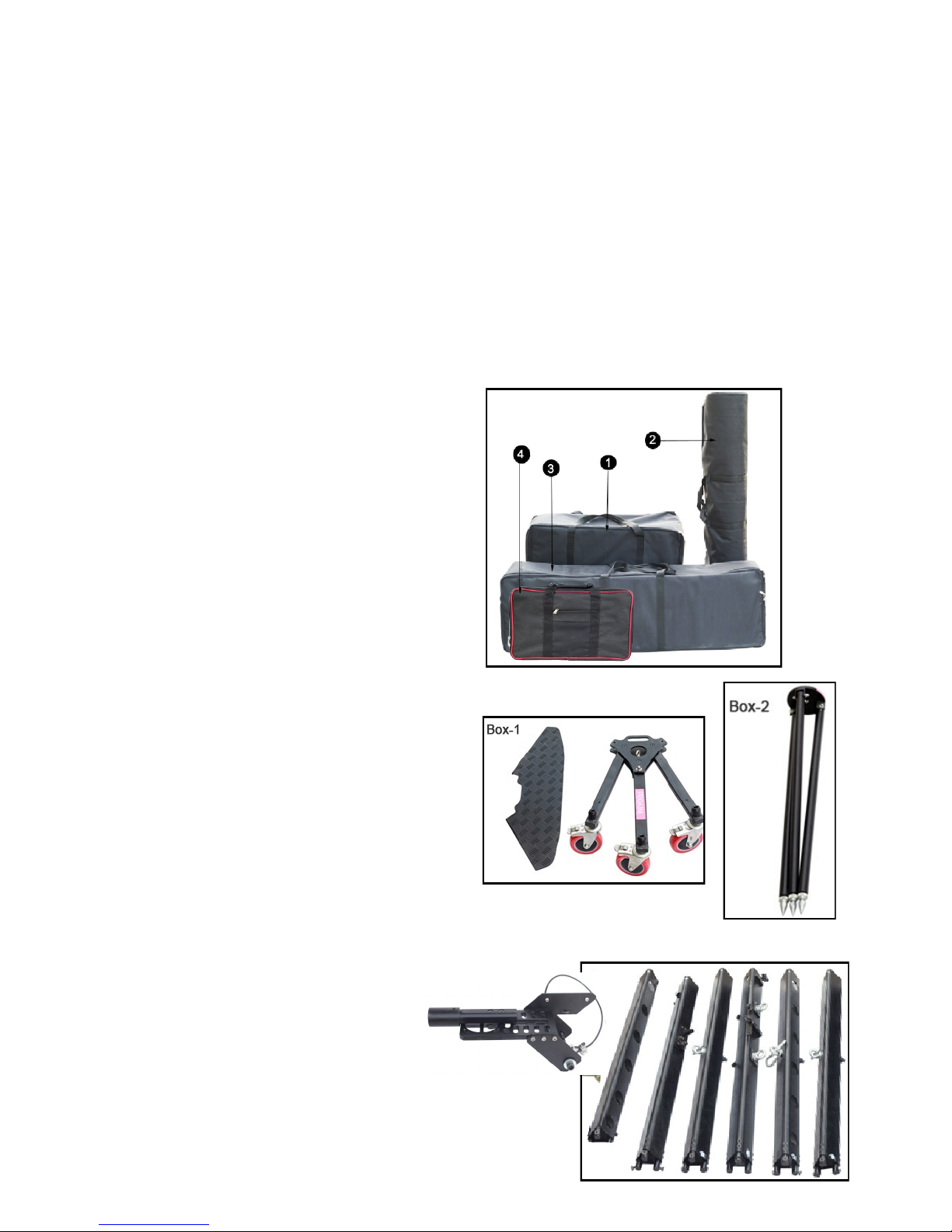

WHAT’S IN THE BOX
Please inspect the contents of your shipped
package to ensure you have received all that is
pictured and listed below.
Packaging Material of Box-1
 D–37 Dolly
 Dolly plaorm
Packaging Material of Box-2
 Tripod stand
Packaging Material of Box-3
 Head Plaorm
 1st jib secon—6th secon

PROAIM 24 BASE KIT 3
Packaging Material of Box-4
 14.5 cables
 2x 13.5 cable
 7.9 cables
 6.9 cable
 6.7 cable
 3x 3.7 cable
 3.1 cable
 2.4 cable
 2.2 cable
 Safety chain
 Cable guide
 Supporng rod
 Central fork
 Wire tensioners
 Hooks
 Screws
 Weigh bar with
closers
 You will receive your D-37 dolly collapsed for shipping/storage purposes. To extend the
legs, take out the Allen bolts from both outer legs & pull out each leg unl it reaches to join-
ing connecons and secure with the bolts as shown below .
Please use following sequence of pictures and text in order they appear to set up your new
PROAIM 24FT BASE KIT. Technical assistance is available by contacng our sales representa-
ve.
 Set the posion of wheels and lock
wheels with provided lever which
allows you to have stable shoots.
ASSEMBLING D-37 DOLLY & TRIPOD STAND

PROAIM 24 BASE KIT 4
 Aach dolly plaorm to D-37, screw in the Allen bolts to desired posions and ghten all
the connecons with the help of Allen key.

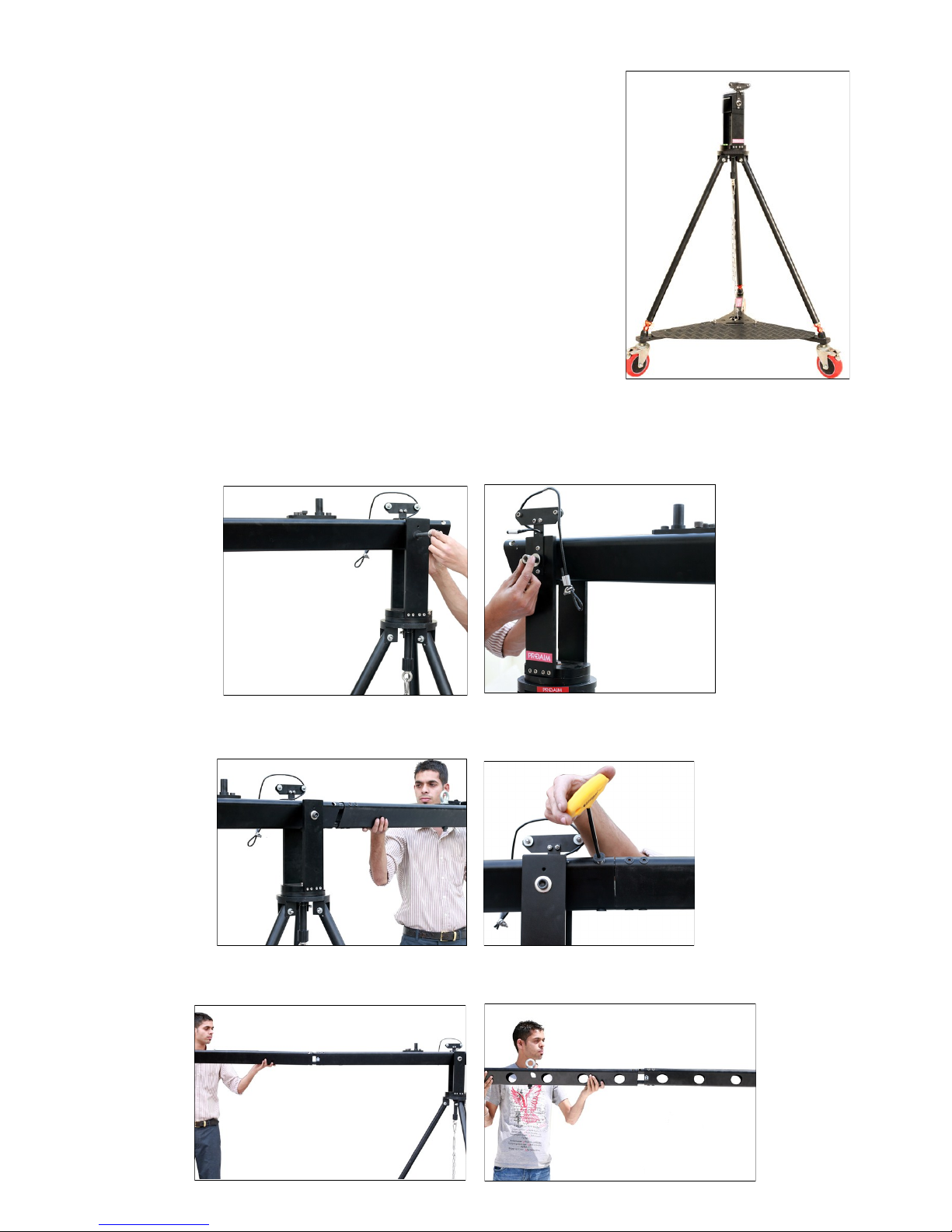

 Aach the legs of tripod stand with D-37
dolly as shown in the image.
 Detach Locking clamp from central fork, mount central fork to tripod bowl, again aach
Locking clamp for secure connecon.
Locking clamp
 To add stability to your Jib, aach wire tensioner with hook on Locking clamp, then aach
one end of safety chain with hook on D-37 dolly and aach other end with wire tensioner
as shown below.

PROAIM 24 BASE KIT 5
 Wire tensioner and safety chain setup
should be properly aligned to ensure sta-
bility.
 Install the 5th Secon to the rear of the vercal pivot point through bolt, washers and nut.
Tighten the nut properly to secure the secon.
ASSEMBLING JIB SECTIONS
 Slide in (6th) secon to the rear to join the 5th secon. Install the Allen screws to the joining
holes of both the secons and ghten.
 Using the same approach insert 4th, 3rd and remaining secons to the joints and secure via
bolts as shown below.

PROAIM 24 BASE KIT 6
 Aach cable guide to cable guide clamp on 5th secon properly. Loosen the bolts on cable
guide clamp in order to aach cable guide support rod to it. Reghten the bolt.
 Aach hooks to provided hook slots on all secons of the jib as shown below.
Cable guide
Support rod
 Then aach 3 hooks to the hook that you aached (as per above image) with 1st secon & 1
hook to 3rd secon.

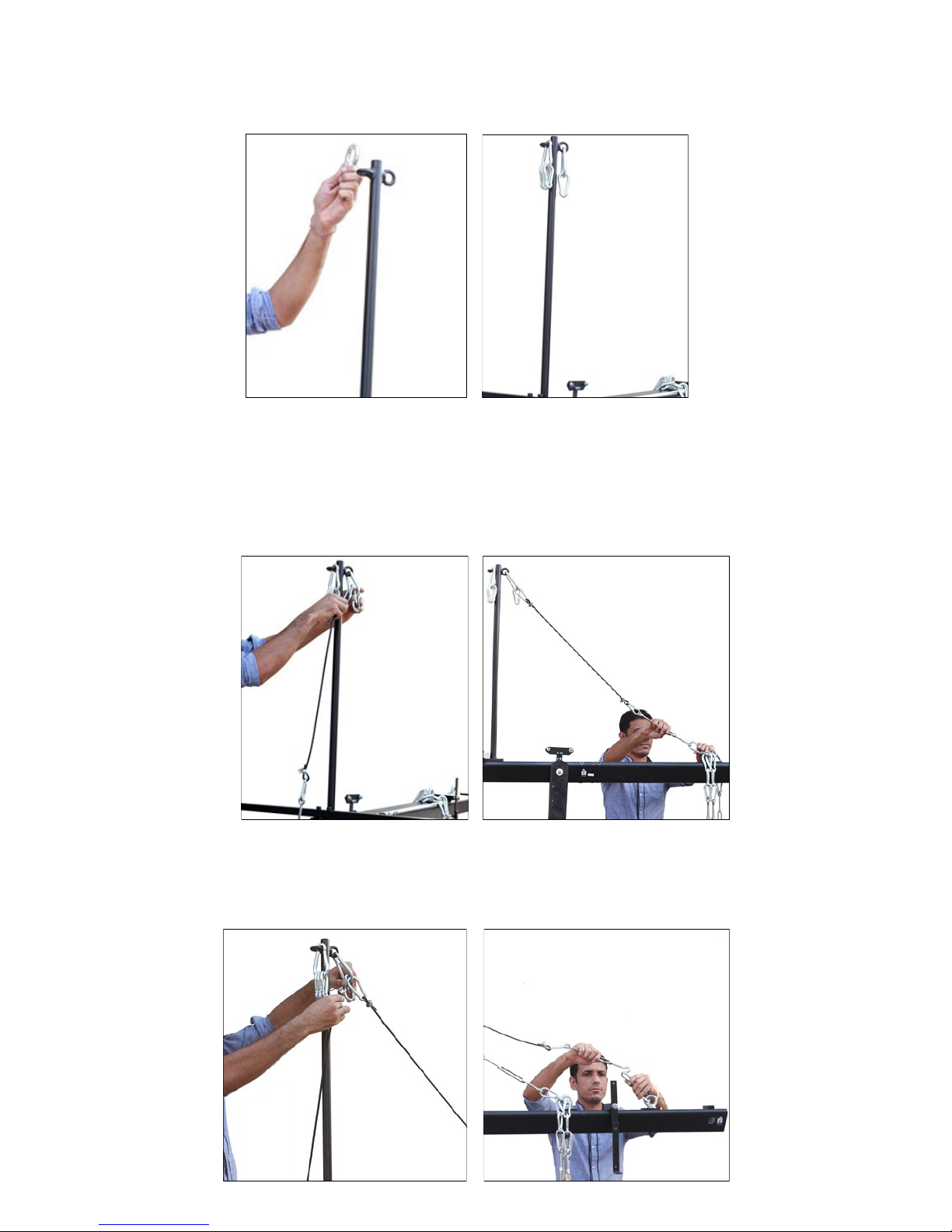

ASSEMBLING CABLE GUIDE AND ROD SUPPORT
 Aach 3 hooks one aer another to four wire tensioners.

PROAIM 24 BASE KIT 7
 Aach 2 hooks on both slots on cable guide. Then aach two extra hooks to hook aach to
front side and two hooks to hook aached on back side.
 Now aach one end of 2.2 cable with Red Sleeves to hook on back side of cable guide and
another end to hook on 1st slot on jib secon with the help of wire tensioner.
ASSEMBLING CABLES
 Aach 3.1 cable with Red Sleeves to same hook on cable guide and another end with hook
on 2nd slot of rear secon as shown below.

PROAIM 24 BASE KIT 8
 Now join 3.7 cable & 6.7 Cable with Red Sleeves.
 Aach the end of 6.7 cable to one of the hook aached on front side of cable guide and
another end of 3.7 cable with hook aached to 3rd secon of jib.
 Aach 14.5 cable with Red Sleeves to hook aached on 1st secon of jib and another end
with 2nd hook aached to cable guide as shown below.
 Now join 3.7 cable & 13.5 cable with Blue sleeves.
 Then aach the end of 13.5 cable to wire tensioner with hooks aached to 6th secon and
another end of 3.7 cable with 2nd hook aached on 1st secon.
 Using the same approach aach cable to wire tensioner on another side of jib and one end
with 3rd hook on 1st secon.
 Now pass both side cables through space on boom of cable guide support rod as shown
below.

PROAIM 24 BASE KIT 9
 Install the Head Plaorm assembly (leveling arm up) to the end of the smallest secon
with the provided bolt, sha collars, washers and nut. Tighten all the Allen bolts and nuts
to secure properly.
INSTALLING THE HEAD PLATFORM
 Now Join 2.4 cable, 6.9 cable & 7.9 cable with yellow sleeves.
 Aach one end of cable to slot on head plaorm with the help of wire tensioner and
another end with the cable already aached to central fork with wire tensioner as shown
below.
Cable aached to central fork

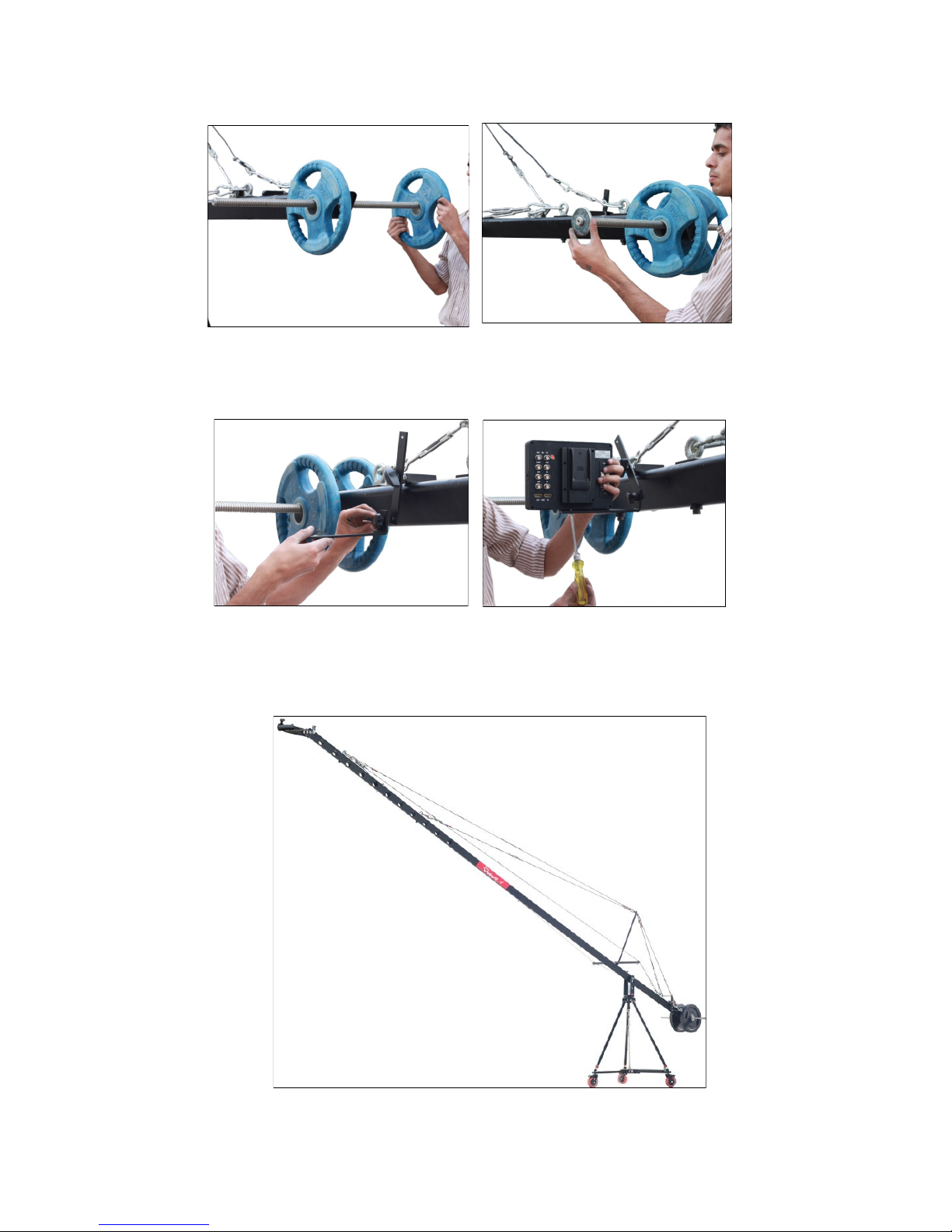

 Loosen the knob on rear secon, remove closers from weight bar and insert it to slot on
rear secon. Reghten the knob to ensure slip free connecon.
Note : Install the pan tilts head.

PROAIM 24 BASE KIT 10
 Aach LCD mount L-bracket to bracket already aached to rear secon with knob.
 Now mount LCD (not included) to L-bracket and ghten with screw driver.
YOUR PROAIM 24 CAMERA CRANE BASE KIT
ALL DRESSED UP AND READY TO GO
(SHOWN WITH OTPIONAL ACCESSORIES)
 Aach weights (not supplied) to both ends of weight bar, secure with the help of closers.
