VINVENTIONS WQS Nomasense O2 P6000 User manual

CONTENT
• NomaSense or O2 P6000 oxygen analyzer
• USB cable
• USB-Power adapter (5 VDC, min. 1 A) with
different connector pieces
• USB stick including the Datamanager Software
• Temperature probe PT100
• Short optical fiber
OPTIONAL
• Oxygen-sensitive chemical optical sensors (PSt3 or
PSt6)
• Dipping probe (PSt3 or PSt6)
• Starter kit of accessories: white pen, spatula,
silicone glue, one set of syringes, filling level gauge
ADDITIONALLY REQUIRED EQUIPMENT
(NOT SUPPLIED)
• PC/notebook for comfortable data transfer and
export:
System requirements:
Microsoft® Windows® XP, Vista™, 7, or 8; Processor
power according to minimum requirements of the
respective operating system
USER GUIDE
Fig. 1 Case with all delivered equipment

DESCRIPTION OF THE
DEVICE
TOP PANEL
The top panel is equipped with a connector for the fiber
optic sensor, a connector for the temperature sensor,
and the QR code reader.
BOTTOM PANEL
The bottom panel is equipped with the USB connector
for charging the battery or connecting the device to a
PC/notebook. A screw cap gives access to the battery
compartment.
CONTROL PANEL
The NomaSense O2 P6000 are completely stand-alone
devices. The LCD display and the buttons allow operating
the transmitter without connection to a PC/notebook. In
the lower part of the display the functions of the buttons
in the respective menu, submenu or window are shown.
Use the buttons for navigating on the screen, and to make
settings; pressing the respective button will perform the
respective function (see Fig. 4).
QR
BATT
Fig. 2 Transmitter top panel
Fig. 3 Transmitter bottom panel
Fig. 4 Control panel of the NomaSense O2
P6000

GETTING STARTED
1. INSTALLATION –SET-UP
• Remove the red rubber cap from the optical sensorconnector
(SMA)
• Remove the protective cap from the male plug on the optical
fiber and insert it in the SMA connector of the NomaSense
O
2
P6000. The safety nut has to be screwed on.
• Insert the temperature probe by matching the two red marks
of the connector and the plug.
2. STARTING THE DEVICE
• Hold the button on the control panel to turn on
the device, after some automatic tests you reach
themeasurement screen directly.
• The navigation bar at the bottom shows the functions of
therespective control buttons.
• The status bar at the top shows the time, the name of
thecurrent selected sensor, the name of the current
user, a symbol indicating if logging is activated or not
and the battery status.
3. CREATE A NEW SENSOR WITH A QR CODE
• Activate the QR code reader by pressing the (Scan)
buttonwhile on the measurement screen.
• Place the respective sensor QR code (delivered with your
oxygen sensor) about 10 cm from the NomaSense O
2
P6000 ; the target cross has to be aimed at the QR code.
Reducing or increasing the distance between QR code and
QR code reader can speed up the scanning process.
• A notification window opens on the screen, when
thescanning process is done.
• A keyboard screen opens. Use the navigation arrows to type in the new Sensor Name.
• When you have finished typing go to the Done button and press .
• The new sensor shows in the sensor list. Press once more to select the new sensorand the display
will switch to the measurement screen automatically.

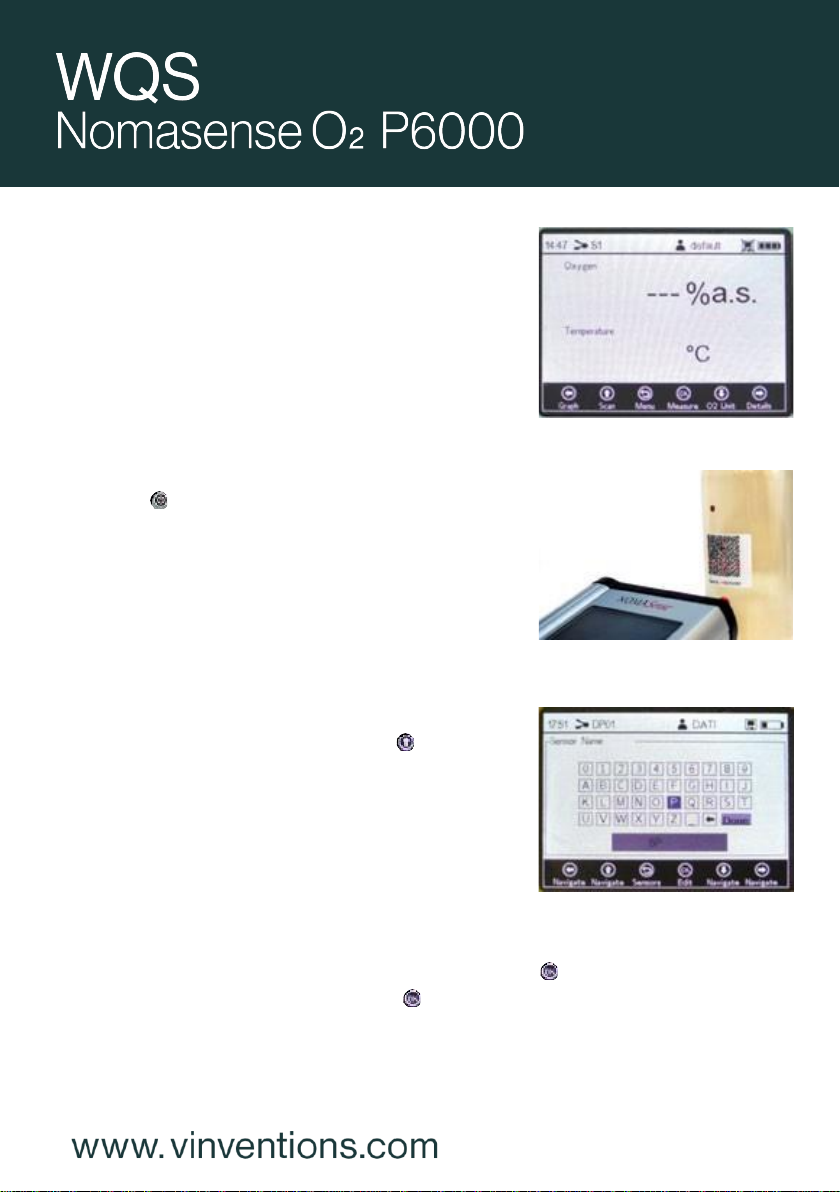

Fig. 5 Measurement screen
Fig. 6 Scanning sensor QR code
Fig. 7 Keyboard screen to enter Sensor Name

5. TUNE THE MEASUREMENT SETTINGS
• Select “Meas. Settings”in the Main menu and changeMeasurement Settings:
• Change settings for Temperature and Pressure compensation. Use the arrow buttons to navigate
between input fields. Press to get into editing mode and change the respective setting or value
(one digit at a time) with the and buttons. To cancel and leave the editing mode
press . When you have adjusted an input field press the button again to save the changes.
• Select Single Scan for a single measurement or Intervalfor continuous measurement at a certain
time interval
4. CREATE A NEW SENSOR MANUALLY
• Use the button to switch to the Main menu.
• Select “Sensors”and press the button to edit the sensorlist.
A window appears; select New Sensor and press .
• Select Manual and press .
• In the Sensor Settings you have to choose the Sensor type of
your new sensor (NomaSenseO
2
P6000: PSt3 or PSt6). Then
move to the upper right of the screen to the Next button and
press .
• Select Humid and press . Then change the calibration values
to the values stated on the sensor´s Final InspectionProtocol.
• When you have adjusted all the calibration values move to
the upper right of the screen to the Next button and press
.
• A keyboard screen opens. Use the navigation arrows to typein
the new Sensor Name.
• When you have finished typing go to the Done button and
press .
• The new sensor shows in the sensor list. Press once moreto
select the new sensor and the display will switch to the
measurement screen automatically.
Fig. 8 Main menu screen –Sensors selected
Fig. 9 Calibration Data screen
Fig. 10 Measurement Settings screen

• To save measurements select Logging On and go to Measurement Browser. Use the button to
create a new measurement file. A keyboard screen opens. Use the navigation arrows to type in thenew
Measurement Name.
• When you have finished typing go to the Done button and press .
• The new measurement file shows in the Measurements list. Press once more to select the new file
and the display will switch to the measurement screen automatically.
6. MEASUREMENT
Start the measurements by pressing the button on the
measurement screen. When performing intervalmeasurements
pressing again will stop the measurement process.
7. MEASURE TPO (TOTAL PACKAGE OXYGEN)
• Select in the Main menu.
• Change Bottle Constants by using the arrow buttons to navigate between input fields. Press to
get into editing mode and change the respective setting or value (one digit at a time) with the
and . buttons. When you have adjusted an input field press the button again to save the
changes.
• Press the button to go to the next screen. Enter the Miscellaneous Numbers about the bottle if
necessary andpress the button to go to the next screen.
• Put the optical fiber in front of the Dissolved Oxygen sensor and press to measure. Press the
button to calculate the TPO value. Press the button one more time to go back in the Main menuand
save the calculation if Logging is on.

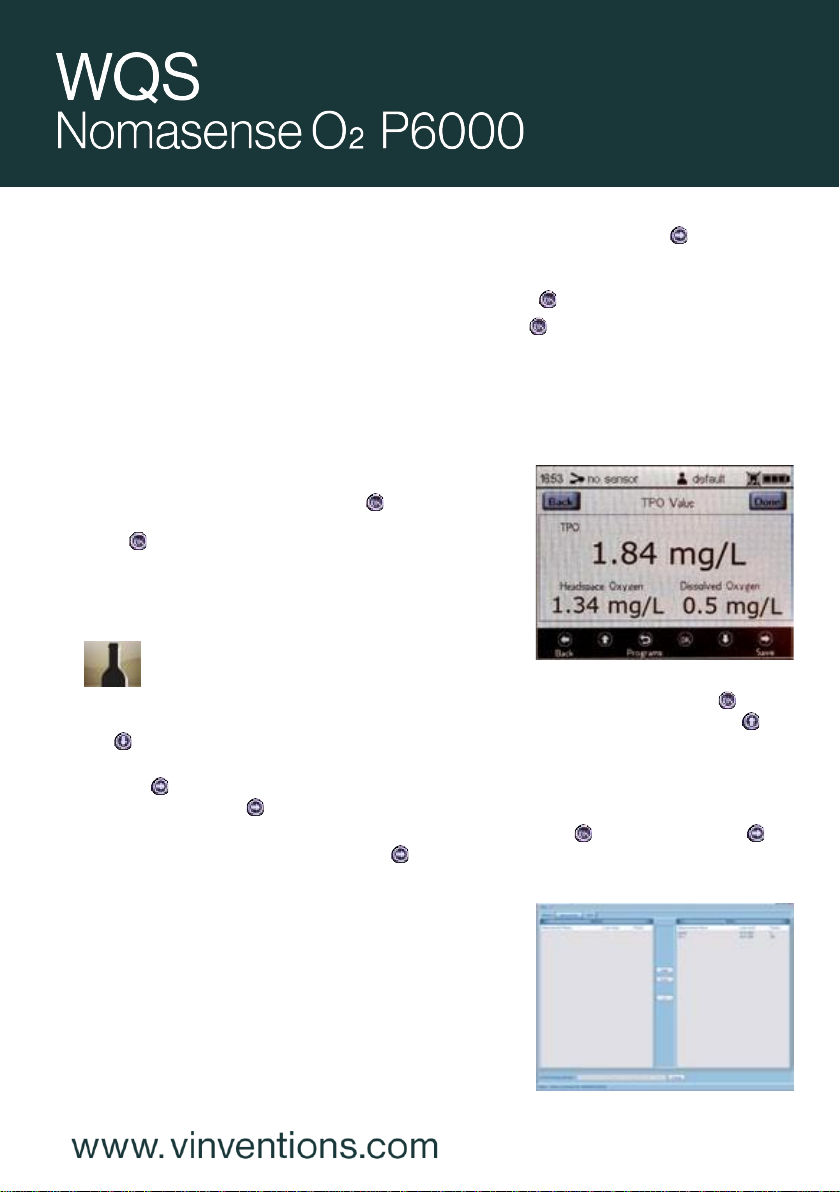

Fig. 11 TPO calculation screen
Fig. 12 NomaSense Datamanager

• Open the Datamanager software after installation and select
a working directory in which your P6000 data is going to
be stored.
• The connected device shows automatically in the software;
go to the Measurements tab on top.
• Select your measurement file from the list in the Device box
on the right side of the screen, and use the button.
A dialog opens in which you can choose the directory to
save the measurement file in. The measurement file will be
saved as .csv file
• Select the respective sensor in the database box and pressthe button.
• A window opens showing the generated QR code (Fig. 11). Save the QR code and print it. Please
make sure the printerresolution is set to at least 600dpi.
10. TUNE THE DEVICE SETTINGS
• Select ”Device Settings”in the Main menu
• The Device Settings menu is divided into four screens: DeviceSettings, Energy Management, Sensor
Details and About. Use the and buttons to switch between screens
• In the device settings screen, you can notably change the backlight off time and the LED intensity, in
case the device warns you about too low or too high signal.
• In the Energy Management screen, the Turn device off time and the display brightness can be
changed.
• The About screen and Sensor Details screen give information about the device and the current sensor
calibration.
8. TRANSFER YOUR MEASUREMENT DATA TO A PC / NOTEBOOK
• Connect the NomaSense O
2
P6000 to the PC/notebook via USB.
• Insert the supplied USB stick into the respective drive. In thesoftware file click “NomaSense
Datamanager_x.x.x.x_Setup_FW.exe”. Follow the instructions in the setup wizard for installing the
Datamanager software.
9. GENERATE A QR CODE
• Connect the NomaSense O
2
P6000 to the PC/notebook via
USB.
• Open the Datamanager software and go to the Sensors tabon
top.
•

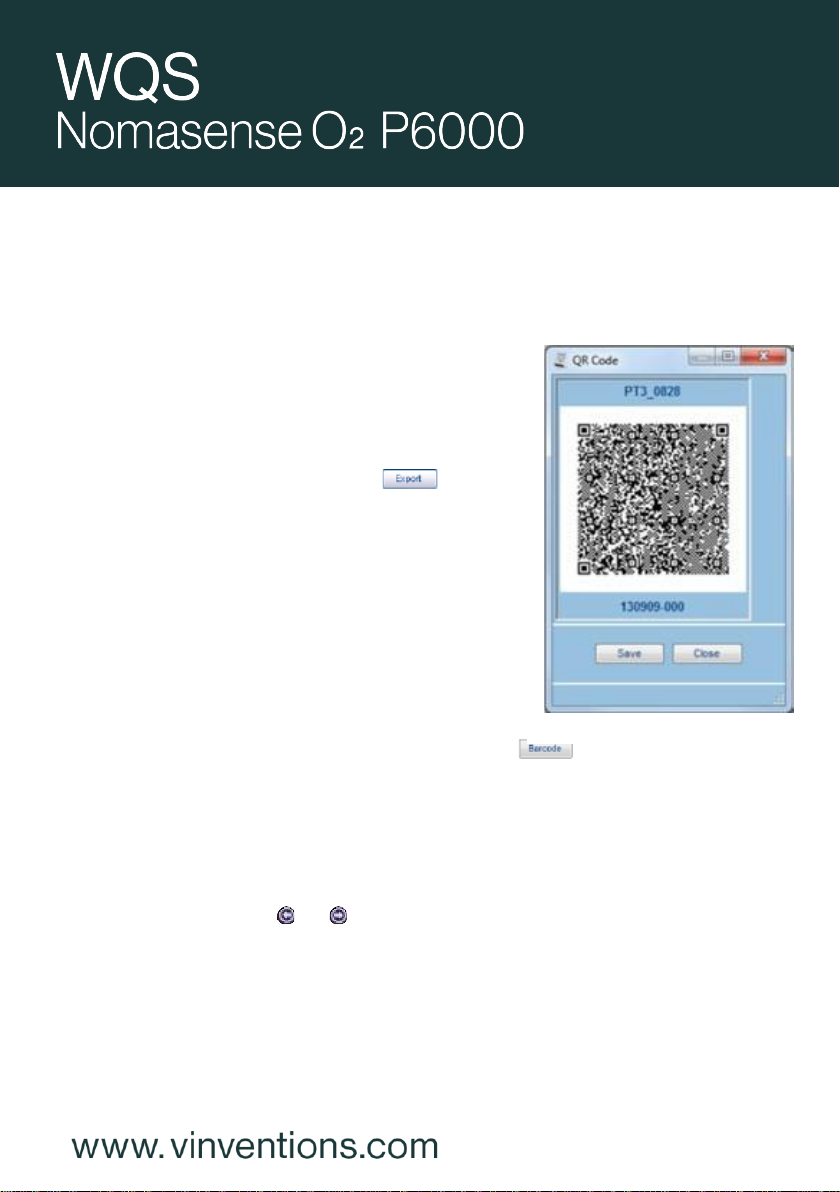

Fig. 13 QR code window

MENU STRUCTURE
Main
Measurement
➔ Simple
➔ Oxygen
➔ Temperature
➔ Details
➔ Oxygen (+ phase angle,
amplitude)
➔ Temperature
➔ Measurement Name
➔ General (measurement settings)
➔ Graph
Settings
➔ Temperature
➔ Auto
➔ Manual
➔ Pressure
➔ Auto
➔ Manual
➔ Interval
➔ Single Scan
➔ Interval
➔ Logging
➔ On
➔ Off
➔ Measurement Browser
➔ Select
➔ Delete
➔ New
Device Settings
➔ Device Settings
➔ Time
➔ Date
➔ Backlight off after
➔ LED Intensity
➔ Energy Management
➔ Turn device off after…
➔ Long Term Measurement
➔ Display Brightness
➔ Sensor
all sensor data
➔ About
Serial Number, LED Status, Firmware
Version
User
➔ User list
➔ Select
➔ Delete
➔ New

MENU STRUCTURE
Main
Sensors
➔ Sensor list
➔ Select
➔ Edit List
➔ Delete Sensor
➔ New Sensor
➔ Barcode
➔ Manual
➔ Sensor Settings
➔ Sensortype
➔ Sensor
Constants
➔ Calibration
Data
➔ Dry / Humid
➔ Cal0 T0
➔ Cal2nd T2nd
➔ O
2
-2nd > pATM
➔ Sensor Name
➔ New
➔ Barcode
➔ Manual
➔ Calibration
Settings
➔ Calibration
Type
➔ Dry
➔ Humid
➔ Pressure
➔ Auto
➔ Manual
➔ Calibration
Temp.
➔ T0
➔ Auto
➔ Manual
➔ T2nd
➔ Auto
➔ Manual
➔ Calibration
➔ Present Values
Phase Temperature
Pressure
➔ Set Cal0
➔ Set Cal2nd
O
2
-2nd
TPO
➔ Bottle constants
➔ Bottle size
➔ Headspace size
➔ Bottle neck
diameter
➔ Misc numbers
➔ Bottle number
➔ Filling head
number
➔ Corking head
number
➔ Measurement
Headspace
Oxygen
➔ Measurement
Dissolved
Oxygen
➔ TPO Value
