Visa Lighting CM1900 User manual

DRYWALL TRIM ATTACHMENT FOR RECESSED UNITY
CM1900
CM1901
CM1906
CM1912
Drawing:
760863
Rev:
B
Sheet:
1 of 3
Eng:
PAO
Date Drawn:
9/12/11
INSTALLATION INSTRUCTIONS
Model: CM1900, 1901, 1906, 1912
Fixture Family: UNITY RECESSED CEILING
1717 West Civic Drive Milwaukee, WI 53209
414-354-6600
Design Modification Rights Reserved
© Visa Lighting
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
Read all instructions carefully before installing and save for future use. •
Make sure all connections are in accordance with the National Electrical Code and local regulations. •
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture •
Service should be performed by qualified personnel. •
These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting. •
Document Description: Installation Instructions for Drywall Trim Attachment
UNITY Series Luminaires

CORNER
STRAP
SHORT LEG
LONG LEG
8-32 NUT (3)
#10 SCREW AND NUT
1/4-20 BOLTS
1/4-20 NUT AND WASHER
DRYWALL YOKE TO BE ATTACHED
TO STRUCTURE (by others)
THERMAL DETECTOR
FIXTURE HOUSING
DRYWALL YOKE
TRIM ASSEMBLY

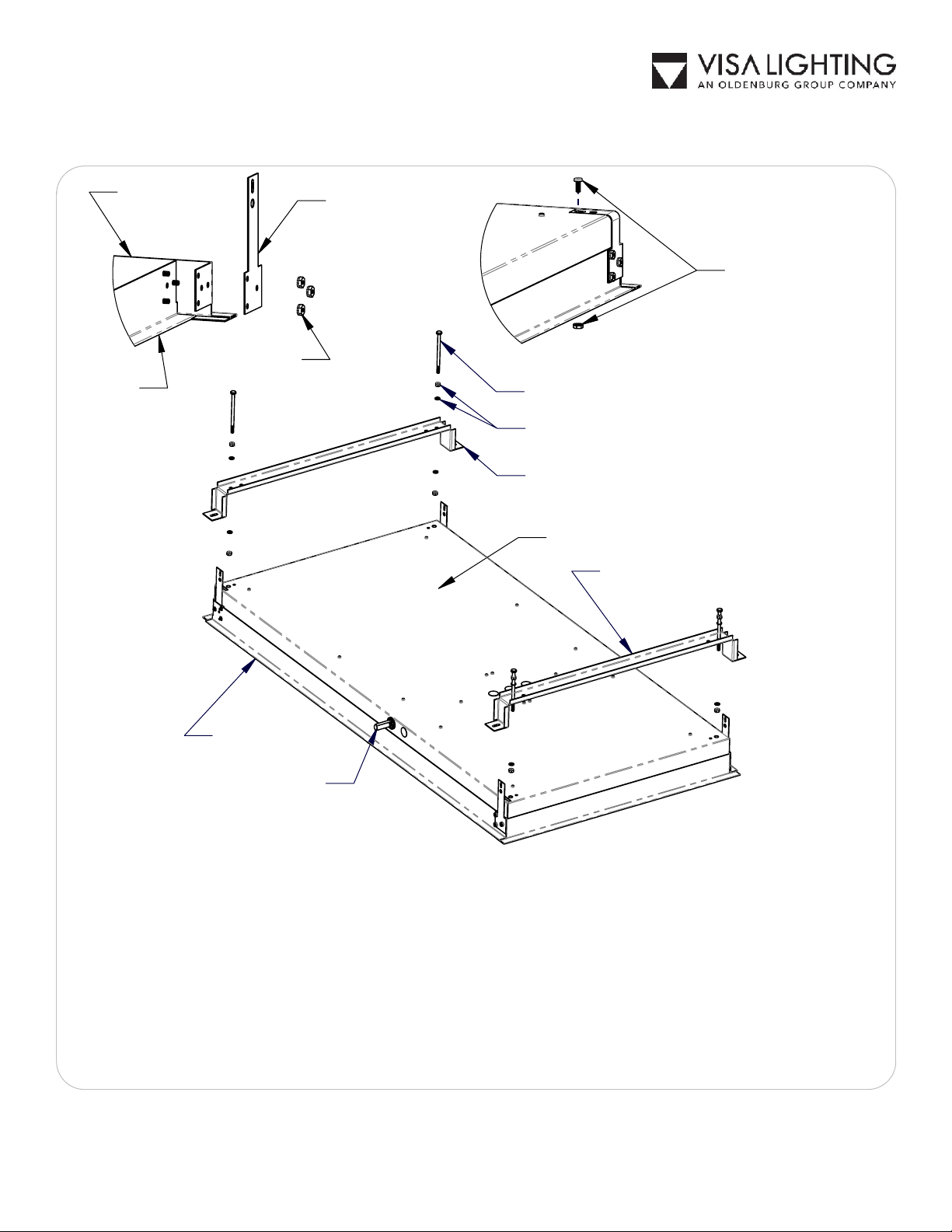

Assemble corners as illustrated in Detail A using (3) 8-32 keps nuts at each corner. 1.
Slide fixture housing into frame. 2.
Holding frame to housing securely, hand-bend corner strap over top of housing. 3.
Secure corner straps with #10 screws and nuts through the slot as shown in Detail B. 4.
Attach drywall yokes to structure around opening. 5.
Install and adjust 1/2-20 bolts to correct finished length need for flush fixture mounting. 6.
Attach fixture to 1/4-20 bolts using washers and nuts. 7.
