Vision & Control SLE-150-R625-P-24V User manual

creating machine vision VISION & CONTROL
Instructions for Use
SLE-150-R625-P-24V
Compact spot light,
Luminous colour: Red - 625 nm
Instructions for Use
SLE-150-R625-P-24V
Compact spot light,
Luminous colour: Red - 625 nm
999.995.385.10-en-1.3
© Vision & Control GmbH 2021

Impress
Publisher / Manufacturer Vision & Control GmbH
Mittelbergstraße 16
98527 Suhl, Germany
Telephone: [phone]
Telefax: [phone]
www.vision-control.com
Name of the document 999.995.385.10-en-1.3
Date of first issue 2020-10-26
Date modified 2021-05-03
Copyright © Vision & Control GmbH 2021
Copyright
It is forbidden to pass this document on to third parties, reproduce and
communicate its contents in as far as this has not been expressly authorized.
Offenders will be liable for damages.
All rights are reserved with respect to patent, utility sample and design patent
registrations, as well as for rights of use within the scope of copyright.
vicotar®, vicolux®, pictor®, vicosys® and vcwin® are registered trademarks of
Vision & Control GmbH.
The products and brand names of other manufacturers or suppliers are
mentioned for information only.
2 -- © Vision & Control GmbH 2021

Validity
These instructions for use are valid for the following device:
Device Order no.
SLE-150-R625-P-24V 1-33-313
Product Identification
Designation Description
SLE Compact spot light
- Attachment optics with condenser lens
- High energy efficiency
150 Luminous field diameter in mm at 200 mm Working distance
R625 Luminous colour: Red - 625 nm
P Power LED
24V 24 V DC operating voltage,
with integrated lighting controller
© Vision & Control GmbH 2021 -- 3

SLE-150-R625-P-24V
Table of Contents
TABLE OF CONTENTS
1 Information about the Instructions of Use..................................................5
1.1 Intended Use................................................................................................ 5
1.2 Improper Use................................................................................................6
1.3 Qualified Personnel...................................................................................... 6
1.4 Warranty and Liability...................................................................................7
2 Safety.............................................................................................................. 8
2.1 Presentation of Safety Instructions.............................................................. 8
2.2 Safe Handling of the Device........................................................................ 9
3 Scope of Delivery and Accessories.......................................................... 10
3.1 Scope of Delivery....................................................................................... 10
3.2 Accessories.................................................................................................10
4 Device Description...................................................................................... 12
4.1 Device Views.............................................................................................. 12
4.2 Notices on the device.................................................................................13
5 Technical Data............................................................................................. 14
5.1 General Parameters................................................................................... 14
5.2 Electrical Parameters................................................................................. 15
5.3 Photometric Parameters.............................................................................15
5.4 Conditions for Operation, Storage and Transport...................................... 16
5.5 Technical Drawings.....................................................................................17
6 Commissioning............................................................................................ 18
6.1 Unpacking................................................................................................... 18
6.2 Mounting the Device...................................................................................18
6.3 Connecting..................................................................................................19
6.3.1 Pin assignment...................................................................................19
7 Operation...................................................................................................... 20
7.1 Making Operational Readiness.................................................................. 21
7.2 Operating Modes........................................................................................ 21
8 Maintenance and Service........................................................................... 23
8.1 Maintenance............................................................................................... 23
8.2 Service........................................................................................................ 24
9 Disposal........................................................................................................ 25
10 EU Declaration of Conformity.................................................................. 26
4 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Information about the Instructions of Use
1 INFORMATION ABOUT THE INSTRUCTIONS OF
USE
This document contains technical information, important instructions for correct
installation, commissioning and use, as well as product information which were
up-to-date at the time of going to press.
Using this document makes it easier for you to familiarise yourself with the
device and avoid malfunctions caused by improper operation.
The instructions of use and the local regulations and rules must be followed.
To ensure a save and proper application, please read the instructions of use
carefully and keep them for future reference.
1.1 Intended Use
The device is intended exclusively for use as a lighting element for industrial
image processing in automation technology.
The device is not suitable for use in potentially explosive areas.
The device is intended for use in closed rooms.
The device may only be used if it is in technically faultless condition and only
for its intended purpose, and only in accordance with the specifications in this
instructions of use by authorised operative personnel, who are aware of the
safety rules and hazards.
If the device is planned to be used for any other purpose or in a different
environment, the express authorisation of the manufacturer must be obtained
in advance. Any modifications or adaptations required may only be made by
the manufacturer.
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 5

SLE-150-R625-P-24V
Information about the Instructions of Use
1.2 Improper Use
All unintended use and all device-related activities not described in these
instructions of use is to be deemed as unauthorised misuse outside the legal
limits of indemnity of the manufacturer.
Reasonably foreseeable misuse is:
•Non-compliance with the instructions for use,
•Faulty operation,
•Operating by personnel not qualified or instructed,
•Operating the device if it is not in a proper technical condition,
•Operating the device in ambient conditions differing from the corresponding
specifications in the instructions of use
•Operating the device with voltages differing from the corresponding
specifications in the instructions of use,
•Using spare parts which are not original parts from the manufacturer,
•Using incompatible accessory components,
•Improper maintenance and repair works,
•Unauthorised modifications to the device.
1.3 Qualified Personnel
The device may only be assembled, commissioned, operated, maintained,
installed, set up, cleaned, repaired and transported by qualified skilled
personnel.
A qualified person is deemed to be someone who has been trained and
instructed for his/her activities with the device, and who has proven his/her
capability to the purchaser. The operating personnel must be authorised by the
purchaser for those activities at the device.
For the installation and operation of the device, the skilled personnel must
know and comply with the applicable guidelines and standards for handling
control equipment, electrical installations and working materials.
6 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Information about the Instructions of Use
1.4 Warranty and Liability
The contents of this document have been checked carefully and correspond to
current legislation and best practise at the time of going to press.
However, the manufacturer shall not be liable for any damage arising from the
use of this edition of the manual, and rejects any warranty derived therefrom.
Within the bounds of the legal requirements, the manufacturer shall only
be responsible for the technical safety characteristics of the device if the
maintenance, repairs and modifications to the device are performed by himself
or by authorised skilled personnel in accordance with his instructions.
Loss of warranty
The manufacturer shall accept no liability or warranty in the event of improper
use, opening of the device or incorrect maintenance.
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 7

SLE-150-R625-P-24V
Safety
2 SAFETY
2.1 Presentation of Safety Instructions
Each safety instruction is introduced by a key word and colour highlighted.
The key word indicates the degree of danger. The danger and its cause are
described, and then the measures to prevent conceivable consequences of the
danger. These measures must be taken.
DANGER
Indicates an imminent danger with high risk, resulting in severe injuries or
death if not avoided.
WARNING
Indicates a hazardous situation with medium risk, possibly resulting in severe
injuries or death if not avoided.
CAUTION
Indicates a hazardous situation with low risk, resulting in minor or medium
injuries if not avoided.
NOTICE
Indicates a situation that may result in property damage.
8 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Safety
2.2 Safe Handling of the Device
Read the following applicable safety instructions carefully and completely.
Follow the instructions for your own safety, the safety of other people, and to
avoid damage to the device and the connected technical equipment. Hazards
going beyond the general safety instructions are referred to separately at the
relevant points in this manual.
CAUTION
Risk of injury due to electric shock.
•Before starting work on the device, disconnect it from the
operating voltage supply.
•Follow all applicable safety regulations for the preparation
and operation of electrical devices.
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 9

SLE-150-R625-P-24V
Scope of Delivery and Accessories
3 SCOPE OF DELIVERY AND ACCESSORIES
Power supply and communication cables are required to operate the device.
Because of the many possible configurations, the cables are listed in the
accessories rather than included in the scope of delivery.
3.1 Scope of Delivery
Designation Quantity
Device SLE-150-R625-P-24V 1 x
Instructions for Use SLE-150-R625-P-24V 1 x
3.2 Accessories
Connection cable M8-4-pin, straight plug, 4A, 60V
Designation Description Order no.
Connection cable
M8-4pin, 10m
Connection cable with 4-pin M8 socket
and open cable end with ferrules,
4 x 0.25 mm², 4A, 60V, PUR, IP67,
straight plug
1-11-607
M8 4-pin connection cable, angled plug, 4A, 60V
Designation Description Order no.
Connection cable
M8-4pin, 2m
1-11-605
Connection cable
M8-4pin, 5m
1-11-604
Connection cable
M8-4pin, 10m
Connection cable with 4-pin M8 socket
and open cable end with ferrules,
4 x 0.25 mm², 4A, 60V, PUR, IP67,
angled plug
1-11-606
10 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Scope of Delivery and Accessories
Connection cable M8-4-pin, straight plug, 5A, 30V
Designation Description Order no.
Connection cable
M8-4pin, 1m
1-11-611
Connection cable
M8-4pin, 2m
1-11-612
Connection cable
M8-4pin, 3m
1-11-613
Connection cable
M8-4pin, 5m
Connection cable with 4-pin M8 socket
and open cable end with wire-end
ferrules, 4 x 0.5 mm², 5A, 30V, PUR,
IP67, straight plug
1-11-614
DIN rail power supplies
Designation Description Order no.
HSN24/5.2 DIN rail power supply,
24 VDC-10% +20%, 5.2A +/-5%,
without connection cable, for lighting
1-92-017
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 11

SLE-150-R625-P-24V
Device Description
4 DEVICE DESCRIPTION
4.1 Device Views
14 4
2
3
4
4
5
1
4 4
6
4
4
5

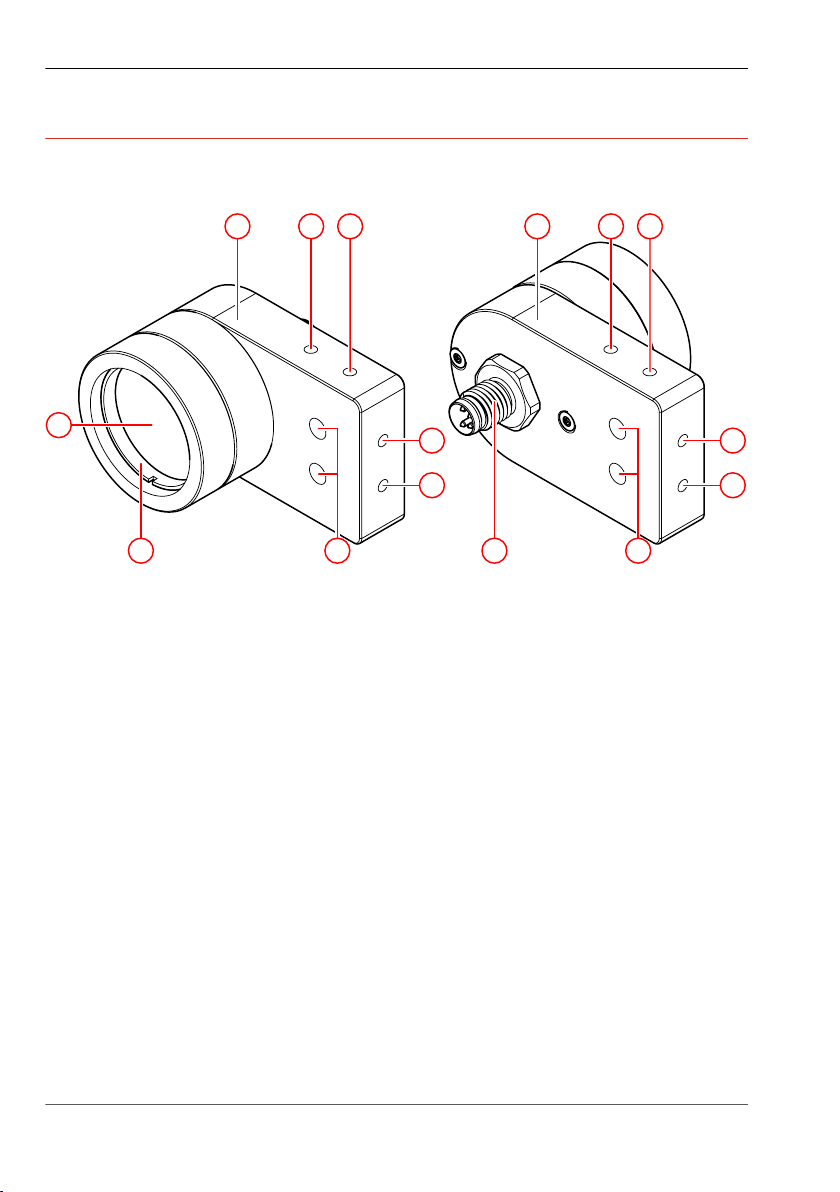

Image 1: Device view
1Casing
2Light-emitting surface
3Filter thread M28x0.5 - depth: 5 mm
4Mounting hole M3x0.5 - depth: 4.5 mm
5Mounting hole Ø4.2 - through bore
6Connector M8-4pin
12 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Device Description
4.2 Notices on the device
Following instructions are provided on the device:
Type.: XXXXXXXXX
No.: TTTJJNNN
3
1
2
1Notes on power supply
2Device designation
3Serial number
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 13

SLE-150-R625-P-24V
Technical Data
5 TECHNICAL DATA
5.1 General Parameters
Parameter Characteristic
Housing material Aluminium, black anodised
Optical material Glass
Housing dimensions 54 mm x 32 mm x 30 mm (without connector)
Dimensions light-emitting
surface
Diameter: 24 mm
Filter thread M28 x 0.5 / depth 4.5 mm
Connector Male connector, M8, 4-pin
Weight 68.5 g
Degree of protection IP 50
Safety class Class III, safety extra low voltage (SELV)
Risk group (DIN EN 62471) Risk group 0 (exempt group)
Connector
Parameter Characteristic
Connector 4-pin M8 connector
Mechanical operation > 100 mating cycles
Degree of protection (IP) IP 67 (if connected)
Rated current 3 A
Rated voltage 50 V
14 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Technical Data
5.2 Electrical Parameters
Parameter Min Nom Max
Operating voltage UO19 V 24 V 29 V
Power consumption at UO = 24 V DC 2.5 W 3.0 W 3.5 W
Input voltage OFF 0 V 2.0 V
Input current OFF 0 mA 0.2 mA
Input voltage ON 4 V 29 V
Input current ON 1.0 mA 2.0 mA
Switch input
ON/OFF
Input delay tD50 µs 100 µs 150 µs
5.3 Photometric Parameters
Parameter Min Nom Max
Peak wavelength λpeak 632 nm
Dominant Wavelength λdom 612 nm 625 nm 636 nm
Spectral bandwidth Δλ 18 nm
Full beam angle 2α 40°
Luminous field diameter (1) 150 mm
Luminous efficacy of radiation 200.9 lm/W
Continuous operation / Switching operation
Irradiance (1) 11.9 W/m2
Illuminance (1) 2.4 klx
Radiance (2) 98.0 kW/m2sr
Luminance (2) 19.7 Mcd/m2
(1) at 200 mm working distance
(2) at 11 mrad
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 15

SLE-150-R625-P-24V
Technical Data
Spectral Emission
Relative spectral emission [%]
Wavelength [nm]
0
20
40
60
80
100
550 600 650 700 750
Image 2: Spectral emission
5.4 Conditions for Operation, Storage and Transport
Observe the specified ambient conditions when transporting and storing the
device.
For accessories, connected devices and components observe the specific
information in the associated instructions for use.
Ambient Conditions
Operation Storage /Transport
Temperature 0 °C to 45 °C - 20 °C to 60 °C
Air humidity 20 % to 80 % 20 % to 95 %
Condensation water not permissible not permissible
16 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Technical Data
5.5 Technical Drawings
Valid for:
all SLE-150 variants
Mittelbergstraße 16; 98527 Suhl
1 2 345 1 2 345
A A
B B
C C
D D
Ø32
30
8.51011.5
5.75
2 x M3 - depth 4.5 mm (on both sides)
8.510
M8 connector
10
11
5.75
2 x M3 - depth 4.5 mm
10
11
54
32
light-emitting surface Ø26 mm M28x0.5 - depth 4.5 mm
2x Ø4.2 - through bore
Image 3: Technical drawings (dimensions in mm)
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 17

SLE-150-R625-P-24V
Commissioning
6 COMMISSIONING
NOTICE
Installation and connection operations may only be performed in the off and
de-energised state.
6.1 Unpacking
1. Lift the cardboard, together with the device, out of the carton.
2. Fold out the tucked in sides on the bottom of the cardboard. The film
loosens and forms an insertion pocket.
3. Remove the device out of the insertion pocket.
4. Dispose the packing material.

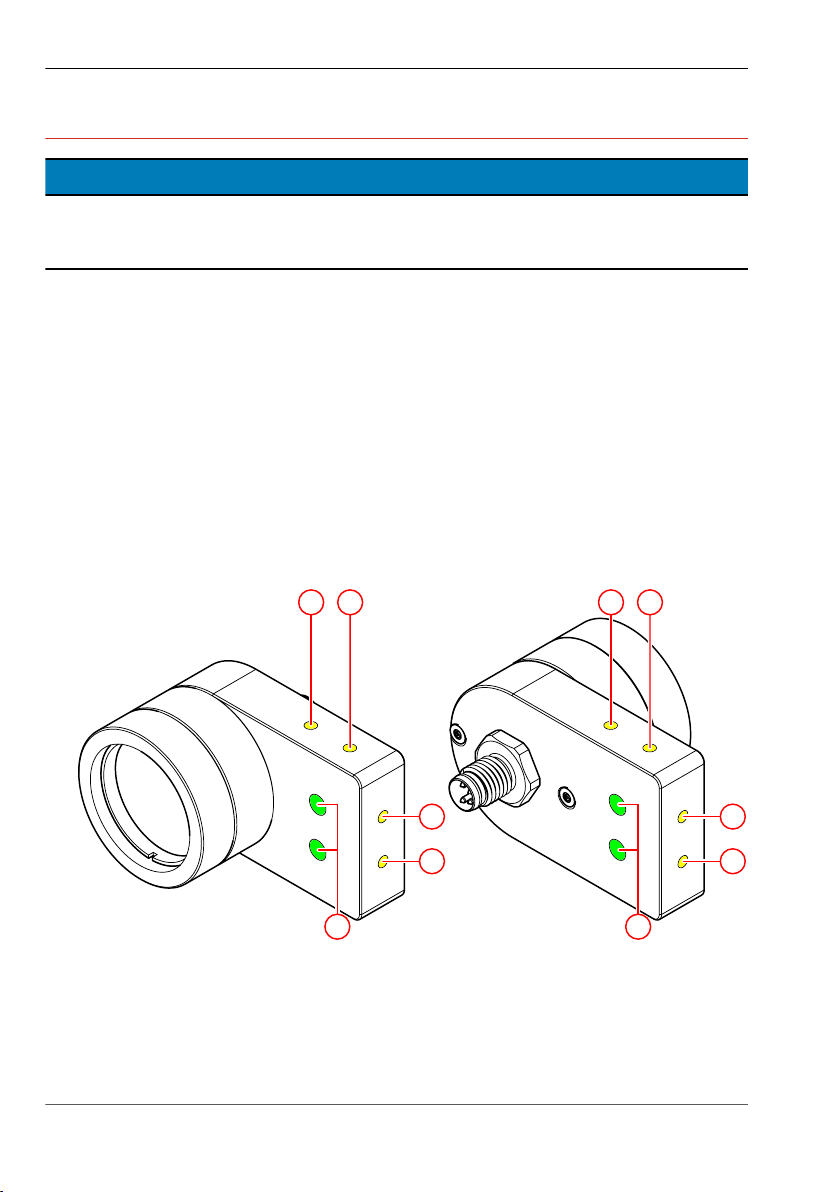

6.2 Mounting the Device
The following bores can be used for assembly.
1 1
1
1
2
1 1
1
1
2
Image 4: Mounting holes
16 x M3x0,5 tapped hole
maximum screwed-in depth: 4.5 mm
22 x Ø4.2 mounting hole (through bore)
18 999.995.385.10-en-1.3 © Vision & Control GmbH 2021

SLE-150-R625-P-24V
Commissioning
6.3 Connecting
NOTICE
Cable damage
•Comply with the specified minimum bending radius.
•Cables must generally be mounted with a strain relief clamp.
•Use cables corresponding to the specification (see data sheet).
6.3.1 Pin assignment
Use the M8 connector to connect the device according to the pin assignment.
Pin assignment
1
23
4
Image 5: M8 connector, 4-pin
Connection diagram
V+
GND
1
3
4
BU
BK
BN
ON/OFF
Pin Core colour Signal Description
1 BN (brown) V+ Operating voltage
2 WH (white) NC Do not use
3 BU (blue) GND Ground
4 BK (black) ON/OFF Switch input
© Vision & Control GmbH 2021 999.995.385.10-en-1.3 19

SLE-150-R625-P-24V
Operation
7 OPERATION
CAUTION
Physiological effects by flashing lights
•Working under flashing lights can cause effects such as
headache, nausea, or epileptic seizures.
•Avoid exposure to certain kinds of flashing lights or
stroboscopes.
•Wear protective goggles.
•If you have a known history of epilepsy, do not work or stay
in areas where there are flashing lights or stroboscopes.
CAUTION
Impairment of eye-sight due to dazzling.
•Do not look during operation directly in LED lighting or whose
rays.
•Wear protective goggles.
•In the event of dazzling, allow sufficient time for the eyesight
to adapt to the ambient illumination before commencing
other activities.
20 999.995.385.10-en-1.3 © Vision & Control GmbH 2021
