vita Easyshade Advance 4.0 User manual

VITA Easyshade®Advance 4.0
VITA shade, VITA made.
Model Number: EASYAS4
ate of issue: 04.13
VITA shade control
VITA shade reproduction
VITA shade communication
VITA shade taking
Operating Instructions

3
VI A Easyshade®Advance 4.0
VITA Easyshade Advance 4.0 Medical equipment, With respect to electric shock, fire and
mechanical hazards only in accordance with UL 60601-1,
IEC/EN 60601-1, CAN/CSA C22.2 No. 601.1
Attention, consult accompanying documents
Type B applied part
Single patient use only
Class II equipment
Definition of symbols
Warning
1. Attention! Use only with enclosed power supply
(GlobTek GTM41076-0605).
2. Never look directly into the VITA Easyshade Advance 4.0
probe tip when the lamp is on.
3. o not immerse the VITA Easyshade Advance 4.0 hand piece
or base unit in water or any other liquid.
4. Follow the instructions in Section 1.4 to properly apply
an infection control shield.
5. Follow the instructions in Section 9 to properly clean
and disinfect VITA Easyshade Advance 4.0.
6. o not expose the unit to temperatures above 60° C.
7. The general recommendations for the use of the
VITA Easyshade Advance 4.0 instrument in dentist practices
and dental laboratories must be followed.
8. Infection control shields are for single patient
use only.
9. Protect the instrument against direct sunlight.
10. The temperature to perform measurements must be
between 15°C and 40°C.
11. o not drop the instrument to avoid the risk of breakage
or electric shocks.
Important information on electromagnetic compatibility
Portable and mobile radio frequency (RF) communications
equipment can affect medical electrical equipment. This product
is intended for use in the electromagnetic environments
specified. The user of this product should assure it is used
in such an environment.
1. Portable and mobile RF Communications equipment
(cell phones) should not be used at close distances.
2. Power frequency magnetic fields should be at levels
characteristic of a typical location in a commercial
or hospital environment.
Safety information

4
VI A Easyshade®Advance 4.0
This instrument and any accessory components are subject
to regulation 2002/96/EC (WEEE) and applicable national laws
and must not be disposed of with unsorted household waste
within the European Union (EU).
The VITA Easyshade Advance 4.0 instrument complies with
the applicable regulations of the European Union (EU).
The declaration of conformity can be requested from
VITA Quality Management at
www.vita-zahnfabrik.com
Disposal of equipment
Important copyrig t information
© Copyright 2011, VITA Zahnfabrik. All Rights Reserved.
This document and/or the software, data and information
referenced or contained herein contain confidential and
proprietary information of VITA Zahnfabrik. This document
does not convey or represent any right or license to use
any software, data or information, any right or license to
use any intellectual property rights, or any obligation on the
part of VITA Zahnfabrik to provide support or other services
in connection therewith. Any right or license to use any
software data, information or other intellectual property
rights of VITA Zahnfabrik or any obligation to provide support,
must be conveyed by separate written agreement with
VITA Zahnfabrik.
Safety information

5
VI A Easyshade®Advance 4.0
1 Getting started 6
1.1 Package contents 6
1.2 Product information 6
1.3 System setup / Features 7
1.4 Applying an infection control shield 8
1.5 Power-on 9
1.6 Calibrating 9
1.6.1 Automatic calibration 9
1.6.2 Manual calibration 11
1.6.3 Monitoring the calibration 11
2 Menu navigation 12

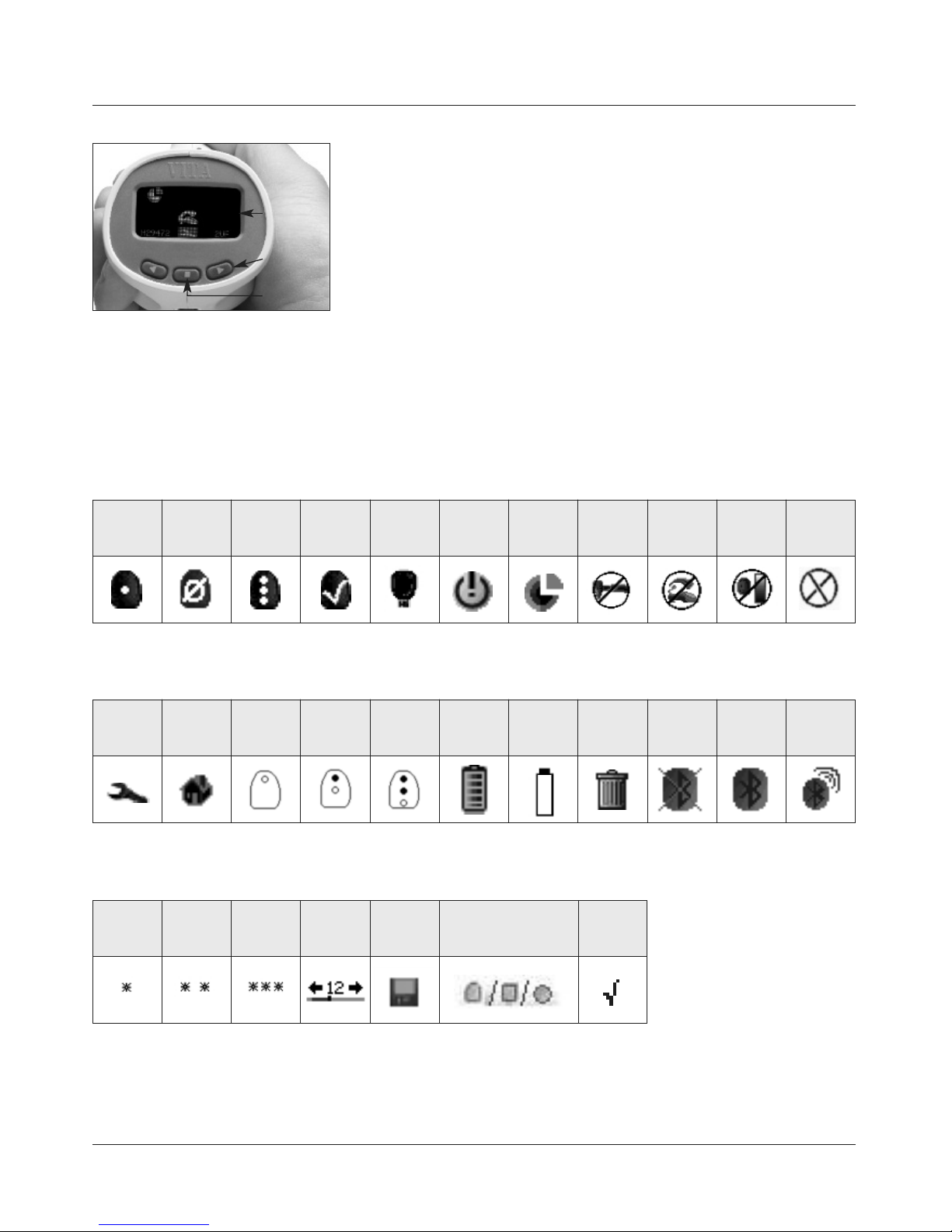

2.1 Tables of icons 12
3 Correct measurement of a tooth 13
4 Modes of operation 15
4.1 Short descriptions of the modes
of operation 15
4.1.1 Measurement of the basic shade 15
4.1.2 Averaged measurement 15
4.1.3 Measurement of tooth area 15
4.1.4 Measurement on a ceramic
restoration 15
4.2 Measuring the basic shade
on the natural tooth 16
4.2.1 isplay natural tooth shade 16
4.2.2 isplay VITABLOCS shade 17
4.2.3 isplay bleached shade 18
4.3 Averaged measurement on the natural
tooth 19
4.4 Measurement of areas on the natural
tooth 19
4.5 Measuring on ceramic restorations 20
4.5.1 Comparison of the shade
with the VITA standard 21
4.5.2 Comparison of the shade
with the user standard 23
4.5.3 etermining the shade
of a ceramic restoration 23
5 raining mode 24
6 Recording the measurements 25
7 Extended color information 26
7.1 VITA classical A1– 4 shades 26
7.2 VITA SYSTEM 3 -MASTER shades 26
7.3 VITA SYSTEM 3 -MASTER mixed shades 27
8 Bluetooth interface 28
9 Battery level 29
10 Power off / Automatic power off 30
11 Cleaning and disinfecting 31
12 Appendix 32
12.1 Replacement parts and accessories
for users 32
12.2 Error messages 33
12.3 Troubleshooting 35
12.4 Technical data 36
12.5 Storage and transport conditions 36
12.6 Glossary 37
12.7 Patents and trademarks 38
12.8 Limitation of liability for
subsequent errors 38
12.9 Warranty 38
Table of contents

6
B
D
F
G
C
H
E
VI A Easyshade®Advance 4.0
ate of purchase:
Serial number of the VITA Easyshade Advance 4.0
hand piece / calibration block holder:
Serial number of the VITA Easyshade Advance 4.0
base unit:
1 Getting started
Thank you for your purchase of the VITA Easyshade Advance 4.0 instrument
which provides accurate shade determination for natural dentition and
a variety of restorations. The instrument can measure a broad range of shades,
including VITA Linearguide 3 -MASTER shades, VITA Toothguide 3 -MASTER
shades including the BLEACHE SHA E GUI E shades and VITA classical A1– 4
shades. For accurate shade matching results, please read these instructions
completely before using your instrument.

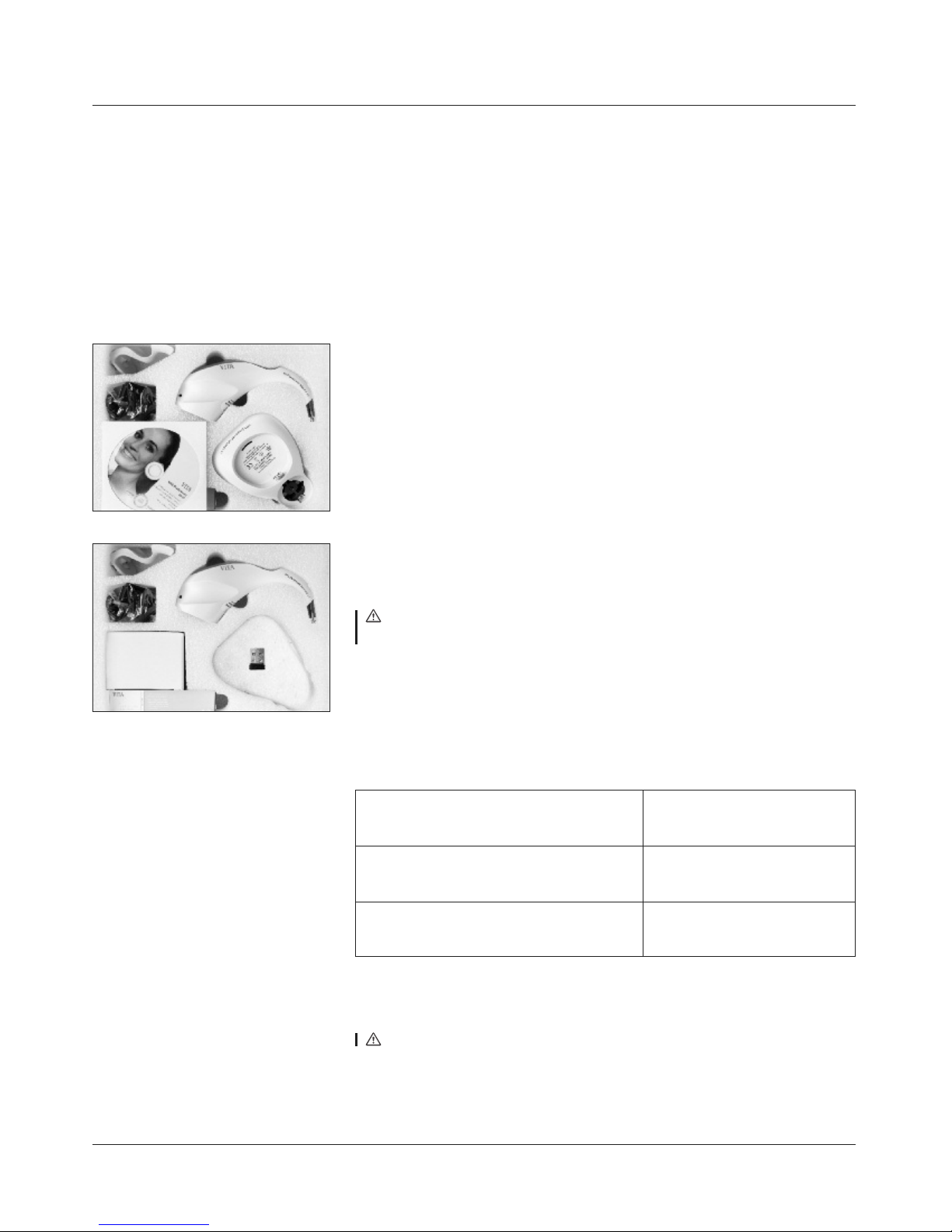

1.1 Package contents
A Operating instructions and Quick User Guide (not shown)
B C with VITA Assist C -ROM
C Package of infection control shields
VITA Easyshade Advance 4.0 hand piece
E VITA Easyshade Advance 4.0 base unit
F Calibration block holder
G Power supply with universal adapter kit
H USB Bluetooth module
Note: If any items are missing,
contact VITA Zahnfabrik or Vident (North America only) immediately.
1.2 Product information
Please record the following information in the table below.
Getting started
Software to transfer and document the natural tooth shade measured
Note: Operating system: Windows XP SP2 or later versions

7
1
2

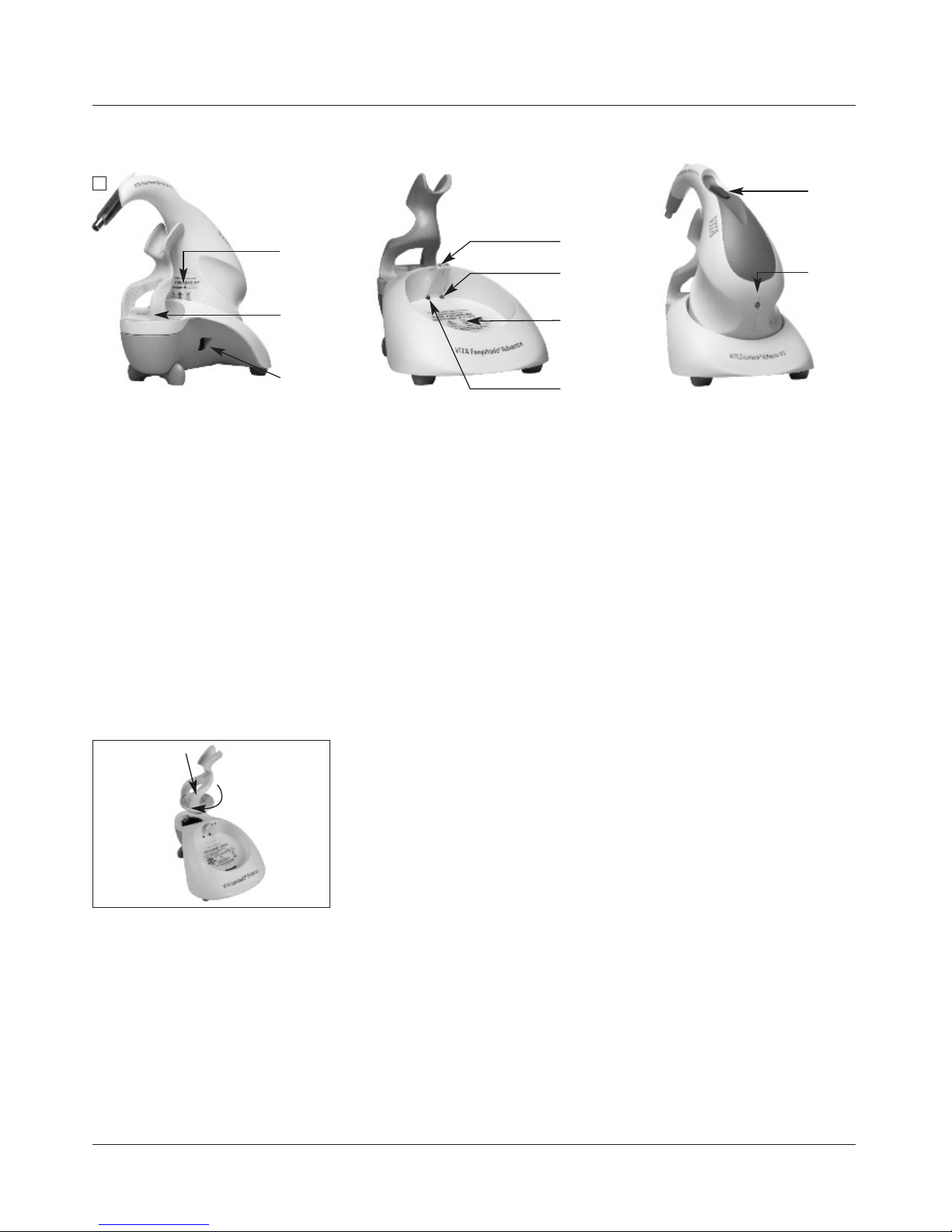

VI A Easyshade®Advance 4.0
Charging LE
indicator light
Measurement
switch
Serial number
of base unit
IR LE for
automatic
calibration
Charging pins
Power LE -
flashes green
Serial number
of calibration
block holder
Serial number
of hand piece
Input for
power unit
into the base unit so that the battery charging port fits over
the charging pins. The green LE on the hand piece (charging
indicator for the battery) flashes after the instrument has
been connected to the power supply. Let the battery of the
hand piece charge for a minimum of five hours before initial
use.
Important:
The hand piece and the calibration holder will have
the same serial number (fig. 1); if not, contact VITA (Vident
for North America only) immediately. The base unit has
a different serial number.
1.3 System setup
Open the packaging of VITA Easyshade Advance 4.0 and
remove the Quick Guide, the C -ROM containing the
Operating Instructions and VITA ShadeAssist, the Easyshade
Advance 4.0 hand piece, base unit, the calibration block hol-
der and power supply. Attach the calibration block holder as
shown in fig. 2. The green power LE flashes on the base
unit once the power supply is connected to the wall elec-
trical outlet with a suitable adapter. Place the base unit on a
flat surface. Insert the Easyshade Advance 4.0 hand piece
Getting started

8
3
4
VI A Easyshade®Advance 4.0

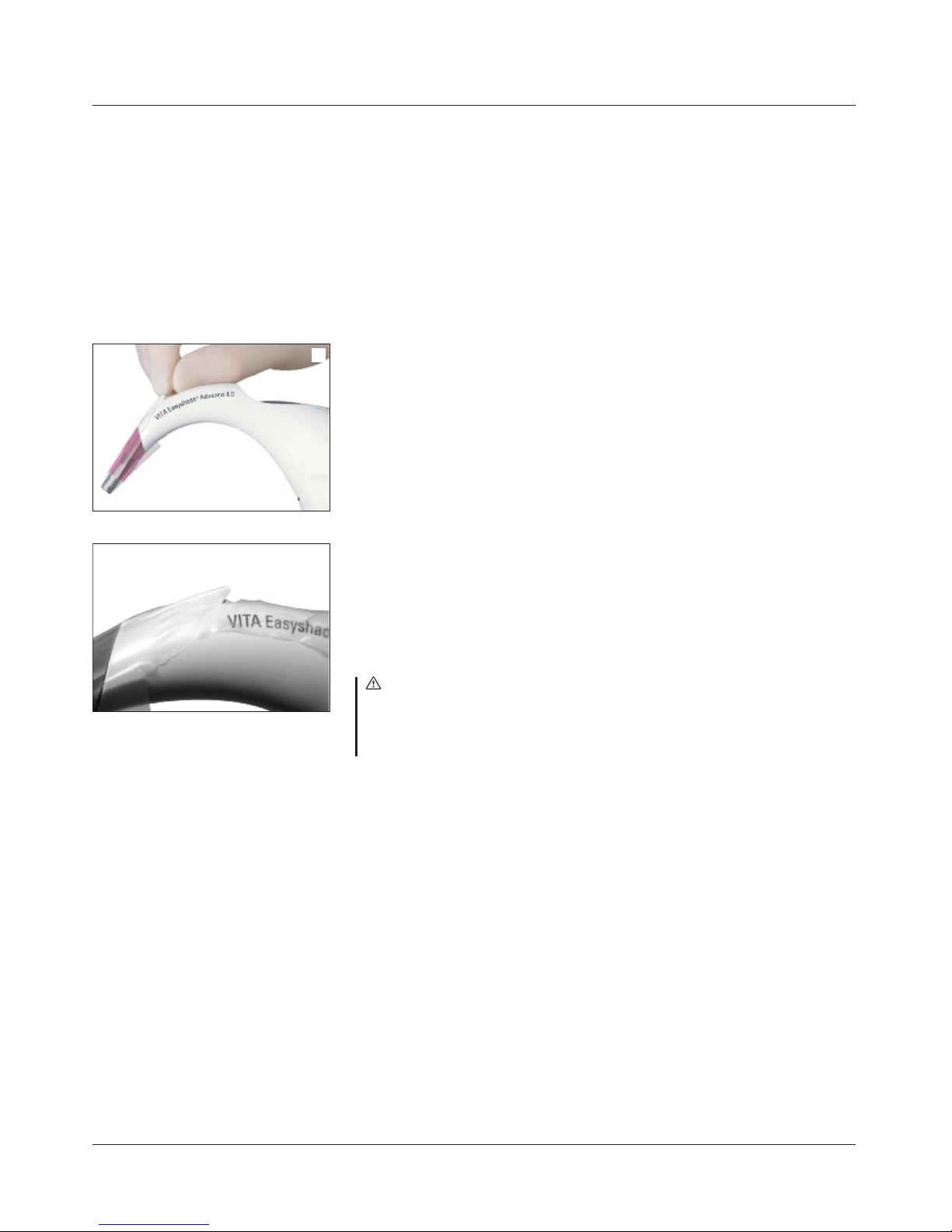

1.4 Applying an infection control shield.
It is important to properly clean and disinfect the instrument between patient
uses and to use a new Easyshade infection control shield for each patient
to prevent patient cross-contamination.
The infection control shield also protects the fiber optics in the instrument
from damage.
1. Insert the tip of the hand piece into the shield
2. Remove paper backing from the shield
3. Pull shield carefully over the hook
4. Secure shield on the hook
Verify that the infection control shield is stretched uniformly
and flat over the face of the probe tip, and is not torn
during application (fig. 3+4).
Then calibrate the instrument as described in section 1.6.
The infection control shield should remain in place for all
measurements with the same patient.
These non-sterile covers are for single patient use only and should
be properly disposed of.
Note: An infection control shield that has come into contact
with a patient must not contact the calibration block assembly.
If contact occurs, follow the instructions for cleaning and
disinfection of the calibration block assembly in section 11.
Getting started

9
6
7
5
VI A Easyshade®Advance 4.0
Green LE
1.5 Power-on
Turn on the VITA Easyshade Advance 4.0 by pressing and holding any button
on the handpiece for at least two seconds.
1.6 Calibration
The unit may only be calibrated with a new anti-infection cover in order
to prevent patient to patient cross-contamination.
1.6.1 Automatic calibration
If the base unit is connected to a power source, the calibration procedure
is carried out automatically.

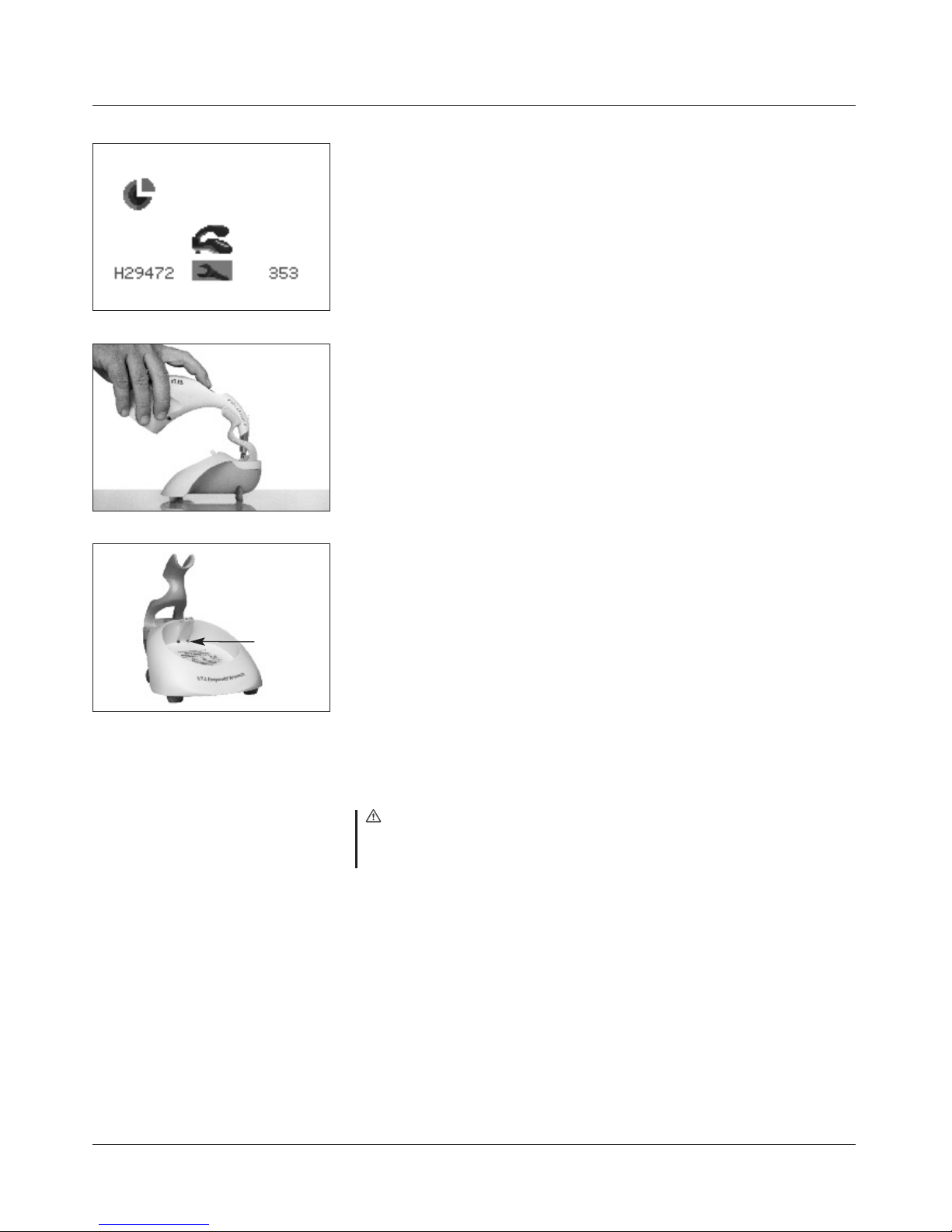

Place the instrument in the calibration block holder so that the probe tip
is flush with and perpendicular to the calibration block and depresses
the calibration block (fig. 6). Make sure that the hand piece is fully seated
in the calibration holder. o not press the measurement switch when the unit
is calibrated automatically.
A green LE in the center of the base unit is lit and shortly afterwards
the hand piece probe will illuminate the calibration block (fig. 7).
Initial calibration may take a few seconds after the unit is switched on.
Two short beeps indicate completion of calibration.
Note: Before carrying out any measurement, the unit must
be calibrated. If power is not available to the base unit,
the unit must be calibrated manually (section 1.6.2).
Getting started

10
9
10
8
VI A Easyshade®Advance 4.0

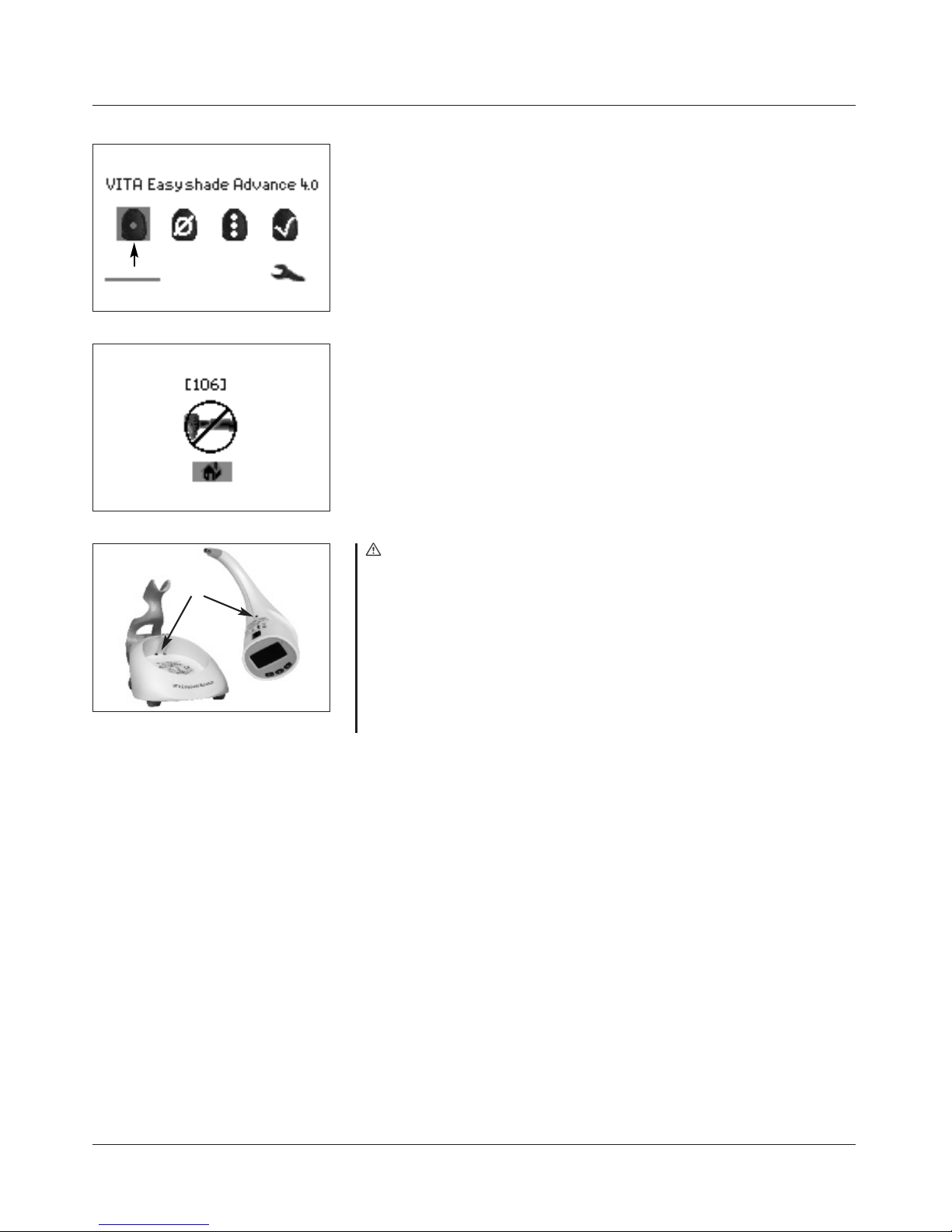

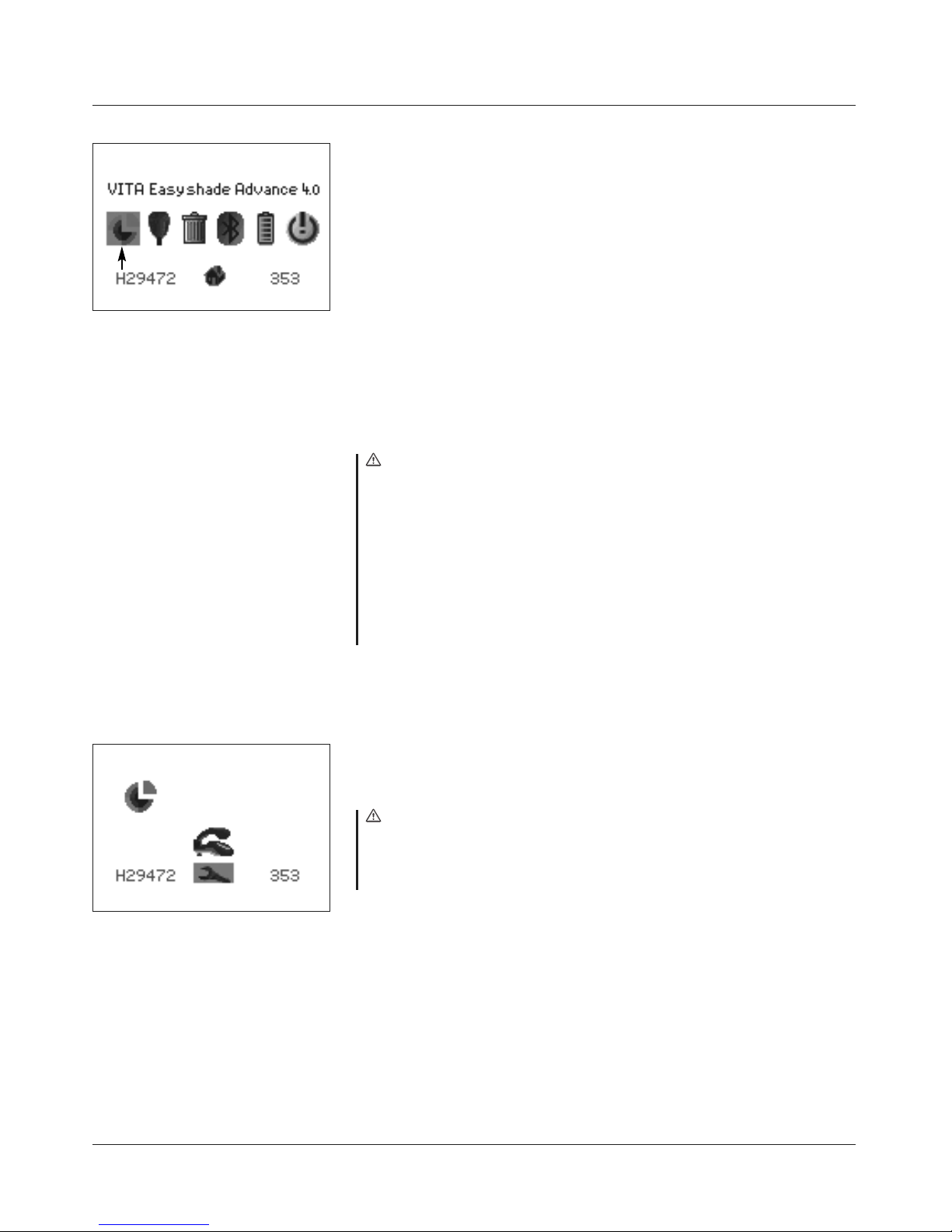

After successful calibration, the measurement menu is displayed (fig. 8)
and the unit is ready for use. The measurement mode used last is high-
lighted and activated after pressing the Select key.
If a single "beep" sounds, an error message is displayed
on the screen as shown (fig. 9).
Calibration has failed and must be repeated (see section 12.2).
Note: Make sure not to block the IR ports above the labels
located on the hand piece and the base unit (see IR ports, fig.10).
Avoid placing the base unit in the vicinity of a powerful infrared
light source (such as sunlight or an incandescent light),
which may interfere with the signal transmission between
the base unit and the hand piece.
uring automatic calibration, do not press the measurement button.
Getting started
IR Port

11
13
12
11
VI A Easyshade®Advance 4.0
1.6.2 Manual calibration
The instrument can also be calibrated when a power source is not available for
the base unit (the green Power LE is not flashing). For this purpose select the
Calibration icon in the Settings menu (fig. 11), which you can access from the
Toolbar icon.
Place the hand piece in the calibration block holder and press the measurement
switch to activate the calibration procedure. The beeps indicate that the unit
has been calibrated successfully.
Note: VITA Easyshade Advance 4.0 is pre-calibrated at the factory for the
calibration block that is shipped with the instrument and may only be used
with this calibration block. If you own more than one VITA Easyshade
Advance 4.0, care must be taken not to switch calibration blocks between
VITA Easyshade Advance 4.0 units, which may adversely affect the accuracy
of measurements.
Make sure that the serial number on the hand piece matches the serial
number on the calibration block holder (see section 1.2).
1.6.3 Monitoring t e calibration
ue to environmental changes or after repeated use, it may be necessary
to re-calibrate the instrument when performing repeated measurements.
The animated Calibration icon, as shown in figure 12, indicates that
the instrument must be re-calibrated.
Note: An anti-infection cover that has come into contact
with a patient must not contact the calibration block assembly.
If this occurs, follow the instructions for cleaning and disinfection
of the calibration block assembly in section 11.
If error No. 106 is displayed, the instrument must be re-calibrated.
Getting started

12
13
VI A Easyshade®Advance 4.0
Enter
button
Arrow
buttons
Display
2 Menu navigati n
The two arrow buttons located below the display (fig. 13)
move the cursor left or right respectively to navigate
the instrument’s menus.
Pressing the Enter button will select the highlighted icon.
Menu navigation
2.1 ables of icons
Basic shade
measurement
Toolbar
Verify
restoration
Adjust
Averaged
measurement
Measurement
menu
Verify
restoration
Fair
Measurement
of tooth
areas
Measure
cervical
tooth area
Verify
restoration
Good
Verify
restoration
Measure
central
tooth area
Recording
memory
Shade tab
Measure
incisal
tooth area
Save User
standard
Off
Battery fully
charged
VITA Tooth shades,
VITA Block shades,
Bleached shade
Measure-
ment
failed
Recycle bin
Calibration
failed
Bluetooth
off
Bluetooth
on
Bluetooth
connected
Shade
match
failed
General
error
Calibration
Battery
empty

13
14
15
VI A Easyshade®Advance 4.0
3 Correct measurement of a tooth
The instrument may be used to measure only the central area on a tooth
("Basic shade measurement") or to measure the cervical, central and incisal
areas ("Measurement of tooth areas") as described in section 4.
Procedure to perform accurate measurements with VITA Easyshade
Advance 4.0 (for purposes of illustration, the probe tip is shown without
an anti-infection cover):
Have the patient sit on a chair and lean back his head.
Observe the color gradient of the tooth to be measured precisely
beforehand and locate the dentine centre.
The probe tip must be placed on the area of the enamel surface
that has underlying dentine (central to cervical area).
The probe tip must be placed perpendicular and flush
to the tooth surface as shown in the adjacent figure (fig. 14).
While holding the probe tip steady against the dentine center
of the tooth, press the Measurement button and hold the probe tip
against the tooth until two rapid "beeps" can be heard to indicate
completion of the measurement.
VITA Easyshade Advance 4.0 will display the results of the measurement.
Incorrect placement (fig. 15):
Probe tip not flush on the tooth surface.
Correct measurement of a tooth

14
17
16
VI A Easyshade®Advance 4.0

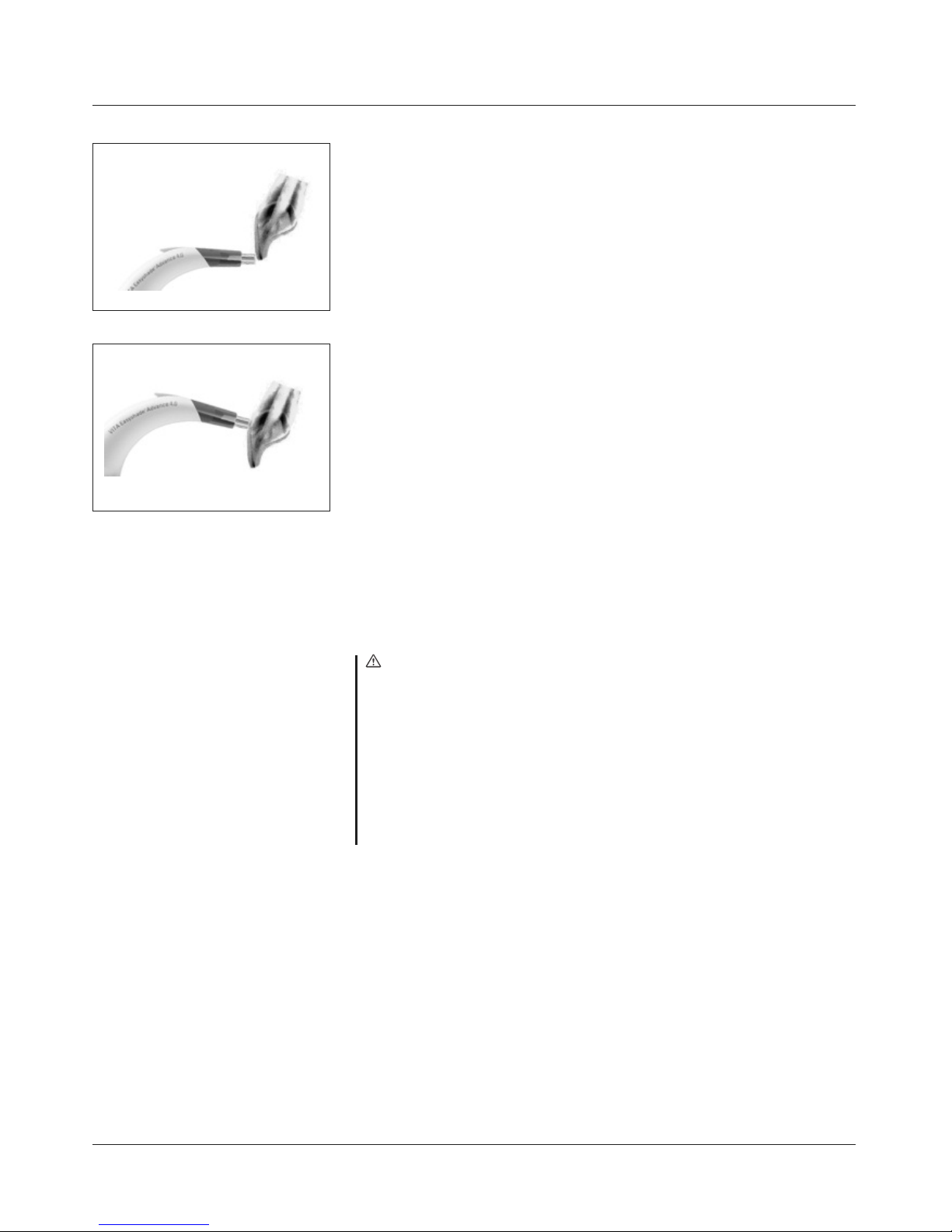

Incorrect placement – incisal (fig. 16):
Probe tip must be a minimum of 2 mm
from the incisal edge.
Incorrect placement – cervical (fig. 17):
Probe tip too close to gingival tissue.
Maintain a minimum distance of 2 mm to the tissue margin.
If the probe tip is moved off of the tooth prior
to the instrument sounding a "beep", an error message
or an erroneous measurement will be displayed
and the measurement will need to be repeated.
Note: Prior to measuring a tooth, an infection control shield
must be applied to the VITA Easyshade Advance 4.0 probe tip
and the instrument calibrated. It is recommended to remove
any stains from the surface of a tooth prior to measurement.
It may be required to wipe the tooth with gauze to prevent
the tip from sliding. The probe tip must be placed entirely on
the natural tooth. Any contact with existing restorations must
be avoided. Underlying restorations may adversely affect
the measurement result.
Correct measurement of a tooth

15
VI A Easyshade®Advance 4.0

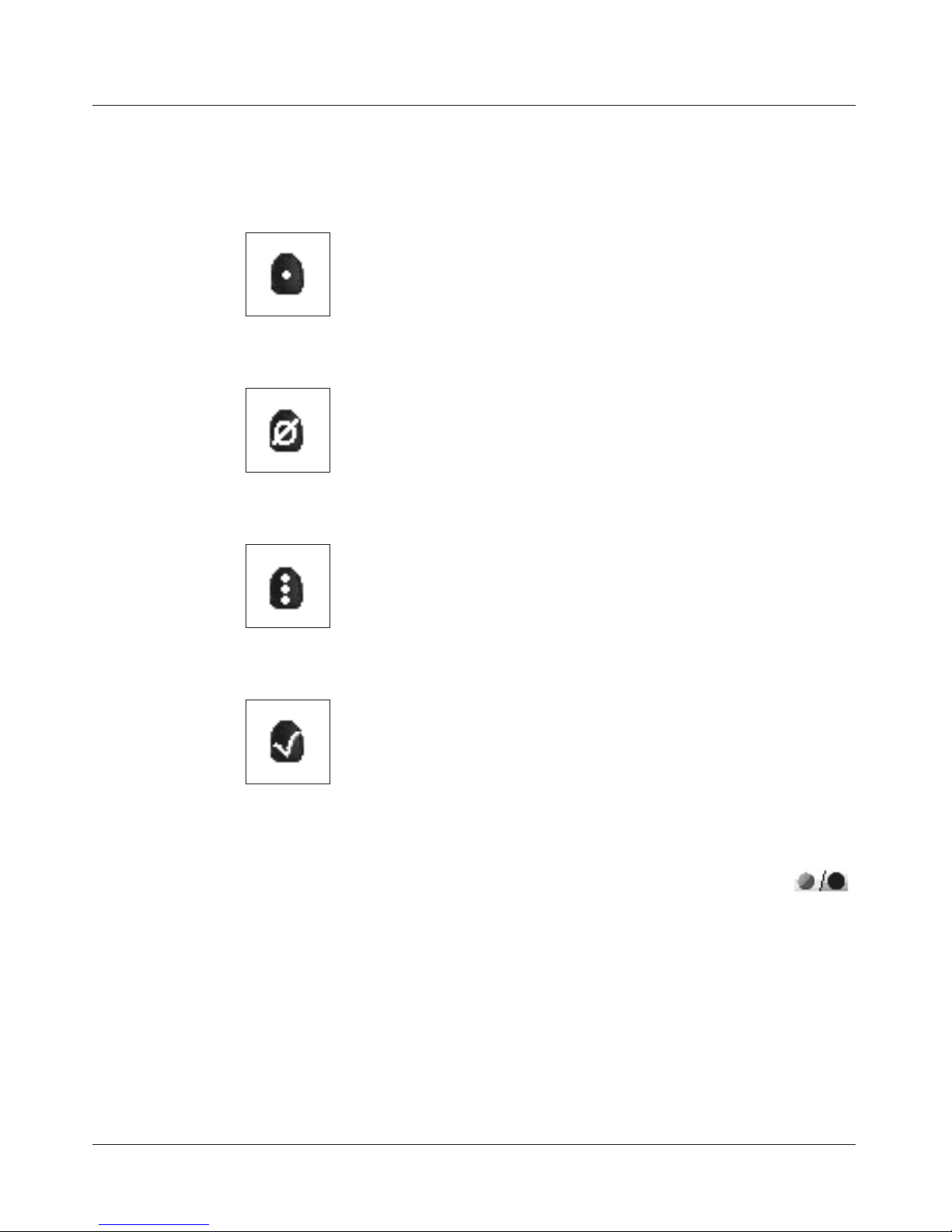

4 Modes of operation
4.1 Short description of the modes of operation
4.1.1 Measurement of the basic shade
With this measurement you can determine the basic tooth shade on natural
teeth only. The suitable VITABLOCS and bleached shade can be displayed for
the basic tooth shade.

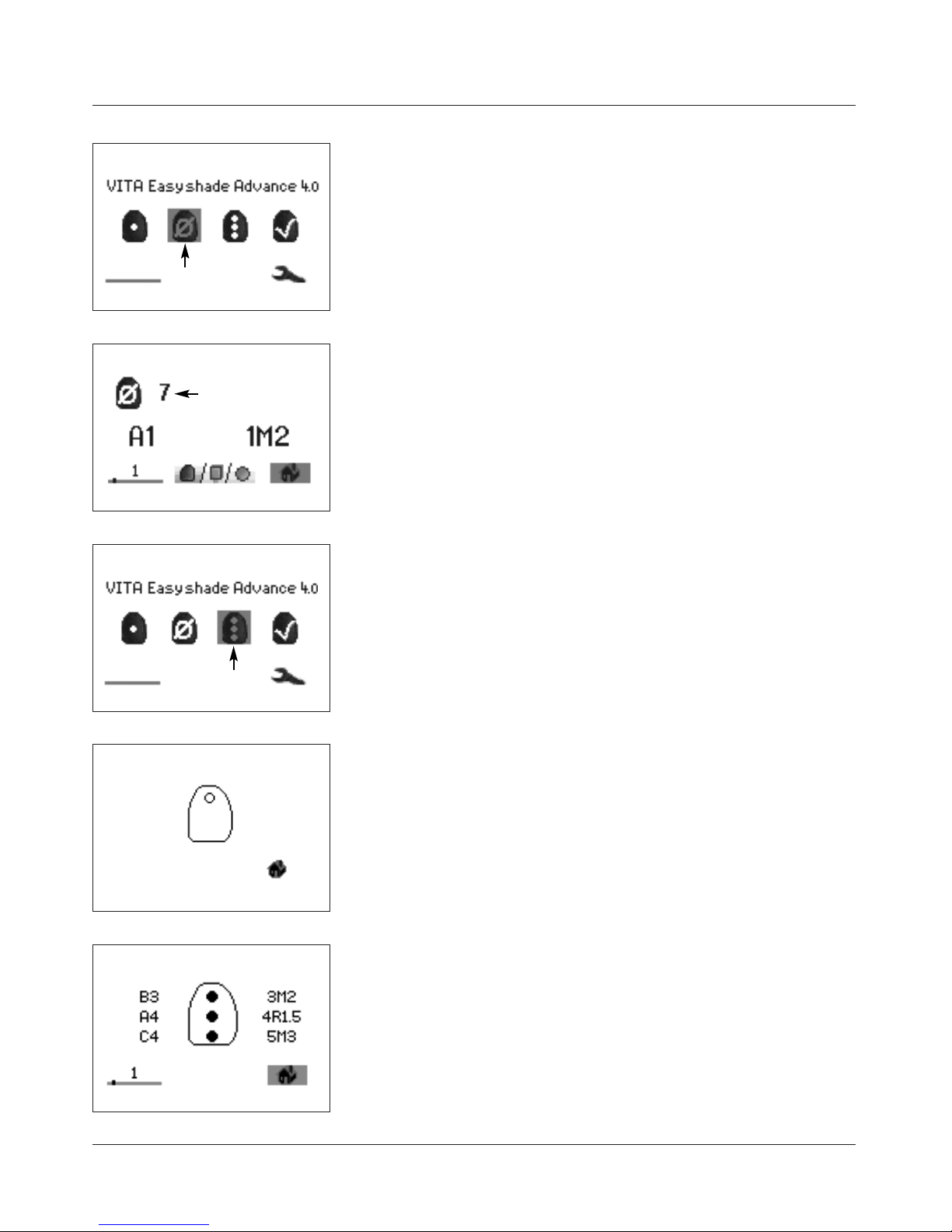

4.1.2 Averaged measurement
This measurement is calculated as an average basic tooth shade from several
basic shade measurements. The suitable VITABLOCS and bleached shade can
be displayed for the basic tooth shade.
4.1.3 Measurement on tooth areas
This measurement enables the determination of the basic tooth shade
cervically, centrally and incisally on natural teeth only.
4.1.4 Measurement on a ceramic restoration
This measurement is used for:
– Comparing the shade of a ceramic restoration with a tooth shade
stored in the Easyshade Advance 4.0
– Comparing the shade of a ceramic restoration with a previously
measured tooth shade (user standard)
– The pure shade determination of a ceramic restoration
(user standard)
The VITA SYSTEM 3 mixed shades can be activated with this button .
Modes of operation

16
19
18
VI A Easyshade®Advance 4.0
20
21
Modes of operation

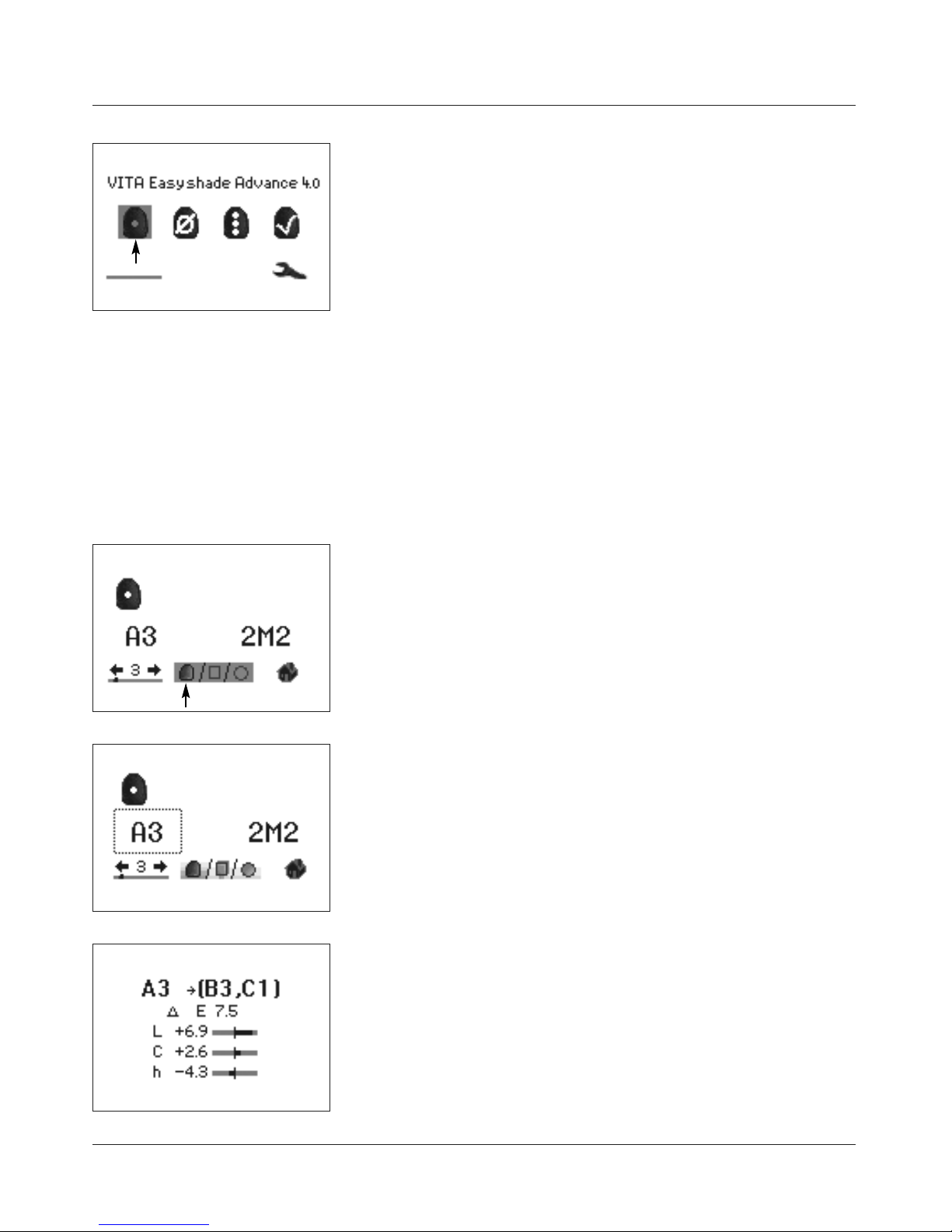

4.2 Measurement of the basic shade on a natural tooth
In order to measure the base shade of a natural tooth, highlight the basic tooth
shade measurement icon in the measurement menu and confirm by pressing
the enter button. Press the measurement button and place the probe tip
aligned flush in the dentine centre of the tooth. Measurement takes place
without further inter-action as soon as the unit is positioned firmly on the tooth
surface. After completion of a measurement, the VITA Easyshade generates an
acoustic signal. You can choose how the measurement result is displayed:
the tooth shade, the shade of a suitable VITABLOC or the bleached shade.
Note: The patient's head should be leaned back during the measurement.
Ideally, the measuring is performed while the patient is sitting in the dentist's
chair.
4.2.1 Display of the natural tooth shade
To display the measured tooth shade, please select the tooth icon in the lower
area of the display – if this has not been set already.
The measurement results are shown as VITA classical and VITA SYSTEM
3 -MASTER shades. All 16 VITA classical A– 4 and 29 shades of the VITA
SYSTEM 3 -MASTER (Basic Level) can be measured in this mode.
To receive more detailed information on the measured VITA classical A1– 4
shade, move the selection highlighting to the displayed classical shade using
the navigation buttons, and then press the selection key enter button.
This will take you to the detail screen.
In the detail screen, the shade codes behind the arrow icon -> are information
about the nearest tooth shades. A detailed description of the screen can be
found in section 7.

17
VI A Easyshade®Advance 4.0
22
24
23
Modes of operation

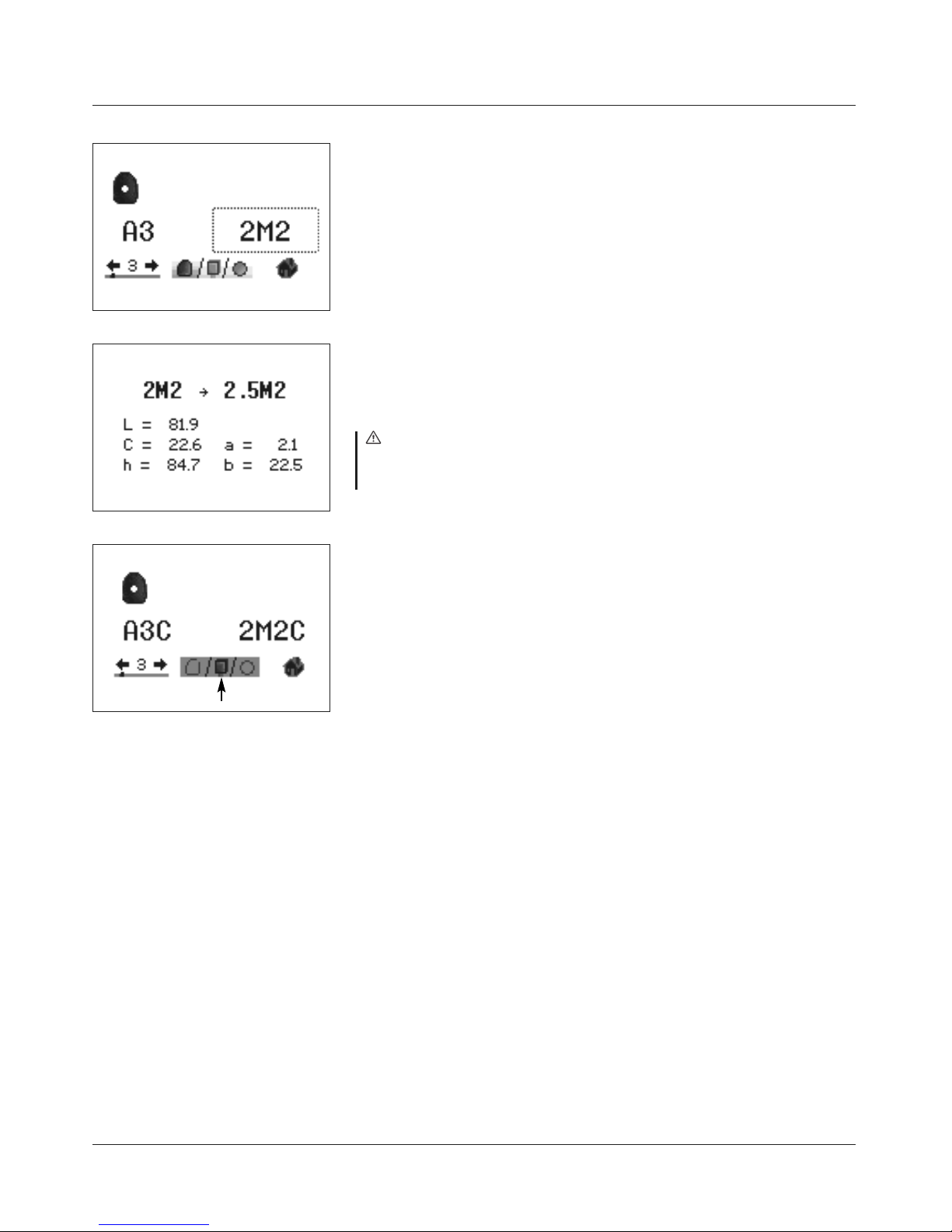

To receive more detailed information on the measured VITA SYSTEM
3 -MASTER shade, use the arrow buttons to highlight the displayed shade
and then press the Enter key to go to the detail screen.
4.2.2 Display of the VI ABLOCS shade
The VITABLOCS mode informs you which VITA block should be used for the
accurate reproduction of the measured tooth shade.
To enter this mode, highlight the BLOCS icon in the lower area of the display.
The suitable VITABLOCS in the VITA classical A1– 4 or VITA SYSTEM
3 -MASTER shades are displayed. If a suitable block is not available in the
VITA classical A1– 4 shade system (--- is displayed), use the block indicated in
the VITA SYSTEM 3 -MASTER.
In the detail screen, the shade code behind the arrow icon -> are information
on the closest mixed tooth shade. A detailed description of the screen can be
found in section 7
Note: Compare the shade measurement with a shade tab if possible in
daylight, under standardized daylight lamps or at 5500 - 6500 K adapted to
daylight and not under normal indoor lighting!

18
VI A Easyshade®Advance 4.0
25
Modes of operation
Note:
To determine the correct block shade, a distinction is made between
4 initial situations. Generally, measurements should not be carried out
on prepared teeth (stumps) since they are too small and normally
also darker than the unprepared teeth.
1. Vital, non-discolored
Easyshade is used to determine the base shade on the unprepared tooth and
the restoration can be prepared without any additional characterization.
2. Vital, discolored
Easyshade is used to determine the base shade on the unprepared tooth;
the shade of the restoration, however, must be characterized before being
seated (Akzent, Shading Paste).
3. evitalized, non-discolored
Easyshade is used to determine the base shade on the unprepared tooth and
the restoration can be prepared without any additional characterization.
4. evitalized, discolored
The tooth should not be measured with Easyshade. An adjacent tooth
with the same shade should be selected to determine the block shade.
A devitalized tooth should be bleached internally prior to treatment
(attempt to reproduce the shade of a non-discolored, devitalized tooth).
The prepared tooth should be characterized as described under 2.

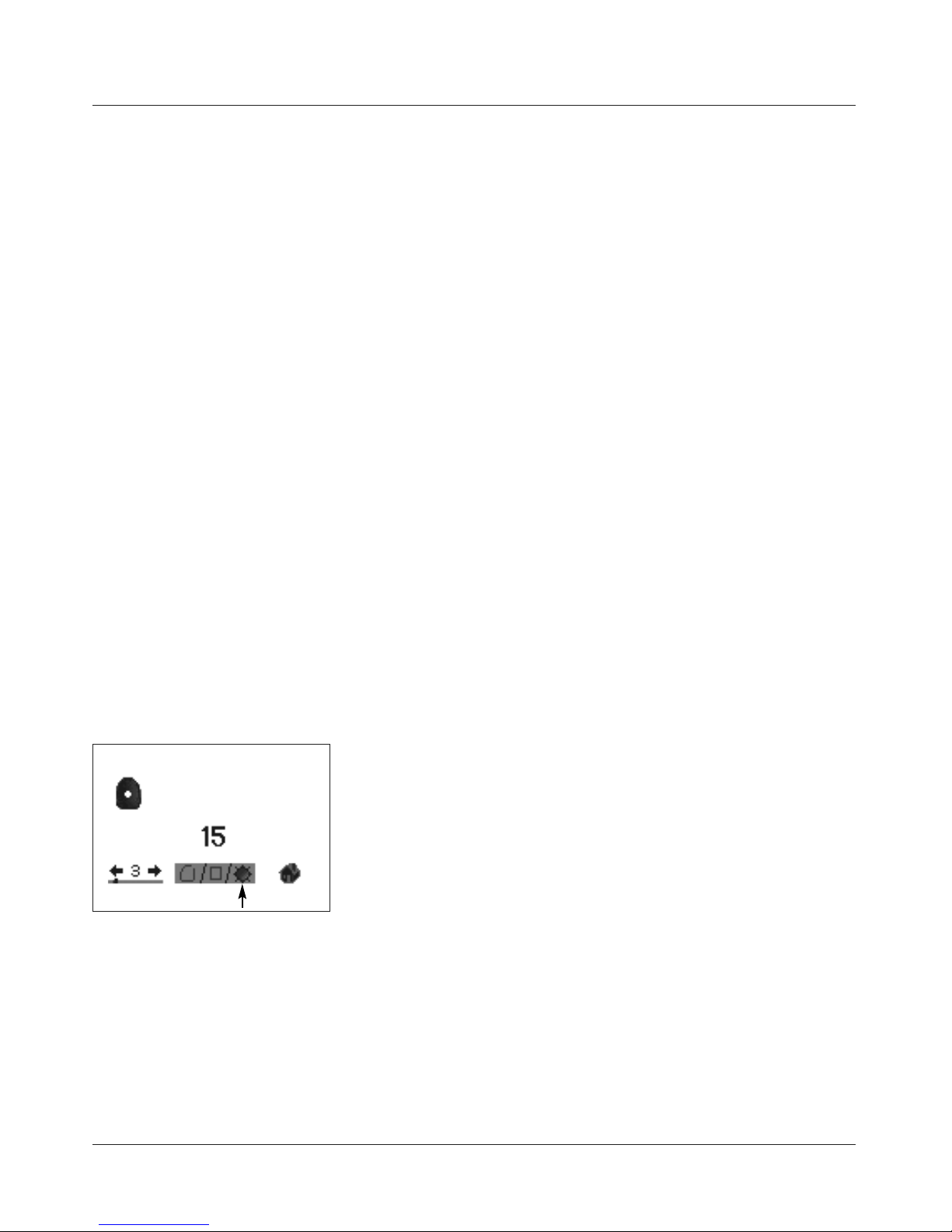

4.2.3 Display of the bleached shade
To display the bleached shade, please select the sun icon in the lower part of
the display.
When selecting this display mode, the bleached index is shown for the
measured shade according to the VITA Bleached Guide (Art. no. B361).
The Bleached Index enables the simple verification of tooth bleaching proce-
dures. To this purpose, the Bleached Index measured after treatment should be
subtracted from the Bleached Index before treatment. The difference corres-
ponds to the number of SGUs (Shade Guide Units) of change achieved by the
treatment according to the American ental Association recommendation.

19
28
29
30
VI A Easyshade®Advance 4.0
26
27
Modes of operation

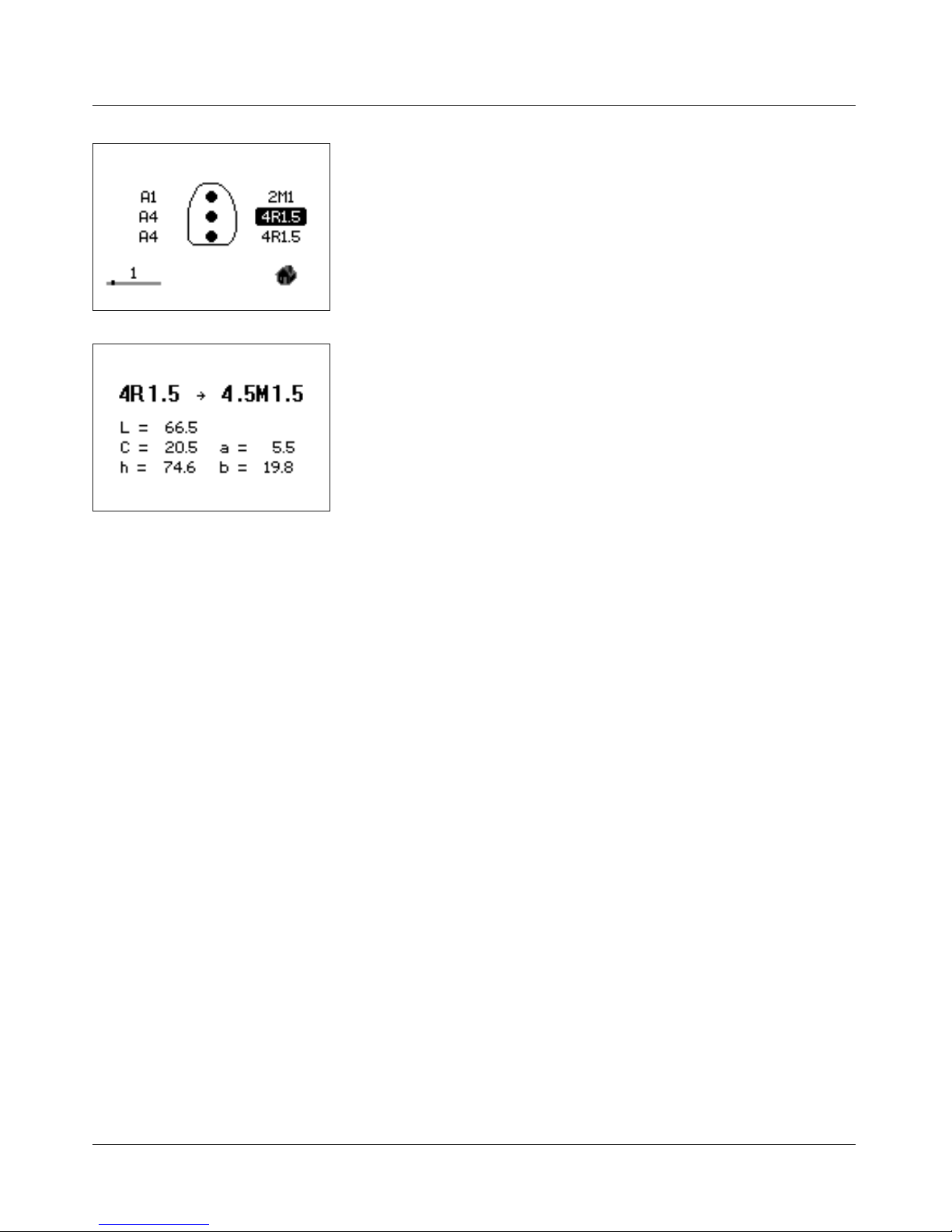

4.4 ooth area measurement on the natural tooth
To measure the cervical, middle and incisal shades of a tooth, highlight
and select the Tooth area measurement icon on the Measurement menu.
Measurement sequence: cervical, middle and incisal.
To begin (empty circle), place the probe on the cervical area of the tooth and
press the measurement switch. Two rapid "beeps" will indicate a successful
measurement and "OK" will be displayed.
Proceed with the measurements of the middle and incisal areas.
After successful measurement of all areas, the VITA classical A1– 4
and VITA SYSTEM 3 -MASTER shade results will be displayed.
If an error occurs during measurement, a long "beep" will sound
and "X" will be displayed in the measured tooth area (not shown).
Repeat the measurement of the area until a successful measurement
result is obtained.
4.3 Averaged measurement on the natural tooth
With the averaged measurement up to 30 measurements can be made on a
natural tooth. The average of the measurement results is displayed as a VITA
classical A1– 4 or VITA SYSTEM 3 -MASTER shade.
The number of averaged measurements is displayed.

20
31
32
VI A Easyshade®Advance 4.0 Modes of operation
To receive extended color information, highlight and select one of
the displayed shade results.
Please note: The measurement data of the VITA Easyshade Advance 4.0
are dependent on the measurement mode, and only valid for natural teeth.
The measurements of shade samples is possible only in the training mode.
Measurements made on dental restorations should always be carried out
in the restoration mode.
4.5 Measuring on ceramic restorations
VITA Easyshade Advance 4.0 enables dental professionals to verify
that a ceramic restoration's shade is an acceptable match to a prescribed
shade (fig. 33). Here both the 29 shades, the 52 mixed shades of both the
VITA SYSTEM 3 -MASTER and the 16 VITA classical A1– 4 shades
can be verified.
Moreover, you can also define your own shade standard (User standard,
section 4.4.2) and compare the ceramic restoraton with this. It is also possible
to determine the approximate shade value of the restoration.
