Vandal Proof WDR
Mighty Dome Cameras 700 TV Line Day/Night
Dome Camera Series
• Pixim D8800C Seawolf Digital Imaging System
CMOS
• 700 TVL High Resolution
• WDR - Wide Dynamic Range
• 3DNR - Three Dimensional Noise Reduction
• Secondary Video Output (Cable Included)
• OSD (On Screen Display) for Camera Function
Setup
• Flush or Surface mount
• Infinity Ball Mount for Any Viewing Angle
• UTP interface and Heater / Blower Options
Available
• UTC CONTROL - Serial Control over Coax
• 1” Conduit Knockout
• Vandal/Waterproof IP 686 Rated
• Optional - Extreme Cold (-60’F) Temperature Kit
• Available in Ivory or Black color
• Dual Voltage 12VDC & 24VAC
FEATURES
VTD-MVP2810WDR

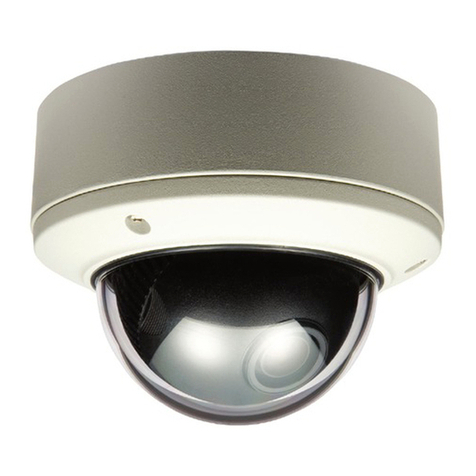

Outdoor Vandal Proof Pixim Seawolf Powered WDR Mighty Dome 700TVL Camera
w/2.8-10mm Lens, OSD, Day Night w/ICR and “Night Watch” DSS -12VDC/24VAC
VTD-MVP922WDR
Outdoor Vandal Proof Pixim Seawolf Powered WDR Mighty Dome 700TVL Camera
w/9-22mm Lens, OSD, Day Night w/ICR and “Night Watch” DSS -12VDC/24VAC
Available Configurations Include:
Example of WDR
Conventional Camera VTD-MVP2910WDR
NTSC
PAL
Standards
Supports
OSD Menu
Vandal
Resistant
Day
Night
Privacy
Motion
Detection
Lighting conditions play a critical role in producing useable video images in a surveillance system. The Pixim-
Powered WDR Vandal/Waterproof Dome Camera was created to meet and solve the challenges brought on by
varying lighting conditions within a single capture area.
By use of the PIXIM Seawolf Wide Dynamic Range DSP we are able to control and display clear, crisp images
in varied lighting conditions more accurately than ever before. Its improved resolution of 700TV Lines is un-
equaled by any other WDR Surveillance camera. Advanced on screen display and True ICR Day/Night function
are among the many other features which place this camera at the best in its class.

(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
Vandal Proof WDR
Mighty Dome Cameras 700 TV Line Day/Night
Dome Camera Series
blackyellowmagentacyan
Detailed Specifications
Image Device
Effective Pixels
Scan Frequency
Synchronization
H. Resolution
Sensitivity
S/N Ratio
White Balance
WDR Mode
Motion Detection
Digital Zoom
FLIP
Privacy Zone
Auto Iris Control
Slow Shutter
Day & Night
IP Rating
Lens Options
Video Output
Operating Power
Operating Condition
Dimensions (H x Dia.)
Weight (Camera)
Weight (Carton)
Pixim D8800C Seawolf Digital Imaging System CMOS
758(H) x 540(V)
59.94HZ(V), 15.734K HZ(H) 50HZ(V), 15.625KHZ(H)
Internal / Line Lock (phase adjust)
700TVL
0.00008Lux at F1.2@40IRE, 32x (DSS+ICR mode)
More than 52dB with AGC OFF at 50IRE
2,000 ~ 11,000’K Automatic tracking / AWB / MANUAL
[Low / Middle / High / Custom (User adjustment)]
On / Off (4 Programmable Zone)
Up to X12 Digital Zoom
OFF / H-FLIP / V-FLIP / H/V-FLIP
On / Off (6 Programmable Zone)
DC Drive Iris Control
2 ~ 32X
Infrared Cut-Filter Removable built-in
IP686
F1.2 2.8~10mm DC Auto Iris IR Corrected ICR / F1.8 9~22mm DC Auto Iris IR Corrected ICR
VBS 1 Vpp +/- 10%, 75ohm
12VDC / 24VAC 3 Watts / 220 mAmp
-4’F ~ 122’F / -20’C ~ 50’C, 85% RH. Max. Non-condensing - Optional Extreme Weather Heater for -60’F
4.45” x 6.73” (110mm x 170mm)
2.3 lb / 1.04Kg
2.9lb / 1.32Kg
NTSC PAL
VT-MDPLMT
Mighty Dome Pole
Mount
VT-MDCNMT
Mighty Dome Corner
Mount
VT-MD/CMT
Mighty Dome Ceiiling
Mount
VTD-MD-FMP
Mighty Dome Flush
Mount Decorator
Plate
VT-MD/WMT
Mighty Dome Wall
Mount
