Vitek VTC-T4B4HR5MD User manual

VITEK
VITEK
FEATURES
• 1/2.8” 5.69 / 8.51 Megapixel Sony® Starvis™* Progressive Scan CMOS
Sensor
• 5MP Models: 20fps live view @ 2592 x 1944p
• 8MP Models: 15fps live view @ 3840 x 2160p
• True Day/Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
• 5MP Models: Motorized 2.7~13.5mm MegaPixel IR Corrected Auto Focus
Varifocal Lens
• 8MP Models: Motorized 2.8~12mm MegaPixel IR Corrected Auto Focus
Varifocal Lens
• 4 Integrated High Power Dynamic IR LEDs with up to 165’ IR Range (VTC-
T4B4HR5MD/8MD), 3 Integrated High Power Dynamic IR LEDs with up to
135’ IR Range (VTC-T4T4HR5MD/8MD)
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
• Double Shutter Wide Dynamic Range (WDR)
• 16:9 Video format
• IP66 Weather Resistance
• Supports Control over COAX (CoC)
• Over 1500’ HD Video Transmission (Depending on cable characteristics and
integrity)
• Optional Junction Box Mount Available for Cable Management (VT-TJB04)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty
*Sony Starvis is a registered trademark of Sony
VTC-T4B4HR5MD
VTC-T4T3HR5MD
VTC-T4B4HR8MD
VTC-T4T3HR8MD
5 and 8 Megapixel 4-in-1 HD-TVI/AHD/CVI/CVBS
Motorized Varifocal Bullet and Turret Cameras

2 3
TABLE OF CONTENTS
1. Safety and Notes ................................ 3~4
2. Product Introduction ................................ 5
2.1 Production Instruction .......................... 5
2.2 Product Features .................................. 5
3. Product Structure ..................................... 6
4. OSD Menu Tree ...................................... 7
5. Product Installation ................................. 8
5.1 Installation Note .................................... 8
5.2 Installation Method ................................ 8
5.3 Connection ............................................ 9
Appendix: Accessories, Specs................10~15
Warranty Information ..................................16

3

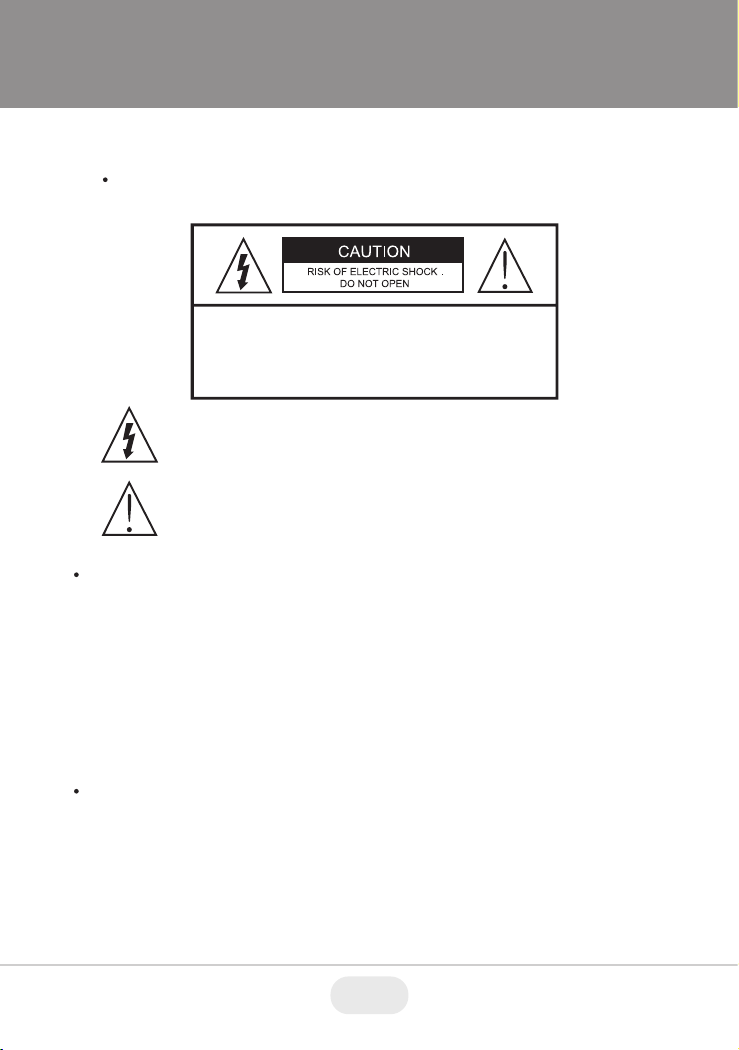

Safety Precaution
CAUTION: TO REDUCE THE RISK OF ELECTICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
To prevent electrical shock and risk of fire hazards, do not expose this unit
to rain or moisture and only use specified power source..
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Main power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power interruptions, it is
recommended that the device be powered from an uninterruptible power supply
(UPS).
The symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.

4 5
1.
Notes
n
Please use the specified power supply to connect the camera.
n
Do not attempt to disassemble the camera; in order to prevent electric shock,
do not remove screws or covers.
n
There are no user-serviceable parts inside. Please contact the nearest service
center as soon as possible if there is any failure.
n
Avoid incorrect operation, shock vibration, and heavy pressure which can
cause damage to product.
n
Do not use corrosive detergent to clean main body of the camera. If necessary,
please use soft dry cloth to wipe dirt; for hard contamination, use neutral
detergent. Any cleanser for high grade furniture is applicable.
n
Avoid aiming the camera directly towards extremely bright objects, such as
the sun, as this may damage the image sensor.
n
Please follow the instructions to install the camera.
n
Do not operate it in case temperature, humidity and power supply are
beyond the limited stipulations.
n
Keep away from heat sources such as radiators, heat registers, stove, etc.
n
Do not expose the product to the direct airflow from an air conditioner.
Otherwise, it may cause moisture condensation inside due to temperature
differences between the interior and exterior.

5
2
. Product Introduction
2.1 Production Instructions
This series of cameras uses a CMOS image sensor with high
performance, which provides mega pixel resolution and supports
HD video. Transmission distance can reach more than 900’
based on RG59 95% coaxial cable. This series can support TVI/
CVI/AHD/CVBS output.
2.2 Product Features
1. 1/2.8" 5.69MP Sony® Starvis© CMOS / 1/2.8” 8.51 Sony® Starvis©
CMOS
2. Full HD Resolution:5MP 20fps / 8MP 15fps
3. WDR (Wide Dynamic Range)
4 XD-DNR (3D and 2D Digtal Noise Reduction)
5. True Day / Night
6. Auto White Balance
7. Smart IR Function
8. DC IRIS
9. Low Power Consumption
10. Supports Control over COAX (CoC)
.

6 7
3. Product Structure
The followings are the dimensions for the bullet and turret cameras
in this series:
4. OSD Menu tree

7
Main Menu
Secondary menu
AE
BRIGHTNESS
0~100
EXPOSURE
MODE
GLOBAL
BLC
0~7
GAIN
HIGH
,
MIDDLE
,
LOW
,
OFF
AWB MODE PRO, GRAY WORLD
RGAIN
0~100
BGAIN
0~100
DAY/NIGHT
MODE
EXT
,
AUTO
, COLOR, B/W
IMAGE ENHANCE
CONTRAST
AUTO
MANUAL
0~20
SHARPNESS
AUTO
MANUAL
0~20
SATURATION
AUTO
MANUAL
0~20
3DNR AUTO
VIDEO SETTING
HD
TVI
,
AHD
,
CVI
,
CVBS
STANDARD
5MP, 4MP, 1080P
VERSION
FX5.00.01
APPLY&REBOOT
LANGUAGE
English
,
Chinese (simple)
,
Chinese (traditional)
,
Russian,Spanish, French, Polish, Italian, Portuguese,
Japanese, Korean

8 9
LENADJ
L+L+R+R+C
RESET
SAVE&EXIT
5. Product Installation
5.1 Note
1) Make sure the unit is powered off before installation.
2) Make sure to only use specified power to prevent damage to
the camera
3) Do not use in environment beyond the boundaries of the
temperature and maintain good ventilation to prevent the risk
of fire or electric shock.
4) The installation and maintenance of this product should be
done by professionals only, please do not remove or modify
the equipment in any way; Only use the required accessories
of manufacturers. Problems caused by unauthorized repair are
at your own risk.
5.2 Installation Method
1) Disconnect power before installation.
2) Confirm proper 12VDC or 24VAC power supply is used to
prevent damage to the camera.
3) Do not use in an environment beyond the boundaries of the
specifications.

9
Power & Video Connections
Monitor
Video
12VDC / 24VAC Power
Connect the HD-TVI Video or AHD/CVBS video connector to a BNC
patch cable, then to a DVR. Next connect the power connector to a
12VDC or 24VAC power adaptor.
Installation
1) Disconnect power before installation.
2) Confirm proper 12VDC or 24VAC power supply is used to prevent
damage to the camera.
3) Do not use in an environment beyond the boundaries of the
specifications.
On Cable Switch:
Press & Hold button to cycle between HD-TVI, AHD, and CVI
Modes (Green BNC Connection required).
Press & Release the Switch quickly to enter OSD Menu
Screen.
BNC Connections:
Green: HD Connection
Yellow: SD Connection
5.4 Connection
Connection as shown in the figure below:
Power & Video Connections
Monitor
Video
12VDC / 24VAC Power
Connect the HD-TVI Video or AHD/CVBS video connector to a BNC
patch cable, then to a DVR. Next connect the power connector to a
12VDC or 24VAC power adaptor.
Installation
1) Disconnect power before installation.
2) Confirm proper 12VDC or 24VAC power supply is used to prevent
damage to the camera.
3) Do not use in an environment beyond the boundaries of the
specifications.
Video Output Mode Switch:
Select the desired video mode using the dip switches
contained within the on-cable Output Mode Switch as follows:
ON
12
ON
12
CVBS
ON
12
AHD
ON
12
HD-TVI
ON
12
CVI
5.4 Connection
Connection as shown in the figure below:
Power & Video Connections
Monitor
Video
12VDC / 24VAC Power
Connect the HD-TVI Video or AHD/CVBS video connector to a BNC
patch cable, then to a DVR. Next connect the power connector to a
12VDC or 24VAC power adaptor.
Installation
1) Disconnect power before installation.
2) Confirm proper 12VDC or 24VAC power supply is used to prevent
damage to the camera.
3) Do not use in an environment beyond the boundaries of the
specifications.
Video Output Mode Switch:
Select the desired video mode using the dip switches
contained within the on-cable Output Mode Switch as follows:
ON
1 2
ON
1 2
CVBS
ON
1 2
AHD
ON
1 2
HD-TVI
ON
1 2
CVI

10 11

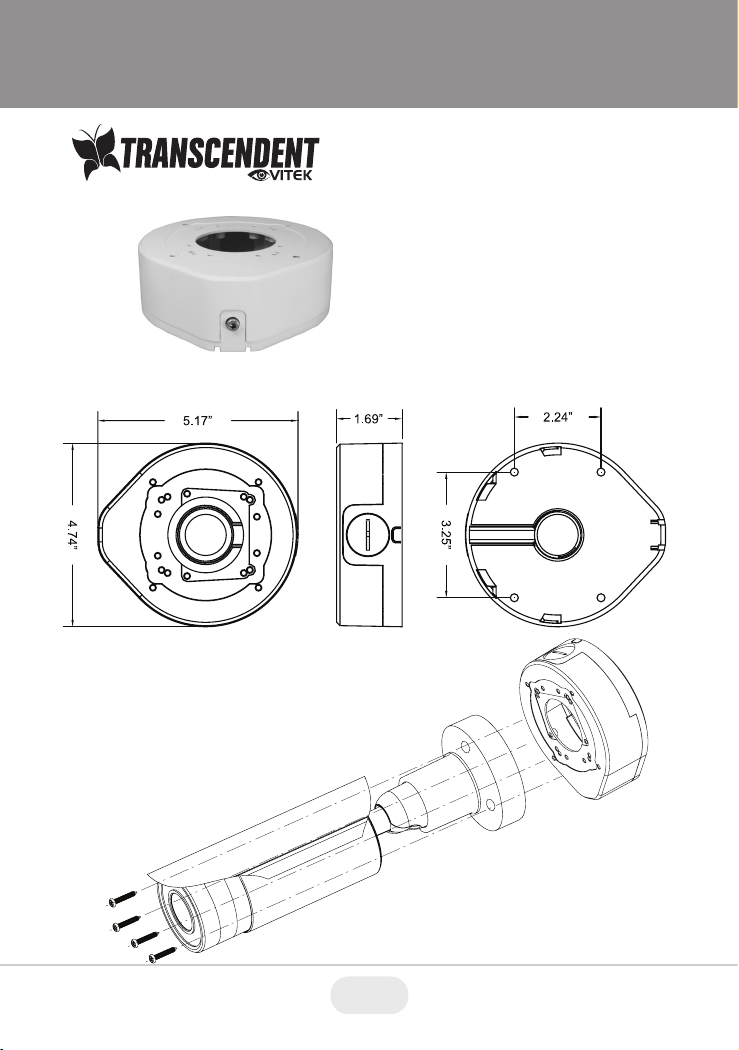

VT-TJB04
Optional Junction Box for Cable
Management including for
models: VTC-T4B4HR5MD,
VTC-T4T3HR5MD,
VTC-T4B4HR8MD, and
VTC-T4T3HR8MD

11
Detailed Specifications - VTC-T4B4HR5MD
Image Sensor
Signal System
Effective Pixels
Resolution / Video Output
Lens
Day/Night
Min. IIIumination
IR LEDs / IR Distance
DSS (Sens-Up)
S/N Ratio
WDR
Digital Noise Reduction (DNR)
White Balance
BLC
Defog
Privacy Mask
Motion Detection
Control over COAX (COC)
Transmission Distance
Power Input
Power Consumption
Pwr Consump: 12VDC, 24VAC
Weather Resistance
Operation Conditions
Weight
Dimensions W × H × L
1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
PAL/NTSC
2592 × 1944
Up to 5MP // TVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, [email protected], 5MP@20fps
AHD: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, [email protected], 5MP@20fps
CVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps
Motorized 2.7~13.5mm MegaPixel IR Corrected Varifocal Lens
True Day/Night by ICR
0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON)
4x High Power Dynamic IR LEDs / 165’
OFF / X2 ~ X32
≥50dB (AGC Off)
Double Shutter Wide Dynamic Range (WDR)
XD-DNR (2D-DNR & 3D-DNR)
Auto / Present / External / Manual
Adjustable
Adjustable
16 Programmable Areas
4 Programmable Areas
YES
Up to 1500’ (Depending on cable characteristics & integrity)
Dual Voltage: 12VDC / 24VAC
<7.5W
600mA (IR ON) / 300mA (IR OFF), 300mA (IR ON) / 150mA (IR OFF)
IP66
14~122 / < 95% Humidity
31.04 oz. / 1.94 lbs. / 880g
2.97” x 3.07” x 11.17” (75.4 x 78.2 x 283.7mm)

12 13
Detailed Specifications - VTC-T4T3HR5MD
Image Sensor
Signal System
Effective Pixels
Resolution / Video Output
Lens
Day/Night
Min. IIIumination
IR LEDs / IR Distance
DSS (Sens-Up)
S/N Ratio
WDR
Digital Noise Reduction (DNR)
White Balance
BLC
Defog
Privacy Mask
Motion Detection
Control over COAX (COC)
Transmission Distance
Power Input
Power Consumption
Pwr Consump: 12VDC, 24VAC
Weather Resistance
Operation Conditions
Weight
Dimensions H × W × D
1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
PAL/NTSC
2592 × 1944
Up to 5MP // TVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, [email protected], 5MP@20fps
AHD: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, [email protected], 5MP@20fps
CVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps
Motorized 2.7~13.5mm MegaPixel IR Corrected Varifocal Lens
True Day/Night by ICR
0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON)
3x High Power Dynamic IR LEDs / 135’
OFF / X2 ~ X32
≥50dB (AGC Off)
Double Shutter Wide Dynamic Range (WDR)
XD-DNR (2D-DNR & 3D-DNR)
Auto / Present / External / Manual
Adjustable
Adjustable
16 Programmable Areas
4 Programmable Areas
YES
Up to 1500’ (Depending on cable characteristics & integrity)
Dual Voltage: 12VDC / 24VAC
<6.5W
600mA (IR ON) / 300mA (IR OFF), 300mA (IR ON) / 150mA (IR OFF)
IP66
14~122 / < 95% Humidity
17.99oz / 1.12lb / 510g
4.09” x 4.69” x 5.01” (104 x 119 x 129.5mm)

13
Detailed Specifications - VTC-T4B4HR8MD
Image Sensor
Signal System
Effective Pixels
Resolution / Video Output
Lens
Day/Night
Min. IIIumination
IR LEDs / 165’
DSS (Sens-Up)
S/N Ratio
WDR
Digital Noise Reduction (DNR)
White Balance
BLC
Defog
Privacy Mask
Motion Detection
Control over COAX (COC)
Transmission Distance
Power Input
Power Consumption
Pwr Consump: 12VDC, 24VAC
Weather Resistance
Operation Conditions
Weight
Dimensions W × H × L
1/2.8” 8.51 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
PAL/NTSC
3840 × 2160
Up to 8MP // TVI: 4MP@25fps, 4MP@30fps, 5MP@20fps, 8MP@12-5fps, 8MP@15fps,
AHD: 4MP@30fps, 5MP@20fps, 8MP@15fps
CVI: 4MP@25fps, 4MP@30fps, 8MP@15fps
Motorized 2.8~12mm MegaPixel IR Corrected Varifocal Lens
True Day/Night by ICR
0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON)
4x High Power Dynamic IR LEDs / 165’
OFF / X2 ~ X32
≥50dB (AGC Off)
Double Shutter Wide Dynamic Range (WDR)
XD-DNR (2D-DNR & 3D-DNR)
Auto / Present / External / Manual
Adjustable
Adjustable
16 Programmable Areas
4 Programmable Areas
YES
Up to 1500’ (Depending on cable characteristics & integrity)
Dual Voltage: 12VDC / 24VAC
<7.5W
600mA (IR ON) / 300mA (IR OFF), 300mA (IR ON) / 150mA (IR OFF)
IP66
14~122 / < 95% Humidity
31.04 oz. / 1.94 lbs. / 880g
2.97” x 3.07” x 11.17” (75.4 x 78.2 x 283.7mm)

14 15
Detailed Specifications - VTC-T4T3HR8MD
Image Sensor
Signal System
Effective Pixels
Resolution / Video Output
Lens
Day/Night
Min. IIIumination
IR LEDs / IR Distance
DSS (Sens-Up)
S/N Ratio
WDR
Digital Noise Reduction (DNR)
White Balance
BLC
Defog
Privacy Mask
Motion Detection
Control over COAX (COC)
Transmission Distance
Power Input
Pwr Consump: 12VDC, 24VAC
Weather Resistance
Operation Conditions
Weight
Dimensions W × H × L
1/2.8” 8.51 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
PAL/NTSC
3840 × 2160
Up to 8MP // TVI: 4MP@25fps, 4MP@30fps, 5MP@20fps, 8MP@12-5fps, 8MP@15fps,
AHD: 4MP@30fps, 5MP@20fps, 8MP@15fps
CVI: 4MP@25fps, 4MP@30fps, 8MP@15fps
Motorized 2.8~12mm MegaPixel IR Corrected Varifocal Lens
True Day/Night by ICR
0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON)
3x High Power Dynamic IR LEDs / 135’
OFF / X2 ~ X32
≥50dB (AGC Off)
Double Shutter Wide Dynamic Range (WDR)
XD-DNR (2D-DNR & 3D-DNR)
Auto / Present / External / Manual
Adjustable
Adjustable
16 Programmable Areas
4 Programmable Areas
YES
Up to 1500’ (Depending on cable characteristics & integrity)
Dual Voltage: 12VDC / 24VAC
600mA (IR ON) / 300mA (IR OFF), 300mA (IR ON) / 150mA (IR OFF)
IP66
14~122 / < 95% Humidity
17.99oz / 1.12lb / 510g
4.09” x 4.69” x 5.01” (104 x 119 x 129.5mm)

15
NOTES

28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM
Version 2.0
Oct. 2020
LIMITED PRODUCT WARRANTY
VITEK products carry a three (3) year limited warranty. VITEK warrants
to the purchaser that products manufactured by VITEK are free of any
rightful claim of infringement or the like, and when used in the manner
intended, will be free of defects in materials and workmanship for a
period of three (3) years, or as otherwise stated above, from the date of
purchase by the end user. This warranty is nontransferable and extends
only to the original buyer or end user customer of a VITEK Authorized
Reseller.
The product must have been used only for its intended purpose, and
not been subjected to damage by misuse, willful or accidental damage,
caused by excessive voltage or lightning.
The product must not have been tampered with in any way or the
guarantee will be considered null and void.
This guarantee does not affect your statutory rights.
Contact your local VITEK Reseller should servicing become necessary.
VITEK makes no warranty or guarantee whatsoever with respect to
products sold or purchased through unauthorized sales channels.
Warranty support is available only if product is purchased through a
VITEK Authorized Reseller.
