Vivax DD-220 WH A User manual

Upute za uporabu
Korisničko uputstvo
Servisna mjesta
Jamstveni list
HR
Servisna mjesta
Garantni list
BiH
User Manual
Servisna mjesta
Garantni list
CG
Servisna mesta
Garantni list
SR
Navodila za uporabo
Udhëzime për shfrytëzim
Упатствo за употреба
Список на сервиси
Гарантен лист
МК
DD-220 WH A
RoHS
2002 / 95 / EC

User
manual
Refrigerator
ENG
DD-220 WH A
RoHS
2002 / 95 / EC

DD-220 WH A
This type ofrefrigerator is widelyused in places such as hotels,offices, students
dormitories and houses.It adopt high efficiency compressor andclassic structure
distribution. It enjoysthe advantages of low electric consumption,driving frezing
capability and easyuse.
This illustration isonly for hinting, detailed appendix please
contrast the materialobject.
2

DD-220 WH A
Instructions for Installation
Instructions for Installation
Do not tilt the refrigerator for more than 45 from upright when moving it.
Do not apply force to any part such as the condenser, the door and its handle
in order to prevent frigerator from deforming, or else its performance will
be influenced.
the re
Ensure that there is enough space around the refrigerator in order to let it work well.
1.
2.
3.
The refrigerator should be kept away from high temperature ,sunshine or humid
conditions.

DD-220 WH A
1.
2.
It must be checked that the used should be the same as the rated voltage
before the refrigerator is used.
voltage
The power plug should have its own separated socket in order to prevent the
electric wire from being over heated by other plugs.
Cautions for Safety
Cautions for Safety
Do not splash water on to the refrigerator. Otherwise it may cause malfunc
-tions of the refrigerator or electric shock.
Do not store flammable materials such as alcohol, gasoline, LP gas and glue
etc, in the refrigerator.
Chemical Material
3.
4.
When operating the refrigerator for the first time , set the thermostatic dial at 3,
run it without loading any food. Usually this takes
2 or 3 hours. Then set the thermostatic dial at the desired setting and place
foods into the refrigerator .
connect the electric wire and
Operation
Operation
1.

DD-220 WH A
Cautions
Cautions
When defrosting , never use any sharp or metallic objects to remove the frost
on the surface of the evaporator as this will damage the evaporator .
Do not store bottled beverage in the freezing compartment , so as to prevent it
from being broken and damaging the refrigerator .
Replug the electric power again at an interval of over ten minutes.
4
Refrigerator can defrost automatically. Defrost the freezer whenever the layer of
frost on the surface reaches 3 or 4 mm . When defrosting , remove all foods and
appendix, set the thermostat at 0 position and open the door. After the frost has
melted , discard the water and dry up the interior of the refrigerator ,The refri-
gerator can then be restarted by turning its thermostat to the desired setting .
4.
The temperature of the refrigerator can be adjusted by turning the thermostatic
dial. setting of the thermostatic dial at 3~4 is the most suitable for general op-
eration. The thermostatic dial number higher the refrigeration capability stro-
nger .
2.
Do n t put too many foods in the refrigerator .
Open the door lesser in order to maintain the
temperature of the refrigerator and save elect
-ric consumption.
o
3.

DD-220 WH A
Cleaning and Maintenance:
Detergent
When cleaning the refrigerator , disconnect the electric wire . Rub it carefully
with a piece of cloth soaked with neutral cleanser , then wipe it clean with fresh
water.
1.
Never use acids , chemical solution , thinner , gasoline or the likes to clean the refrige
-rator because they may damage the painting cover and plastic parts of it.
2.

DD-220 WH A
When the refrigerator is not cool enough: ensure that
The thermostat is at the correct setting .
There are enough space around the refrigerator .
The doors are not opened too frequently and for too long .
The refrigerator is not under direct sunlight or placed near the heat source .
There are not too many foods and hot foods in the refrigerator.
2.
When the foods in the refrigerator are frozen:
The thermostat is atthe correct setting .
There are not toomuch foods in the refrigerator .
When the refrigerator operates toonoisily :
The refrigerator is properlyleveled .
The refrigerator is nottouching objects around it .
The containers or solidpackages stored inside are nottouching each other .
During the period of high relative humidity , moisture may form on the surface of
the refrigerator . It is not malfunction . Youmay just wipeit up yourself.
If your refrigerator is still not functioning properly after making the above checks ,
please contact with the maintenance service department without any delay .
Note:
3.
4.
When the refrigerator does not operate :ensure that
The electric power is supplied and the voltage is normal.
The fuse is not burned out .
The power plug is plugged in firmly in the socket .
1.
Troubleshooting

Upute za
uporabu
Hladnjak
HR
BiH
CG
DD-220 WH A
RoHS
2002 / 95 / EC

DD-220 WH A
Općenito:
Ovaj tip hladnjaka se nalazi u širokoj primjeni na mjestima poput hotela, ureda,
studentskih domova i kućanstava.
Posjeduje visoko učinkovit kompresor i klasičan
unutarnji raspored. Uključuje prednosti poput niske potrošnje el. energije,
zamrzavanja i jednostavne uporabe
.

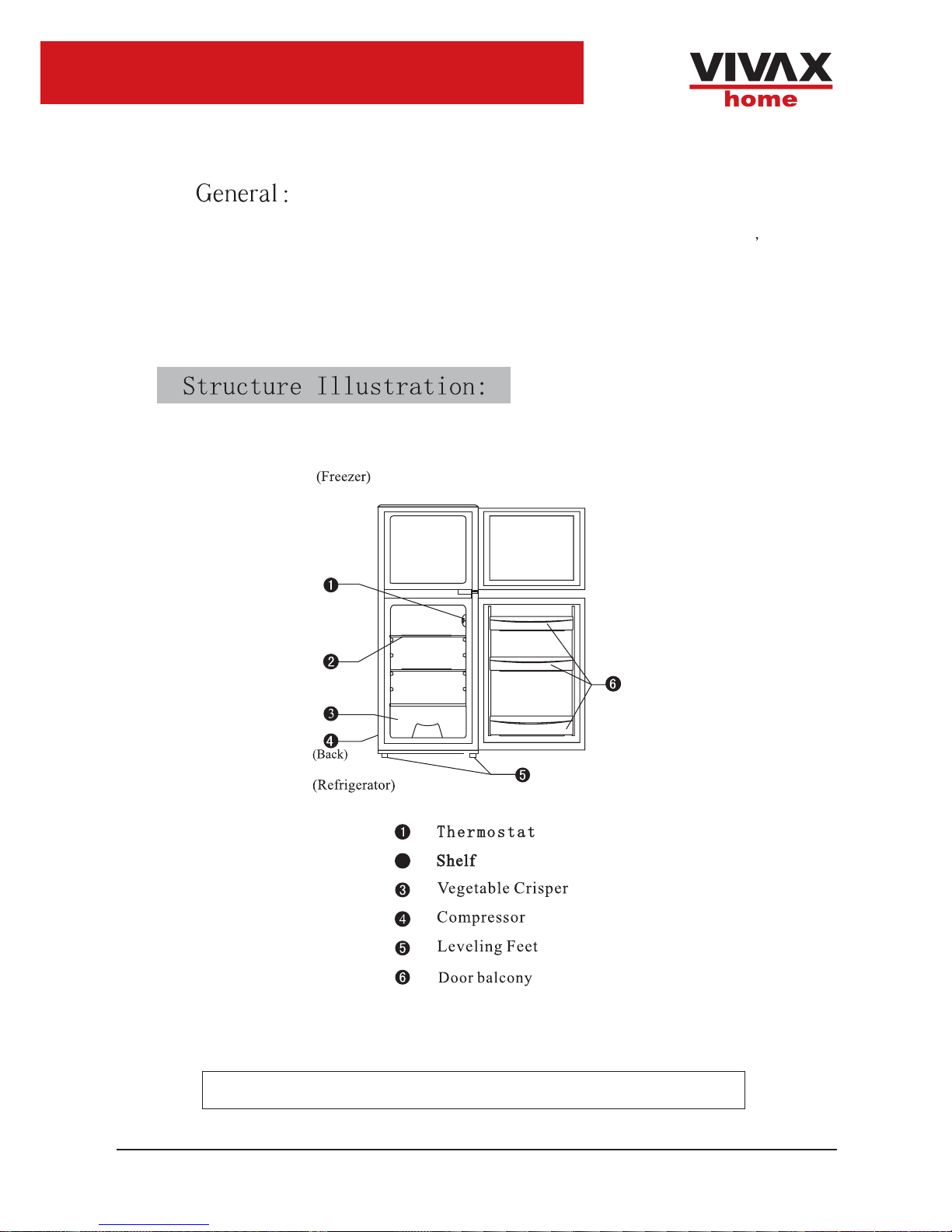

Prikaz dijelova
(Zamrzivač)
(Straga)
(Hladnjak)
Termostat
Polica
Posuda za povrće
Kompresor
Nogice za poravnanje
Vratne police
2
Ova slika ima isključivo ilustrativnu svrhu. Za stvaran izgled
pogledajte sam uređaj
.
