Vivitek Qumi Z1V User manual

Z1V
USER MANUAL

2
TABLE OF CONTENTS
Important Safety Information ...................................... 4
Regulatory Compliance ............................................... 6
Introduction ................................................................. 7
Package Contents ....................................................... 8
Your Projector ............................................................. 9
Remote Control ......................................................... 11
Powering/Charging the Projector .............................. 13
Making Connections .................................................. 17
Using the Projector ................................................... 18
Symbols Used ..................................................................................... 4
General Safety Information .................................................................. 4
Qumi Z1V Installation Notice ................................................................ 5
Power Supply Safety ........................................................................... 5
Cleaning Qumi .................................................................................... 5
Control Warning .................................................................................. 5
FCC Warning ...................................................................................... 6
Canada .............................................................................................. 6
Safety Certifications ............................................................................ 6
Disposal and Recycling ....................................................................... 6
About this Manual ............................................................................... 7
Qumi Z1V Main Features ..................................................................... 7
Front-Left View ................................................................................... 9
Rear View .......................................................................................... 9
Top View .......................................................................................... 10
Bottom View ..................................................................................... 10
Remote Control Keypad ..................................................................... 11
Activating the Remote Control Battery ................................................ 12
Replacing the Remote Control Battery ................................................ 12
Powering On/Off the Projector............................................................ 15

3
Using the Bluetooth Speaker .................................... 26
Using the Settings Menu ........................................... 28
Display S ettings .............................................................. 30
Audio Settings ................................................................ 31
Image Settings ............................................................... 31
Timer ............................................................................ 32
Other Settings ................................................................ 32
Troubleshooting/FAQ ................................................ 33
Additional Information .............................................. 36
Adjusting the Focus........................................................................... 18
Playing Video From a Storage Device (USB Flash Drive, microSD Card) 19
Viewing photos From a Storage Device (USB Flash Drive, microSD Card)
....................................................................................................... 21
Playing Audio From a Storage Device (USB Flash Drive, microSD Card) 23
Playing From a Video Source (HDMI) ................................................. 25
The Settings Menu ............................................................................ 30
Tips ................................................................................................. 33
System Reset Method (Reboot) .......................................................... 33
Image Problems ................................................................................ 33
Remote Control Problems .................................................................. 34
Audio Problems ................................................................................ 34
FAQs ............................................................................................... 35
Vivitek Support Site .......................................................................... 36
Projection Distance vs Projection Size ................................................ 36
Timing Mode Table ............................................................................ 37
Specifications ................................................................................... 38

4
IMPORTANT SAFETY INFORMATION
IMPORTANT:
It is strongly recommended that you read this section carefully before using
Qumi Z1V. These safety and usage instructions will make sure you enjoy many
years of safe use of Qumi Z1V. Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous
situations. The following symbols are used to call attention to important information.
NOTE:
Provides additional information on the topic at hand
IMPORTANT:
Provides additional information that should not be overlooked.
CAUTION:
Alerts you to situations that may damage the unit.
WARNING:
Alerts you to situations that may damage the unit, create a hazardous
environment, or
cause personal injury.
Throughout this manual, component parts and items in the OSD (On-Screen Display)
menus are denoted in bold font as in this example:
“Press the Menu button on top of the projector or remote control to open the
Settings menu”.
General Safety Information
 Do not open the casing. There are no user-maintainable parts inside the machine.
For any maintenance, please contact a qualified service technician.
 Follow all warnings and precautions on the machine or in this Manual.
 According to its design, the projection light source is extremely bright. To avoid
harm to your eyes, do not look straight at the lens when the LED is ON.
 Do not place the machine on unstable surface or stand.
 Avoid using the system near water, in direct sunlight, or near a heating device.
 Do not place any heavy objects (e.g., books or bags) on the unit.
!
!
!
!

5
Qumi Z1V Installation Notice
 Allow at least a 500mm (20”) clearance around the exhaust vent.
 Make sure that the intake vents do not recycle hot air from the exhaust vent.
 When operating Qumi Z1V in an enclosed space, make sure that the surrounding air
temperature within the enclosure does not exceed the operating temperature while
Qumi Z1V is running, and the air intake and exhaust vents are unobstructed.
 All enclosures should pass a certified thermal evaluation to make sure that Qumi Z1V
does not recycle exhaust air, as this may cause the device to shut down even if the
enclosure temperature is with the acceptable operating temperature range.
CAUTION: Avoid usage of Qumi Z1V in dusty environments.
Power Supply Safety
 Only use the supplied adapter.
 Do not place anything on the cord. Place the cord where it will not be in the way of
foot traffic.
 Remove the battery from the remote control when storing or not in use for a
prolonged period.
Cleaning Qumi
 Before cleaning, disconnect the power supply cables. Refer to Powering
On/Off the Projector on page 15.
NOTE: Qumi Z1V will be warm after usage. Allow Qumi Z1V to cool down
before storing away.
Control Warning
Before installing and using Qumi Z1V, read the regulatory notices in the Regulatory
Compliance on page 6.
500 mm
(20 in.)
!

6
REGULATORY COMPLIANCE
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to
correct the interference at his/her own expense.
Any Changes or modifications not expressly approved by the parties responsible for
compliance could void the user’s authority to operate the equipment.
Canada
This class B digital apparatus complies with Canadian ICES-003.
Safety Certifications
Projector: CENB, REACH, ROHS, WEEE, FCCID, TUV NORTH AMERICA, SRRC, CB,
BQB
Power Adapter: DOE, WEEE, FCC, UL, EAC, TUV-GS, CB, PSB, TUV-S, EAC, KCC,
CCC, CECP, BIS, BSMI, ISC
Disposal and Recycling
This product may contain other electronic waste that can be hazardous if not
disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at
www.eiae.org.
DISPOSAL: Do not use household or municipal waste collection
services for disposal of electrical and electronic equipment. EU
countries require the use of separate recycling collection services.

7
INTRODUCTION
About this Manual
This manual is intended for end users and describes how to install and operate Qumi
Z1V. Wherever possible, relevant information—such as an illustration and its
description—has been kept on one page. This printer-friendly format is both for your
convenience and to help save paper, thereby protecting the environment. It is suggested
that you only print sections that are relevant to your needs.
Qumi Z1V Main Features
 Native WVGA (854 x 480) resolution with a maximum resolution of 1080p (1920 x
1080)
 Texas Instruments DLP® chip technology for long-lasting precise color, image quality
and low power consumptions
 Long lasting, energy efficient RGB LED light source for up to 20,000 hours of
operation
 Dual 5watt speakers pump out crisp, clear and dynamic sound for an incredible
theater-quality audio experience
 Standalone Bluetooth® speaker for convenient audio playback from a smartphone,
tablet or other BT enabled audio device
 Assortment of connectivity options including HDMI, USB, microSD and earphone
audio-out
 PC-free playback of photos, videos and other media with the integrated multimedia
player
 Up to 2 hours of continuous on-the-go entertainment with the built-in 8,000mAH
battery
 Dual infrared sensors for handy remote control from either in front or behind
 Lightweight friendly profile for easy movement and transportation
 Tripod port for convenient projector setup and positioning

8
PACKAGE CONTENTS
Qumi Z1V Remote Control
Adapter
Carry Bag Documentation

9
YOUR PROJECTOR
Front-Left View
1
Front IR Sensor 3
Front Speaker
2
Lens 4
Focus Dial
Rear View
1
microSD slot 4
Type-A USB Port 7
Reset Button
2
Audio Out (3.5mm)
Jack 5
HDMI Port 8
Rear Speaker
3
Air Vent 6
Rear IR Sensor 9
DC In Port
1
3
4
2
2
3
4
5
8
9
7
6
1

10

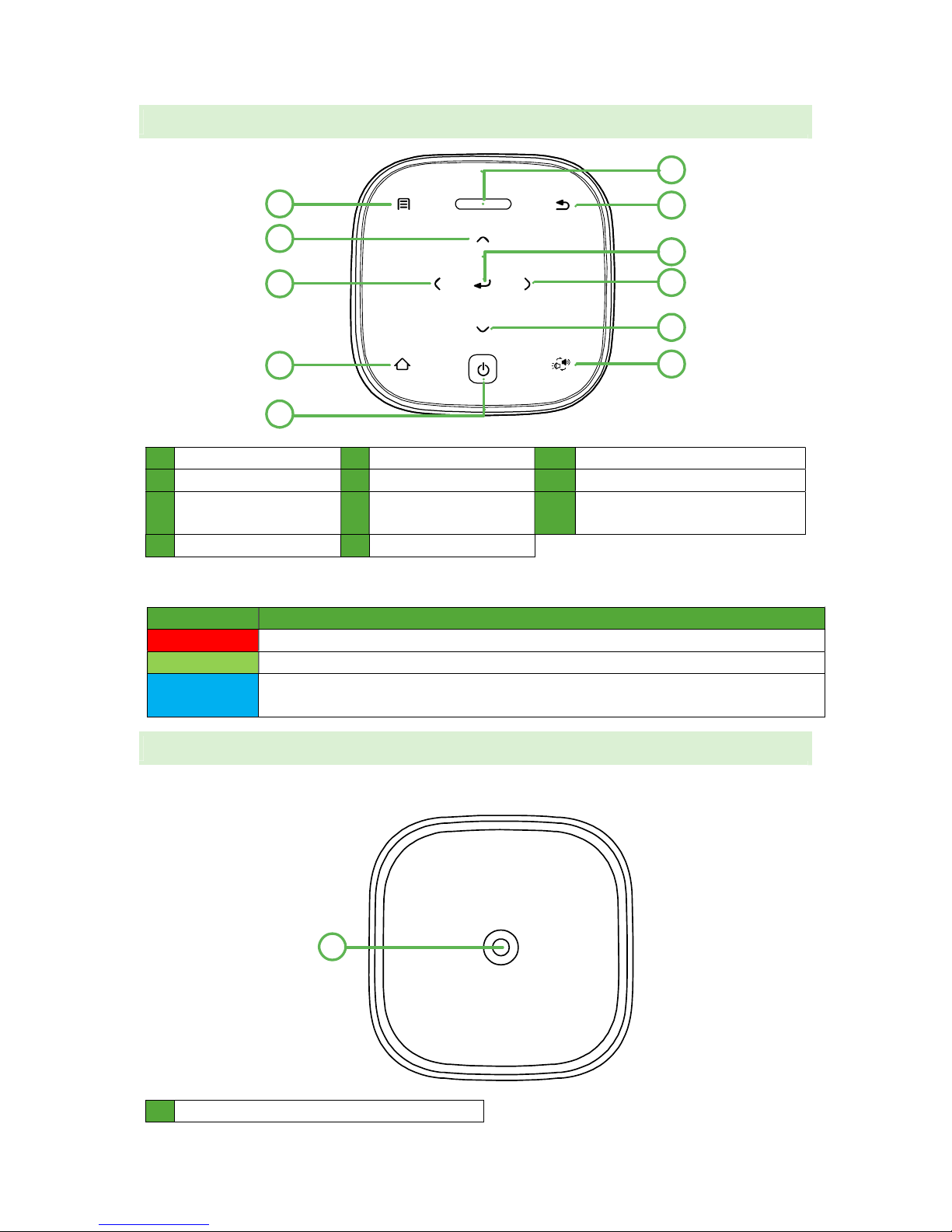

Top View
1
Menu Button 5
Power Button 9 Right Button
2
Up Button 6
Status LED 10
Down Button
3
Left Button 7
Exit Button 11
Projector/Bluetooth
Mode Button
4
Home Button 8
Enter Button
LED Color
Charge Status
RED Charging the device
GREEN Fully Charged
BLUE Bluetooth speaker mode (charge information cannot be
displayed when using this function)
Bottom View
1
Tripod Connector
6
7
8
9
10
11
1
2
3
4
5
1

11
REMOTE CONTROL
Remote Control Keypad
1
Power ON/OFF 6 Volume Down 11
Enter
2
Menu 7 Audio Mode 12
Right
3
Up 8 Home 13
Down
4
Left 9 Mouse* 14
Projector/Bluetooth
Mode
5
Volume Up 10
Exit 15
Mute
NOTE:
*This feature is not available for the current model of Qumi Z1V
1
2
3
4
5
6
7
9
10
11
12
13
14
15
8

12
Activating the Remote Control Battery
When using the remote control for the first time, the plastic sticker covering the battery
must be removed. To remove the plastic sticker, pull the tab at the bottom side of the
remote control to remove the plastic sticker from the battery compartment.
Replacing the Remote Control Battery
To replace the remote control battery:
1. Rotate the battery compartment cover
counter-clockwise so the line on the
cover points to the single dot on the
remote control.
2. Remove the battery compartment
cover.
3. Remove the old battery and replace it
with the new battery.
4. Place the battery compartment cover
back on the battery compartment and
rotate the cover clockwise so the line
on the cover points to the double
alignment dots.

13
POWERING/CHARGING THE PROJECTOR
To supply power to the Qumi Z1V:
1. Connect the power cable to a power socket
2. Connect the power cable to the supplied adapter.
3. Connect the adapter cable to the DC In port on the projector.
4. Once the adapter and power cable are connected to the projector, the Status LED on
the top of the projector will illuminate indicating the charge status.
The charging status will also be indicated on the home screen.
12
3

14

15
Powering On/Off the Projector
To power on the projector:
1. Press the power ( ) button on the top of the projector or the power ( ) button on
the remote control.
IMPORTANT:
The remote control can only power on the projector when the projector is
connected to a power supply.
2. The fans will begin to operate and the Qumi logo will appear on the screen:
!

16
To power off the projector:
1. Press the power ( ) button on the top of the projector or the power ( ) button on
the remote control.
2. A message will appear on the projected screen to confirm power off. Press the power
( ) button on the top of the projector or the power ( ) button on the remote
control again.

17
MAKING CONNECTIONS
No.
Port Connection
Device Corresponding Section
1 Audio Out Headphones
2 HDMI
Blu-Ray/DVD
Players, Set-top
Boxes, PCs
Playing from a Video Source (HDMI) on
page 25
3 microSD microSD Card
(Media Files)
Playing Video from a Storage Device (USB
Flash Drive, microSD Card) on page 19
Viewing Photos from a Storage Device
(USB Flash Drive, microSD Card) on page
21
Playing Audio from a Storage Device (USB
Flash Drive, microSD Card) on page 23
4 USB Type-A
USB Flash Drive
(Media Files)
Playing Video from a Storage Device (USB
Flash Drive, microSD Card) on page 19
Viewing Photos from a Storage Device
(USB Flash Drive, microSD Card) on page
21
Playing Audio from a Storage Device (USB
Flash Drive, microSD Card) on page 23
2
3
1
4

18
USING THE PROJECTOR
Adjusting the Focus
To adjust the focus of the projected image, rotate the dial on the side of the projector
until correct focus is achieved.

19
Playing Video from a Storage Device (USB Flash Drive,
microSD Card)
To play a video file from a storage device:
1. Connect the device to the projector. Refer to the Making Connections section on
page 17.
2. Power on the projector. Refer to the Powering On/Off the Projector section on
page 15.
NOTE:
If you are already viewing video or playing music from a different source press
the home ( ) or exit ( ) button on the keypad or remote control to return to
the home screen.
3. Using the keypad or remote control, select VIDEO from the home screen and press
the enter ( ) button.
NOTE:
If both a USB flash drive and a microSD card are simultaneously connected to the
projector, a menu will appear with both storage options shown. Select the storage
media where the video file is located to continue.
4. Navigate to the folder where the video is located and press the enter ( ) button.
5. Select the video file you want to play and press the enter ( ) button.

20
NOTE:
Only the following video formats are supported: AVI, VOB, MOV, MKV, DAT, MPG,
MP4.
6. The video will begin playing on the projected screen.
No.
Icon
Function Description
1 Previous Select to go to the previous file
2 Rewind Select to rewind at 2x, 4x, 8x, or 16x speed
3 Stop Select to stop playing the current video
4
Play / Pause Select to pause play; Select again to resume play
5 Fast Forward Select to fast forward at 2x, 4x, 8x, or 16x speed
6 Next Select to go to the next file
7
Repeat All Select to play all the video files in the playlist on a
loop
Repeat One Select to play a single video file on a loop
Repeat None Select to play the current video file one time only
8 More Information
Select to view the more information menu
NOTE:
If you stop playing the video file and select the file again at a later time, a prompt
will appear asking you if you want to resume playing from the point where you
previously stopped play. Select Yes to continue playing.
1 2 3 4 5 6 7 8
