Vivo CANDY-DSPY3 User manual

3 Tray Acrylic Display Case
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/candy-dspy3
SKU: CANDY-DSPY3
[email protected]om www.vivo-us.com 309-278-5303
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2 3
If you do not understand these directions, or if you have any doubts about
the safety of the installation, please call a qualified technician. Check
carefully to make sure there are no missing or defective parts. Improper
installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual and do not
exceed weight capacity. We cannot be liable for damage or injury caused by
improper mounting, incorrect assembly or inappropriate use.
WARNING: IMPORTANT SAFETY INFORMATION
READ AND FOLLOW ALL SAFETY REQUIREMENTS
KEEP THIS MANUAL IN A SAFE AND DRY PLACE FOR FUTURE REFERENCE
Phillips
Screwdriver
PACKAGE CONTENTS
TOOLS NEEDED
Adjustable
Wrench
A (x1)
Le Side
Panel
B(x1)
Right Side
Panel
C(X1)
Bottom Panel
D (x1)
Top Panel
E (x1)
Front Panel
G(x2)
Handle
S-A (x16)
M5x15 Screw
S-B (x16)
Lock Washer
ASSEMBLY STEPS
8.8lbs
(4kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
STEP 1
F (x3)
Tray
S-C (x16)
M5 Nut
S-D (x4)
ST5x18 Screws

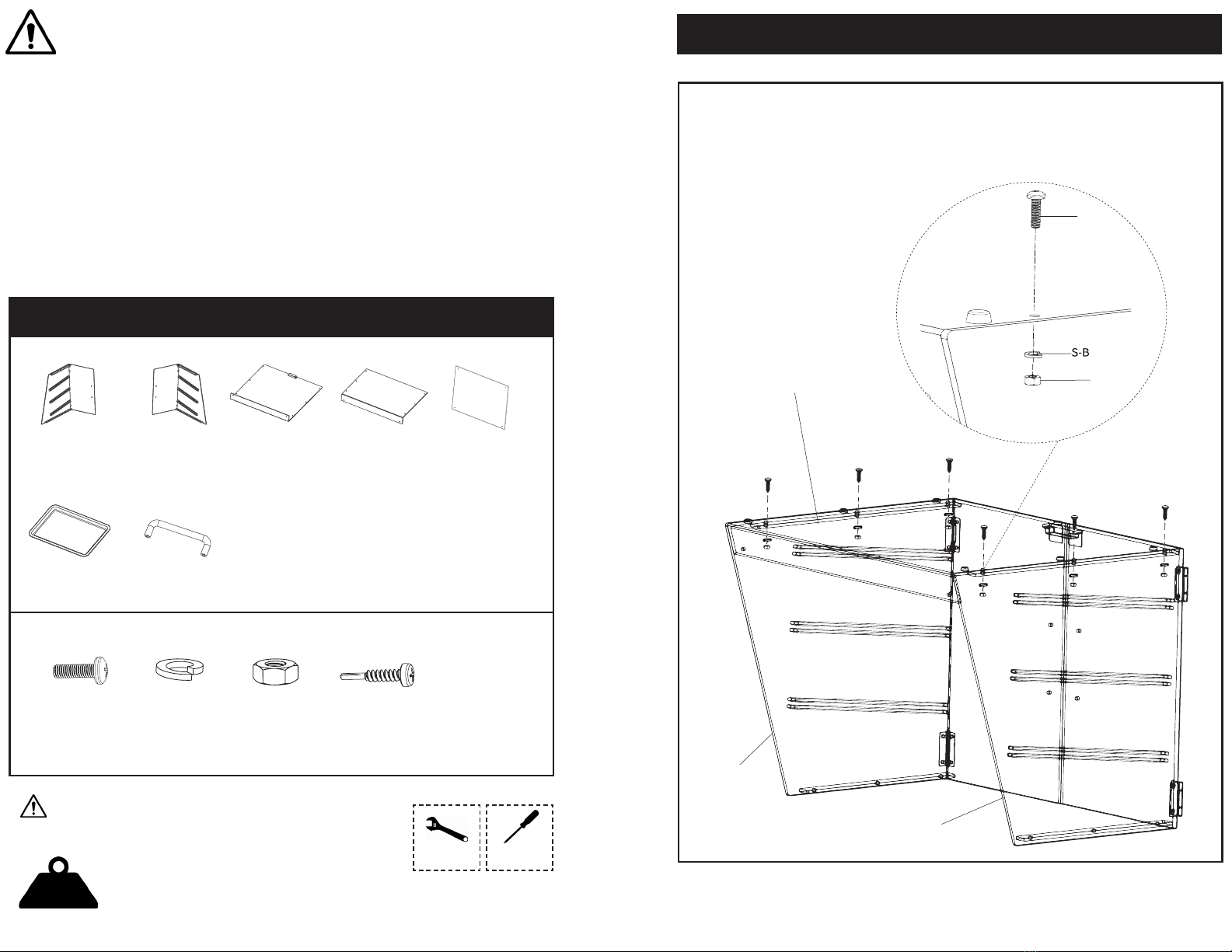

Place Le Side Panel (A) and Right Side Panel (B) upside down so the interior grooves face each other
and the case’s shorter side is on the bottom. Place Bottom Panel (C) on top of the two side panels. The
bent side will be at the front of the case and the magnet will be at the back of the case. Align the
pre-drilled holes and insert M5x15 Screws (S-A) into the pre-drilled holes and then slide Lock Washers
(S-B) onto M5x15 Screws (S-A) and secure with M5 Nuts (S-C). Gently tighten with an adjustable
wrench until the nut is snug. Do not over tighten.
S-A
S-C
C
B
A

4 5
STEP 2 STEP 3
Flip the display case over and align Top Panel (D) with the pre-drilled holes. The bent side of this piece
will be at the front of the case. Insert M5x15 Screws (S-A) into the pre-drilled hole and then slide Lock
Washers (S-B) onto M5x15 Screws (S-A) and secure with M5 Nuts (S-C). Gently tighten with an
adjustable wrench until the nut is snug. Do not over tighten.
D
S-A
S-B
S-C
Place Front Panel (E) on the angled front edge of the display case and insert M5x15 Screws (S-A) into
the pre-drilled holes and then slide Lock Washers (S-B) onto M5x15 Screws (S-A) and secure with M5
Nuts (S-C). Gently tighten with an adjustable wrench until the nut is snug. Do not over tighten.
E
S-A S-B
S-C

6 7
STEP 4 STEP 5
Find the pre-drilled holes on Le Side Panel (A) and Right Side Panel (B), then line up Handles (G) with
the holes. Secure Handles (G) using ST5x18 Screws (S-D).
B
A
S-D G
Aer the case is assembled, check that all parts are correctly aligned and that M5 Nuts (S-C) are
secure. Slide Trays (F) into the grooves inside the display case. The Display case is now ready for use.
S-C
F
