Voice-Acoustic Modular-15 User manual

Modular-15
Multifunctional Loudspeaker
Manual

Herzlichen Dank,
dass Sie ein Voice-Acoustic Produkt gekauft haben.
Seit dem Jahr 2006 entwickeln wir unsere Produkte
in der Überzeugung, dass es auf die Details ankommt.
Wir wünschen Ihnen viel Freude mit diesem Produkt.
Thank you very much,
for purchasing a Voice-Acoustic product.
Since 2006 we have been developing our
products in the rm belief that details matter.
May we wish you a lot of pleasure with this product.
Muchas gracias
por haber comprado un producto de Voice-Acoustic.
Desdel año 2006 estamos desarrollando nuestros productos
estando convencidos, que son los detalles que cuentan.
Le(s) deseamos mucha alegría usando este producto.
Merci beaucoup
d´avoir acheté un produit Voice-Acoustic.
Depuis 2006, nous développons des produits
avec la ferme conviction que les détails comptent.
Nous vous souhaitons beaucoup de plaisir à utiliser ce produit.

Introduction
General Safety Instructions 4
Care 4
Transport and storage 4
Warranty 4
Components 5
Technical data 6
Connections 6
Setup 7
Connecting cables 7
Operation 7
Working with Modular-15
Forming a Array 8
Easyy mechanics 9
Installations with Easyy mechanics 9
Adjusting the inclination with the Easyy mechanic 10
Mounting on box wall or traverse holder 12
Monitoring with Modular-15 12
Overview Accessories 13
Manufacturer‘s declaration
Imprint 14
Contents

Page 4 of 14Manual Modular-15 - 2018-07 EN
General Safety Instructions:
Loudspeakers produce a static magnetic eld even if they are not connected or are not in use. Therefore make
sure when erecting and transporting loudspeakers that they are nowhere near equipment and objects which
may be impaired or damaged by an external magnetic eld. Persons with cardiac pacemakers must maintain a
safe distance.
The minimum recommended safety clearance is 1 m.
Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems
are capable of causing a sound pressure level detrimental to human health. Seemingly non-critical sound levels
(from approx. 90 dB SPL) can cause hearing damage if people are exposed to it over a long period.
All connected cables must be laid in such a way that they cannot be crushed by objects and that nobody can
step on them! Replace damaged cables immediately and do not use them!
Use only accessory parts specied by Voice-Acoustic or original accessory parts from Voice-Acoustic. Check all
cabinets and accessories regularly for wear and replace them if necessary.
Do not set up the loudspeakers in places where they are permanently exposed to moisture, dust, dirt or direct
sunlight.
Care
Wipe the surface of loudspeakers only with a damp cloth and pure water. In case of heavy pollution, repeat the
above procedure several times if necessary. Do not use any chemical additives or aggressive detergents, as
these may harm and damage the surfaces.
Transport and storage
When transporting and storing the unit, it is important to ensure that the surface and front grill of the loudspe-
aker are not damaged. Moisture can penetrate through exposed wood surfaces and cause the wood to swell.
A bent or broken front grill will no longer adequately protect the sensitive speaker membranes. In addition,
appreciable dust deposits may considerably impair the functionality of a loudspeaker membrane. For this rea-
son, the loudspeakers should be transported and stored in a safe, careful, dry and largely dust-free manner.
The following accessory parts for transport and storage are available from Voice-Acoustic:
■Transport and rain cover for Modular-15, left and right (Art.-Nr. 501501100 und 501501200)
■Heavy duty ightcase for up to 2 x Modular-15 (Art.-Nr. 501503000)
Note: The original packaging is unsuitable as permanent storage and transport packaging!
Warranty
The warranty period is 24 months from date of delivery.
On our choice we will eliminate any lack of conformity with repair or with replacement of the faulty goods. The
place of performance for warranty services is Voice-Acoustic headquarters in Dörverden. In case of remedy of
defects, the buyer shall bear all costs resulting from transportation of the goods to Voice-Acoustic headquarters
in Dörverden.
The ordering party is not entitled to remedy the defect by itself or to organise a replacement and to charge
such activities to Voice-Acoustic. In case of self remedy by the ordering party the warranty given by Voice-
Acoustic becomes void.
Warranty doesn’t apply to parts of wear and tear, such as threaded points, such as threaded points, ying
tracks, tilting pole socket, rubber feet and the SpeakON®connectors.
Introduction

Page 5 of 14Manual Modular-15 - 2018-07 EN
Introduction
Components
1. 24 and 15 mm multiplex cabinet, Warnex textured paint nish
2. Easyy ying track for horizontal suspension
3. 12 x M10 mounting points with internal steel brackets
4. 4 x rubber feet on the underside
5. SpeakON®connector on the underside (not on Modular-15sp)
6. Monitor angle 20°
7. Bass reex port
8. 15“ Neodym woofer
9. SpeakON®connector on top side (not on Modular-15sp)
10. Easyy ying track for vertical suspension
11. 2 x small ying track at the bottom (to y two loudspeakers below each other)
12. Recessed grip on the underside
13. Tilting pole socket +/- 18°
14. 1,4“ Neodym compression driver rotatable horn 90° x 40° or 60° x 40°
15. Front grille 1 mm with 10 mm acoustic foam
16. 4 x rubber feet at the monitor angle
17. Monitor angle 50°
18. Recessed grip on top
19. Recessed grip in the side panel
20. Safety point for safety rope with Single-Stud
21. Connector panel with two SpeakON®connectors and Type plate with serial number
18
16
4
7
8
9
10
1
2
3
11
19
20
21
12
13
15
14
5
6
17

Page 6 of 14Manual Modular-15 - 2018-07 EN
Introduction
Technical data
Components 1 x 15“ Neodym woofer (LF) with 4“ voice coil
1 x 1,4“ Neodym compression driver (HF) with 3“ voice coil
Frequency response 60°
Frequency response 90°
60 Hz - 17,6 kHz (- 10 dB)
130 Hz - 17 kHz (+/- 3 dB)
58 Hz - 17,8 kHz (- 10 dB)
122 Hz - 16.5 kHz (+/- 3 dB)
Coverage range (h x v) 90° x 60° or 60° x 40°, rotable horn
Monitor angles 50° and 20°
Powerhandling LF: 850 W AES / 1.700 W program / 3.400 W peak at 8 Ω
HF: 110 W AES / 165 W program / 330 W peak at 16 Ω
Sound pressure 129 dB SPL AES / 132 dB SPL program / 135 dB SPL peak
Dimensions / Weight 698 (h) x 431 (w) x 368 (d) mm / 27,9 kg
Finish Warnex texture paint
Connections
The speaker has four loop-through Neutrik NL4 SpeakON®IN/OUT connectors. They use the 1+/1- connection
pins. Additional loudspeakers can be looped through via the second connector. The SpeakON®connectors at the
top and bottom of the loudspeaker are ideal for easy connection in monitor mode.

Page 7 of 14Manual Modular-15 - 2018-07 EN
Introduction
Setup
The Modular-15 loudspeaker is designed for standing, vertical and horizontal operation. A variety of accessories
is available from Voice-Acoustic to securely attach the loudspeaker safely on tripods, distance rods or hanging
it from on trusses, ceilings and walls. Ensure that the loudspeakers are securely attached to prevent personal
injury and damage of property.
Connecting cables
When connecting the cables to the loudspeaker, ensure that the polarity (+/-) and pin assignment (1/2) is
correct. Incorrect connection results in a signicant change in the loudspeaker sound characteristics and may
damage the compression driver.
The two connection sockets on the back of the loudspeaker can be used to link multiple loudspeakers on a
single amplier. Note that parallel connection reduces the total impedance (Ω) seen by the amplier. The total
impedance of loudspeakers connected in parallel must not drop below the minimum operating impedance of the
amplier.
Voice-Acoustic recommends to use the available 4 x 4 mm² Speakon cables for mobile use.
We recommend wiring the basses with at least 4 mm² in installations. The cables of the tops in installations
must be suciently dimensioned according to impedance, power and cable length.
Simplied display without consideration of loudspeaker impedances
Operation
The Modular-15 is exclusively intended for operation with Voice-Acoustic system electronics with internal DSP
controller: the HDSP power ampliers or powered by the free 800 W amplier channels of the self-powered sub-
woofers.
Make sure the appropriate preset has been selected before connecting the speaker to the system power amp or
self-powered subwoofer.
Using the wrong preset can damage parts of the loudspeaker.
Note: If the Modular-15 is not operated on the intended Voice-Acoustic system electronics, the manufactu-
rer‘s warranty for the loudspeaker expires!

Page 8 of 14Manual Modular-15 - 2018-07 EN
Forming a Array
For maximum exibility, the user can choose between two dierent beam angles, 60° x 40° or 90° x 60°. The
system ampliers of the HDSP series and the controller boards of the self-powered subwoofers contain specic
settings as presets for both beam angles.
Horns 60° x 40° or 90° x 60° are tted as standard. If you want to use two Modular-15 side by side in an array
(only with 60° x 40° horn), the horns must be rotated to avoid interference.
Note: The two loudspeakers are always joined together on the side walls with the largest contact surface. So
that the handles are inside and the bass ports outside.
Modular-15 in array with horn 60° x 40° (v x h) interference occurs
Modular-15 with rotated horn 40° x 60° (v x h) Interference minimized
40°
60°
60°
40°
Horn 60° x 40° seen from the front
To turn the horn, remove the M6 x 40 mm countersunk head screws with which the horn is xed. Then turn the
horn with driver by 90° and screw it on again.
Working with Modular-15

Page 9 of 14Manual Modular-15 - 2018-07 EN
Working with Modular-15
Easyy mechanics
Tool-less ight mechanism for clicking in and exact alignment of the
loudspeaker in the horizontal and vertical axis.
1. Pull the two locking bolts (A) upwards and let them engage by
turning them slightly.
2. Insert the Easyy mechanics into the ying track (B).
3. Slide the mechanics backwards as far as it will go.
4. Let the two locking bolts snap into the intended holes on the
ying track.
Note: Notice that the two locking pins (A) are engaged to pre-
vent the Easyy-Mechanics from slipping out.
Installations with Easyy mechanics
Installation with self-lock clamp (C) on trusses.
1. Mount the self-lock clamp to the Easyy mechanics using an
M10 threaded screw and lock nut.
2. Hang the clamp and holder into the mechanics using ball lock
bolts.
3. Hang the loudspeaker into the truss.
4. Adjust the inclination by xing the holder on the top hole rail
with the ball locking pin.
Installation with universal suspension arrangement for ight mecha-
nics (D) on high ceilings
1. Mount the universal suspension arrangement for ight mecha-
nics with an M10 threaded screw and lock nut to the mounting
of the Easyy mechanics.
2. Hang the suspension device and holder into the mechanics
using ball locking bolts.
3. Hang the loudspeaker into the installed chains.
4. Adjust the inclination by xing the holder on the top hole rail
with the ball locking pin.
Note: The inclination depends on the hole in which you x the
Easyy mount on the hole rail!
A
B
C
C
D
DD

Page 10 of 14Manual Modular-15 - 2018-07 EN
Adjusting the inclination with the Easyy mechanic
The Easyy mechanic have 16 locking holes which can be used to determine the inclination.
Vertical operation
-14.5°
8.0°
29.6° 32.3°
-12.8°
11.4°
-9.4°
14.7°
-6.0°
17.9°
-2.4°
21.1°
1.0°
24.1°
4.5°
26.9°
1.
8.
15. 16.
2.
9.
3.
10.
4.
11.
5.
12.
6.
13.
7.
14.

Page 11 of 14Manual Modular-15 - 2018-07 EN
Horizontal operation
-16.1°
22.6°
61.8° 65.4°
-13.6°
29.4°
-8.7°
35.9°
-3.3°
37.6°
2.6°
42.0°
9.0°
53.3°
15.9°
57.9°
1. 2. 3. 4.
9. 10. 11. 12.
8.5. 6. 7.
15. 16.13. 14.

Page 12 of 14Manual Modular-15 - 2018-07 EN

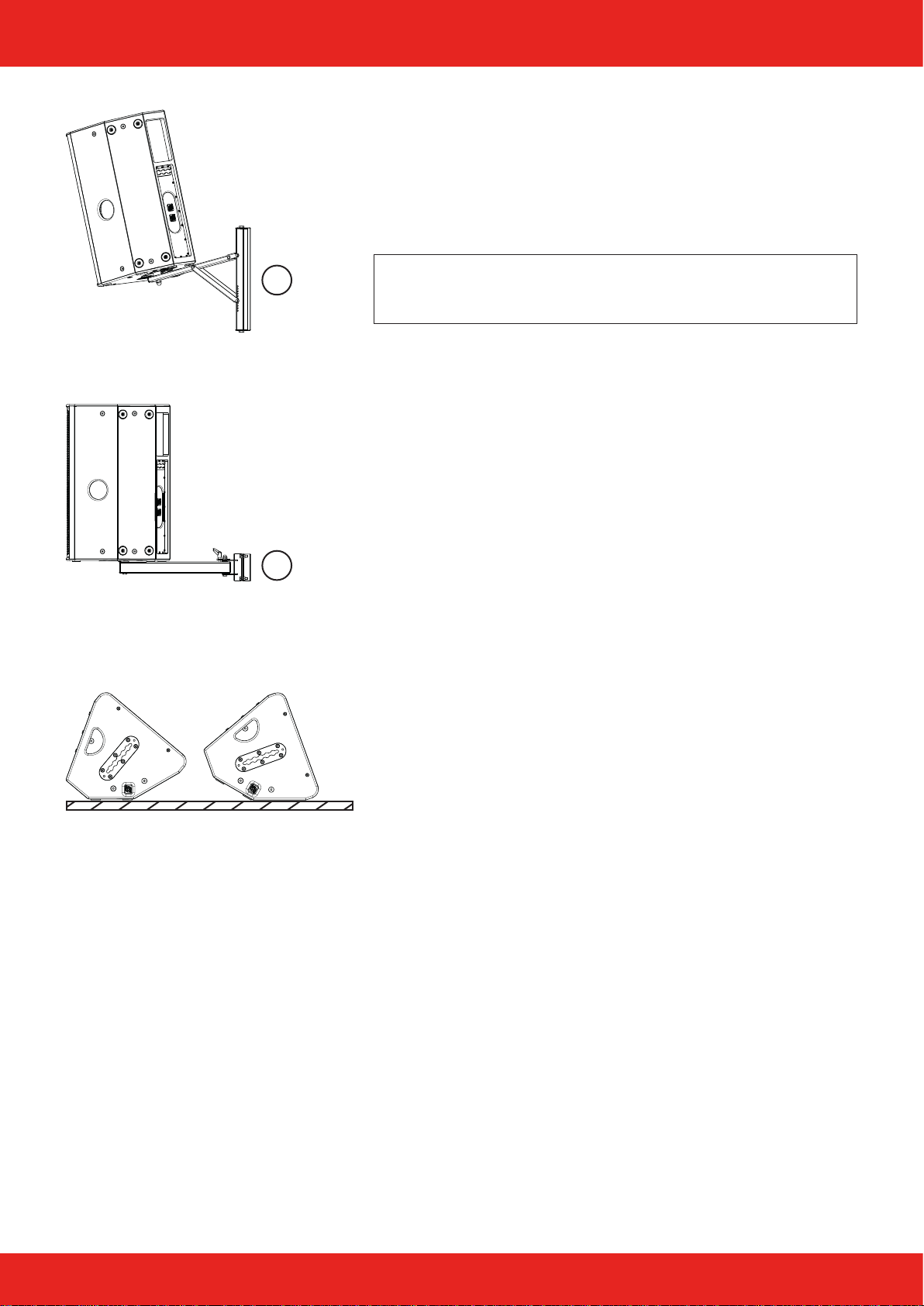

Mounting on box wall or traverse holder
1. When mounting the brackets on the wall (A) or truss (B), fol-
low the manufacturer‘s operating instructions.
2. Place the loudspeaker with the tilting pole socket on the wall-
and truss holder.
3. Adjust the inclination with the tilting pole socket.
Note: The tilting pole socket snaps into place by the weight of
the loudspeaker. If you want to adjust the tilt, you have to raise
the loudspeaker slightly.
Monitoring with Modular-15
Two monitoring angles, 50° and 20°, are available for monitor
operation with the Modular-15. The SpeakON®connectors at the
top and bottom of the loudspeaker are ideal for easy connection in
monitor mode.
50° 20°
A
B
Working with Modular-15

Page 13 of 14Manual Modular-15 - 2018-07 EN
Overview Accessories
Transport and rain cover for Modular-15 left (Art.-Nr. 501501100)
Transport and rain cover for Modular-15 right (Art.-Nr. 501501200)
Speaker stands fork (Art.-Nr. 999924105)
Wall bracket, max. 50 kg, slewable and 22° tiltable (Art.-Nr. 999924120)
Wall- and truss holder, max. 50 kg, slewable (Art.-Nr. 999924150)
Safety 6/1000 mm (Art.-Nr. 999963100)
Single stud tting (Art.-Nr. 999957450)
Self lock clamp for pipe 48-51mm, 30mm wide, max. 250 kg (Art.-Nr. 999950731)
Easyy mechanics (Art.-Nr. 409991001)
Carrying bag for up to two Easyy mechanisms with accessories (Art.-Nr. 409992000)
Universal suspension arrangement for ight mechanics (Art.-Nr. 409992001)
1,4“ Horn, 60 x 40° rotatable (Art.-Nr. 999991464), with driver (Art.-Nr. 999141464)
1,4“ Horn, 90 x 60° rotatable (Art.-Nr. 999991495), with driver (Art.-Nr. 999141495)
Heavy duty ightcase for up to 2 x Modular-15/15sp (Art.-Nr. 501503000)
Working with Modular-15

Page 14 of 14Manual Modular-15 - 2018-07 EN
Manufacturer‘s declaration
Imprint
© SRV Licht- & Tonanlagen, all rights reserved.
All specications in this manual are based on information available
at the time of publishing for the features and safety guidelines of
the described products. Technical specications, measurements,
weights and properties are not guaranteed.
The manufacturer reserves the right to make technical modications
according to legal regulations stipulating the continual improvement
of product features. For the safe operation of the unit, this manual
and all other required information must be available to all users at
the time of assembly and disassembly of the unit, and during opera-
tion. Assemble or operate the unit only after reading and understan-
ding this manual, and keeping it at hand at all times at the site.
We are happy to receive your suggestions and proposals for the
enhancement of this manual.
Please send us your ideas to the following address:
SRV Licht- & Tonanlagen - Voice-Acoustic Headquarters
Brocksfeld 3
D-27313 Dörverden
Tel.: + 49 (0) 4234 942 777
E-Mail: [email protected]
