Voice-Acoustic Alea-4 User manual

Alea-4
Ultra compact mid-high loudspeaker
Manual

Herzlichen Dank,
dass Sie ein Voice-Acoustic Produkt gekauft haben.
Seit dem Jahr 2006 entwickeln wir unsere Produkte
in der Überzeugung, dass es auf die Details ankommt.
Wir wünschen Ihnen viel Freude mit diesem Produkt.
Thank you very much,
for purchasing a Voice-Acoustic product.
Since 2006 we have been developing our
products in the rm belief that details matter.
May we wish you a lot of pleasure with this product.
Muchas gracias
por haber comprado un producto de Voice-Acoustic.
Desdel año 2006 estamos desarrollando nuestros productos
estando convencidos, que son los detalles que cuentan.
Le(s) deseamos mucha alegría usando este producto.
Merci beaucoup
d´avoir acheté un produit Voice-Acoustic.
Depuis 2006, nous développons des produits
avec la ferme conviction que les détails comptent.
Nous vous souhaitons beaucoup de plaisir à utiliser ce produit.

Introduction
General Safety Instructions 4
Care 4
Transport and storage 4
Warranty 4
Components 5
Technical data 6
Connections 6
Setup 7
Connecting cables 7
Operation 7
Working with Alea-4
Mounting the U-bracket 8
Mounting wall holder for hidden mounting 8
Installation with the U-bracket 8
Overview Accessories 9
Manufacturer‘s declaration
Imprint 10
Contents

Page 4 of 10Manual Alea-4 - 2018-07 EN
General Safety Instructions
Loudspeakers produce a static magnetic eld even if they are not connected or are not in use. Therefore make
sure when erecting and transporting loudspeakers that they are nowhere near equipment and objects which
may be impaired or damaged by an external magnetic eld. Persons with cardiac pacemakers must maintain a
safe distance.
The minimum recommended safety clearance is 1 m.
Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems
are capable of causing a sound pressure level detrimental to human health. Seemingly non-critical sound levels
(from approx. 90 dB SPL) can cause hearing damage if people are exposed to it over a long period.
All connected cables must be laid in such a way that they cannot be crushed by objects and that nobody can
step on them! Replace damaged cables immediately and do not use them!
Use only accessory parts specied by Voice-Acoustic or original accessory parts from Voice-Acoustic. Check all
cabinets and accessories regularly for wear and replace them if necessary.
Do not set up the loudspeakers in places where they are permanently exposed to moisture, dust, dirt or direct
sunlight.
Care
Wipe the surface of loudspeakers only with a damp cloth and pure water. In case of heavy pollution, repeat the
above procedure several times if necessary. Do not use any chemical additives or aggressive detergents, as
these may harm and damage the surfaces.
Transport and storage
When transporting and storing the unit, it is important to ensure that the surface and front grill of the loudspe-
aker are not damaged. Moisture can penetrate through exposed wood surfaces and cause the wood to swell.
A bent or broken front grill will no longer adequately protect the sensitive speaker membranes. In addition,
appreciable dust deposits may considerably impair the functionality of a loudspeaker membrane. For this rea-
son, the loudspeakers should be transported and stored in a safe, careful, dry and largely dust-free manner.
The following accessory parts for transport and storage are available from Voice-Acoustic:
■Carrying bag for up to 4 x Alea-4 with u-bracket (Art.-Nr. 500042000)
■Heavy duty ightcase for up to 4 x Alea-4 (Art.-Nr. 505003000)
Note: The original packaging is unsuitable as permanent storage and transport packaging!
Warranty
The warranty period is 24 months from date of delivery.
On our choice we will eliminate any lack of conformity with repair or with replacement of the faulty goods. The
place of performance for warranty services is Voice-Acoustic headquarters in Dörverden. In case of remedy of
defects, the buyer shall bear all costs resulting from transportation of the goods to Voice-Acoustic headquarters
in Dörverden.
The ordering party is not entitled to remedy the defect by itself or to organise a replacement and to charge
such activities to Voice-Acoustic. In case of self remedy by the ordering party the warranty given by Voice-
Acoustic becomes void.
Warranty doesn’t apply to parts of wear and tear, such as threaded points, Phoenix Contact connectors and the
SpeakON®connectors.
Introduction

Page 5 of 10Manual Alea-4 - 2018-07 EN
Introduction
Components
1. 15 and 12 mm multiplex cabinet, Warnex textured paint nish
2. M10 threaded points on both sides for mounting the U-bracket
3. Micromesh honeycomb grille
4. Ornamental ring
5. M10 threaded point on the underside
6. 4“ Neodym wideband transducer
7. Phoenix Contact connectors
8. M6 threaded point for safety rope
9. Connector panel with two SpeakON®connectors
10. Type plate with serial number
37
8
4
5
2
1
69
10

Page 6 of 10Manual Alea-4 - 2018-07 EN
Introduction
Technical data
Components 4 x 4“ Neodym wideband transducer with 0,75“ voice coil
Frequency response 161 Hz - 18 kHz (- 10 dB)
210 Hz - 15,4 kHz (+/- 3 dB)
Coverage range (h x v) 70° x vertical directivity is controlled by the angle between the elements
Powerhandling 120 W AES / 240 W program / 480 W peak at 16 Ω
Sound pressure 116 dB SPL AES / 119 dB SPL program / 122 dB SPL peak
Dimensions / Weight 419 (h) x 119 (w) x 160 mm (d) / 3,2 kg
Finish Warnex texture paint
Connections
The speaker has two loop-through Neutrik NL4 SpeakON®IN/OUT connectors. They use the 1+/1- connection
pins. Additional loudspeakers can be looped through via the second connector. 1 x Phoenix Contact connections,
4-pin divided into 2 x IN/OUT, through-wired with SpeakON®.

Page 7 of 10Manual Alea-4 - 2018-07 EN
Setup
The Alea-4 loudspeaker is designed for standing, vertical and horizontal operation. A variety of accessories is
available from Voice-Acoustic to securely attach the loudspeaker safely on tripods, distance rods or hanging
it from on trusses, ceilings and walls. Ensure that the loudspeakers are securely attached to prevent personal
injury and damage of property.
Connecting cables
When connecting the cables to the loudspeaker, ensure that the polarity (+/-) and pin assignment (1/2) is
correct. Incorrect connection results in a signicant change in the loudspeaker sound characteristics and may
damage the compression driver.
The two connection sockets on the back of the loudspeaker can be used to link multiple loudspeakers on a
single amplier. Note that parallel connection reduces the total impedance (Ω) seen by the amplier. The total
impedance of loudspeakers connected in parallel must not drop below the minimum operating impedance of the
amplier.
Voice-Acoustic recommends to use the available 4 x 4 mm² Speakon cables for mobile use.
We recommend wiring the basses with at least 4 mm² in installations. The cables of the tops in installations
must be suciently dimensioned according to impedance, power and cable length.

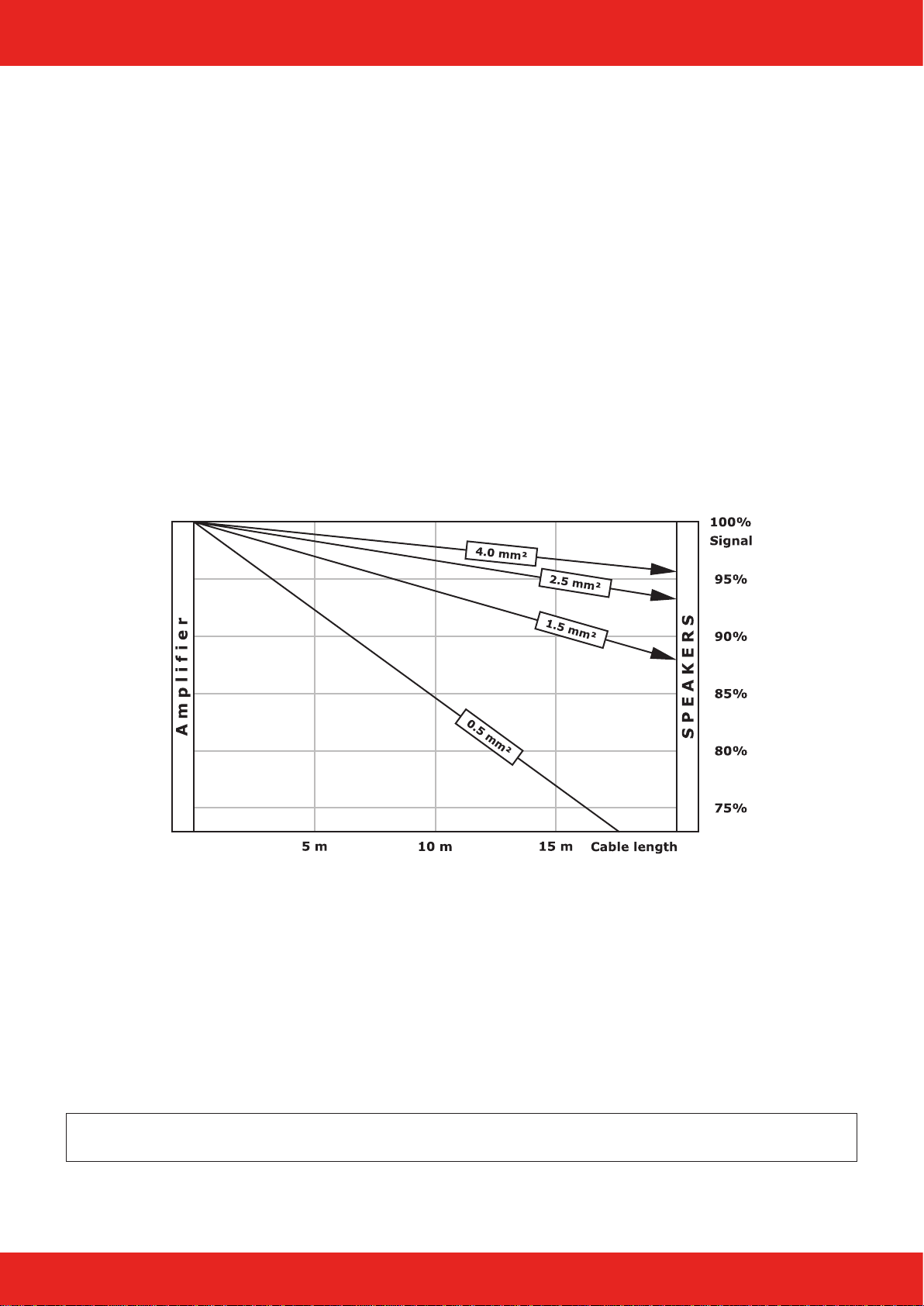

Simplied display without consideration of loudspeaker impedances
Operation
The Alea-4 is exclusively intended for operation with Voice-Acoustic system electronics with internal DSP cont-
roller: the HDSP power ampliers or powered by the free 800 W amplier channels of the self-powered subwoo-
fers.
Make sure the appropriate preset has been selected before connecting the speaker to the system power amp or
self-powered subwoofer.
Using the wrong preset can damage parts of the loudspeaker.
Note: If the Modular-10 is not operated on the intended Voice-Acoustic system electronics, the manufactu-
rer‘s warranty for the loudspeaker expires!
Introduction

Page 8 of 10Manual Alea-4 - 2018-07 EN

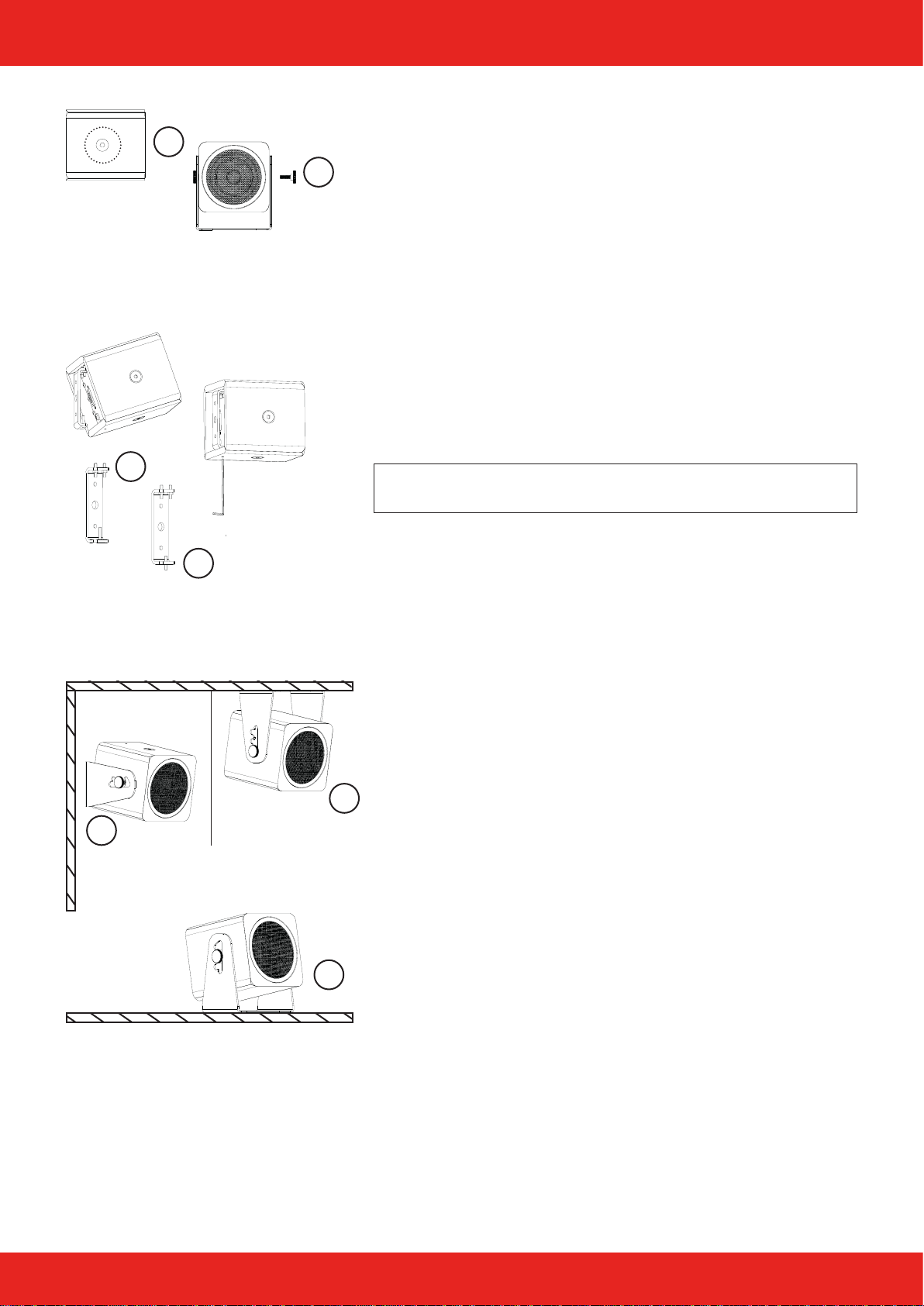

Mounting the U-bracket
1. Remove the M10 countersunk screws (A) on both sides of the
loudspeaker.
2. Use the supplied M10 knurled screws (B) including plastic was-
hers to mount the U-bracket.
3. To protect the coatings, place the plastic washers between the
knurled screw, U-bracket and loudspeaker.
Mounting wall holder for hidden mounting
To be able to install the loudspeaker at on the wall, you must use
the 4-pin Phoenix Contact connector in the recessed connection
panel.
1. Mount the wall bracket at the desired location using the appro-
priate xing material. The two M4 x 20 mm grub screws (C)
point upwards!
2.
Note: The loudspeaker cables must be led out of the wall in the
area of the recessed connection eld!
Connect the loudspeaker via the Phoenix Contact.
3. Hang the loudspeaker into the two grub screws.
4. Turn the bottom set screw out through the small opening at the
bottom (D) until it is ush with the edge of the housing.
Installation with the U-bracket
The U-bracket can be used to install the speaker on walls (E), cei-
lings (F), oors (G) and tripods.
Working with Alea-4
A
B
C
D
E
F
G

Page 9 of 10Manual Alea-4 - 2018-07 EN
Working with Alea-4
Overview Accessories
Phoenix Contact Stecker 4-polig, für Alea-4 und Aleasub-10 (Art.-Nr. 997463649)
U-Bracket for Alea-4 (Art.-Nr. 400041001)
U-Bracket for Alea-4, white with stainless steel knurled screws (Art.-Nr. 400041002)
U-Bracket for Alea-4, special color with stainless steel knurled screws (Art.-Nr. 400041009)
Aleasub-10 wall holder for hidden mounting (Art.-Nr. 400042001)
Universal Joint with thread adapter for Alea-4 (Art.-Nr. 999919695)
M20 adapter x 1,25 mm for Alea-4 stand (Art.-Nr. 999921950)
Alea-4 stand with round base 27,5 cm, 3,4 kg, high 1.000 - 1.700 mm (Art.-Nr. 999926125)
Alea-4 stand with round base 27,5 cm, 3 kg - pure white, high 870 - 1.575 mm (Art.-Nr. 999926010)
Carrying bag for 3 x Alea-4 stand with round base (Art.-Nr. 999926019)
Carrying bag for up to 4 x Alea-4 with u-bracket (Art.-Nr. 500042000)
Heavy duty ightcase for up to 4 x Alea-4 (Art.-Nr. 500043000)
Quick mounting adapter for Alea-4 (Art.-Nr. 999910001)

Page 10 of 10Manual Alea-4 - 2018-07 EN
Manufacturer‘s declaration
Imprint
© SRV Licht- & Tonanlagen, all rights reserved.
All specications in this manual are based on information available
at the time of publishing for the features and safety guidelines of
the described products. Technical specications, measurements,
weights and properties are not guaranteed.
The manufacturer reserves the right to make technical modications
according to legal regulations stipulating the continual improvement
of product features. For the safe operation of the unit, this manual
and all other required information must be available to all users at
the time of assembly and disassembly of the unit, and during opera-
tion. Assemble or operate the unit only after reading and understan-
ding this manual, and keeping it at hand at all times at the site.
We are happy to receive your suggestions and proposals for the
enhancement of this manual.
Please send us your ideas to the following address:
SRV Licht- & Tonanlagen - Voice-Acoustic Headquarters
Brocksfeld 3
D-27313 Dörverden
Tel.: + 49 (0) 4234 942 777
E-Mail: [email protected]
