Volanti Displays 43-4KT User manual

www.volantidisplays.com
Quick Start - Front
43” 10-Point Touch Screen Monitor - P/N: 43-4KT
Installation:
• Review this quick-start guide and familiarize
yourself with the monitor.
• When unpacking, handle the monitor with
care making use of the carry handles. Remove
protective wrapping including from the display.
• Attach mounting brackets as appropriate and
mount before connecting cables.
• Connect video signal & USB touch cables to PC
or other appropriate input source.
• The monitor will auto-seek to any connected
video input. If multiple input sources are
connected they can be selected using the
buttons for the menu, or use the remote or any
connected room controller.
• Connect power supply to the monitor then plug
into AC mains as nal step.
Note: The monitor default is to power on when
power is attached, it will then stay on if an active
video source is connected. If video is disconnected
it will auto power O. This can be changed through
the OSD menu.
Monitor Information
• Volanti Display 43” PCAP multi-touch 4K
resolution monitor. See Input note below.
• Windows 10-point multi-touch, HID compatible
so just plug & play, no additional drivers or
software required if using Windows 8 or 10.
• Input: Use Ultra-HD (3840x2160) @60Hz for
optimal image quality. Lower resolution input will
be scaled to ll the display. The aspect ratio of
the display is 16:9, other aspect ratios may result
in black bars on the sides, for example a 4:3
image source will result in black bars left & right.
43” viewing 23.8”
40”
In the Box
The Volanti 43” 4K touch monitor comes with:
• Volanti 43” 4K touch monitor.
• Remote control (with batteries).
• Power supply and power cord.
• HDMI cable
• USB cable

Video
inputs
(see
below)
© 2020 Volanti Displays 18 Oct 2020

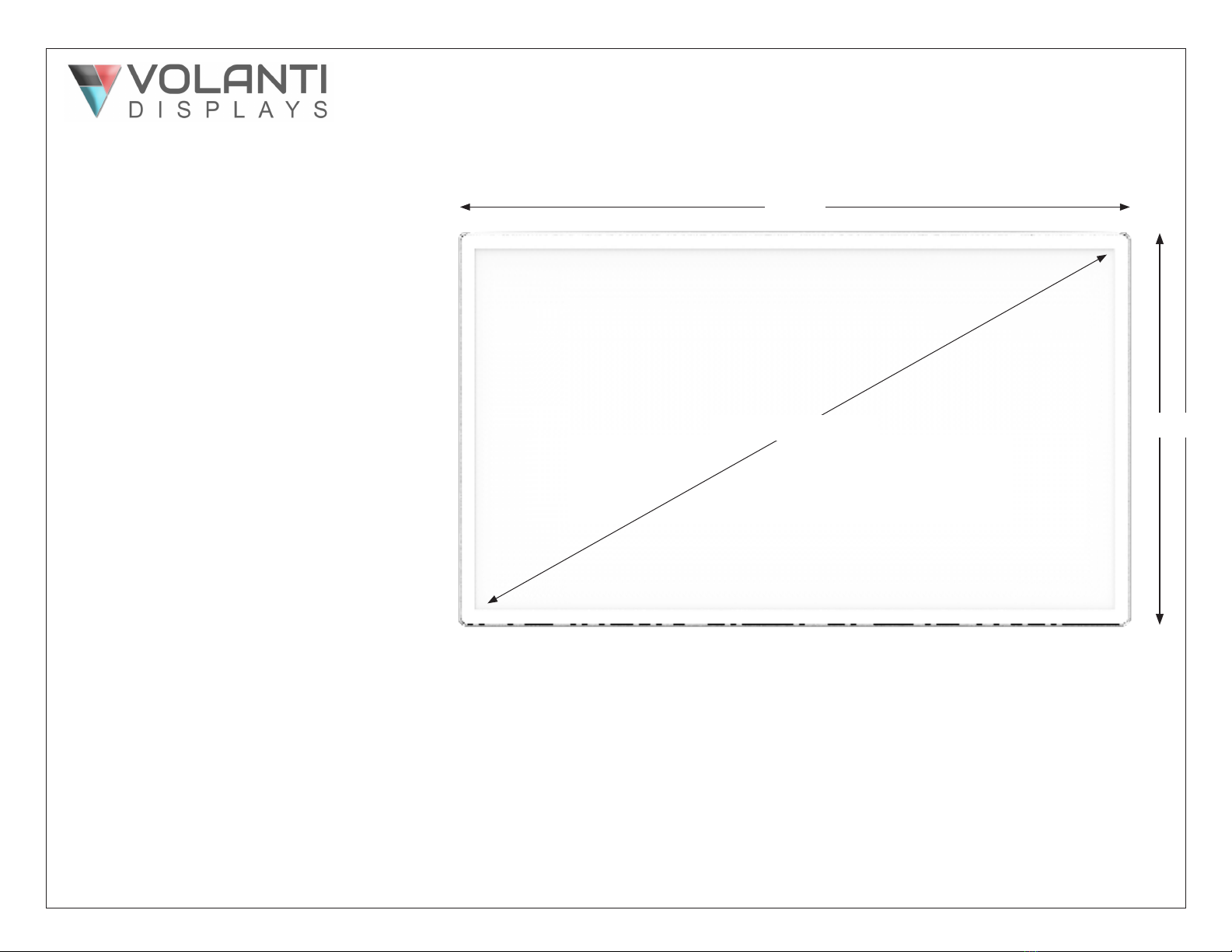

Dimensions:
• Width: 40”
• Height: 23.8”
• Active viewing area: 43” diagonal
Serviceability: The monitor should only be
serviced by Volanti or authorized agents. It is
not designed to be user serviceable.
USB - Touch
Type B
DVI-I
(dual link)
Displayport
1.2
HDMI x 3
4K @60/30/30Hz
Serial
DB9
Ethernet
RJ45
Power
AC Input
Handles
(removable)
On/O
Down
Up
- (decrease)
+ (increase)
Menu Buttons
VESA mounting points:
400mm x 400mm
M6 mounting screws
(the tilt stand xes to
these)
Power in
CAUTION: M6 screws
must not extend more than
25mm into the housing
LED power &
IR receiver
