VOLTION EVO500 User manual

USER MANUAL
EVO500 ELECTRIC SCOOTER

About This Manual
Thank you for choosing the EVO500 foldable electric scooter. This manual applies to the EVO scooter.Please read this manual
thoroughly before you use it for the first time. This manual can help you.
Master the basic operating steps and driving methods of EVO500;
Be familiar with safe driving rules and driving skills, and have a safe and pleasant driving experience;
Understand the structure and operation mode of EVO500, understand the routine maintenance methods, and extend the
service life of the product;
Get advice on safer riding;
Packing list: EVO500 body, EVO500 head, charger, manual, certificate, kit.
1.
2.
3.
4.
Contact Us
In the process of using this product, if you need to consult about riding, maintenance, repair, warranty, safety and other
issues, you can contact us at any time, we will be pleasure to provide services for you.If you would like to obtain the address
of the repair center or have any other questions, please call customer service number for consultation.
Company Address: Hondiusstraat 7, 1056DK, Amsterdam/Netherlands
Service Phone Number:
Email: [email protected]

CATALOGUE
Chapter One ：EVO500 Introduction
1.1 About EVO500
1.2 Function sketch map of EVO500
/ 01
/ 02
Chapter Two ：Assemble
2.1 Check the contents of the packing box
2.2 Assemble a new e-scooter
2.3 Turn on/off
2.4 Charge
/ 03
/ 04
/ 06
/ 07
Chapter Three ：Start Riding
3.1 Preparation before riding
3.2 Connect APP
3.3 LCD display
/ 09
/ 09
/ 10
Chapter Four ：Safety riding norm
4.1 Must obey
4.2 Strictly prohibit
4.3 Civilized/safe riding tips
/ 12
/ 12
/ 14
Chapter Five ：Daily maintenance
5.1 Cleaning and storage
5.2 Battery package maintenance
5.3 Regular inspection items
/ 15
/ 16
/ 17
Chapter Six: Other related matters
6.1 EVO500 Model version spec table / 19
Thank you for choosing the EVO500 foldable electric scooter. This manual applies to the EVO scooter.Please read this manual
thoroughly before you use it for the first time. This manual can help you.
Master the basic operating steps and driving methods of EVO500;
Be familiar with safe driving rules and driving skills, and have a safe and pleasant driving experience;
Understand the structure and operation mode of EVO500, understand the routine maintenance methods, and extend the
service life of the product;
Get advice on safer riding;
Packing list: EVO500 body, EVO500 head, charger, manual, certificate, kit.

1.1 About EVO500
- 01 -
EVO500 electric folding scooter is a new personal intelligent mobility tool. With zero learning cost, EVO500 can be learned
quickly.With the APP developed by our company, EVO500 can fully meet users' demands for intelligent cycling and new travel
experience.
EVO500 is quick to use and costs almost nothing to learn. Different cycling modes can meet different cycling needs of users.
Due to its small size and high mobility, the EVO500 can reach most of the roads that humans can reach on foot, including paths,
sidewalks, stairways, interiors, and elevators.That makes it a great vehicle in between the car and the walk. Walking too far,
driving too close, the EVO500 takes you there with ease.
The features of EVO500 are:
1.Fast folding, patented folding mechanism design, stable structure, less space after folding, easy to store;
2.Built-in Battery;
3.Efficient front and rear double brake ensure your ride safety.

1.2 Function Sketch Map Of EVO500
- 02 -
Throttle
Turning light button
Folding hook
Display
Fold over hinge
Rear fender
Integrated taillight
Kickstand
Built-in electric control lock
Bottom atmosphere
Inside lithiumbattery
Drum brake
Suspension
Disc brake of rear tire
LED light
Handlebar stem
Fold over clasp
Bell
Brake handle

- 03 -
2.1 Check The Contents Of The Packing Box
After opening the packing case, carefully remove the EVO500 vehicle and check whether the items in the packing case are
missing according to the picture below. If there is any missing, please contact your seller.
EVO500 E-scooter*1
Head*1
USER MANUAL
EVO500 ELECTRIC SCOOTER
User manual*1
Screw*6
Charger*1
Wrench*1

- 04 -
2.2 Assemble A New E-scooter
1.The body is folded when it is taken out; 2. Expand handlebar stem as shown;
3.As shown dial up clasp turn the folding
mechanism toward the stem;
4. As shown flip the clasp down, check that the folding
mechanism is fully closed, and check that the stem
issecure and does not wobble.
➀ ➀
➀
➀
➁
➁

- 05 -

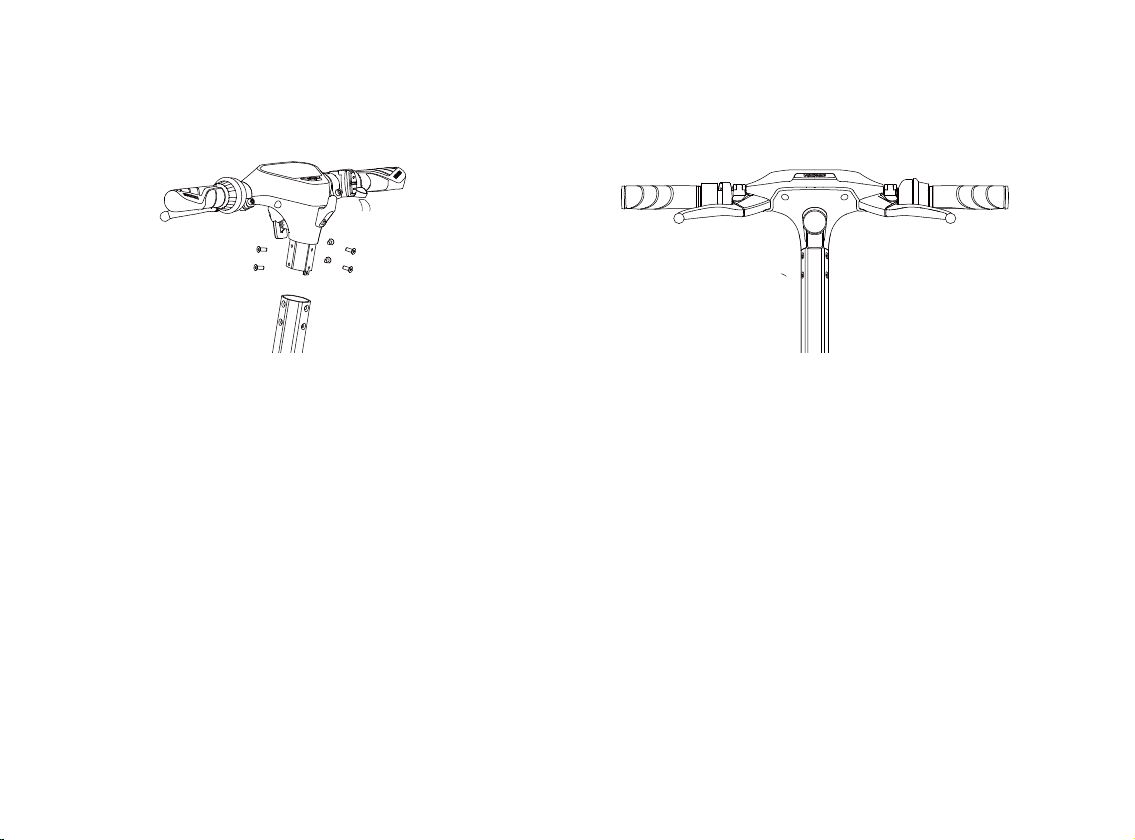

1. Insert the head into the handlebar stem and tighten
the screw with the wrench supplied with the scooter.
2. After tightening it, shake it with your hand to check
for looseness.

- 06 -
Long press the Power to turn on/off; Short click to turn on the light Throttle Display
Click to shift modeBrake control Turning light button BellHandlebar cover
2.3 Turn On/Off

- 07 -
2.4 Charge
Before starting to use, the EVO500 may have been transported and stored for a period of time. First you need to fully charge the
EVO500 before riding.
And when charging in the future, the following safe charging principles should be followed:
When charging, first plug in the battery, then plug in the alternating current;When sufficient, disconnect the alternating
curent and then unplug the battery;
Please use the special original charger. The use of non-original charger may cause battery leakage, heat, smoke, or in
serious cases, fire or explosion;
Charging should be carried out in a dry and ventilated environment, strictly charged in a confined space or under a hot sun;
In case of abnormal indicator light, peculiar smell or overheated charger case during charging, stop charging immediatly and
overhaul or replace the charger;
After charging, please cut off the power supply in time. It is forbidden to connect the charger to the AC power for a longtime
without charging.
•
•
•
•
•

- 08 -
Charging port magnification diagram

- 09 -
3.1 Preparation Before Riding
When using EVO500 for the first time, beginners need to read this
manual to understand the functions of EVO500 clearly, practice
riding in an open field, and then start on the road after getting
used to it.To ensure your safety, it is recommended that you wear
a helmet and safety gear, and find a suitable field indoors or
outdoors, with a size of at least 4×4 meters (16 square
meters).The site should be flat, not too slippery, smooth, free of
obstacles, vehicles, bicycles, pets, children, or other distractions.
3.2 Connect APP
It should be noted that the EVO500 scooter is dangerous for
beginners when they use it for the first time. They must install the
APP before they can ride it.
1. Search EVO500 in the App Store to download the App.
2.Scan the QR code on the right to download the app.
Cycling helmet Knee protector
Andriod IOS

Logo long bright
Danger warning light
Turning light
Speed
Trip distance
Mileage
KMH
MPH
Battery status
Change according
to speed
Anti-theft system
P
Mode
3
Modes
Front
light
Bluetooth
long bright
KM/H
MP/H
- 10 -
3.3 LCD Display
Anti-theft system: Combination of buttons &APP lock/unlock
P Mode: After parking for a period of time, the scooter automatically into P mode, hold both brakes for 3 seconds can be lifted.

Safety Riding Norm
- 11 -
The content described in this chapter is very important. Please read, understand, and follow it carefully.
The Company shall not be liable for any financial or personal losses, accidents, legal disputes or any other
events resulting in conflicts of interest caused by the use of behaviors violating the safe driving regulations.
Any vehicle can have security risks in the way you use it, and so can the EVO500.Riding in strict accordance with the safe driving
rules of this chapter will protect you and others to the maximum extent possible.
You also need to understand that if you ride on traffic roads or in public places, even if you follow the safe driving instructions
in this manual, you may be exposed to the risk of illegal driving/improper operation by other people or vehicles.Therefore, it is
very important to maintain proper vigilance and maintain a reasonable safe distance from other people and vehicles during
driving.

4.1 Must Obey
- 12 -
Make sure you are in good condition and clear-headed before you ride. Do not drink alcohol, take sedative or other psychotropic
drugs for 6 hours.
Understand and strictly abide by local traffic laws and regulations;
Helmet and knee, elbow and wrist protection is recommended, this is the most direct and effective protection for you;
Check the charging situation, if the battery display is low, try not to drive long distance, to avoid insufficient battery during
cycling;
Check the basic conditions of EVO500 to ensure that all exposed parts do not become loose, fall or break, and make the same
sound or continuous alarm during cycling.
•
•
•
•
4.2 Strictly Prohibit
It is prohibited to ride in the area prohibited by the laws of the country/region and relevant administrative units;
Avoid use in risky or non-conforming situations, such as pits/cracks, steep slopes greater than 15 degrees, and water more
than 6cm deep;
It is prohibited to ride EVO500 up and down stairs, and EVO500 flying in the air under any circumstances (such as high speed
over a barrier).Do not jump, flip, spin and other dangerous movements;
Riding on the shoulder of the road or on steps is prohibited;
•
•
•
•

Heavy waterMotorway Steps up and down、Steep road which
more than 15 degrees
- 13 -
No entry into motor vehicle lanes and non-motor vehicle lanes in some countries and regions, subject to local regulations;
Riding with people is prohibited, especially riding with infants or children on their arms or shoulders;
It is forbidden for children under 12 years of age and elderly people above to ride alone. They must be accompanied by family
members.
Cycling is prohibited for pregnant women, people suffering from alcohol abuse, mental illness, heart disease and persons
with limited mobility (such as disabled persons with obvious mobility limitations);
Avoid the use of EVO500 in unsafe environments, such as places where flammable gases, vapors, liquids, dust or fibers, etc.
can cause dangerous events such as fire or explosion;
Avoid making and receiving calls, playing mobile phones and other behaviors that lead to distraction while riding;
Avoid riding in heavy rain, snow, road ice, water, slippery soil road surface and other inclement weather and road conditions;
Violations of other provisions of this manual are prohibited, especially those expressly indicated in the "Warning" item and
the "Attention" item.
•
•
•
•
•
•
•
•

Do not make sudden sharp turns or swerves while driving at high speed, which may easily cause the rider to fall or get hurt
because of losing his balance.This is a dangerous riding habit and is responsible for the majority of accidental falls and
off-balance injuries.
- 14 -
4.3 Civilized/Safe Riding Tips
When using EVO500, please take the initiative to understand and abide by the local traffic laws and regulations, ride in a
civilized manner, and pay attention to people and things around, so as to avoid collisions;
Ride at a speed that is safe for you and others around you, in a controlled environment.Keep a safe distance from pedestrians
and vehicles and be ready to stop at all times;
Respect pedestrians' right of way to avoid frightening pedestrians, especially children.When passing behind a pedestrian,
ring the bell to alert the pedestrian and slow down when passing.Pass from the left as far as possible, while facing a
pedestran, keep to the right and slow down;
When there are many pedestrians, be sure to reduce the speed through.Moving at high speed through a crowd can be
dangeous, and you can only pass pedestrians in front of you when there is enough space to pass safely;
When traveling with other people using the EVO500, keep an appropriate safe distance, avoid dangers and obstacles, and do
not ride side by side unless there is sufficient space for passage;
Don't park the EVO500 in an area that will block pedestrian passage;
Do not ride in bad light.If necessary, slow down, be alert, and preferably turn on the lights to ensure good vision;
•
•
•
•
•
•
•

- 15 -
When cleaning, make sure EVO500 is in shutdown state and fasten the rubber cover of charging port tightly!Otherwise,
electric shock or serious malfunction may occur.
It is strictly prohibited to directly wash EVO500 with the high-pressure water gun to clean the car or soak the car body in
water, which may lead to the accumulation of water vapor or water in the car body, resulting in serious and irreparable faults.
Do not use alcohol, gasoline, kerosene, acetone or other corrosive, volatile chemical solvents to clean the vehicle body,
these substances can damageThe exterior and interior structure of the EVO500.
5.1 Cleaning And Storage
Please clean your EVO500 in time after use to maintain the best performance;
You can use a soft cloth dipped in a small amount of water to wipe the car body, preferably using a soft cloth;
A household shower or garden sprinkler (water pressure below 1Mpa, or 145PSI) can be used to flush the tire. After washing,
the tire should be controlled to dry as soon as possible and put in a ventilated place to dry to avoid corrosion of certain steel
parts;
•
•
•
• Keep your body relaxed, shoulders flat and focused while riding;
• Do not ride without handlebars or one hand;
• Please check whether the brake line is effective before riding, and check and adjust the brake line regularly.
• Develop good riding habits, avoid rapid acceleration start and rapid deceleration braking;

- 16 -
The battery should be charged in time to avoid recharging when the power is used up, otherwise it will be damaged due to
excessive discharge (outside warranty maintenance).
Do not disassemble or replace the parts in the charger without permission.
Try not to carry the charger with the car. If necessary, it should be put in the tool box after shock absorption.
5.2 Battery Package Maintenance
Be sure to avoid flushing the charging interface directly with water or letting the water flow into the charging interface,
otherwise it may cause serious failure or damage;
If the car body is difficult to clean stains, use toothpaste smear, brush repeatedly with a toothbrush, and then clean with a
wet rag;
When not in use, try to keep EVO500 indoors in a dry and cool place. Avoid being outdoors for a long time. Exposure to the
sun and very hot/cold outdoor environment will accelerate the appearance aging.
•
•
•
The battery pack is the most maintainable component on the EVO500.A well-maintained battery pack may perform well after
20 to 30, 000 kilometers;A poorly maintained battery package can run out of capacity or break down after a few months.To
extend the life of your battery pack as much as possible, please follow the following tips for regular inspection and maintnance:
Try to store the battery pack in a dry environment at room temperature ranging from 0℃to 40℃. High temperature and low
temperature will affect the battery life.Please avoid using or storing batteries in an environment below -20℃or above 50℃;
•

- 17 -
Carefully read the notes on the battery pack surface label and follow them;
Store batteries in a dry, cool environment as much as possible.In extremely humid conditions, there may be condensation or
even water in the battery pack, which is likely to cause rapid battery damage.If humidity is unavoidable, seal the battery pack
with a large zipper bag and store it.
During daily use, try to avoid completely draining the battery and recharging it.If the dashboard shows only 1 or 2 bars left,
please charge it as soon as possible.Try to fully charge the BATTERY after each use of the EVO500.Frequent charging
does not harm the battery life, and the battery in a state of near exhaustion for a long time will seriously affect the battery
capacity and life;
When not in use for a very long time (more than 180 days), please recharge the battery every 3 to 4 months and then continue
to store, in order to maintain the battery capacity and life;
•
•
•
•
In addition to the battery pack, other parts of the EVO500 also need regular maintenance, which helps ensure the EVO500 is in
optimal cycling condition and can eliminate some potential safety hazards in time.In addition to fastening screws, changing
tires and fenders as required, there are no parts on THE EVO500 that can be repaired by users by themselves. Please do not
disassemble by yourself. The Company will not be liable for any damage, failure and property/personal damage caused by
unauthorized disassembly.If you have unsolvable problems, please contact us or your eseller.
5.3 Regular Inspection Items
