CORNER RACKING
3515372 - Instruction Manual

CONTENTS
Safety Instructions, Tools Required 1
Components 2
Assembly 3
Assembly 4
Assembly 5
Using Bay Connectors 6
Warranty 7

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
INTENDED USE.
The Corner Racking is designed and intended for domestic
use only. Do not use outdoors or for commercial purposes.
This product is not intended for use in damp or humid
environments. Do not immerse or expose the unit to water
or any other liquid.
This product is not a toy. Children should be supervised to
ensure that they do not play with the Corner Racking.
ASSEMBLY.
CAUTION: This product contains small parts for assembly
which pose a hazard to children and animals. Keep away
from children and pets at all times.
Check the contents of the packaging against this manual
to ensure there are no missing or defective parts. Never
use defective parts.
To protect parts from damage during assembly, it is
recommended that you clear sufficient space to assemble
the unit. Place all parts on a suitable sheet or rug to
prevent scratching or damage to the parts and flooring
during assembly.
Assemble the Corner Racking as close to the area where
you intend to position the final product as possible.
It is recommended that two people are present for
assembly.
Assemble only as instructed within this manual. Any
deviation or shortcut may lead to incorrect assembly or
be considered customer misuse. Improper assembly may
cause damage or serious injury.
Do not use power tools for assembly. These can cause
damage to the product and impair future use and stability.
Do not overtighten any parts during assembly as this will
damage the unit.
POSITIONING THE UNIT.
WARNING! The Corner Racking should only be
positioned on a flat, stable surface with the back against
the wall. Serious or fatal crushing injuries can occur from
tip-over. It is therefore recommended that the unit be
permanently affixed to a suitable wall surface. Due to the
difference in wall materials, the required hardware for
fixing the Corner Racking to the wall are not included.
Contact your local hardware store or qualified person for
advice and guidance.
The Corner Racking contains wooden parts which should
not be exposed to fire or sources of heat or ignition which
may result in fire or damage to the unit. Keep the unit
away from open flames or sources of ignition.
LOADING.
The Corner Racking is not designed to support excess
weight or abnormal loads.
Always check the unit for damage before loading. Never
use a damaged shelf.
Take care to observe and adhere to the following weight
capacities:
Weight Limit for Bottom Shelf: 175kg decresing
weight towards the top.
Always distribute weight evenly to help prevent damage
and tip-over.
Heavy items should be placed evenly across the bottom
shelf.
DO NOT overload the unit.
DO NOT climb on the unit as this may result in damage
to the product or accident or injury to the user.
DO NOT lean any objects (including ladders) against the
unit.
DO NOT attempt to move the unit whilst objects are
placed on top.
CLEANING & MAINTENANCE.
Keep the unit clean to prevent damage or deterioration.
IMPORTANT: To prolong the lifespan of the Corner
Racking, it is recommended that you treat any MDF
surfaces every 12 months with a suitable weather-
resistant stain or coating to protect it from any potential
adverse weather or storage conditions which can cause
moisture or mould to accumulate and therefore damage
the unit.
CAUTION: To ensure continued safety, check that the
unit is secure and safe to use at regular intervals (every 3
months). Take appropriate action to rectify any unstable
or unsafe units.
Always seek professional repairs to damaged parts.
Incorrect repairs place the user at serious risk of harm.

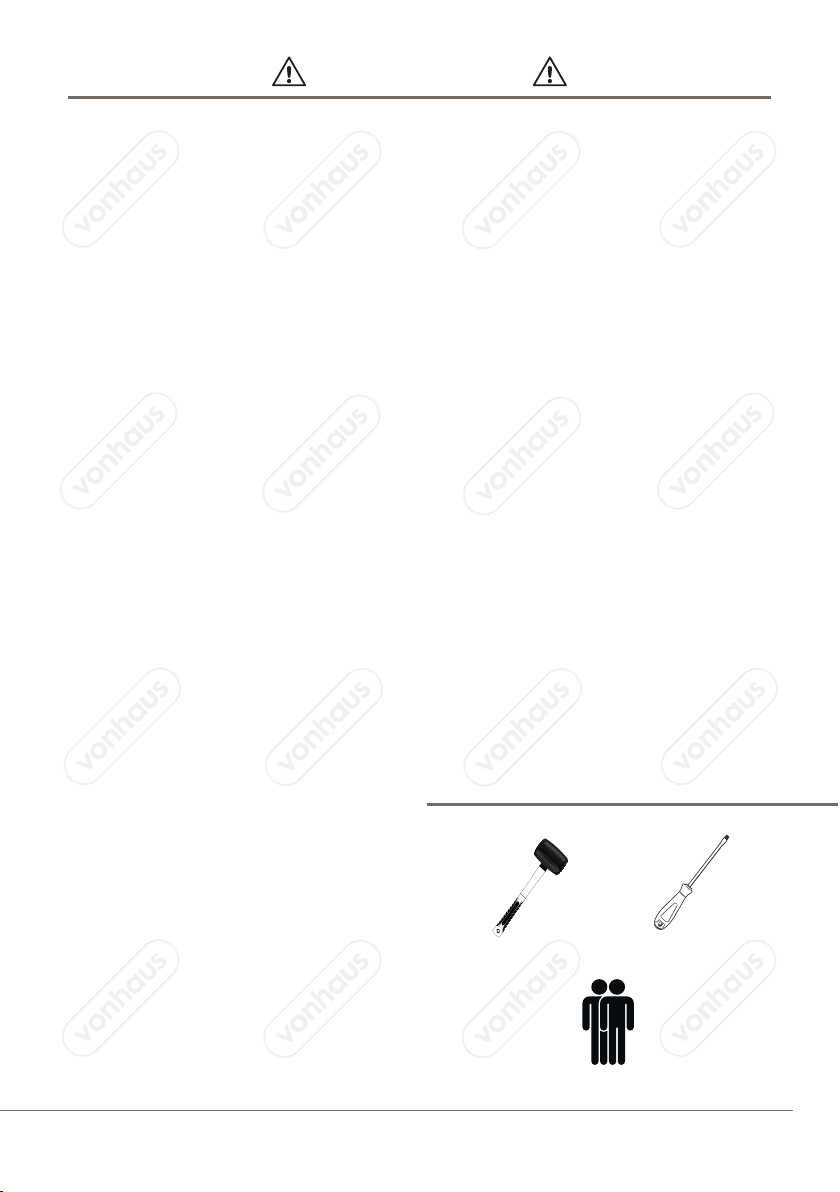

TOOLS REQUIRED
*NOT SUPPLIED
Rubber mallet Flat-head screwdriver
Two person assembly

COMPONENTS
120° Legs
Tab Slots Upright
(x4)
900mm Beams
with Tabs
(x10)
695mm Beams
with Tabs
(x5)
400mm Beams
with Tabs
(x10)
90° Legs
Tab Slots Upright
(x6)
90° Upright Connectors
(x3)
120° Upright Connectors
(x2)
Plastic Feet
(x10)
MDF Shelves
(x5)
2
If you are having difficulty using this product and require support,
please contact [email protected]

ASSEMBLY
STEP 1. ASSEMBLING THE LEGS
Take 3 of the 90° Legs and 2 of 120° Legs and attach
Plastic Feet to the bottom of each.
90° 120°
STEP 2. Build the Corner Racking
from the bottom upwards, selecting
the correct Beams (as shown).
90°
90°
120° 120°
695mm
400mm
900mm
900mm
400mm
90°
TIP: If necessary, use
a screwdriver to guide
the Tabs on the Beams
into the Tab Slots on the
Legs.

ASSEMBLY
STEP 3. Once the first 2 tiers
have been assembled, take
the 90° and 120° Upright
Connectors (as appropriate)
and secure onto the top angled
part of the Legs.
IMPORTANT: Ensure that
the Upright Connectors are
securely fastened to the lower
Legs before attaching upper
Legs.
STEP 4. Continue to build upwards, following the
same process as in step 2 for the lower tiers.
Attach the upper tier onto the lower tier using the
Upright Connectors.
IMPORTANT: Ensure the Connectors are correctly
secured into the Tab Slots on the Legs.
4

ASSEMBLY
STEP 5. Once the frame has been
completed, attach the rest of the Plastic
Feet to the top of the structure.
Using two people, move the empty
structure carefully into position.
Resecure any parts if neccessary.
CAUTION: Do not attempt to move
the Corner Racking whilst objects are
placed on the unit.
Place the MDF Shelves onto each tier to
complete assembly.
CAUTION: Take care not to trap fingers
or any loose clothing.

USING BAY CONNECTORS
(SOLD SEPARATELY)
15/023
Using the Bay Connectors will improve the stability of multiple units when used together.
6

DISPOSAL INFORMATION
COPYRIGHT
WARRANTY
Please recycle where facilities exist. Check with your local authority for recycling advice.
All material in this instruction manual are copyrighted
by DOMU Brands Ltd.
Any unauthorised use may violate worldwide
copyright, trademark, and other laws.
To register your product and find out if you qualify
for a free extended warranty, go to:
www.VonHaus.com/warranty
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the Warnings page
of this manual, and all other instructions have been
followed accurately. Any abuse of the product or
the manner in which it is used will invalidate the
warranty.
Returned goods will not be accepted unless re-
packaged in its original packaging and accompanied
by a relevant and completed returns form. This does
not affect your statutory rights.
No rights are given under this warranty to a person
acquiring the unit second-hand or for commercial or
communal use.

VonHaus is a registered trademark of DOMU Brands Ltd
Made in China for DOMU Brands Ltd M24 2RW
Thank you for purchasing the Corner Racking.
