Vornado AC550 User manual

model AC550
vornado.com
WHOLE ROOM AIR PURIFIER
OWNER’S GUIDE

2English
vornado.com
800.234.0604
[email protected]
we expect
this product
to be PERFECT
if it’s not
WE will make
it right.

English 3
Important Instructions .............................................................4
Product Information ................................................................6
True HEPA Filtration.................................................................7
Automatic Filter Rell Program ...............................................7
Control Panel ...........................................................................8
How to Use ..............................................................................9
User Tips ...............................................................................11
Filter Replacement.................................................................12
Storage ..................................................................................14
Cleaning and Maintenance ....................................................15
Troubleshooting .....................................................................16
Warranty.................................................................................17
CONTENTS

4English
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This owner’s guide and any additional inserts are considered part of
the product. They contain important information about safety, use and
disposal. Before using the product, please familiarize yourself with all
operating and safety instructions. Please keep all documents for future
reference and pass these documents on, together with the product,
to any future owner. See our website to view, download and print the
most current version of this owner’s guide.
INTENDED USE: This product is intended to purify the air in indoor
living spaces only in the United States and Canada. This product is not
intended for commercial or industrial use. The manufacturer assumes
no responsibility for damage or injury due to unauthorized use or
product modication. Failure to follow these directions will void the
product warranty.
WARNING: Risk to Children and Impaired Persons
- Supervision is required during the installation, operation, cleaning
and maintenance of this product by children under age 12 and
anyone with reduced physical, sensory or mental capabilities.
Children should be supervised to ensure that they do not play with
the appliance, its parts and packaging material.
INSTALLATION WARNING—To reduce risk of re, electrical shock
and injury to persons, observe the following:
- Place this product away from curtains, draperies, tablecloths and
other fabrics, since they may be drawn into the product, damage the
motor and/or cause a re.
- No part of this product (the appliance, power cord, plug, packaging,
etc.) should be placed near furnaces, replaces, stoves or other high
temperature heat sources. Do not use this product in a window, on
an uneven or unstable surface, or near water.
- The appliance, power supply, power cord and plug cannot come
into contact with water. Do not use this product on wet surfaces.
Do not use this product in a bathtub or shower or position product
where it may fall into a bathtub, laundry, swimming pool or other
water container. Do not use this product outdoors or expose it to
weather or elements.
- Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not route under furniture or
appliances. Arrange cord away from trafc area and where it will not
be tripped over. The cord should not hang over edges of counters
or be placed where it can be crimped or closed in doors. Place
appliance near an easily accessible outlet so the product can be
unplugged quickly during an emergency.
SAFE USE WARNING—To reduce risk of re, electrical shock and
injury to persons, observe the following:
- WARNING: To reduce likelihood of circuit overload, re and electric
shock, do not operate with a solid state speed device, such as a
dimmer control switch.
- Do not operate unit if the unit has been dropped or damaged. Do
not use this product if it has a damaged power cord or plug. To
avoid risk of electrical shock, do not attempt to repair or replace
parts. Only original replacement parts may be used. If the power
cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualied persons in order to avoid a
hazard. Contact Vornado Consumer Service at 1-800-234-0604
(phone) or [email protected] (email) for further
instructions about replacement and repair.
- Risk of re. Your appliance may be equipped with a detachable
power supply or a cord/plug with a safety device such as a fuse. Use
only the power cord and plug provided.

English 5
- Before plugging power cord into electrical outlet, be sure that
all electrical information on the rating label, including voltage, is
compatible with your outlet’s power supply.
- Never use the cord as a handle or otherwise yank, strain or stretch
the power cord.
- While the product is plugged in, do not insert or allow foreign
objects to enter any input or output opening as this may cause risk
of electric shock or re, or damage the product.
- A loose t between wall outlet (receptacle) and plug may cause
overheating and distortion of the plug. Discontinue use of the
product in this outlet. Contact a qualied electrician to replace
loose or worn outlets.
- This appliance has a polarized plug (one blade is wider than the
other.) To reduce the risk of electrical shock, this plug is intended to
t in a polarized outlet only one way. If the plug does not t fully in
the outlet, reverse the plug. If it still does not t, contact a qualied
electrician. Do not attempt to defeat this safety feature.
- Before moving, repositioning, servicing, cleaning and when not in
use, use the product controls to turn off the power and then unplug.
To disconnect from outlet, grasp and pull only the plug. Also, power
off and unplug if the product will be left unattended for an extended
period of time or during electrical storms.
SERVICING WARNING—To reduce risk of re, electrical shock
and injury to persons, observe the following:
- Clean your product regularly, only as is instructed in this manual.
Prior to cleaning, turn off the power on your product and unplug. Do
not use gasoline, thinners, solvents, ammonias or other chemicals
for cleaning. Refer to the CLEANING instructions provided.
- Do not open appliance housing while product is plugged in. To
avoid risk of shock, all service and/or repairs must be done by a
Vornado Authorized Service Center.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: this device may not cause
harmful interference, and this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Contact Vornado Consumer Service or dealer or an experienced
radio/TV technician for help.
DISPOSAL WARNING
To reduce waste and environmental harm, observe the following:
PACKAGE RECYCLING: The packaging protects the
appliance from transport damage. The packaging materials
are selected from the point of view of their environmental
friendliness and disposal technology and are therefor
recyclable. Dispose of all packaging materials in an
environmentally responsible manner.

6English
1
2345
6
7
FRONT PANEL
2 PLASTIC SUPPORT FILTER FRAMES
The frame secures both carbon and HEPA lters in
place.
2 CARBON FILTERS
Captures larger initial particles and odors passing
through the unit.
2 HEPA FILTERS
Captures 99.97% of particles 0.3 microns or larger
passing through the unit, allowing only ltered air
back into the environment.
CONTROL PANEL
LED display and touch button controls for easy and
intuitive operation.
DUST SENSOR AND ACCESS DOOR
The Dust Sensor continuously monitors the amount
of particulates in the air.
POWER CORD
Convenient 6 ft. cord.
1
7
6
5
4
3
2
PRODUCT INFORMATION

English 7
VORNADO WHOLE ROOM AIR PURIFIERS
FEATURE PRECISION TRUE HEPA
CALIBRATION
Without properly calibrated airow,
products with a True HEPA Filter will
not achieve their full ltration potential.
Gaps, poorly sealed lter housings,
and excessive air velocity all reduce the
effectiveness of the product. Independent
testing labratory veries that the precise calibration of a Vornado
Air Purier allows it to perform at True HEPA standards.
AUTOMATIC FILTER
REFILL PROGRAM
Part # MD1-0022Part # MD1-0023
A convenient and hassle-free way to recieve regular shipments
of Vornado Filters, direct to your door. Eliminate the hassle
of remembering to reorder. Maintain the high efciency
of your Vornado Purier by regularly replacing used Filters
with fresh new ones. How it works: You select a plan and
Vornado will send replacement Filters at the recommended
maintenance interval. To sign up, visit vornado.com, email
[email protected] or call 1-800-234-0604. Cancel
at anytime.
2 STAGE FILTRATION
Carbon ltration captures
odors and prolongs HEPA
lter life. HEPA ltration
captures 99.97% of particles
0.3 microns or larger, to
effectively clean large
volumes of air.
TRUE HEPA FILTRATION

8English

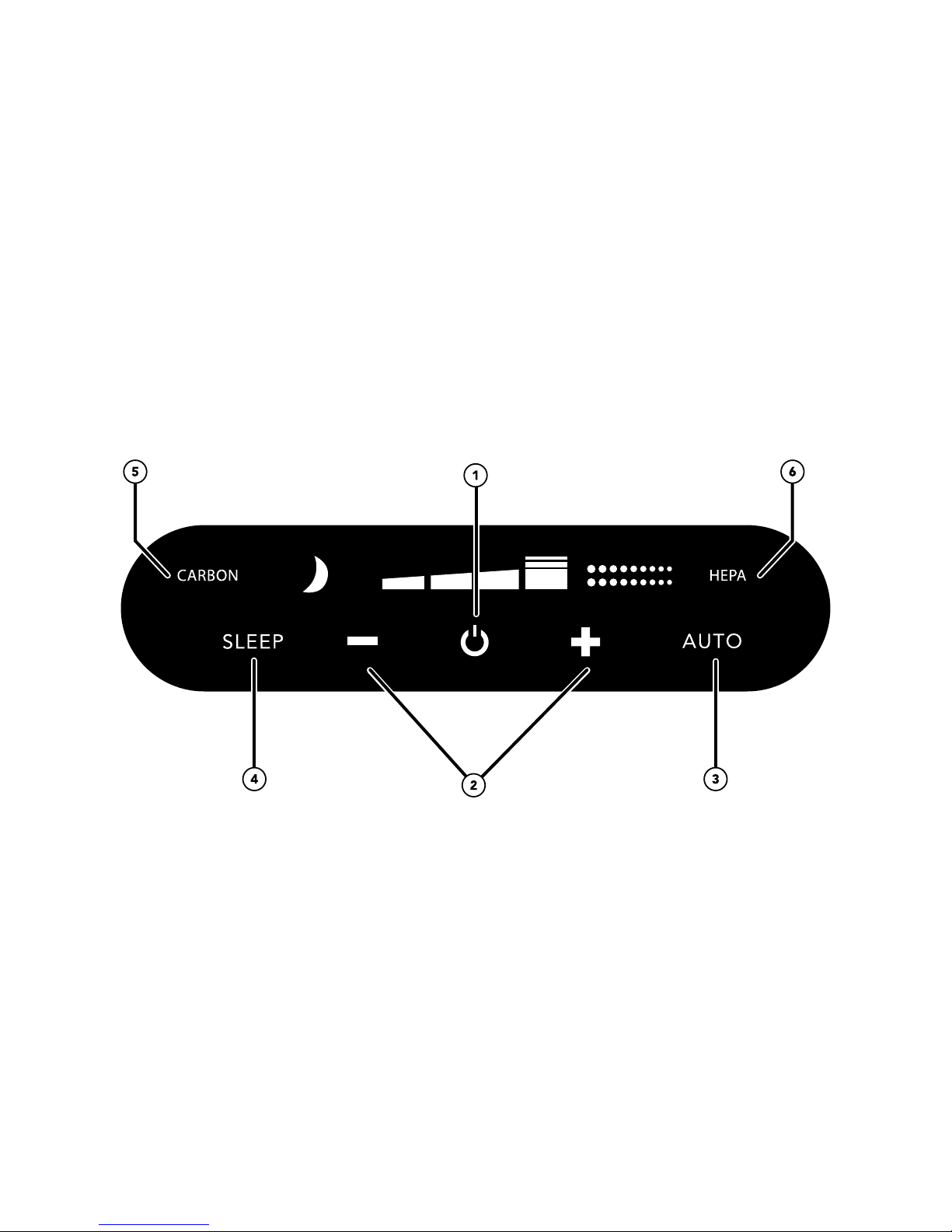

CONTROL PANEL
POWER
HEPA FILTER
REPLACEMENT
CARBON FILTER
REPLACEMENT
AUTOMATIC DUST
SENSING MODE
FAN SPEEDSLEEP MODE
SETTING

English 9
FAN SPEED
Choose one of the 4 fan speed settings, press the “+” button to
adjust to a higher speed or press the “-“ button to adjust to a lower
speed. The LED display will indicate the selected speed.
Note: Dust and allergens are most airborne when persons and pets
are active in the room. For best results, set the unit on a higher speed
setting during these times for high demand cleaning and circulation.
Set the unit to a lower setting for quieter operation when activity
is reduced.
QUICK CLEAN SPEED
A high-speed ltration setting can be used to rapidly lter the air
when airborne particle levels are high. Press the (+) on the fan speed
control until the Quick Clean icon (highlighted above) is displayed.
You will immediately notice a dramatic increase in airow that will
allow the unit to provide maximum air ltration. Due to increased
sound levels, use of this mode is recommended only as conditions
require. Low, Medium and High speed settings are designed for day-
to-day use.
POWER, Function ON and OFF by pressing the Power button.
FAN SPEED, 4 fan speed settings. Adjust between Low,
Medium, High and Quick Clean.
AUTOMATIC DUST SENSING MODE, Advanced technology
that reads the amount of particles in the air and adjusts the fan
speed accordingly. Refer to HOW TO USE to learn more about
this feature.
SLEEP MODE SETTING, Senses no light or low light conditions,
and automatically adjusts the unit to low speed. Refer to HOW
TO USE to learn more about this feature.
CARBON FILTER REPLACEMENT, Equipped with CARBON
lter indicator light to show when it is recommended to change
the carbon lters.
HEPA FILTER REPLACEMENT, Equipped with HEPA lter
indicator light to show when it is recommended to change the
HEPA lters.
AUTOMATIC LIGHT DIMMING
After a short period of time, the control panel illumination
will dim to not interfere with ambient environment lighting.
Particularly ideal for darker rooms. Pressing any button will re-
illuminate the control panel.
1
2
3
4
6
5
HOW TO USE

10 English
AUTOMATIC DUST SENSING MODE
This feature monitors the air quality of the room to detect the
presence of particles, then adjusts the fan speed to improve air
quality to optimum conditions. Press the Automatic Dust Sensing
Mode Button to engage this feature. The screen will display the
animated Automatic Dust Sensing icon (shown above), to indicate
when this feature is active. The Dust Sensor will continuously
monitor the amount of airborne particles in the environment and
adjust the fan speed between Low, Medium and High as needed to
maintain optimum air quality. The Quick Clean speed is not utilized
when Automatic Dust Sensing Mode is enabled. Please note that
Automatic Dust Sensing Mode is overridden when Sleep Mode is
engaged to ensure the unit is providing a consistent, low noise level
during nighttime sleep.
WHEN TO USE:
This feature allows the unit to reduce energy usage when fewer
airborne contaminants are present in the room. Because active
people and pets tend to stir up airborne particles, the unit will tend to
increase speed during peak periods of activity in the room until lower
readings are obtained. This feature is ideal for rooms where activity
uctuates greatly based on the time of day.
Note: The Dust Sensor will need to be cleaned periodically. Please
refer to CLEANING AND MAINTENANCE.
SLEEP MODE SETTING
This feature senses no light or low light conditions, and automatically
adjusts the unit to low speed. Press the Sleep Mode button to
engage this feature. The Sleep Mode icon (shown above) will display.
Ideal for use in bedrooms. Higher and more powerful speeds may be
used throughout the day with lower speeds and minimal noise being
preferable at night.
Note: When in low light or no light, with sleep mode selected, the
unit will only operate at low speed. This will override Automatic Dust
Sensing Mode and high-speed settings. In regular light, the unit will
operate at the previous setting.
HOW TO USE

English 11
6 in.
6 in.
1. Keep retail carton to store unit when not in use.
2. Use the hand holds on either side of the unit for easy carrying.
3. For best results, position the front of the unit (side with logo)
towards the center of the room, leaving at least a 6 inch distance
away from walls or furniture on every side.
Note: For optimum airow, air outlet should be unobstructed. Ensure
curtains and other items are far enough away from the unit to not be
pulled into the side inlets or interfere with airow.
CARBON FILTER REPLACEMENT
Equipped with CARBON lter indicator light to show when it is
recommended to change the carbon lters. Please refer to FILTER
REPLACEMENT for instructions. This feature is controlled by time
of use. The light will illuminate after 4,000 hours of run time has
accumulated.
HEPA FILTER REPLACEMENT
Equipped with HEPA lter indicator light to show when it is
recommended to change the HEPA lters. Please refer to FILTER
REPLACEMENT for instructions. This feature is controlled by
time of use. The light will illuminate after 9,000 hours of run time
has accumulated.
Note: User environments will differ. The lter replacement time is
based on average use situations, if you are using the air cleaner in a
more demanding environment, you may need to change your lter
more frequently. In less polluted environments the lter life may
extend beyond the notication.
USER TIPS

12 English
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
A
HOW TO REPLACE YOUR FILTERS
1. Unplug unit.
2. Remove Front Panel by lifting up and away from unit.
GENUINE VORNADO FILTERS ARE RECOMMENDED
Peak performance is only realized when genuine Vornado Carbon
and HEPA lters are used. Others may claim to be compatible with
Vornado units, but the Vornado Air Purier is calibrated to achieve a
99.97% capture rate of particles 0.3 microns or larger, only when used
with Vornado Filters. 3. Remove the Plastic Support Filter Frame by pulling on the center
tabs (A). You may need to ex the Plastic Support Filter Frame
slightly to release the tabs at the top and bottom.
Note: The Front Panel is held in place by magnets, you will need to
lift the Front Panel hard enough to overcome the resistance of the
magnets.
±
±
±
FILTER REPLACEMENT

English 13
A
A
B
B
A
A
B
B
B
A
5. Replace the Plastic Support Filter Frame by securing the bottom
2 tabs into bottom slots (B). Slightly ex the Plastic Support Filter
Frame to secure the top 2 tabs into the top slots (A).
4. Remove and discard the Filters you wish to replace. To remove
the Carbon Filter, take hold of the Filter at any place along the
perimeter and remove. Repeat on the second Filter. To remove
the HEPA Filter, after the Carbon Filters have been removed,
take hold of the tab (Figure 1) and pull to release. Repeat on the
second Filter. Replace with genuine Vornado Filters. Place the
Filters in the unit and gently press around the perimeter of the
Filter to ensure secure placement (Figure 2).
Note: The HEPA Filters must be placed in the unit before the Carbon
Filters. See Product Information for a detailed illustration.
Fig. 1 Fig. 2

14 English
7. To reset the CARBON lter notication - press and hold
the SLEEP button for 3 seconds. To reset the HEPA lter
notication, press and hold the AUTO button for 3 seconds. The
light will turn off conrming the indicator is reset.
Note: Do not operate the Air Purier without Vornado Carbon and
Vornado HEPA Filters in place.
Press for
3 seconds. Press for 3 seconds.
SAFETY SHUT-OFF FEATURE
For your protection, the unit is designed to operate only if the Front
Panel is in place. Do not attempt to override this safety feature. If,
after the Front Panel has been reinstalled, the unit does not operate,
remove and reinstall the Front Panel to assure proper placement.
6. Replace Front Panel by positioning the Panel slightly above the unit
and aligning the tabs of the Front Panel with the holes in the unit
(A). Gently press the Front Panel down, sliding into the tab slots
and allowing the magnets to securely lock the Front Panel in place.
Follow the steps listed below when you are ready to store your unit.
1. Unplug power cord and bundle loosely.
2. Lift unit with both hands, using hand holds. (Refer to USER TIPS)
3. Cover, or place back in retail carton if available. This will prevent
the unit from accumulating dust overtime.
4. Store unit in a cool and dry location.
STORAGE
±
±
±
A
FILTER REPLACEMENT

English 15
HOW TO CLEAN
Because large volumes of air pass through your Vornado Air Purier
each day, it will need regular cleaning.
1. Unplug the unit before cleaning.
Note: Do not use gasoline, thinners, solvents or other chemicals for
cleaning.
2. Wipe down with a soft, damp cloth. (Figure 1)
3. Dust or vacuum the interior and along the sides. It is recommended
to clean the interior when the Filters are changed. (Figure 2)
CLEANING THE DUST SENSOR
It is recommended to clean the Dust Sensor when replacing the Car-
bon Filters.
1. Unplug the unit before cleaning.
2. Locate the Dust Sensor Access Door on the right side of the unit.
(Figure 1)
3. Open Dust Sensor Access Door.
4. Gently wipe the surface of the Dust Sensor with a cotton swab.
(Figure 2)
5. Once cleaned, close Dust Sensor Access Door.
Other Maintenance
The motor is permanently lubricated so it needs no service. No other
serviceable parts, other than Filters, are contained within the unit.
Fig. 1 Fig. 2
Fig. 1 Fig. 2
CLEANING AND MAINTENANCE

16 English
TROUBLESHOOTING
POSSIBLE CAUSE AND SOLUTIONPROBLEM
Unit is not plugged in. Plug power cord into electrical outlet.
Front Panel may not be properly installed. Remove and reinstall the Front Panel to assure proper
placement. Refer to FILTER REPLACEMENT.
Household circuit breaker / ground fault interrupter has tripped or blown a fuse. Reset circuit breaker /
ground fault interrupter, or replace fuse. For assistance, contact a licensed electrician.
Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.
Unit set to a low speed setting. Adjust to a higher speed setting.
Debris build-up on lter. Check and replace Filters.
Airow is blocked. Remove obstruction.
There may be too much light in the room. Either manually turn the unit to low speed for minimal sound
or darken the room.
Sleep Mode may be selected. When in low light or no light, the unit will only operate at low speed.
This will override Automatic Dust Sensing Mode. In regular light, the unit will return to Automatic Dust
Sensing Mode operation.
The Dust Sensor may need to be cleaned to accurately read dust levels. See CLEANING AND
MAINTENANCE for complete instructions.
Unit fails to power on.
Airow is weak or slow.
Sleep Mode is not working.
Automatic Dust Sensing
Mode is not working.

English 17
Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser this
Vornado® Whole Room Air Purier (“Product”) is free from defects in material or workman-
ship for a period of ve (5) years from the date of purchase. If any such defect is discovered
within the warranty period, Vornado, at its discretion, will repair or replace the Product at
no cost.
For warranty or repair service:
Call 1-800-234-0604 or email [email protected] to obtain a Return Authorization (“RA”)
form. Please have or include your Product’s model number and serial number, as well as
your name, address, city, state, zip code and phone number when contacting Vornado for
warranty service.
After receiving the RA form, ship your Product to:
Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your
convenience, please have your model number and serial number when contacting
Vornado with service inquiries. To assure proper handling, packages must be clearly
marked with the RA number. Packages not clearly marked with the RA number may be
refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product
after the Product is received.
Repairs not covered by the warranty or outside the warranty period will require a fee to
cover the cost of materials, labor, handling and shipping. This warranty does not apply to
defects resulting from abuse of the Product, modication, alteration, repair or service of
the Product by anyone other than Vornado, mishandling, improper maintenance, commer-
cial use of the Product, damages which occur in shipment or are attributed to acts of God.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE
LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. Some states do not allow the exclusion or limitation of incidental or conse-
quential damages, or allow limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you. This warranty gives you specic legal rights,
and you may have other rights that vary from state to state.
All company names and product names are trademarks of their respective owners. © All
rights reserved. All technical information, data, and instructions for the installation, connec-
tion, and operation contained in these instructions for use correspond to the latest avail-
able information at time of printing. The contents of this manual may differ slightly from
the actual product. Observe any additional supplements.
The manufacturer assumes no responsibility for damage caused by failure to follow these
instructions or improper product use. Any such actions will invalidate the product warranty.
Any unauthorized product modication, repair by unauthorized repair center, or use of
non-approved replacement parts is not recommended and any consequences will not be
covered by support services or product warranties.
WARRANTY
We expect this product to be perfect. If you’re not satised with this product, let us know.
We’re Here To Help
800.234.0604
vornado.com
[email protected]
© 2019 Vornado Air LLC Andover, KS 67002 U.S. Patent Pending. Specifications subject to change
without notice. Vornado® is a trademark owned by Vornado Air LLC.
Designed, engineered and supported in Andover, KS

CL3-0215 RA, V07
Vornado Air, LLC
415 East 13th Street, Andover, Kansas 67002
800.234.0604 | vornado.com
