Vortex 3300 Louvre Pergola User manual

OWNER'S MANUAL
Please read this manual before using your pergola for the first time.
Please keep this manual for future reference.
Amblent
Lighting
～
Amblent
Lighting
～
3300 Louvre Pergola

1. Installation requires a minimum of
three people: one for measurement
and marking, one for installation and
one as an assistant.
2. Only concrete floor fasteners are
provided. In the case where there is
no concrete slab on the ground, it is
recommended to make concrete
slabs at each column. The concrete
slab should be a minimum of
500x500x500mm.
3. After the Pergola frame is
assembled, use a square, level
and ruler to measure the product
level and diagonal to ensure the
size of the pergola.
4. Power tools are required: make
sure they work properly and follow
the safety instructions.
5. Be careful when using sharp
tools.
6. Wear protective clothing including
safety glasses, helmets and gloves.
7. Don't climb or stand on the roof.
Installation Notes:
3300 Louvre Pergola
Amblent
Lighting
～
Amblent
Lighting
～
Opening：Electric
Size：300（Length）x 300（Width）x 270（Height）
1/24

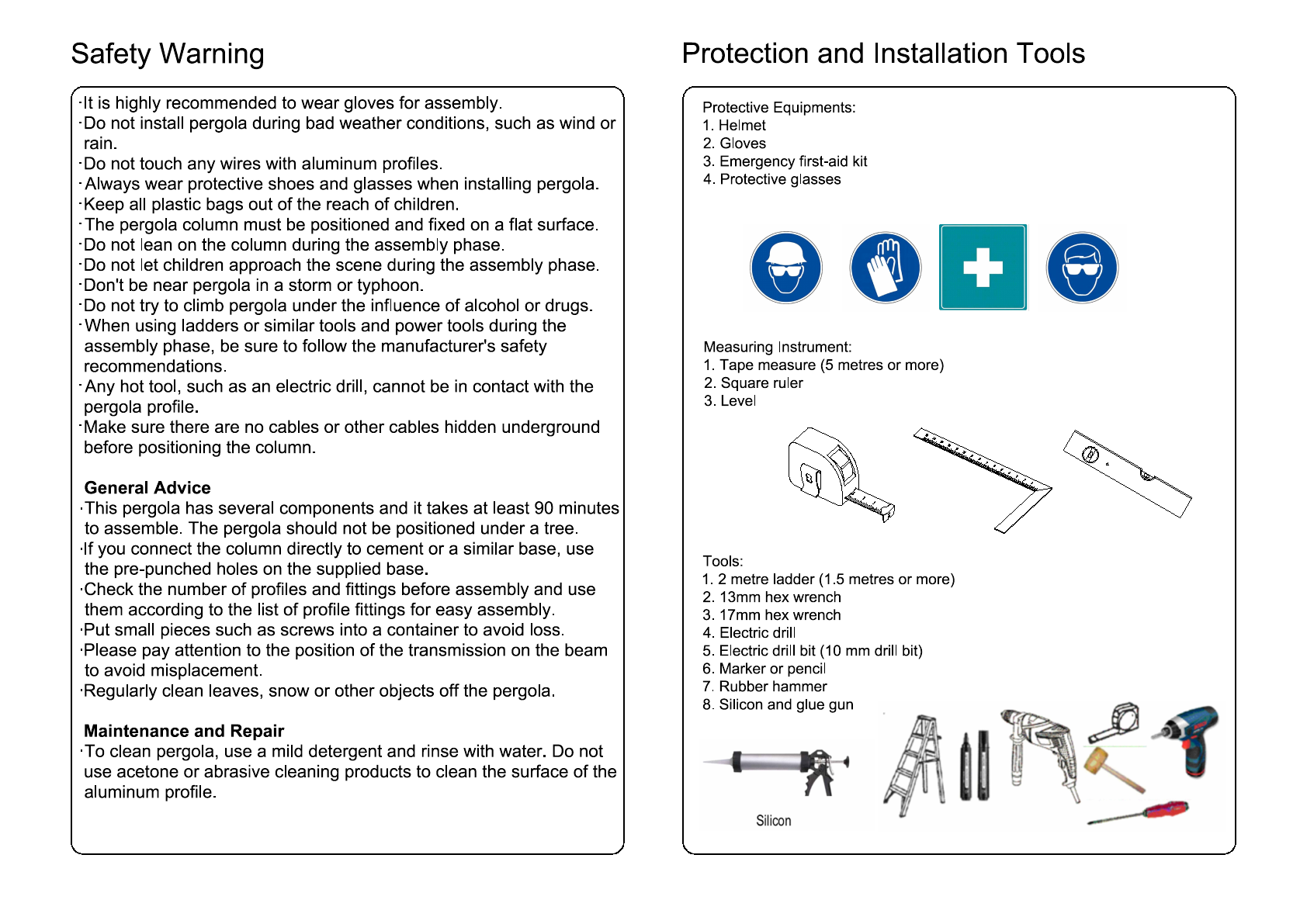

Safety Warning
It is highly recommended to wear gloves for assembly.
Do not install pergola during bad weather conditions, such as wind or
rain.
Do not touch any wires with aluminum profiles.
Always wear protective shoes and glasses when installing pergola.
Keep all plastic bags out of the reach of children.
The pergola column must be positioned and fixed on a flat surface.
Do not lean on the column during the assembly phase.
Do not let children approach the scene during the assembly phase.
Don't be near pergola in a storm or typhoon.
Do not try to climb pergola under the influence of alcohol or drugs.
When using ladders or similar tools and power tools during the
assembly phase, be sure to follow the manufacturer's safety
recommendations.
Any hot tool, such as an electric drill, cannot be in contact with the
pergola profile.
Make sure there are no cables or other cables hidden underground
before positioning the column.
General Advice
This pergola has several components and it takes at least 90 minutes
to assemble. The pergola should not be positioned under a tree.
If you connect the column directly to cement or a similar base, use
the pre-punched holes on the supplied base.
Check the number of profiles and fittings before assembly and use
them according to the list of profile fittings for easy assembly.
Put small pieces such as screws into a container to avoid loss.
Please pay attention to the position of the transmission on the beam
to avoid misplacement.
Regularly clean leaves, snow or other objects off the pergola.
Maintenance and Repair
To clean pergola, use a mild detergent and rinse with water. Do not
use acetone or abrasive cleaning products to clean the surface of the
aluminum profile.
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Protection and Installation Tools
Protective Equipments:
1. Helmet
2. Gloves
3. Emergency first-aid kit
4. Protective glasses
Measuring Instrument:
1. Tape measure (5 metres or more)
2. Square ruler
3. Level
Tools:
1. 2 metre ladder (1.5 metres or more)
2. 13mm hex wrench
3. 17mm hex wrench
4. Electric drill
5. Electric drill bit (10 mm drill bit)
6. Marker or pencil
7. Rubber hammer
8. Silicon and glue gun
2/24

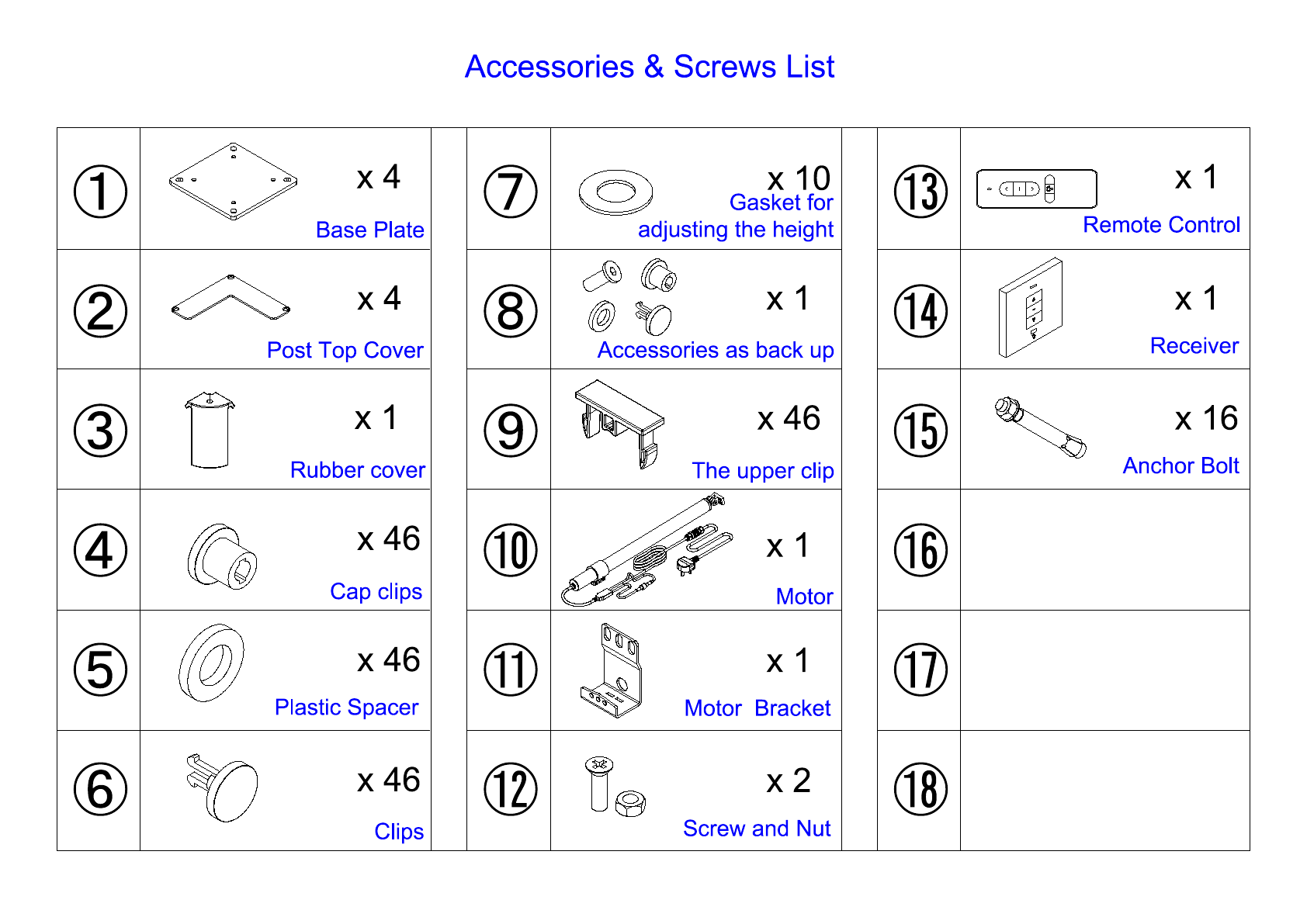

Accessories & Screws List
x 4
x 1
x 4
Rubber cover
Base Plate
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯
⑰
⑱
Cap clips
Plastic Spacer
Clips
x 10
Gasket for
adjusting the height
Motor Bracket
x 1
Screw and Nut
x 2
Remote Control
x 1
Receiver
x 1
x 1
x 46
Post Top Cover
Anchor Bolt
x 16
x 46
x 46
x 1
Accessories as back up
Motor
The upper clip
x 46
3/24

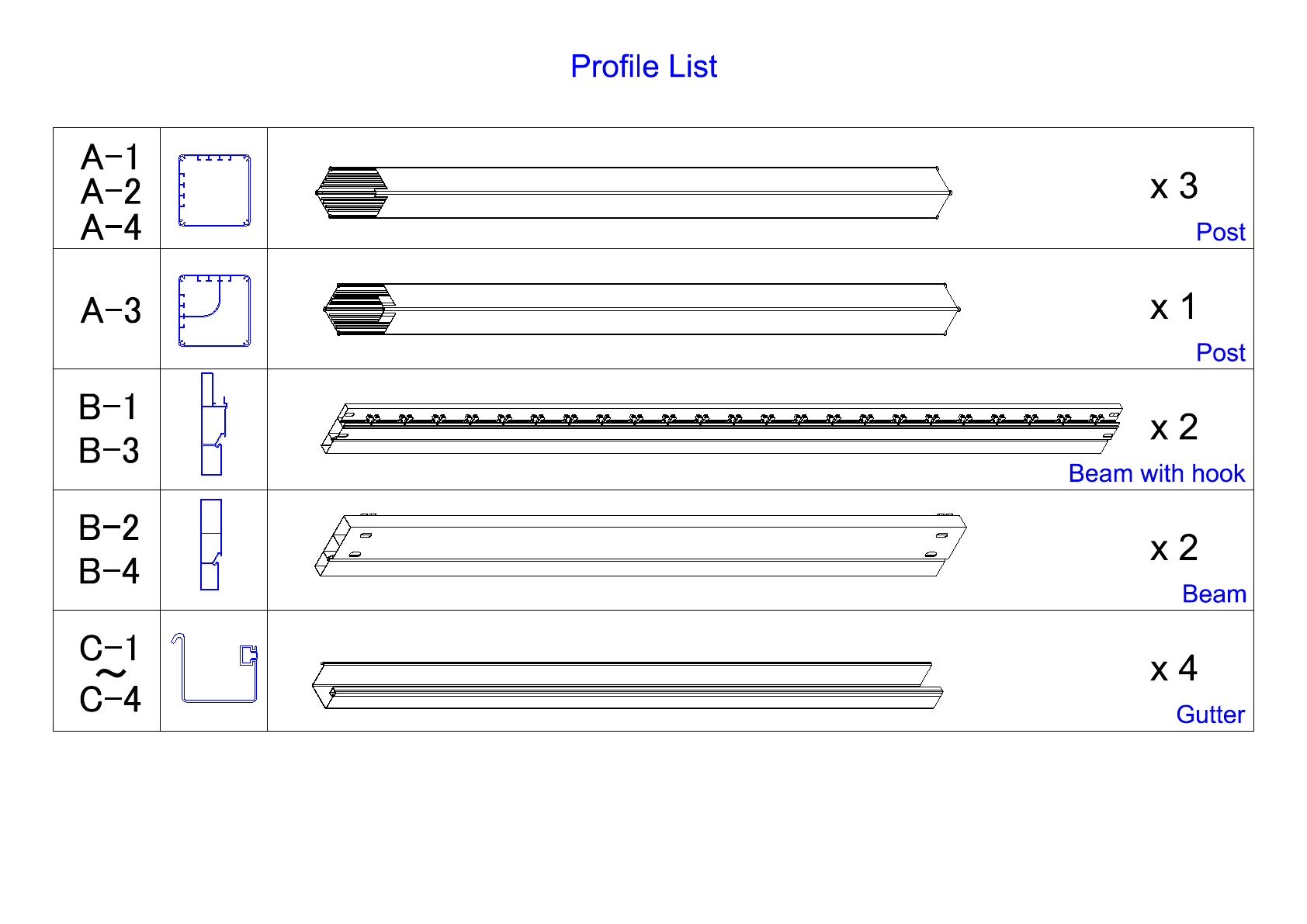

Profile List
Post
x 3
x 2
Beam with hook
A-3
Post
x 1
B-1
B-3
Beam
x 4
x 2
Gutter
A-1
A-2
A-4
B-2
B-4
C-1
～
C-4
4/24

D-1
D-2
E
Driving Blade
x 1
Common Blade
x 22
Control Rod
x 2
Profile List
5/24

Aluminum Profiles Lay Out Drawing
Installation notes:
1. To take the goods out of the
carton, 2 people are required to
lift them up, put them on the
ground lightly, and keep the
ground level and clean, better
to put a layer of cloth on the
floor to prevent the profile from
scratching.
2. The goods on the ground
should not be dragged, and
avoid collision with metal
surfaces or other uneven walls.
3. After setting up the whole set
pergola and test the pergola
well, then proceed to remove
all the surface film.
C-4
B-4
C-1
B-2
C-2
B-3
C-3
B-1
The location
of the motor
A-2
A-4
A-3
A-1
6/24

x 3
①x 3
Step 2
A-4
A-2
A-1
①
①
①
Step 3
x4
Unscrew
A-4
Tighten
A-4
①
①
Assemble the Framework
1) Unscrew the bolts pre-installed on the bottom of the Post(A-1,A-2,A-4)
align the base plate ①, and lock the base plate ① to the post with
the unscrewed bolts.
A-1
A-2
Step 1
⑦
⑦
⑦
A-4
A-4
7/24

①x 1
A-3
①Step 1
x 1
A-3 ⑩
x 1
③
⑩Step 2
Step 4 Step 3
⑩
A-2
→
x4
Unscrew
①
Tighten
①
⑩
⑩
⑩
Assemble the Framework
2) As shown, slide the motor plug from the top
of the post into the curved cavity on the inside
of the post and pull it out from the bottom.
Unscrew the bolts pre-installed on the bottom
of the Post A-3,align the base plate ①, and lock the
base plate ① to the post with the unscrewed bolts.
8/24

→
Step 1
Step 2
Step 3
B-2
A-1
B-2
A-1
B-4
B-2
A-1
A-4
A-2
A-3
x 2
B-2
B-4
→
→
Assemble the Framework
3) As shown, unscrew the bolts pre-installed on the top of the
Post (A-1, A-2, A-3,A-4), then fix the beam (B-2, B-4) on the
two posts (insert the connectors at both ends of the beam
into the grooves of the two posts respectively).and tighten
the bolts on the beam.
Tighten
x4
B-2
Step 4
→
→
9/24

Tighten
B-1
B-3
B-1
A-1
x 2
x 4
②
B-1
B-3
Assemble the Framework
4) As shown, fix the beam with hook (B-1, B-3) on the two posts
(insert the connectors at both ends of the beam into the grooves
of the two posts respectively).
5) Fixed the post top cover ② on the post with the unscrewed bolts
and tighten the bolts on the beam.
Step 3
Step 2
B-1
x4
Tighten
A-1
Step 1
A-6
B-1
10/24

x 1
⑩
⑪
x 1

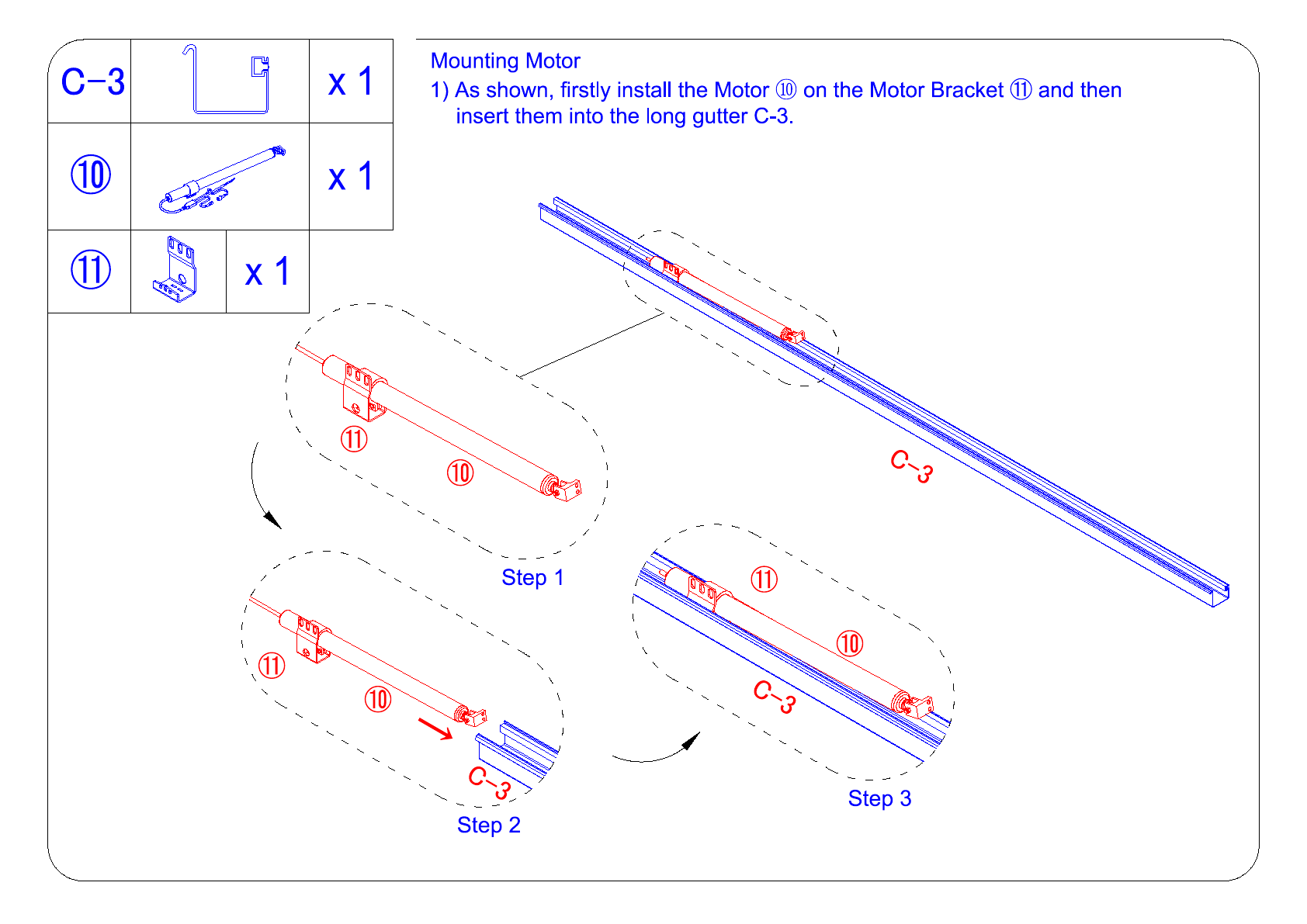

Mounting Motor
1) As shown, firstly install the Motor ⑩ on the Motor Bracket ⑪ and then
insert them into the long gutter C-3.
x 1
C-3
Step 1
Step 2
Step 3
C-3
⑪
→
⑩
⑪
C-3
C-3
⑩
⑪
⑩
11/24

Step1
Step2
Step3
→
C-2
C-3
C-1
C-4
→
Motor
C-2
C-3
C-2
C-3
x 4
C-1
～
C-4

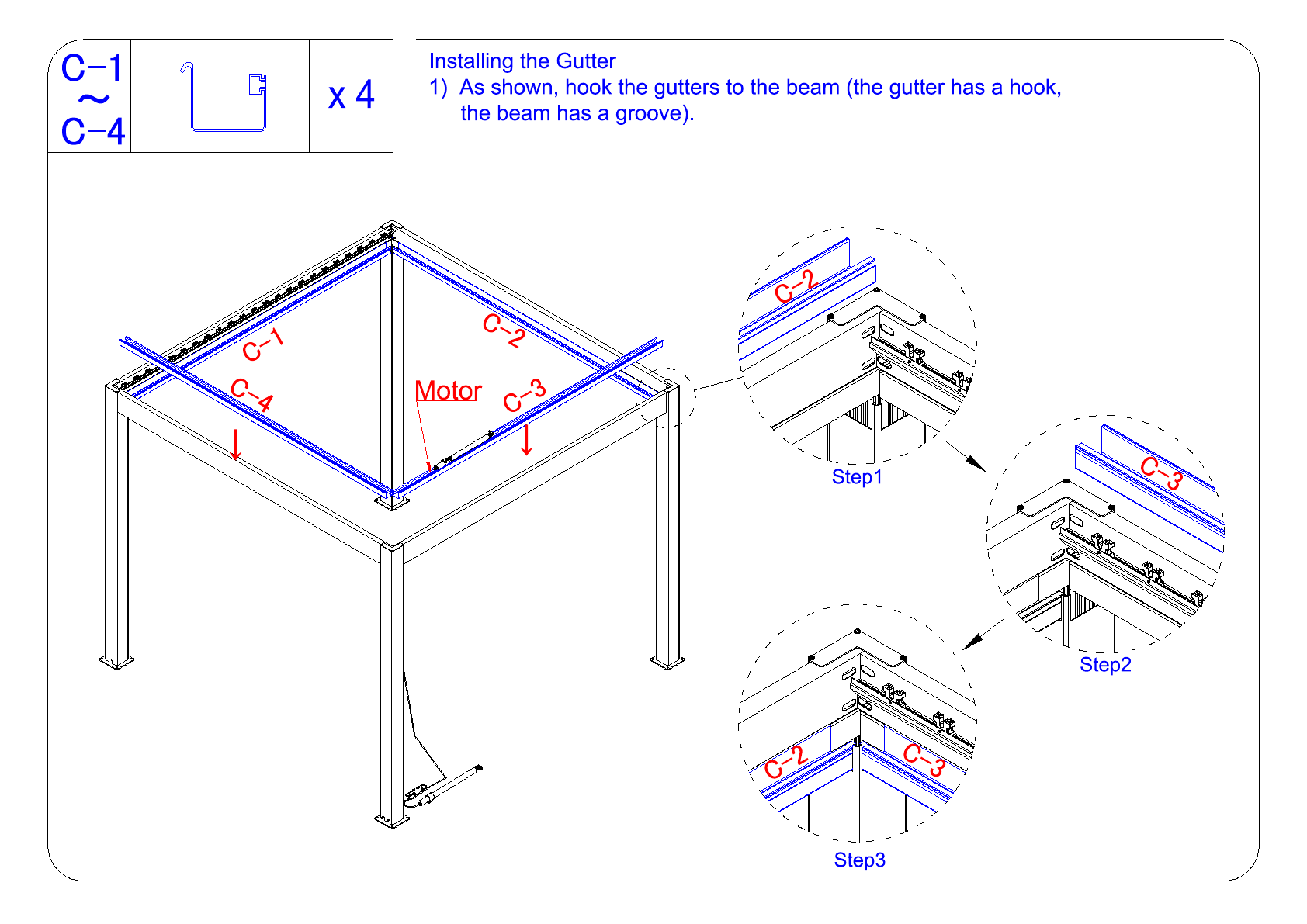

Installing the Gutter
1) As shown, hook the gutters to the beam (the gutter has a hook,
the beam has a groove).
12/24

⑧
Step 1
Step 2
Step 4
Step 3
⑮x4
⑮x4
x 10
⑦
x 16
⑮
Fix Pergola to the Ground and Wall
1) Use the 16 Anchor bolts provided, if the ground is not concrete floor.
You will need to find another solution to bolt your pergola down onto
your desired surface.
2) Move the pergola to the appropriate installation position, then mark the
position of the two posts with the pencil, remove the pergola,
and use the electric drill to make 16 holes according to
the mark. Move thepergola back to the position and
secure the base plate with the anchor bolt ⑮.
It is the responsibility of the user to ensure that the pergola is fixed down. The manufacturer is not
responsible for damage caused by natural disasters or special events to the pergola (or its accessories).
Any pergola that is not fixed may be blown away and cause damage, and this responsibility will not be attributed
to the manufacturer. Check the pergola regularly to ensure it remains stable and firmly attached to the ground.
A pergola that detaches from its position and incurs or causes damage will not be covered under warranty.
90°
⑮x4
⑮x4
⑮x4
⑮x4
Diagonal
13/24

Tighten
Step 1
Step 2
D-1 x 1
x 2
⑩
⑪⑫
x 1
Installing Louvre Blades and mounting Motor
1) As shown, the Driving Blade D-1 clicks directly into the groove.
Then use the upper clip ⑨ to buckle the lower clip.
2) As shown, unscrew the bolts on the beam, move the motor close to this
positionand fix the motor bracket ⑪ to the beam with bolts.
3) Connect the Motor ⑩ arm bracket to the end cap of Driving Blade D-1.
⑨x 2
x 1
Unscrew
x3
→
→→
D-1
7th groove
D-1
Tighten
⑩
⑪
⑫x2
14/24

Installing Wire
1) As shown in the picture, when arranging the motor wires, please put
the wires can be plugged into the rubber cover ③, and then the rubber
cover can be hooked on the beam (the rubber cover has hooks and
the beam has grooves)
x 1
③
⑩
x 1
Step 2
→
③
Local Plug & Socket
1. Do not put near water
2. Plug: 10A, 110 - 240V
Step 1
③
15/24

x 1
Installing Wire
2) As shown,connecting LED strips and power wire.
⑩
Power wire
LED strips
⑩
16/24

Before wiring After wiring
LED wire
Power wire
Neutral wire
Earth wire
Live wire
Plug
Neutral wire (blue)
Earth wire (yellow-green)
Live wire (Brown)
The plug is not supplied
Plug
Note: Please follow the steps to connect the wire
correctly, otherwise the motor will be faulty.
Neutral wire (blue)
Earth wire (yellow-green)
Live wire (Brown)
LED wire
Power wire
17/24

⑨
→→
D-2
⑨
D-2
22 pieces
Common Blade D-2
D-2 x 22
x 44
⑨
Installing Louvre Blades
3) As shown, the Common Blade D-2 clicks directly into the groove.
4)Then use the upper clip ⑨ to buckle the lower clip.
18/24

E
④⑤⑥
Outside Intside
④
⑤
⑥
E
Outside
Intside
④
E
x 2
⑤
⑥
x46
x46
x46
④
⑤
⑥
E
Step 1
Step 2
Installing Louvre Blades
5) As shown, pass the "Clips" through the holes (Control Rod →
Plastic Spacer → Blade cap), and tighten with "Cap clips".
F
19/24
