Voscom VOS-8800FDMT User manual

VOS-8800FDT/R series
8-Channel Video + 8 Duplex Audio Transmission
Installation Manual
Fiber Optic Transmission Systems
VOSCOM TECHNOLOGIES CO.,LIMITED
WWW.VOSCOM.COM
TM

Important Safety Instructions EN_1
1. Readthese instructions. Keep these instructions. Heed allwarnings. Follow all instructions.
5. Donot use this apparatus near water. Cleanonly with dry cloth.
7. Donot block any ventilation openings. Install in accordance with the manufacturers
instructions.
8. Donot install near any heat sources such as radiators, heatregisters, stoves,or other
apparatus (includingamplifiers) that produce heat.
9. Donot defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has twoblades with one wider than the other. Agrounding type plug has two blades and a third
grounding prong. The wideblade or the third prong are provided for your safety. Ifthe provided
plug doesnot fit into your outlet consult an electrician for replacement of the obsolete outlet.
10. Protectthe power cord from being walked on or pinched particularly at plugs,convenience
receptacles, andthe points where they exit from the apparatus.
13. Referall servicingto qualified service personnel. Servicing is required when the apparatus
has beendamaged in any way, suchas power-supply cord or plug is damaged, liquid has been
spilled or objects havefallen into the apparatus,the apparatushas been exposed to rain or
moisture, doesnot operate normally,or has been dropped.
14. Apparatusshall not be exposed to dripping or splashing and that no objects filled with liquids,
such asvases shall be placed on the apparatus.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatusto rain or
moisture.
16. Installation should be done only by qualified personnel and conform to all local codes.
20. CAUTION: These servicing instructions are for use by qualified service personnel only.To
reduce therisk of electric shock do not perform any servicing other than that contained in the
operating instructionsunless youare qualified to do so.
Website:www.voscom.com

Product Overview En_2
The VOS-8800FDT/R can transmission8-Channel
video and 8 duplex analog auido over singlemodeor
multimode optical cable.
Stand-alone orrack-mount. The cards can be inserted
into our 14 slots,19inch 4U or 6U rack-mountable
card cage (VOS-CH04 or VOS-CH06). The card of thismodel require two slots widths.
System Diagram:
Model Number
Transmitter Receiver Fiber Mode Wavelengths Optical
Power
Budget
Maximum
Transmission
Distance
Multi-Mode 1310nm/1550nmVOS-8800FDMRVOS-8800FDMT
•The OpticalPower Budgetdata fitMulit-mode(62.5/125 m),Single-Mode(9/125 m).
•When using50/125 m multimode fiber, subtract3 dBfrom the optical power budget.
•Optical transmissiondistance is limited to optical loss of thefiber and any additional loss introduced by connectors,
splices andpatch panels.
•Maximum transmissiondistance is also limited by fiber bandwidth.
•Power adapteris manufactured by thirdparty and is supplied with fitted screw-terminal outputcables.Power
adapter included(for standalone) US, European, UK or Australian powerplug.
•Please feelfree to consult factory for anyspecial requirement and customization
Note:
10dB 1.2km
Single-Mode
VOS-8800FDSRVOS-8800FDST 12dB 20km
Models and Optical Power Budget:
•24-Bit Digitally Encoded Audio over onefiber
•Multi-mode Fiber Support for Distances up to 1.2 km
•Single-Mode Fiber Support for Distances up to 100 km
•No EMI or RFI and noground loops
•Stand alone or rack-mount
Features:
Video
88
1310nm/1550nm
Single-Mode
VOS-8800FDSR-4VOS-8800FDST-4 18dB 40km
1310nm/1550nm
Single-Mode
VOS-8800FDSR-6VOS-8800FDST-6 25dB 60km
1310nm/1550nm
Audio
88
1 Fiber opticCable
Monitor
VOS-8800FDT
Transmitter VOS-8800FDR
Receiver
8 x Video
8 x Video
8 x DuplexAudio 8 x DuplexAudio
.
.
.
.
.
.
.
.
.
.
8 x Microphone
8 x Microphone
8 xSpeaker
8 xSpeaker
.
.
.
.
8 x Fixed Camera

Panel & Cable Connection En_3
NOTE1: Digital video optic transmitterand receivershould be used in pairs, one is Transmitter
(LED is red), theother is Receiver (LED is green).
FTX
REAR PANEL
DC5V
17
1
1
2
3
Fiber OpticConnector, FC/PC or ST/PC
V1~V8 BNCConnector, 75-ohmanalog video input (Transmitter)/output (Receiver)
Audio Connector, RJ-45Connector, duplexanalog audio1 & audio2 input /output.
FRONT PANEL
LAN1
/EXT1 DATA
AUDIO1
/EXT2 AUDIO2 /EXT3 LAN2 /EXT4
3456
None
1
4
5
6
Audio Connector, RJ-45 Connector, duplex analog audio3 & audio4 input /output.
Audio Connector, RJ-45 Connector, duplex analog audio5 & audio6 input /output.
Audio Connector, RJ-45 Connector, duplex analog audio7 & audio8 input /output.
V1 V2 V3 V4
2
V5 V6 V7 V8
1
7Stand-alone Power supply Connector, DC5V3A Input.

Panel & Cable Connection En_4

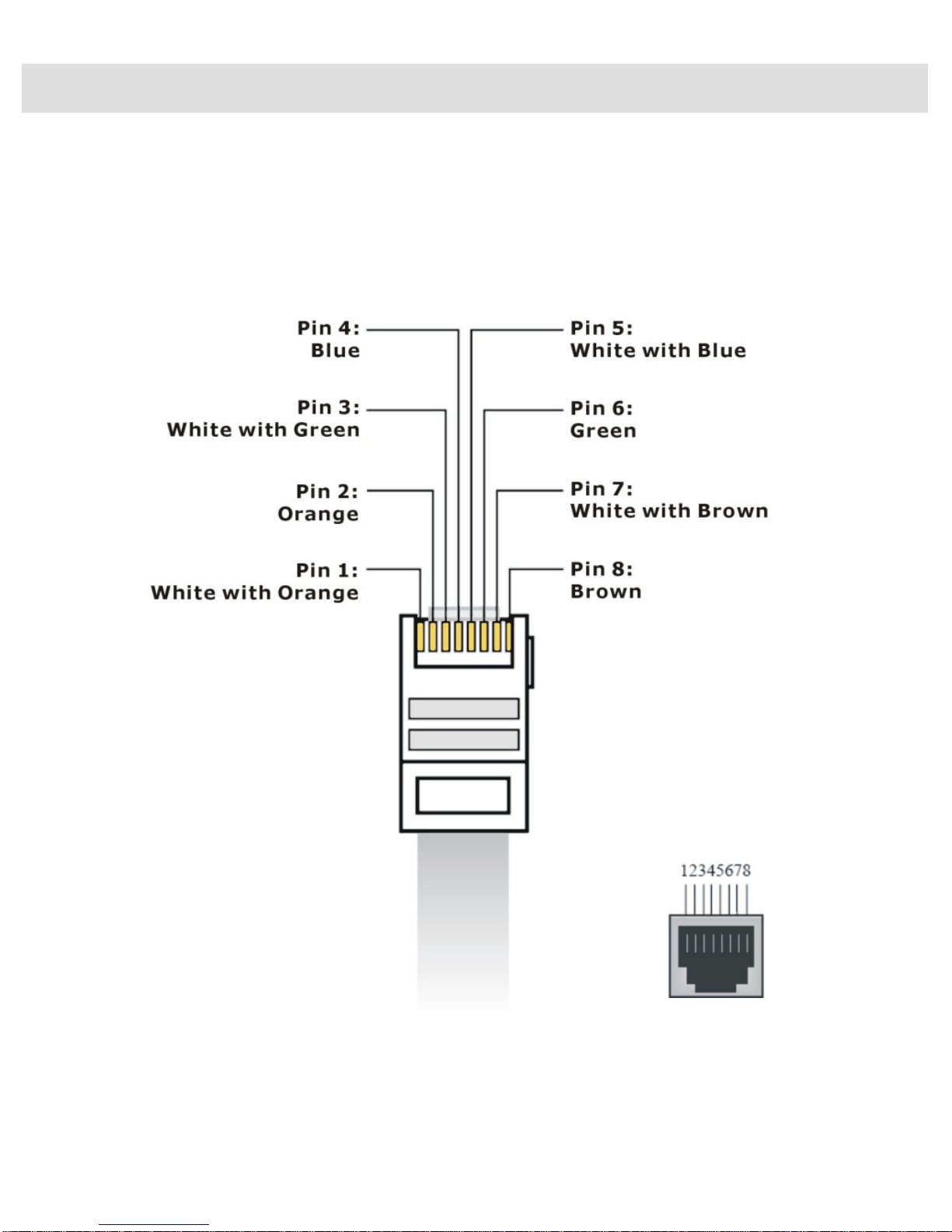

RJ-45 interface specification
Website:www.voscom.com

Panel & Cable Connection En_5

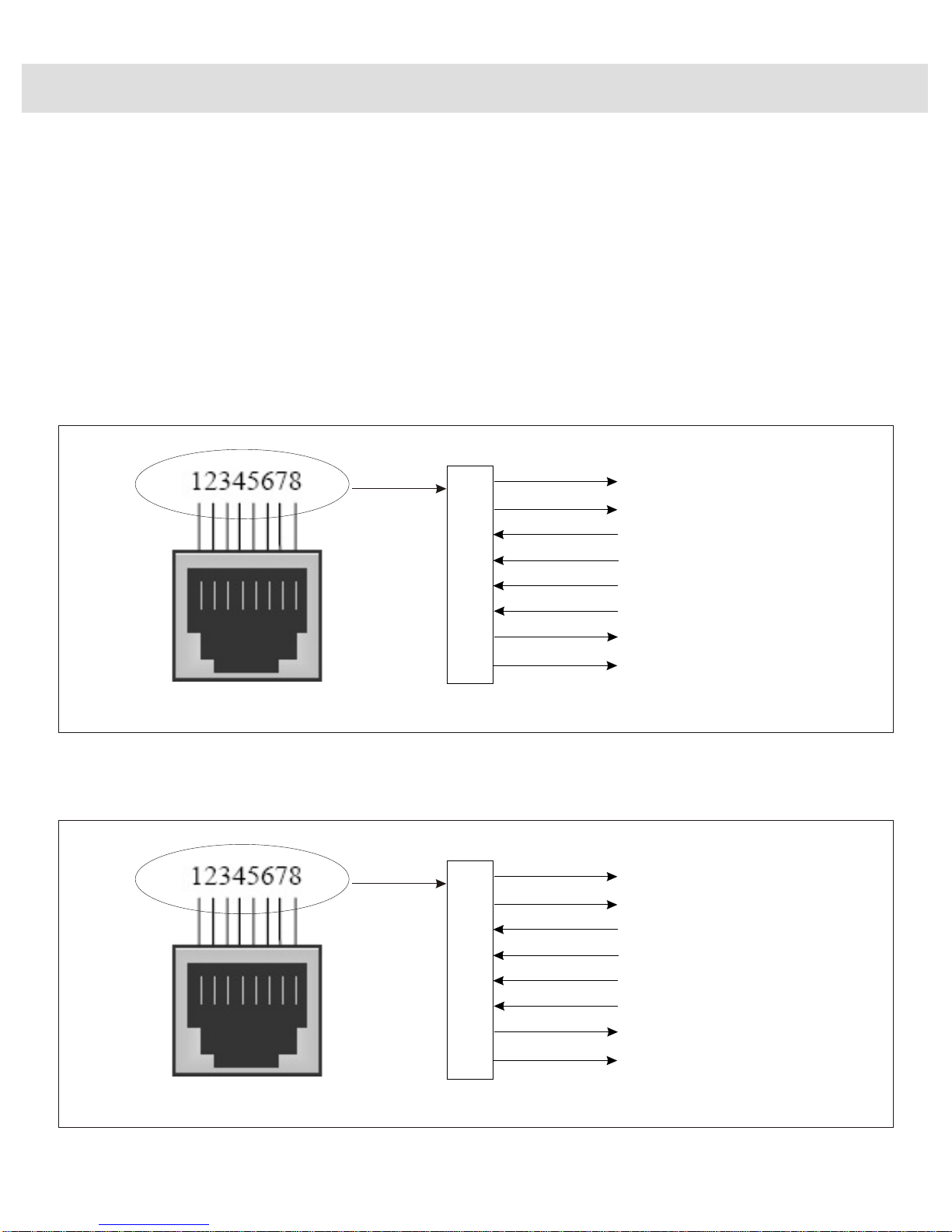

Transmitter (Audio): 8-Channel Duplex Audio Connection (Input/Output)
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Connect Audio1 (Backward)
Connect GND1 (Backward)
1
2
3
4
5
6
7
8
Connect GND1 (Forward)
PIN
Connect Audio2 (Forward)
Connect Audio2 (Backward)
Connect GND2 (Backward)
Connect Audio1 (Forward)
Connect GND2 (Forward)
Input
Input
Output
Output
Transmitter RJ-45LAN1/EXT1 : Audio1 & Aduio2 input/output
Website:www.voscom.com
LAN1/EXT1
Input
Input
Output
Output
Connect Audio3 (Backward)
Connect GND3 (Backward)
1
2
3
4
5
6
7
8
Connect GND3 (Forward)
PIN
Connect Audio4 (Forward)
Connect Audio4 (Backward)
Connect GND4 (Backward)
Connect Audio3 (Forward)
Connect GND4 (Forward)
Input
Input
Output
Output
Transmitter AUDIO1 RJ-45/EXT2 : Audio3 & Audio4 input/output
AUDIO1/EXT2
Input
Input
Output
Output

Panel & Cable Connection En_6
Transmitter (Audio): 8-Channel Duplex Audio Connection (Input/Output)
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Connect Audio5 (Backward)
Connect GND5 (Backward)
1
2
3
4
5
6
7
8
Connect GND5 (Forward)
PIN
Connect Audio6 (Forward)
Connect Audio6 (Backward)
Connect GND6 (Backward)
Connect Audio5 (Forward)
Connect GND6 (Forward)
Input
Input
Output
Output
Transmitter AUDIO2 RJ-45/EXT3 : Audio5 & Aduio6 input/output
Website:www.voscom.com
AUDIO2/EXT3
Input
Input
Output
Output
Connect Audio7 (Backward)
Connect GND7 (Backward)
1
2
3
4
5
6
7
8
Connect GND7 (Forward)
PIN
Connect Audio8 (Forward)
Connect Audio8 (Backward)
Connect GND8 (Backward)
Connect Audio7 (Forward)
Connect GND8 (Forward)
Input
Input
Output
Output
Transmitter LAN2 RJ-45/EXT4 : Audio7 & Audio8 input/output
LAN2/EXT4
Input
Input
Output
Output

Panel & Cable Connection En_7
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Receiver (Audio): 8-Channel Duplex Audio Connection (Input/Output)
Website:www.voscom.com
Connect Audio1 (Forward)
Connect GND1 (Forward)
1
2
3
4
5
6
7
8
Connect GND1 (Backward)
PIN
Connect Audio2 (Backward)
Connect Audio2 (Forward)
Connect GND2 (Forward)
Connect Audio1 (Backward)
Connect GND2 (Backward)
Input
Input
Output
Output
Receiver RJ-45LAN1/EXT1 : Audio1 & Aduio2 input/output
LAN1/EXT1
Input
Input
Output
Output
Connect Audio3 (Forward)
Connect GND3 (Forward)
1
2
3
4
5
6
7
8
Connect GND3 (Backward)
PIN
Connect Audio4 (Backward)
Connect Audio4 (Forward)
Connect GND4 (Forward)
Connect Audio3 (Backward)
Connect GND4 (Backward)
Input
Input
Output
Output
Receiver AUDIO1 RJ-45/EXT2 : Audio3 & Audio4 input/output
AUDIO1/EXT2
Input
Input
Output
Output

Panel & Cable Connection En_8
NOTE: AUDIO SIGNAL AND IMPEDANCE MODE
1) Audio Signal: The audio is Mono Audio in default, can support Stereo audio, butyou
should consultfor us before the order.
2) Impedance Mode: The audiois unbalanced mode in default, can support 600 ohm
balanced audio, but you should consult for us before the order
Receiver (Audio): 8-Channel Duplex Audio Connection (Input/Output)
Website:www.voscom.com
Connect Audio5 (Forward)
Connect GND5 (Forward)
1
2
3
4
5
6
7
8
Connect GND5 (Backward)
PIN
Connect Audio6 (Backward)
Connect Audio6 (Forward)
Connect GND6 (Forward)
Connect Audio5 (Backward)
Connect GND6 (Backward)
Input
Input
Output
Output
Receiver AUDIO2 RJ-45/EXT3 : Audio5 & Aduio6 input/output
AUDIO2/EXT3
Input
Input
Output
Output
Connect Audio7 (Forward)
Connect GND7 (Forward)
1
2
3
4
5
6
7
8
Connect GND7 (Backward)
PIN
Connect Audio8 (Backward)
Connect Audio8 (Forward)
Connect GND8 (Forward)
Connect Audio7 (Backward)
Connect GND8 (Backward)
Input
Input
Output
Output
Receiver LAN2 RJ-45/EXT4 : Audio7 & Audio8 input/output
LAN2/EXT4
Input
Input
Output
Output

Stand-alone Installation En_9
The VOS-8800FDTtransmitter/VOS-8800FDR receivercan be mounted into a rackor can be used as
a stand-alonemodule. As a stand-alone module, the unit can be placed on a desktop or can be
mounted to a wall.
NOTE: Before mounting the VOS-8800FDTtransmitter/VOS-8800FDR receiver, pleaseensure that
there is adequate space at both ends forviewing the front-panel LEDsand formaking the various
rear-panel cableconnections.
Stand-alone Mounting Size: 176.5mm x 158mm x 59mm
Website:www.voscom.com

Rack-mount Installation En_10
Installation Instructions
Typical Configurations:
1:Install the video card into a standard 19inch rack, usinguser-supplied rack-mounting
hardware. Becareful to not damage exposed objects on the back of the card cage unit.
2:If asecondary earth ground connection is needed,a grounded wire with a ground lug can be
attached to the rackusing the protruding screw provided on the right side of the chassis.
3:If desired, blank panels may beinstalled to cover unused slots. A single blank panel coversa
single slot opening.
4:Each fiber optic plug-in module is equipped with a POWER LED indicator that illuminates
when power is applied to the rack unit.
5:Fiber optic plug-in modules(video cards) can be installed into anyof the available 14slots
of thecard cage. Most modules require onlya single slot width, but others, such as the 8-Ch
video Series, require two slot widths.
VOS-CH04:
19 inch4U,14 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.
Support oneslide-in power supply AC100V~AC240V
VOS-CH06:
19 inch6U,16 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.
Support two slide-in power supply AC100V~AC240V, onefor redundancy.
Website:www.voscom.com
The VOS-8800FDTtransmitter/VOS-8800FDR receivercan beinstalled into our rack mount chassis,
VOS-CH04 orVOS-CH06, which can be mounted into an industry-standard 19-inch equipmentrack.

Troubleshooting En_11
Indicator Status Meaning Possible Cause Corrective Action
Power LED
Light Power isbeing applied
to the module. --- No actionrequired.
Not Light Power isnot being
applied to the module.
Check powerconnection.
If moduleis rackmounted,
reseat moduleor power
supply asnecessary.
Power connectionis
faulty.
Power supplyhas failed. Replace powersupply.
Loss ofpower occurs due
to trippedcircuit
breaker(s), blownfuse(s),
or faultyelectrical
service.
Check circuit breaker(s),
fuse(s), orelectrical
service asnecessary.
LED indicators on thefront-panel of the transmitter/receiverallow youto monitor signal status,
laser status,data activity, contact closure activation, and operatingpower. Table A~D provide
information aboutthe front-panel indicators and associated troubleshooting guidelines.
Table A: Power Links
Indicator Status Meaning Possible Cause Corrective Action
Video LED(VIDEO 1,VIDEO 2....)
Light Incoming video signal
is present on thechannel. --- No actionrequired.
Not Light
on Transmitter Incoming video signal is not present on the
channel.
Check power connection
to the video source.
Video source is not
powered on.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable is
defective. Replace cable.
Table B: Video Links
Not Light
on Receiver Incoming video signal is not present on the
channel.
Optical signal is not
being receivedfrom the
transmitter. Optic Fault
LED is also not light.
Refer tothe Optic Fault
LED section in this table.
Video source is not
powered on. Check power connection
to the video source.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable connected
to the transmitter is
defective.
Replace cable.
Website:www.voscom.com

Troubleshooting En_12
Indicator Status Meaning Possible Cause Corrective Action
Data(RS485/RS232/RS422) LED
Flashing
Data is being transmitted
onto the fiber by the data
port or is being received
from thefiber by the
data port.
--- No actionrequired.
Table C: Data Links
Indicator Status Meaning Possible Cause Corrective Action
Optic LED
Light The optical signal is being
received andlaser is
operatingproperly.
--- No actionrequired.
Not Light
Table B: Optic Links
Not Light
Data isnot being
transmitted ontothe
fiber bythe data port or
is notbeing received
from thefiber by the
data port.
Data isnot present on
the channel. No actionrequired.
Data connectionis faulty. Check dataconnections.
Data communication
cable isdefective. Replace cable.
The optical signal is
not beingreceived.
Remote fibermodule is
not poweredon. Check power connections.
Replace powersupply if
necessary.
Fiber optic cable is not
connected. Check fiberoptic
connections.
Fiber optic cable
connectors aredirty or
are damaged.
Clean, polish, or replace
fiber opticcable
connectors asnecessary.
Fiber optic cable is
defective. Replace cable.
A problemexists with
the optical power
budget.
Verify thatlosses in fiber
optic cable do not exceed
the optical power budget
specification of the fiber
optic link. If the losses do
exceed theoptical power
budget, contactProduct
Support.
Website:www.voscom.com

Return & Warranty Policy En_13
Warranty Introduction
All VOSCOM manufactured productsare warrantedto be free from defects in manufacturing and
materials forthe warranty term of 3 years. VOSCOM will repair or replace any equipmentor parts
proved tobe defectiveduring the term of the warranty.
VOSCOM shall not beobligated to replace or repair equipment that has been damaged by fire,
war, acts of God, or similar causes, or equipment that has been serviced by unauthorized
personnel, altered,improperly installed or abused.
This Returnand Warranty Policy Statement applies to VOSCOM equipment purchased directly
from VOSCOMTechnology Co.,Ltd. If you did not acquire the VOSCOM equipment directly, return
the equipmentto the place of purchase.
Returning VOSCOM products
Before youcan return any product to VOSCOM, you mustobtain a Return Material Authorization
(RMA). Thisapplies to all product returns, including warranty repair/replacements, nonwarranty
repairs, advancereplacements, and credit returns.
To obtain an RMA, (Download from www.voscom.com), and please complete the RMA asmuch
detail aspossible, then send the RMA to our customer service support:
FAX: [phone]
