VPG BLH Nobel KIMD-1 User manual

To achieve good weighing results, always use flexible connections
to the vessel and check that no ladders or other arrangements
connect the weighed vessel to surrounding foundation, walls or roof.
www.blhnobel.com
Advices for mounting
KIMD-1 and KOM-1
Example of LOAD MODULE orientation
Document no. 35126
Publication 850 205 R
4
© Vishay Nobel AB, 2010
-07-28
Subject to changes without notice.

Check again the measure "x" between
BRACKET and YOKE, and that the
lateral play between YOKE and LOAD
CELL is preserved.
For installations with four LOAD
MODULES or more, the LOAD CELL
output signals should be checked.
Add shims between vessel support and
YOKE to achieve similar signal levels.
LOCKING
PLATE
Recommended loading
point. Check measure "x"
between BRACKET and
YOKE.
Standard LOAD MODULE
t
1
2
3
4
Check that there is
a lateral play between
YOKE and LOAD CELL by
making sure that it is aligned
with the LOAD CELL.
5
6
7
8
Mark the hole pattern and drill.
Mount the bolts; re-position
the LOAD MODULES
and the vessel.

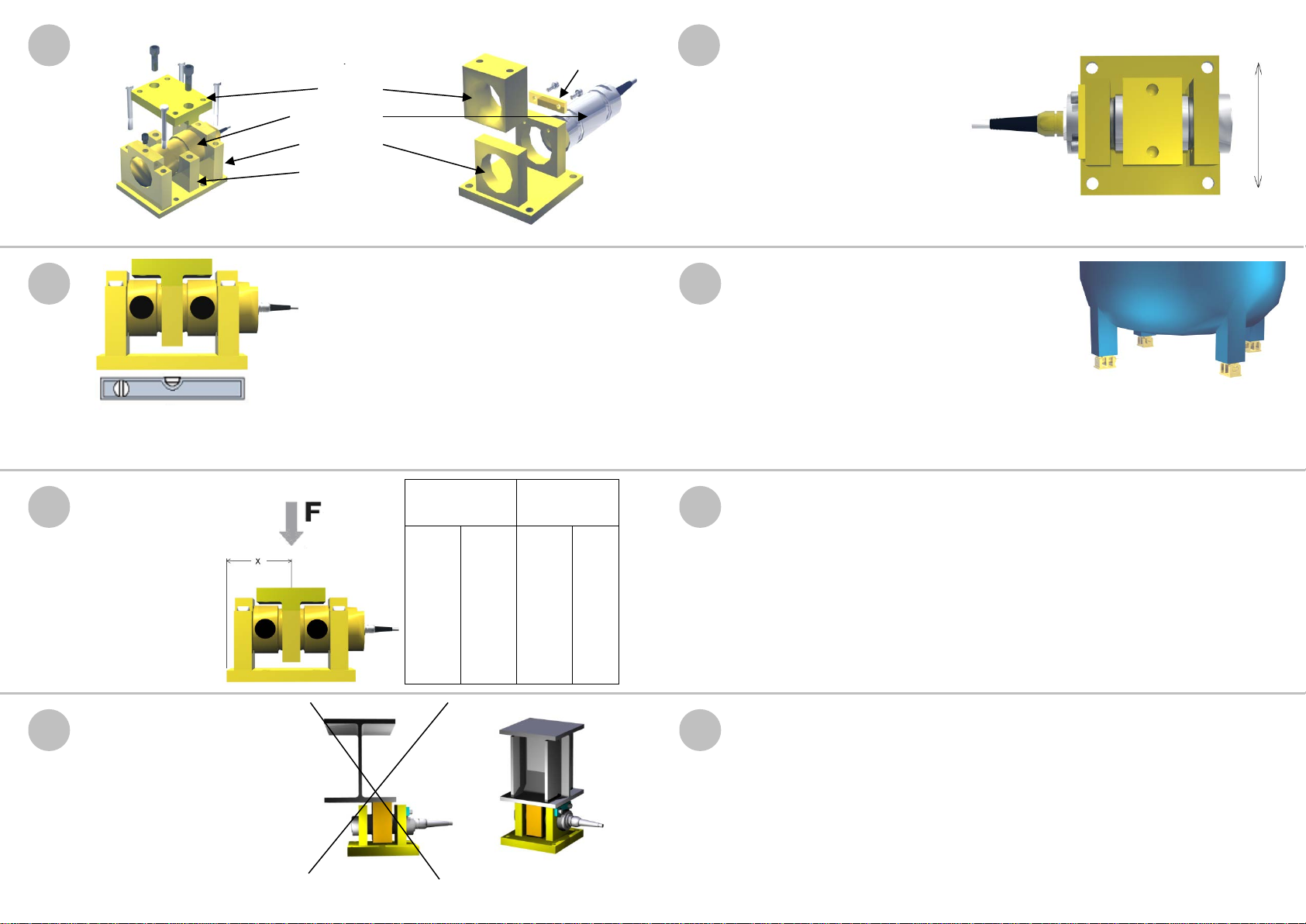

Assemble LOAD CELL, BRACKET, and YOKE to one LOAD MODULE.
TILT GUARD
BRACKET
LOAD CELL
YOKE
Important notices:
IMPORTANT! WHEN DELIVERED THE MODULES ARE
ONLY MOUNTED FOR TRANSPORTATION!
Tighten all bolts and nuts according to engineering standards.
Do not perform any welding with the LOAD MODULE in place.
Level the LOAD MODULE within ±1° in
both directions.
KIMD-1 KOM-1
X (mm) X
(mm)
10 kN 37
20 kN 37
50 kN 65
100 kN 60
200 kN 70
500 kN 140 500 kN 125
800 kN 140
Attach YOKES under the vessel supports
and position the vessel on the LOAD
MODULES. Observe that the bedding
should be horizontal.
Observe loading point
position relative
surrounding mechanical
construction. It is very
important that this is
strong and must be rigid
enough.
Wrong Correct
