VPI MONTEST-DA User manual

1
Handheld Signal Generator
USER MANUAL

2
Table of Contents
1. BEFORE YOU START 3
2. PRODUCT'S COMPOSITION 4
3. ABOUT ODSG-02C 5
3.1 THE DEFINITION 5
3.2 THE FEATURES 5
3.3 THE SPECIFICATION 6
3.4 POWER CONSIDERATIONS 6
4. ENVIRONMENTAL AND RELIABILITY SPECIFICATIONS 6
5. EACH PART'S NAME AND FUNCTION 7
5.1 FRONT VIEW 7
5.2 SIDE VIEW 7
6. INITIAL SETTING MENU 9
6.1 USING INITIAL SETTING MENU 9
6.2 INITIAL LCD WINDOW, AFTER POWER ON 9
6.3 INITIAL DISPLAY SCREEN, AFTER POWER ON 9
6.4 INITIAL MENU SETUP SCREEN 9
7. HOW TO PLAY EACH FUNCTION 10
7.1 HOW TO PLAY THE IMAGES 10
7.2 HOW TO PLAY THE VIDEO 11
7.3 HOW TO PLAY THE AUDIO 12
8. PC DOWNLOAD 13
8.1 USB 13

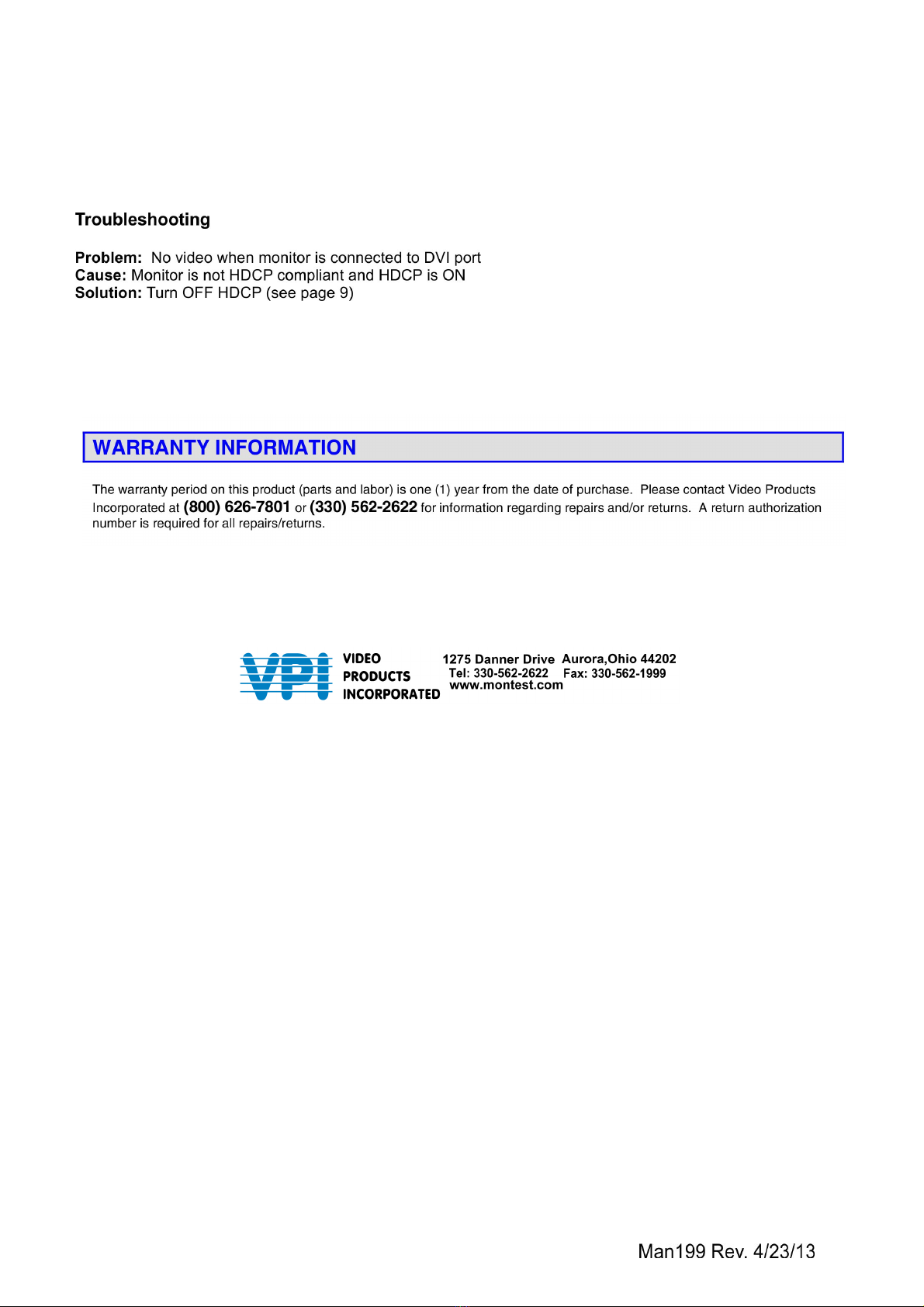

9. A/S SERVICE 14
9.1 CUSTOMER'S RIGHT 14
9.2 WARRANTY LIMITATIONS AND EXCLUSION 14
9.3CONTACT 14
10. APPENDIX 15
10.1 PATTERN IMAGES 15
10.2 FIXED DEFAULT TIME DATA (DEFAULT) 16
10.3 RS-232C COMMUNICATION COMMAND 17

3
1. Before You Start
WARNING: To prevent any risk from your workstation, please beware of important safety
instruction as below;
AC POWER
Unplug the Power Cord of ODSG-02C, after turning off the power switch on the side panel.
The power cord should be unplugged from the outlet, when left unused for a long period of
time. The power cord should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them.
OBJECT AND LIQUID ENTRY
Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never
spill liquid of any kind on the product.
WATER AND DUST
Do not use it near wet or dirty place.
SHOCK DAMAGE
Do not shock or heat.
THE SETUP METHOD
Do not place it on an unstable cart or table etc.
TROUBLESHOOTING
Do not attempt to service this product yourself by opening or removing covers. It may expose
you to dangerous voltage or other hazards. Refer all services to qualified service personnel.
REFERENCE: International Electrical Symbols
On / Off Switch
Conforms to European Union directives
High Definition Multimedia Interface

4
2. Product's Composition
The signal pattern generator, ODSG-02C includes accessories as below.
zAC/DC Adapter (12V/5A)
zPower Cable
zUSER MANUAL
zDVI CABLE
zUSB CABLE

5
3. About ODSG-02C
3.1 The Definition
This ODSG-02C is a battery powered, portable multimedia generator that enables you to
conduct quick, on-site verification test of your video systems. This product can output the
Audio and Video stored in internal HDD through each output port as Digital/ Analog signal.
ODSG-02C is the Multi-Media Test Device for display Inspection of various Projector, HDTV,
PDP, TFT-LCD etc. Especially, it supports both ATSC and DVBFormats of the COMPONENT,
Analog and high resolution HDMI, DVI up to 1080i/p and WUXGA.
3.2 The Features
zBattery powered for portability. Device is powered via internal batteries or
external AC/DC adapter.
zHandheld compact size 220 x 110 x 55mm(W/D/H) and easy operation.
zOffers analog and digital video signals including VESA, SMPTE and CEA
international standards.
zVerify HDCP on sources and displays.
zReads EDID data of connected display and scale a source to fit the
display.
zSupport the DVI (Single) & HDMI format (Ver 1.2) with DVI connector
zSupports all VESA resolutions up to WUXGA (1920x1200)/RB
zProvides various test patterns used by field technicians and engineer.
zProvides easy GUI on LCD panel for Resolution change, EDID, HDCP
and Audio.
zOffers media player function to play movie, music and image.
zIncludes 80GB HDD to store and play AV files.
zIncludes 3.6V/2A x3cell battery for field usage, It lasts for 2 hours but it
depends on operational condition.
zProvides video range function. (Full range for DVI and limited range for
HDMI)
zProvides RS-232 port for remote control.
zEasy firmware updates by USB.

6
3.3 The Specification
zTV/ S-VHS : NTSC, PAL
zDTV (Y/Pb/Pr) : 480i/p, 576i/p, 720p, 1080i/p
zDVI format : VESA standard up to 1920 x 1200(RB)
zHDMI format : Ver 1.2 (480i/p, 576p, 720p, 1080i/p)
zAnalog(15pin ) : 8MHZ-250MHZ(±25ppm)
H: 10KHZ ~ 200KHZ(±25ppm)
V: 10KHZ ~ 200HZ(±25ppm)
Audio: Stereo
zInternal storage : 2.5' HDD (80GB)
zVideo Format: MPG(MPEG1/2/4), AVI(MPEG1/2/4-V3, DivX3/4/5, XVID, VC-1,
DX50), WMV(WMV9), ASF, TS(MPEG Layer), TS(MPEG Layer),
TRP(MPEGLayer): Upto1920x1080P/50,60HZ
zAudio Format: MP3, WMA, AAC, PCM, AC3, WAV, BSAC, WMAPRO
zImage Format: JPEG, BMP, PNG, GIF, BMP, PNG
zImage Resolution: Up to 2048 x 2048
zHDCP Function: Receivable (Ver.1.1)
zDimension(mm) / Weight(KGs): 220 x 110 x 55mm (WDH) / 1kgs
zIP CODE: IPXO
3.4 Power Considerations
The ODSG-02C is a portable battery powered test instrument. It can be used for about 2 hours
without AC/DC power supplier. We recommend you set the screen brightness to the minimum level
to extend the operation time. Turn the unit off if you do not use it for a long time.
.
Battery status LED
Red: low battery, need to be charged.
Yellow: charging
Green: charged
※ If there is any trouble with the battery, please contact your Distributor or Reseller.

7
4. Environmental and Reliability Specifications
1. Operating Conditions
•Temperature : 10°C ~ 40°C
•Humidity : 10% - 80%, non-condensing
•Altitude : maximum 3,000m
2. Storage Conditions
•Temperature : -20°C - 45°C
•Humidity : 5% - 95%, non-condensing
•Altitude : maximum 3,000m
5. Each Part's Name and Function

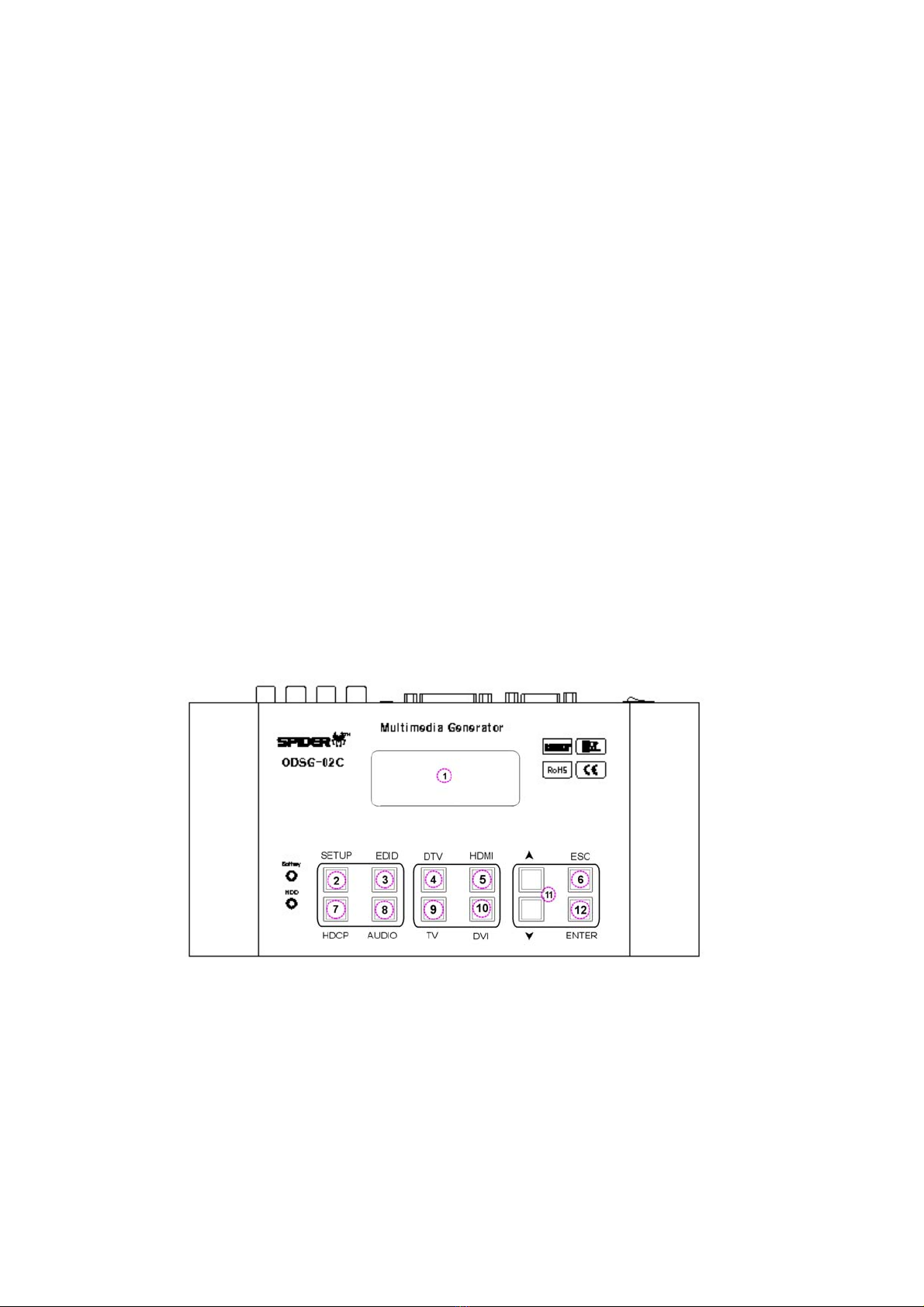

5.1 Front View
①LCD : Shows various information like resolution and timing
②SETUP : Setup menu
③EDID : EDID on/off
※If the display does not have EDID or has abnormal one, the signal is not transmitted
when EDID on.

8
④DTV : Changes the output as DTV.(Component)
⑤HDMI : Changes the output as HDMI.
⑥ESC : Exits or Cancels the current menu.
⑦HDCP : Key for HDCP on/ off.(High-Bandwidth Digital Content Protection)
⑧AUDIO : Turns on or turns off the audio output.
⑨TV : Changes the output as TV.(NTSC, PAL)
⑩DVI : Changes the output as DVI.
⑪: Moves up or move down the files listed on.
⑫ENTER : Executes the operation.
⑬BATTERY LED: Shows the battery condition.

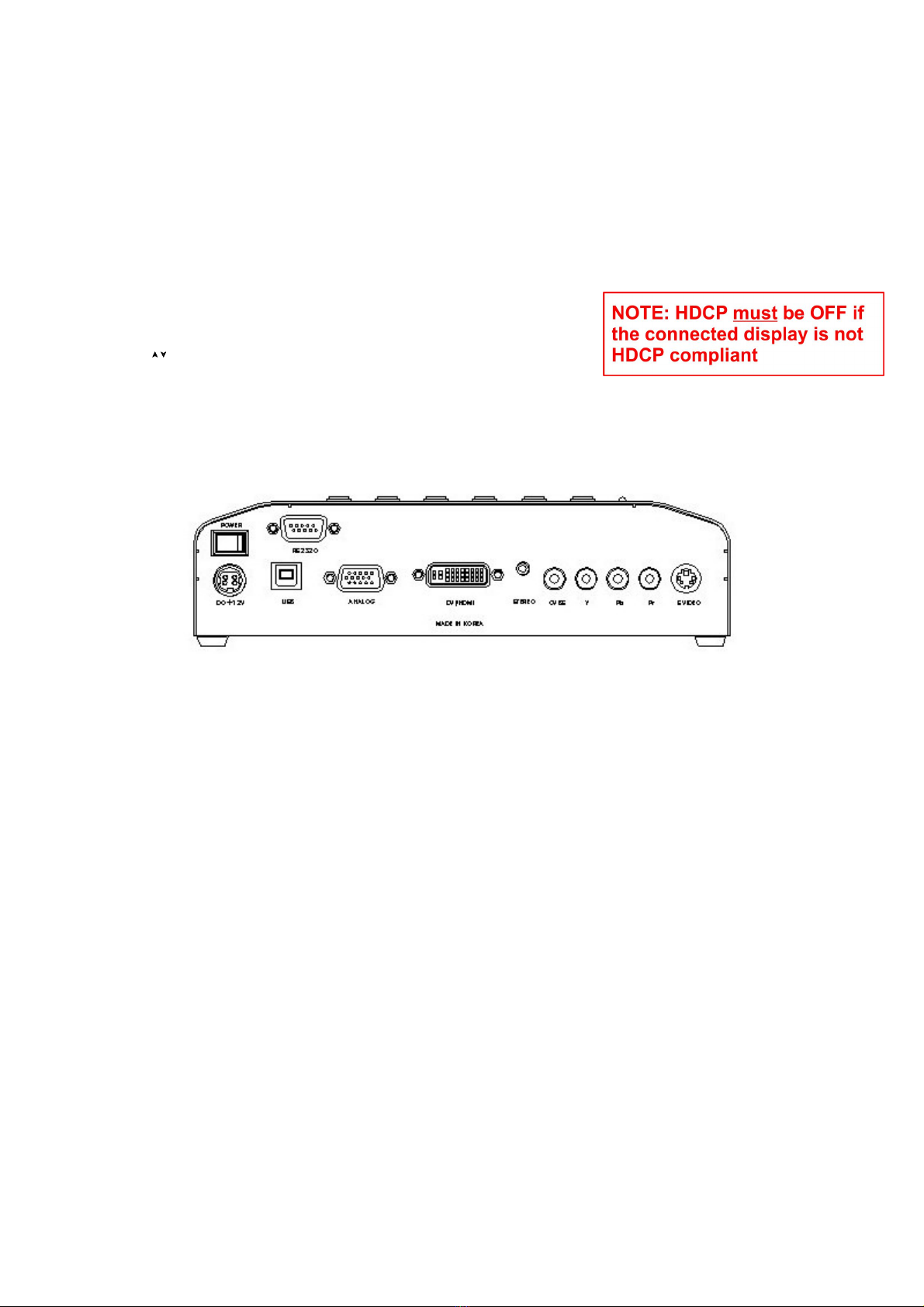

5.2 Side View
① Power ‘On/Off’ switch.
② DC 12V/5A Power receptacle.
③ USB B port. (Up-load or Download the firmware and Media files)
④ Analog output port. (15pin D-sub)
⑤ DVI port (DVI/HDMI format)
⑥ Audio output port. (Stereo)
⑦ TV format output port. (CVBS / S-Video).
⑧ D-TV format output port. (Component, YPbPr)
⑨ RS-232C port. (Remote control).
①
②③④
⑤⑥⑦⑧⑦
⑨

9
6. Initial Setting Menu
6.1 Using Initial Setting Menu
Turn on the power and press the ‘setup’ key.
It makes you control EDID, HDCP and audio as well as video type, resolution and timing.
6.2 Initial LCD Window, After Power On
6.3 Initial Display Screen, After Power On
6.4 Initial Menu Setup Screen
Initial setting Direction
[Key directions] *Enter key: Select contents. *Up/Down key: Changing value.
Output Mode Selects the resolution and timing
Range Setup Level Sets the level of range (3 mode)
①AUTO: Automatic range set up per output mode.
②Full range: 0 - 255 for DVI format
③Limit range: 16 - 235 for HDMI format
HDCP Set the HDCP (On/Off)
EDID Set the EDID (On/Off)
Ratio Select ratio (16:9 or 4:3)
Real Image Real image size
①On: Shows real size
②Off: Shows the resolution size
Slide show Automatic test pattern scroll (On/Off)
Slide Time Sets the interval of slide show
Output information (Video mode and format)
EDID On/Off, AUDIO On/Off
HDCP On/Off, Screen Ratio
Image Slide On/Off, Firmware version
*Shows the information of video mode and format
*Folder in HDD

10
7. How to play each function

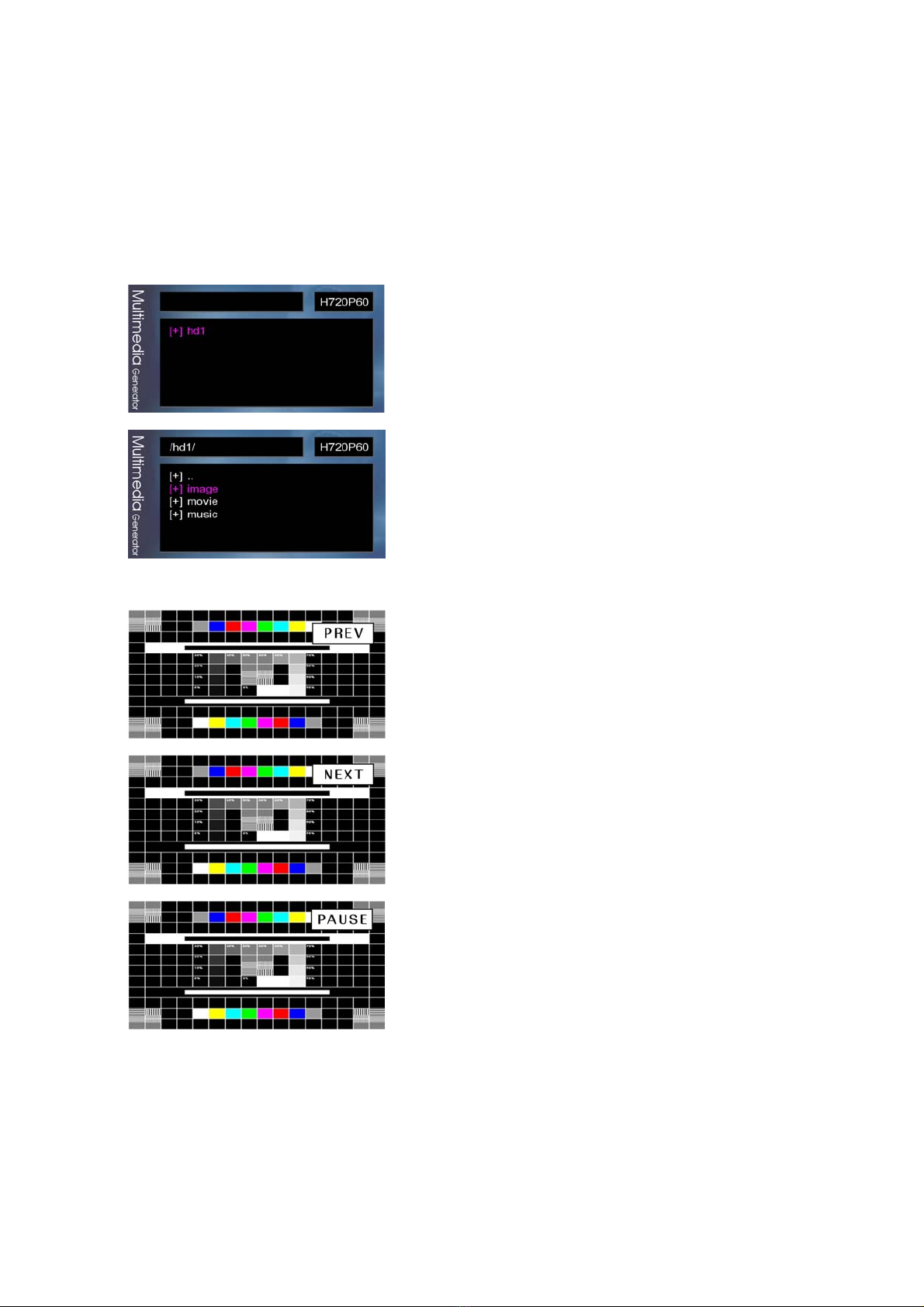

7.1 How to Play The Images
3) Select the one of Image files, and then press ENTER key to show the Image on the display.
4) Press ESC key to go to previous menu.
1) Press Enter key to select the [+] hd1.
2) Press Enter key again to select [+] images folder.
Press ▲key to show the previous image listed in the image
folder.
(If the shown image file is the first pattern file in the image
folder, it makes you go to previous menu.)
Press ▼key to show the next image listed in the image
folder.
(If the shown image file is the last pattern file in the image
folder, it makes you go to previous menu.)
If you run slide show, the display will show PAUSE message. By
pressing Enter key once, you can pause the slide show and
pressing it once again, you can restart the slide show.

11

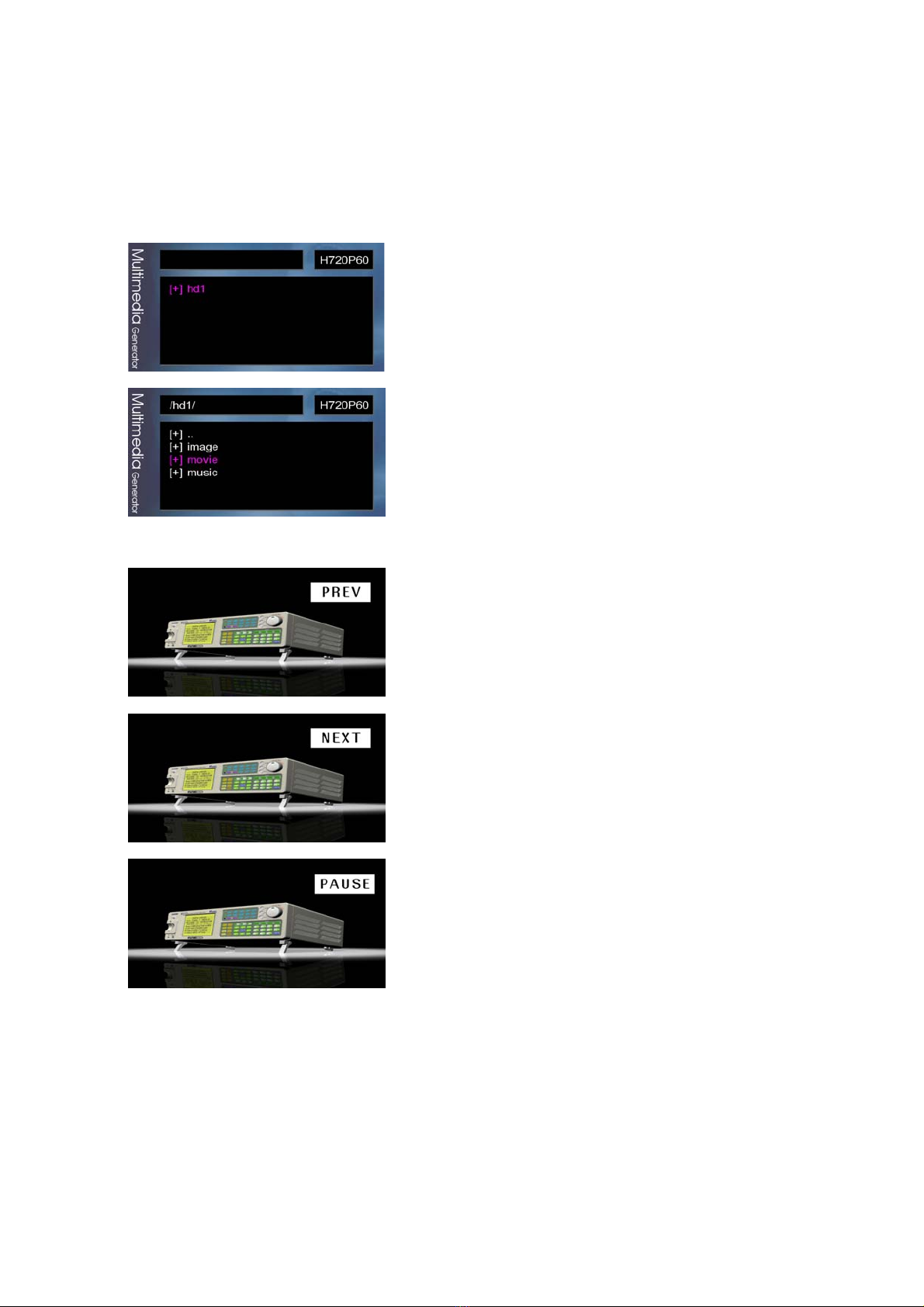

7.2 How to Play The Video
3) Select the one of Video files, and then press ENTER key to play the Video on the display.
4) When the last video file comes to end, the first file will be played automatically
5) Press ESC key to stop the video file and go to previous menu.
1) Press Enter key to select the [+] hd1.
2) Press Enter key again to select the [+] movies.
Press ▲key to run the previous video file listed in the
movie folder.
(If the running file is the first video file in the video folder,
it makes you go to previous menu.)
Press ▼key to run the next video file listed in the movie
folder.
(If the running file is the last video file in the video folder,
it makes you go to previous menu.)
If you run the video file, the display will show PAUSE
message. By pressing Enter key once, you can pause
the video file and pressing it once again, you can restart
the video file.

12
7.3 How To Play The Audio
3) Select one of Audio files, and then press ENTER key to run the audio file.
4) When the last audio file comes to end, the first audio file will be played automatically.
5) Press ESC key to stop the audio file and go to previous menu.
1) Press Enter key to select the [+] hd1.
2) Press Enter key again to select the [+] music.
Press ▲key to run the previous audio file listed in the
music folder.
(If the running file is the first audio file in the music
folder, it makes you go to previous menu.)
Press ▼key to run the next audio file listed in the
music folder.
(If the running file is the last audio file in the music
folder, it makes you go to previous menu.)
If you run the audio file, the display will show PAUSE
message. By pressing Enter key once, you can pause
the audio file and pressing it once again, you can restart
the audio file.

13
8. PC Download
8.1 USB (Firmware download / copy the media files)
1) If you connect ODSG-02C to PC or laptop by supplied USB cable, you can transfer image,
video and audio files as well as firmware file between them as you do with USB memory or
USB hard disk.
2) To do this
①Turn off the main power of ODSG-02C
②Connect ODSG-02C to PC or laptop by supplied USB cable.
③Turn on the main power of ODSG-02C.
④PC or laptop will detect hard disk in ODSG-02C and the pop-up message will be shown as
below.
▷Firmware Download
Opticis may release new firmware of ODSG-02C to upgrade the system or to debug the
system, if any. In that case, by replace all files in Wongane folder, you can upgrade the
firmware of ODSG-02C. But please do not replace files in other folders.

15
10. Appendix

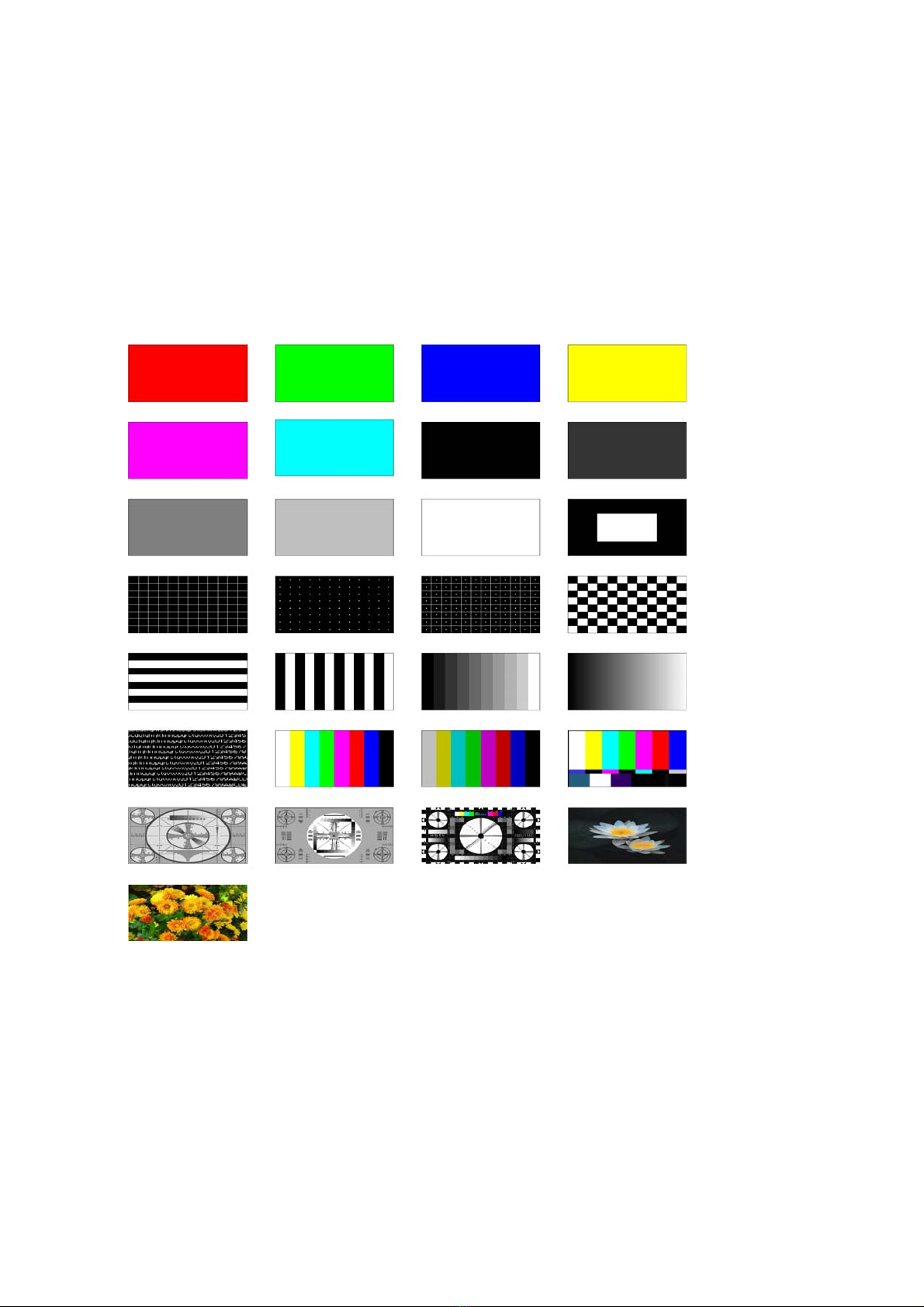

10.1 Pattern Images

16
10.2 Fixed default time data (Default)
Time No. DVI MODE
1 VESA – 640x480 / 60hz
2 VESA – 800x600 / 60hz
3 VESA – 1024x768 / 60hz
4 VESA – 1024x768 / 75hz
5 VESA – 1152x864 / 75hz
6 VESA – 1280x960 / 60hz
7 VESA – 1280x1024 / 60hz
8 VESA – 1280x1024 / 75hz
9 VESA – 1600x1200 / 60hz
10 VESA – 1920x1200 / 60hz
11 VESA – 1280x720 / 50hz
12 VESA – 1280x720 / 60hz
13 VESA – 1280x800 / 60hz
14 VESA – 1280x800 / 75hz
15 VESA – 1360x768 / 60hz
16 VESA – 1440x900 / 60hz
17 VESA – 1440x900 / 75hz
18 VESA – 1680x1050 / 60hz
19 VESA – 1920x1080 / 50hz
20 VESA – 1920x1080 / 60hz
Time No. DTV MODE
13 480i/60
14 480P/59
15 720p/60
16 1080i/60
17 1080p/60
18 576i/50
19 576p/50
20 720p/50
21 1080i/50
22 1080p/50
Time No. HDMI MODE
23 480i/60
24 480P/60
25 720p/60
26 1080i/60
27 1080p/60
28 576i/50
29 576p/50
30 720p/50
31 1080i/50
31 1080p/50
Time No. TV MODE
11 NTSC
12 PAL

17
10.3 RS-232C communication command
*Baud rate 19200
1) 1-byte Command
HEX ODSG-02C HEX ODSG-02C HEX ODSG-02C
0x40 SCAN On 0x50 EDID Info 0x60 DTV50
0x41 SCAN Off 0x51 Size check 0x61 DTV60
0x42 P-DTV 0x52 DTV 0x62 HDMI50
0x43 I-DTV 0x53 HDMI 0x63 HDMI60
0x44 TIME 0x55 RATIO 0x64 720P
0x45 TV (CVBS) 0x57 MENU 0x65 1080I
0x46 COPY 0x59 HDCP 0x66 1080P
0x47 HDCP ON 0x5B AUDIO ON 0x67 PC1
0x48 HDCP OFF 0x5D
A
UDIO OFF 0x68 PC2
0x49 SCAN 0XF2 DOWN 0x69 PC3
0x4A EDID 0XF5 UP 0x6A PC4
0x4B EDID ON 0X0D ENTER 0x6B PC5
0x4C EDID OFF 0X90 S2 Ratio 4:3 0x94 D5 Ratio4:3LT
0x4D RATIO 16:9 0X91 S2 Ratio4:3LT 0x95 D5 Ratio 16:9
0x4E RATIO 4:3 0X92 S2 Ratio 16:9
0x4F ESC 0X93 D5 Ratio 4:3
2) Many-byte Command: PC Control Command
HEX ODSG-02C HEX ODSG-02C
0x07 Resolution Change 0x08 Mode Change (file name)
0x09 File Select 0x0A Slideshow (Image file)
*Example command
1) Mode Change Example: Select the NTSC mode.
Command: 0208084E54534303
Start code
0x02
Data Length
0x08
Command Flag
0x08
Resolution Number
0x4E
0x54
0x53
0x43
End code
0x03
①
②
③
④
(
N
)
⑤
(
T
)
⑥
(
S
)
⑦
(
C
)
Data Length 1 byte
⑧Data Length 8 byte

18
2) Resolution Change Example: Select time number (3) three. VESA – 1024x768 / 60hz
Time (Resolution number): Please go to page 16.
Command: 02070730303303
Start code
0x02
Data Length
0x07
Command Length
0x07
Resolution Number
0x30
0x30
0x33
End code
0x03
3) Image Slide Show Example (Time Range: 1~60sec.)
Time Range 3sec.
Command: 02070A30303303
Start code
0x02
Data Length
0x07
Command Length
0x0A
Time Range
0x30
0x30
0x33
End code
0x03
①
②
③
④
(
0
)
⑤
(
0
)
⑥
(
3
)
⑦
Data Length 1 byte
Data Length 7 byte
①
②
③
⑦
Data Length 1 byte
Data Length 7 byte
④
(
0
)
⑤
(
0
)
⑥
(
3
)

19
4) File Select Example
File directory: hd2/movie/king.avi
Command: 02 22 09 68 64 02 2F 6D 6F 76 69 65 2F 6B 69 6E 67 60 61 76 69 03
Start code
0x02
Data Length
0x22
Command Flag
0x09
File directory
0x68
0x64
0x02
0x2F
0x6D
0x6F
0x76
0x69
0x65
0x2F
0x6B
0x69
0x6E
0x67
0x60
0x61
0x76
0x69
End code
0x03
1
2
3
4
(
h
)
5
(
d
)
6
(
2
)
7
(
/
)
Data Length 1 byte
22 Data Length 22 byte
8
(
m
)
9
(
o
)
10
(
v
)
11
(
i
)
12
(
e
)
13
(
/
)
14
(
k
)
15
(
i
)
16
(
n
)
17
(g)
18
(
.
)
19
(
a
)
20
(
v
)
21
(
i
)

20
