vSync BGPS-4SI User manual

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
2
TABLE OF CONTENTS
HDD JUMPER SETTING: HDD = MASTER1. INTRODUCTION .....................................................4
1. INTRODUCTION ..........................................................................................................................5
1.1. Overview.....................................................................................................................................................................5
1.2. Summary of the Specifications of BGPS-4SI..........................................................................................................6
1.3. Packing List................................................................................................................................................................8
2. PRODUCT DESCRIPTION...........................................................................................................8
2.1. Operation Panel .........................................................................................................................................................8
2.2. Rear Panel ..................................................................................................................................................................9

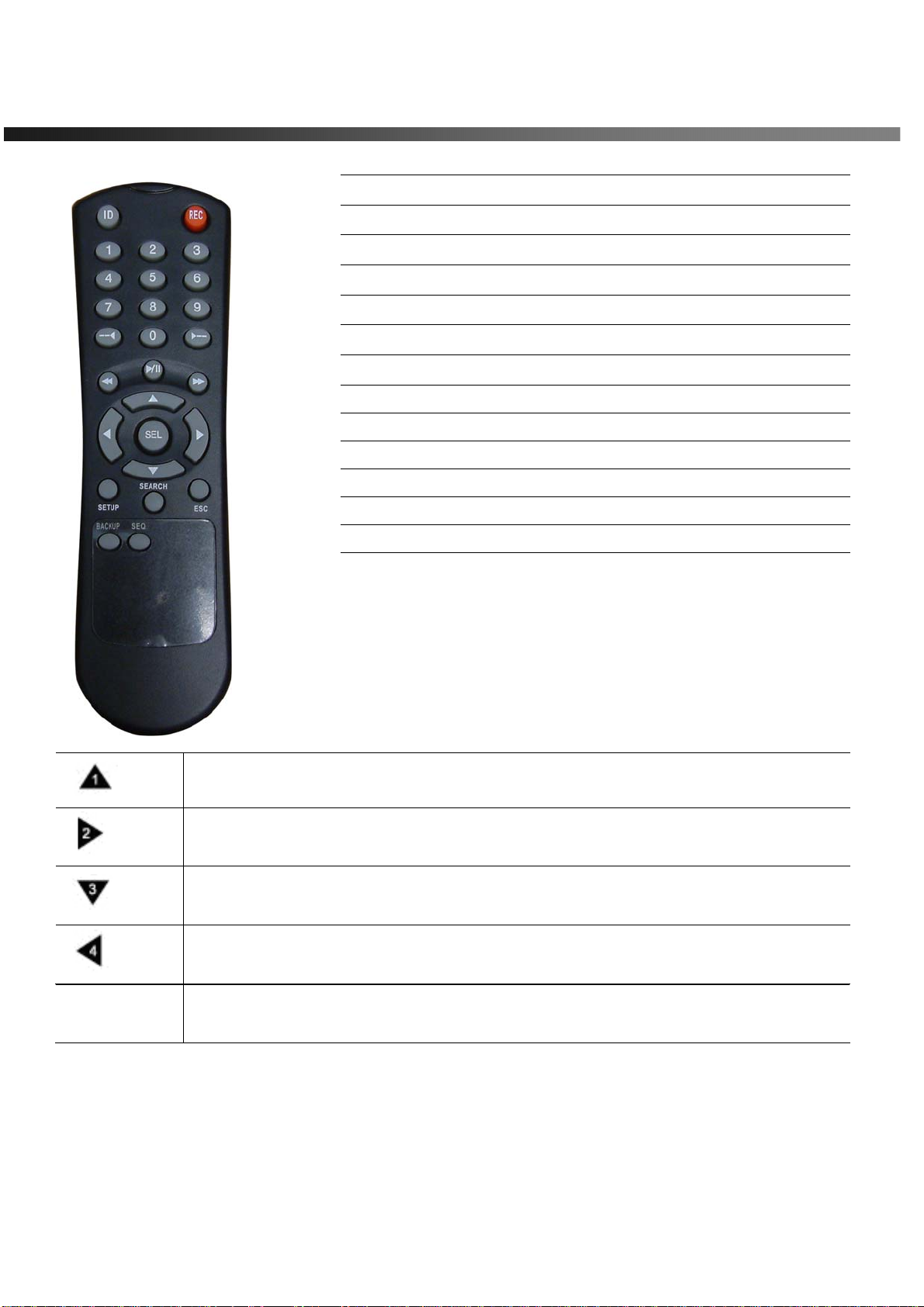

2-3. Remote Controller ...................................................................................................................................................11
3. GETTING STARTED – SETTING UP THE DVR ........................................................................12

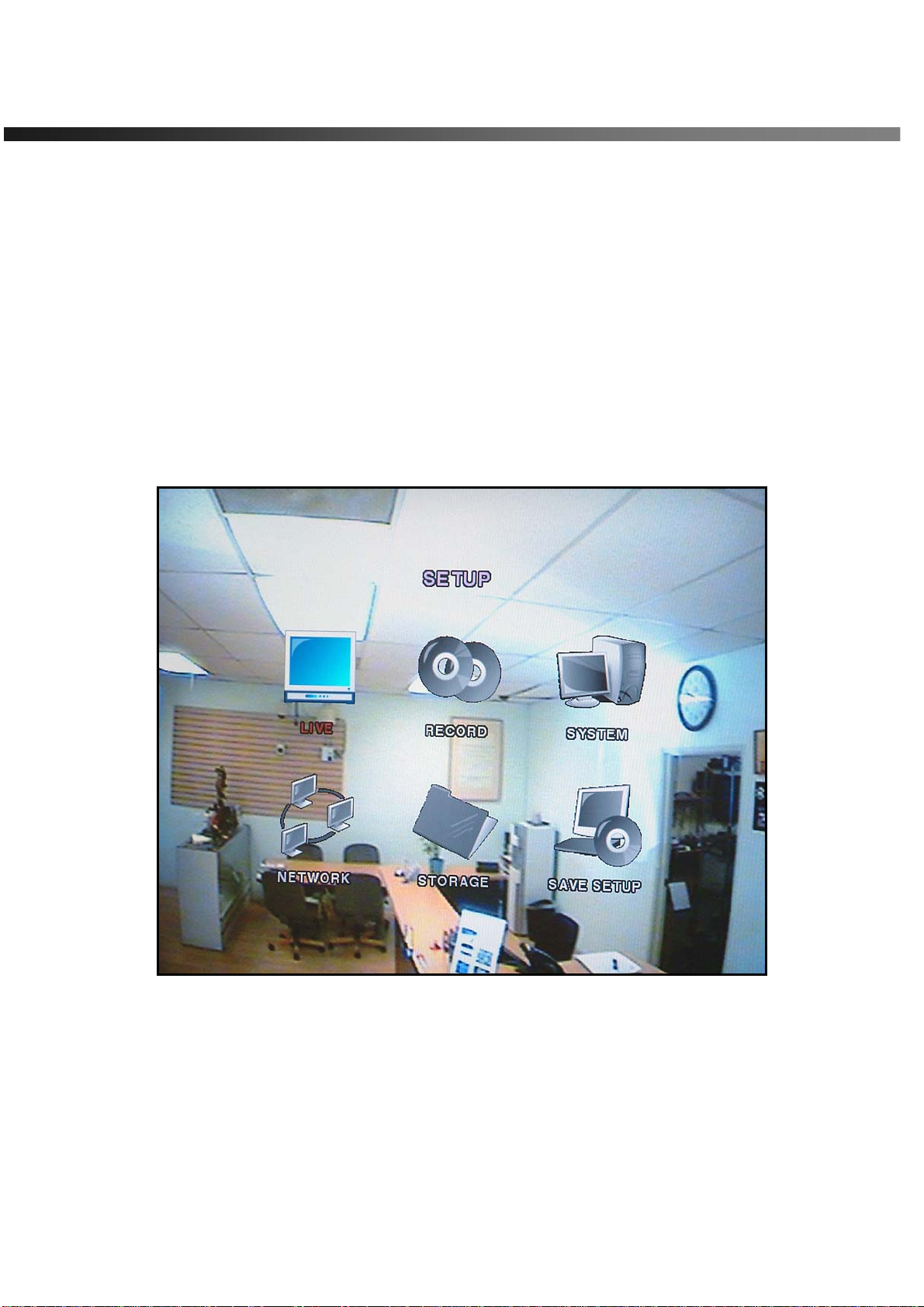

3-1. Setup – Main Screen ...............................................................................................................................................12
3-2. Setup – Live..............................................................................................................................................................12
3-3. Setup – Recording Mode ........................................................................................................................................14

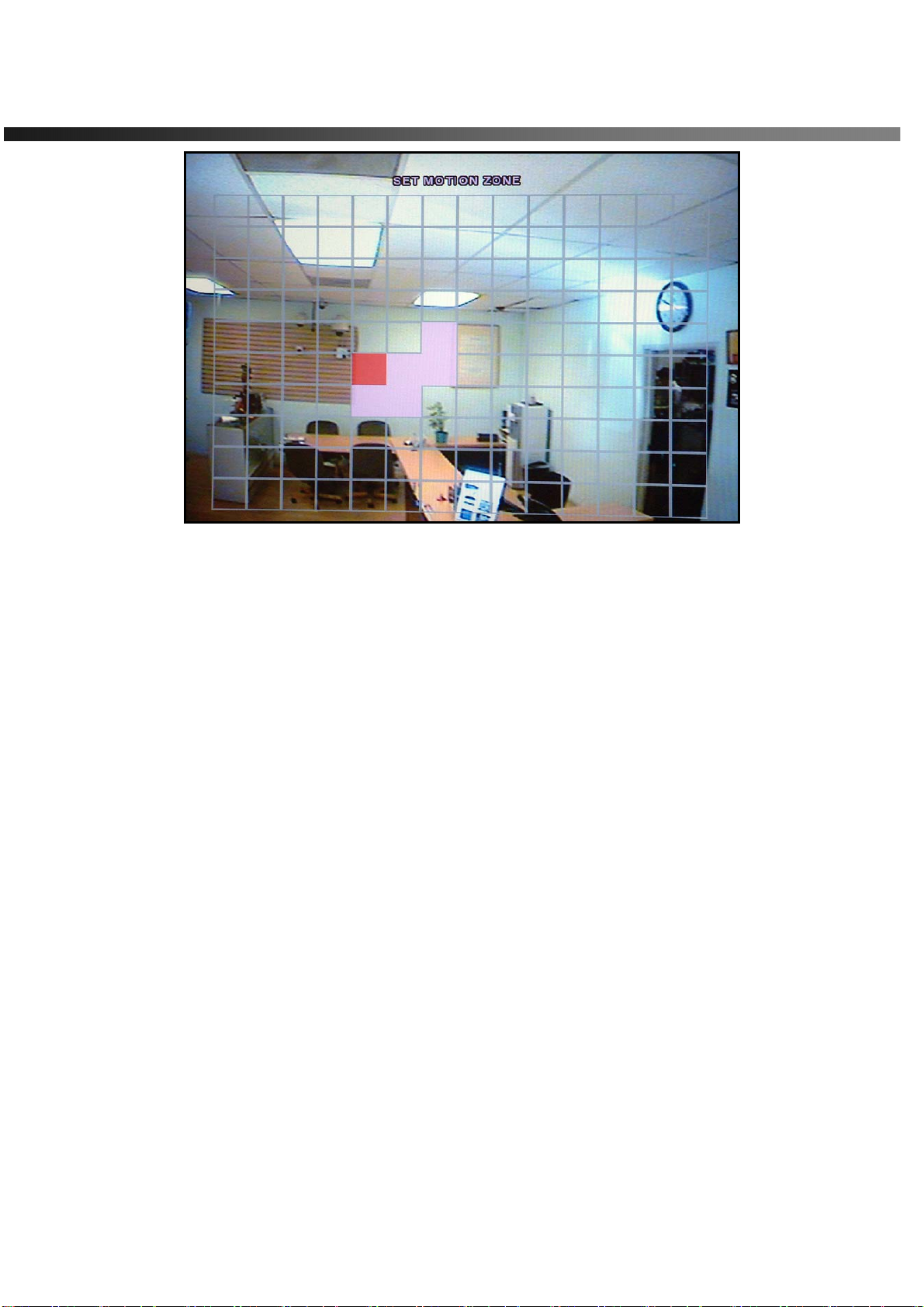

3-3-1. Motion Zone set up...........................................................................................................................................15

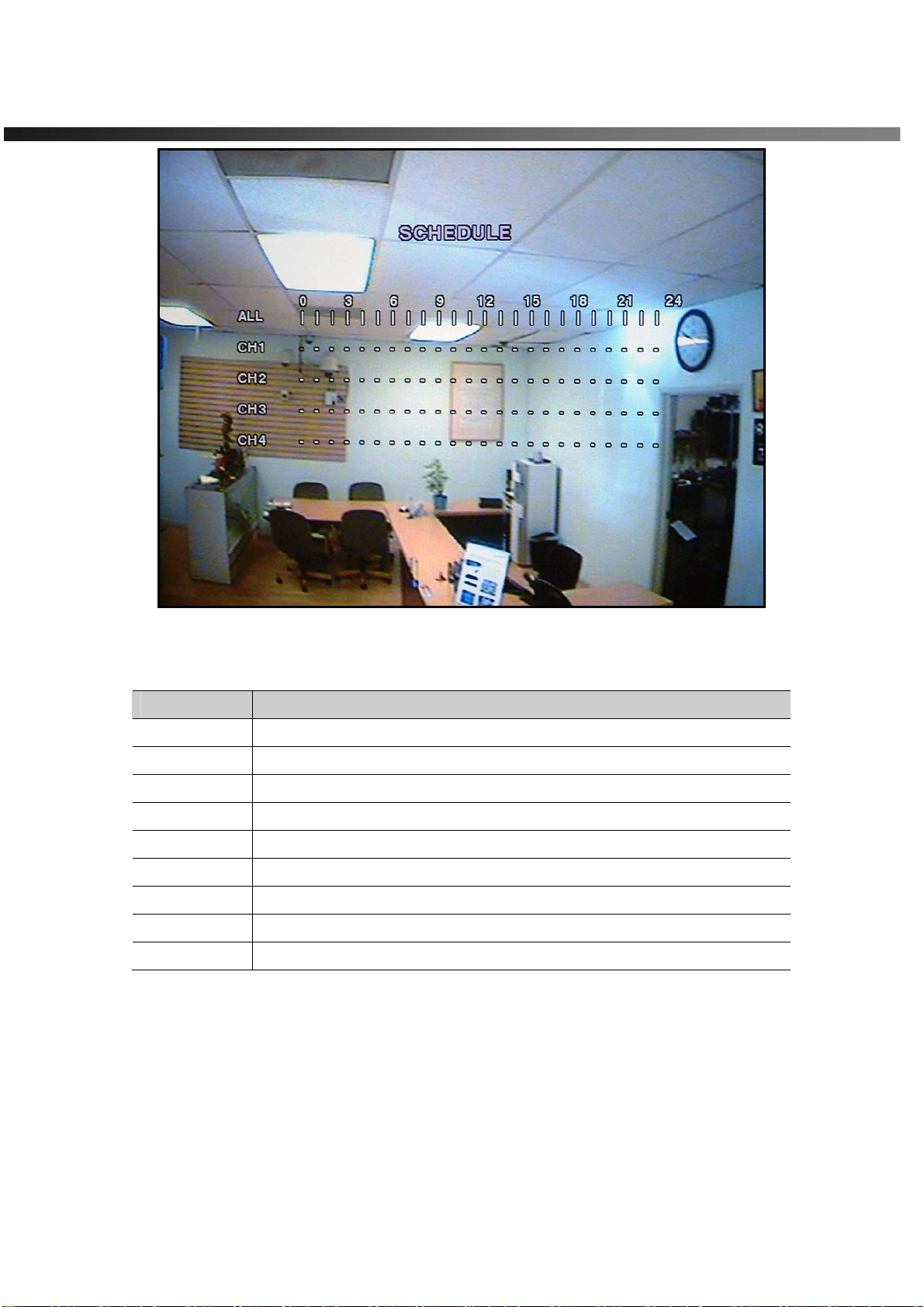

3-3-2. Record Schedule ..............................................................................................................................................16
3-5. Setup – System Mode .............................................................................................................................................17
3-7. Setup – Network Mode ............................................................................................................................................21
3-7-1. Ports...................................................................................................................................................................22
3-7-2. Network Types ..................................................................................................................................................23
3-8. Setup - Storage Mode..............................................................................................................................................24
3-9. Saving Setup............................................................................................................................................................25

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
3
4. LOCAL VIEWING .......................................................................................................................26
4-1. Live Window.............................................................................................................................................................27
4-2. SEARCH Window.....................................................................................................................................................28
4-2-1. EVENT Window .................................................................................................................................................28
4-2-2. TIMELINE Window ............................................................................................................................................30
4-2-3. LOG Window .....................................................................................................................................................31
4-3. Play Mode.................................................................................................................................................................32
5. ARCHIVING VIDEO VIA USB STORAGE DEVICE....................................................................34
5-1. Capturing Images or Video Clip.............................................................................................................................34
5-2. Transferring Still Images or Video Clips onto USB Storage Device...................................................................35
6. FIRMWARE UPGRADE..............................................................................................................38
6-1. Preparing USB storage device with Upgraded Firmware..........................................................................................38
7. NETWORK CLIENT - REMOTE MONITORING AND PLAYBACK............................................39
8. REMOTE SETUP USING EMBEDDED WEB-SERVER OF BGPS-4SI .....................................40

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
4
CAUTION
zTHIS PRODUCT HAS MULTIPLE-RATED VOLTAGES (110V AND 220V). MAKE SURE TO SET THE
VOLTAGE SELECTION SWITCH AT THE REAR PANEL TO THE PROPER VOLTAGE LEVEL OF YOUR
REGION.
zTHIS PRODUCT USES A LITHIUM BATTERY. THERE IS RISK OF EXPLOSION IF THE BATTERY ON THE
MAIN BOARD IS INSTALLED INCORRECTLY. DISPOSE OF USED BATTERIES ACCORDING TO
INSTRUCTIONS.
zTHIS EQUIPMENT AND ALL COMMUNICATION WIRING IS INTENDED FOR INDOOR USE.
zTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR
MOISTURE.
Rack Mount Instructions
A) Elevated Operating Ambience - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should be
given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable grounding of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch circuit (e.g. use
of power strips)."
HDD Installation Guide
HDD JUMPER SETTING: HDD = MASTER

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
5
1. Introduction
1.1. Overview
●Triplex MPEG-4 4 Channel DVR with Real-Time Live Display, Record, and Simultaneous Play Back.
●BGPS-4SI, (BGPS-4SI, Four channel model).
●BGPS-4SI features powerful embedded RTOS (Real Time Operating System).
●MPEG-4 video codec (video encoder/decoder), delivers uncompromised performance providing high
compression plus high quality video images.
●BGPS-4SI increases the days of recording between overwrite periods while improving the quality of video
images. Full triplex capability ensures uninterrupted recording.
●BGPS DVR supports simultaneous:
1. Video Recording
2. Live Video Monitoring up to 80 cameras
•Locally via video outputs.
•Remotely via BGPS network client software and viSync Central Monitoring Software.
3. Play Back or File archiving via USB 2.0 port
Or
1. Video Recording
2. Remote Playback via BGPS network client software and viSync CMS.
●BGPS software also allows the administrator to remotely connect to, monitor, and manage multiple
networked DVRs. The BGPS software logs the operation, motion, and alarm statuses of sites throughout
the day for later analysis. The BGPS software lets you search based on time or event, record on a
remote PC, and retrieve video clips from remote sites.
●BGPS software supports additional powerful remote control features,
zPowerful Live Connection & Customizable Camera Layout up to 80 channels,
zEmbedded Web Server (Remote Configuration of all BGPS DVRs)
zFull Duplex Bi-directional Audio (2-way Communication)
zRecording on Client PC, Alarm/Motion Indicator, eMAP, Digital Live Zoom
zRemote Relay Control, Remote PTZ Control.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
6
●NAFS (Network-Attached File Server) file systems provide a cluster-based network-attached file server
which offers a high level of performance, reliability, and availability.
- Ex. Prevention of data loss and corruption in the event of a power failure.
●Multiplexing operation.
●State-of-the-art live monitoring and playback both locally and remotely.
●Individual channel recording and playback with different frame rates.
●Hidden Channel Mode on selected channels provides extra privacy and uninterrupted recording.
●Embedded Web-Viewer provides direct access using IP address or DDNS address in Internet Explorer.
●Multi-site management via network: up to 80 cameras.
- Supported by BGPS network client software and viSync CMS.
- Remote live monitoring & recording, playback, backup, PTZF control & Presets, relay sensor control,
eMAP, and 2-way communication.
- Remote DVR management via embedded Web-Browser for easy adjustments.
- Mobile phone & PDA viewing integration.
●Network via LAN, DDNS, DHCP, ADSL (Dynamic and Static IP addresses).
●Full duplex 4 Channel G.711 synchronized audio recording and Bi-directional Audio Communication.
●User-friendly setup menu with simplified G.U .I. (Graphic User Interface).
●Easy to schedule weekly recording plans.
●Motion detection – Use the 30x24 grid to define motion zones for each camera.
●Internal Pan/Tilt/Zoom/Focus/Preset controller.
●Easy operation via front panel and optional remote controller.
●Increased security by user name and password verification.
●Video loss detection.
●Backup - Still-images or AVI data onto USB storage device, or Network.
●USB port for JPEG/MPEG data backup and software upgrade using USB storage device.
●Still image capture and review as JPEG format.
●Variety of Hard Drive Sizes - up to 750GB internally (750GB HDD X 1) for long-term recording.
●Multi-Languages - User can easily select language from Setup menu.
●Various Video Outputs - VGA(800x600 24-Bit Color), TV-Out.
1.2. Summary of the Specifications of BGPS-4SI

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
7
Item Description Remarks
Operating System RTOS in firmware
Video Compression MPEG-4(video)
Triplex Function Record/Playback/Live Streaming or Record/USB archive/Live Streaming
Video Input Format NTSC/PAL Auto-Detection
Video Input 4 Ch In
Video Output 1Ch VGA , 1 Ch BNC(Composite)
NTSC 120 frames/sec Real-Time
(Hidden Display Function)
4Ch x 30 frames/sec
Display
Frame
Rate PAL 100 frames/sec 25 frames/sec/Ch
NTSC 120 frames/sec
(Hidden Record Function)
352x240 resolution
Recording
Frame
Rate
(Quad) PAL 100 frames/sec 352x288 resolution
NTSC
30 frame /sec (total) 704 x 480 resolution
Recording
Frame
Rate
(Full) PAL 25 frame /sec (total) 704 x 576 resolution
Record Modes Continuous/Motion/Schedule/Sensor/Manual
Record Quality Normal/High/Super
Resolution
NTSC : 704 x 480(1 CH), 352x 240(Quad)
PAL : 704 x 576(1 CH), 352 x 288(Quad)
Supports CIF and Full D1
Alarm In/Alarm Output 4 Alarm Input (NC/NO selectable) / 1 Relay Output
HDD 3.5”, SATA2 Hard Drive / Min 80GB up to 1 SATA2 HDDs
Motion Detection Motion-Triggered Recording
Search Mode Date/Time/Event Search
Playback Speed 1x, 2x, 4x
USB Archiving (still images in JPEG format, video in AVI format), Firmware upgrade
Upgrade Method USB 2.0 Port or Web-Browser
Network Interface LAN(10/100Base-T), Static, DHCP, PPPoE, and DDNS
XP/Vista
Client PC S/W ( BGPS ) Live Connection & Customizable Camera Layout up to 80 channels
Embedded Web Server (Remote Configuration of all BGPS DVRs)

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
8
Full Duplex Bi-directional Audio (2-way Communication)
Recording on Client PC, Alarm/Motion Indicator, eMAP, Digital Live Zoom
Remote Relay Control, Remote PTZ Control
Remote Playback Via BGPS Client Software
Power 110/220V, 50/60Hz, 12V/5A

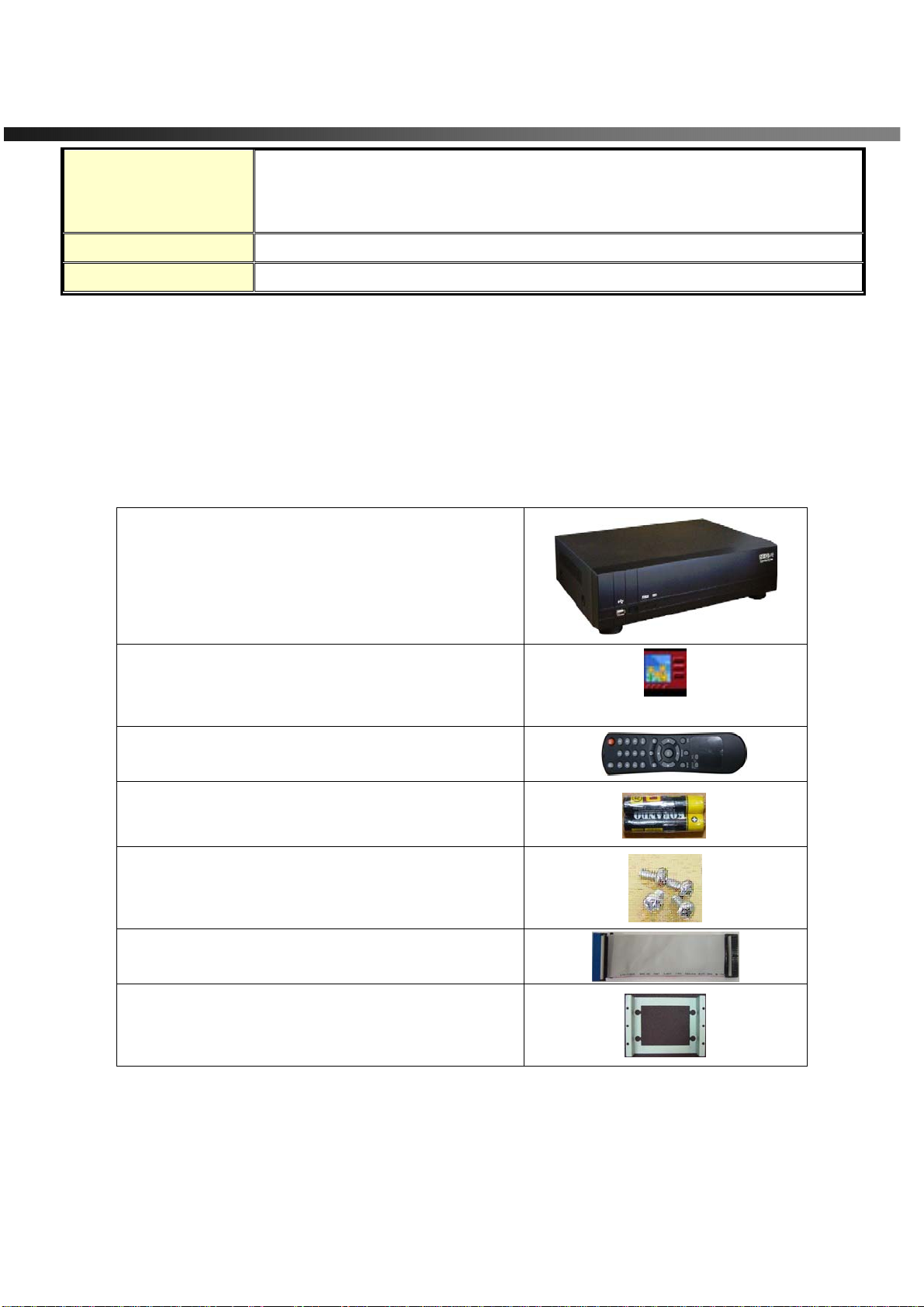

1.3. Packing List
2. Product Description
2.1. Operation Panel
Figure 2.1 Front Panel of BGPS-4SI
BGPS-4SI
Support CD includes:
BGPS Network Client,
Utility Programs, Manual(s). Vsync.exe
Infrared Remote Control
Batteries
Screws for mounting HDD.
(Preinstalled when unit is shipped with HDD)
HDD connection cables (1 ea).
(Preinstalled when unit is shipped with HDD(s))
HDD Mounting Brackets (1ea)
(Preinstalled when unit is shipped with HDD(s))

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
9
Table 2.1.1. Indication LEDs
Name Description
HDD LED illuminates when system is accessing the hard disk drive.
POWER LED illuminates when the DVR unit is on.
2.2. Rear Panel
BGPS-4SI
Figure2. 2.1. Rear Panel
Table 2.2.1. Connectors and Switches on Rear Panel
Name Function
VIDEO IN 4 BNC connectors for video input
Connect camera output to Video-in (NTSC/PAL)
VIDEO OUT 1Ch VGA, 1 Ch BNC (Composite)
VIDEO Composite video output in NTSC or PAL format
VGA Connect to a VGA monitor 15-pin connector
LAN RJ-45 connector for Ethernet connection
SENSOR IN Connector for external alarm sensor/contact devices alerts the BGPS DVR and
allows it to respond to events. 4 sensors can be connected to the DVR sensor 1~4
dedicated to Video Channel 1~4 correspondingly.
Connect 2 wires to activate a sensor input to the Terminal Block on the rear panel
of the BGPS DVR. A ground wire from the external device to the unit ensures that

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
10
the ground reference voltage is identical. This line connects to the Terminal Block
Ginput.
ALARM OUT 1 (PGM) connectors for alarm device connection.
Provides simple On/Off switching using relay (not included).
0.5A/125V or 1A/30V. The relay is open when not triggered. The relay can be close
by either a motion or a sensor input, only if enabled in the Recording Setup menu.
POWER Connector for AC115/220V 12V/5A power adapter.
DIP SWITCHES
VGA Turn ON for VGA display use.
PAL TurnONforPAL,DefaultisOFF
When you change the position of the switch, reboot the DVR to apply the
new setting. When VGA is on, Video-Out will be disabled!

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
11
2-3.RemoteController
SEL (Surrounded by the direction control keys)
Pressing selects desired menu item or saves setup values in menus.
ID DVR ID (ID Button + DVR ID number)
RECORD Manual Recording
– –◄Rewind Advance / Jump 60 Seconds Backwards
►– – Forward Advance / Jump 60 Seconds Forwards
◄◄ Rewind
►⁄▌▌ Play/Pause
►► Fast Forward
SEL Displays Quad (4Ch) or Full (1Ch) display mode
SETUP Setup Menu
SEARCH Search Menu Screen
ESC Escape
BACKUP Freeze/Screen Capture
SEQ Sequences Full or Quad View
Note: Directional buttons are used for the numbers.
Please follow the number diagram below:
UP
Press to scroll up in the menu or to change values in setup mode.
(Also used as the number 1 when entering a password.)
RIGHT
Press to scroll right in the menu or to change values in setup mode.
(Also used as the number 2 when entering a password.)
DOWN
Press to scroll down in the menu or to change values in setup mode.
(Also used as the number 3 when entering a password.)
LEFT
Press to move left in the menu or to change values in setup mode.
(Also used as the number 4 when entering a password.)

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
12
3. Getting Started – Setting Up the DVR
The following sections detail the initial setup of the BGPS DVR.
3-1. Setup – Main Screen
Pressing the Setup button prompts a user for entry of a password. The default password is “1111”.
Input the default password by pressing the Up button 4 times, followed by the SELECT button.
(We recommend that you protect your DVR system by assigning a new password. Refer to section
3.6 for instructions.) After assigning a new password, enter it by using the direction arrow keys
(representing 1, 2, 3, & 4) or using the keypad, and then press the SEL button for entering into the Setup
menu shown in Figure 3.1.1. Navigate through the menu icons using the directional buttons and press the
SELECT button to enter into sub-category menus.
Figure 3.1.1. Set-up Main Menu Screen
3-2. Setup – Live
- Used for setting up the live display mode.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
13
Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.
Figure 3.2.1. Live Mode Setup Screen
Table 3.2.1. Menu items in LIVE mode setup
Item Description
OSD Enables/disables on-screen-display.
SEQUENCE Enables/disables sequential video channels display in full screen mode.
SEQ-DWELL TIME Sets dwell time for each channel in sequential display mode.
Event Beep Enables/Disables beep sound upon Motion Detection, Alarm, or pressed button
OSD CONTRAST Sets the contrast level of On Screen Display (OSD)
CHANNEL Selects channel to apply settings.
DISPLAY Enables/disables Hidden Channel Mode on selected channel.
SEQ LIST Enables/disables each channel in sequential display mode.
BRIGHTNESS Brightness value for the specified channel.
CONTRAST Contrast value for the specified channel.
HUE Hue value for the specified channel.
SATURATION Saturation value for the specified channel.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
14
3-3. Setup – Recording Mode
- Controls video recording attributes
Navigate through the menu items using Up/Down buttons. Change values using Left/Right buttons.
Figure 3.3.1. Recording Mode Set-up Screen
Table 3.3.1. Menu Items in Record Mode Setup
Menu item Description
RESOLUTION Configures resolution as 704x480 or 352x240(NTSC).
CHANNEL Selects channel to apply settings.
FRAME RATE Configures the frame rate for selected channel.
Frame Rate and Recording Resolution are interdependent.
The 4 channel frame rate sum may not exceed the maximum frame
rate supported by the resolution.
The following table shows the maximum frame rate for NTSC video.
Resolution Max. Frame Rate
320x240 120 FPS
704x480 30 FPS
QUALITY Configures the recording quality for selected channel.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
15
Normal, High, or Super.
Video quality is the best on “SUPER” setting
RECORDING Assigns the recording method for a channel:
Disable, Continuous, Motion, Sensor, or Schedule.
MOTION ZONE Sets full zone or partial zone.
MOTION SENSITIVITY Sets motion detection sensitivity for selected channel from 1 to 9.
(9 is the most sensitive setting.)
SENSOR RECORDING Configures Alarm/Sensor Inputs for triggered recording. There are 4
sensors total. A maximum of 4 sensor/alarm inputs may be
assigned to an individual channel.
PRE RECORD Enables/disables pre-event/pre-alarm recording.
Pre-event/pre-alarm recording is 5 sec. Only i-frames are recorded.
POST EVENT RECORD Set the length of time for post-event/post-alarm recording video.
Configurable by channel from 1 to 30 seconds.
SCHEDULE Configures recording schedules.
Launches new menu as shown in Figure 3.3.3.
3-3-1. Motion Zone set up
By selecting Partial Zone, users can define motion zones within a screen area, as shown in Figure 3.3.1.
Move each rectangular zone around using the four direction key buttons. Press the SELECT button to save
the defined rectangular region as part of the motion zone. Upon saving, the defined rectangular blocks will
change color.
Important: Only selected zones will trigger motion recording.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
16
Figure 3.3.2. Motion Zone selection screen
3-3-2. Record Schedule
- Records video based on a defined schedule.
The following table (3.3.1) defines button functions within this menu.
Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.
Each vertical bar “ | ” corresponds to one hour. See Figure 3.3.3 for a menu example.
Rules:
1. Choosing ALL, BGPS DVR globally applies the schedule to all time periods and channels.
2. Within a selected channel, a recording mode applies to the entire time period for the specific
channel.
3. Within a selected time period, when highlighting one of the vertical bars “ |”, the selected recording
mode applies to all channels.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
17
Figure 3.3.3. Recording Schedule Set-up Screen
Table 3.3.1. Button Functions in Recording Time Scheduling Mode
Button Function
REW Use to set Continuous recording mode.
F/REW Use to Disable recording setting.
PLAY/PAUSE Use to enable Motion detection triggered recording.
FF Use to enable Sensor triggered recording
UP Move up in menu item.
RIGHT Move right in menu item.
DOWN Move down in menu item.
LEFT Move left in menu item.
SEL Exit from scheduling mode.
3-5. Setup – System Mode
- Configures system parameters
Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
18
Figure 3.5.1. System Setup Screen
Table 3.5.1. Menu Items in System Setup Screen
Item Description
DVR ID Defines the system name. Navigate through the position for each
alphanumeric character by using the left and right buttons. Up/down
buttons change characters.
DESCRIPTION Displays system information:
Firmware Version, Storage Size, IP Address, and MAC Address.
LOAD DEFAULT Select OFF or ON. To load default values, choose ON, then press the
SEL button.
ADMIN
PASSWORD
Sets the administrator password. Once selected, the DVR will prompt
for the current password and new password.
Follow the prompts. The numbers 1, 2, 3 and 4 can be input by using
direction keys UP, RIGHT, DOWN, and LEFT, respectively.
The default password is “1111”.
The Admin Password allows access to all DVR features.
NETWORK
PASSWORD
Sets the network client connect password. The DVR prompts for the
entire process of setting up a network password.
The numbers 1, 2, 3 and 4 can be input by using direction keys UP,

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
19
RIGHT, DOWN, and LEFT, respectively.
The default user ID is “root” and the default password is “1111”.
DATE FORMAT Configures the preferred display style for the date and time.
SET DATE/TIME Set date and time. Launches new menu as shown in Figure 3.5.4.
LANGUAGE Select a language for all OSD (on screen display)
SEND MAIL ON
ALARM
Setting this value to “ON” initiates e-mail transmission as follows
through the designated email server. Set to “ON”, and press SEL
button to BEGIN e-mail configuration.
For use with DHCP (Dynamic IP) servers.
On : “ALARM EVENT”
Off : alarm = alarm event : capture JPG file and emails

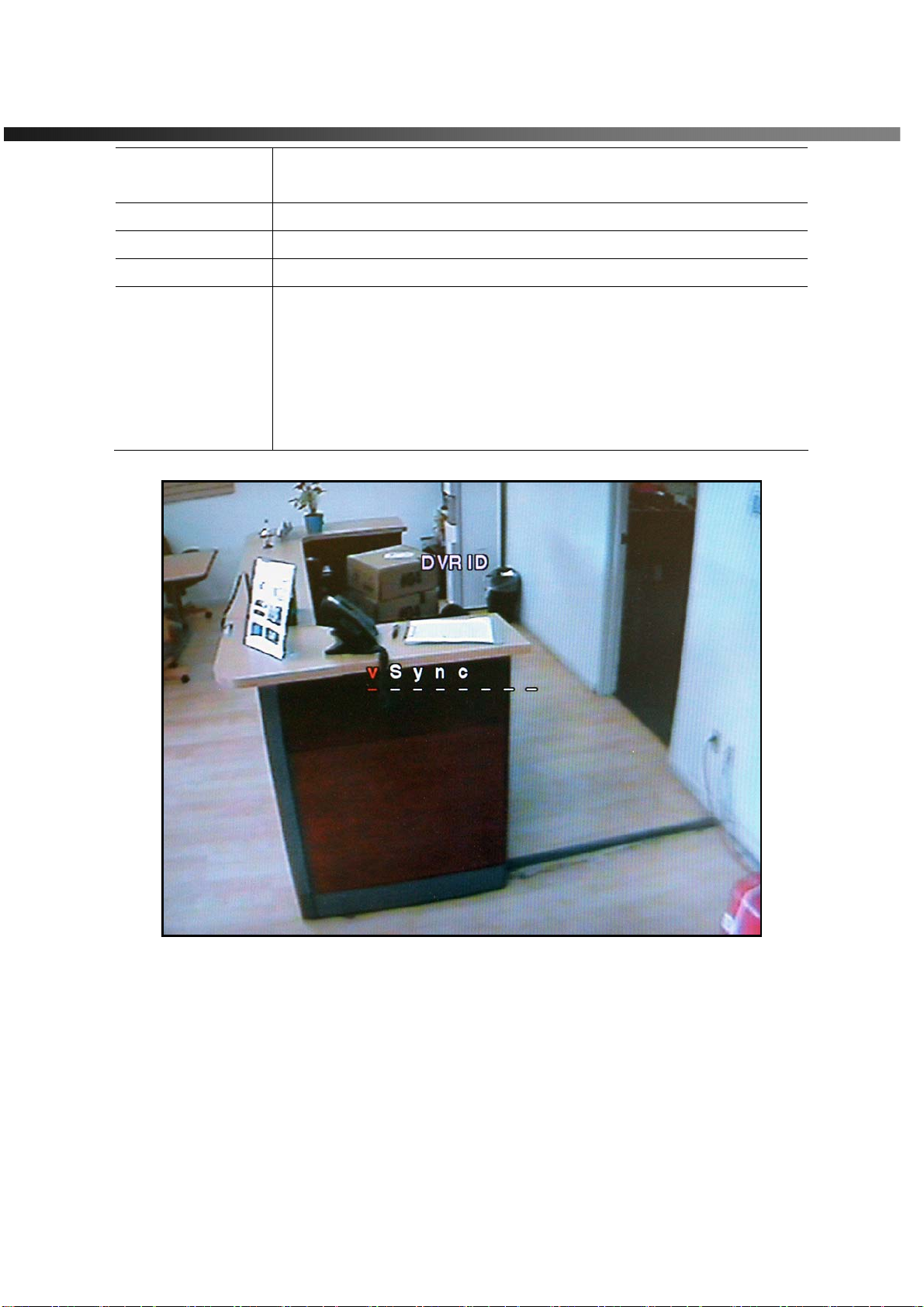

Figure 3.5.2. DVR ID Setup Screen

BGPS-4SIUserGuide ©BGPSDVRJanuary2009
Rev B. January 2009
Specifications and content are subject to change without notice.
20
Figure 3.5.3. DVR Information Display Screen
Figure 3.5.4.Set Date & Time Setup Screen
Table 3.5.4. Menu Items in Date & Time Setup
SET DATE&TIME Warning! Changing this setting initiates a system reboot.
Set date and time. After changing, press the SEL button and select CONFIRM.
