VTQ WMS HD - V/G-Mount TX Introduction
Preliminary remarks
The present document, "Reference guide VTQ WMS HD Transmitter - V-Mount/G-Mount”, is
intended to be used for the proper set-up and operation of the wireless transmitter unit.
Gruene Strasse 2, 06268 Querfurt, Germany
Tel: + 49 34771 510, Fax: + 49 34771 22044
E-Mail: [email protected], Internet: http://www.vtq.de
WMS HD Video Transmitter V-Mount / G-Mount
1x Antenna 0dB (SMA)
1x Adapter TNC/SMA
1x Reference guide
About this reference guide
This Reference Guide provides instructions and information for the installation and operation of
the device. All essential steps from the connection up to the configuration are explained. Please
read this reference guide thoroughly in order to both avoid wrong operation and be able to use
the hardware in an optimal way. Please keep the manual in a safe place for future references.
Manufacturer
VTQ Videotronik GmbH,
Delivery including
1x VTQ
Optional accessories
Antenna (2.0 … 2.7GHz; 3 dBi; TNC male) Art.-No.: 7529 010003
Antenna (2.0 … 2.7GHz; 3 dBi; flex; TNC male) Art.-No.: 7529 010004
Antenna (2.2 … 2.5GHz; 6 dBi; starr; TNC male) Art.-No.: 7529 010005
Antenna (5.7 … 5.9GHz; 3 dBi; TNC male) Art.-No.: 7529 010007
Antenna (5.7 … 5.9GHz; 3 dBi; flex; TNC male) Art.-No.: 7529 010008
Antenna (5.7 … 5.9GHz; 5 dBi; starr; TNC male) Art.-No.: 7529 010009
DX-cable AIRCELL7 (3m, TNC male / TNC male) Art.-No.: 7529 010006
DX-Antenna 0dB with SMA 2.4GHz Art.-No.: 7502 000350
DX-Antenna 0dB with SMA 5.8GHz Art.-No.: 7558 000350
TNC corner adapter male-female 50Ohm Art.-No.: 7529 010010
Adapter TNC male to SMA female Art.-No.: 7529 010011
1. Introduction
1

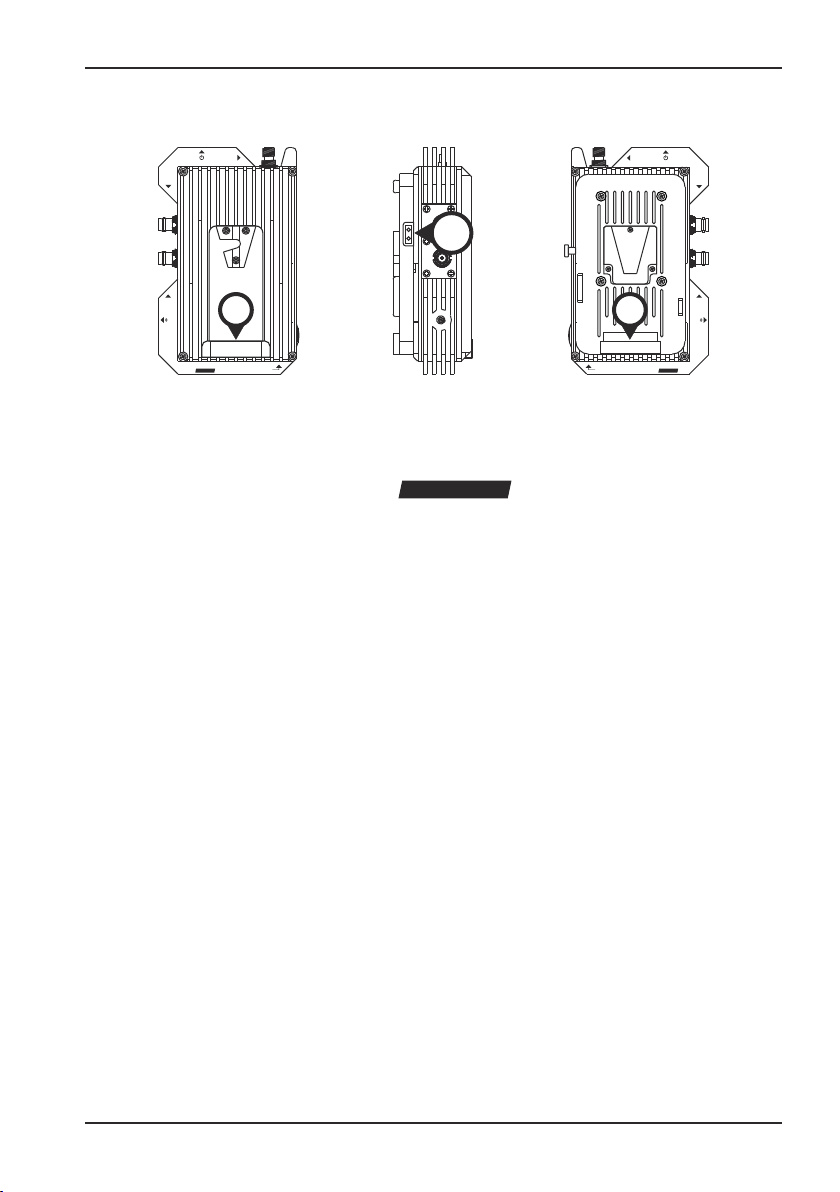

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
2
Heed warnings!
All warnings on the product and in the operating instructions should be adhered to. The
manufacturer can not be held responsible for injuries or damage where warnings and cautions
have been ignored or taken lightly.
Read instructions!
All the safety and operating instructions should be read before this product is operated.
Follow instructions!
All operating and use instructions should be followed.
Retain instructions!
The safety and operating instructions should be retained for future reference.
Warning
Warnings give information which, if strictly observed, will prevent personal injury or death,
or damage to personal property or the environment. They are boxed and shaded for
emphasis, as in this example, and are placed immediately preceding the point at which the
reader requires them.
Cautions
Cautions give information which, if strictly followed, will prevent damage to equipment or
other goods. They are boxed for emphasis, as in this example, and are placed immediately
preceding the point at which the reader requires them.
Notes
Notes provide supplementary information. They are highlighted for emphasis, as in this
example, and are placed immediately after the relevant text.
Safety instructions
1.1. Safety instructions

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
Please always pay attention to the following warning instructions:
Just install the system in accordance with this reference guide.
Please exclusively use accessories authorized by the manufacturer.
Keep the system away from:
- places with high humidity
- places exposed to direct sunlight
- places with high temperatures
- places near open fire
Do not place the system near easily flammable substances like alcohol or thinners. In the event
that the internal electrical parts come into contact with easily flammable substances, there is a
danger of a fire outbreak or an electric shock.
Please prevent the system from rain or moisture in order to avoid the risk of a an electric shock.
In case liquids or similar substances end up inside the unit, please immediately disconnect the
voltage supply and contact the manufacturer.
Do not open, disassemble or modify the system. Incorrect handling may result in fire or electric
shock.
Do not connect the hardware with power supply units or voltage sources with a different voltage
than required or specified. The wrong voltage may result in fire or electric shock.
In case of thunder storms or when the system is not being used for a longer period of time,
please - as a precaution - disconnect the plug from socket.
Allow only the authorized manufacturer to carry out maintenance. The system has to be serviced,
if it has been damaged in any way (for example when liquids or items got into the system, when
the system was exposed to rain or moisture, when it does not work duly or was dropped and hit
the ground).
3
Safety instructions
1.1. Safety instructions

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
Support Services
Our primary objective is to provide first class customer care that is tailored to your specific
business and operational needs. All levels are supported by one or more service performance
reviews to ensure the perfect partnership between VTQ and your business.
Return of equipment
If you need to return equipment for repair, please contact your distributor or the manufacturer:
VTQ Videotronik GmbH
Gruene Strasse 2
06268 Querfurt
Germany
Tel: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: http://www.vtq.de
Technical publications
If you need to contact VTQ regarding this publication please e-mail to:
[email protected].
Contact informations
1.2. Contact information
4

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
2. Before operation
Before operation
5
2.1. Short description
The system operates according to the COFDM transmission mode, which is marked multiple
carrier operation and is particulary suitable for transmission of digital video- and audio signals.
Main features
» rugged housing and stable connectors
» different setups for high picture quality (HPQ) and extreme transmission ranges (HG)
» H.264 compression according to EBU standards
» small bandwidths (8MHz) for easier licensing outside of the ISM-bands
COFDM parameters
» Version .............................................. HG
......................................... (High Gain)
» Constellation .................................... QPSK
» Viterbi-FEC .......................................... 3/4
» Guard interval ..................................... 1/16
» Band width ....................................... 8MHz
» Version ........................................... HPQ
......................... (High Picture Quality)
» Constellation ..................... QPSK, 16QAM
» Viterbi-FEC .......................................... 3/4
» Guard interval ..................................... 1/16
» Band width ....................................... 8MHz

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX Before operation
6
2. Before operation
2.2. Assessment of the production environment
The exact observation and assessment of the production environment is the basic requirement to
ensure an ideal transmission.
» Which buildings and structures are located
in the surrounding area?
Radio signals are electromagnetic waves.
When these waves encounter an obstacle,
they will be reflected, attenuated or even
completely absorbed due to their physical
properties.
In general: The lower the frequency, the
better the penetration. The higher the
frequency, the worse the penetration.
» Which negative consequences result from
this?
Especially objects or structures made of
steel or metal can stop radio waves. This
also includes fences made of wire, steel
reinforcement in the masonry or metal
coated window panes.
Leaves from trees or bushes or rain or snow
as well lead to the attenuation or absorption
of the signal.
» Which positive effects does the
surrounding have for the transmission?
Smooth surfaces of buildings made of
masonry or reinforced concrete can be
used as reflection surfaces, in favor of the
transmission quality and range.
limited penetration
good reflections
limited penetration
good reflections
ReflectionsReflectionsAttenuationAttenuation AbsorptionAbsorption
high attenuation
barely reflections
high attenuation
barely reflections
wire-netting fence,
trees, bushes,
leaves, etc.
wire-netting fence,
trees, bushes,
leaves, etc.
Buildings, walls,
even surfaces
from ferroconcrete
Buildings, walls,
even surfaces
from ferroconcrete

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX Before operation
7
2. Before operation
2.3. Alignment and positioning of the antennas
» Selection of appropriate antennas
Pay attention to the correct frequency
range! Short antennas are optimal for
mobile applications, but normally are less
sensitive. Long antennas are more sensitive,
but are not appropriate for mobile
applications, as the antenna socket is
exposed to a greater leverage when under
intense pressure and can be damaged as a
result of this.
» Pay attention - if possible - to the identical
altitude of transmission and reception
antennas.
4dB Antenna
6dB Antenna
» Take care that the antennas are (as much
as possible) unobstructed !
Avoid every limitation of the transmission
and reception area by buildings or walls
directly at or in immediate surrounding of
the antenna.
Please make sure that, especially in a
mobile production, the antennas are able to
transmit and receive in all directions freely.

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX Before operation
8
2. Before operation
» Pay attention to the polarization of the
antennas.
Omnidirectional antennas normally are used
in vertical operation. Transmission and
reception antennas always have to be
aligned identically!
Exception:
fast-moving camera work, for example in
operations with steadycam etc.
Possible antenna configuration at the
receiver:
antenna 1 vertical (90°),
antenna 2 horizontal (0°)
or
antenna 1 turned to 45°
antenna 2 turned to 135°
» Installation of antennas
(by grip, universal clamps etc.)
The grip is to be attached exclusively at the
lowest end of the antenna (maximum 4cm
from the lowest end), else the properties of
the antenna will be negatively affected.
max.
4cm
2.3. Alignment and positioning of the antennas

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX Before operation
9
2. Before operation
2.3. Alignment and positioning of the antennas
» Are the antennas put at a distance from the system via cables ?
Please do pay attention to the length of the antenna cable. Just exclusively use the cable
"AirCell 7" (3m, TNC male / TNC female, Art.No.: 752010006), which is available as an accessory!
Please pay special attention to the quality of the cable and plugs used!
Example: DX-cable Aircell 7
Cable attenuation: . @2,4GHz: 0,36dB per metre
@5,8GHz: 0,65dB per metre
Effect on the range: at 3dB attenuation: range divided by 1,5
at 6dB attenuation: range divided by 2
at 12dB attenuation: range divided by 4
Calculation example: if you remote the antennas at a 5,8GHz-receiver with a 10m long
antenna cable from the system, the attenuation due to the cable will be 6,5dB.
If the range without antenna cable was 2000m, then the range will reduce to 1000m
because of the antenna cable (range 2000m divided by 2).

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
This digital video transmitter is mounted to the camera and power supplied via a conventional
V-Mount or G-Mount adapter.
The mounted transmitter is in-between the camera and battery. The construction enables the
power supply of camera and transmitter with only one battery.
3.1. General notes
3. Connectors and control elements
Connectors and control elements
10
VTQ WMS HD
G-Mount
VTQ WMS HD
V-Mount
Rear viewFront view
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
V-Mount
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
V-Mount
Rear viewFront view
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
G-Mount
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
G-Mount

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
3.2. Mounting the transmitter
For the mounting please proceed as
follows:
1. Remove the battery from your camera.
Loosen the interlock that fixes the battery.
Demount the battery from the camera.
2. Now fit the transmitter (as described in
the picture above) to the mount of your
camera and move it until it locks into place.
3. Fit the battery to the connection on the
rear side of the transmitter and move it until
it locks into place.
4. The transmitter is now mounted to the
camera.
11
1
3
2
4
3. Connectors and control elements
Connectors and control elements

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
3.3. Power supply
After a successful mounting both camera and video transmitter are power supplied by the battery.
1. V-MOUNT (camera)
Here the transmitter is connected to the V-Mount of the camera. The camera is automatically
power supplied by the battery on the back of the transmitter.
2. V-MOUNT (battery)
An external V-Mount-battery is here connected to the transmitter. It power supplies the transmitter.
3. POWER-TAP
The transmitter is additionally equipped with a 2-pole power-tap-connection on the side. Thus a
camera head light may be directly power supplied by the V-Mount. The voltage output conforms
to the output of the connected battery.
12
VTQ WMS HD
V-Mount
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
V-Mount
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
V-Mount
3
21
Rear viewFront view Side view
3. Connectors and control elements
Connectors and control elements

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
13
3.3. Power supply
After a successful mounting both camera and video transmitter are power supplied by the battery.
1. G-MOUNT (camera)
Here the transmitter is connected to the G-Mount of the camera. The camera is automatically
power supplied by the transmitter.
2. G-MOUNT (battery)
Here an external G-Mount-battery is to be connected to the transmitter. It supplies the transmitter
with power.
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
G-Mount
Antenna
Fan ON/OFF
SDI IN
SDI OUT
Fan
(Reset)
F
S
VTQ WMS HD
G-Mount
Rear viewFront view Side view
21
VTQ WMS HD
G-Mount
3. Connectors and control elements
Connectors and control elements

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
3.4. Connectors
Please connect all peripherical hardware (antennas and cables) before switching on
the transmitter.
1. Power / Reset
Power switch: Turn the device on or off by pressing this switch.
2. Antenna
This TNC-port provides a connection for the antenna. We recommend to operate the system with
the antennas manufactured by VTQ Videotronik GmbH. (please see page 1 „Accessories“)
Connector: TNC female, 50 ohms
Please mind the frequency of the antenna, it has to match the frequency range of the
transmitter.
Do use the transmitter with attached antenna only! Never switch on the transmitter without
connecting an antenna first, else you run the risk of causing damage to the electronics.
In case you intend to operate your system according to R&TTE directive and thus without
the need to get an approval of your local/national authorities, please take into account
that, the transmission power (EIRP) may not exceed the maximum threshold value
defined by your local/national authorities!
14
1 2
3. Connectors and control elements
Connectors and control elements

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
3.4. Connectors
3. SDI IN
Via a BNC connector an SDI video signal (HD/SD-SDI) is fed to to the transmitter, which is then
wirelessly transmitted to the appropiate digital video receivers.
Connector: BNC, female, 75 ohms
Standard: ANSI / SMPTE 292M, SMPTE 259M
SDI signal level: 800mV (p-p) nominal ±10%
If the transmitter does not auto-detect a new video format after this has been changed,
please restart the transmitter.
If a video signal contains a lot of noise this produces huge data rates in the encoder. In
cases of extreme noise levels in the original video signal, the resulting data rate can
increase to such an amount that the remaining available data is insufficient to guarantee
a technically proper transmission of the image.
4. SDI OUT
The SDI signal (HD/SD-SDI, embedded Audio), which has been fed in via the video input, is
displayed here.
Connector: BNC, female, 75 Ohm
Standard: ANSI / SMPTE 292M, SMPTE 259M
SDI signal level: 800mV (p-p) nominal ±10%
5. Fan F/S
This dip-switch defines the speed of the internal fan.
S --> Slow
F --> Fast
15
345
3. Connectors and control elements
Connectors and control elements

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
16
3.4. Connectors
6. Fan ON/OFF
With this button you may turn off the internal fan. A red LED within the button indicates that the
fan is switched OFF.
Please do not cover the ventilation slot during operation.
The transmitter heats up faster when the fan is switched off. Please take care of a sufficient
circulation of air to avoid overheating of transmitter. We recommend to switch of the fan
in case of need for a short time only!
7. Control panel and display
The transmitter comes with an control panel consisting of display and a membrane keyboard with
3 keys. These 3 keys serve to conveniently navigate through the menu and ensures easy
operation. In the operating instructions the 3 keys are termed as follows:
6
7
Arrow up Arrow downOK
3. Connectors and control elements
Connectors and control elements

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
17
4.1. Starting the transmitter
When the transmitter is switched on it starts with an initialisation which automatically identifies the
video norm of the input signal. The whole process takes no longer than 6 seconds.
As soon as the initialisation is finished the display should look like the above picture.
After the start-up it takes a total of approximately 30 seconds until a solid connection between
transmitter and receiver has been established. During this start-up process, occasional picture
flickering or frame drops are possible.
If the transmitter does not auto-detect a new video format after this has been changed,
please restart the transmitter.
After switching off the transmitter, the last selected program will be saved and is displayed at the
next start.
4.2. The screen saver
To save the display while operating the screen saver will be activated 30 seconds after the last
key operation. While the screen saver is activated the displayed items rolls across the screen.
The screen saver can be stopped by pressing of any key.
4. Configuration
Configuration
HG
middle
audio
on

A08 - 25.09.2015
VTQ WMS HD - V/G-Mount TX
18
4.3. Program selection
Each program channel has an assigned frequency. Depending on device up to 16 programme
channels are available.
Press the „Arrow Up“ button in order to change the programme channel. Press the button until
the desired programme channel is being displayed. 3 seconds after you have chosen your
channel, the modification in this setting is saved automatically.
Note: If you change the transmitter program you have to adjust the receiver to the same
program channel!
1
4. Configuration
Configuration
2.4GHz
2205,0
2220,0
2240,0
2260,0
2280,0
2300,0
2320,0
2340,0
2360,0
2380,0
2400,0
2420,0
2440,0
2460,0
2480,0
2495,0
1.4GHz
1210,0
1230,0
1250,0
1270,0
1290,0
1310,0
1330,0
1350,0
1370,0
1390,0
1410,0
1430,0
1450,0
1470,0
1490,0
1510,0
1530,0
1550,0
1570,0
1590,0
Program
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
5.8GHz
5730,0
5740,0
5750,0
5760,0
5770,0
5780,0
5790,0
5800,0
5810,0
5820,0
5830,0
5840,0
5850,0
5860,0
5870,0
2.4GHz ISM
@10mW
5.8GHz ISM
@25mW
audio
on
HG
middle
