Description of Device Functions
Proline t-mass 65F, 65I
Thermal Mass Flow Measuring System

Device Functions Proline t-mass 65
2Endress+Hauser

Device Functions Proline t-mass 65 Table of Contents
Endress+Hauser 3
Table of Contents
1 Function matrix Proline t-mass 65 . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 The function matrix: layout and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Graphical illustration of the function matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Group MEASURING VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Group SYSTEM UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Group SPECIAL UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Group QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1 Quick Setup Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Group OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Group USER INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8 Group TOTALIZER 1/2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
9 Group HANDLING TOTALIZER . . . . . . . . . . . . . . . . . . . . . . . . . 23
10 Group CURRENT OUTPUT 1/2 . . . . . . . . . . . . . . . . . . . . . . . . . 24
11 Group PULSE/FREQUENCY OUTPUT . . . . . . . . . . . . . . . . . . . . 28
12 Group RELAY OUTPUT 1/2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
12.1 Information on the response of the relay output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
12.2 Switching response of the relay output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
13 Group STATUS INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
14 Group CURRENT INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
15 Group COMMUNICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
16 Group PROCESS PARAMETER . . . . . . . . . . . . . . . . . . . . . . . . . . 55
17 Group GAS MIXTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
18 Group SYSTEM PARAMETER . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
19 Group SENSOR DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
20 Group SUPERVISION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Table of Contents Device Functions Proline t-mass 65
4Endress+Hauser
21 Group SIMULATION SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . 68
22 Group SENSOR VERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
23 Group AMPLIFIER VERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
24 Factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
24.1 SI units (not for USA and Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
24.2 US units (only for USA and Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
25 Index of key words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Device Functions Proline t-mass 65 1 Function matrix Proline t-mass 65
Endress+Hauser 5
1 Function matrix Proline t-mass 65
1.1 The function matrix: layout and use
The function matrix is a two-level construct: the groups form one level, functions the other.
The groups are the highest-level grouping of the control options for the flowmeter.
Each group comprises a number of functions.
You select a group in order to access the individual functions for controlling or parameterizing the
flowmeter.
You will find an overview of the groups in the table of contents on Page 3 and in the graphical
representation of the function matrix on Page 6.
You will also find an overview of the functions on Page 6, complete with the page references of the
detailed function descriptions.
The descriptions of the individual functions start on Page 8.
Example of how to parameterize a function (in this case changing the language for
the user interface):
➀Entry into the function matrix (F-key).
➁Select the OPERATION group.
➂Select the LANGUAGE function, change the setting from ENGLISH to DEUTSCH
with OS and save F(all texts displayed on the user interface appear in German).
➃Exit the function matrix (ESC > 3 seconds).
A0001142
>3s
-+E
Esc
E
E
E
E
E E E E E
–
+
+
Esc
–
+
Esc
–
+
Esc
–
E
m
n
o
p

1 Function matrix Proline t-mass 65 Device Functions Proline t-mass 65
6Endress+Hauser
1.2 Graphical illustration of the function matrix
ACTUAL FREQUENCY
(p. 33)
ASSIGN STATUS
(p. 40)
TEST DISPLAY
(p. 20)
VALUE SIMULATION
CURRENT (p. 27)
FAILSAFE VALUE
(p. 33)
VALUE SIMULATION
PULSE (p. 40)
REFERENCE DENSITY
(p. 57)
UNIT LENGTH
(p. 11)
BACKLIGHT
(p. 20)
SIMULATION CURRENT
(p. 27)
FAILSAFE MODE
(p. 33)
SIMULATION PULSE
(p. 39)
VALUE SIMULATION
CURRENT INPUT (p. 51)
DEVICE REVISION
(p. 54)
REFERENCE PRESSURE
(P. 57)
UNIT DENSITY
(p. 11)
CONTRAST LCD
(p. 19)
ACTUAL CURRENT
(p. 27)
TIME CONSTANT
(p. 33)
FAILSAFE MODE
(p. 39)
VALUE SIMULATION
SWITCH POINT (p. 45)
SIMULATION CUR-
RENT INPUT (p. 51)
DEVICE ID
(p. 53)
REFERENCE TEMPERA-
TURE (p. 57)
UNIT TEMPERATURE
(p. 11)
DISPLAY DAMPING
(p. 19)
FAILSAFE MODE
(p. 27)
OUTPUT SIGNAL
(p. 30)
OUTPUT SIGNAL
(p. 36)
VALUE SIMULATION
SWITCH POINT (p. 42) SIMULATION SWITCH
POINT (p. 44)
VALUE SIMULATION
STATUS INPUT (p. 49)
ACTUAL CURRENT
INPUT (p. 51)
MANUFACTURER ID
(p. 53)
PROCESS PRESSURE
(p. 56)
UNIT PRESSURE
(p. 11)
ACCESS CODE
COUNTER (p. 17)
FORMAT
(p. 19)
RESET TOTALIZER
(p. 22)
TIME CONSTANT
(p. 26)
VALUE f HIGH
(p. 29)
PULSE WIDTH
(p. 35)
SIMULATION SWITCH
POINT (p. 42)
ACTUAL STATUS RELAY
(p. 44)
SIMULATION STATUS
INPUT (p. 49)
FAILSAFE VALUE
(p. 51)
WRITE PROTECTION
(p. 53)
INSTALLATION FAC-
TOR (p. 56)
UNIT CORRECTED
VOLUME (p. 10)
STATUS ACCESS
(p. 16)
100% VALUE LINE 2
(p. 19)
UNIT TOTALIZER
(p. 22)
VALUE 20 mA
(p. 25)
VALUE f LOW
(p. 29)
PULSE VALUE
(p. 35)
ACTUAL STATUS
(p. 41)
TIME CONSTANT
(p. 44)
ACTUAL STATUS INPUT
(p. 48)
VALUE 20 mA
(p. 51)
HART PROTOCOL
(p. 53)
ZERO POINT ADJUST
(p. 56)
TEMPERATURE
(p. 8)
UNIT CORRECTED
VOLUME FLOW (p. 10)
DEFINE PRIVATE CODE
(p. 16)
100% VALUE LINE 1
(p. 18)
OVERFLOW
(p. 21)
VALUE 0_4 mA
(p. 25)
END VALUE
FREQUENCY (p. 28)
ASSIGN PULSE
(p. 34)
TIME CONSTANT
(p. 41)
OFF-VALUE
(p. 44)
MINIMUM PULSE
WIDTH (p. 48)
VALUE 0_4 mA
(p. 50)
FIELDBUS ADDRESS
(p. 53)
OFF VALUE LOW FLOW
CUT OFF (p. 55)
CORRECTED VOLUME
FLOW (p. 8)
UNIT MASS
(p. 9)
FACTOR ARBITRARY
MASS (p. 12)
T-DAT SAVE/LOAD
(p. 13)
ACCESS CODE
(p. 16)
ASSIGN LINE 2
(p. 18)
SUM
(p. 21)
FAILSAFE MODE
(p. 23)
CURRENT SPAN
(p. 24)
ASSIGN FREQUENCY
(p. 28)
VALUE SIMULATION
FREQUENCY (p. 34)
OFF-VALUE
(p. 41)
ON-VALUE
(p. 43)
ACTIVE LEVEL
(p. 48)
CURRENT SPAN
(p. 50)
TAG DESCRIPTION
(p. 53)
ON VALUE LOW FLOW
CUT OFF (p. 55)
MASS FLOW
(p. 8)
UNIT MASS FLOW
(p. 9)
TEXT ARBITRARY MASS
(p. 12)
QUICK SETUP
COMMISSION (p. 13)
LANGUAGE
(p. 16)
ASSIGN LINE 1
(p. 18)
ASSIGN TOTALIZER
(p. 21)
RESET ALL TOTALIZ-
ERS (p. 23)
ASSIGN CURRENT
(p. 24)
OPERATION MODE
(p. 28)
SIMULATION
FREQUENCY (p. 34)
ON-VALUE
(p. 41)
ASSIGN RELAY
(p. 43)
ASSIGN STATUS INPUT
(p. 48)
ASSIGN CURRENT
INPUT (p. 50)
TAG NAME
(p. 53)
ASSIGN LOW FLOW
CUT OFF (p. 55)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
MEASURING VALUES
(p. 8)
SYSTEM UNITS
(p. 9)
SPECIAL UNITS
(p. 12)
QUICK SETUP
(p. 13)
OPERATION
(p. 16)
USER INTERFACE
(p. 18)
TOTALIZER 1/2
(p. 21)
HANDLING TOTALIZER
(p. 23)
CURRENT OUTPUT 1/2
(p. 24)
PULSE/FREQ. OUT.
(p. 28)
RELAY OUTPUT 1/2
(p. 43)
STATUS INPUT
(p. 48)
CURRENT INPUT
(p. 50)
COMMUNICATION
(p. 53)
PROCESS PARAM.
(p. 55)
▼

Device Functions Proline t-mass 65 1 Function matrix Proline t-mass 65
Endress+Hauser 7
GAS TYPE 5
(p. 60)
HOURS SINCE RESET
(p. 67)
% FRACTION 4
(p. 60)
SAVE CHANGES
(p. 62)
OPERATION HOURS
(p. 67)
GAS TYPE 4
(p. 60)
CHECK VALUES
(p. 62)
SYSTEM RESET
(p. 67)
SOFTWARE REV NO
SUB-I/O TYPE (p. 70)
% FRACTION 3
(p. 60)
% FRACTION 8
(p. 62)
FLOW CONDITIONER
(p. 65)
ALARM DELAY
(p. 67)
SUB-I/O TYPE
(p. 70)
GAS TYPE 3
(p. 60)
GAS TYPE 8
(p. 62)
ZERO POINT
(p. 65)
ERROR CATEGORY
(p. 66)
PRE-AMPLIFIER HARD-
WARE REV. NO. (p. 69)
SOFTWARE REV. NO.
I/O MODULE (p. 70)
% FRACTION 2
(p. 59)
% FRACTION 7
(p. 61)
INTERNAL WIDTH
(p. 65)
ASSIGN PROCESS
ERROR (p. 66)
PRE-AMPLIFIER SOFT-
WARE REV. NO. (p. 69)
I/O MODULE TYPE
(p. 70)
GAS TYPE 2
(p. 59)
GAS TYPE 7
(p. 61)
INTERNAL HEIGHT
(p. 65)
ERROR CATEGORY
(p. 66)
SOFTWARE REVISION
NUMBER S-DAT (p. 69)
SOFTWARE REVISION
NUMBER T-DAT (p. 70)
% FRACTION 1
(p. 59)
% FRACTION 6
(p. 61)
INTERNAL DIAMETER
(p. 64)
ASSIGN SYSTEM ERROR
(p. 66)
VALUE SIMULATION
MEASURAND (p. 68)
TRANSDUCER SERIAL
NUMBER (p. 69)
SOFTWARE REVISION NO AMPLIFIER (p. 70)
GAS TYPE 1
(p. 59)
GAS TYPE 6
(p. 61)
FLOW DAMPING
(p. 63)
NOMINAL DIAMETER
(p. 64)
PREVIOUS SYSTEM
CONDITION (p. 66)
SIMULATION
MEASURAND (p. 68)
SERIAL NUMBER
(p. 69)
HARDWARE REVISION
NO AMPLIFIER (p. 70)
NUMBER OF GAS COM-
PONENTS (p. 58)
% FRACTION 5
(p. 61)
POSITIVE ZERO
RETURN (p. 63)
PIPE TYPE
(p. 64)
ACTUAL SYSTEM
CONDITION (p. 66)
SIMULATION FAILSAFE
MODE (p. 68)
SENSOR TYPE
(p. 69)
DEVICE SOFTWARE
(p. 70)
▼▼▼▼▼▼▼
▼
GAS MIXTURE
(p. 70)
SYSTEM PARAMETER
(p. 63)
SENSOR DATA
(p. 64)
SUPERVISION
(p. 66)
SIMULAT. SYSTEM
(p. 68)
SENSOR VERSION
(p. 69)
AMPLIFIER VERSION
(p. 70)

2 Group MEASURING VALUES Device Functions Proline t-mass 65
8Endress+Hauser
2 Group MEASURING VALUES
Function description MEASURING VALUES
!Note!
The engineering unit of the measured variable shown here can be set in the SYSTEM UNITS group (see Page 9).
MASS FLOW In this function, the currently measured mass flow appears on the display.
Display:
5-digit floating-point number, including unit
(e.g. 150.00 kg/h; 330.70 lb/h; etc.)
CORRECTED VOLUME
FLOW
In this function, the currently measured corrected volume flow appears on the display.
The calculated corrected volume flow is derived from the measured mass flow and the
reference density of the gas (at reference temperature and pressure).
User Interface:
5-digit floating-point number, including unit
(e.g. 104.97 Nm3/h; 110.73 Sm3/h; etc.)
TEMPERATURE In this function, the currently measured gas ambient temperature appears on the display.
Display:
5-digit floating-point number, including unit and sign
(e.g. –23.4 °C; +160.0 °F; 295.4 K; etc.)

Device Functions Proline t-mass 65 3 Group SYSTEM UNITS
Endress+Hauser 9
3 Group SYSTEM UNITS
Function description SYSTEM UNITS
You can select the unit for the measured variable in this function group.
UNIT MASS FLOW Use this function to select the unit for displaying the mass flow (mass/time).
The unit you select here is also valid for:
• Current outputs
• Frequency output
• Switching points (limit value for mass flow)
• Low flow cut off
!Note!
The following units of time can be selected:
s = second, m = minute, h = hour, d = day
Options:
Metric:
gram →g/time unit
kilogram →kg/time unit
Metric ton →t/time unit
US:
ounce →oz/time unit
pound →lb/time unit
ton →ton/time unit
For arbitrary units (see function TEXT ARBITRARY MASS on Page 12)
_ _ _ _ →_ _ _ _/s: _ _ _ _/min; _ _ _ _/h; _ _ _ _/day
Factory setting:
kg/h or US lb/h (country dependent, → Page 71 ff.)
!Note!
If you defined a unit for mass in the SPECIAL UNIT function group (see Page 12) the unit
in question is shown here.
UNIT MASS Use this function to select the unit for displaying the mass.
The unit you select here is also valid for:
• Pulse value (e.g. kg/p)
Options:
Metric →g; kg; t
US →oz; lb; ton
For free selectable units →_ _ _ _
(see function TEXT ARBITRARY MASS on Page 12)
Factory setting:
kg or US lb (country dependent, → Page 71 ff.)
!Note!
If you defined a unit of mass in the SPECIAL UNIT function group (see Page 12) the unit
in question is shown here.
The unit for the totalizer is independent of your choice here, it is selected separately in
the TOTALIZER group (see Page 21).

3 Group SYSTEM UNITS Device Functions Proline t-mass 65
10 Endress+Hauser
UNIT CORRECTED VOL-
UME FLOW
Use this function to select the unit for displaying the corrected volume flow (corrected
volume/time).
The unit you select here is also valid for:
• Current outputs
• Frequency output
• Relay switch points (limit value for corrected volume flow, flow direction)
• Low flow cut off
!Note!
The following units of time can be selected:
s = second, m = minute, h = hour, d = day
Options:
Metric:
Normal liter →Nl/time unit
Normal cubic meter →Nm3/time unit
US:
Standard cubic meter →Sm3/time unit
Standard cubic foot →Scf/time unit
Factory setting:
Nm3/h or Sm3/h (country dependent, → Page 71 ff.)
UNIT CORRECTED
VOLUME
Use this function to select the unit for displaying the corrected volume.
The unit you select here is also valid for:
• Pulse value (e.g. Nm3/p)
Options:
Metric:
Nm3
Nl
US:
Sm3
Scf
Factory setting:
Nm3or Sm3(country dependent, → Page 71 ff.)
!Note!
The unit of the totalizers is independent of your choice here. The unit for each totalizer is
selected separately for the totalizer in question.
Function description SYSTEM UNITS

Device Functions Proline t-mass 65 3 Group SYSTEM UNITS
Endress+Hauser 11
UNIT PRESSURE Use this function to select the unit for pressure.
The unit you select here is also valid for:
• PROCESS PRESSURE on Page 56
• REFERENCE PRESSURE on Page 57
Option:
bar a (bar absolute)
psi a (pounds per square inch absolute)
kPa a (kilopascal absolute)
Factory setting:
bar a or psi a (country dependent, → Page 71 ff.)
UNIT TEMPERATURE Use this function to select the unit for displaying the temperature.
The unit you select here is also valid for:
• Current outputs
• Frequency output
• Relay switch points (limit value for temperature)
Options:
°C (Celsius)
K (Kelvin)
°F (Fahrenheit)
°R (Rankine)
Factory setting:
°C or °F (country dependent, → Page 71 ff.)
UNIT DENSITY Use this function to select the unit for displaying the calculated gas process density.
The unit you select here is also valid for:
• Reference density (see group PROCESS PARAMETERS, Page 57)
Options:
Metric:
gram →g/cm3; g/cc
kilogram →kg/dm3; kg/l; kg/m3
US:
pound →lb/ft3
Factory setting:
kg/m3or lb/ft3(country dependent, → Page 71 ff.)
UNIT LENGTH Use this function to select the unit of length for the pipe internal diameter or rectangular
duct internal dimensions (see group SENSOR DATA on Page 64).
!Note!
This function is available for insertion sensors only.
Options:
MILLIMETER
INCH
Factory setting:
MILLIMETER or INCH (country dependent, → Page 71 ff.)
Function description SYSTEM UNITS

4 Group SPECIAL UNITS Device Functions Proline t-mass 65
12 Endress+Hauser
4 Group SPECIAL UNITS
Function description SPECIAL UNITS
Use this function group to define a freely selectable unit for mass or mass flow
TEXT ARBITRARY MASS Use this function to enter a text for the selectable mass unit / mass flow unit. You define
only the text, the unit of time is provided from a choice of options (s, min, h, day).
User input:
XXXX (max. 4 characters)
Valid characters are A-Z, 0-9, +, –, decimal point, blank space or underscore
Factory setting:
“_ _ _ _” (No text)
Example:
If your text entry is “CENT” (for centner), this text string appears on the display complete
with the unit of time, e. g. “CENT/min”:
CENT = Mass (text input)
CENT/min = Mass flow as shown (on the display)
FACTOR ARBITRARY
MASS
Use this function to define a quantity factor (without time) for the selectable mass unit /
mass flow unit. The mass unit on which this factor is based is one kilogram.
!Note!
This function is not available unless a text was entered in the TEXT ARBITRARY MASS
function.
User input:
7-digit floating-point number
Factory setting:
1.0
Reference quantity:
kg
Example:
One centner is equivalent to 50 kg
→0.02 centner = 1 kg
User input: 0.02

Device Functions Proline t-mass 65 5 Group QUICK SETUP
Endress+Hauser 13
5 Group QUICK SETUP
Function description QUICK SETUP
QUICK SETUP
COMMISSION
Use this function to start the Setup menu for commissioning.
Options:
NO
YES
Factory setting:
NO
!Note!
You will find a flowchart of the Quick Setup Commissioning menu on Page 14. For more
information on Setup menus, please refer to the Operating Instructions Proline t-mass 65,
BA111D/06/en/…
T-DAT
SAVE/LOAD
Use this function to save the parameter settings / configuration of the transmitter in a
transmitter DAT (HistoROM/T-DAT), or to load the parameter settings from the
HistoROM/T-DAT into the EEPROM (manual safety function).
Application examples:
• After commissioning, the current measuring point parameters can be saved to the
HistoROM/T-DAT as a backup.
• If the transmitter is replaced for some reason, the data from the HistoROM/T-DAT can
be loaded into the new transmitter (EEPROM).
Options:
CANCEL
SAVE (from EEPROM to HistoROM/T-DAT)
LOAD (from the HistoROM/T-DAT into EEPROM)
Factory setting:
CANCEL
!Note!
• If the target device has an older software version, the message “TRANSM. SW-DAT” is
displayed during start-up. Then only the SAVE option is available.
•LOAD
This option is only possible if the target device has the same software version as, or a
more recent software version than, the source device.
•SAVE
This option is always available.

5 Group QUICK SETUP Device Functions Proline t-mass 65
14 Endress+Hauser

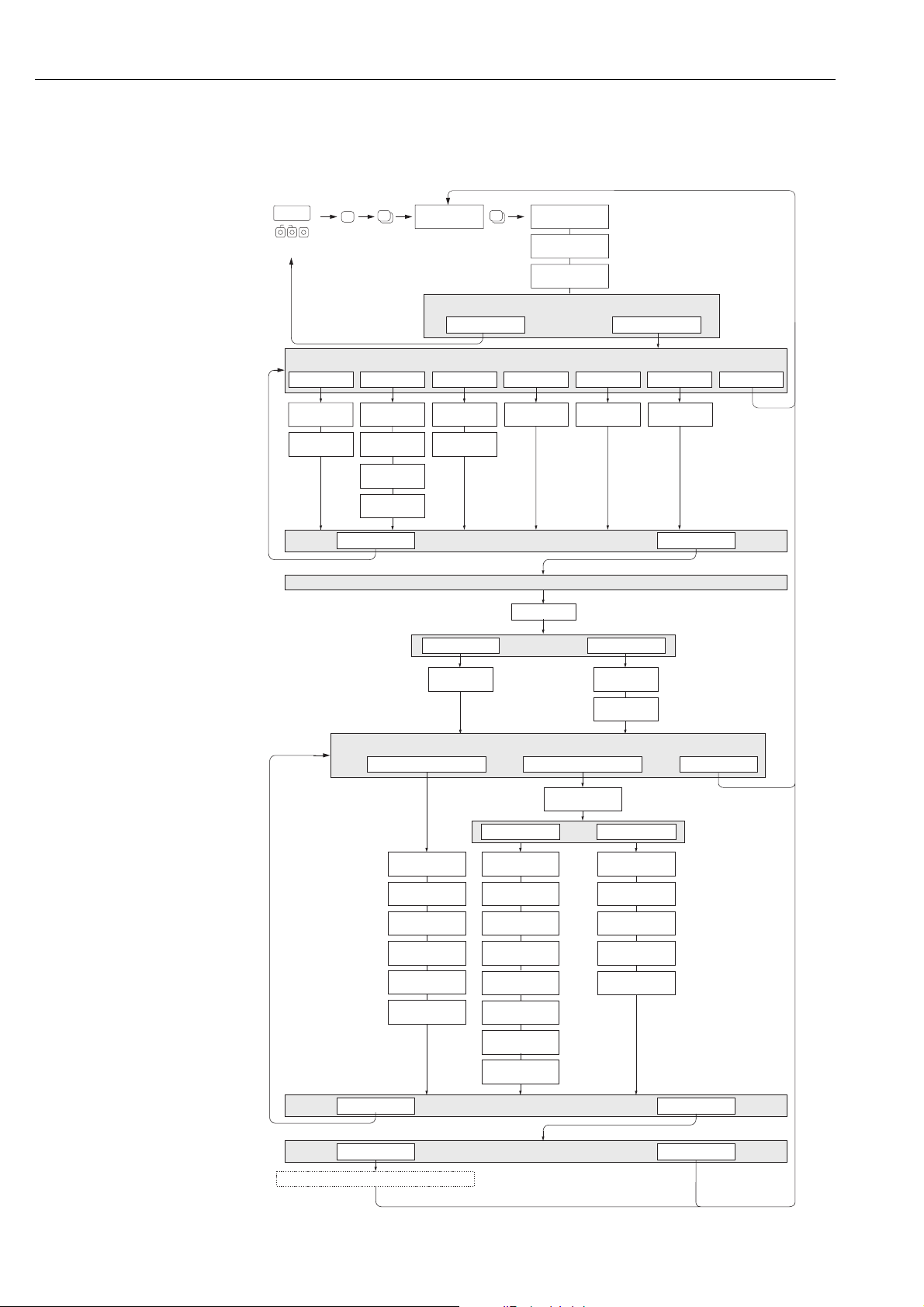

5.1 Quick Setup Commissioning
+
+
E+
E
n
o
s
Esc
E
+
-
XXX.XXX.XX
p
r
m
q
Yes
Yes
Yes
No
No
No
Configure another system unit ?
Current output n Pulse/ output nFreq.
Selection output type
Automatic configuration of display ?
Quit
Assign
Current output
Current span
Value 0/4 mA
Value 20 mA
Time constant
Time constant
Failsafe mode
Failsafe mode
Failsafe mode
Assign
Freq. output
End value freq.
Value f Low
Value f High
Output signal
Assign
Pulse output
Pulse value
Pulse width
Output signal
Operation Mode
Frequency Pulse
Automatic parameterization of the display
Corr. Vol. flow Pressure
Mass flow Density
Selection system units
Temperature Quit
Unit
Corr. Vol. flow
Unit
Mass flow
Unit
Density
Unit
Length
Unit
Totalizer
Unit
Pressure
Unit
Totalizer
Language
Pre-setting
Quick Setup
HOME-POSITION
QS
Commission
Configure another output ?
Length
Unit
Temperature
Selection pre-settings
Reference
Temperature
Reference
Pressure
Process
Pressure
Selection pipe type
Pipe type
Circular Rectangular
Internal
Diameter
Internal
Height
Internal
Width
Failsafe value
Delivery settings Actual settings
A0005093

Device Functions Proline t-mass 65 5 Group QUICK SETUP
Endress+Hauser 15
!Note!
The display returns to the QUICK SETUP cell if you press the ESC key combination (X) during
programming of a parameter anywhere in the menu.
QUICK SETUP - COMMISSION
Use the Oor Skey at the prompt “QS-COMMISSION NO” and the device access code entry
appears. Enter the device access code “65” and press F; programming is enabled. The prompt “QS-
COMMISSION NO” appears. Use the Oor Skey to change NO to YES and press F.
LANGUAGE
Use the Oor Skey to select the required language and continue with F.
PRE-SETTING
SYSTEM UNITS
PIPE TYPE
SELECT OUTPUT
Automatic configuration of the display
The Quick Setup is now complete.
!Note!
• The function UNIT LENGTH is only available if an insertion type sensor is in use.
• The function PIPE TYPE is only available if an insertion type sensor is in use. For more
information, see function group SENSOR DATA.
• The gas process pressure must be entered for all device types in the function PROCESS PRESSURE
except in case of a remote pressure input being used. For more information, see function group
PROCESS PARAMETERS.
m– s: see previous page
mSelect ACTUAL SETTINGS to continue programming the device and go to the next level or
select DELIVERY SETTINGS to reset the device. The device restarts and returns to the Home
position.
– ACTUAL SETTINGS are the actual programmed parameters in the device
– DELIVERY SETTINGS are the programmed parameters (factory settings plus customer
specific settings) originally delivered with the device
Select required system unit function and carry out parameterization or select QUIT to return to the
QUICK SETUP function if no further programming is required.
nOnly units not yet configured in the current setup are available for selection in each cycle.
oThe “YES” option remains visible until all the units have been configured.
“NO” is the only option displayed when no further units are available.
pSelect the type of pipe for setting up the insertion sensor.
– Select CIRCULAR for round pipes or RECTANGULAR for duct systems.
– Use internal dimensions only.
Select output type and parameterize available options or select QUIT to return to QUICK SETUP
function.
qOnly the outputs not yet configured in the current setup are offered for selection in each cycle.
Additional outputs are available if fitted on the device.
rThe YES option remains visible until all the outputs have been parameterized. NO is the only
option displayed when no further outputs are available.
sThe “automatic parameterization of the display” option contains the following basic set-
tings/factory settings:
– YES: main line = MASS FLOW, additional line = TOTALIZER 1
– NO: The existing (selected) settings remain.

6 Group OPERATION Device Functions Proline t-mass 65
16 Endress+Hauser
6 Group OPERATION
Function description OPERATION
LANGUAGE Use this function to select the language for all texts, parameters and messages shown on
the local display.
Options:
ENGLISH
DEUTSCH
FRANCAIS
ESPANOL
ITALIANO
NEDERLANDS
NORSK
SVENSKA
SUOMI
PORTUGUES
POLSKI
CESKY
Factory setting:
Country dependent (see Page 71 ff.)
!Note!
• If you press the OSkeys at startup, the language defaults to ENGLISH.
ACCESS CODE All data of the measuring system are protected against inadvertent change. Programming
is disabled and the settings cannot be changed until a code is entered in this function.
If you press the OSkey in any function the measuring system automatically goes to this
function and the prompt to enter the code appears on the display (programming disa-
bled).
You can enable programming by entering the personal code
(Factory setting = 65, see the DEFINE PRIVATE CODE function)
User input:
max. 4-digit number: 0 to 9999
!Note!
• The programming levels are disabled if you do not press a key within 60 seconds fol-
lowing return to the HOME position.
• You can also disable programming in this function by entering any number (other than
the defined private code).
• Your Endress+Hauser service representative can be of assistance if you lose your per-
sonal code.
DEFINE PRIVATE CODE Use this function to define a personal code number for enabling programming.
User input:
max. 4-digit number: 0 to 9999
Factory setting:
65
!Note!
• If you define the personal code number = 0, the programming is always enabled.
• Programming has to be enabled using the factory setting before this code can be
changed.
When programming is disabled the function can’t be changed, this precaution prevents
others from changing your personal code without your knowledge and consent.
STATUS ACCESS Use this function to check the access status for the function matrix.
Display:
ACCESS CUSTOMER (Parameterization enabled)
LOCKED (Parameterization disabled)

Device Functions Proline t-mass 65 6 Group OPERATION
Endress+Hauser 17
ACCESS CODE
COUNTER
Displays how often the customer code, service code or the digit “0” (code-free) has been
entered to gain access to the function matrix.
Display:
max. 7-digit number: 0 to 9999999
Factory setting:
0
Function description OPERATION

7 Group USER INTERFACE Device Functions Proline t-mass 65
18 Endress+Hauser
7 Group USER INTERFACE
Function description USER INTERFACE
ASSIGN LINE 1 Use this function to define the display value assigned to the main line (the upper line of
the local display) for display during normal measuring operation.
Options:
OFF
MASS FLOW
MASS FLOW IN %
TEMPERATURE
TOTALIZER 1
TOTALIZER 2
CORRECTED VOLUME FLOW
CORRECTED VOLUME FLOW IN %
ACTUAL CURRENT INPUT
Factory setting:
MASS FLOW
!Note!
The function ACTUAL CURRENT INPUT is only available if a current input module is fit-
ted to the transmitter and is enabled (see function ASSIGN CURRENT INPUT, Page 50)
ASSIGN LINE 2 Use this function to define the display value assigned to the additional line (the bottom
line of the local display) for display during normal measuring operation.
Options:
OFF
MASS FLOW
MASS FLOW IN %
MASS FLOW BARGRAPH IN %
TEMPERATURE
TOTALIZER 1
TOTALIZER 2
TAG NAME
OPERATION/SYSTEM CONDITION
CORRECTED VOLUME FLOW
CORRECTED VOLUME FLOW IN %
CORRECTED VOLUME FLOW BARGRAPH IN %
ACTUAL CURRENT INPUT
Factory setting:
TOTALIZER 1
!Note!
The function ACTUAL CURRENT INPUT is only available if a current input module is fit-
ted to the transmitter and is enabled (see function ASSIGN CURRENT INPUT, Page 50)
100% VALUE LINE 1 Use this function to define the flow value to be shown on the display as the 100% value
of the variable assigned to line 1.
!Note!
This function is not available unless one of the following was selected in the ASSIGN
LINE 1 function:
• MASS FLOW IN %
• CORRECTED VOLUME FLOW IN %
User input:
5-digit floating-point number
Factory setting:
• Country dependent: 10 kg/h or 10 lb/h (if MASS FLOW IN % or MASS FLOW BAR-
GRAPH IN % is selected)
• Country dependent: 10 Nm3/h or 10 Sm3/h (if CORRECTED VOLUME FLOW IN %
or CORRECTED VOLUME FLOW BARGRAPH IN % is selected)

Device Functions Proline t-mass 65 7 Group USER INTERFACE
Endress+Hauser 19
100% VALUE LINE 2 Use this function to define the flow value to be shown on the display as the 100% value
of the variable assigned to line 2.
!Note!
This function is not available unless one of the following was selected in the ASSIGN
LINE 2 function:
•MASSFLOWIN%
• CORRECTED VOLUME FLOW IN %
• MASS FLOW BARGRAPH IN %
• CORRECTED VOLUME FLOW BARGRAPH IN %
User input:
5-digit floating-point number
Factory setting:
• Country dependent: 10 kg/h or 10 lb/h (if MASS FLOW IN % or MASS FLOW BAR-
GRAPH IN % is selected)
• Country dependent: 10 Nm3/h or 10 Sm3/h (if CORRECTED VOLUME FLOW IN %
or CORRECTED VOLUME FLOW BARGRAPH IN % is selected)
FORMAT Use this function to define the maximum number of places after the decimal point dis-
played for the reading in the main line.
Options:
XXXXX. - XXXX.X - XXX.XX - XX.XXX -X.XXXX
Factory setting:
XX.XXX
!Note!
• Note that this setting only affects the reading as it appears on the display, it has no
influence on the accuracy of the system's calculations.
• The places after the decimal point as computed by the flowmeter cannot always be dis-
played, depending on this setting and the engineering unit. In these instances an arrow
appears on the display between the measured value and the engineering unit (e.g. 1.2
→ kg/h), indicating that the measuring system is computing with more decimal
places than can be shown on the display.
DISPLAY DAMPING Use this function to enter a time constant defining how the display reacts to severely fluc-
tuating flow variables, either very quickly (enter a low time constant) or with damping
(enter a high time constant).
User input:
0 to 100 s
Factory setting:
3 s
!Note!
Setting the time constant to zero seconds switches off the damping function.
CONTRAST LCD Use this function to optimize display contrast to suit local operating conditions.
User input:
10 to 100%
Factory setting:
50%
Function description USER INTERFACE

7 Group USER INTERFACE Device Functions Proline t-mass 65
20 Endress+Hauser
BACKLIGHT Use this function to optimize the backlight to suit local operating conditions.
User input:
0 to 100%
!Note!
Entering the value “0” means that the backlight is “switched off”. The display then no
longer emits any light, i.e. the display texts can no longer be read in the dark.
Factory setting:
50%
TEST DISPLAY Use this function to test the operability of the local display and its pixels.
Options:
OFF
ON
Factory setting:
OFF
Test sequence:
1. Start the test by selecting ON.
2. All pixels of the main line and additional line are darkened for minimum 0.75 second.
3. Main line and additional line show an “8” in each field for minimum 0.75 second.
4. Main line and additional line show a “0” in each field for minimum 0.75 second.
5. Main line and additional line show nothing (blank display) for minimum 0.75 second.
6. When the test completes the local display returns to its initial state and the setting
changes to OFF.
Function description USER INTERFACE
