VTUVIA V-SN100 User manual

V-SN100
MANUAL
USER

time.
other problems, please contact the dealer or our company in
If you find damage on the surface or the corner, or you meet
[email protected]
Contact information:
CONTACT YOUR INSURANCE COMPANY.
TO DETERMINE IF COVERAGE IS PROVIDED, YOU SHOULD
OF THIS BICYCLE.
ACCIDENTS INVOLVING THE USE.
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR
THIS PRODUCT IS NOT INTENDED FOR OFF-ROADUSE.
IMPORTANT!
Tel: [phone]
check the complete components to ensure your safety.
Before riding, please read the manual carefully, and carefully
every customers, to help them enjoy a good ring.
VTUVIA produces High-quality Bikes&Considerate Service for
the best Ebike companies based on China.
Thank you for purchasing VTUVIA Electric Bikes, we are one of

Battery: 48v/13AH li-ionbattery
Controller: 48v 20A Intelligent brushless
1 :1 intelligent pedal assistant system
Range: 22 miles(electric only), 35miles(pedal assistant)
Charging Time: AC 100v-240v 1.8amps smart charger,5-6 hours
Rear Derailleur: Shimano front 1 and rear 7 outer
23-28MPH
Aluminum alloy mechanical disc brake
Tyres: 27.5*4.0tyre
Frame: 6061 aluminium alloy folding
Front Fork: suspension fork
Front Brake: Karasawa disc brake
Frame:
Stud: Aluminium alloy folding
Seat Post: Aluminium alloy
Seat Cushion: VELO
Shelves: Rear rack
Chain Wheel: Aluminium alloy crank 44T
Colour:
Net Weight: 60lbs
Gross Weight: 65 lbs
365 lbs
Motor:
PAS:
Max Speed:
Rear Lever:
Rear Brake: Karasawa disc brake
Display: LCD
Chain:
Foot: Folding foot
Black
Max
Load:
Main Technical Parameters And Specification
27.5 inch Aluminium alloy
48v 750w rear geared brushless
KMC
Samsung

LCD Display Instruction

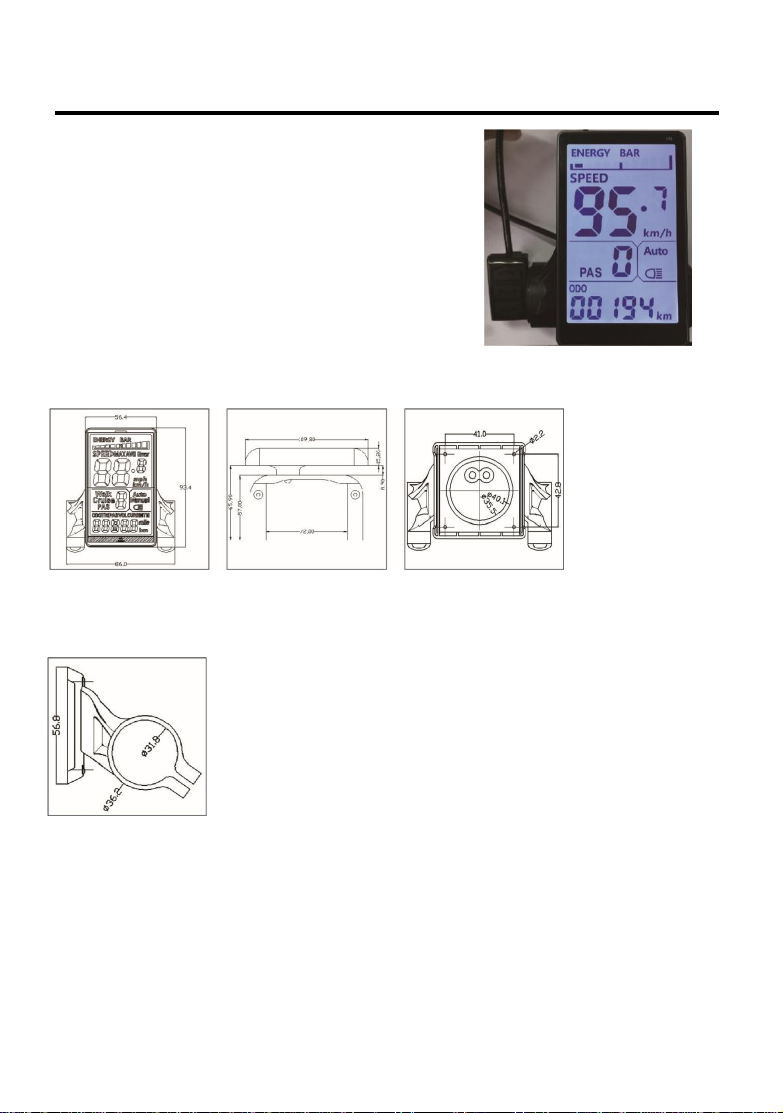

The shell's material is ABS. LCD screen is made of
1.SheIl's Size and
Material
Side View
Front View Front
View of
the
Holder
Side View of the Holder
imported high hardness acrylic, and the hardness
is equal to tempered glass.

LCD Display Instruction
2
7
4
1
3
6
4
5/8
According Wheel size and signal data, the meter could figure out the real speed.
both optional.
Real speed(SPEED), Maximum speed(MAX), Average speed(AVG), MPH, KM/Hare
2.6 Speed
2.5 Pedal assist adjust PAS grades: 0-3, 0-5(default) or 0-9 modes
2.4 E-Bike Mode: Walk Cruise, Auto, Manual(not indicatied)
Current(CUR), Reat Miles(RM), Riding time(TM)
Total Diatance(ODO), Single Trip Distance A/B(TRIPA/TRIPB), Voltage (VOL),
2.3 Multi-functions
2.2 Power status
2.1 Headlight

Error Code Error Status Notes
Normal Status
1Save
2Brakes
3PAS promble(a riding mark) not implemented
46KM/H cruising
5Real-time cruising
6Battery is undervoltage
7Motor's problem
8Throttle's problem
9Contrller's problem
10 Communication Receiving problem
11 Communicaton Sending problem
12 BMS Communication problem
13 Headlight problem
LCD Display Instruction
0
2.7 Error display Meaning of Error Code:
PAS Status (0-9 grades), Cruise mark
2.8 PAS grades

LCD Display Instruction
(Speed limit is for both PAS andThrottle)
the setting of speed limit from KM to Mile, it would be different from the real
P07 Speed measuring magnet. Range: 1-255
Precision:
P05 PAS grades. 0-3, 0-5(default) or 0-9 modes for choiceP06 Wheel size. Unit: inch.
P04 Sleep time. 0 is without sleep, other numbers stand for the sleep time (1-60 min).
P03 Voltage grades. 24V, 36V, 48V. The original voltage is 48V.
2.9 Parameters setting
No-Communication Status (controlled by the meter):
P08 Speed limit. Range: 0-100km/h, 100 means without limit
the driving speed would be ±1km/h (Speed limit is both for PAS and Throttle)
when
less than the speed we set, the meter would turn on PWM output automatically,
When the real speed is over the ones we set, the meter would shut off PWM output;
Communication Status(Controlled by the controller):
The driving speed keeps the same with the ones we set. Random error: ±1km/h.
Notes: These data are based on KM.When changing KM to Mile, the speed value on
the screen would convert to correct Miles automatically, but if you do not change
speed limit in Mile.
P16
Reset ODO. Long press"A" for 5s, ODO could be reset.
P15 Not
implementednow.
P14
The Current-limiting of Controller. The original Current is 12A. Range:1-20A
P13 PAS magnet type. There are 3 types: 5, 8, and 12.
P12 PAS start strength. Range: 0-5
P11 PAS sensitivity. Range: 1-24
2 is driven by PAS & Throttle. Throttle is useless at Zero Start status.
1 is driven by Throttle. PAS is useless at this time.
0 is driven by PAS. Throttle is useless at this time.
P10 Driving mode.
P09 Zero start & Non-zero Start. 0 is Zero Start, 1 is Non-zero Start
P02Unit of the mileage. 0 is KM, 1 is MILE.
P01 Background luminance.1 is the darkest, 3 is the brightest.

LCD Display Instruction
3.3 Specific operation explanations
because it's difficult to operate.)
Long press as a compound button, is mainly used for parameter setting, which could reduce
3.1Duringriding,needchangePAS/Speedgrades,shortlypress"A""V"
3.Button Introductions
misoperation due to complicated operation. (No compound button with short-time press,
Long press "M" to turn ON/OFF the screen.
3.3.4
ON/OFF the screen
3.2 During riding, need change data in Multi-function Area, shortly press "M"; Long press "M",
could switch status between MODE and ON/OFF;
3.3.2 Shift the speed display
grade-1.
Suppose it's PAS mode now,shortly press " A ", PAS grade +1, shortly press"V",PAS
3.3.1 Change PAS grade
When e-bike stops, long press " V" to enter 6KM/H cruising mode. Stop pressing to exit the
3.3.3 ON/OFF 6KM/H cruising, ON/OFF Headlight, Reset ODO
Long press "M"+ " A ", to shift the way of speed display
cruise mode; Long press " A " to turn ON/OFF Headlight and Taillight; At P16, long press
''V"for 5s to reset ODO.
would be shining after modifying, choose the ones you prefer,
On the setting interface, shortly press " A ", " V" or to plus/minus value. Parameters
luminance...(Refer to P01-P16)
Long press " A " + " V" to start setting parameters, such as wheel size(inch), background
3.3.6 Parameters setting
Shortly press "M" to change data.
3.3.5 Change data in multi-function Area.
.
Shortly press "M" to shift to the next parameter, and to save current values
b
at
the same time.
.
Long press "M" to save the value, the shining would stop.
a
buttons,
it would exit and save parameters modified automatically 10s later.
. Press " A " + " V" to exit setting parameters and to save alues.If not press thesec

Connection diagram
