Vulcan-Hart VGCTS16 Manual

TILTING SKILLET
MODEL
VGCTS16 ML-114827
CATALOG OF
REPLACEMENT PARTS
MODEL VGCTS16
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. [phone]
FORM 31046 (11-97)

– 2 –
VGCTS16 TILTING SKILLET REPLACEMENT PARTS
© VULCAN-HART COMPANY, 1997

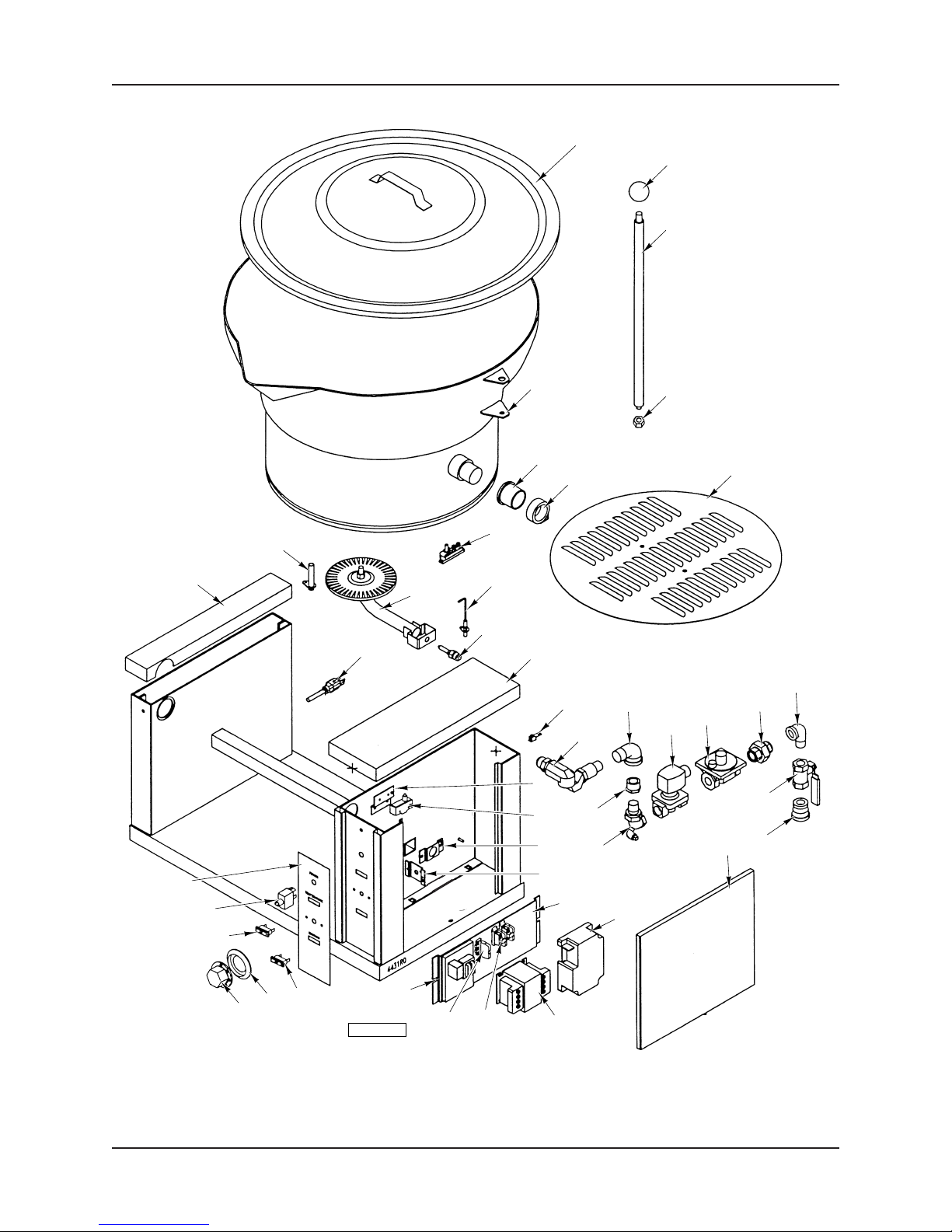

TILTING SKILLET ASSEMBLY
PL-52815
1
2
3
4
6
7
8
11
12-13
14
45
46
47
15
16
17
18 19-20 21
22
23
24
25
26
27
28
29
30
31
32-33
9
10
5
34
35
36
37
38
39
40
41
42
43
44

–3 –
REPLACEMENT PARTS VGCTS16 TILTING SKILLET
TILTING SKILLET ASSEMBLY
ILLUS. PART
PL-52815 NO. NAME OF PART AMT.
1 00-851370 Cover Assy. ..............................................................................................................................1
2 00-836964 Knob .........................................................................................................................................1
3 00-851372 Handle ......................................................................................................................................1
4 00-851373 Nut - Acorn ...............................................................................................................................1
5 00-851393 Cover - Bottom .........................................................................................................................1
6 00-851371 Pan Assembly ..........................................................................................................................1
7 00-851374 Bearing .....................................................................................................................................2
8 00-851392 Collar - Actuator .......................................................................................................................1
9 00-844367-00064 Thermostat - Hi-Limit ................................................................................................................1
10 00-851394 Burner .......................................................................................................................................1
11 00-844367-00066 Sensor - Flame .........................................................................................................................1
12 00-851386 Orifice (NAT)(Select as Required)............................................................................................1
13 00-851387 Orifice (LP)(Select as Required) ..............................................................................................1
14 00-851391 Cover - Console (R.H.) .............................................................................................................1
15 00-844367-00008 Lug - Ground ............................................................................................................................1
16 00-850151 Joint - Gas Swivel.....................................................................................................................1
17 00-851017 Elbow - Street 3⁄4.......................................................................................................................1
18 00-844367-00049 Solenoid - Gas..........................................................................................................................1
19 00-844367-00047 Regulator - Gas Pressure (Nat)................................................................................................1
20 00-844367-00048 Regulator - Gas Pressure (LP) .................................................................................................1
21 FP-022-11 Union - Pipe..............................................................................................................................1
22 FP-013-17 Elbow - Street 1⁄2x 90 Deg........................................................................................................ 1
23 00-844367-00059 Valve - Gas Shut-Off ................................................................................................................1
24 00-851531 Coupling - Red .........................................................................................................................1
25 00-851395 Panel - Access .........................................................................................................................1
26 00-851527 Union Elbow .............................................................................................................................1
27 FP-026-20 Bushing - Red 3⁄4to 1⁄2...............................................................................................................1
28 00-851399 Bracket - Switch Mounting........................................................................................................1
29 00-881971 Switch - Limit ............................................................................................................................1
30 00-851398 Bracket - Retaining ...................................................................................................................1
31 00-851397 Spacer - Pot .............................................................................................................................1
32 00-844367-00053 Controller - Potentiometer (120V)(Select as Required)............................................................1
33 00-850545 Control - Pot Clockwise (240V)(Select as Required) ...............................................................1
34 00-851419 Module - Ignition .......................................................................................................................1
35 00-844367-00056 Transformer ..............................................................................................................................1
36 00-844367-00051 Block - Terminal (208V. Thru 480V.) ........................................................................................2
37 00-844367-00052 Section - End ............................................................................................................................1
38 00-851396 Plate - Component Mounting....................................................................................................1
39 00-850589 Light - Pilot (Green)(28V) ......................................................................................................... 1
40 00-844367-00005 Bezel ........................................................................................................................................1
41 00-851401 Dial Assembly...........................................................................................................................1
42 00-844485 Light - Pilot (Red)(120V)...........................................................................................................1
43 00-881970 Switch - Power .........................................................................................................................1
44 00-851400 Label - Control ..........................................................................................................................1
45 00-851389 Cord Set ...................................................................................................................................1
46 00-851388 Coil - Glow ................................................................................................................................1
47 00-851390 Cover - Console (L.H.) .............................................................................................................1
00-851566 Pan - Sliding Drain ...................................................................................................................1
00-850604 Foot - Adjustable ......................................................................................................................4
00-851542 Strainer .....................................................................................................................................1
00-844367-00060 Ignition Wire Harness ...............................................................................................................1
00-850153 Block - Terminal .......................................................................................................................2
00-851322 Boot - Rubber ...........................................................................................................................1
00-850687 Thermocouple ..........................................................................................................................1
00-851402 Thermocouple ..........................................................................................................................1
00-851403 Label - Operation (English) ......................................................................................................1
00-851545 Open Stand W/Sliding Pan and Hose ......................................................................................1
00-850480 Hose .........................................................................................................................................1
00-850700 Clamp - Hose ...........................................................................................................................1

–4 –
VGCTS16 TILTING SKILLET REPLACEMENT PARTS
FORM 31046 NOVEMBER 1997 PRINTED IN U.S.A.
